Whirlpool RC8600XXQ0

Model: RC8600XXQ0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

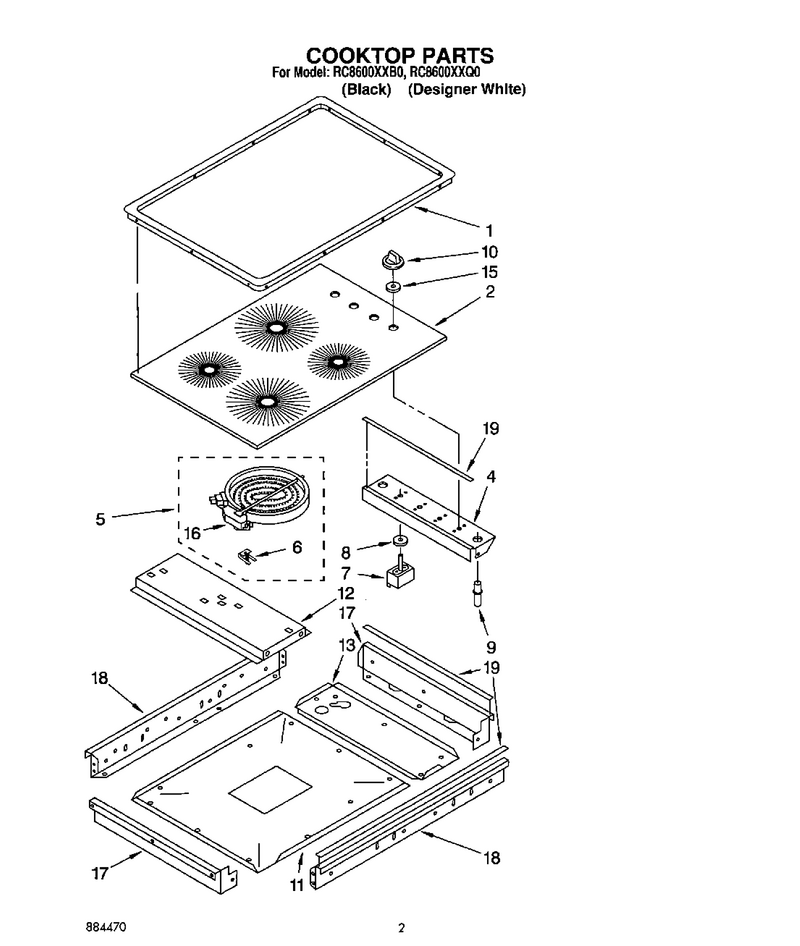

02 - Section

...
...
Wire (14 Ga. 150 C Yellow) WPL-242827
...
1
Trim Ring, Cooktop (White) WPL-3150306
...
2
Cooktop, Glass (Black) WPL-3150192
...
4
Bracket, Switch Mounting WPL-3150328
...
5
Elmnt-Surf WPL-WP8185663
...
6
Spring Locator (8) WPL-3149191
...
7
Switch, Infinite (Use W/2400w Left Front Burner) WPL-3148965
...
8
Switch Gas WPL-31953701
...
9
Light, Indicator WPL-4454437
...
10
Knob WPL-WP3150374
...
11
Cover, Bottom WPL-3150317
...
12
Screw WPL-WP488729
...
13
Screw WPL-WP488729
...
15
Seal, Switch (4) WPL-3182435
...
16
Limiter WPL-3169386
...
17
Rail, Side (Left Hand) WPL-3150326
...
18
Rail, Front & Rear WPL-3183380
...
19
Seal, Silicone (Large (2)) WPL-3188854

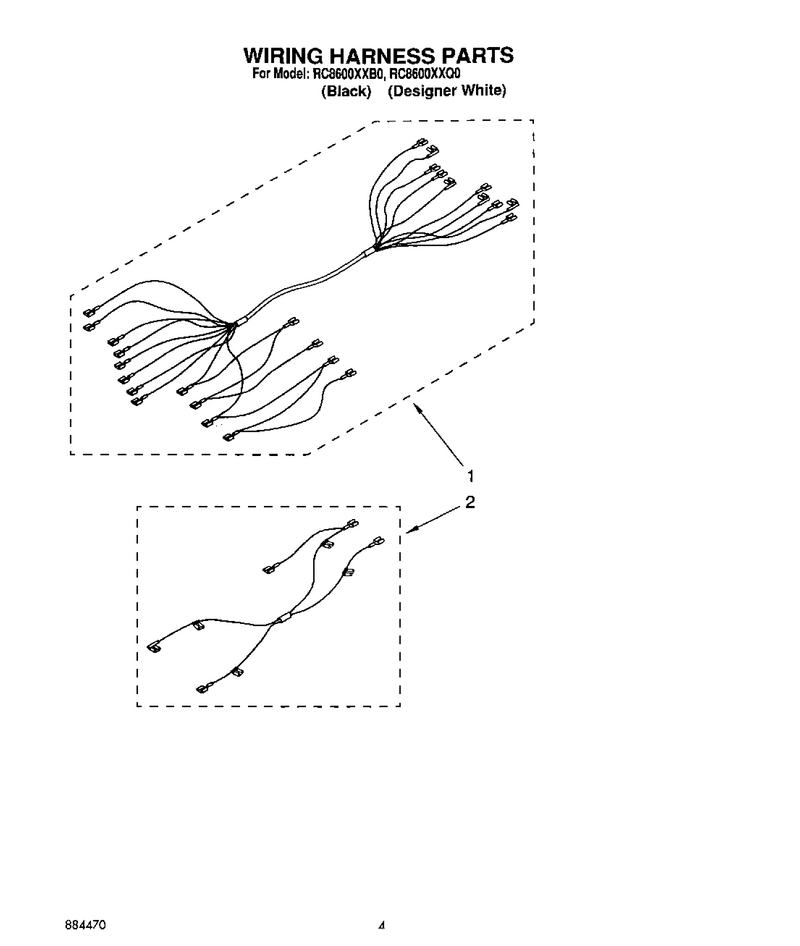

03 - Section

...
...
1
Wiring Harness Surface Unit WPL-3149969
...
2
Screw WPL-WP488729
