Whirlpool RC8536XTB1

Model: RC8536XTB1

Save Part Not Listed?
product name

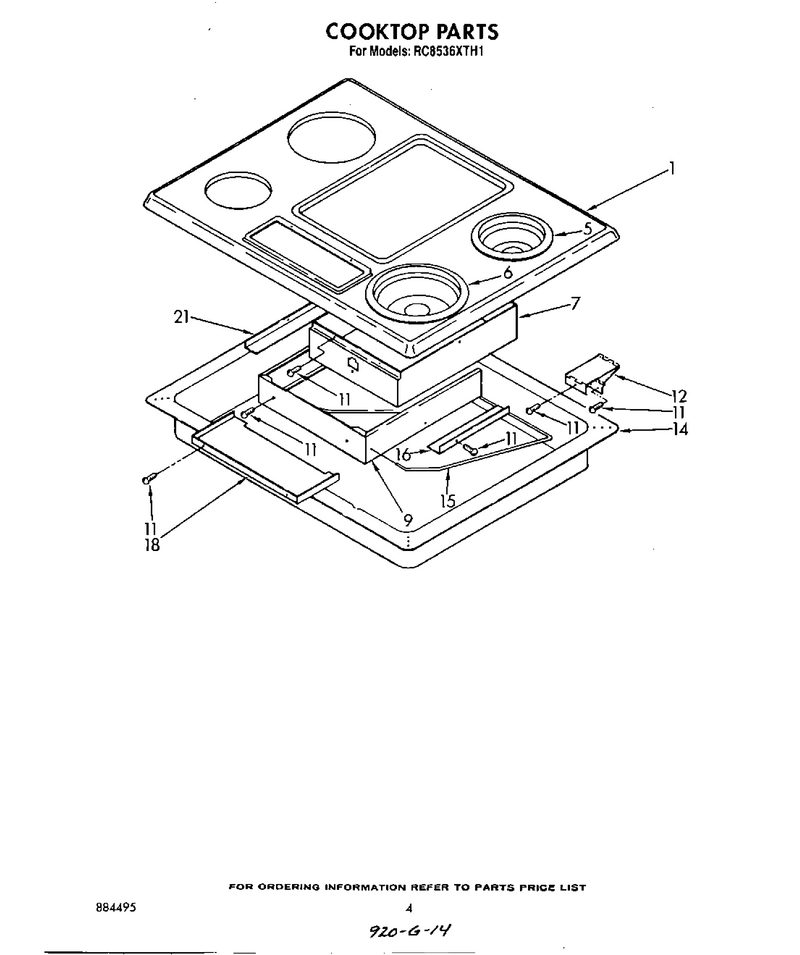

04 - Section

...
...
1
Screw WPL-WPW10068250
...
5
Bowl-Drip WPL-W10196406RW
...
6
Bowl-Drip WPL-W10196405RW
...
7
Screw, 8-18 X 3/8 WPL-4159386
...
9
Screw, 8-18 X 3/8 WPL-4159386
...
11
Screw, 8-18 X 3/8 WPL-4159465
...
12
Screw WPL-4159465
...
14
Box, Burner (Porcelained) WPL-3178713
...
15
Rod, Top Support WPL-4164329
...
16
Cover, Control (Right) WPL-4173215
...
18
Cover, Control (Front) WPL-4173216
...
21
Screw WPL-4159465

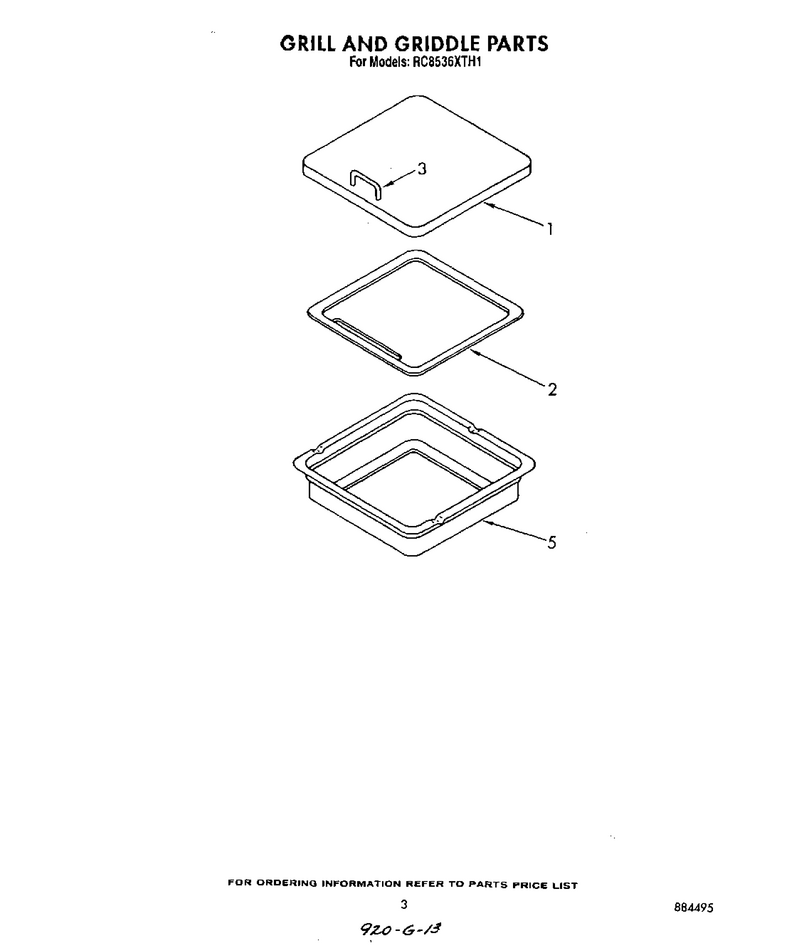

03 - Section

...
...
1
Cover, Grill WPL-4164318
...
2
Griddle - Grill WPL-3177249
...
3
Screw (2) WPL-4159201
...
5
Pan, Grill WPL-3178709

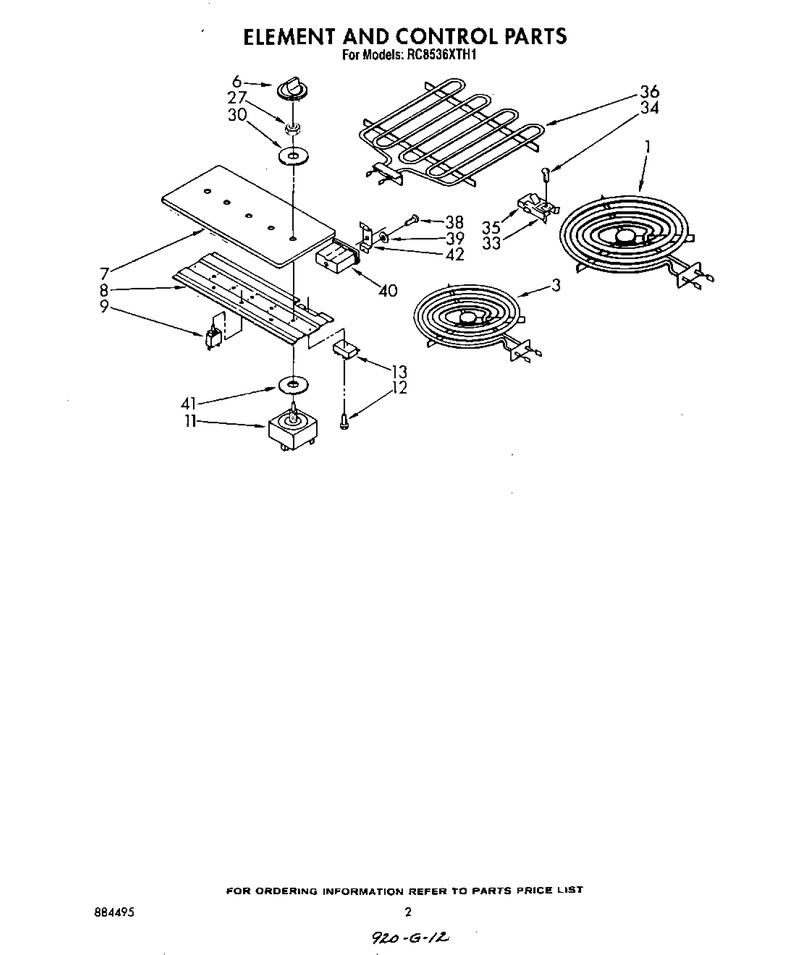

02 - Section

...
...
Installation Instructions WPL-LIT3177126
...
1
Unit, Surface (240v) (8`` (2) (Includes Illus. 29)) WPL-326789
...
3
Elmnt-Surf WPL-WP3191455
...
6
Knob, Control (5) WPL-3177270
...
7
Plate, Control WPL-3177244
...
8
Bracket, Switch Mounting WPL-4454577
...
9
Indicator Light (3) WPL-3177245
...
11
Switch-Inf WPL-W10900107
...
12
Screw, (8 X 1/2) WPL-4159409
...
13
Terminal Block WPL-3177247
...
27
Jam Nut 3/8-24 Hex WPL-4159114
...
30
Washer WPL-4159607
...
33
Clip, Receptacle WPL-4164316
...
34
Screw, 8-18 X 1/4 (4) WPL-4159448
...
35
Receptacle WPL-330031
...
36
Element, Grill (1200 W 240 V.) WPL-3177524
...
38
Screw, (8-18 X 3/8) (2) WPL-4159386
...
39
Lockwasher, 8 Int. Shake- Proof WPL-4173213
...
40
Receptacle, Grill Element WPL-3178640
...
41
Washer WPL-4173369
...
42
Clip, Mounting Ground Pin WPL-4173205
