Whirlpool RC8436XTB0

Model: RC8436XTB0

Save Part Not Listed?
product name

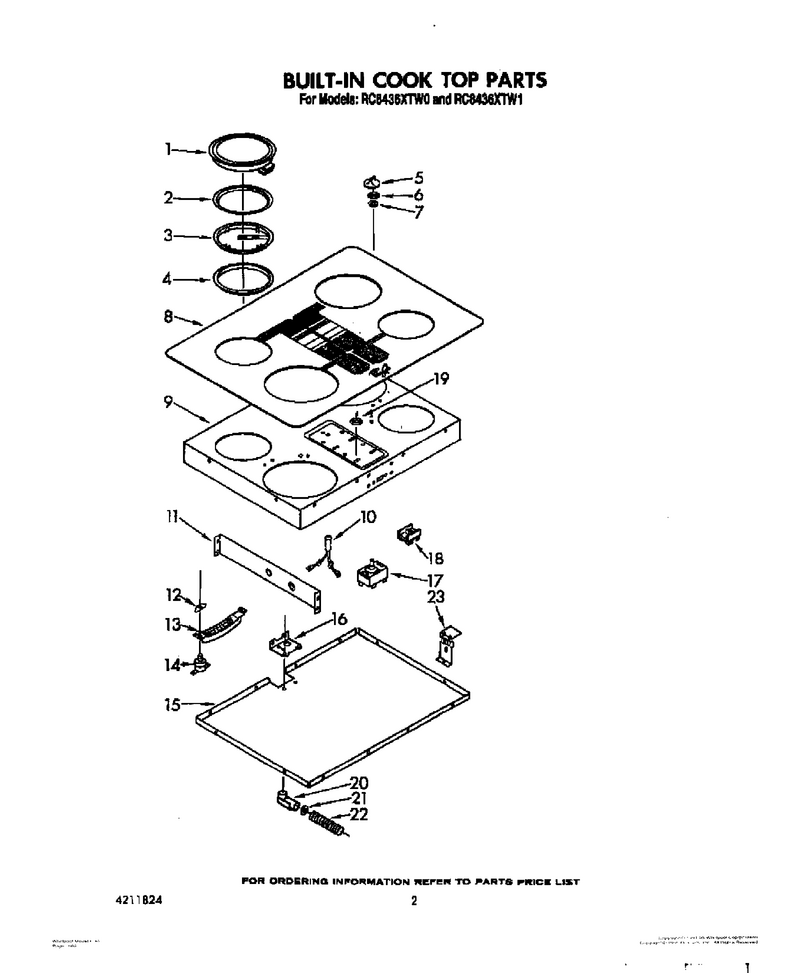

02 - Section

...
...
1
Elmnt-Surf WPL-WP3147132
...
2
Ring, Intermediate 8`` Burner 2.0kw (White) WPL-3179154
...
3
Ring, Gasket (Rear Burner) WPL-3147188
...
4
Gasket (6``(2)) WPL-4211828
...
5
Knob WPL-WP3150373
...
6
Nut WPL-WP422617
...
7
Seal, Shaft (4) WPL-4211860
...
8
Black Rc8436xt1 WPL-4211885
...
9
Lockwasher WPL-WP4159494
...
10
Indicator Light (4) WPL-4211833
...
11
Screw, 10a X 3/8 (2) WPL-254217
...
12
Spring, Leaf WPL-3147191
...
13
Bracket, Mounting WPL-3147703
...
14
Thermostat (2) WPL-3148397
...
15
Screw, 10a X 3/8 (2) WPL-254217
...
16
Bracket, Cable WPL-4211814
...
17
Infinite Switch (4) WPL-4211861
...
18
Screw WPL-486650
...
19
Nut WPL-246172
...
20
90~ Connector WPL-4211815
...
21
Bushing WPL-4211816
...
22
Flex Cord WPL-4211817
...
23
Wire (14 Ga. 150 C Green) WPL-242823
