Whirlpool RC8436XAQ0

Model: RC8436XAQ0

Save Part Not Listed?
product name

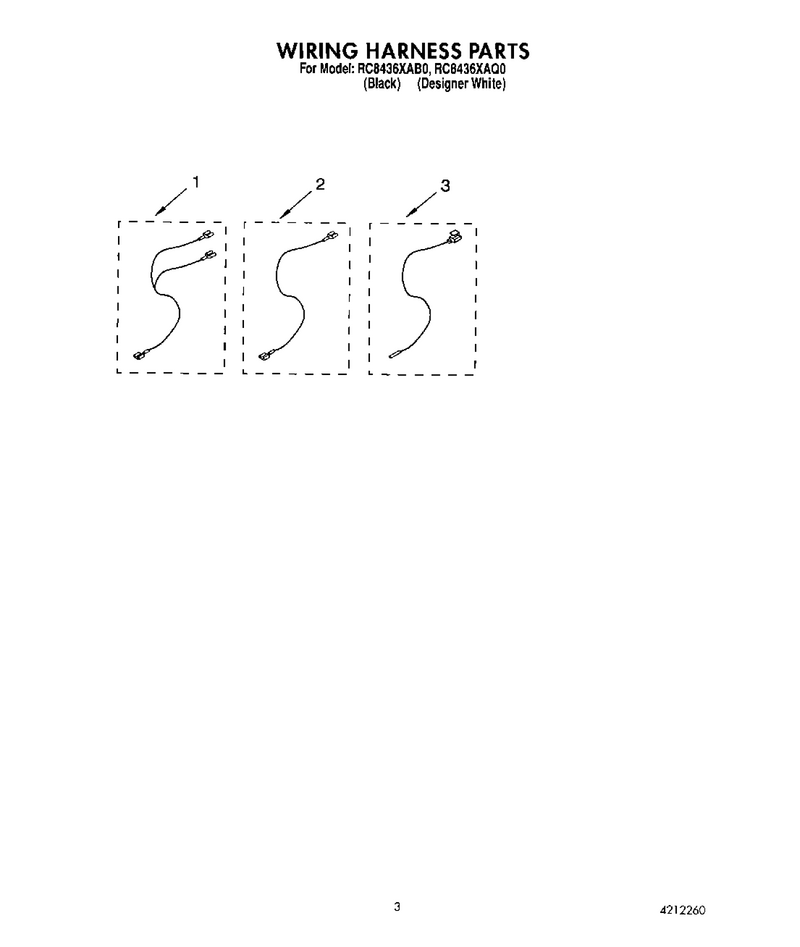

02 - Section

...
...
1
7`` Wire, (4) WPL-9780642
...
2
11`` Wire, Black (4) WPL-9780625
...
3
9`` Wire, Black (4) WPL-9780632

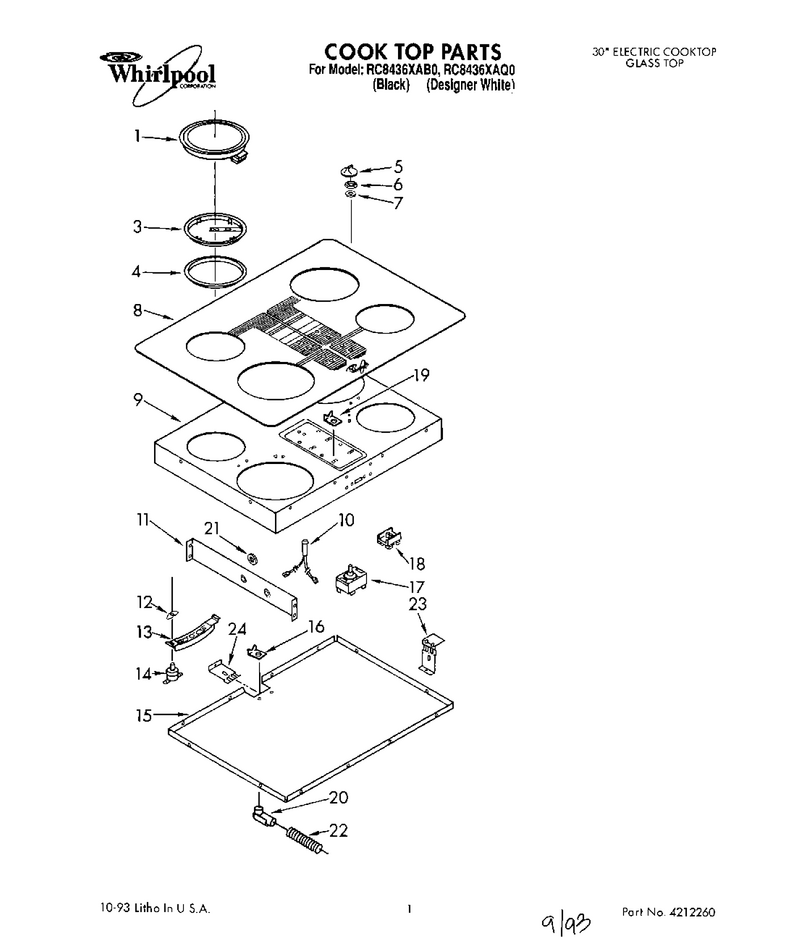

01 - Section

...
...
Wiring Diagram WPL-LIT4212221
...
1
Elmnt-Surf WPL-8203517
...
3
Ring, Gasket (Rear Burner) WPL-3147188
...
4
Gasket (9``, Lf) WPL-4211846
...
5
Knob, Control (4) (White Mdl.) WPL-3183100
...
6
Nut WPL-WP422617
...
7
Seal, Shaft (4) WPL-4211860
...
8
Cooktop, Glass (Black Mdl.) WPL-9751222
...
9
Lockwasher (10) WPL-486009
...
10
Indicator Light (4) WPL-4211833
...
11
Shield, Infinite Switch (2) WPL-4211808
...
12
Spring, Leaf WPL-3147191
...
13
Nut, Metric WPL-3147189
...
14
Thermostat (2) WPL-3148397
...
15
Screw, 10a X 3/8 (2) WPL-254217
...
16
Screw, 10a X 3/8 (2) WPL-254217
...
17
Infinite Switch (3200 Watt) WPL-9751296
...
18
Terminal Block WPL-4211832
...
19
Support, Cooktop WPL-4212110
...
20
90~ Connector WPL-4211815
...
21
Bushing, Wiring WPL-4211816
...
22
Flex Cable WPL-4211817
...
23
Bracket, Burner Box WPL-4211858
...
24
Wire (14 Ga. 150 C Yellow) WPL-242827
