Whirlpool RC8430XTB0

Model: RC8430XTB0

Save Part Not Listed?
product name

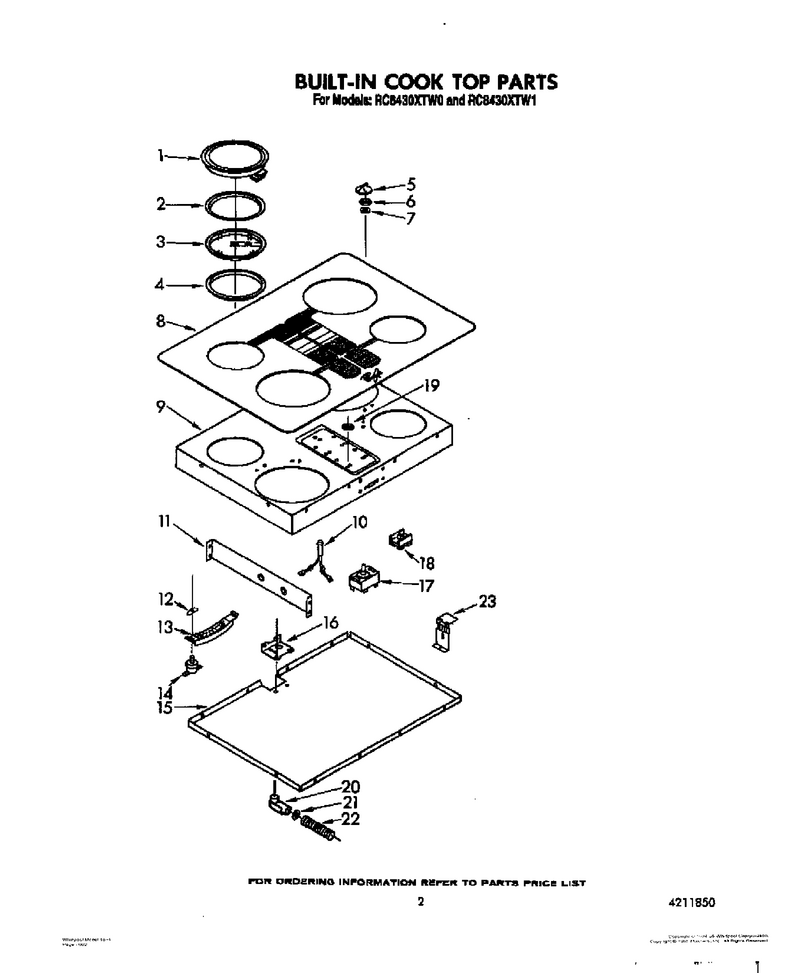

02 - Section

...
...
1
Elmnt-Surf WPL-WP3147132
...
2
Ring, Intermediate 8`` Burner (Black) WPL-3147185
...
3
Ring, Gasket (Front Burner) WPL-3147187
...
4
Gasket (6``(2)) WPL-4211828
...
5
Knob WPL-WP3150373
...
6
Nut WPL-WP422617
...
7
Seal, Shaft (4) WPL-4211860
...
8
Cooktop, Glass (White) WPL-4211826
...
9
Lockwasher WPL-WP4159494
...
10
Indicator Light (4) WPL-4211833
...
11
Screw, 10a X 3/8 (2) WPL-254217
...
12
Spring, Leaf WPL-3147191
...
13
Bracket, Mounting WPL-3147703
...
14
Thermostat (2) WPL-3148397
...
15
Cover, Burner Box WPL-4211823
...
16
Bracket, Cable WPL-4211814
...
17
Infinite Switch (4) WPL-4211859
...
18
Terminal Block WPL-4211832
...
19
Nut WPL-246172
...
20
90~ Connector WPL-4211815
...
21
Bushing WPL-4211816
...
22
Flex Cable WPL-4211817
...
23
Guide, Use & Care WPL-4211800
