Whirlpool RC8330XTB0

Model: RC8330XTB0

Save Part Not Listed?
product name

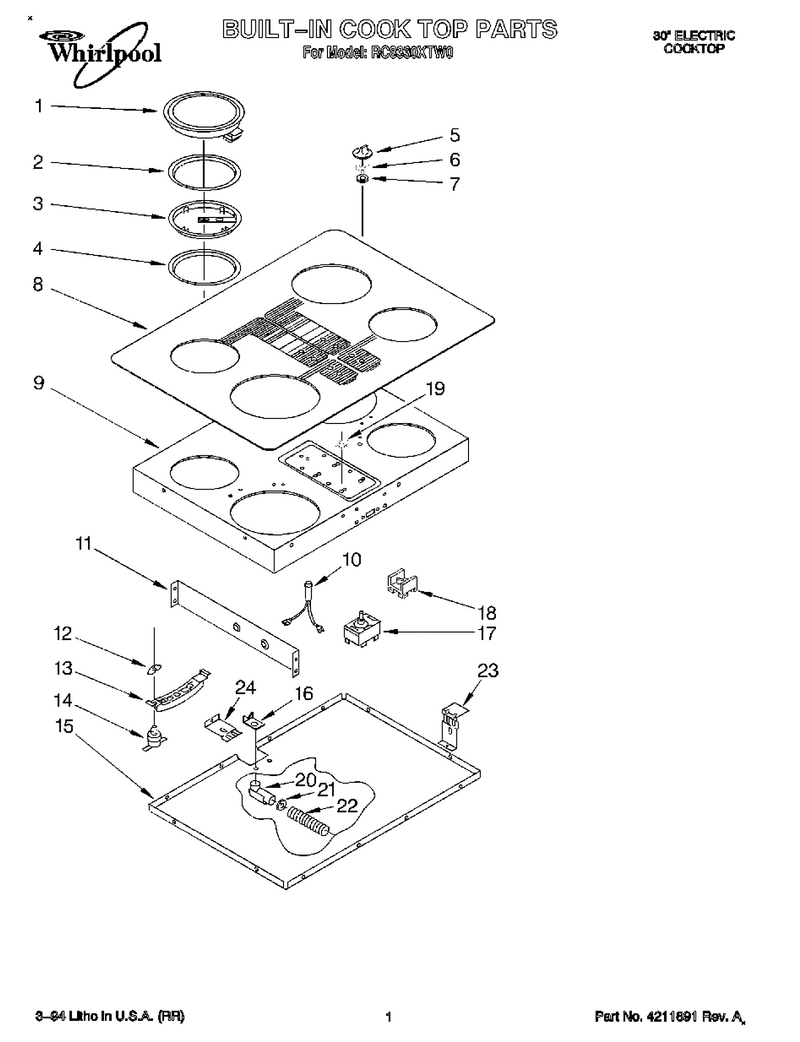

01 - Section

...
...
1
Surface Unit (8`` Lf-Rr) WPL-9780137
...
2
Ring, Intermediate 8`` Burner (Black) WPL-3147185
...
3
Ring, Gasket (Front Burner) WPL-3147187
...
4
Gasket (8`` (2)) WPL-4211834
...
5
Knob, Control (4) (White) WPL-4211884
...
6
Nut WPL-WP422617
...
7
Seal, Shaft (4) WPL-4211829
...
8
Cooktop, Glass (Black) WPL-4211870
...
9
Nut WPL-W10080180
...
10
Indicator Light (4) WPL-4211833
...
11
Screw, 10a X 3/8 (2) WPL-254217
...
12
Spring, Leaf WPL-3147191
...
13
Bracket, Mounting WPL-3147704
...
14
Thermostat (2) WPL-3148397
...
15
Screw, 10a X 3/8 (2) WPL-254217
...
16
Brace, Cable WPL-4211883
...
17
Infinite Switch (4) (1500w (2)) WPL-9750588
...
18
Screw WPL-486650
...
19
Nut WPL-246172
...
20
90~ Connector Non-Serviceable WPL-4211815
...
21
Bushing, Cable Non-Serviceable WPL-4211816
...
22
Flex Cable WPL-4211817
...
23
Bracket, (6) Burner Box WPL-4211858
...
24
Bracket, Cable WPL-4211814

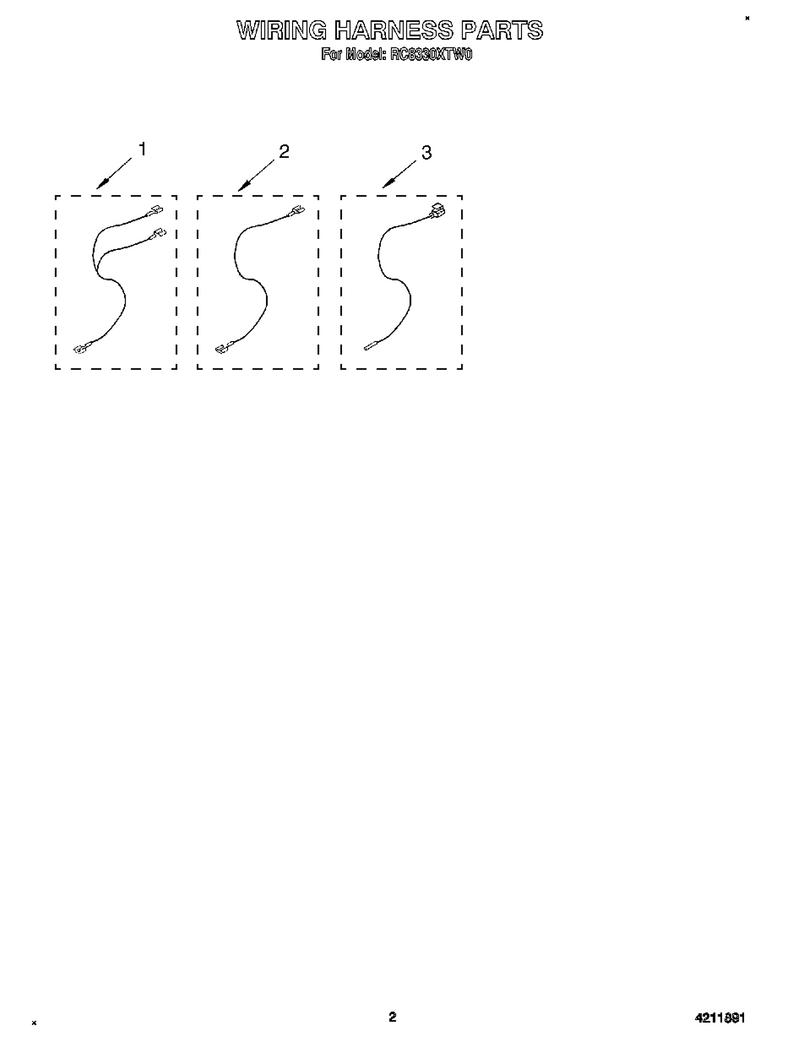

02 - Section

...
...
Installation Instructions WPL-LIT4211880
...
1
7`` Wire, (4) WPL-9780642
...
2
11`` Wire, Black (4) WPL-9780625
...
3
Wire, Yellow 14 Ga. 200~c WPL-242832
