Whirlpool RC8200XYH1

Model: RC8200XYH1

Save Part Not Listed?
product name

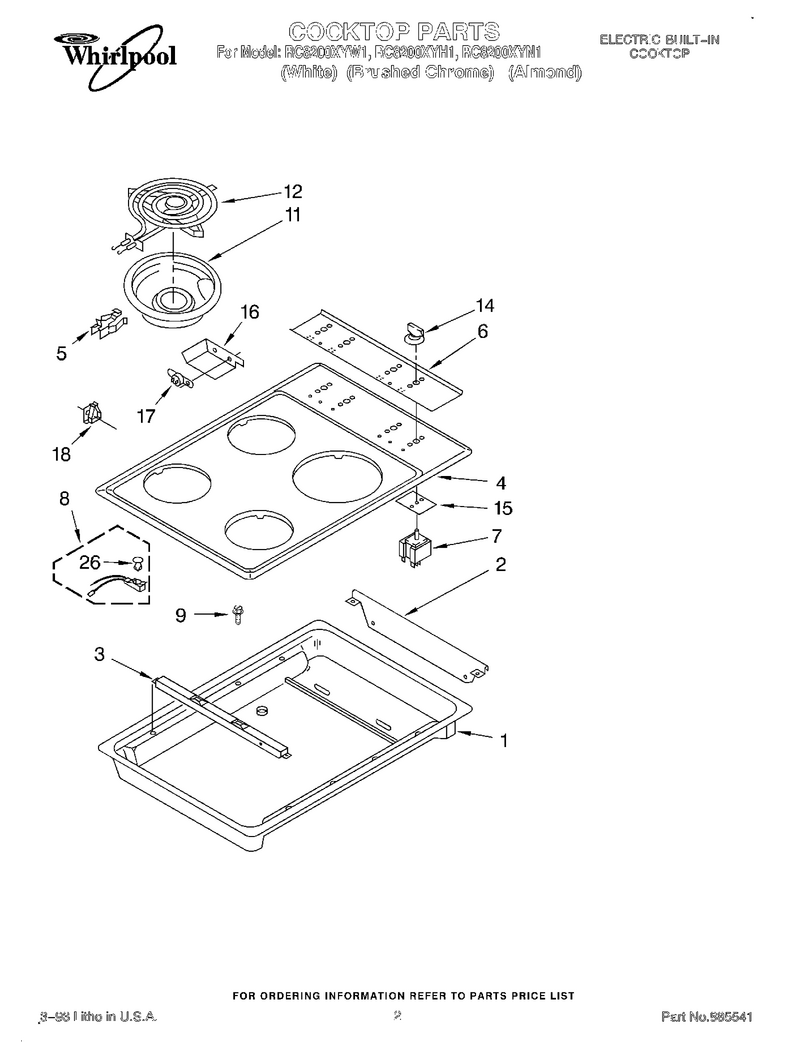

01 - Section

...
...
Repair Parts List WPL-LIT885541
...
1
Burner Box WPL-311017
...
2
Screw WPL-WP488729
...
3
Screw WPL-WP488729
...
4
Cooktop (Brushed Chrome) WPL-3183904
...
5
Screw WPL-WP313808
...
6
Panel, Control WPL-4450908
...
7
Switch-Inf WPL-WP3148966
...
8
Light-Ind WPL-8316805
...
9
Screw WPL-WP488729
...
11
Bowl-Drip WPL-W10196405RW
...
12
Elmnt-Surf WPL-WP660533
...
14
Knob, Control (4) WPL-3183120
...
15
Seal, Switch Shaft (4) WPL-3183956
...
16
Bracket, Sensor WPL-3147830
...
17
Screw WPL-WP313808
...
18
Nut (4) WPL-814103
...
26
Lens-Light WPL-8316786

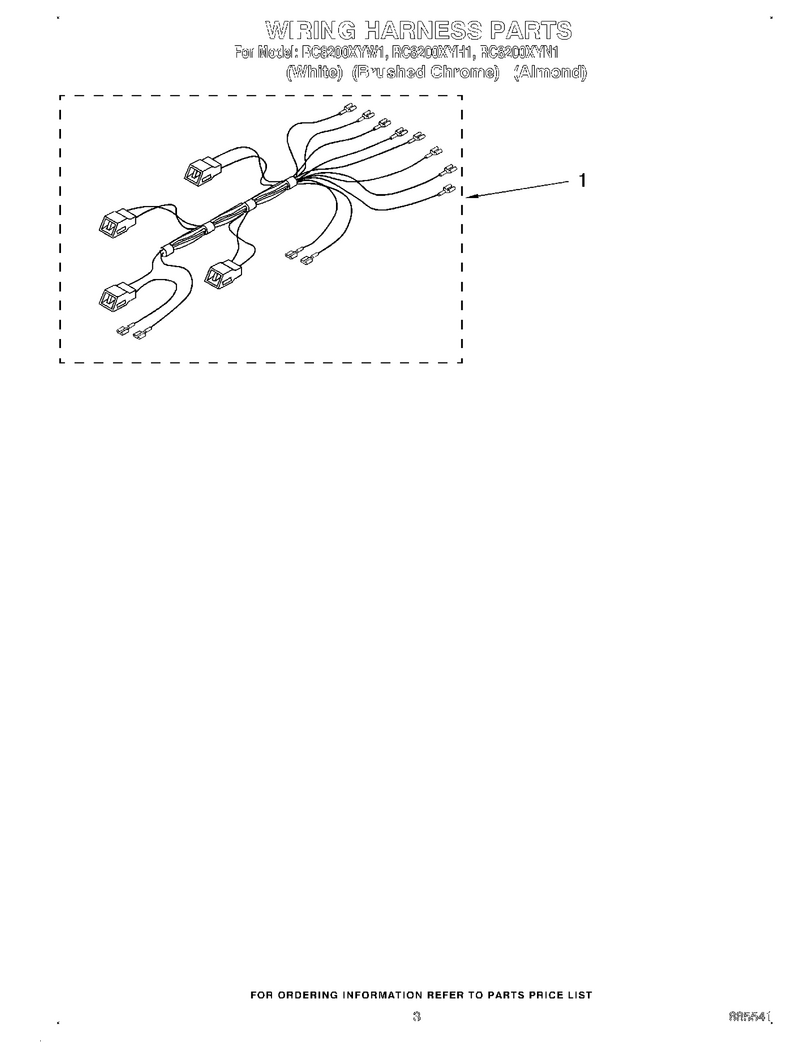

02 - Section

...
...
1
Harness, Wiring (Surface Unit) WPL-3147827
