Whirlpool RC8200XVN1

Model: RC8200XVN1

Save Part Not Listed?
product name

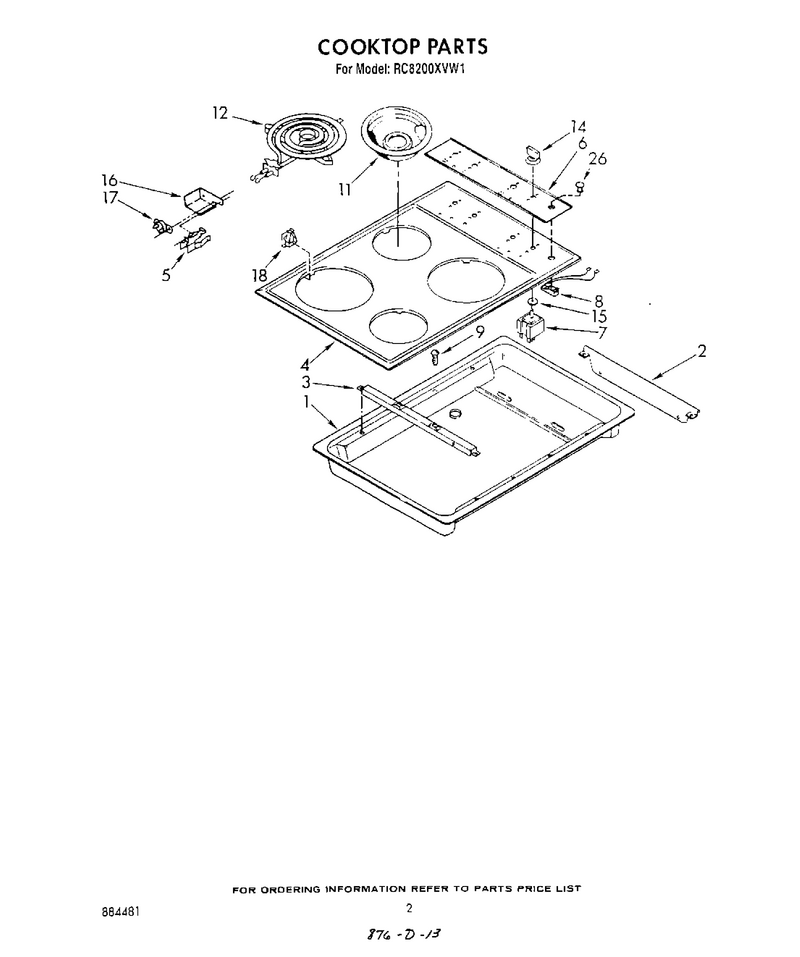

02 - Section

...
...
Book, Cooking Guide WPL-LIT313358
...
1
Burner Box WPL-311017
...
2
Shield, Switch WPL-310716
...
3
Support, Cooktop WPL-310717
...
4
Cooktop (Gold) WPL-3148750
...
5
Screw WPL-WP313808
...
6
Panel, Control WPL-3148705
...
7
Switch, Infinite (Use W/8`` Surface Unit (2)) WPL-3148947
...
8
Light-Ind WPL-8316805
...
9
Screw, 10-24 X 1/2 WPL-486146
...
11
Pan, Surface Unit (6`` (2)) WPL-3150246
...
12
Elmnt-Surf WPL-WP660533
...
14
Knob WPL-WP3150373
...
15
Switch Gas WPL-31953701
...
16
Bracket, Sensor WPL-3147830
...
17
Screw WPL-WP313808
...
18
Nut (4) WPL-814103
...
26
Lens-Light WPL-8316786

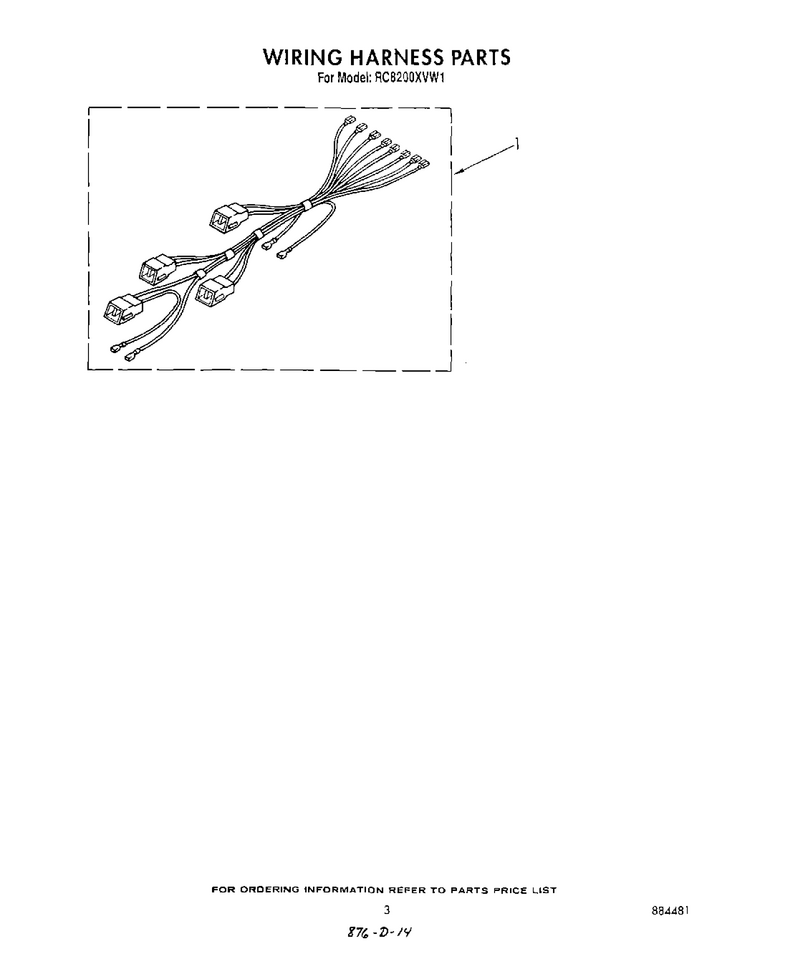

03 - Section

...
...
1
Wire (14 Ga. 150 C Green) WPL-242823
