Whirlpool RB22CKXYW00

Model: RB22CKXYW00

Save Part Not Listed?
product name

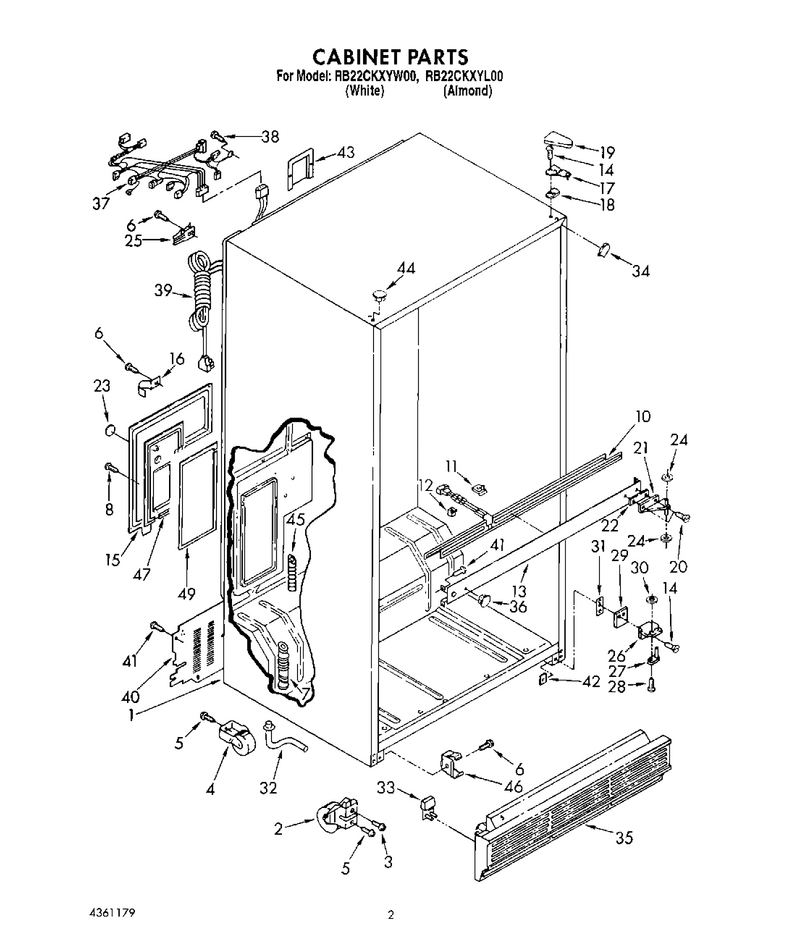

02 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Roller, Front WPL-2152011
...
3
Screw, Adjusting WPL-488681
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw, 1/4-28 X 1/2 (6) WPL-488454
...
6
Screw WPL-WP489478
...
7
Fitting, Drain WPL-942768
...
8
Screw WPL-WP489464
...
10
Heater, Mullion WPL-1105433
...
11
Clip, Mullion (4) WPL-2149060
...
12
Spacer (3) WPL-1115105
...
13
Center Rail (Almond) WPL-1127245
...
14
Screw WPL-489327
...
15
Cover, Flush WPL-2155548
...
16
Tube Clamp (3) WPL-1105607
...
17
Hinge, Top WPL-1123514
...
18
Shim, Hinge Top WPL-1123515
...
19
Hinge Cover (White) WPL-1119787
...
20
Screw WPL-489179
...
21
Hinge-Door WPL-W10851192
...
22
Shim, Center WPL-841604
...
23
Icemaker, Hole Seal WPL-2185731
...
24
Washer WPL-WP488296
...
25
Clamp, Service Cord WPL-549193
...
26
Hinge Butt, Bottom WPL-836159
...
27
Pin-Hinge WPL-WP654366
...
28
Screw WPL-WP488714
...
29
Shim, Bottom WPL-836196
...
30
Washer WPL-WP489200
...
31
Spacer WPL-1129868
...
32
Extension, Drain Tube WPL-1127377
...
33
Corner Filler, Grille WPL-1118078
...
34
Filler, Wrapper (Almond) WPL-2196095
...
35
Grille WPL-WP2155476
...
36
Hole Plug (3) (Almond) WPL-989195
...
37
Cabinet Wiring Assembly WPL-2149887
...
38
Screw WPL-WP250830
...
39
Cord, Service WPL-937360
...
40
Cover, Unit WPL-1105617
...
41
Screw WPL-WPW10141645
...
42
Tap-Plate, Bottom Hinge WPL-2147310
...
43
Cover, Wiring WPL-2149121
...
44
Button-Plg WPL-WP2151652
...
45
Drain, Ferrule Cap WPL-934607
...
46
Clip WPL-WP2155013
...
47
Plug Cover WPL-2155537
...
49
Sealing Gasket WPL-1115322

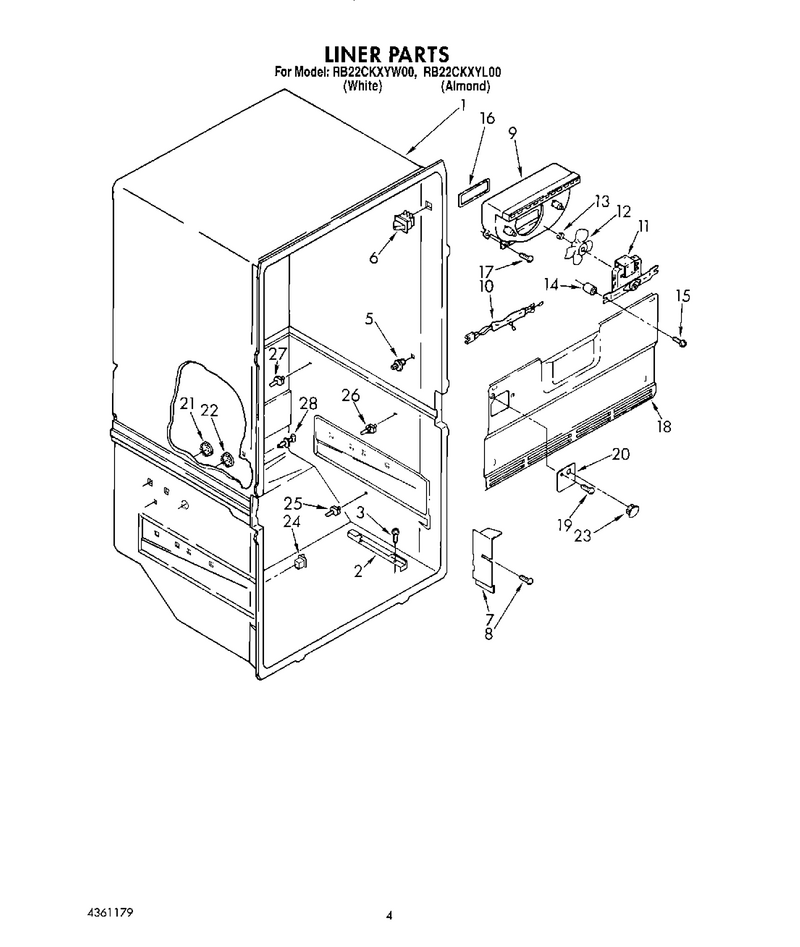

03 - Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Slide, Basket (Right Side) WPL-986382
...
3
Screw WPL-W10759522
...
5
Stud-Shelf WPL-W10854959
...
6
Switch WPL-W11384469
...
7
Electrical Shield Extension WPL-1127396
...
8
Screw, 8-32 X 3/8 WPL-488474
...
9
Scroll, Fan WPL-2149170
...
10
Harns-Wire WPL-WP1127626
...
11
Motor-Evap WPL-4318017
...
12
Blade-Fan WPL-WP992920
...
13
Ring, Compression WPL-992953
...
14
Grommet WPL-WP531933
...
15
Screw (2) WPL-489168
...
16
Gasket, Fan Scroll WPL-1127406
...
17
Screw WPL-WP489478
...
18
Cover, Evaporator WPL-1115004
...
19
Screw WPL-WP488729
...
20
Cover WPL-WP2217784
...
21
Button-Plg WPL-WP941839
...
22
Button-Plg WPL-WP941839
...
23
Hole Plug WPL-1103725
...
24
Switch WPL-W11457217
...
25
Stud-Shelf WPL-W11581579
...
26
Stud-Shelf WPL-W11581579
...
27
Stud-Shelf WPL-819091
...
28
Stud-Shelf WPL-819091

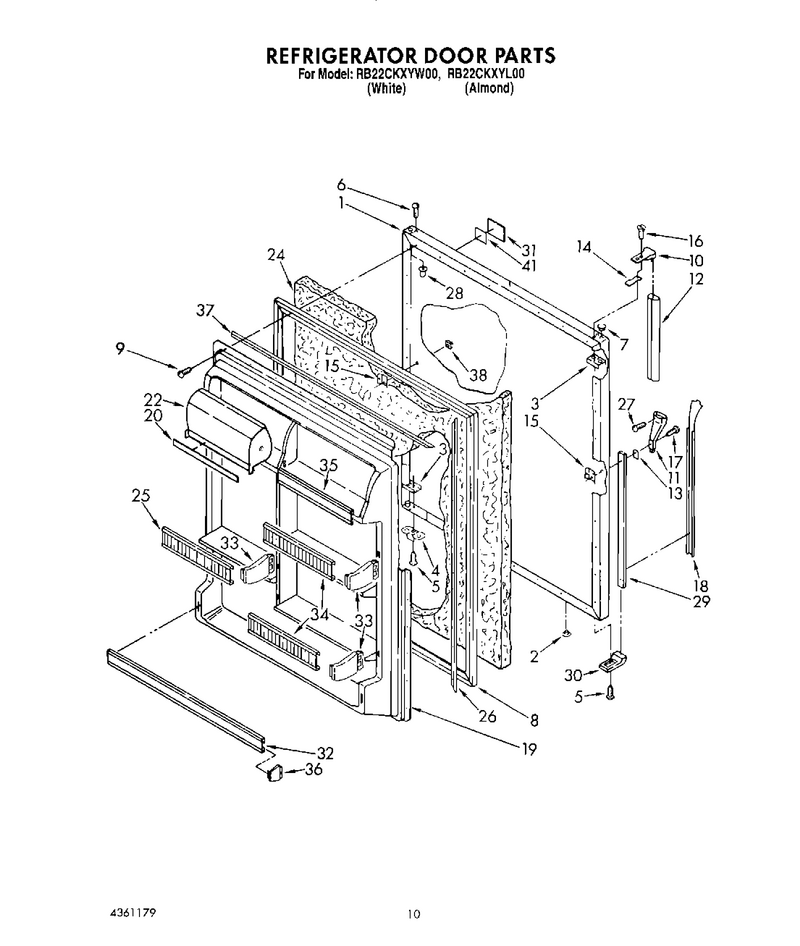

07 - Refrigerator Door

...
...
1
Panel, Refrigerator Door (Also Order Item 24) (White) WPL-1110304
...
2
Hole Plug (2) WPL-534927
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Screw WPL-WP8281206
...
7
Button-Plg WPL-WP2212648
...
8
Door Gasket, Magnetic WPL-2147021
...
9
Screw WPL-WP681414
...
10
Handle End WPL-944157
...
11
Handle End, Side WPL-1109189
...
12
Handle, Center WPL-1109057
...
13
Shim, Handle End (Side) WPL-935075
...
14
Spacer WPL-WP943188
...
15
Plate WPL-WP939101
...
16
Screw WPL-WP488920
...
17
Screw WPL-WPW10141645
...
18
Insert-Hdl WPL-1116179
...
19
Interior Door Panel WPL-2160431
...
20
Trim, Door Compartment WPL-1106959
...
22
Compartment Door, WPL-2152474
...
24
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
25
Trim, Shelf WPL-2152563
...
26
Gasket Retainer, Side (2) WPL-986008
...
27
Screw, 6-20 X 3/8 (2) WPL-489022
...
28
Cap, Hinge Sleeve (4) WPL-509929
...
29
Retainer, Insert WPL-935873
...
30
Endcap WPL-1124684
...
31
Nameplate WPL-2160005
...
32
Trim, Shelf WPL-2152563
...
33
Endcap-Trm WPL-4388286
...
34
Trim, Shelf WPL-2152563
...
35
Trim, Door (2) WPL-1120775
...
36
End Cap, Trim WPL-1115364
...
37
Gasket Retainer, Top & Bottom WPL-836118
...
38
Plug-Hndle WPL-WP2189000
...
41
Tape WPL-978601

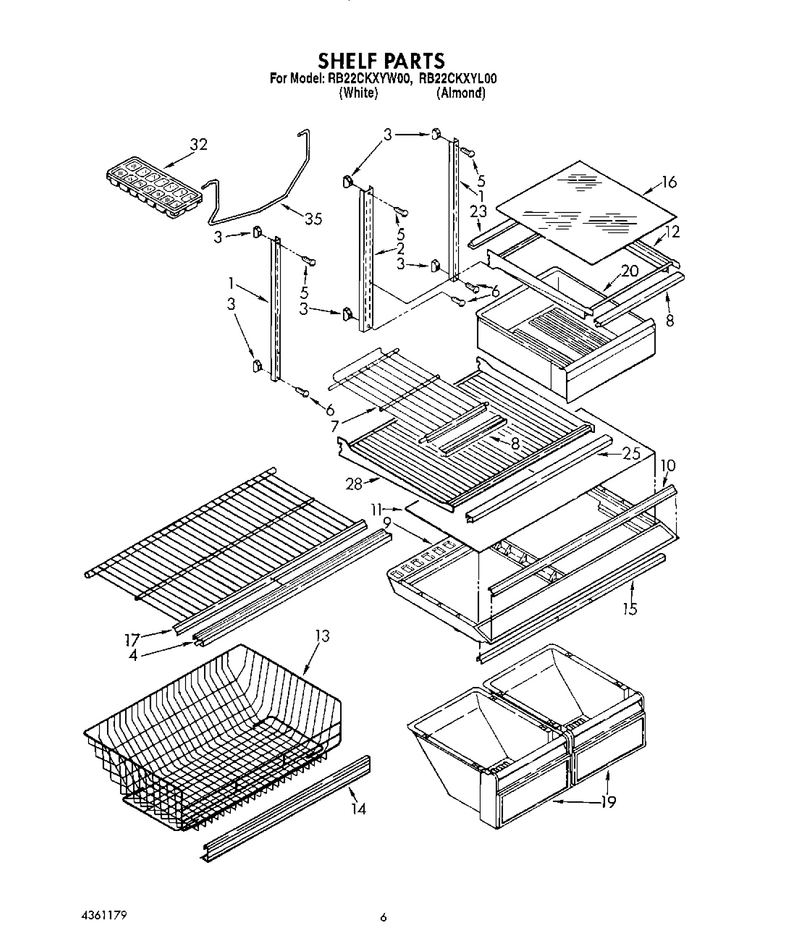

05 - Shelf, Lit/optional

...
...
Service & Wiring Sheet WPL-LIT2149156
...
1
Shelf, Ladder (2) WPL-1127413
...
2
Shelf, Ladder Center WPL-1127414
...
3
Screw, Support (4) WPL-520965
...
4
Trim, Shelf F.c. WPL-2152499
...
5
Screw WPL-489383
...
6
Screw WPL-WP488163
...
7
Shelf, Cantilever WPL-1116229
...
8
Trim, Shelf WPL-1124366
...
9
Cover WPL-WP2151749
...
10
Trim, Crisper Cover WPL-2172711
...
11
Shelf-Glas WPL-WP2164376
...
12
Pan Shelf, Cantilever WPL-1110756
...
13
Freezer Basket, (Lower) WPL-1127250
...
14
Trim, Basket WPL-1127251
...
15
Support WPL-WP2172748
...
16
Shelf-Glas WPL-2164378
...
17
Shelf, F.c. Full WPL-2157066
...
19
Pan-Crispr WPL-1127499
...
20
Pan-Meat WPL-1128591
...
23
Retainer, Shelf WPL-1125525
...
25
Trim, Shelf WPL-1114436
...
28
Shelf, Full Cantilever WPL-1120135
...
32
Tray WPL-WP841180A
...
35
Xenamel, Almond (13 Oz. Spray Can) WPL-350956

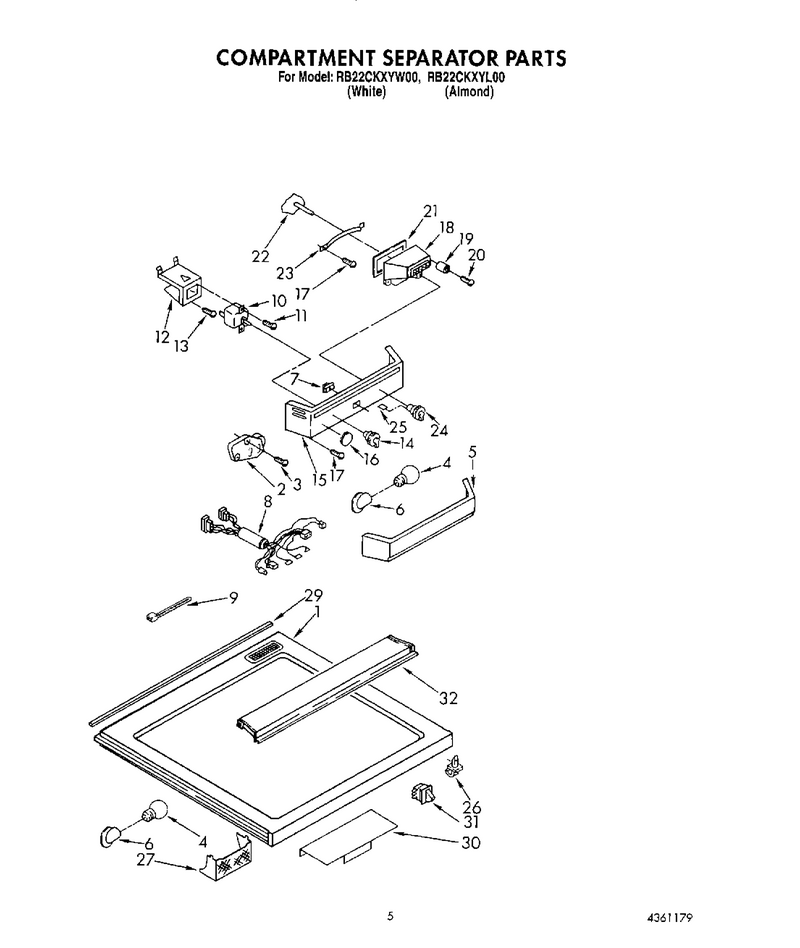

04 - Compartment Separator

...
...
1
Compartment Separator Assembly (Includes Center Rail And Heater Assembly) WPL-1126098
...
2
Timer-Def WPL-W10822278
...
3
Screw WPL-WP488163
...
4
Bulb-Light WPL-W11679940
...
5
Light Lens WPL-983910
...
6
Capacitor (Service) WPL-4387478
...
7
Switch-Pm WPL-WP938213
...
8
Wiring Assembly, Control Box WPL-2147064
...
9
Cable Tie WPL-1102000
...
10
Thermostat WPL-WP819470
...
11
Screw WPL-WP965173
...
12
Bracket, Thermostat WPL-848446
...
13
Screw, 8-32 X 3/8 WPL-488474
...
14
Knob, Temperature WPL-2179551
...
15
Control Panel Assembly (Includes Item 16) WPL-1127261
...
16
Hole Plug WPL-940014
...
17
Screw WPL-WP489478
...
18
Air Diffuser Assembly WPL-2160470
...
19
Spacer (2) WPL-836667
...
20
Screw, 8 X 1-1/4 (2) WPL-488357
...
21
Gasket WPL-1127488
...
22
Damper, Air WPL-984658
...
23
Retainer, Air Damper WPL-836493
...
24
Knob, Air Diffuser (Includes Item 25) WPL-1127263
...
25
Knob, Retainer WPL-837444
...
26
Stud Support (2) WPL-983660
...
27
Light Lens WPL-983359
...
29
Gasket, Comp. Sep. WPL-1116698
...
30
Lens-Light WPL-2149068
...
31
Switch WPL-W11457217
...
32
Seperator Top-Front WPL-1121213

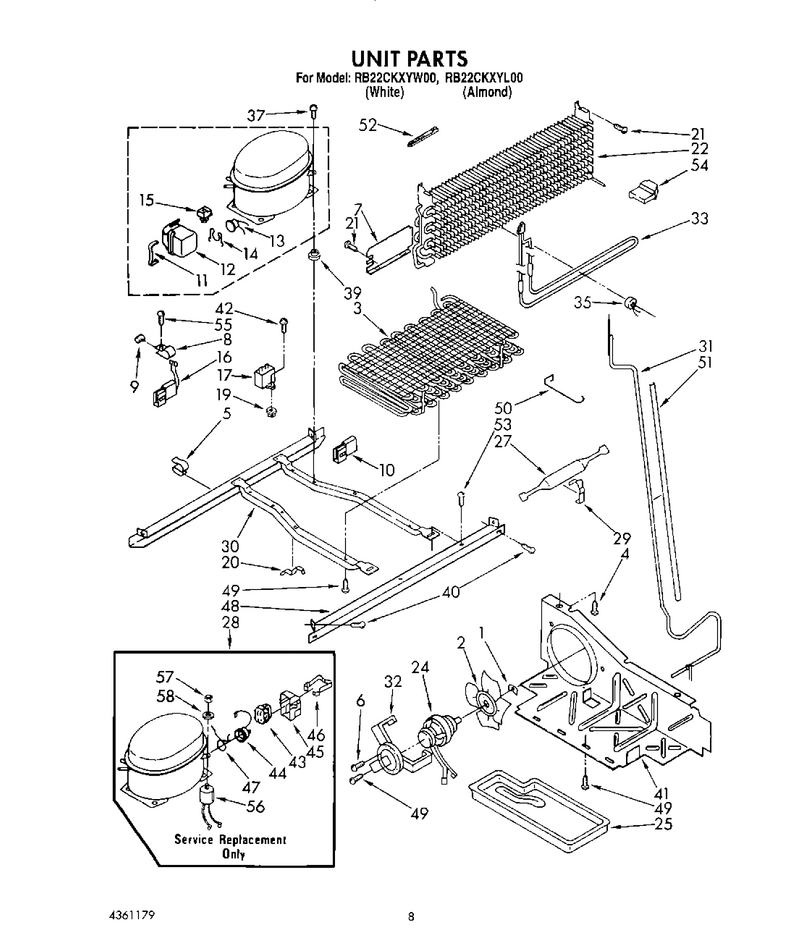

06 - Unit

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP1108179
...
3
Condenser Assembly WPL-1105640
...
4
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
5
Clip, Wire (2) WPL-548745
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Air Baffle, Evaporator WPL-1115006
...
8
Tube Clamp WPL-510716
...
9
Dampener WPL-1108064
...
10
Connector WPL-WP717253
...
11
Spring, Relay Case WPL-943322
...
12
Case, Relay WPL-1105055
...
13
Overload WPL-819100
...
14
Overload Spring WPL-943320
...
15
Relay (Order Overload To Obtain Relay) WPL---
...
16
Housing Plug WPL-1118850
...
17
Capacitor WPL-WPW10662129
...
19
Grommet (4) WPL-937252
...
20
Clip, Unit Cover (2) WPL-548744
...
21
Screw WPL-WP489478
...
22
Evaporator WPL-1114714
...
24
Motor-Cond WPL-833697
...
25
Tray-Evap WPL-WP842041
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10619807
...
29
Clamp, Dryer WPL-1127590
...
30
Unit Mounting Frame WPL-2304903
...
31
Exchanger, Heat WPL-1114723
...
32
Fan, Motor Bracket WPL-548695
...
33
Heater, Defrost WPL-2149065
...
35
Bimetl-Def WPL-WP2182381
...
37
Grommet (4) ((Production)) WPL-876811
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw WPL-489340
...
41
Baffle, Air WPL-1105530-
...
42
Screw WPL-W11693756
...
43
Relay-Strt WPL-WP2262181
...
44
Overload WPL-WP2154697
...
45
For Service Compressor Only WPL-1108115
...
46
Strap WPL-938384
...
47
Overload Spring WPL-1114190
...
48
Unit Mounting Rail WPL-2149717
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1105614
...
51
Sleeve WPL-WP2002171
...
52
Clip, Harness (2) WPL-3391249
...
53
Screw WPL-WP489427
...
54
Support (2) WPL-1115128
...
55
Screw WPL-WPW10141625
...
56
Capacitor WPL-WPW10662129
...
57
Nut WPL-489142
...
58
Valve, Access (5/16``) WPL-978026

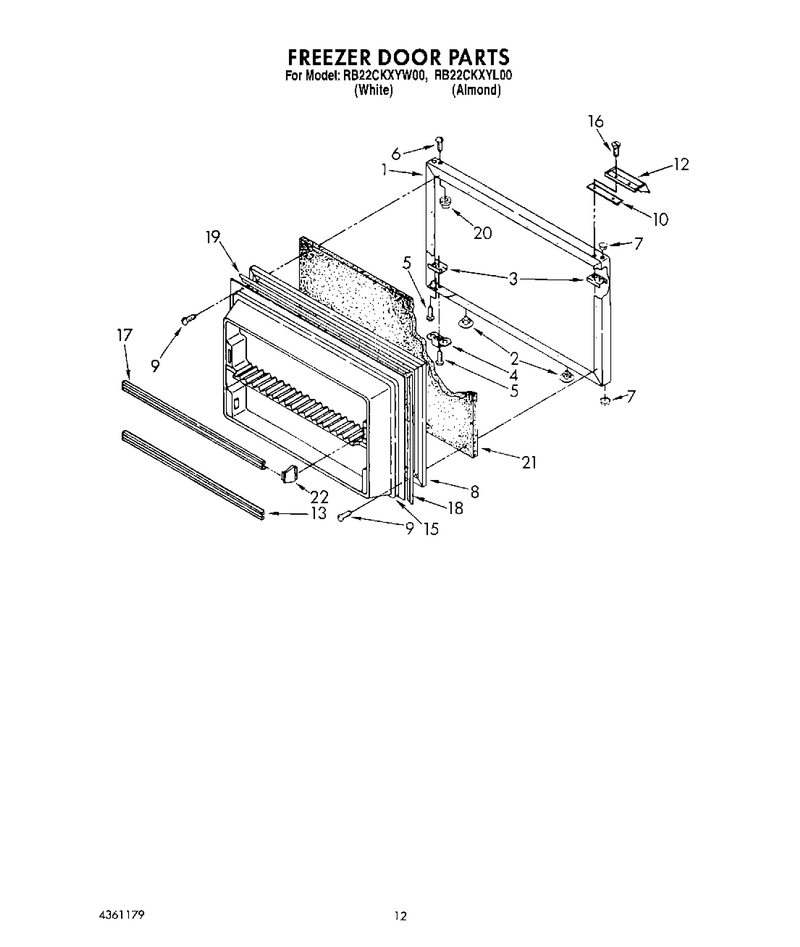

08 - Freezer Door

...
...
1
Plug, Hole WPL-534927
...
2
Plug, Hole WPL-534927
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Screw WPL-WP8281206
...
7
Hole Plug (Almond) WPL-989196
...
8
Gasket-Dor WPL-2188458A
...
9
Screw WPL-WP489069
...
10
Shim WPL-989711
...
12
Handle WPL-978869
...
13
Trim-Door WPL-WP1120826
...
15
Panel-Int WPL-4388060
...
16
Screw, 8 X 5/8 WPL-488933
...
17
Trim, Shelf WPL-2152563
...
18
Gasket Retainer, Side (2) WPL-986015
...
19
Gasket Retainer, Top & Bottom WPL-836118
...
20
Cap, Hinge Sleeve (4) WPL-509929
...
21
Kit, Foam Slab WPL-876029
...
22
Endcap-Trm WPL-4386917
