Whirlpool MT1851XW0

Model: MT1851XW0

Save Part Not Listed?
product name

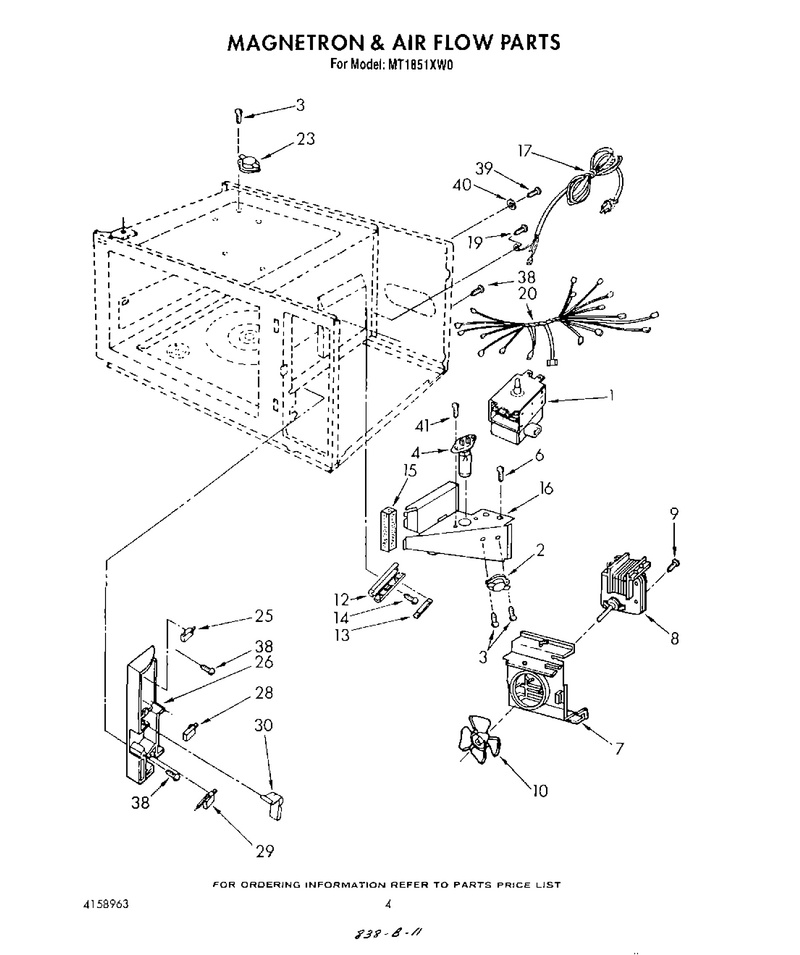

04 - Magnetron And Air Flow , Lit/optional

...
...
Auto Set Chart WPL-LIT4158701
...
1
Magnetron WPL-4158798
...
2
Thermostat WPL-4158474
...
3
Screw No.3x8mm (4) WPL-4158082
...
4
Bulb-Light WPL-815187
...
5
Seal, Duct WPL-4158967
...
6
Screw, No.4 X 8 WPL-4158791
...
7
Bracket, Fan WPL-4158797
...
8
Motor, Fan WPL-4158796
...
9
Screw No.4x28mm (2) WPL-4158189
...
10
Propeller WPL-8184292
...
12
Cap WPL-4358659
...
13
Fuse WPL-4158378
...
14
Screw WPL-WP4158079
...
15
Seal, Foam WPL-4158967
...
16
Air Duct WPL-4158801
...
17
Cord-Power WPL-4359343
...
19
Screw No.4 X 8mm (7) WPL-4158791
...
20
Wiring Harness WPL-4158803
...
23
Thermostat, Oven WPL-4158795
...
25
Switch Micro Primary WPL-4392027
...
26
Latch Board WPL-4158792
...
28
Switch Micro Primary WPL-4392027
...
29
Switch WPL-815118
...
30
Release Rod WPL-4158794
...
38
Screw (5) WPL-4158307
...
39
Screw WPL-4158194
...
40
Washer WPL-4158419
...
41
Screw WPL-W11380570

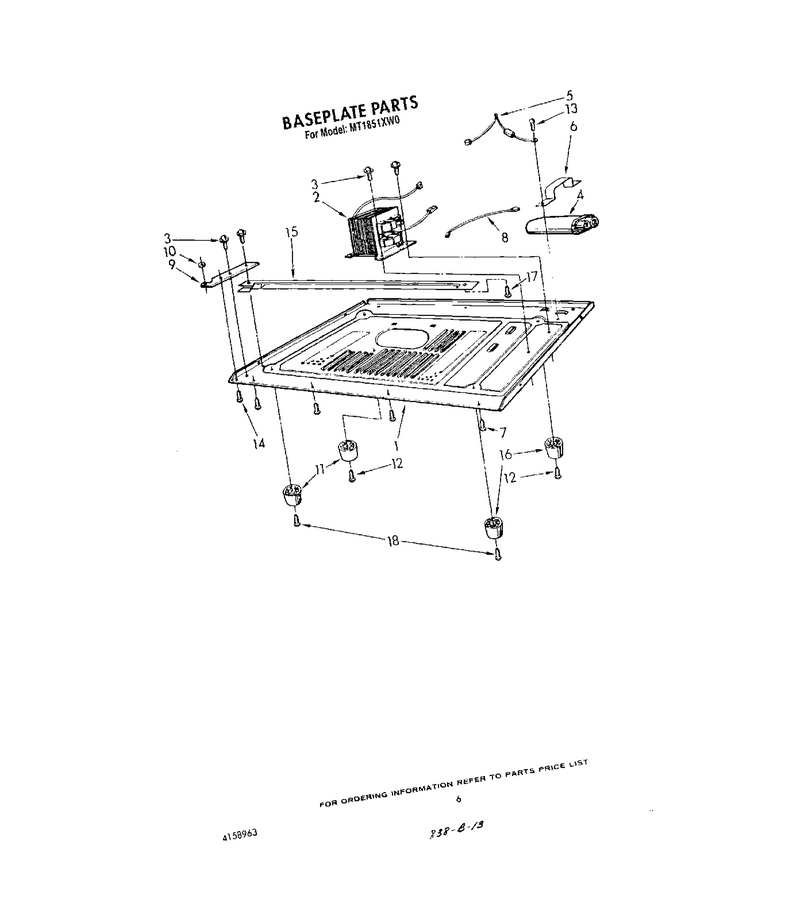

05 - Baseplate

...
...
1
Baseplate WPL-4158619
...
2
Transformr WPL-815116
...
3
Screw WPL-WP3400094
...
4
Capactr-Mg WPL-815123
...
5
Diode WPL-WP4313101
...
6
Bracket, Capacitor WPL-4158799
...
7
Screw WPL-8169474
...
8
H.v. Cable WPL-4158805
...
9
Hinge Plate, Lower WPL-4158784
...
10
Washer, Hinge WPL-4158419
...
11
Leg, Left WPL-4158780
...
12
Screw No.4x16mm (4) WPL-4158472
...
13
Screw WPL-4158791
...
14
Screw, Machine (1) WPL-4158194
...
15
Bracket, Hinge WPL-4158785
...
16
Leg, Right WPL-4158781
...
17
Screw WPL-W11380570
...
18
Screw WPL-8169475

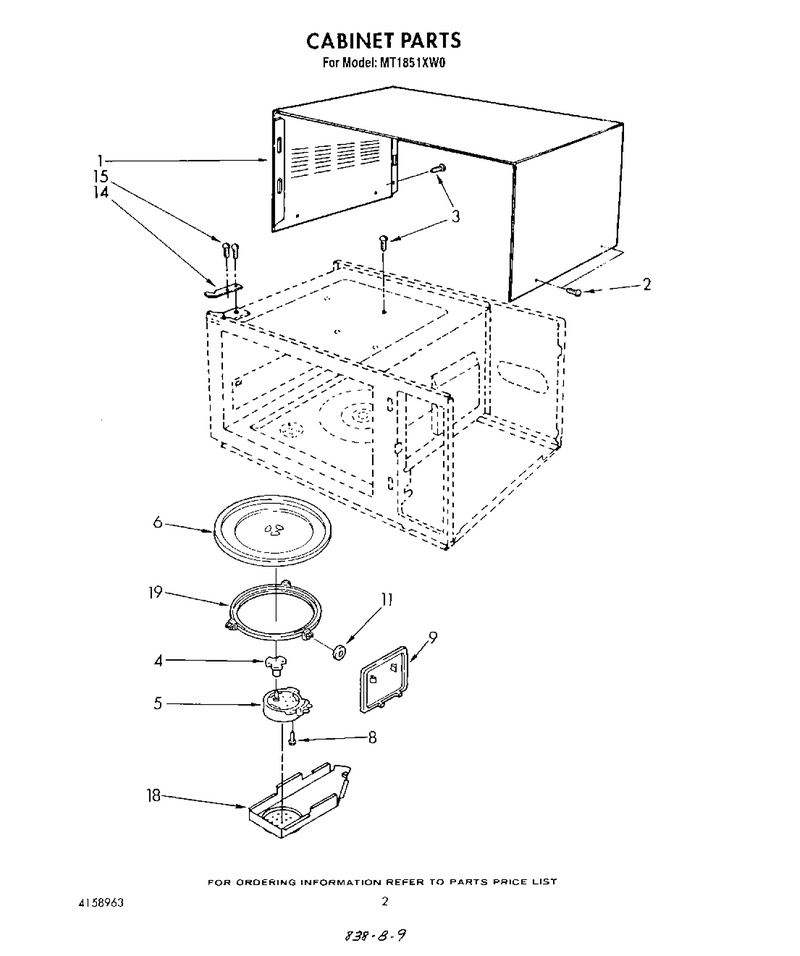

02 - Cabinet

...
...
1
Cabinet Wrapper WPL-4158962
...
2
Screw No.4x12mm (4) WPL-4158084
...
3
Screw WPL-W11380570
...
4
Shaft, Turntable WPL-4158786
...
5
Motor, Turntable WPL-4158782
...
6
Tray-Cook WPL-815108
...
8
Screw WPL-WP4158079
...
9
Cap, Air Guide WPL-4158790
...
11
Roller, Table (3) WPL-4158787
...
14
Hinge, Upper WPL-4158739
...
15
Screw WPL-WP3400094
...
18
Cover, Turntable Motor WPL-4158783
...
19
Base, Turntable WPL-4158788

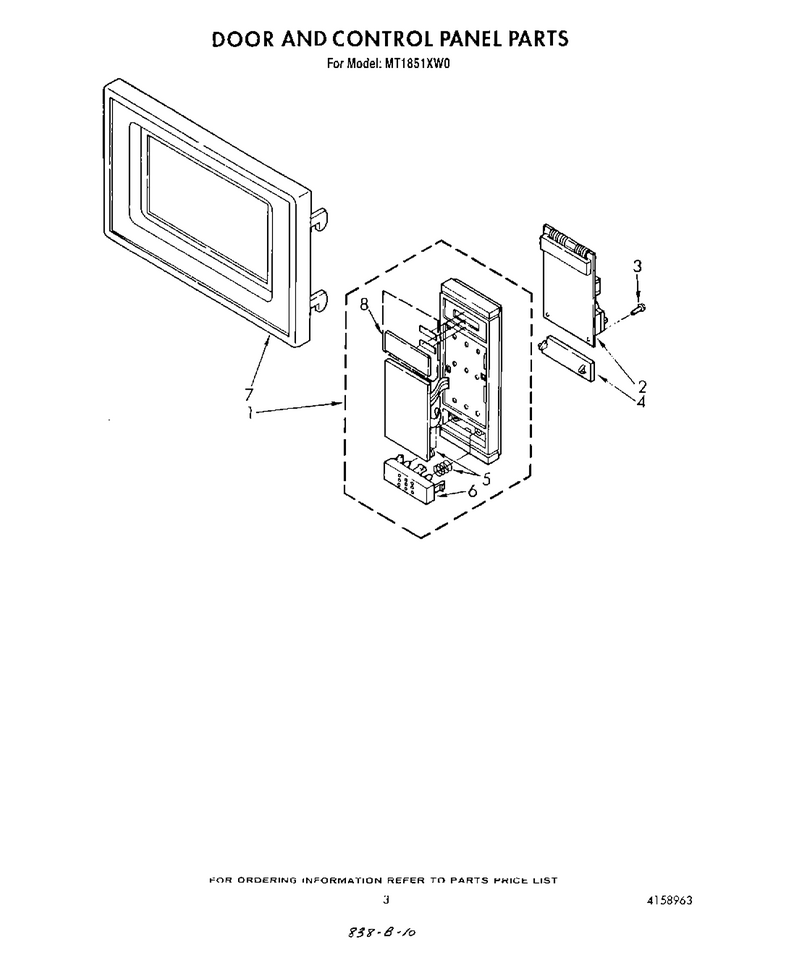

03 - Door And Control Panel

...
...
1
Control Panel Complete WPL-4358126
...
2
Microcptr WPL-4358165
...
3
Screw WPL-8169474
...
4
Lever, Release WPL-4158808
...
5
Spring, Release Button (2) WPL-4158809
...
6
Release Button WPL-4158960
...
7
Door, Complete WPL-4158961
...
8
Digitron Window WPL-4158959
