Whirlpool MHE13XHQ0

Model: MHE13XHQ0

Save Part Not Listed?
product name

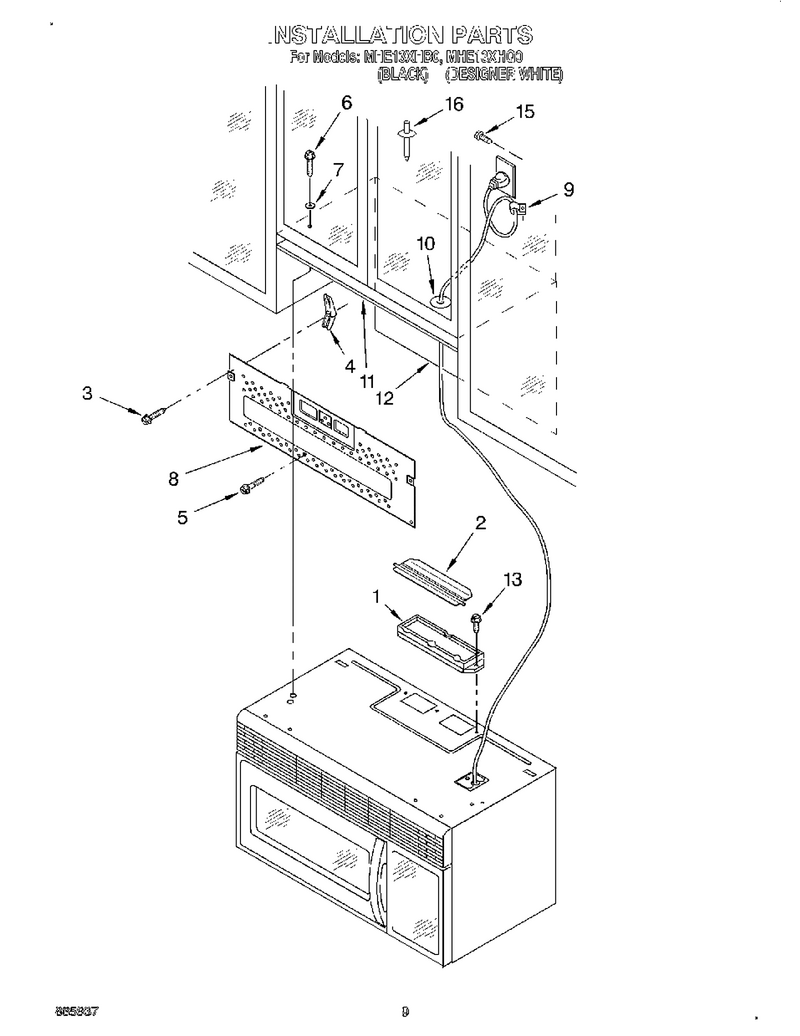

08 - Installation

...
...
1
Adapter WPL-815092
...
2
Exhaust Damper WPL-4158319
...
3
Screw WPL-WP8169704
...
4
Toggle Wing WPL-4158326
...
5
Screw WPL-WP4158323
...
6
Screw WPL-4158315
...
7
Washer WPL-4158314
...
8
Plate, Mounting Wing WPL-4358924
...
9
Clamp, Recirc Hose Retainer WPL-8534021
...
10
Bushing WPL-4358012
...
11
Sheet-Top Cabinet Template WPL-4359560
...
12
Sheet-Wall Template WPL-4359011
...
13
Screw WPL-8169475
...
15
Screw WPL-WP98008545
...
16
Pin, Locking WPL-4358933

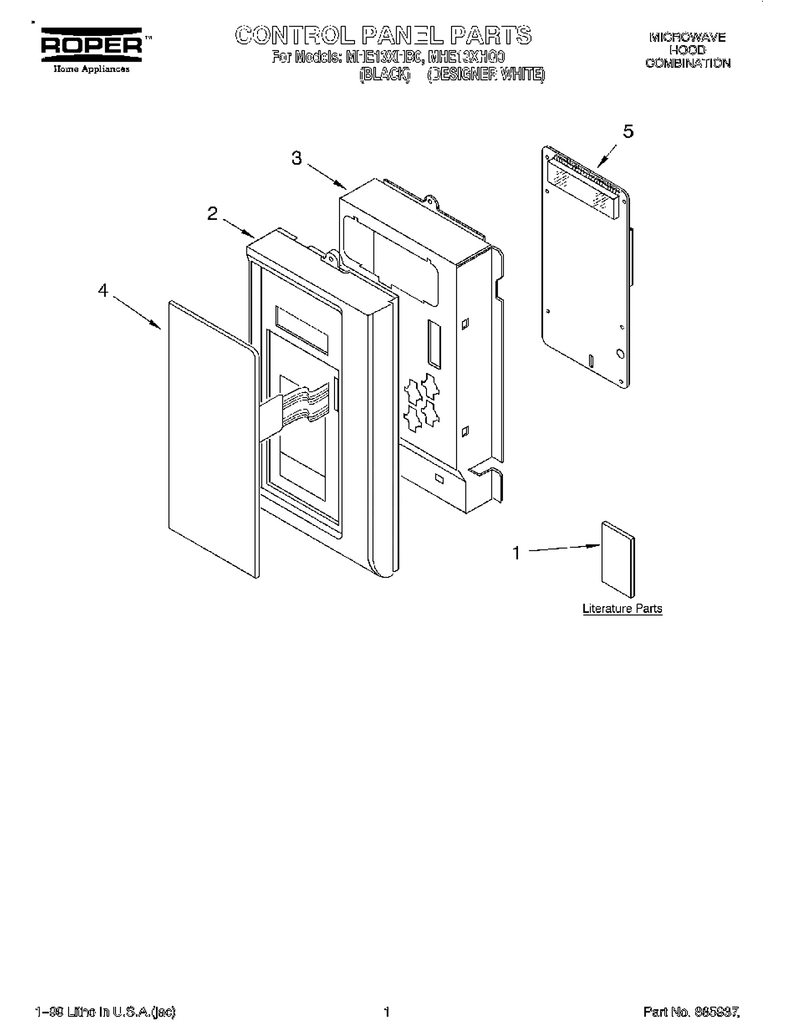

01 - Control Panel, Literature

...
...
1
Literature Parts (Guide, Cooking) WPL-LIT4359931
...
2
Control Panel (Black Model) WPL-4359480
...
3
Bracket, Control WPL-4359481
...
4
Key Membrane (White) WPL-4359989
...
5
Screw WPL-WP4158079

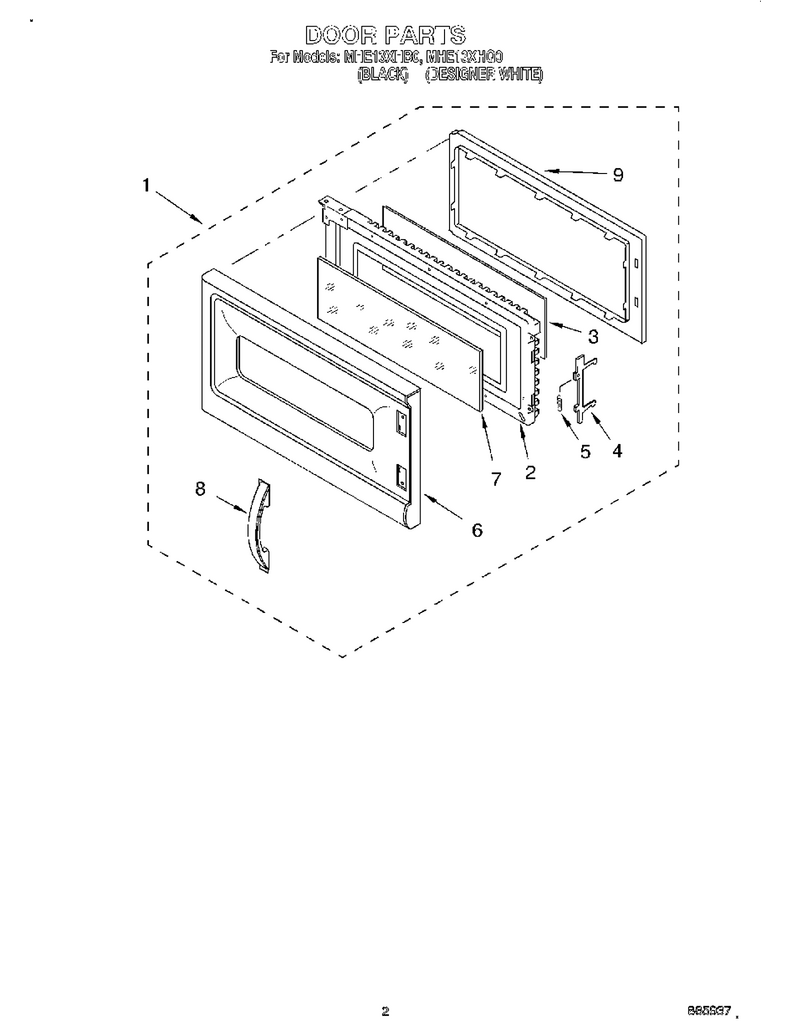

02 - Door

...
...
1
Door Assembly (White) WPL-4359987
...
2
Frame-Door WPL-815139
...
3
Seal-Tape WPL-WPW10146437
...
4
Latch WPL-4359985
...
5
Spring, Latch WPL-4158506
...
6
Door Assembly (White) WPL-8184659
...
7
Glass, Door (White) WPL-4359984
...
8
Handle, Door (Black Model) WPL-4359474
...
9
Choke, Cover WPL-4359476

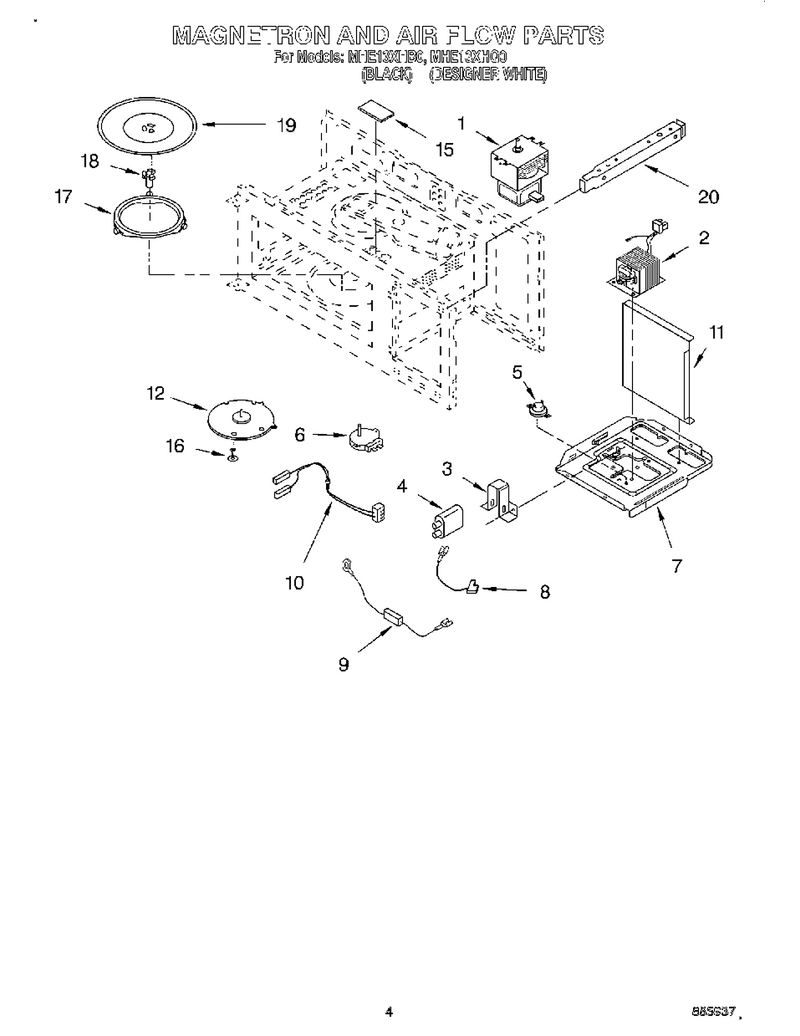

04 - Magnetron And Air Flow

...
...
1
Screw WPL-4344826
...
2
Transformr WPL-815141
...
3
Bracket, H.v. WPL-4359497
...
4
Capactr-Mg WPL-WP815073
...
5
Base Thermostat WPL-4158368
...
6
Motor-Turn WPL-WP815142
...
7
Screw WPL-W11380570
...
8
H.v. Cable WPL-4359501
...
9
Wire-Vltge WPL-WP8205489
...
10
Lead Wire WPL-4359503
...
11
Guide-Air WPL-8184852
...
12
Cover-Stir WPL-WP4359963
...
15
Tape WPL-4359212
...
16
Rivet-Stir WPL-WP4359508
...
17
Rotating Ring WPL-4359509
...
18
Shaft-Turn WPL-WPW10143947
...
19
Tray-Cook WPL-WP8172138
...
20
Plate WPL-4359510

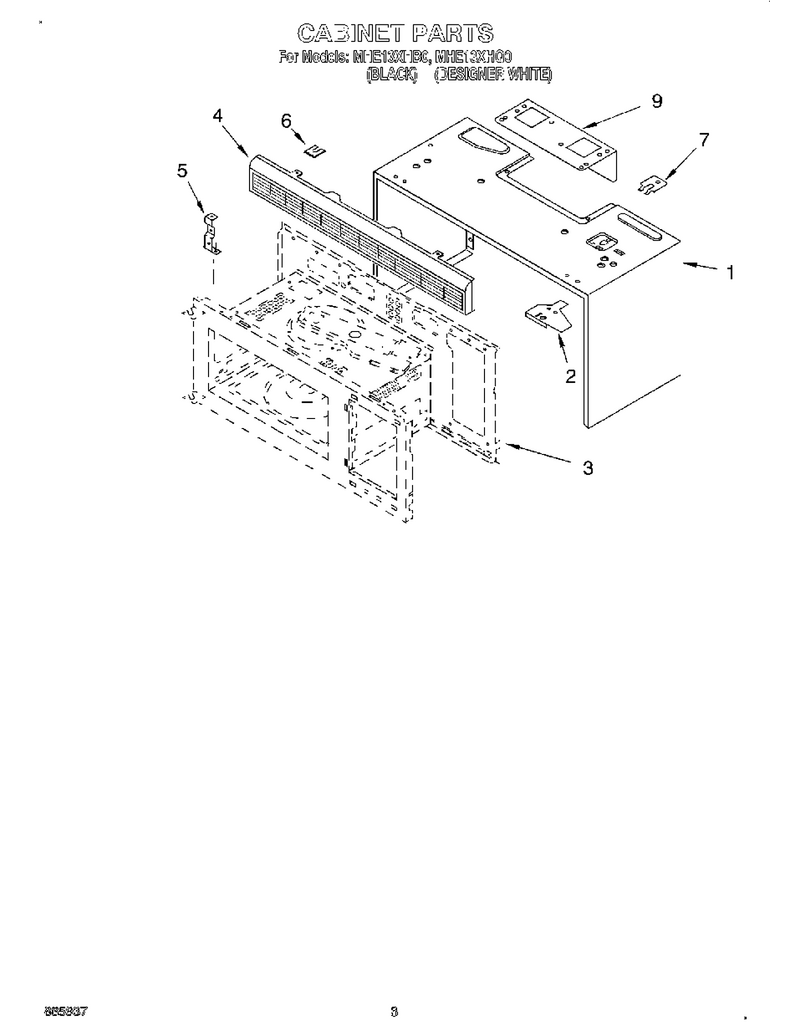

03 - Cabinet

...
...
1
Outer Case (Black Model) WPL-4359488
...
2
Screw WPL-W11380570
...
3
Cavity Assembly (Not Serviceable) WPL---
...
4
Grill-Vent WPL-WP8205176
...
5
Screw WPL-W11380570
...
6
Bracket, Grille WPL-4358816
...
7
Screw WPL-W11380570
...
9
Plate, Mount WPL-4359377

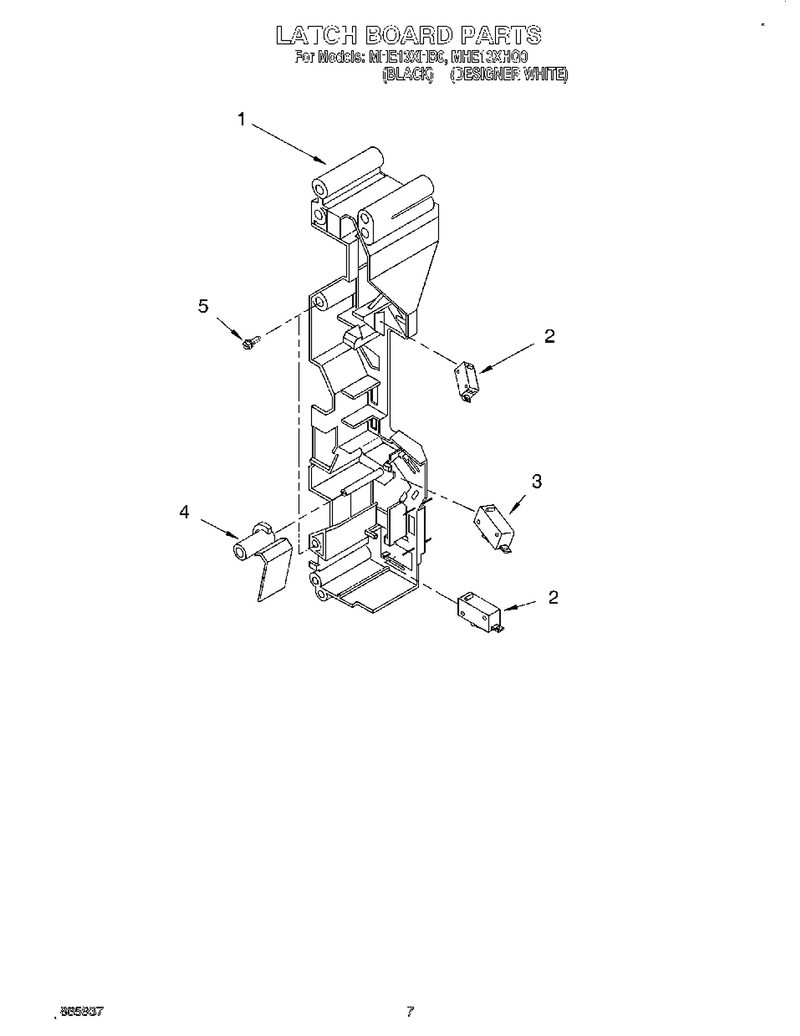

06 - Latch Board

...
...
1
Board, Latch WPL-4358794
...
2
Switch Micro Primary WPL-4392027
...
3
Switch Micro Primary WPL-4392027
...
4
Lever Monitor WPL-4358795
...
5
Screw WPL-4358271

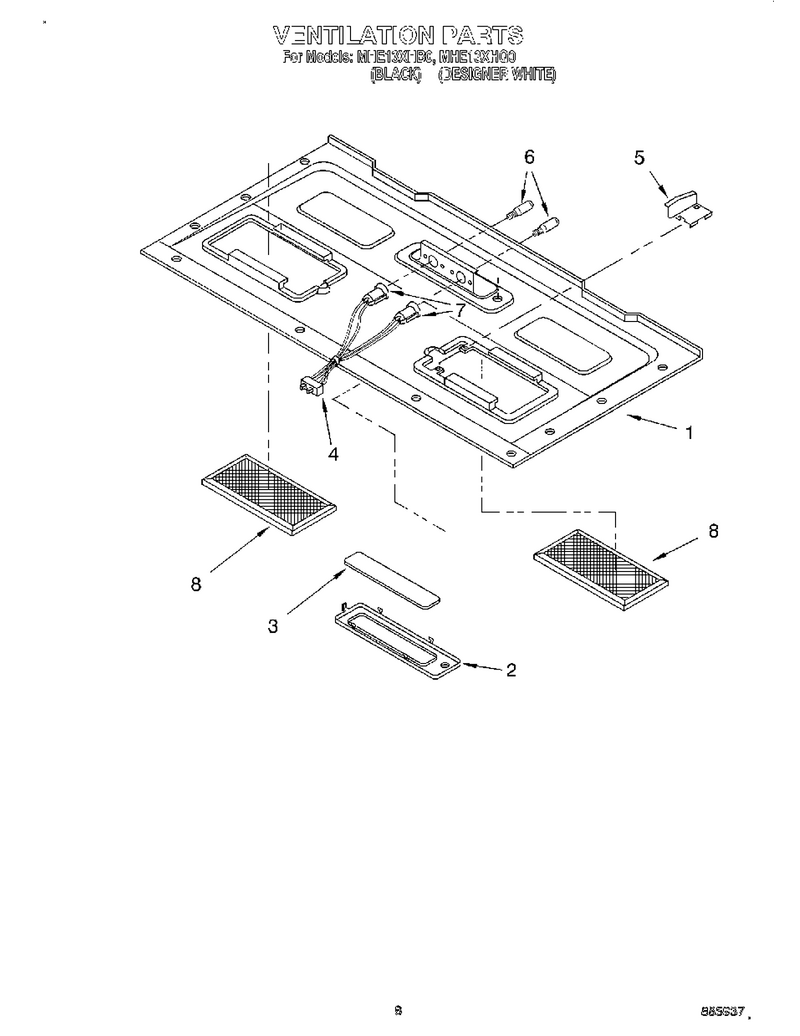

07 - Ventilation

...
...
1
Base Plate (White) WPL-4359525
...
2
Covr-Light WPL-W10116517
...
3
Glass-Lamp WPL-815173
...
4
Lead Wire Assy WPL-4359529
...
5
Bracket WPL-4359530
...
6
Bulb-Light WPL-8206232A
...
7
Lamp Holder WPL-4359518
...
8
Air Filter WPL-4358853

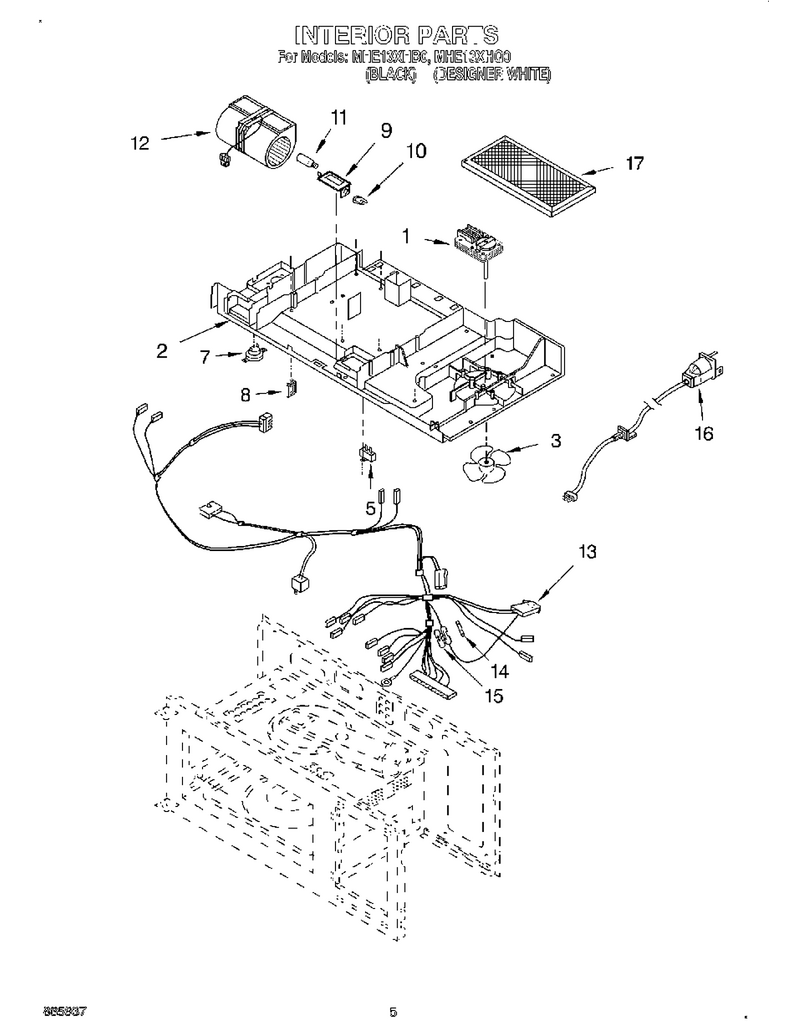

05 - Interior

...
...
1
Motor, Fan WPL-4359511
...
2
Screw WPL-WP4158079
...
3
Propeller WPL-8184292
...
5
Screw WPL-8169475
...
7
Thermostat, Cavity 125/-35 Celcius WPL-W10864742
...
8
Wire Holder WPL-4158267
...
9
Cover WPL-4359517
...
10
Lamp Holder WPL-4359518
...
11
Bulb-Light WPL-8206232A
...
12
Motor, Ventilation WPL-4359990
...
13
Lead, Wire WPL-4359690
...
14
Fuse WPL-WP8183507
...
15
Fuse Cap WPL-4358659
...
16
Cord-Power WPL-815145
...
17
Filter, Charcoal WPL-4359331
