Whirlpool MHE11REQ0

Model: MHE11REQ0

Save Part Not Listed?
product name

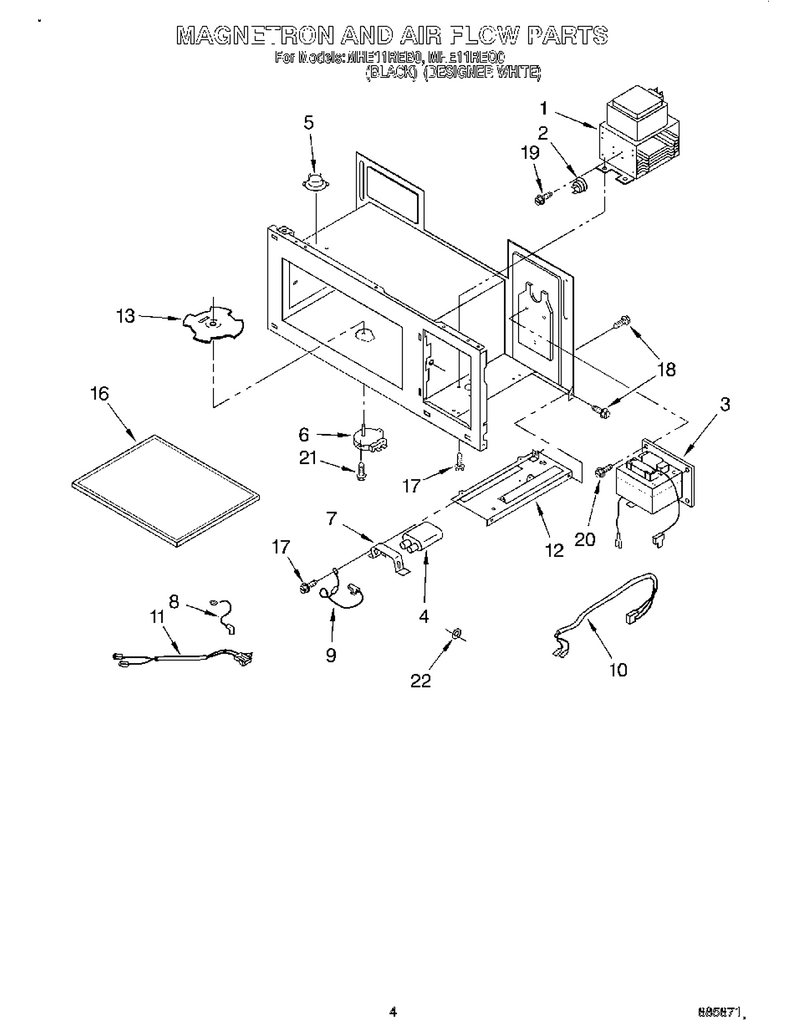

04 - Magnetron And Air Flow

...
...
1
Magnatron WPL-4358059
...
2
Thrmst-Fix WPL-WP815076
...
3
Transformer WPL-4358774
...
4
Capactr-Mg WPL-WP815073
...
5
Thermostat, Cavity 125/-35 Celcius WPL-W10864742
...
6
Motor WPL-4359415
...
7
Bracket WPL-4358778
...
8
H.v. Cable WPL-4359421
...
9
Diode WPL-WP4313101
...
10
Lead Wire WPL-4358779
...
11
Lead Wire WPL-4358780
...
12
Plate, Bottom WPL-4358781
...
13
Stirrer Fan Disk WPL-4358782
...
16
Ceramic Plate WPL-4158731
...
17
Screw WPL-4344826
...
18
Screw WPL-W11380570
...
19
Screw WPL-4358376
...
20
Screw WPL-WP3400094
...
21
Screw WPL-WP4158079
...
22
Temp Hole Cap WPL-4358156

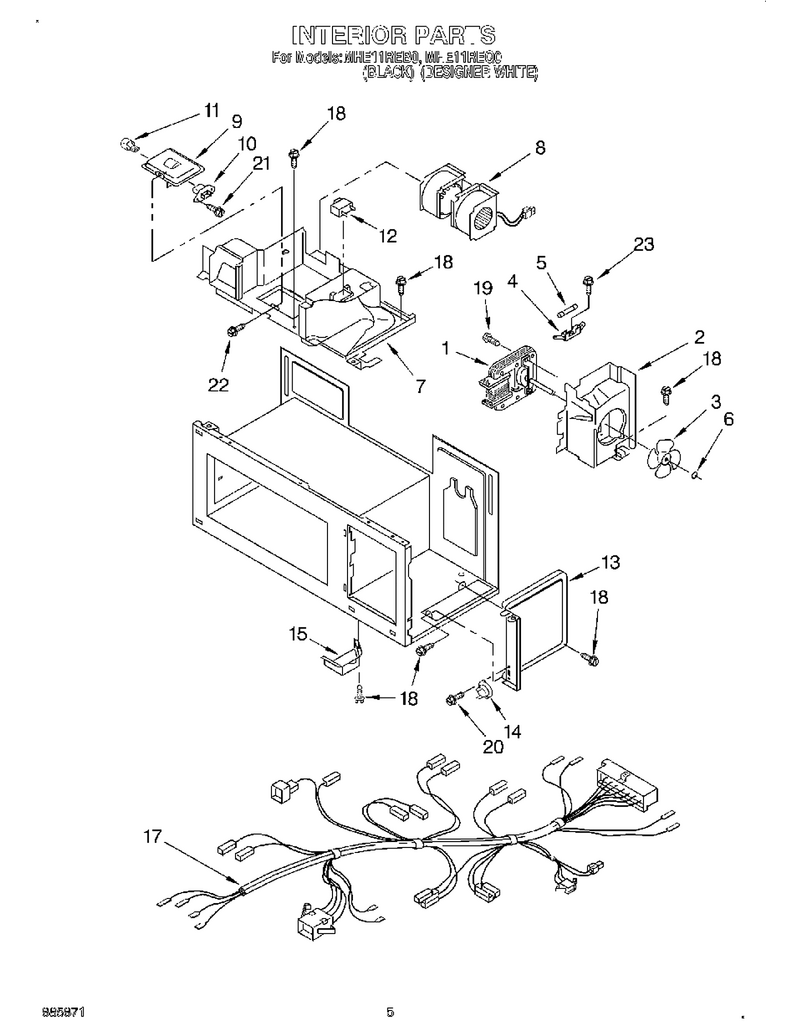

05 - Interior, Lit/optional

...
...
Tech Sheet WPL-LIT4358737
...
1
Motor, Fan WPL-4358784
...
2
Guide Suction WPL-4358564
...
3
Blower Fan WPL-4358379
...
4
Holder, Fuse WPL-4158059
...
5
Fuse WPL-W10856869
...
6
Push Nut WPL-4358055
...
7
Air Duct WPL-4358786
...
8
Blower-Fan WPL-815097
...
9
Cover, Lamp WPL-4358789
...
10
Lamp Holder WPL-4358790
...
11
Bulb-Light WPL-8206232A
...
12
Motor Condenser WPL-4158376
...
13
Guide Air WPL-4358536
...
14
Base Thermostat WPL-4158368
...
15
Cover, Connector WPL-4358791
...
17
Lead Wire WPL-4358793
...
18
Screw WPL-W11380570
...
19
Screw WPL-4358190
...
20
Screw WPL-4358376
...
21
Screw WPL-4358191
...
22
Screw WPL-4358829
...
23
Installation Hardware WPL-4158491

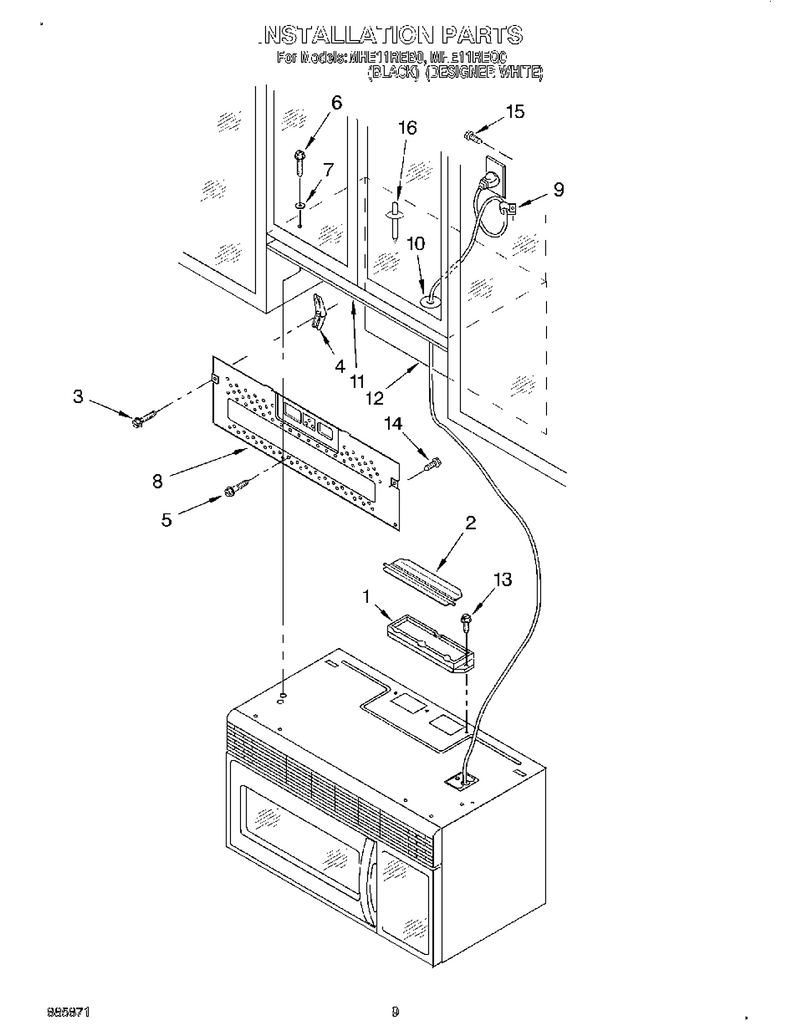

08 - Installation

...
...
1
Adapter WPL-815092
...
2
Exhaust Damper WPL-4158319
...
3
Screw WPL-WP8169704
...
4
Toggle Wing WPL-4158326
...
5
Screw WPL-WP4158323
...
6
Screw WPL-4158315
...
7
Washer WPL-4158314
...
8
Plate, Mounting Wing WPL-4358924
...
9
Clamp, Recirc Hose Retainer WPL-8534021
...
10
Bushing WPL-4358012
...
11
Sheet-Top Cabinet Template WPL-4359012
...
12
Sheet-Wall Template WPL-4359011
...
13
Screw WPL-W11380570
...
14
Screw WPL-W11380570
...
15
Screw WPL-WP98008545
...
16
Rod, Safety WPL-4358933

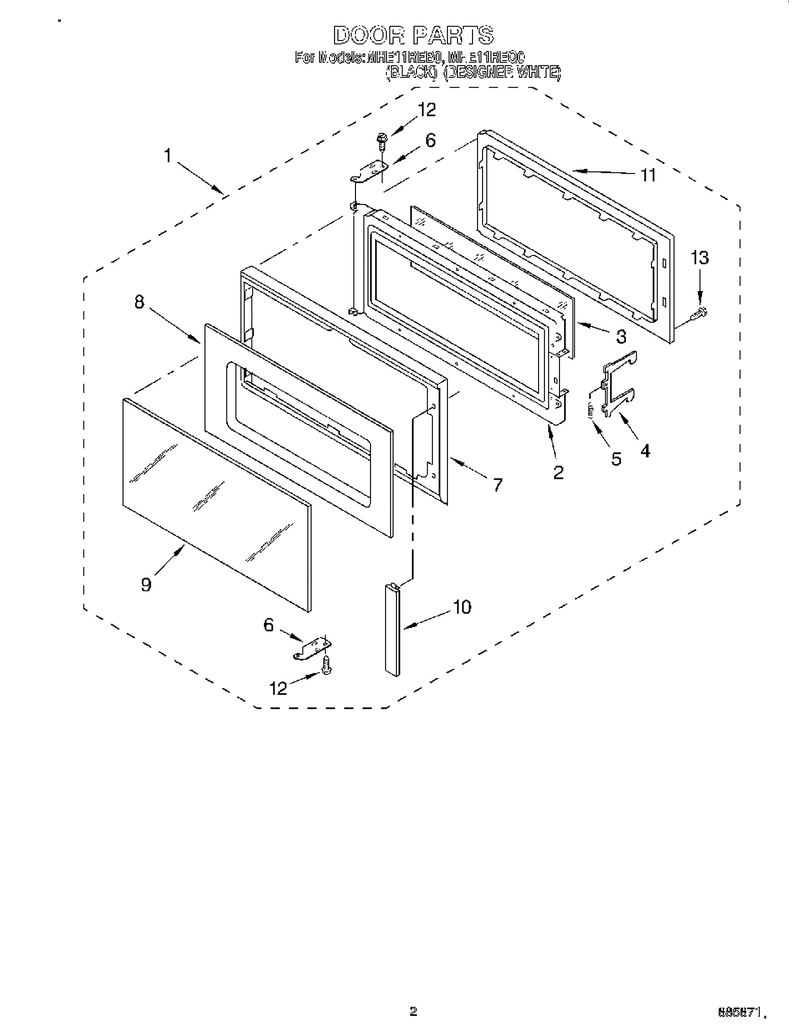

02 - Door

...
...
1
Door Assembly (White Model) WPL-4359045
...
2
Frame, Door (White Model) WPL-4359287
...
3
Seal-Tape WPL-WPW10146437
...
4
Latch WPL-4358546
...
5
Spring, Latch WPL-4158506
...
6
Plate, Hinge WPL-4358820
...
7
Panel, Door (White Model) WPL-4358566
...
8
Baffle, Door (White Model) WPL-4358554
...
9
Glass, Door (Black Model) WPL-4358754
...
10
Handle, Door (White Model) WPL-4359046
...
11
Choke Cover WPL-4358943
...
12
Screw WPL-4358067
...
13
Screw WPL-8169475

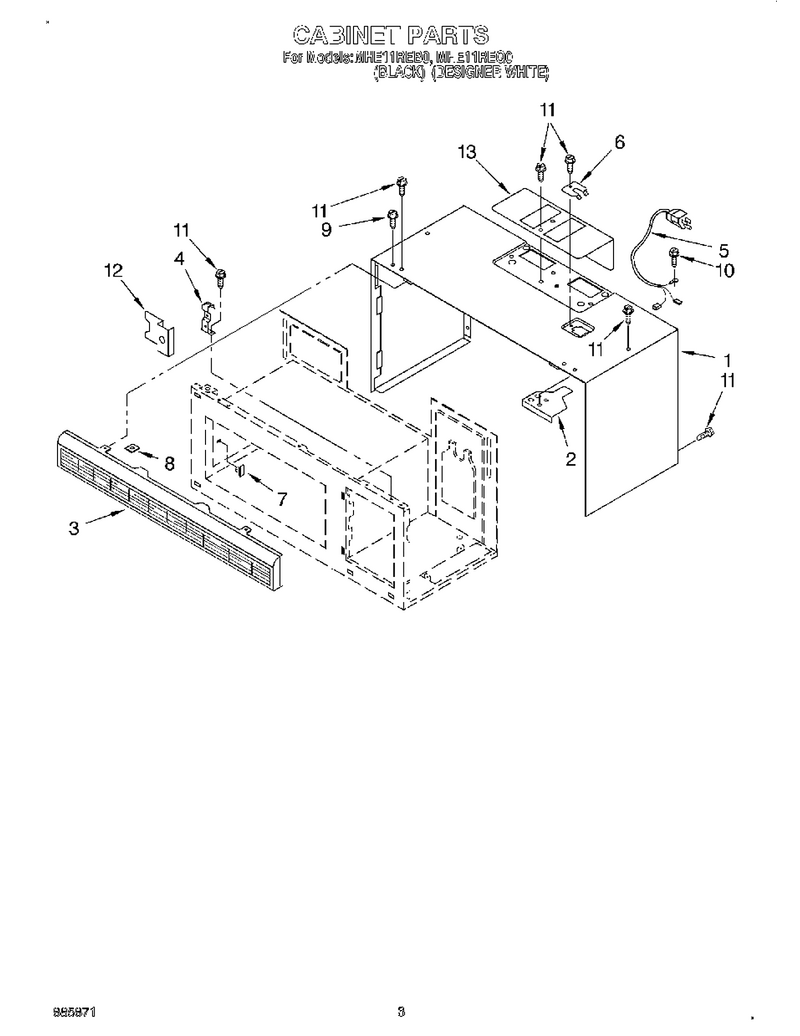

03 - Cabinet

...
...
1
Outer Case (White Model) WPL-4358925
...
2
Mounting Bracket WPL-4358928
...
3
Grille Vent (Black Model) WPL-4359053
...
4
Bracket, Front WPL-4358759
...
5
Cord-Power WPL-815147
...
6
Cover, Power Cord WPL-4358761
...
7
Plug, Cavity WPL-4358173
...
8
Bracket, Grille WPL-4358816
...
9
Screw (Black Model) WPL-4358762
...
10
Screw WPL-4344826
...
11
Screw WPL-W11380570
...
12
Cover WPL-4359376
...
13
Plate, Mount WPL-4359377

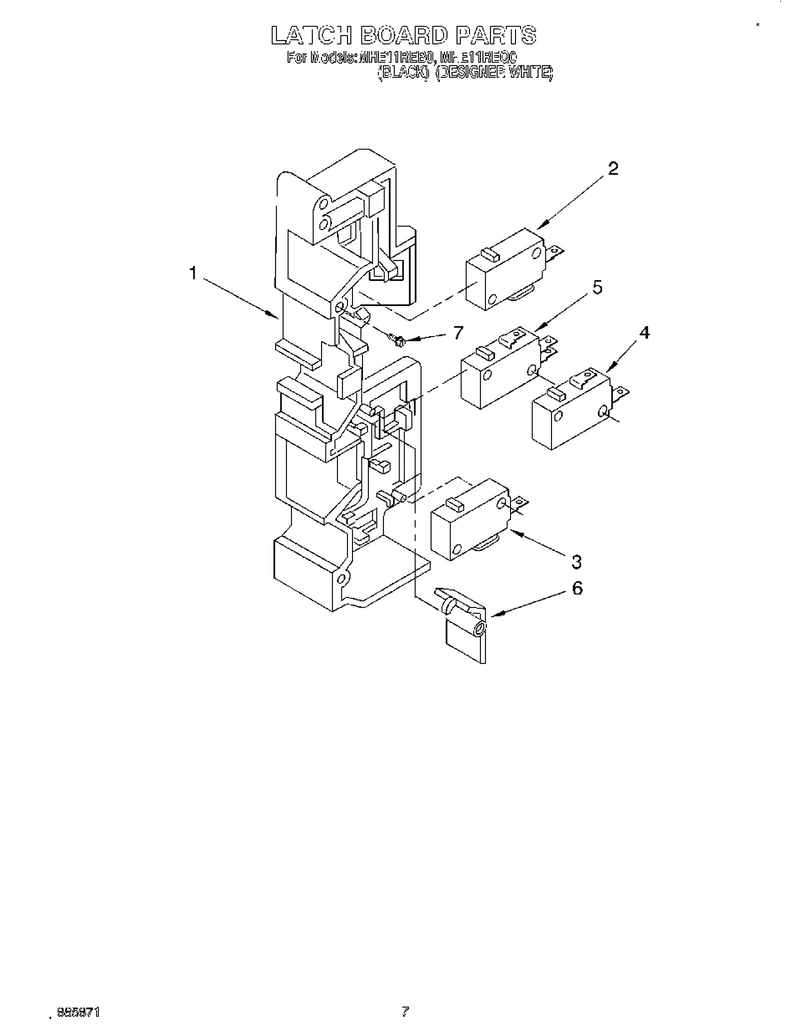

06 - Latch Board

...
...
1
Board, Latch WPL-4358794
...
2
Switch Micro Primary WPL-4392027
...
3
Switch Micro Primary WPL-4392027
...
4
Switch Micro Primary WPL-4392027
...
5
Switch Micro Primary WPL-4392027
...
6
Lever Monitor WPL-4358795
...
7
Screw WPL-4358271

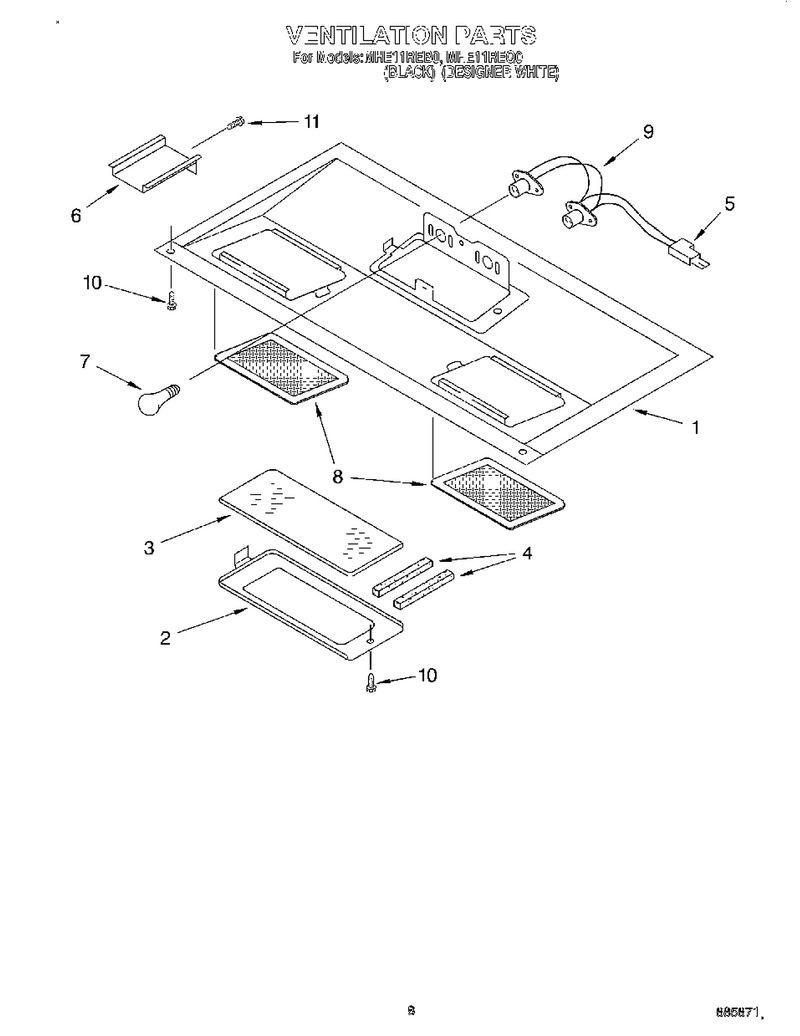

07 - Ventilation

...
...
1
Base WPL-4359537
...
2
Cover Cooktop Glass (Black Model) WPL-4358765
...
3
Glass, Cooktop Lamp WPL-4358571
...
4
Cushion, Bracket WPL-4158967
...
5
Lead Wire Assy. WPL-4358768
...
6
Cover, Wire WPL-4358769
...
7
Bulb-Light WPL-8206232A
...
8
Air Filter WPL-4358853
...
9
Lamp Holder WPL-4358790
...
10
Screw WPL-W11380570
...
11
Screw WPL-W11380570

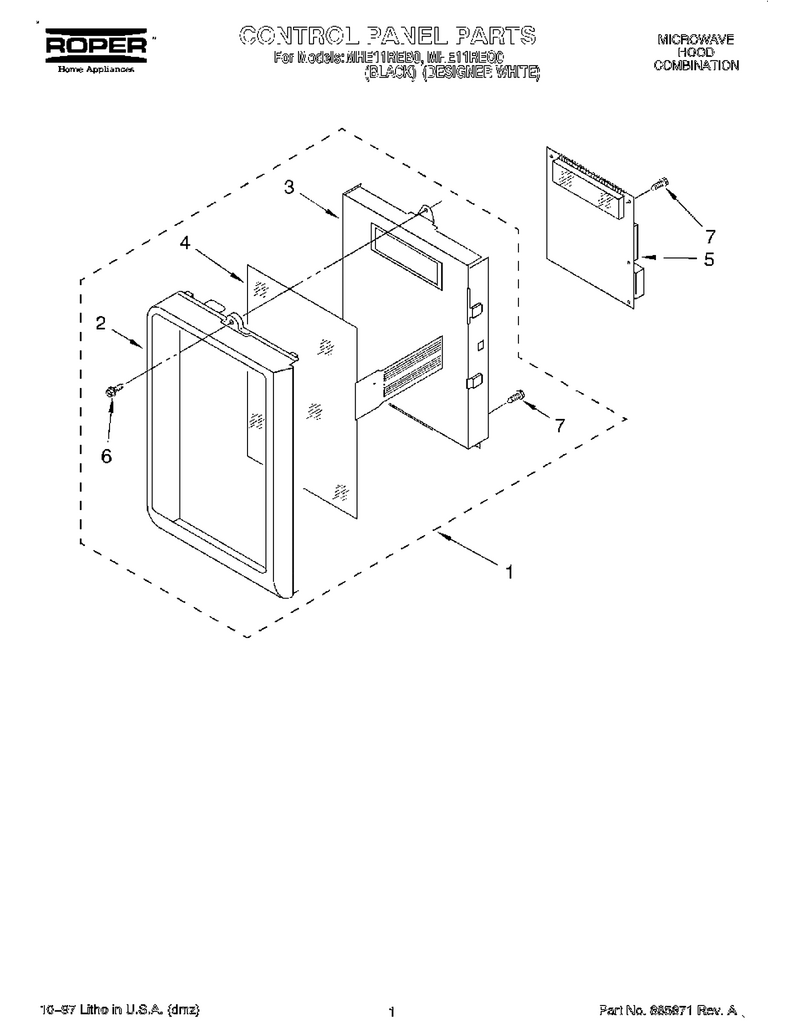

01 - Control Panel

...
...
1
Controller Sub Assy. (Black Model) WPL-4359582
...
2
Control Panel (Black Model) WPL-4358552
...
3
Bracket, Control WPL-4358743
...
4
Key Membrane (White Model) WPL-4359585
...
5
Pcb Sub Assy. WPL-4359584
...
6
Screw WPL-8169475
...
7
Screw WPL-W11380570
