product name

Whirlpool LA5600XTF1

Model: LA5600XTF1

Save Part Not Listed?
product name

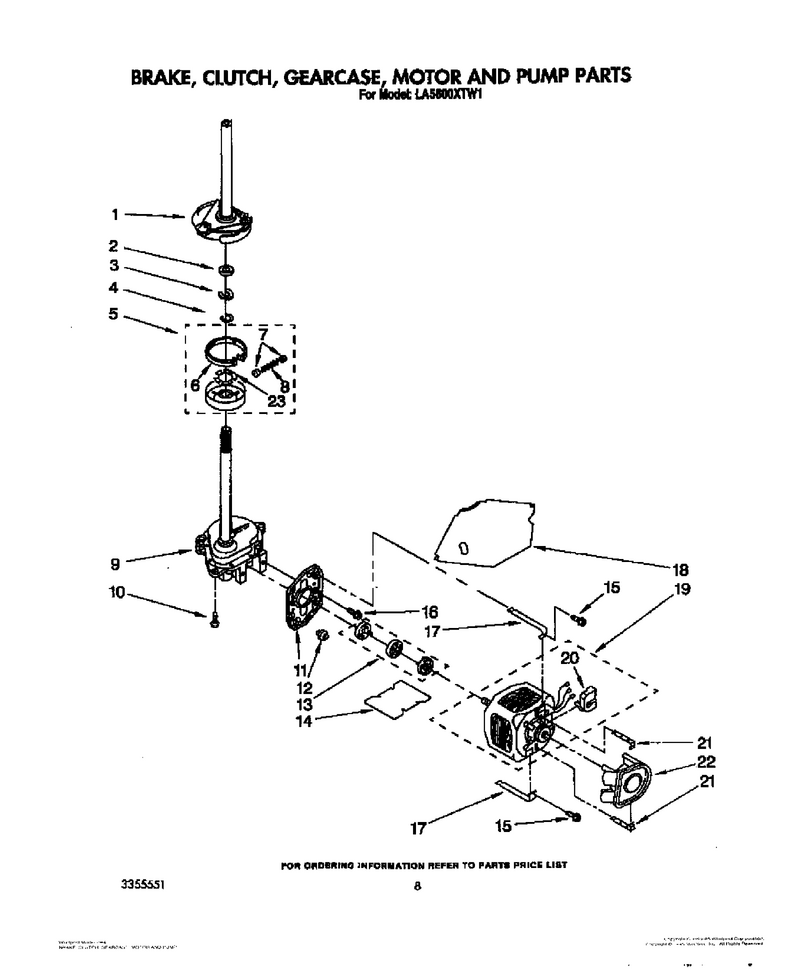

07 - Brake, Clutch, Gearcase, Motor And Pump

...
...
1
Basktdrive WPL-W10820043
...
2
Washer WPL-WP63292
...
3
Ring WPL-WPW10080230
...
4
Ring WPL-285353
...
5
Clutch WPL-285785
...
6
Lining WPL-285790
...
7
Cap WPL-WP62646
...
8
Lining WPL-285790
...
9
Gearcase WPL-3360629
...
10
Screw, Gearcase To Base (3) (5/16-24 X 3/4) WPL-62735
...
11
Plate WPL-WP62611
...
12
Grommet WPL-WP62691
...
13
Coupling WPL-285753A
...
14
Shield WPL-WP3946532
...
15
Screw WPL-W11573574
...
16
Screw WPL-WP3400516
...
17
Retainer WPL-WPW10086010
...
18
Shield-Mtr WPL-W10838408
...
19
Motor-Drve WPL-WP661600
...
20
Switch-Mtr WPL-WP8529896
...
21
Retainer WPL-WP8546127
...
22
Pump-Water WPL-WP3363394
...
23
Clip WPL-WP3355454

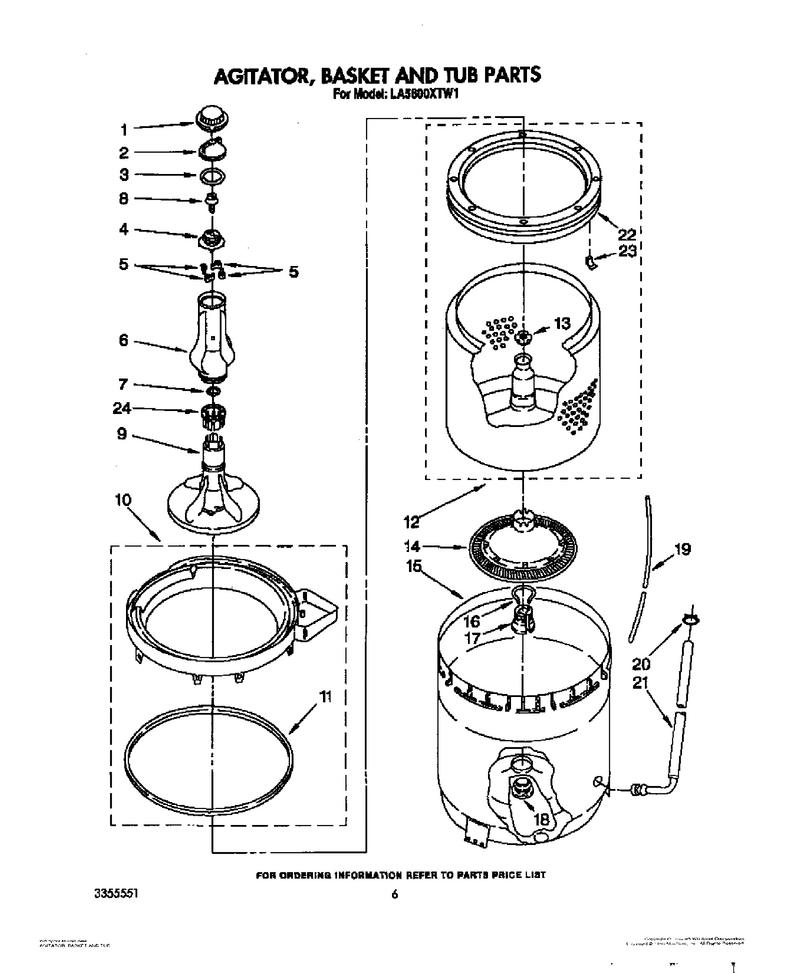

05 - Agitator, Basket And Tub

...
...
1
Cap WPL-WP3355758
...
2
Cap WPL-WPW10074580
...
3
Ring-O WPL-WPW10072840
...
4
Cam-Agit WPL-285811
...
5
Dog-Agit WPL-80040
...
6
Mover-Agit WPL-WP3349019
...
7
Seal, Agitator WPL-357574
...
8
Screw WPL-WP358237
...
9
Agitator WPL-WP3350830
...
10
Ring-Tub WPL-W10821664
...
11
Seal-Tub WPL-WP3359586
...
12
Basket & Balance Ring WPL-3956207
...
13
Nut-Spaner WPL-WP21366
...
14
Plug WPL-285868
...
15
Tub WPL-63039
...
16
Lock, Filter WPL-62942
...
17
Block WPL-WP389140
...
18
Gasket WPL-W10814296
...
19
Hose WPL-WP353244
...
20
Clamp WPL-WP596669
...
21
Hose, Bleach WPL-63323
...
22
Clip WPL-WP8519815
...
23
Ring-Bal WPL-WP3956205
...
24
Washer WPL-285587

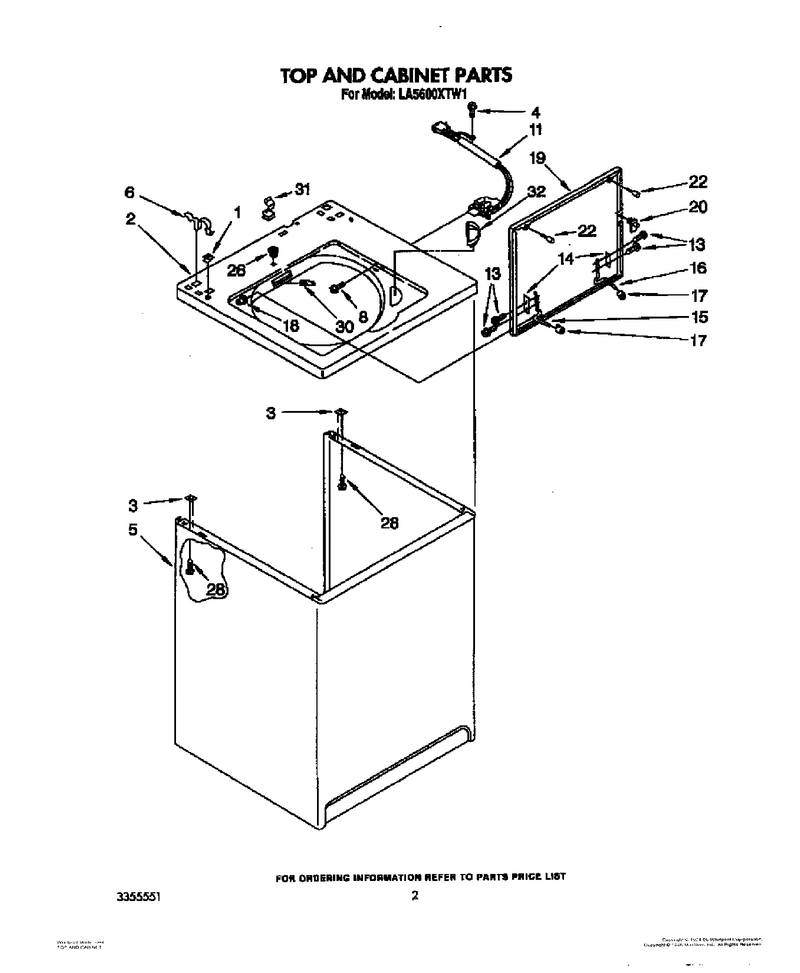

02 - Top And Cabinet

...
...
Platinum (Uncut) WPL-285368
...
1
Nut WPL-WP358473
...
2
Top (Platinum) WPL-388354
...
3
Spacer WPL-WP62750
...
4
Screw WPL-WP681414
...
5
Cabinet (White) WPL-63424
...
6
Clip WPL-WP62780
...
8
Screw WPL-WP3356311
...
11
Switch-Lid WPL-285671
...
13
Screw WPL-WPW10119828
...
14
Pad WPL-WP21097
...
15
Hinge WPL-WP54584
...
16
Hinge WPL-WP54583
...
17
Bumper WPL-WP19119
...
18
Bearing WPL-WP21258
...
19
Lid (Almond) WPL-3354571
...
20
Strike WPL-WP358684
...
22
Bumper WPL-WP9724509
...
26
Stop, Push-In Top WPL-358472
...
28
Screw WPL-WP681414
...
30
Rivet, Serial Nameplate WPL-354239
...
31
Clip WPL-WP90016
...
32
Bezel WPL-WP3362952

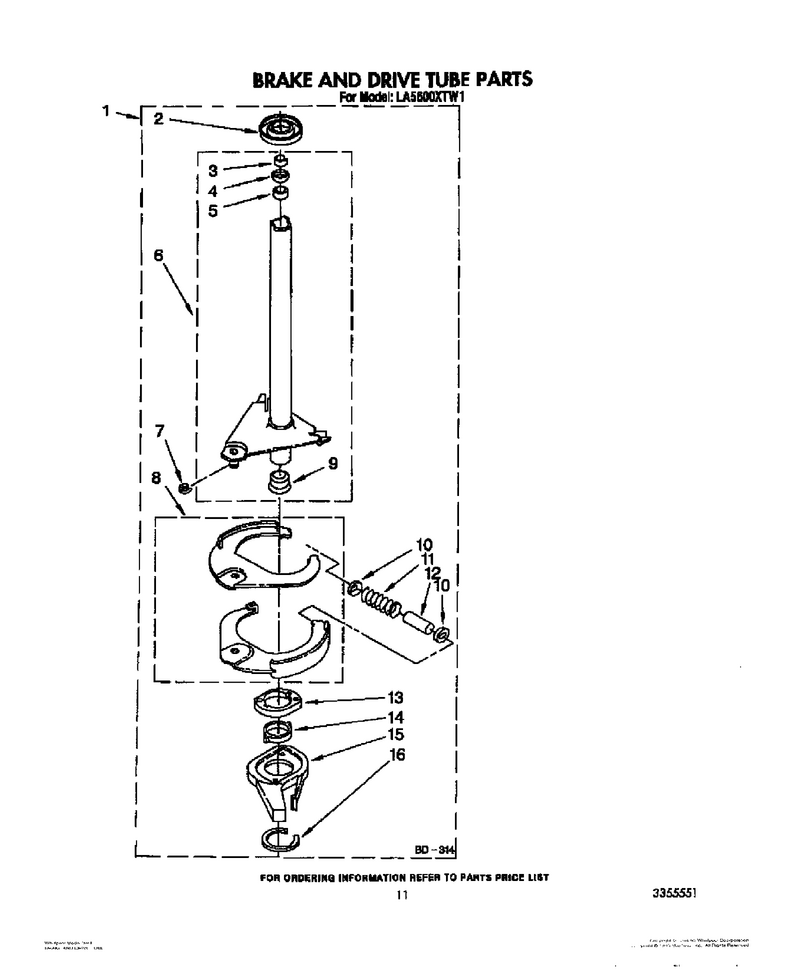

10 - Brake And Drive Tube

...
...
1
Basktdrive WPL-W10820043
...
2
Ring WPL-WP62658
...
3
Seal-Shaft WPL-WP91939
...
4
Seal-Shaft WPL-WP356427
...
5
Spacer, Drive Tube WPL-356937
...
6
Tube-Spin WPL-WP64208
...
7
Ring, Retaining WPL-W10083190
...
8
Shoe-Brake WPL-285438
...
9
Bearing WPL-WP8546462
...
10
Sleeve WPL-285658
...
11
Spring WPL-WP62647
...
12
Sleeve WPL-285658
...
13
Cam-Brake WPL-WP8546461
...
14
Sleeve WPL-WP63022
...
15
Lining WPL-285790
...
16
Lubricant (Use Only In Brake Shoe Assembly On Roller & Pin) WPL-285208

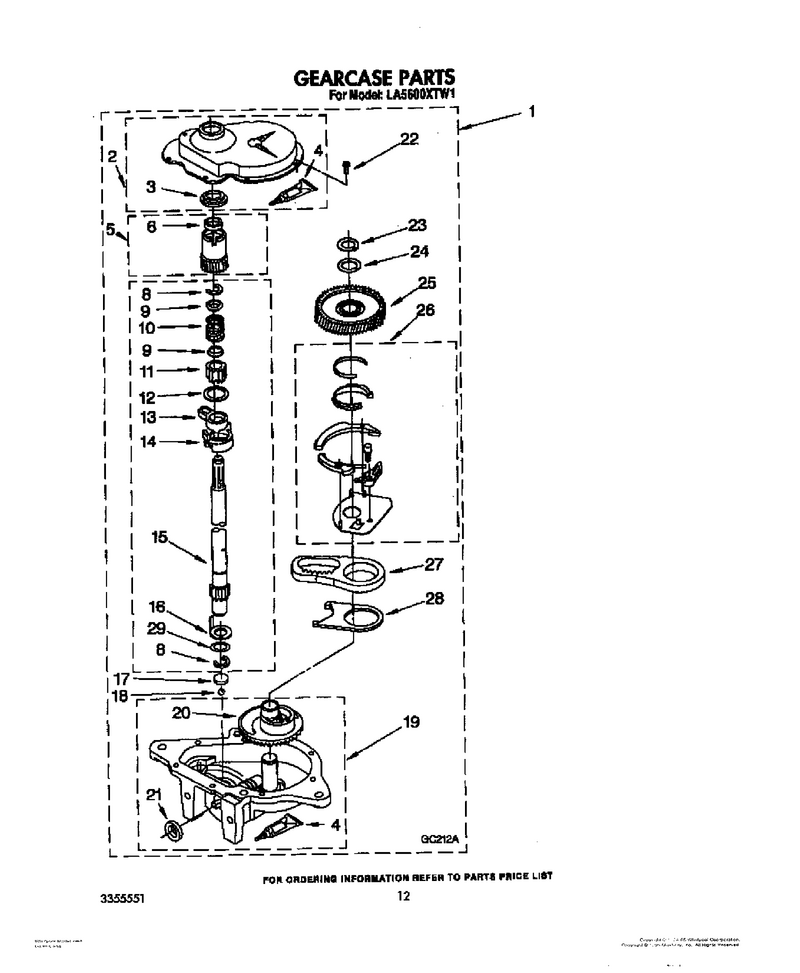

11 - Gearcase

...
...
1
Gearcase WPL-3360629
...
2
Cover, Gearcase WPL-285202
...
3
Seal-Cover WPL-WP3349985
...
4
Sealer WPL-WP285195
...
5
Gearcase WPL-3360629
...
6
Seal-Shaft WPL-WP356427
...
7
Shaft-Agit WPL-WP389387
...
8
Ring, Retaining (2) WPL-90369
...
9
Retainer, Spring (2) WPL-62677
...
10
Spring, Agitator WPL-62676
...
11
Shaft-Agit WPL-WP389387
...
12
Washer, Agitator Gear WPL-62619
...
13
Shaft-Agit WPL-WP389387
...
14
Shaft-Agit WPL-WP389387
...
15
Shaft-Agit WPL-WP389231
...
16
Washer, Cam Thrust WPL-62618
...
17
Bearing WPL-285205
...
18
Bearing WPL-285205
...
19
Gearcase WPL-285515
...
20
Gearcase WPL-285515
...
21
Seal, Thrust Plug WPL-285352
...
22
Screw WPL-WP3351614
...
23
Ring-Retnr WPL-285765
...
24
Washer Kit, Thrust WPL-285766
...
25
Gearcase WPL-3360629
...
26
Neutrl-Pak WPL-388253A
...
27
Gearcase WPL-3360629
...
28
Gearcase WPL-3360629
...
29
Washer WPL-WP388815

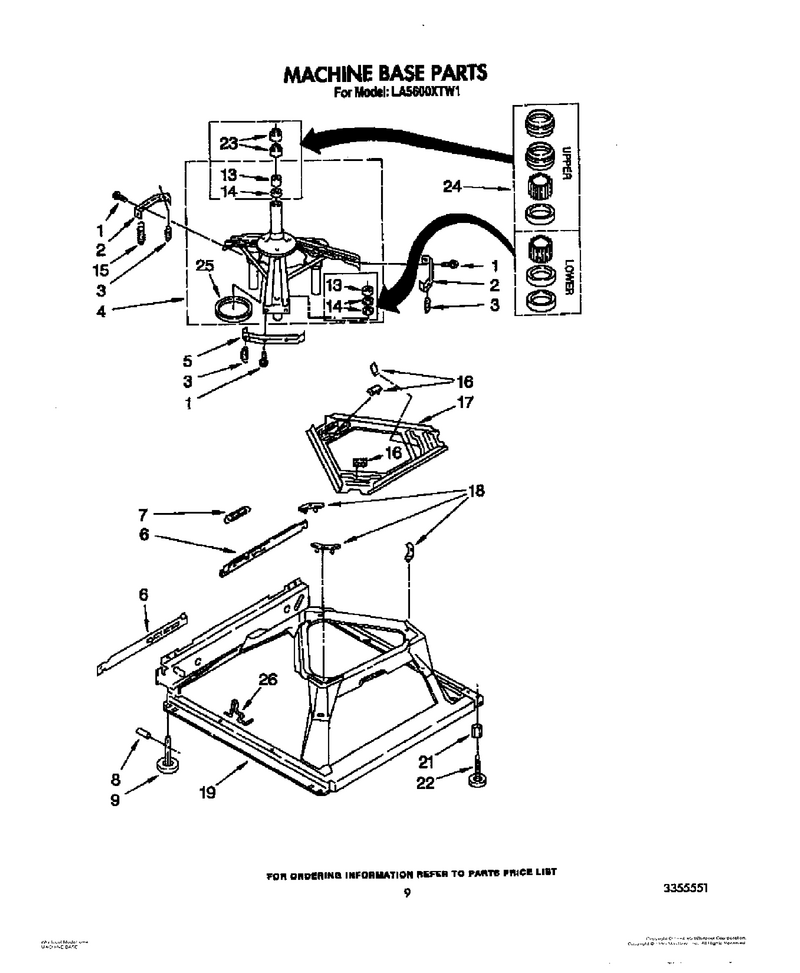

08 - Machine Base

...
...
1
Screw WPL-WP273556
...
2
Bracket WPL-WP64067
...
3
Spring WPL-WP63907
...
4
Support WPL-280184
...
5
Bracket WPL-WP64065
...
6
Link WPL-WP63466
...
7
Spring WPL-8316845
...
8
Pin-Dowel WPL-WP62837
...
9
Feet-Lvlng WPL-285244
...
13
Bearing WPL-WP8546455
...
14
Seal WPL-W11095997
...
15
Spring WPL-WPW10250667
...
16
Pad WPL-285219
...
17
Skate Plt WPL-WP3946509
...
18
Pad WPL-285744
...
19
Base WPL-285771
...
21
Nut WPL-WP62739
...
22
Feet-Lvlng WPL-WPW10001130
...
23
Seal WPL-WP8577376
...
24
Centerpost Bearing Kit (Includes Illus. 13, 14 & 23) WPL-285203
...
25
Ring WPL-WP63134
...
26
Retainer WPL-WPW10145155

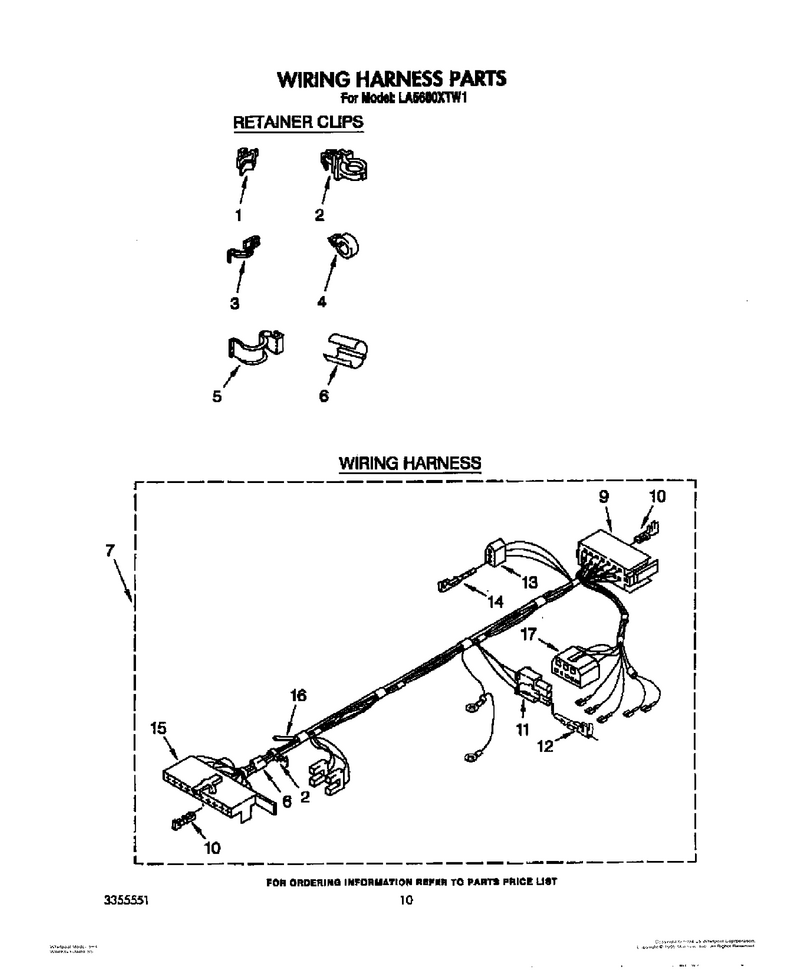

09 - Wiring Harness

...
...
1
Clip, Harness WPL-62732
...
2
Clip, Harness WPL-388498
...
3
Clip WPL-WP98997
...
4
Restraint, Hose WPL-8559320
...
5
Clip WPL-WP90016
...
6
Protector, Harness WPL-63523
...
7
Harness, Wiring (For Detail See Page 9) WPL-3358696
...
9
Connector WPL-W10876590
...
10
Terminal, Female WPL-352088
...
11
Connector WPL-WP62889
...
12
Terminal WPL-WP94614
...
13
Plug, Terminal (3-Way) (Power Cord) WPL-353424
...
14
Terminal WPL-WP596797
...
15
Connector WPL-WP62505
...
16
Hose WPL-WP353244
...
17
Connector WPL-3347243

...
...
1
Washer WPL-WP16123
...
3
Hose-Fill WPL-WP89503
...
5
Hinge WPL-WP387402
...
6
Panel, Rear WPL-3348430
...
7
Pad WPL-WP62747
...
8
Accessory Parts, 8' Drain Hose W/clamp WPL-285666
...
9
Timer WPL-WP3351744
...
11
Screw WPL-WP90767
...
12
Switch, Water Level WPL-64189
...
13
Bracket, Control WPL-3349983
...
14
Cord-Power WPL-W10820044
...
15
Relief-Str WPL-W11733005
...
16
Cap, End (L.h.) WPL-63789
...
17
Screen WPL-WP96160
...
18
Valve WPL-285805
...
19
Screw WPL-WP3351614
...
20
Screw WPL-WP681414
...
21
Clamp WPL-WP596669
...
22
Hose WPL-WP3357328
...
23
Clamp WPL-WP596669
...
24
Break-Vac WPL-WP3347034
...
25
Support WPL-WP8519200
...
26
Hose WPL-WPW10358149
...
27
Clamp WPL-WP356138
...
28
Hose WPL-WP3348552
...
30
Clamp WPL-WP371502
...
31
Clamp WPL-WP285655
...
32
Hose WPL-285871
...
33
Clamp, Capacitor WPL-357030
...
34
Capacitor WPL-WP8572717
...
35
Swtch-Temp WPL-3954758
...
36
Screw WPL-WP356418
...
37
Knob, Water Level WPL-386636
...
39
Panel, Console WPL-387801
...
40
Nut WPL-WP689559
...
42
Screw WPL-304795
...
44
Knob WPL-W10801656
...
45
Dial, Timer WPL-64140
...
47
Knob, Water Temperature WPL-386636
...
48
Clamp WPL-WP356138
...
49
Screw WPL-WP388326
...
50
Screw WPL-WP3390631
...
51
Cap, End. (R.h.) WPL-63795
...
52
Screw WPL-WP681414
...
54
Wire, Ground WPL-303485
...
55
Screw WPL-WP308685
...
56
Retainer WPL-WP3350222
...
57
Clamp WPL-WP616099
...
58
Couplr-Hse WPL-WP384496

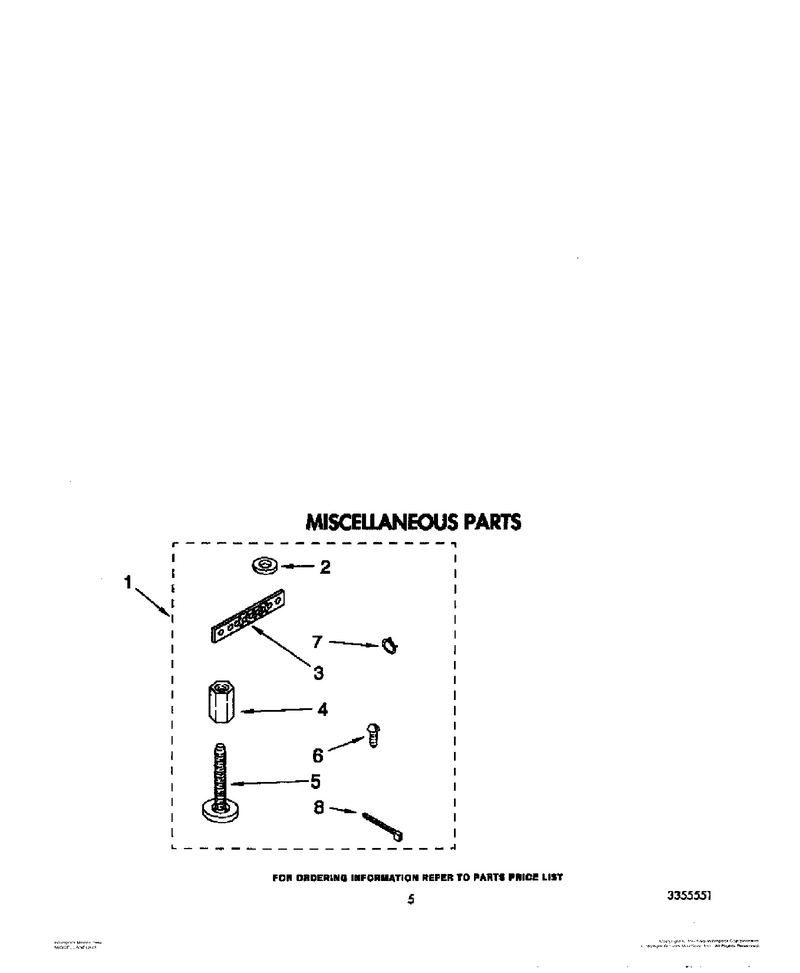

04 - Miscellaneous

...
...
1
Miscellaneous Parts Bag WPL-387980
...
2
Washer WPL-WP16123
...
3
Strap, Ground WPL-22965
...
4
Nut WPL-WP62739
...
5
Feet-Lvlng WPL-WPW10001130
...
6
Screw, Ground (10-24 X 1) WPL-132848
...
7
Clamp WPL-WP356138
...
8
Tie-Wire WPL-WPW10339879

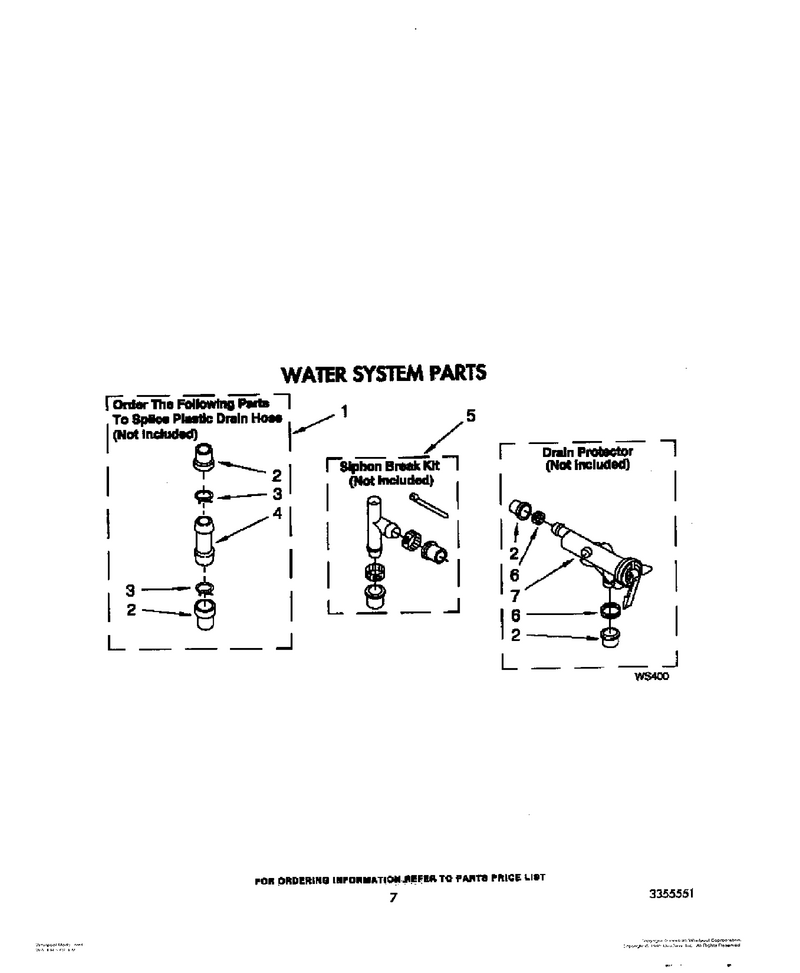

06 - Water System

...
...
1
Connector Kit, Plastic Drain Hose WPL-285442
...
2
Sleeve Kit, (Contains 2 Sleeves) WPL-285321
...
3
Clamp WPL-WP285655
...
4
Couplr-Hse WPL-WP16272
...
5
Siphon Break Kit (Not Included) WPL-285320
...
6
Clamp WPL-WP285655
...
7
Drain Protector (Not Included) WPL-367031
