Whirlpool LA3400XMW3 Washer

Model: LA3400XMW3

Save Part Not Listed?
product name

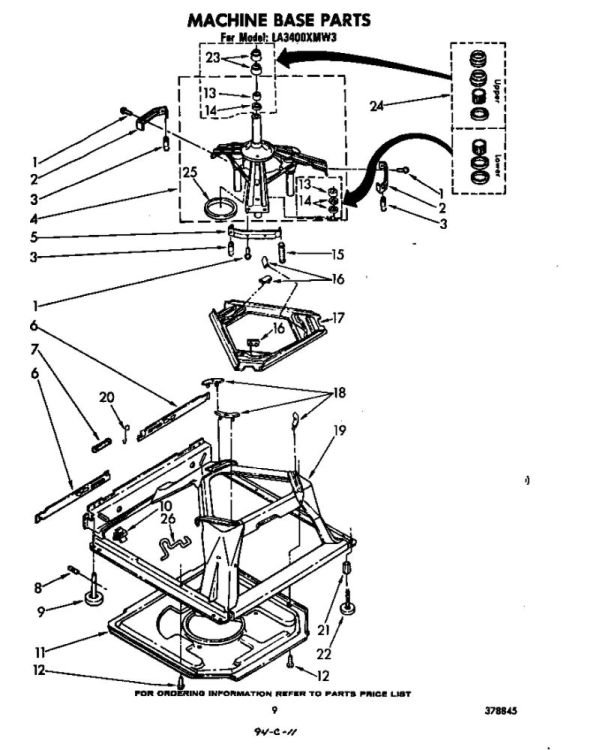

Whirlpool LA3400XMW3

...
...
1
Thread-Forming Screw, 8-Pack WPL-STD611007
...
2
Washer Suspension Spring Bracket (Replaces 64067) WPL-WP64067
...
3
Washer Suspension Spring (Replaces 63907) WPL-WP63907
...
4
Washer Spinner Support (Replaces 3362087) WPL-280184
...
5
Washer Suspension Spring Bracket (Replaces 64065) WPL-WP64065
...
7
Washer Leveling Leg Spring (Replaces 62597, W10795103) WPL-8316845
...
8
Washer Leveling Leg Pin (Replaces 62837) WPL-WP62837
...
9
Washer Leveling Leg (Replaces 62596) WPL-285244
...
10
Mounting Clip WPL-62825
...
11
Shield WPL-WP3946532
...
12
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
13
Washer Center Post Bearing, Lower WPL-WP8546455
...
14
Washer Agitator Shaft Seal (Replaces Wp359449) WPL-W11095997
...
15
Washer Counterweight Spring (Replaces W10250667) WPL-WPW10250667
...
16
Washer Suspension Plate Friction Pad (Replaces 62568) WPL-285219
...
17
Washer Suspension Plate (Replaces 3946509) WPL-WP3946509
...
18
Washer Base Pad Set (Replaces 285220, 285661, 3363660) WPL-285744
...
19
Base WPL-285459
...
20
Washer Counterweight Spring (Replaces W10250667) WPL-WPW10250667
...
21
Nut WPL-WP62739
...
22
Washer Leveling Leg (Replaces W10001130) WPL-WPW10001130
...
23
Washer Top Agitator Shaft Seal (Replaces 8577376) WPL-WP8577376
...
24
Washer Bearing And Seal Kit WPL-285203
...
25
Washer Sound Dampening Ring (Replaces 63134) WPL-WP63134
...
26
Washer Suspension Spring Retainer (Replaces W10145155) WPL-WPW10145155

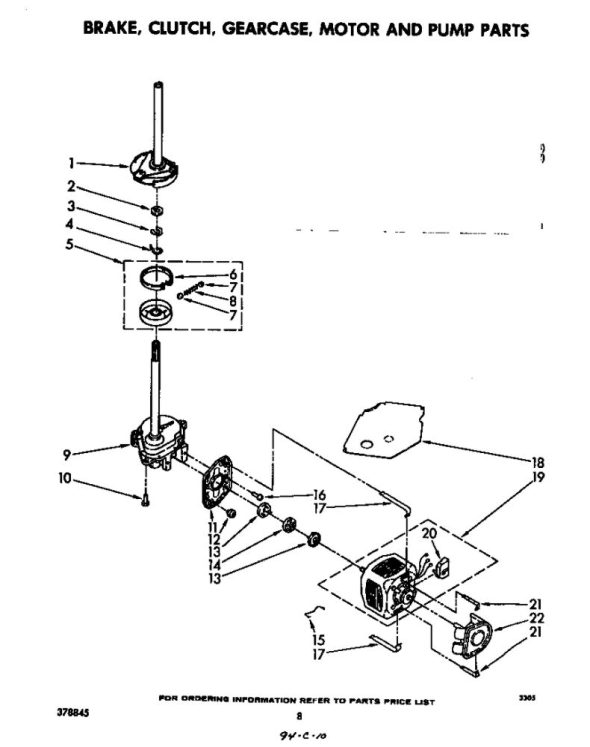

Whirlpool LA3400XMW3

...
...
1
Washer Basket Drive Assembly (Replaces 285792) WPL-W10820043
...
2
Washing Machine Washer (Replaces 63292) WPL-WP63292
...
3
Washer Brake Retainer Clip WPL-WPW10080230
...
4
Washer Retainer Spring WPL-285353
...
5
Washer Clutch (Replaces 285761, 3951311, 3951312) WPL-285785
...
6
Washer Clutch Band (Replaces 285759, 387712, 3951308, W10817174) WPL-285790
...
7
Washer Clutch Spring Cap WPL-WP62646
...
11
Washer Motor Mounting Bracket WPL-WP62611
...
12
Washer Drive Motor Grommet (Replaces 62691) WPL-WP62691
...
13
Washer Motor Coupling (Replaces 280152, 285753, 8559748) WPL-285753A
...
14
Washer Motor Coupling (Replaces 280152, 285753, 8559748) WPL-285753A
...
16
Washer Screw WPL-WP3400516
...
17
Washer Motor Retainer WPL-WPW10086010
...
18
Shield Tub WPL-W10838408
...
19
Washer Drive Motor (Replaces 661600, Wp661599) WPL-WP661600
...
20
Washer Motor Switch (Replaces 8529896) WPL-WP8529896
...
21
Washer Drain Pump Retainer (Replaces 8546127) WPL-WP8546127
...
22
Washer Drain Pump (Replaces 3363394) WPL-WP3363394

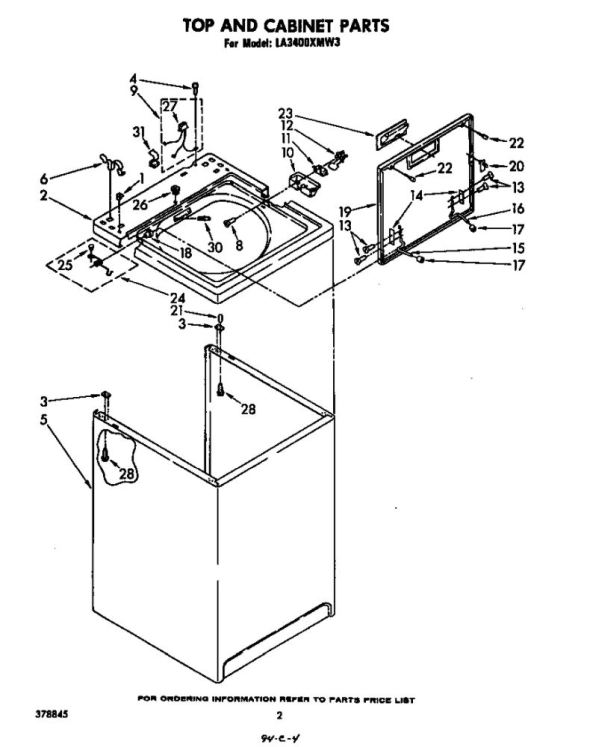

Whirlpool LA3400XMW3

...
...
1
Nut WPL-WP358473
...
3
Washer Cabinet Spacer (Replaces 62750) WPL-WP62750
...
4
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
6
Washer Cabinet Clip (Replaces 62780) WPL-WP62780
...
10
Washer Lid Switch Shield WPL-WP359231
...
11
Laundry Appliance Door Switch Kit (Replaces 279347, 347207, 89556) WPL-W10820036
...
12
Washer Lid Switch Actuator (Replaces 359807) WPL-WP359807
...
13
Washer Screw WPL-WPW10119828
...
14
Washer Lid Hinge Bracket WPL-WP21097
...
15
Washer Lid Hinge WPL-WP54584
...
16
Washer Lid Hinge, Rear (Replaces 54583) WPL-WP54583
...
18
Washer Lid Hinge Bearing (Replaces 21258) WPL-WP21258
...
20
Washer Door Strike (Replaces 358684) WPL-WP358684
...
21
Tine Tip WPL-W10491983
...
22
Washer Lid Bumper (Replaces 9724509) WPL-WP9724509
...
28
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
31
Washer Wire Harness Retainer (Replaces 90016) WPL-WP90016

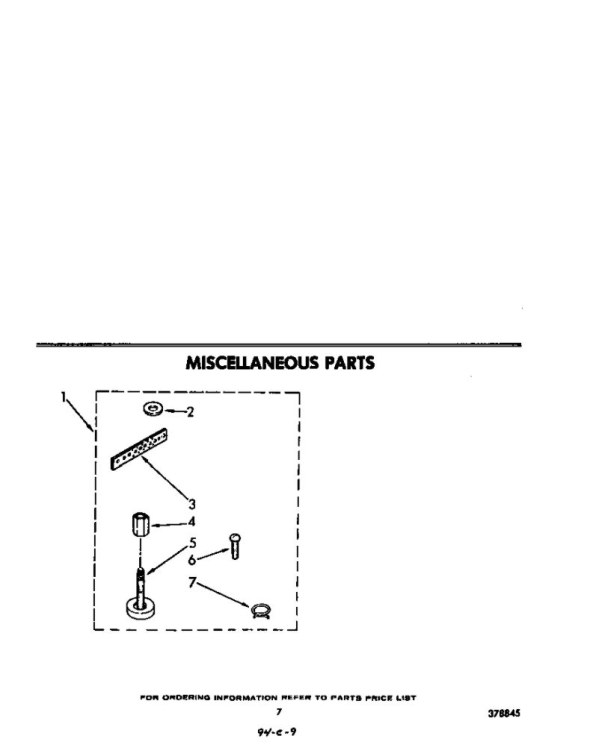

Whirlpool LA3400XMW3

...
...
2
Washing Machine Washer WPL-WP16123
...
4
Nut WPL-WP62739
...
5
Washer Leveling Leg (Replaces W10001130) WPL-WPW10001130
...
7
Hose Clamp WPL-STD316716

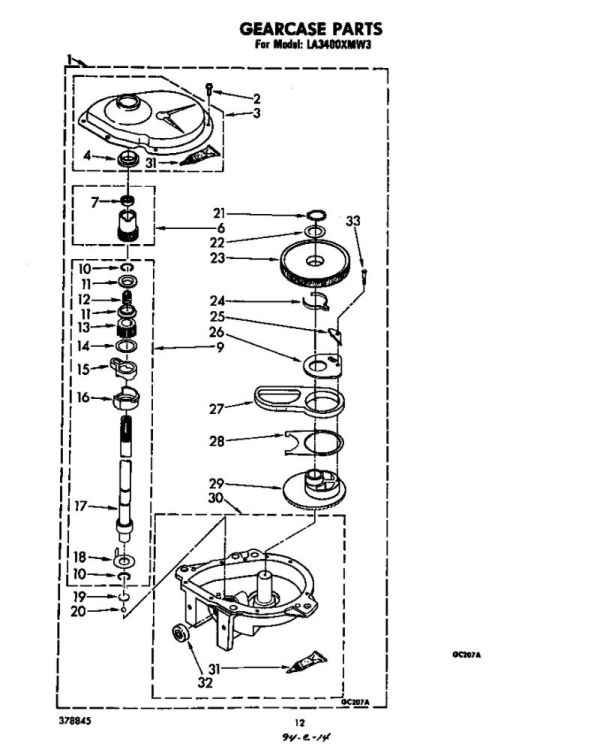

Whirlpool LA3400XMW3

...
...
2
Washer Screw, #10-24 X 3/8-In WPL-WP3351614
...
3
Washer Gear Case Cover, Upper WPL-285202
...
4
Washer Gear Case Cover Seal (Replaces 3349985) WPL-WP3349985
...
7
Washer Basket Drive Tube Seal (Replaces 356427) WPL-WP356427
...
9
Washer Agitator Drive Shaft (Replaces 285206, 285509, 389387, W10116913) WPL-WP389387
...
11
Washer Gear Case Spring Retainer WPL-62677
...
13
Washer Agitator Drive Shaft (Replaces 285206, 285509, 389387, W10116913) WPL-WP389387
...
14
Washer Gear Case Flat Washer WPL-62619
...
15
Washer Agitator Drive Shaft (Replaces 285206, 285509, 389387, W10116913) WPL-WP389387
...
16
Washer Agitator Drive Shaft (Replaces 285206, 285509, 389387, W10116913) WPL-WP389387
...
17
Washer Agitator Drive Shaft (Replaces 285206, 285509, 389387, W10116913) WPL-WP389387
...
19
Washer Agitator Cam Bearing WPL-285205
...
20
Washer Agitator Cam Bearing WPL-285205
...
23
Washer Gear Case (Replaces 285362, 3360630, 8532118, W10140307) WPL-3360629
...
24
Drain WPL-285715
...
25
Drain WPL-285715
...
26
Drain WPL-285715
...
31
Appliance Silicone Sealant (Red) (Replaces 285195) WPL-WP285195
...
32
Washer Gear Case Oil Seal (Replaces 286108, 63387, W10111745) WPL-285352
...
33
Stud WPL-WP62638
...
33A
Washer Gear Case Oil (Replaces 89122) WPL-350572

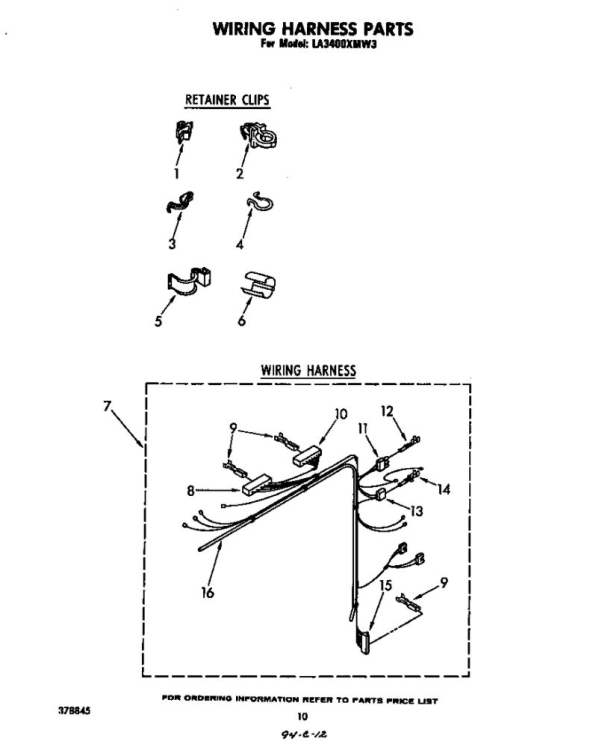

Whirlpool LA3400XMW3

...
...
3
Clip WPL-WP98997
...
5
Washer Wire Harness Retainer (Replaces 90016) WPL-WP90016
...
10
Washer Wire Harness Connector WPL-W10876590
...
11
Washer Lid Switch Terminal Receptacle (Replaces 62889) WPL-WP62889
...
12
Crimp Terminal Connector WPL-STD374513
...
13
Washer Terminal Connector WPL-353424
...
14
Dryer Terminal Connector WPL-WP596797
...
15
Washer Wire Harness Connector (Replaces 62505) WPL-WP62505
...
16
Washer Water-Level Pressure Switch Hose (Replaces 353244) WPL-WP353244

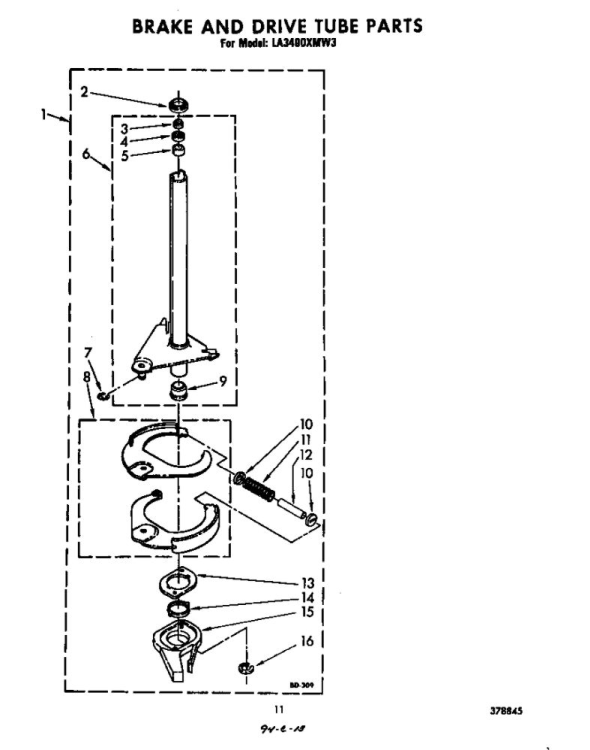

Whirlpool LA3400XMW3

...
...
1
Washer Basket Drive Assembly (Replaces 285792) WPL-W10820043
...
2
Washer Drive Tube Thrust Ring (Replaces 62658) WPL-WP62658
...
3
Washer Drive Tube Oil Seal (Replaces 91939) WPL-WP91939
...
4
Washer Basket Drive Tube Seal (Replaces 356427) WPL-WP356427
...
6
Washer Basket Drive Assembly (Replaces 285792) WPL-W10820043
...
7
Dryer Idler Pulley Retainer Clip WPL-WP354987
...
8
Washer Basket Drive Assembly (Replaces 285792) WPL-W10820043
...
9
Washer Spin Bearing (Replaces 8546462) WPL-WP8546462
...
10
Washer Brake Spring Sleeve Kit WPL-285658
...
11
Spring WPL-WP62647
...
12
Washer Brake Spring Sleeve Kit WPL-285658
...
13
Cam WPL-WP8546461
...
14
Washer Brake Cam Sleeve WPL-WP63022
...
15
Washer Clutch Band (Replaces 285759, 387712, 3951308, W10817174) WPL-285790
...
16
Washer Brake Cam Retainer Clip (Replaces 90368) WPL-W11033823

Whirlpool LA3400XMW3

...
...

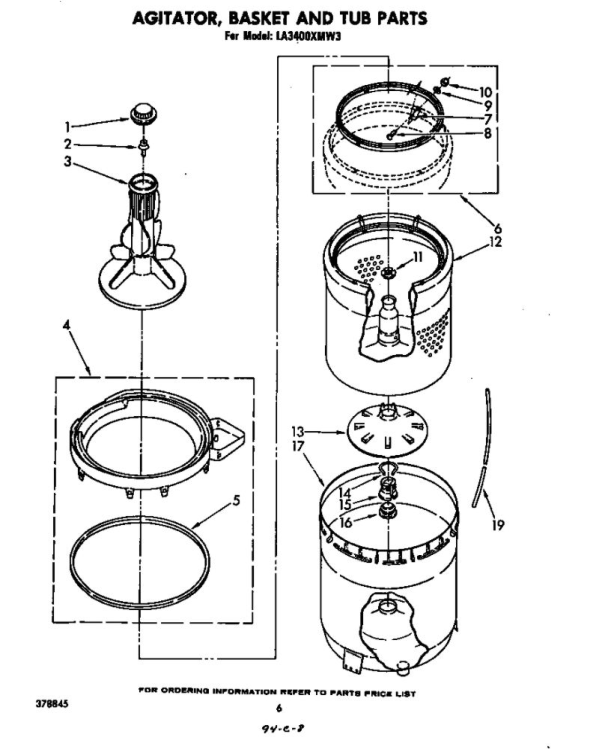

1
Washer Agitator Cap (Replaces 3355758) WPL-WP3355758
...
2
Washer Agitator Bolt (Replaces 358237) WPL-WP358237
...
3
Washer Agitator Assembly (Replaces 63235) WPL-WP63235
...
5
Washer Tub Ring Seal WPL-WP3359586
...
8
Screw WPL-WP486754
...
11
Washer Spanner Nut (Replaces 21366) WPL-WP21366
...
15
Washer Drive Block (Replaces 389140) WPL-WP389140
...
16
Washer Tub Seal (Replaces 383727) WPL-W10814296
...
19
Washer Water-Level Pressure Switch Hose (Replaces 353244) WPL-WP353244

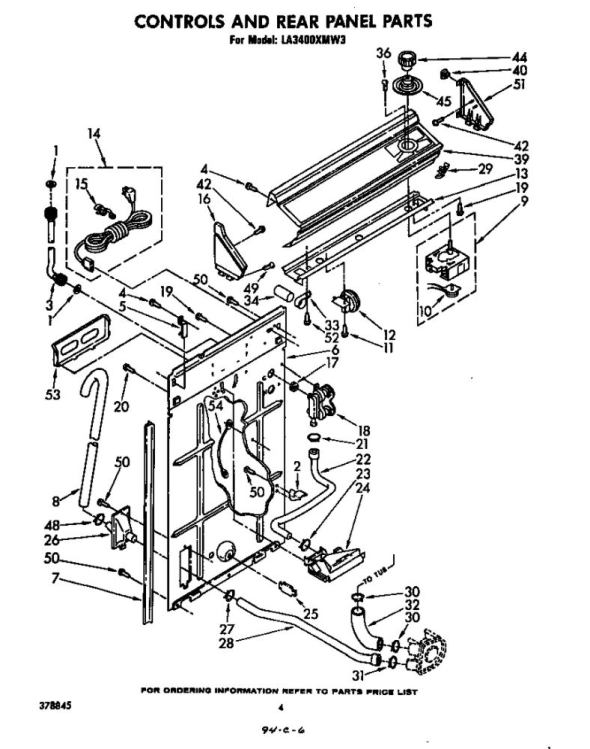

Whirlpool LA3400XMW3

...
...
1
Washing Machine Washer WPL-WP16123
...
3
Washer Cold/Hot Water Fill Hose, 6-Ft WPL-WP76314
...
4
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
7
Pad Panel WPL-WP62747
...
8
Washer Drain Hose WPL-WP96743
...
11
Washer Screw (Replaces 90767, Y313559) WPL-WP90767
...
14
Washer Power Cord (Replaces 285800) WPL-W10820044
...
15
Washer Power Cord Strain Relief WPL-285777
...
17
Washer Water Inlet Valve Screen (Replaces 96160) WPL-WP96160
...
18
Washer Water Inlet Valve (Replaces 21026, 3360388, 3360391, 3429537, 3952164, 3955673, W10110517) WPL-285805
...
19
Washer Screw, #10-24 X 3/8-In WPL-WP3351614
...
20
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
21
Hose Clamp WPL-STD316708
...
22
Washer Tub Fill Nozzle Hose (Replaces 3357328) WPL-WP3357328
...
23
Appliance Hose Clamp (Replaces 22003072, 596669, W10286357) WPL-WP596669
...
24
Washer Tub Fill Nozzle (Replaces 3347034) WPL-WP3347034
...
25
Washer Rear Panel Support WPL-WP8519200
...
26
Washer Drain Hose Adapter WPL-WP3976399
...
27
Hose Clamp WPL-STD316716
...
28
Washer Drain Hose WPL-WP3348552
...
29
Clamp WPL-W10113937
...
30
Clamp WPL-WP371502
...
31
Hose Clamp WPL-STD316716
...
32
Washer Tub-To-Pump Hose (Replaces 3951449, 8527049, W10116973) WPL-285871
...
33
Clamp WPL-357030
...
34
Washer Start Capacitor (Replaces 8572717) WPL-WP8572717
...
36
Screw WPL-WP356418
...
40
Washer Push Nut WPL-WP689559
...
48
Hose Clamp WPL-STD316716
...
50
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
52
Appliance Screw, 10-16 X 1/2-In WPL-WP681414

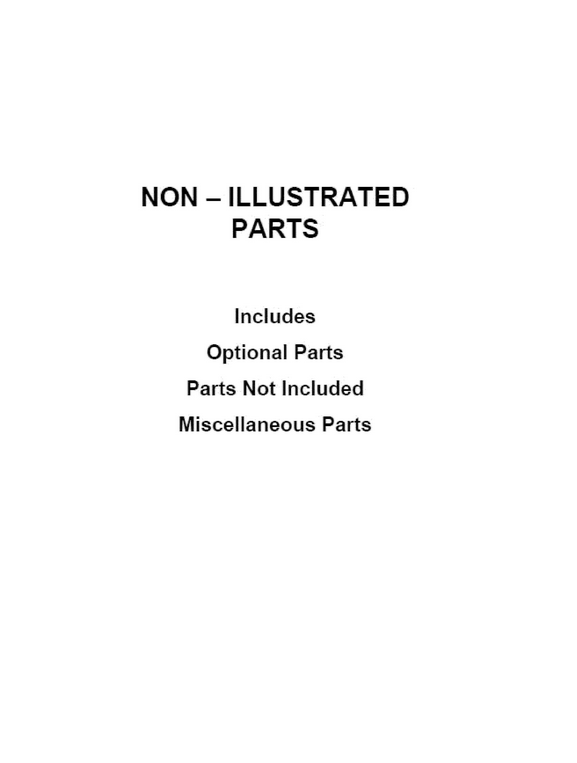

Whirlpool LA3400XMW3

...
...
NI
Appliance Silicone Sealant (Red) (Replaces 285195) WPL-WP285195
...
NI
Washer Gear Case Oil (Replaces 89122) WPL-350572
...
NI
Appliance Spray Paint (Gray Primer) (Replaces 10955, 350338) WPL-350938
...
NI
Appliance Porcelain Touch-Up Paint, 1-Qt (White) WPL-799344
