Whirlpool GC900QPPB7

Model: GC900QPPB7

Save Part Not Listed?
product name

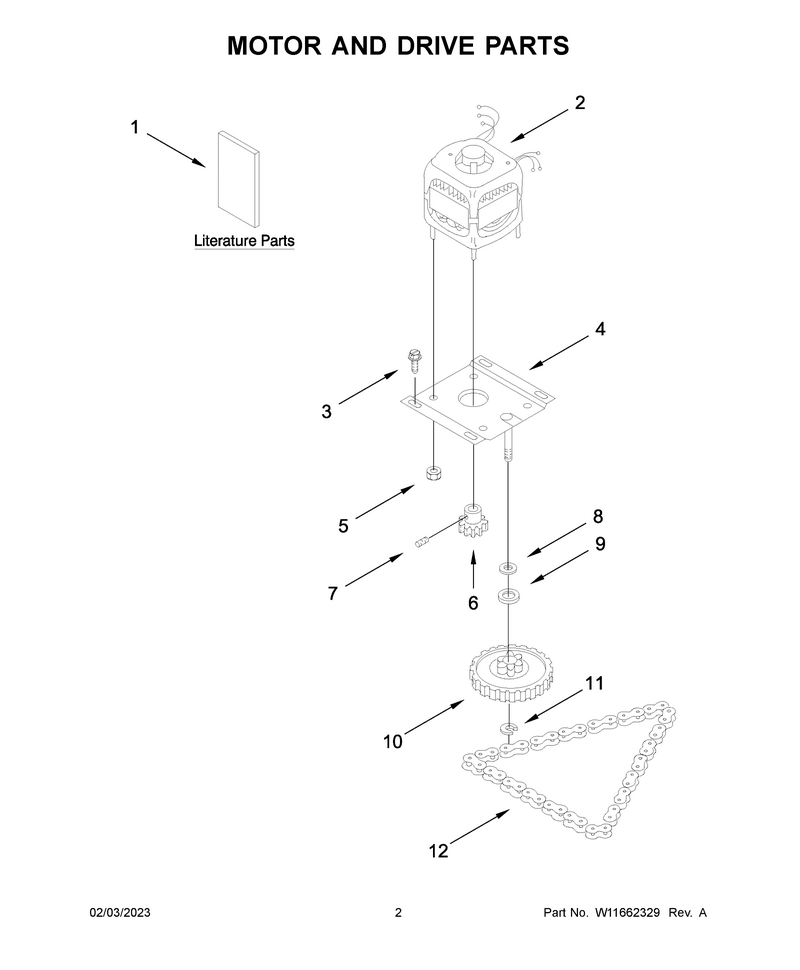

02 - Motor And Drive Parts

...
...
NI
Brackt-Kit WPL-9870118A
...
1
Guide, Use And Care WPL-W11034804
...
1A
Tech Sheet WPL-W10415490
...
1B
Instruction Sheet WPL-W10318872
...
2
Motor-Drv WPL-W10439651
...
3
Bolt WPL-WP8204624
...
4
Plate, Drive Mount WPL-776327
...
5
Nut WPL-WP776338
...
6
Gear-Drive WPL-882699
...
7
Pin-Spring WPL-WP454512
...
8
Washer, Wave WPL-776035
...
9
Washer WPL-W11214485
...
10
Gear-Drive WPL-882699
...
11
Clip WPL-WP776036
...
12
Chain, Drive WPL-780477

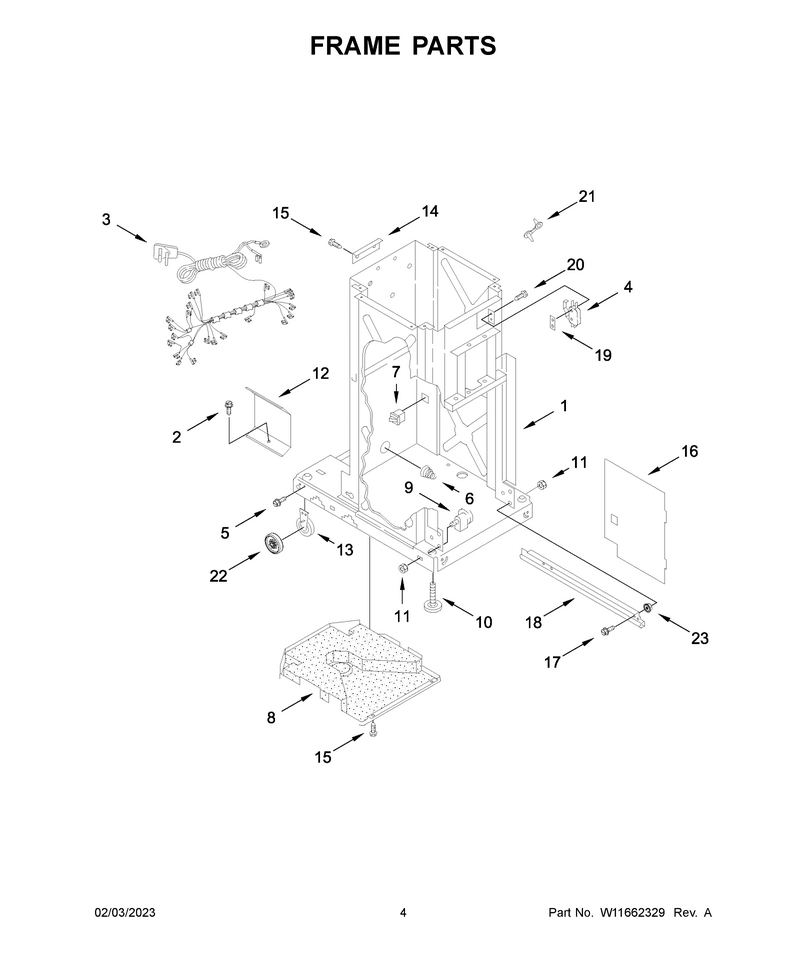

03 - Frame Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Screw WPL-WPW10139210
...
3
Harness, Power Cord WPL-W10830512
...
4
Switch-Dir WPL-WP777811
...
5
Screw WPL-WP3351614
...
6
Spring WPL-WP777180
...
7
Switch-Saf WPL-W11243179
...
8
Pan-Bottom WPL-WP780437
...
9
Bearing WPL-882688
...
10
Feet-Lvlng WPL-WPW10001130
...
11
Nut WPL-WP776356
...
12
Shield, Slide Track WPL-9870867
...
13
Wheel-Lvlr WPL-W11023674
...
14
Angle, Frame Plate WPL-775668
...
15
Screw WPL-WP489478
...
16
Panel-Iner WPL-WP9870444
...
17
Screw WPL-WP486754
...
18
Slide WPL-W11722978
...
18A
Slide WPL-WP9870975
...
19
Plate, Nut WPL-777850
...
20
Screw WPL-777849
...
21
Clamp WPL-W11705832
...
22
Wheel-Lvlr WPL-W11672206
...
23
Nut WPL-W11759042

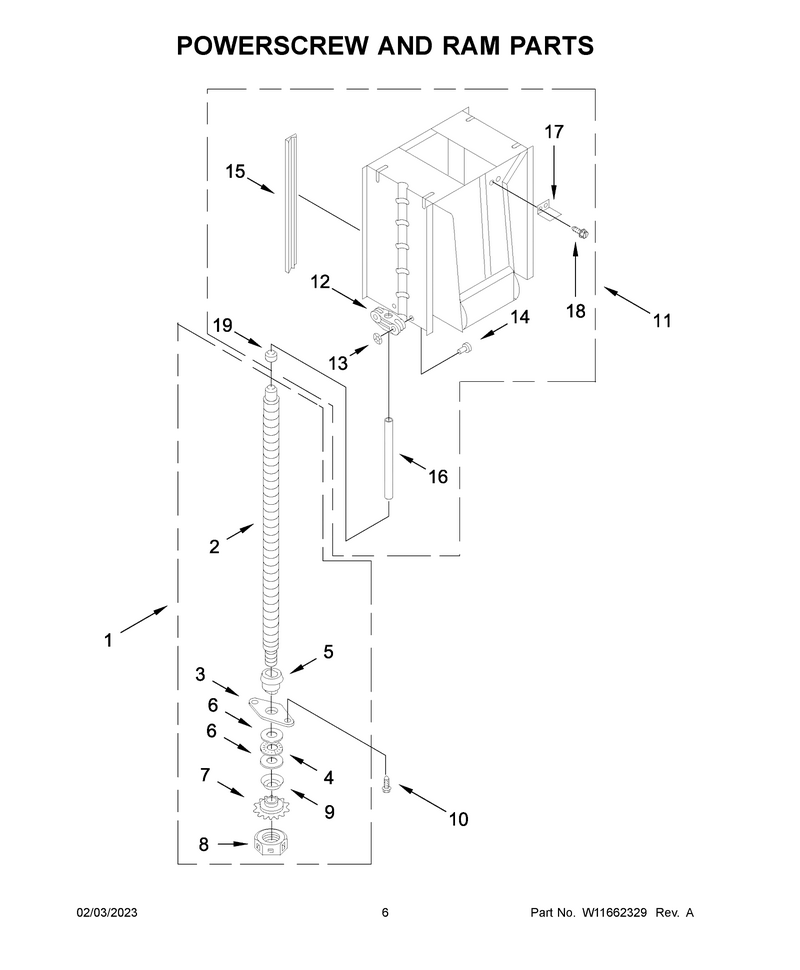

04 - Powerscrew And Ram Parts

...
...
1
Screw-Powr WPL-W11670656
...
2
Following Parts Not Illustrated WPL-N/P
...
3
Plate, Bearing WPL-779121
...
4
Bearing WPL-W10917043
...
5
Hub, Power Screw WPL-776941
...
6
Race, Thrust WPL-775481
...
7
Sprocket WPL-W11679164
...
8
Nut, Power Screw WPL-4154842
...
9
Washer WPL-WP777332
...
10
Bolt WPL-WP8204624
...
11
Ram WPL-W11696573
...
12
Nut-Power WPL-WP9870163
...
13
Clip WPL-8534092
...
14
Stud WPL-882694
...
15
Slide-Ram WPL-W10917246
...
16
Stop-Ram WPL-WP9870037
...
17
Bracket WPL-W11684541
...
18
Screw WPL-WP489399
...
19
Cap-Pwrscr WPL-WP9870775

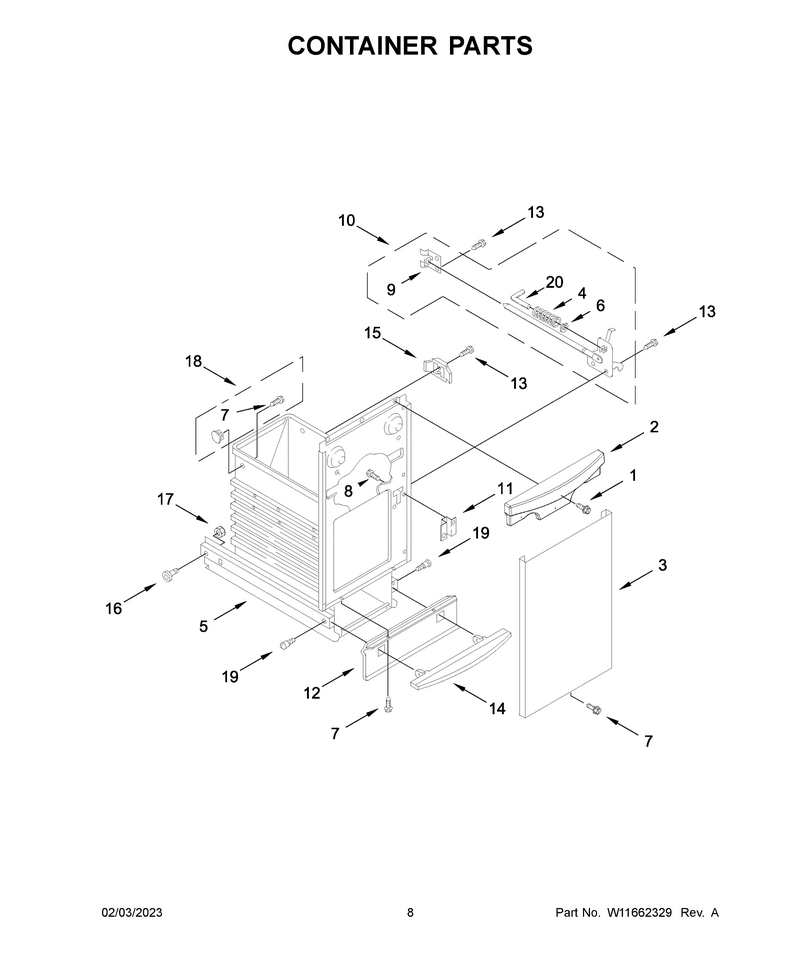

05 - Container Parts

...
...
1
Screw WPL-W11233072
...
2
Handle WPL-WP9872040B
...
2A
Handle, Container (White) WPL-9872040W
...
3
Panel WPL-WP9871311
...
3A
Panel WPL-WP9871309
...
4
Spring, Latch WPL-775736
...
5
Container WPL-W11670733
...
6
Clip WPL-W11679168
...
7
Screw WPL-WP3196175
...
8
Screw WPL-WPW10139210
...
9
Guide-Ltch WPL-WP776395
...
10
Latch Assembly WPL-675379
...
11
Plate, Latch WPL-775665
...
12
Guard WPL-WP777328
...
12A
Guard WPL-W10917704
...
13
Screw WPL-WP489478
...
14
Pedal-Foot WPL-W11679165
...
14A
Pedal-Foot WPL-WP9871031
...
15
Actuator, Safety Switch WPL-9871125
...
16
Bearing WPL-WP9871602
...
17
Nut WPL-WP776356
...
18
Retainer WPL-W11705833
...
19
Screw WPL-WP780263
...
20
Pin WPL-W11705836

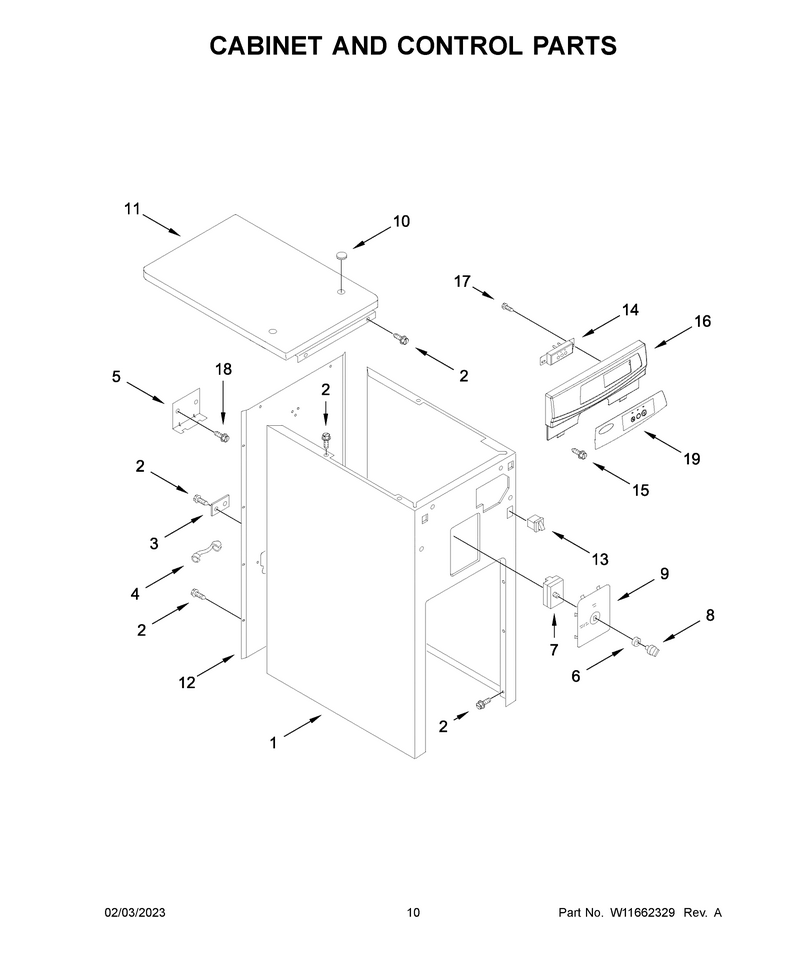

06 - Cabinet And Control Parts

...
...
1
Cabinet (Black) WPL-9870921
...
1A
Cabint WPL-WP9870913
...
2
Screw WPL-WP489478
...
3
Plate, Power Cord WPL-775676
...
4
Relief-Str WPL-285777
...
5
Bracket, Protector WPL-9870125
...
6
Nut WPL-WP777383
...
7
Switch, Rotary WPL-777380
...
8
Knob-Swich WPL-WP4155141
...
9
Plate, Switch (Black) WPL-9871161
...
9A
Plate, Switch (White) WPL-9870356
...
10
Screw WPL-W11233072
...
11
Top, Cabinet (Black) WPL-9871008
...
11A
Top WPL-WP9870865
...
12
Panel, Back WPL-9870863
...
13
Switch, Drawer (Black) WPL-9871829
...
13A
Switch WPL-WP4387911
...
14
Switch-Off WPL-WP9871824
...
15
Screw WPL-246131
...
16
Escutcheon WPL-W11736462
...
16A
Escutcheon, Control (White) WPL-9872039W
...
17
Button-Plg WPL-W11705838
...
17A
Plug, Hole (White) WPL-4151479
...
18
Screw WPL-WPW10139210
...
19
Insert WPL-W11050447
...
19A
Insert WPL-W11690155

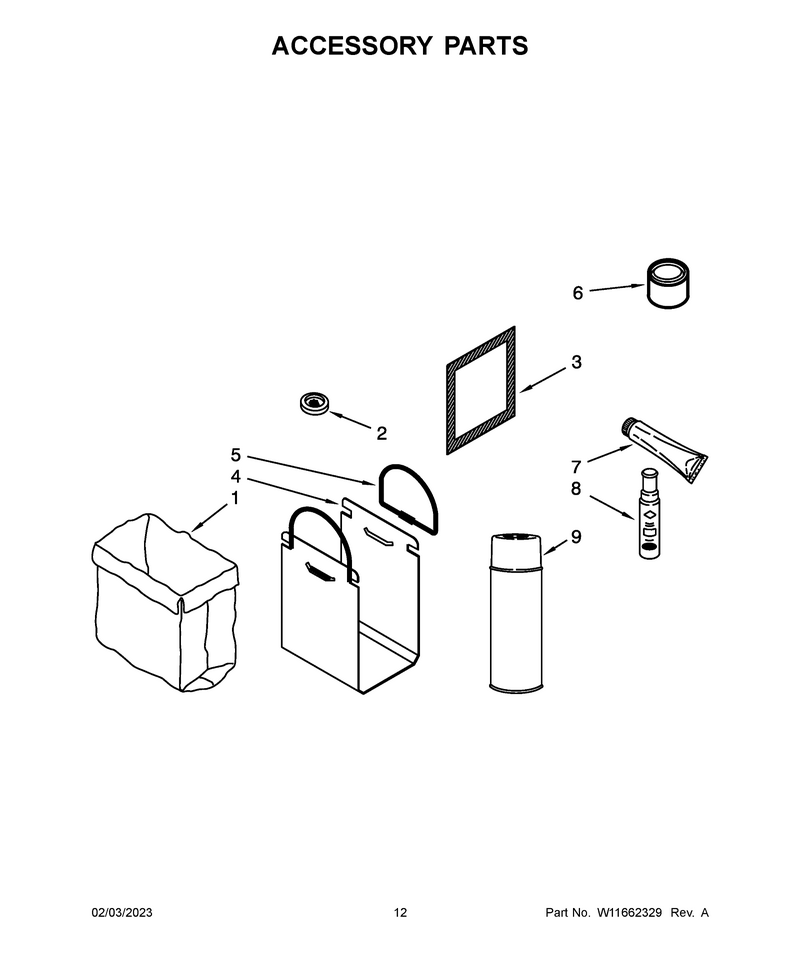

07 - Accessory Parts

...
...
1
Bag 15 Pak WPL-W10165295RP
...
1A
Bag 60 Pak WPL-W10165294RB
...
1B
Bag, Trash (15" Plastic) (12 Boxes Of 15 Pack) WPL-W10165295BU
...
1C
Bag, Trash (15 In Paper) (12 Pack) WPL-675186
...
1D
Bag, Trash (15 In Paper) (48 Pack) WPL-882652
...
2
Deodorizer, Solid Stick Ups (2 Pack) WPL-777635
...
3
Deodorizer Block (Green Apple) WPL-W10540355
...
3A
Deodorizer Block (Lemongrove) WPL-9872166LG
...
3B
Deodorizer Block (Lavender) WPL-9872166L
...
4
Carrier, Bag WPL-13030RP
...
5
Handle-Bag WPL-WP777108
...
6
Grease 4 Oz. (Use On Power Screw And Ram Pressure Pads) WPL-675351
...
7
Adhesive WPL-WP279368
...
8
Paint, Touch-Up (1/2oz. Black) WPL-72032
...
8A
Paint, Touch-Up (1/2oz. White) WPL-72017
...
9
Paint, Pressurized Spray (12 Oz. Black) WPL-285006
...
9A
Paint, Spray (White) WPL-350930
