product name

Whirlpool ET16JMYSM00

Model: ET16JMYSM00

Save Part Not Listed?
product name

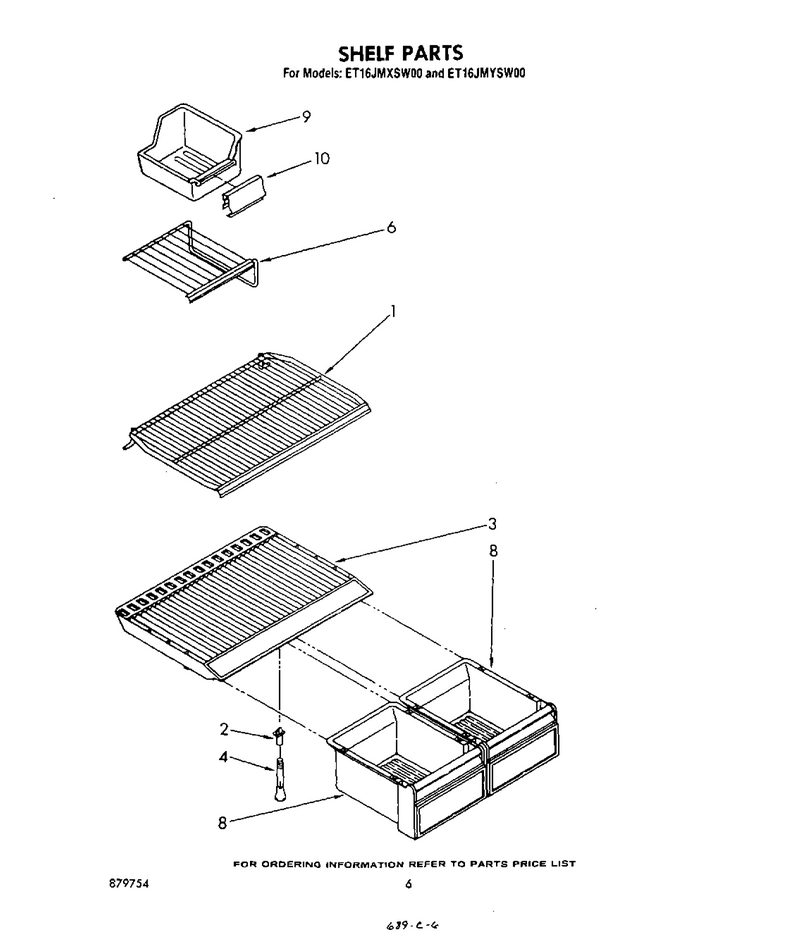

05 - Shelf

...
...
1
Shelf, Pullout (3) WPL-942824
...
2
Support, Crisper Cover WPL-1103731
...
3
Cover, Crisper WPL-1116047
...
4
Post WPL-WP836410
...
6
Shelf, Ice Cube Pan WPL-2151427
...
8
Pan, Crisper (2) (For Platinum Model Only) WPL-946437
...
9
Pan-Ice WPL-982088
...
10
Trim, Ice Pan WPL-539567

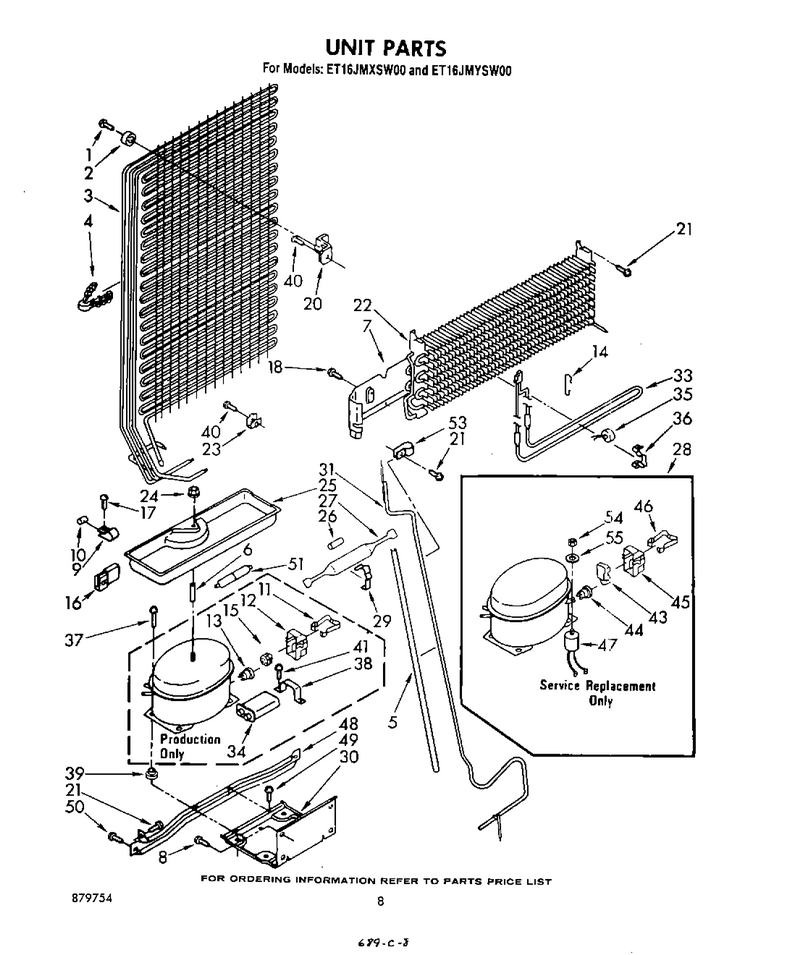

07 - Unit

...
...
1
Screw WPL-WP488163
...
2
Bumper (2) WPL-944772
...
3
Condenser WPL-483182
...
4
Clip, Tube (2) WPL-1108037
...
5
Sleeve WPL-WP2002171
...
6
Spacer WPL-1105130
...
7
Heat Shield Evaporator WPL-1108169
...
8
Screw WPL-WP250830
...
9
Tube Clamp WPL-510716
...
10
Dampener WPL-1118608
...
11
Spring, Relay Case WPL-938384
...
12
Cover WPL-1108115
...
13
Overload WPL-819198
...
14
Support, Heater WPL-1108172
...
15
Relay-Strt WPL-WP2262181
...
16
Connector WPL-WP717253
...
17
Screw, 8-32 X 1/2 WPL-489050
...
18
Screw WPL-WP965173
...
20
Bracket, Condenser (2) WPL-944791
...
21
Screw WPL-W11624204
...
22
Evaporator WPL-1108180
...
23
Clip WPL-4386951
...
24
Nut WPL-285002
...
25
Tray-Evap WPL-WP2201801
...
26
Restrictor Sleeve WPL-510446
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10439638
...
29
Clamp, Drier WPL-547637
...
30
Unit Mounting Plate WPL-942860
...
31
Exchanger, Heat WPL-1127628
...
33
Heater, Defrost WPL-1105164
...
34
Capacitor WPL-483059
...
35
Bimetl-Def WPL-WP4387499
...
36
Clamp WPL-942873
...
37
Grommet (4) ((Production)) WPL-876811
...
38
Bracket WPL-WP43449
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw WPL-WP489069
...
41
Screw WPL-WP489128
...
43
Relay WPL-1100806
...
44
Overload WPL-819100
...
45
Cover WPL-1108115
...
46
Strap WPL-938384
...
47
Capacitor WPL-483059
...
48
Unit Mounting Rail WPL-942859
...
49
Screw WPL-WP965173
...
50
Screw, 1/4-28 X 1 (2) WPL-488973
...
51
Muffler WPL-1103820
...
53
Tube, Clamp WPL-489151
...
54
Nut WPL-489142
...
55
Valve WPL-WP978025

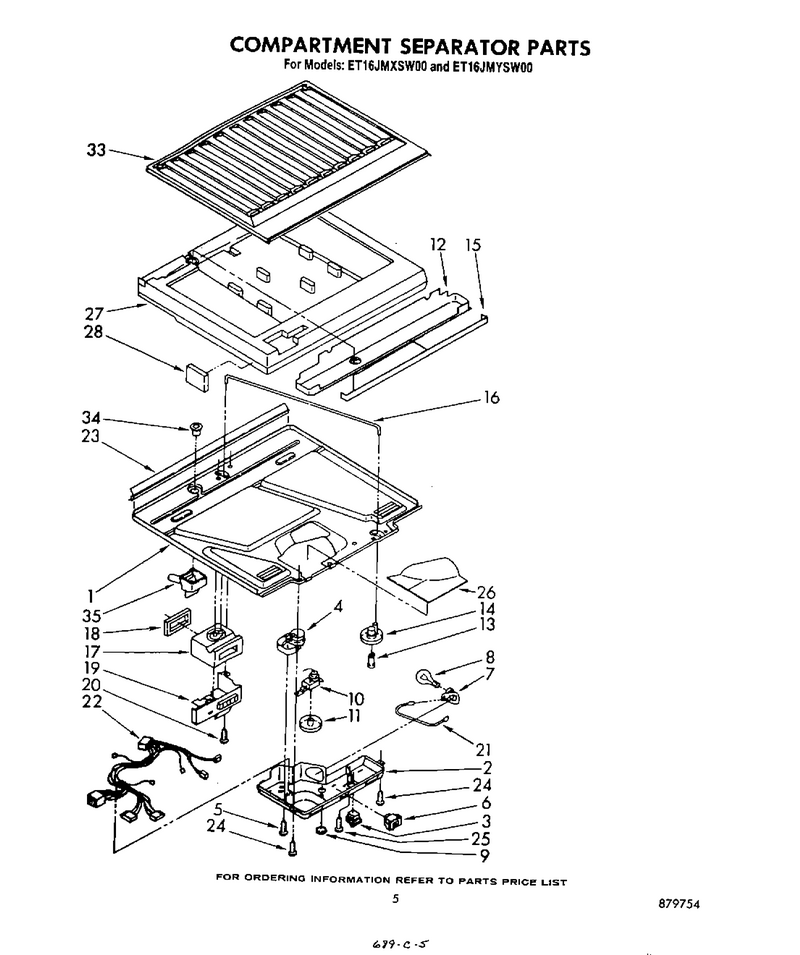

04 - Compartment Separator

...
...
1
Bottom, Compartment Separator WPL-1111794
...
2
Contrl-Box WPL-935724
...
3
Switch WPL-W11384469
...
4
Timer-Def WPL-W10822278
...
5
Screw WPL-WP487353
...
6
Switch-Pm WPL-WP938213
...
7
Capacitor (Service) WPL-4387478
...
8
Bulb-Light WPL-W11679940
...
9
Hole Plug WPL-940014
...
10
Thermostat WPL-1123394
...
11
Knob, Thermostat WPL-2148148
...
12
Drain Pan WPL-1108170
...
13
Retainer, Knob WPL-1111792
...
14
Knob, Air Control WPL-1111737
...
15
Gasket, Drain Pan WPL-1108171
...
16
Rod, Connecting WPL-1111271
...
17
Air Diffuser Assembly WPL-1108173
...
18
Gasket, Air Diffuser WPL-2157255
...
19
Cover, Air Diffuser WPL-1108176
...
20
Screw WPL-WP489069
...
21
Wiring Assembly WPL-937078
...
22
Harns-Wire WPL-1118777
...
23
Gasket, Comp. Sep. WPL-1116698
...
24
Screw WPL-WP250830
...
25
Screw, 8 X 1-3/8 WPL-488678
...
26
Insulation, Filler WPL-1108196
...
27
Insulation, Compartment Separator WPL-1123390
...
28
Pad (2) WPL-946367
...
33
Separator, Compartment (Top) WPL-1110295
...
34
Drain Insert, Separator WPL-942849
...
35
Cup, Drain WPL-939191

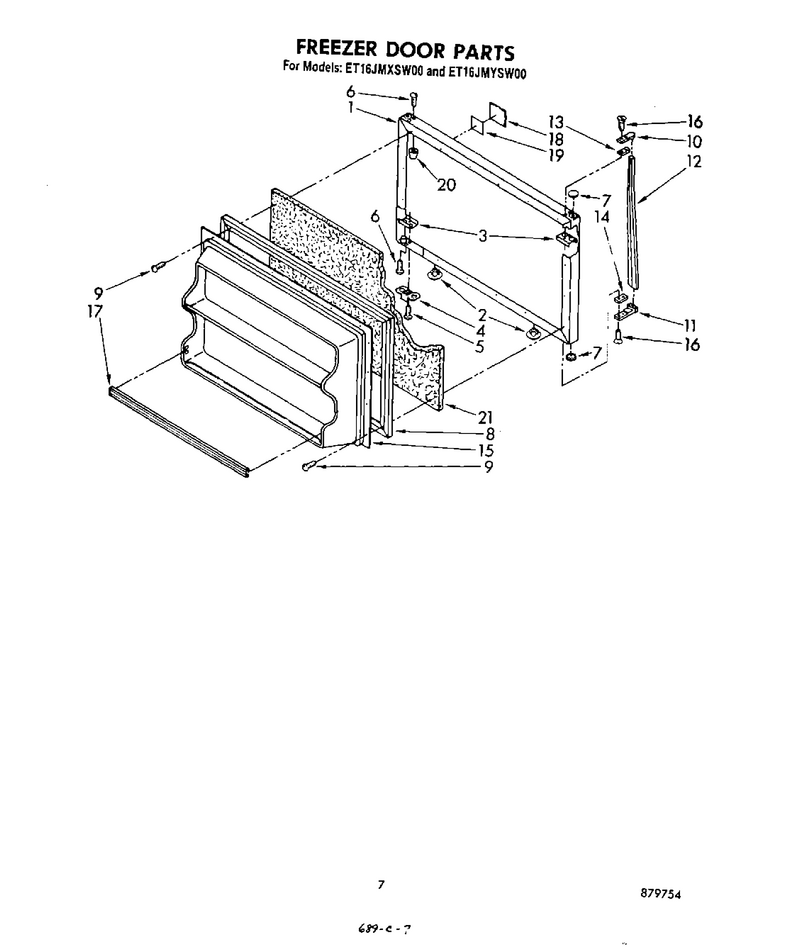

06 - Freezer Door

...
...
1
Panel, Freezer Door (Also Order Item 21) (Golden Harvest) WPL-1103941
...
2
Plug, Hole WPL-534927
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Screw (Repair) WPL-488930
...
7
Hole Plug (Toast) WPL-1100188
...
8
Gasket-Dor WPL-WP2188456A
...
9
Screw WPL-WP681414
...
10
Endcap-Hdl WPL-819342
...
11
Endcap-Hdl WPL-819342
...
12
Handle WPL-W10373956
...
13
Shim, Handle WPL-943187
...
14
Spacer WPL-WP943188
...
15
Panel-Deco WPL-4210596
...
16
Screw WPL-WP488920
...
17
Trim, Door Shelf WPL-1116038
...
18
Nameplate WPL-813529
...
19
Tape WPL-978601
...
20
Cap, Hinge Sleeve WPL-509929
...
21
Insulation Foam (Required When Replacing Exterior Door Panel) WPL-876029

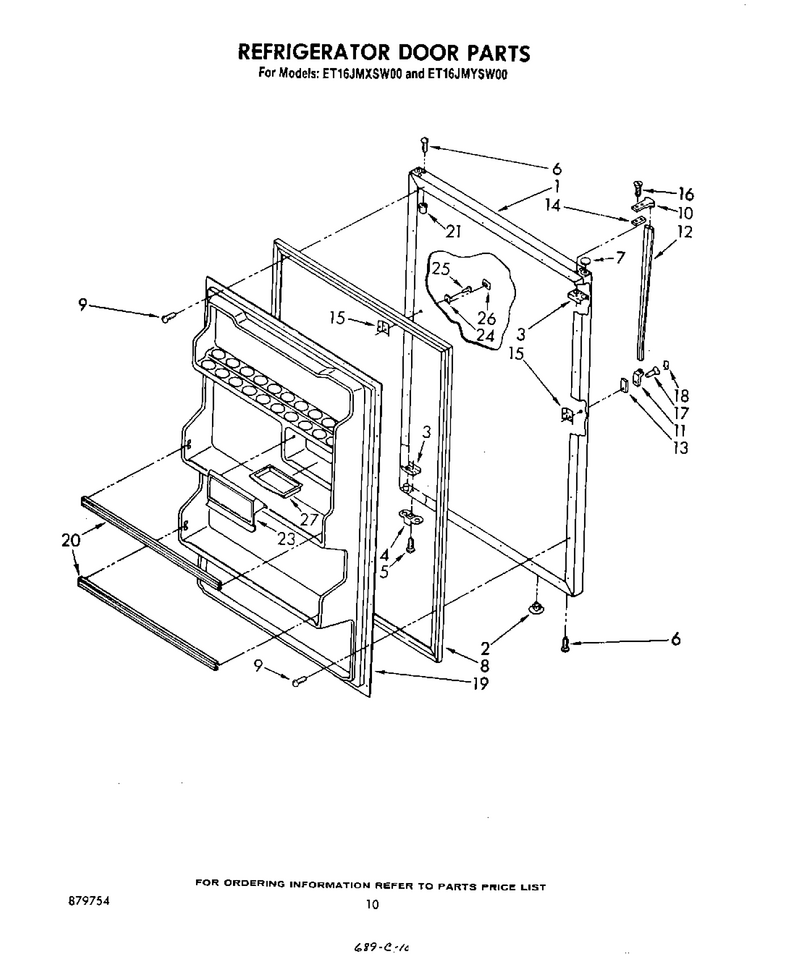

08 - Refrigerator Door

...
...
1
Panel, Refrigerator Door (Golden Harvest) WPL-1103918
...
2
Hole Plug WPL-534927
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Screw (Repair) WPL-488930
...
7
Hole Plug (Toast) WPL-1100188
...
8
Gasket-Dor WPL-2188445A
...
9
Screw WPL-WP681414
...
10
Endcap-Hdl WPL-819342
...
11
Endcap-Hdl WPL-819342
...
12
Handle WPL-W10373956
...
13
Shim, Handle End (Side) WPL-992872
...
14
Spacer WPL-WP943188
...
15
Plate WPL-WP939101
...
16
Screw WPL-WP488920
...
17
Screw WPL-WP488729
...
18
Cover WPL-WP1101634
...
19
Panel-Deco WPL-4210595
...
20
Trim, Door (Top) (2) WPL-1116031
...
21
Cap, Hinge Sleeve WPL-509929
...
23
Door-Comp WPL-943975
...
24
Clip, Medallion WPL-1107329
...
25
Screw WPL-WP488729
...
26
Medallion WPL-1111705
...
27
Buttertray WPL-WP2151651

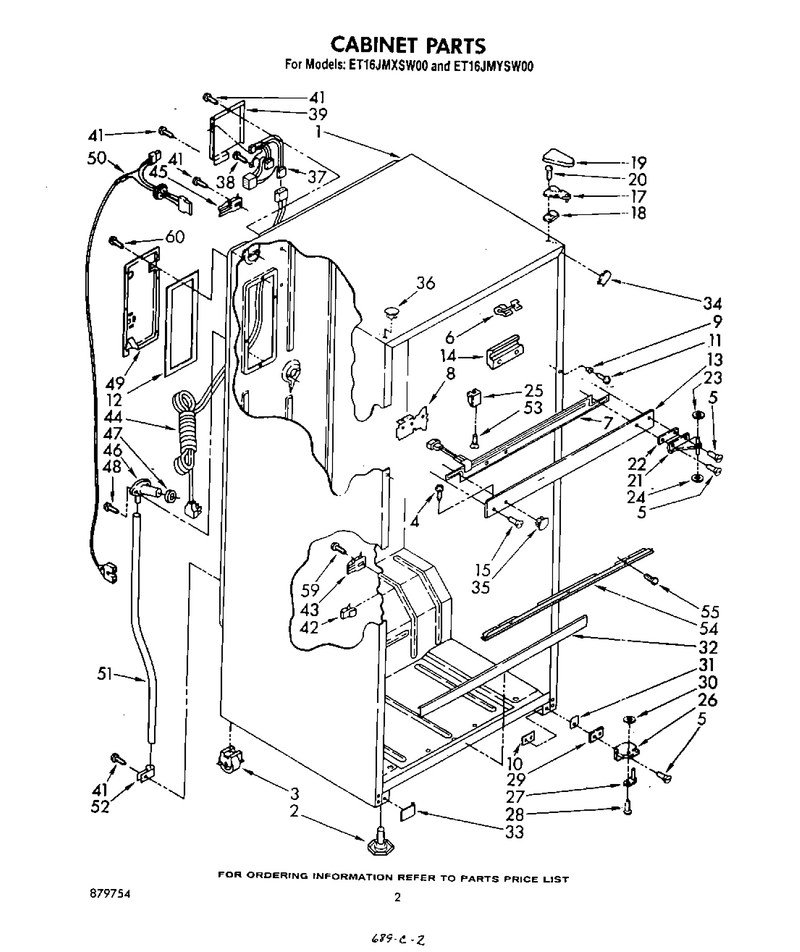

02 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Leveler WPL-4389110
...
3
Roller, Rear (2) WPL-2152014
...
4
Screw WPL-WP488729
...
5
Screw WPL-489179
...
6
Breaker, Trim Clip WPL-1114428
...
7
Heater WPL-483140
...
8
Center Rail, Bracket (2) WPL-1110231
...
9
Ferrule, Center Rail WPL-942737
...
10
Tap Plate (2) WPL-2147312
...
11
Screw, (Repair) WPL-487246
...
12
Seal, Gasket WPL-1106510
...
13
Center Rail (Toast) WPL-1111513
...
14
Center, Rail Shim (2) WPL-939034
...
15
Screw, 10-24 X 1/2 WPL-486146
...
17
Shim, Hinge Top WPL-1100513
...
18
Shim, Top Hinge WPL-1100509
...
19
Hinge Cover (Golden Harvest) WPL-989896
...
20
Screw WPL-WP999367
...
21
Hinge-Door WPL-W10851192
...
22
Shim, Hinge Center WPL-836155
...
23
Washer WPL-WP487802
...
24
Washer WPL-WP488296
...
25
Spacer (2) WPL-2149077
...
26
Hinge Butt, Bottom WPL-944783
...
27
Pin-Hinge WPL-WP654366
...
28
Screw WPL-WP488714
...
29
Shim, Bottom Hinge WPL-942812
...
30
Washer WPL-WP487802
...
31
Cover, Glider Rail (Platinum) WPL-1100685
...
32
Cover, Deck Rail (White) WPL-1109359
...
33
Cover, Glider Rail (Almond) WPL-944831
...
34
Filler, Wrap Corner (2) (Golden Harvest) WPL-1110686
...
35
Hole Plug (White) WPL-1119707
...
36
Hole Plug (2) (Golden Harvest) WPL-989876
...
37
Harns-Wire WPL-1106840
...
38
Screw WPL-WP250830
...
39
Cover, Wiring WPL-942845
...
41
Screw WPL-W11624204
...
42
Clip WPL-W10812038
...
43
Clamp, Service Cord WPL-549193
...
44
Cord, Service WPL-937360
...
45
Clamp WPL-937357
...
46
Fitting, Drain WPL-942813
...
47
Seal, Gasket WPL-1106507
...
48
Screw WPL-WP98165
...
49
Plug Assembly WPL-942854
...
50
Harns-Wire WPL-WP2187501
...
51
Tube-Drain WPL-8316810
...
52
Clamp (2) WPL-519405
...
53
Screw WPL-798639
...
54
Filler, Center Rail WPL-1111531
...
55
Screw (3) WPL-489167
...
59
Screw WPL-WP489069
...
60
Screw WPL-WP489069

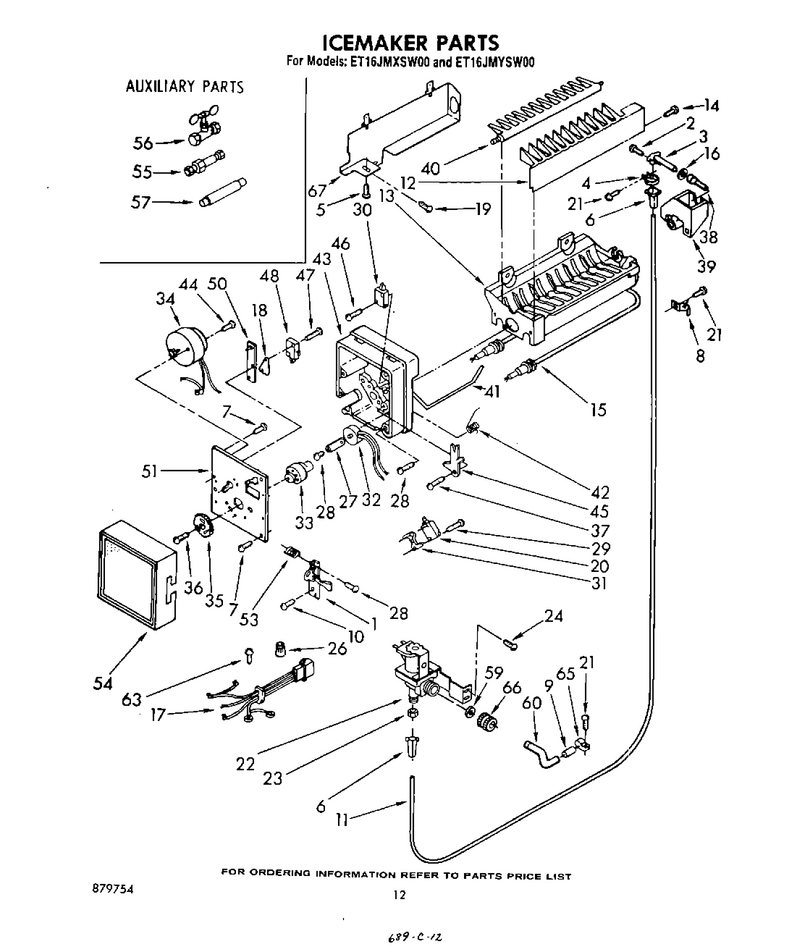

09 - Ice Maker , Not Illustrated

...
...
Paint, Spray (13 Oz.) (Platinum) WPL-285366
...
1
Lever & Plate Assembly WPL-627248
...
2
Screw WPL-WPW10141645
...
3
Fitting WPL-WP2196157
...
4
Clamp WPL-WP488878
...
5
Screw, 8-16 X 3/8 WPL-488896
...
6
Insert, Tube WPL-4387491
...
7
Screw WPL-WP488787
...
8
Clamp WPL-WP488366
...
9
Dampener WPL-WP2158826
...
10
Screw WPL-W11084238
...
11
Tube-Water WPL-W10823511
...
12
Stripper, Ice WPL-625840
...
13
Mold-Ice WPL-833702
...
14
Screw WPL-WP489128
...
15
Heatr-Mold WPL-625893
...
16
Gasket WPL-WP1106508
...
17
Harns-Wire WPL-627981
...
18
Insulator, Switch WPL-627680
...
19
Screw 8-15 X 1/2 WPL-486214
...
20
Switch WPL-627848
...
21
Screw WPL-WP489069
...
22
Valve-Inlt WPL-4318047
...
23
Nut WPL-WP627018
...
24
Screw WPL-WPW10141625
...
26
Connector Wire WPL-227991
...
27
Clamp, Thermostat WPL-625829
...
28
Screw, 8-32 X 1 WPL-488372
...
29
Screw, 4-40 X 1 (2) WPL-488361
...
30
Switch, S.p.d.t. WPL-625851
...
31
Spacer WPL-WP625834
...
32
Thermostat (Alternate) WPL-627180
...
33
Cam WPL-625913
...
34
Motor-Ice WPL-798654
...
35
Gear WPL-WP628210
...
36
Screw WPL-488957
...
37
Screw, Shoulder WPL-627199
...
38
Tube, Water Inlet WPL-939027
...
39
Inlet Kit WPL-833593
...
40
Ejector WPL-627375
...
41
Arm, Shut-Off WPL-627003
...
42
Spring-Arm WPL-480855
...
43
Support WPL-625827
...
44
Screw (Use W/motor 625846) WPL-488361
...
45
Lever, Arm WPL-625830
...
46
Screw, 4-24 X 3/4 (2) WPL-488360
...
47
Screw, 4-40 X 3/4 (2) WPL-488362
...
48
Switch, S.p.s.t. WPL-625947
...
50
Plate, Valve Switch WPL-627024
...
51
Plate, Mounting WPL-627740
...
53
Spring WPL-627163
...
54
Cover-Frnt WPL-627138
...
55
Union, 1/4`` X 3/16`` WPL-512503
...
56
Valve, Shut-Off WPL-541157
...
57
Filter Kit WPL-978488
...
59
Washer WPL-WP16123
...
60
Tube, Inlet Valve WPL-480389
...
63
Screw, 8-32 X 1/4 (Ground) WPL-488542
...
65
Clamp Tube WPL-510716
...
66
Nut, Valve WPL-537588
...
67
Enamel, Almond (1 Qt. Uncut) WPL-978883

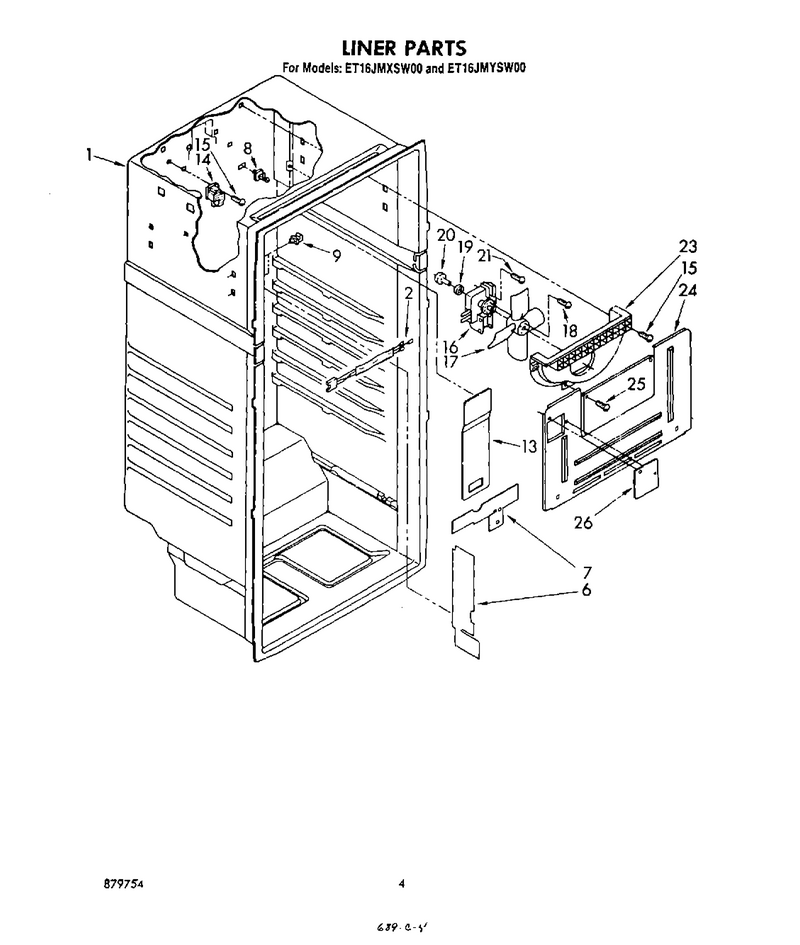

03 - Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Wiring, Fan Motor WPL-943796
...
6
Side, Electric Shield WPL-942751
...
7
Top, Electric Shield WPL-1129068
...
8
Stud, Evaporator (2) WPL-942750
...
9
Stud-Shelf WPL-WP939065
...
13
Cover, Air Duct WPL-1111420
...
14
Terminal Block, Multiple WPL-942842
...
15
Screw WPL-W11624204
...
16
Motor-Evap WPL-482731
...
17
Blade-Fan WPL-WP1100938
...
18
Screw WPL-WP487887
...
19
Grommet WPL-WP531933
...
20
Spacer, Fan Motor (2) WPL-935701
...
21
Screw, 8 X 1-1/4 (2) WPL-489042
...
23
Scroll, Fan WPL-2178956
...
24
Evaporator Cover WPL-942847
...
25
Screw WPL-WP488729
...
26
Cover WPL-WP2217784
