Whirlpool EF36BNNFSS11

Model: EF36BNNFSS11

Save Part Not Listed?
product name

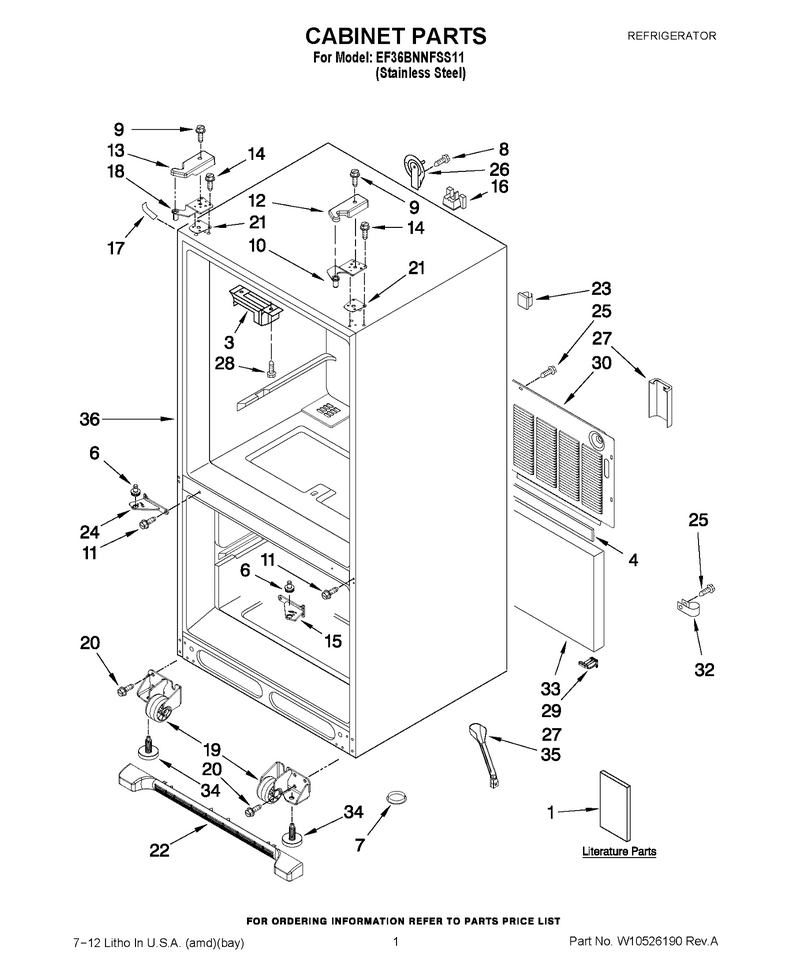

01 - Cabinet Parts

...
...
1
Owners Manual WPL-W10334671
...
3
Block- Piv WPL-WP67003405
...
4
Gasket WPL-B5759655
...
6
Pin WPL-WP67006642
...
7
Plug, Button WPL-A3076901
...
8
Screw WPL-WP98165
...
9
Screw WPL-WP8281196
...
10
Hinge, Top Right WPL-12626910ED
...
11
Screw WPL-W11573362
...
12
Cover, Right Hinge WPL-12629801AP
...
13
Cover, Left Hinge WPL-W10217487
...
14
Screw WPL-WP489349
...
15
Hinge, Center (Rt) WPL-12655102AP
...
16
Block- Fil WPL-WP12777701
...
17
Filler WPL-WP12587703AP
...
18
Hinge, Top Left WPL-12626911ED
...
19
Roller-Cab WPL-WPW10515762
...
20
Screw (8) WPL-67006564
...
21
Shim, Hinge WPL-12579702
...
22
Grille WPL-WPW10534155
...
23
Clip WPL-WPM0104106
...
24
Hinge, Center (Lt) WPL-12655102AP
...
25
Screw (3) WPL-67006425
...
26
Cover, Water Line WPL-12726003
...
27
Guard, Water Valve (Dual) WPL-W10208593
...
28
Screw WPL-WP7101P126-60
...
29
Sweep, Dual Tube WPL-12831101
...
30
Cover-Back WPL-WPW10211855
...
32
Clamp WPL-W11456069
...
33
Insulation WPL-W11706807
...
34
Leveler WPL-WPW10141622
...
35
Tube-Drain WPL-W10619951
...
36
Cabinet (Not A Servicable Part) WPL-N/P

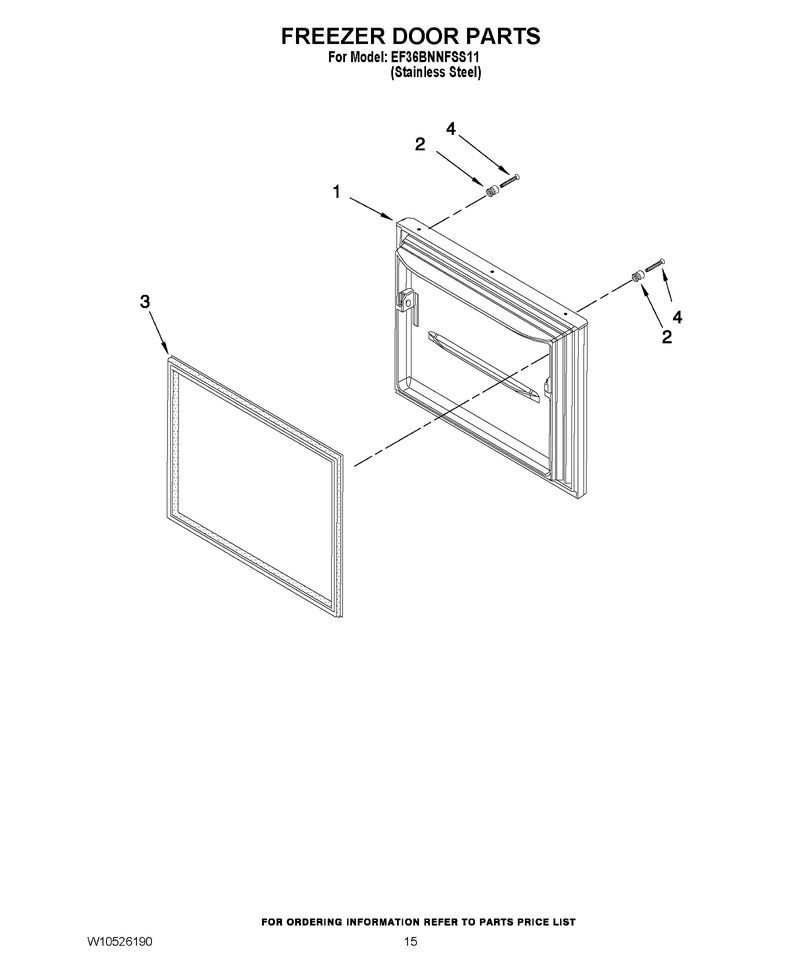

08 - Freezer Door Parts

...
...
1
Dor-Fip Ss WPL-13109212SQ
...
2
Mount, Handle WPL-12945201
...
3
Gasket, Door WPL-W10443320
...
4
Screw WPL-W10160454

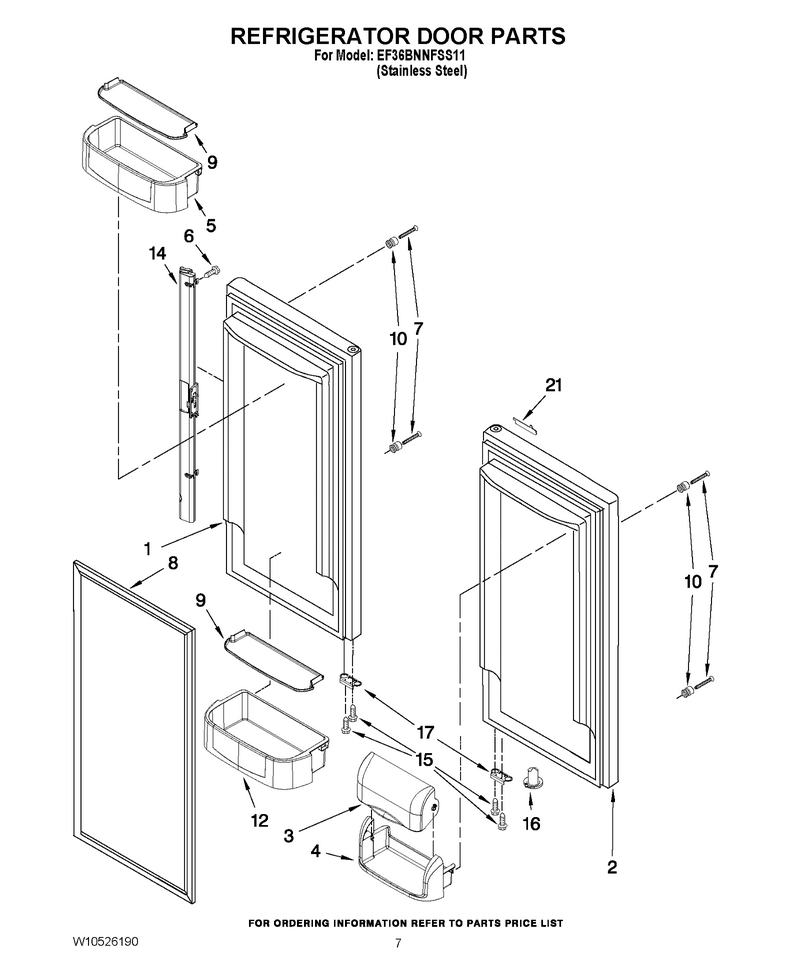

04 - Refrigerator Door Parts

...
...
1
Dor-Fip Ss WPL-13107769SQ
...
2
Dor-Fip Ss WPL-13107768SQ
...
3
Door-Comp WPL-WP67003637
...
4
Tray- Dair WPL-WP67001279
...
5
Bin-Cntlvr WPL-WPW10371193
...
6
Screw WPL-W11311945
...
7
Screw WPL-W10160454
...
8
Gasket, Door (Grey) WPL-W10830162
...
9
Gripper (Gal) WPL-67006907
...
10
Mount, Handle WPL-12945201
...
12
Bin, Shelf (Gallon) WPL-W10289496
...
14
Rail-Mulln WPL-WP12722803AP
...
15
Screw WPL-WP98165
...
16
Closer WPL-WP12028505AP
...
17
Stop-Door WPL-W11401472
...
21
Nameplate WPL-12989001

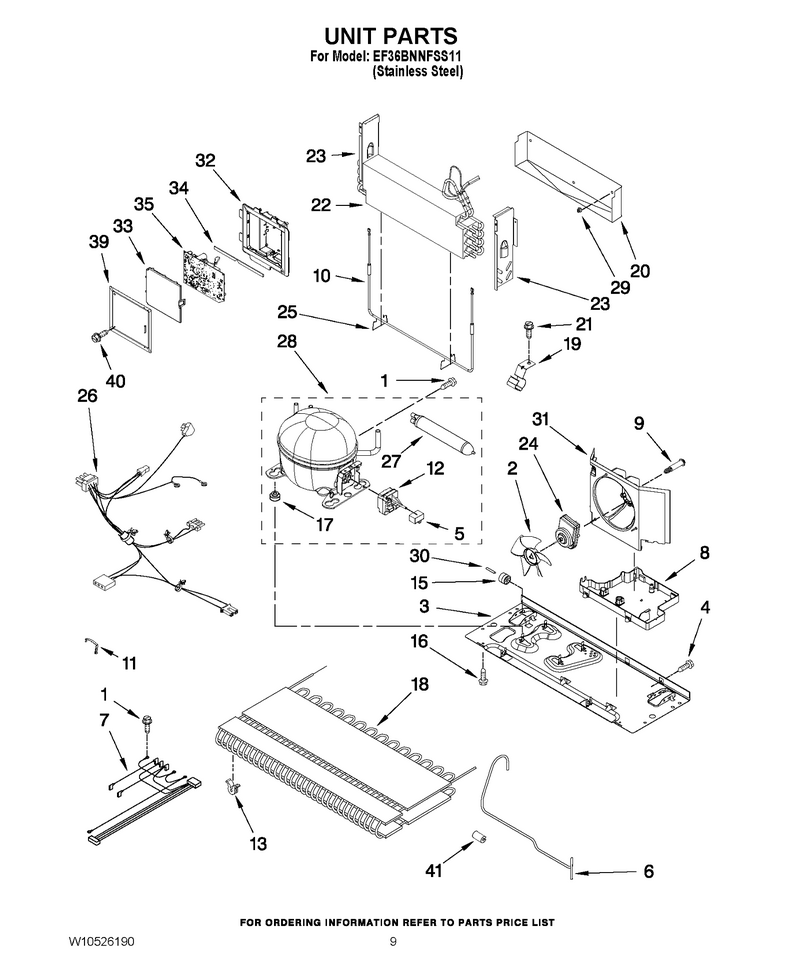

05 - Unit Parts

...
...
NI
Valve, Access (3/16``) WPL-876764
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Plate WPL-W11727651
...
4
Screw (3) WPL-67006425
...
5
Capacitor WPL-WPW10662129
...
6
Tube WPL-WPW10233569
...
7
Harness, Evap. (Incl.heater) WPL-W10292242
...
8
Pan-Drip WPL-WPW10655368
...
9
Screw WPL-W10829281
...
10
Heater WPL-W10825088
...
11
Clip WPL-W11661170
...
12
Start-Dev WPL-WPW10448874
...
13
Grommet WPL-WPW10137529
...
15
Roller WPL-WP67005149
...
16
Screw WPL-12992101
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-WPW10346415
...
19
Clip, Drier WPL-W10281329
...
20
Tray-Drip WPL-W11547653
...
21
Screw WPL-WP33001882
...
22
Evaporator WPL-W11256565
...
23
Dam (Right Side) WPL-12225702
...
24
Motor-Cond WPL-W11613295
...
25
Clip WPL-W11673433
...
26
Harness, Unit (Includes Power Cord) WPL-W11224411
...
27
Drier-Uv WPL-WPW10143759
...
28
Compressor WPL-W10233960
...
29
Clip, Evaporator WPL-10623002
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Box, Hv Control WPL-W10257665
...
33
Cover WPL-W11226688
...
34
Gasket, Hv Control WPL-67006429
...
35
Cntrl-Elec WPL-WPW10317076
...
39
Cover, Control Box WPL-12961602
...
40
Screw WPL-W11686675
...
41
Grommet WPL-W10852725

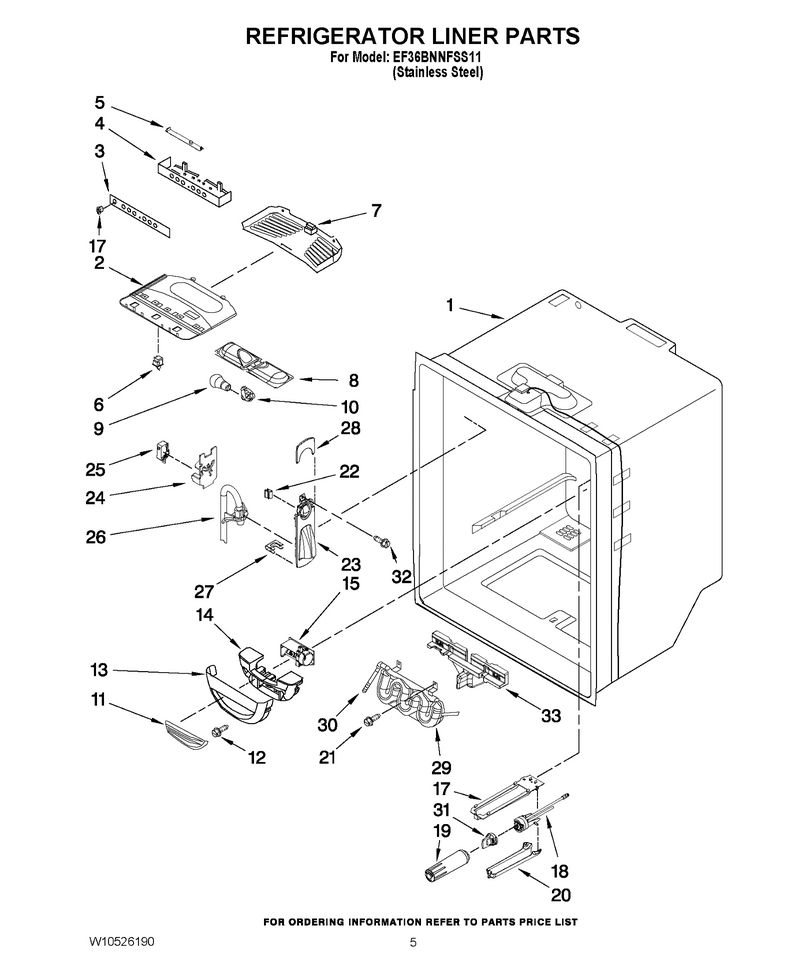

03 - Refrigerator Liner Parts

...
...
NI
Harns-Wire WPL-WPW10224292
...
1
Liner (Not A Serviceable Part) WPL-N/P
...
2
Module, Light WPL-W10464764
...
3
Overlay WPL-W10225055
...
4
Housing WPL-W11416469
...
5
Cntrl-Elec WPL-WPW10428901
...
6
Switch WPL-W11384469
...
7
Cover WPL-W11284721
...
8
Housing, Light WPL-W10443023
...
9
Bulb-Light WPL-W11679940
...
10
Socket WPL-W11447232
...
11
Insert, Damper Cover WPL-67003900
...
12
Screw WPL-WP400021-1
...
13
Cover-Box WPL-WP12806701
...
14
Insulation WPL-WP13012402
...
15
Control WPL-WPW10594329
...
17
Plate- Fil WPL-WP67001668
...
18
Head-Filtr WPL-W11346623
...
19
Filter WPL-EDR4RXD1
...
20
Cover- Fil WPL-WP12568001
...
21
Screw WPL-WP67006415
...
22
Clip WPL-W10819546
...
23
Cover WPL-W10720642
...
24
Plate, Switch WPL-12707303SP
...
25
Switch- Li WPL-WP12575501
...
26
Guide WPL-W11677725
...
27
Clip, Waterline WPL-67002816
...
28
Cover WPL-W11519867
...
29
Reservoir WPL-W11229977
...
30
Fitting WPL-WP2300868
...
31
Cap-Filter WPL-W11395888
...
32
Screw (3) WPL-67006425
...
33
Insulation WPL-WPW10163893

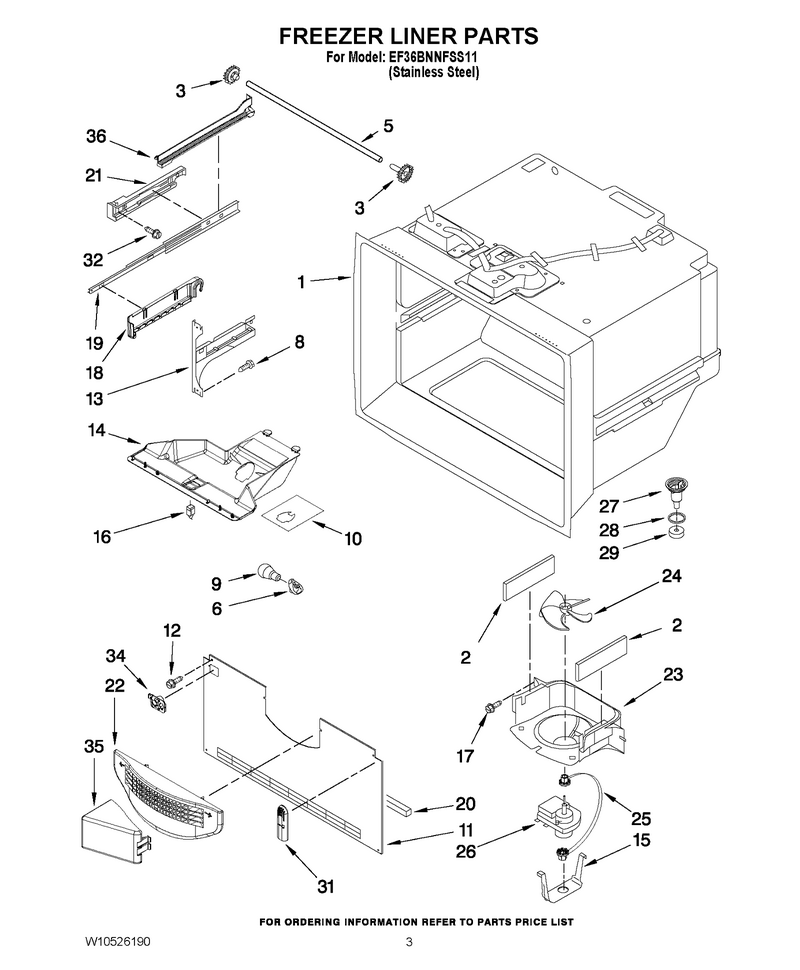

02 - Freezer Liner Parts

...
...
1
Liner (Not A Seviceable Part) WPL-N/P
...
2
Gasket WPL-W10856123
...
3
Gear,(L & R) WPL-12002497
...
5
Shaft WPL-W11028221
...
6
Socket WPL-W11447232
...
8
Screw WPL-WP98165
...
9
Bulb-Light WPL-W11679940
...
10
Shield WPL-W11469652
...
11
Cover-Evap WPL-W11727809
...
12
Screw (3) WPL-67006425
...
13
Bracket WPL-WPW10330993
...
14
Housing WPL-WPW10277025
...
15
Clip, Evap. Motor WPL-13058002
...
16
Switch WPL-W11396033
...
17
Screw WPL-WP98165
...
18
Bracket WPL-WPW10281116
...
19
Slide WPL-W11658403
...
20
Gasket WPL-W11159728
...
21
Bracket WPL-WPW10284693
...
22
Grille WPL-WPW10175909
...
23
Shroud WPL-WPW10167023
...
24
Blade-Fan WPL-WP2169142
...
25
Grommet WPL-W10121318
...
26
Motor-Evap WPL-WPW10128551
...
27
Funnel WPL-W10815413
...
28
Seal- O Ri WPL-WPM0500703
...
29
Gasket- Dr WPL-WPB8381501
...
31
Cover- Fz WPL-WP67003924
...
32
Screw WPL-WP489474
...
34
Guide, Fill Tube WPL-W11448709
...
35
Diverter, Air WPL-W10157765
...
36
Rack, Side (Right Hand) WPL-W10516604

...
...
NI
Sealer WPL-WP505587

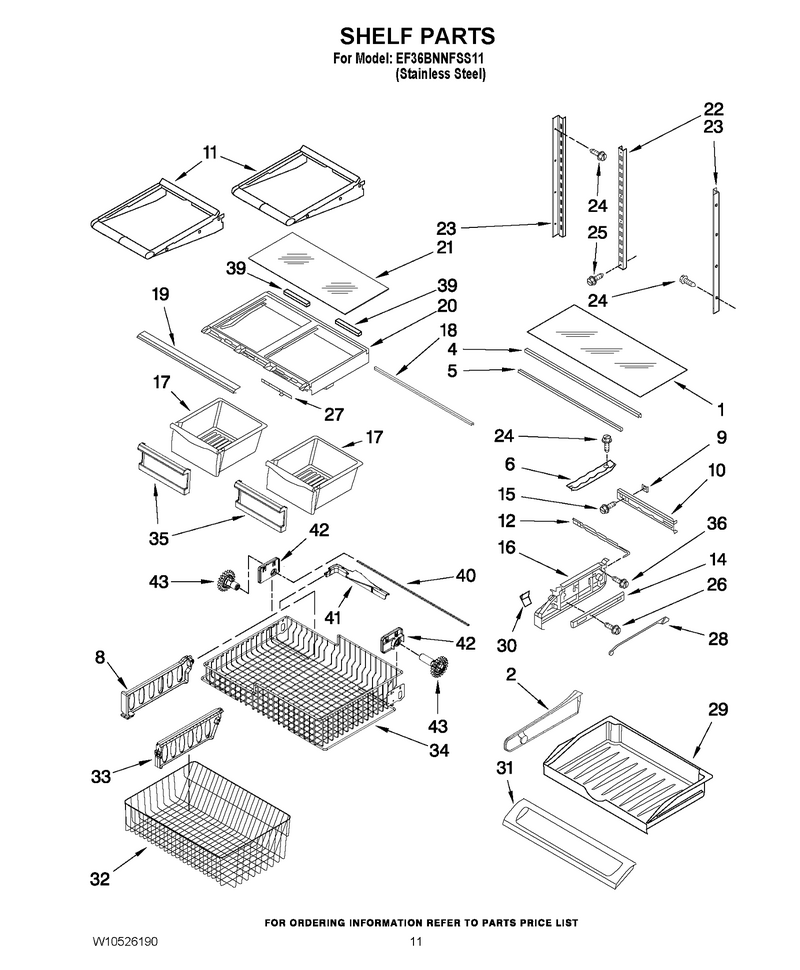

06 - Shelf Parts

...
...
1
Shelf-Glas WPL-W11125512
...
2
Divider- P WPL-WP67002321
...
4
Extr- Glas WPL-WP67006010
...
5
Support WPL-WP12227305WD
...
6
Track WPL-WP67001719
...
8
Divider, Upper Basket WPL-W10241046
...
9
Gasket, Pantry WPL-67002329
...
10
Housing, Control WPL-12656202
...
11
Shelf-Glas WPL-WP12463911
...
12
Slide- Tem WPL-WP67003793
...
14
Glide WPL-WPW10235370
...
15
Screw (3) WPL-67006425
...
16
Endcap WPL-WP12656018
...
17
Pan- Crisp WPL-WP67002659
...
18
Brace- Cri WPL-WP12227304WD
...
19
Trim, Crisper WPL-W10231488
...
20
Frame WPL-WP67006185
...
21
Shelf-Glas WPL-WP67006655
...
22
Ladder, Center WPL-W10273463
...
23
Ladder, Side WPL-W10251971
...
24
Screw (3) WPL-67006425
...
25
Screw WPL-W10215666
...
26
Screw WPL-WP98165
...
27
Slide WPL-WP67005864
...
28
Bar, Temp Control WPL-67003794
...
29
Pan-Utilty WPL-W11490183
...
30
Knob WPL-W11498983
...
31
Cover WPL-W10827015
...
32
Basket, Lower WPL-W10503185
...
33
Divider, Lower Basket WPL-W10150061
...
34
Basket, Freezer (Upper) WPL-W10348245
...
35
Front-Pan WPL-W11206718
...
36
Screw WPL-WP67006415
...
39
Gasket WPL-WPW10177506
...
40
Shaft WPL-W11173556
...
41
Lift, Bail Arm WPL-W10149389
...
42
Mount, Gear (Left) WPL-W10348259
...
43
Gear WPL-WPW10474716

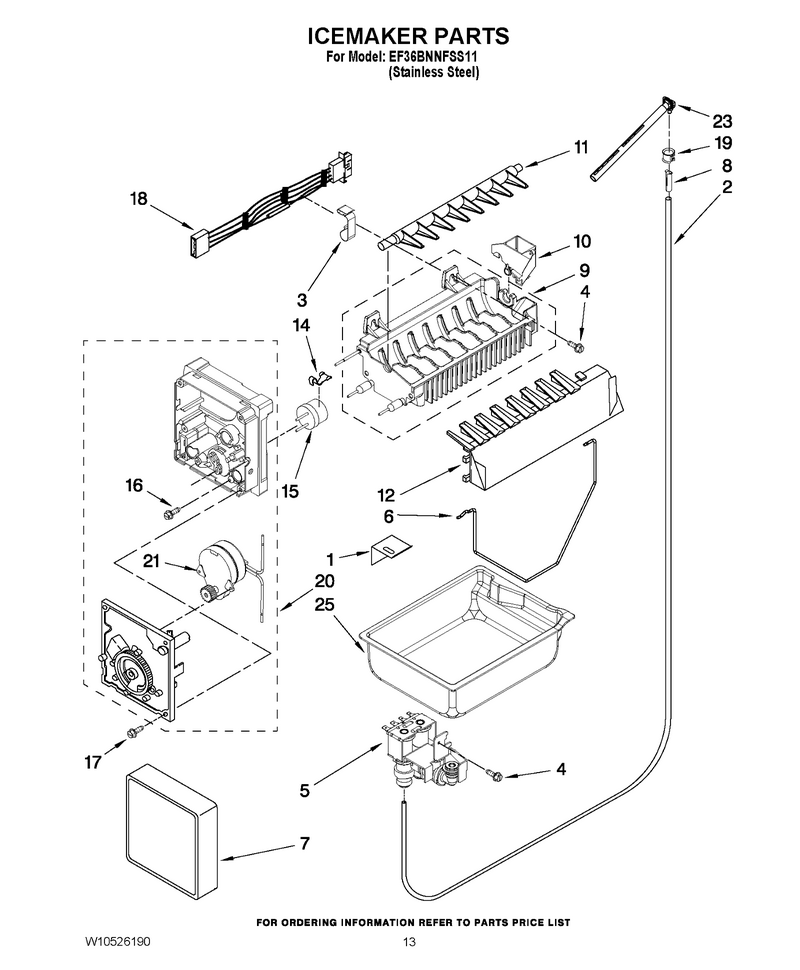

07 - Icemaker Parts

...
...
1
Bracket WPL-WP2256087
...
2
Tube-Water WPL-W11120581
...
3
Clamp, Wire WPL-10526701
...
4
Screw WPL-W10001240
...
5
Valve WPL-WPW10420083
...
6
Arm-Shut WPL-WPW10378255
...
7
Cover, Front WPL-W10377174
...
8
Insert- Pl WPL-WPA3223101
...
9
Mold-Ice WPL-WPW10300025
...
10
Cup, Water Fill WPL-W10410073
...
11
Ejector WPL-W10318914
...
12
Arm-Stripr WPL-WPW10122563
...
14
Clip WPL-WP628379
...
15
Bimetl-Def WPL-WP627985
...
16
Screw WPL-8533917
...
17
Screw WPL-WP489464
...
18
Harns-Wire WPL-WPW10458985
...
19
Clip- Spee WPL-WPM0114003
...
20
Motor-Modl WPL-WPW10281342
...
21
Motor (Not Available, Order No.20) WPL-N/P
...
23
Tube-Water WPL-W11176463
...
25
Pan-Ice WPL-WPW10171529
...
100
Icemaker WPL-W10884390
