Whirlpool ED5PVEXWS12

Model: ED5PVEXWS12

Save Part Not Listed?
product name

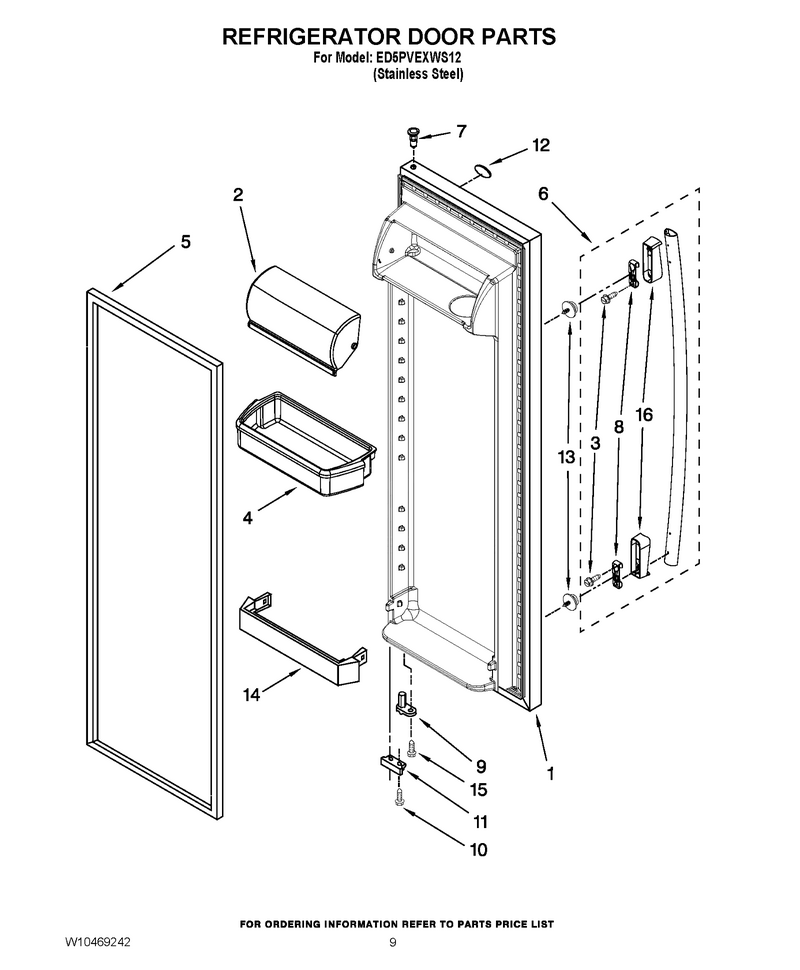

06 - Refrigerator Door Parts

...
...
1
Dor-Fip Ss WPL-LW10365657
...
2
Door-Comp WPL-WP2256101
...
3
Screw WPL-W10267047
...
4
Bin-Cntlvr WPL-WPW10321304
...
5
Door Gasket, Magnetic (Service) (Black) WPL-2159083
...
6
Handle WPL-WPW10257118K
...
7
Thimble WPL-WP2182181
...
8
Clip WPL-WP2255411
...
9
Cam-Door WPL-WP2182179
...
10
Screw WPL-WPW10142233
...
11
Bracket, Door Stop WPL-W10219812
...
12
Nameplate WPL-WP2213265
...
13
Screw WPL-WPW10288153
...
14
Trim-Door WPL-WP2156022
...
15
Screw WPL-WP3400012
...
16
End Cap WPL-W10127772

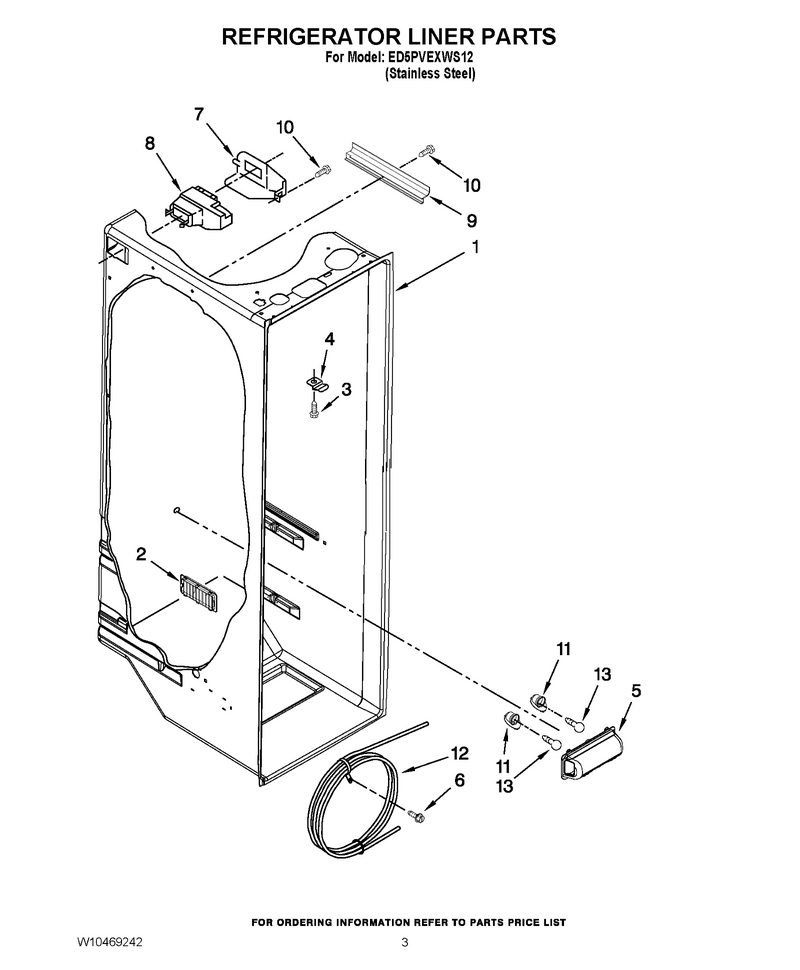

02 - Refrigerator Liner Parts

...
...
1
Liner (Not Serviced) WPL-N/P
...
2
Louver-Cab WPL-8201651
...
3
Screw WPL-WP488488
...
4
Clip, Control Box WPL-2311612
...
5
Lens-Light WPL-W11239891
...
6
Screw 8-15 X 3/4 WPL-W10141518
...
7
Air Diffuser Cover WPL-2152019
...
8
Diffuser WPL-WPW10151374
...
9
Cover, Conduit WPL-2150331
...
10
Screw WPL-W10759522
...
11
Capacitor (Service) WPL-4387478
...
12
Reservoir WPL-WPW10276792
...
13
Bulb-Light WPL-W11679940

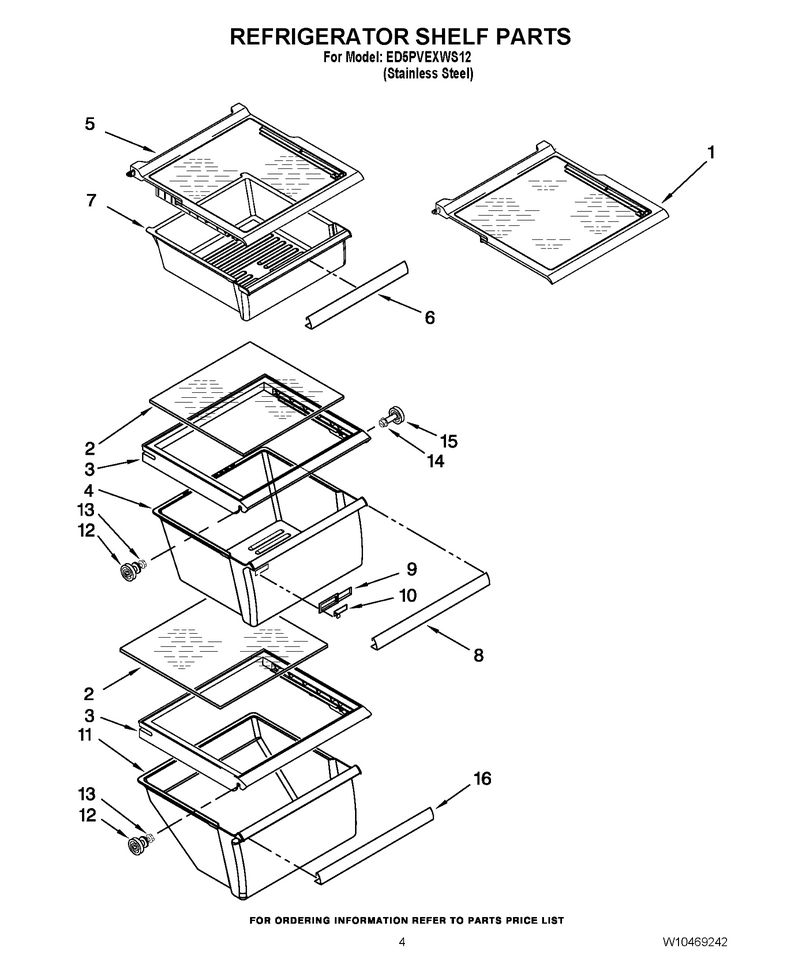

03 - Refrigerator Shelf Parts

...
...
1
Shelf-Glas WPL-WPW10276348
...
2
Shelf-Glas WPL-W10864399
...
3
Cover WPL-W10508993
...
4
Pan-Crispr WPL-WPW10178772
...
5
Shelf-Glas WPL-WPW10276341
...
6
Trim-Pan WPL-WP2179243
...
7
Pan-Snack WPL-WP2309517
...
8
Trim-Pan WPL-WP2179234
...
9
Body-Cntrl WPL-WP2179343
...
10
Slide WPL-WP2179342
...
11
Pan-Meat WPL-WP2188664
...
12
Stud-Shelf WPL-W11223328
...
13
Screw WPL-WP3-24004-109
...
14
Stud-Shelf WPL-W11527119
...
15
Screw WPL-WPW10191952
...
16
Trim-Pan WPL-WP2179234

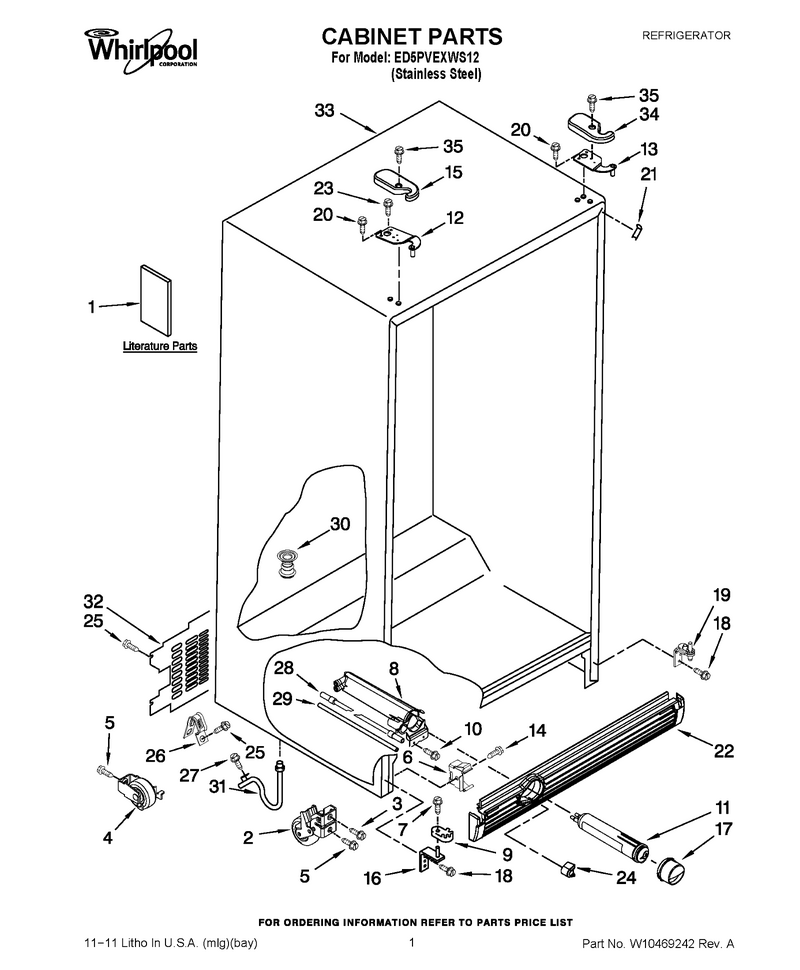

01 - Cabinet Parts

...
...
1
Instruction Sheet, Door Removal WPL-W10305231
...
2
Front Roller (2) WPL-4386774
...
3
Screw WPL-W10850698
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Clip WPL-WP2155013
...
7
Screw WPL-WP489483
...
8
Housing WPL-WPW10121138
...
9
Cam-Door WPL-WPW10329686
...
10
Screw WPL-WP489500
...
11
Filter WPL-EDR3RXD1
...
12
Hinge Top Fc WPL-W10287685
...
13
Hinge, Top (Rc) WPL-W10242649
...
14
Screw WPL-WPW10141604
...
15
Cover WPL-WP2203407B
...
16
Hinge, Bottom (Fc) WPL-W10138965
...
17
Cap-Filter WPL-WP2260518B
...
18
Screw WPL-WP489497
...
19
Hinge, Bottom (Rc) WPL-W10219817
...
20
Screw WPL-WP489497
...
21
Filler, Wrapper WPL-2304848
...
22
Grille WPL-WPW10311033
...
23
Screw WPL-WP489128
...
24
Button WPL-WP2260503B
...
25
Screw WPL-WPW10141645
...
26
Clamp, Service Cord WPL-549193
...
27
Screw WPL-WP489464
...
28
Tube-Water WPL-WPW10281289
...
29
Tube-Water WPL-WPW10350006
...
30
Fitting WPL-W11566763
...
31
Trivet WPL-W11512417
...
32
Cover-Unit WPL-WP2188755
...
33
Cabinet (Not Serviced) WPL-N/P
...
34
Cover WPL-WP2203408B
...
35
Screw WPL-WP8281227

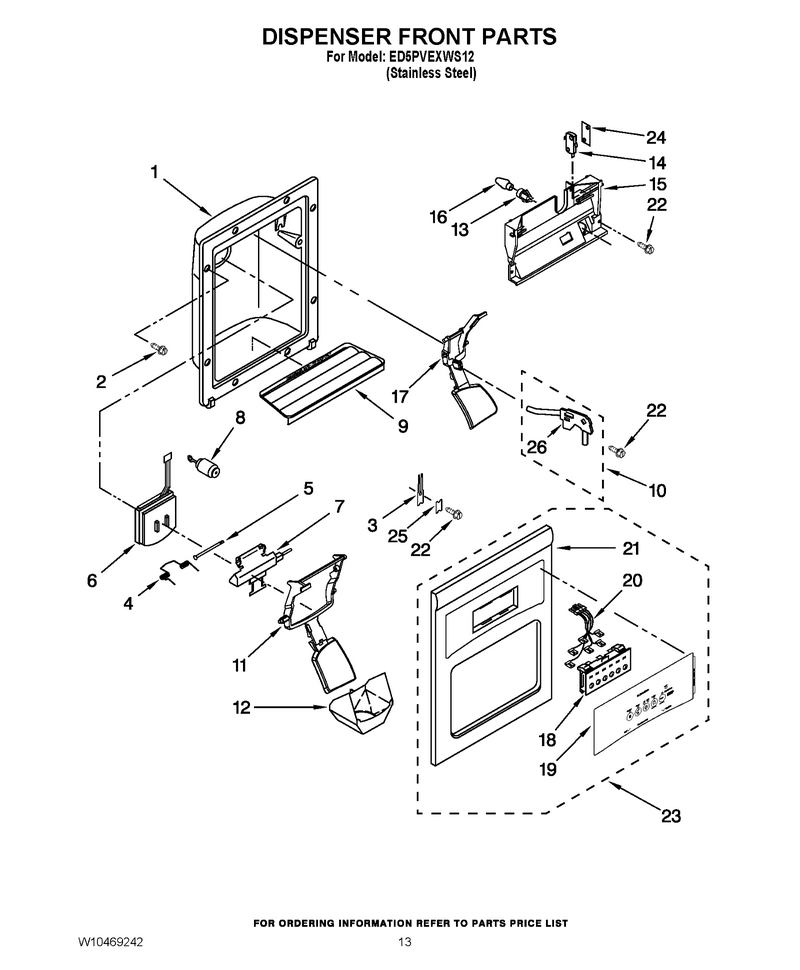

08 - Dispenser Front Parts

...
...
1
Housing, Dispenser (Not Serviced) WPL-N/P
...
2
Screw WPL-WP3196557
...
3
Clip WPL-WP2194719
...
4
Spring WPL-WPW10224328
...
5
Pin-Door WPL-WP2196195
...
6
Door-Chute WPL-WP2180353
...
7
Ice Dor Kt WPL-W10823377
...
8
Ice Dor Kt WPL-W10823377
...
9
Grille WPL-WP2206670B
...
10
Fitting WPL-8201537
...
11
Arm-Dispsr WPL-WPW10152854
...
12
Guide-Ice WPL-WP2180224
...
13
Lamp Holder WPL-2180200
...
14
Swtch-Micr WPL-WP2162361
...
15
Bracket WPL-WP2180226
...
16
Bulb-Light WPL-WP22002263
...
17
Arm-Dispsr WPL-WPW10152859
...
18
Switch Assembly (Not Available, Order Item 23) WPL-N/P
...
19
Overlay, Front Cover (Not Available, Order Item 23) WPL-N/P
...
20
Wire Assembly WPL-2311650
...
21
Front Cover, Housing (Not Available, Order Item 23) WPL-N/P
...
22
Screw WPL-WP3400906
...
23
Cover-Frnt WPL-W10850436
...
24
Spacer WPL-WP625834
...
25
Clip WPL-WP2195051
...
26
Bracket WPL-WP2304673

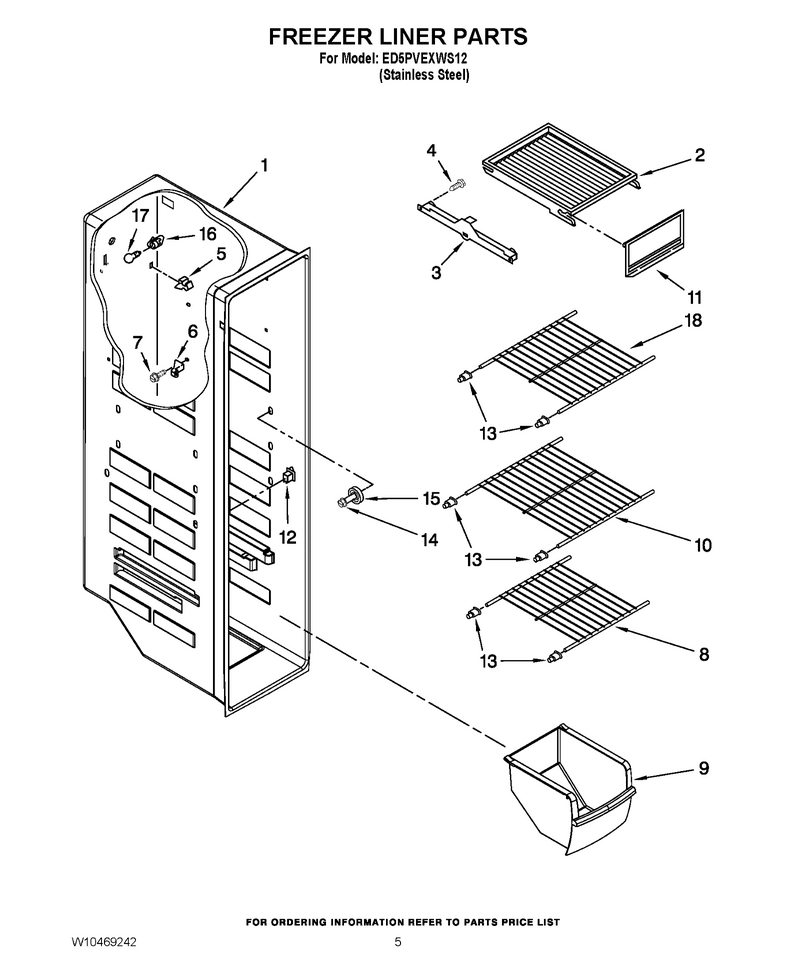

04 - Freezer Liner Parts

...
...
1
Liner (Not Serviced) WPL-N/P
...
2
Shelf WPL-WP2194297K
...
3
Slide, Ice Container (Right) WPL-W10845583
...
4
Screw, 8-18 X 1.38 WPL-718257
...
5
Clip-Air, Duct WPL-2215823
...
6
Stud-Shelf WPL-4388405
...
7
Screw 8-18 X 5/8 WPL-W10142289
...
8
Shelf-Wire WPL-WPW10318948
...
9
Bin-Freezr WPL-W11577967
...
10
Shelf-Wire WPL-WPW10318947
...
11
Door-Ice WPL-WP2171713
...
12
Switch WPL-W11457217
...
13
Cup WPL-WPW10130299
...
14
Screw WPL-WPW10191952
...
15
Stud-Shelf WPL-W11527119
...
16
Capacitor (Service) WPL-4387478
...
17
Bulb-Light WPL-W11679940
...
18
Shelf, Wire WPL-W10318946

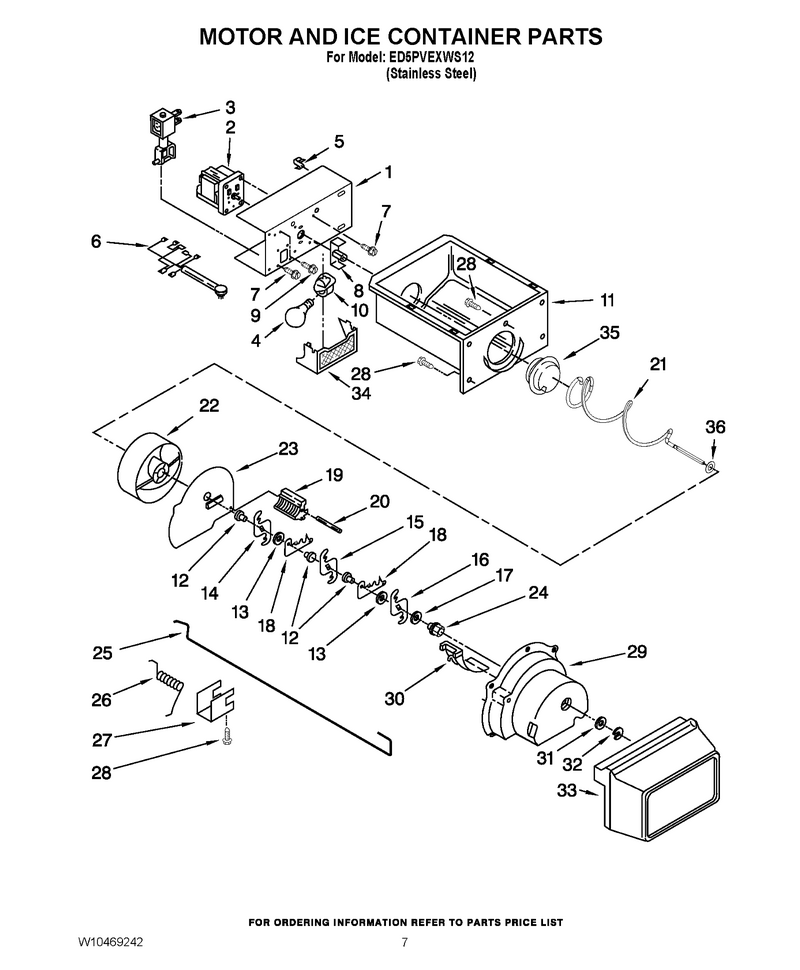

05 - Motor And Ice Container Parts

...
...
1
Bracket, Motor WPL-W10304376
...
2
Motor WPL-WPW10317991
...
3
Solenoid WPL-WP2152713
...
4
Bulb-Light WPL-W11679940
...
5
Clip WPL-WP1115374
...
6
Wiring Assembly, Ice Dispenser WPL-2311639
...
7
Screw WPL-WP489399
...
8
Coupling WPL-WPW10169511
...
9
Screw WPL-WP489478
...
10
Capacitor (Service) WPL-4387478
...
11
Container WPL-WPW10670845
...
12
Spacer WPL-WP1119005
...
13
Spacer WPL-WP1119007
...
14
Blade, Rotary WPL-W10278731
...
15
Blade, Rotary WPL-W10278732
...
16
Blade, Rotary WPL-W10278733
...
17
Washer WPL-WP489235
...
18
Blade, Fixed (2) WPL-1119009
...
19
Block Blade WPL-2157405
...
20
Roll Pin WPL-489229
...
21
Auger-Ice WPL-WPW10295082
...
22
Drum WPL-4388736
...
23
Baffle WPL-W10852691
...
24
Bearing WPL-WP1119018
...
25
Arm-Contrl WPL-W11596045
...
26
Spring, Return WPL-1119020
...
27
Retainer Clip, Rod WPL-1119021
...
28
Screw WPL-WP488787
...
29
Housing WPL-WPW10185018
...
30
Deflector WPL-WP1119017
...
31
Washer, Plain WPL-489234
...
32
Ring-E WPL-WP489236
...
33
Front Cover, Ice Container WPL-2204321
...
34
Lens-Light WPL-WP2171706
...
35
Coupling WPL-W10749708
...
36
Washer WPL-WP2198661
...
100
Ice-Contnr WPL-WPW10312300

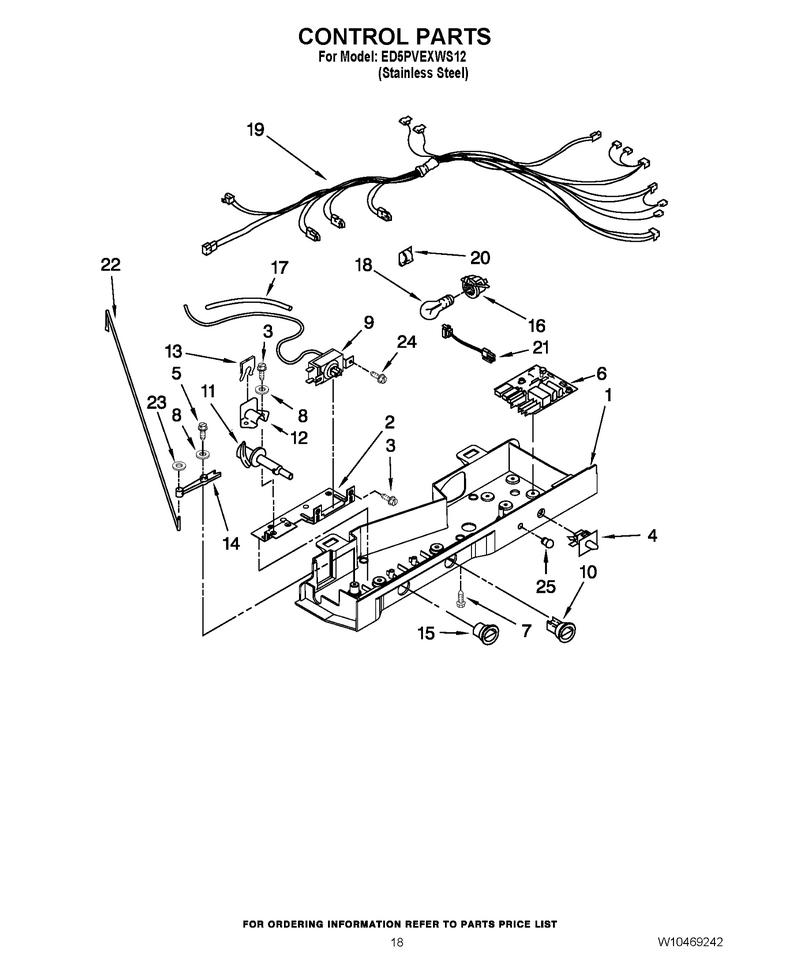

11 - Control Parts

...
...
1
Control Box WPL-W10159858
...
2
Mounting Bracket WPL-2311611
...
3
Screw WPL-WP3196557
...
4
Switch WPL-WP2149705
...
5
Screw 8-18 X .650 WPL-627068
...
6
Cntrl-Elec WPL-WPW10366605
...
7
Screw WPL-489392
...
8
Spring, Washer WPL-489203
...
9
Thermostat WPL-WP2198202
...
10
Knob, Thermostat WPL-W10723843
...
11
Cam WPL-WP2182195
...
12
Bearing Body WPL-1110560
...
13
Clip WPL-WP2196062
...
14
Arm-Pivot WPL-W11256541
...
15
Knob, Air Control WPL-2311615
...
16
Capacitor (Service) WPL-4387478
...
17
Barrier WPL-WP2196003
...
18
Bulb-Light WPL-W11679940
...
19
Control Box Harness WPL-W10354806
...
20
Clip WPL-WP1115374
...
21
Harns-Wire WPL-W10853646
...
22
Connecting Rod WPL-2311631
...
23
Fastener, Push-On WPL-489285
...
24
Screw WPL-WP965173
...
25
Cover, Light Lens WPL-2200096

...
...
NI
Kit, Terminal Connector WPL-833938

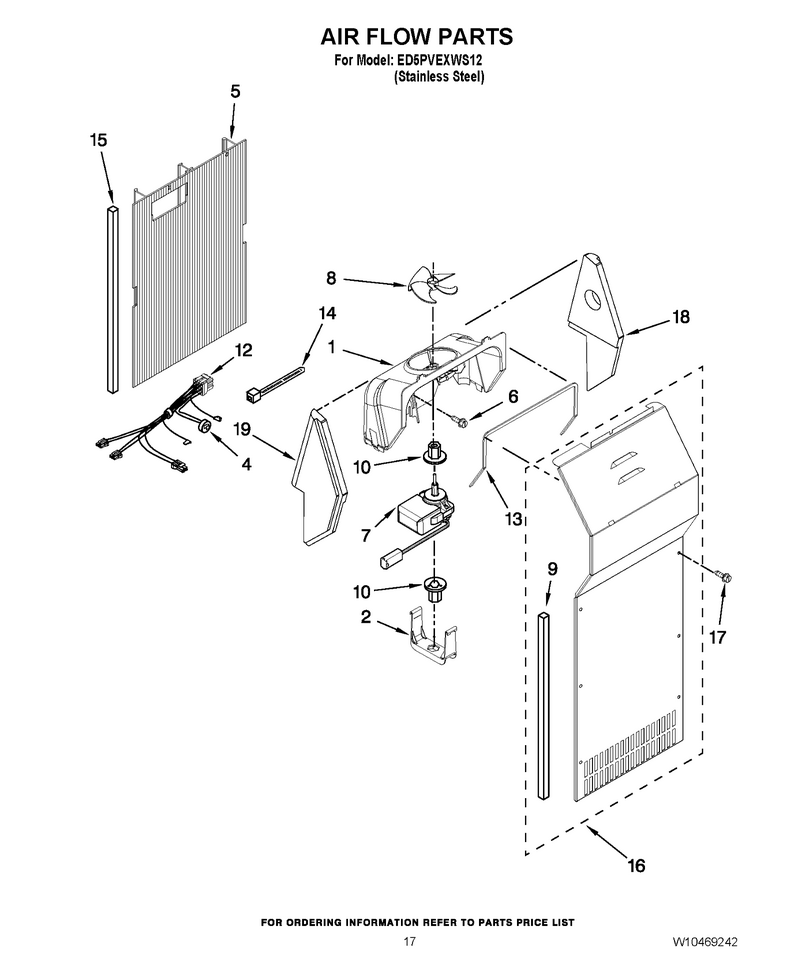

10 - Air Flow Parts

...
...
1
Fan-Scroll WPL-WP2182120
...
2
Retainer WPL-WP2155590
...
4
Bimetl-Def WPL-WPW10225581
...
5
Duct-Air WPL-W10756902
...
6
Screw WPL-WP489478
...
7
Fan Motor WPL-4389144
...
8
Blade-Fan WPL-WP2169142
...
9
Gasket WPL-WP2304241
...
10
Grommet WPL-WP2176759
...
12
Harns-Wire WPL-W11084324
...
13
Gasket WPL-WP2155789
...
14
Tie-Wire WPL-WPW10339879
...
15
Gasket WPL-4388500
...
16
Cover-Evap WPL-4388356
...
17
Screw WPL-WP693995
...
18
Support Kit (Contains Right And Left) WPL-4388358
...
19
Support Kit (Contains Right And Left) WPL-4388358

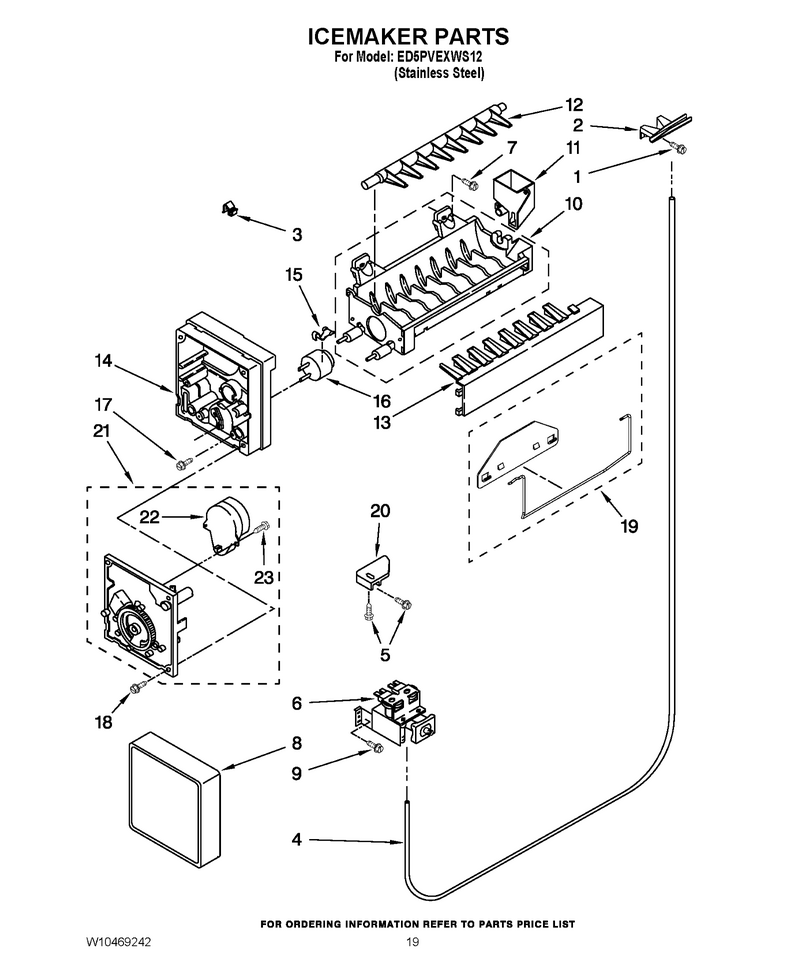

12 - Icemaker Parts

...
...
1
Screw WPL-WP489478
...
2
Chute WPL-W11505385
...
3
Clip WPL-WP628379
...
4
Tube-Water WPL-W10823511
...
5
Screw WPL-WP489478
...
6
Valve-Inlt WPL-W10408179
...
7
Screw 8-15 X .813 WPL-W10141596
...
8
Cover-Frnt WPL-WPW10289690
...
9
Screw WPL-WPW10141625
...
10
Mold-Ice WPL-WPW10190929
...
11
Cup, Water Fill WPL-W10122561
...
12
Arm-Ejectr WPL-WP627843
...
13
Arm-Stripr WPL-WPW10122563
...
14
Housing-Im WPL-WP2195914
...
15
Clip WPL-WP2315522
...
16
Bimetl-Def WPL-WP627985
...
17
Screw 10-32 X .830 WPL-8533917
...
18
Screw WPL-WP681249
...
19
Arm-Shut WPL-W11342242
...
20
Bracket WPL-W11500948
...
21
Module Assembly (Includes Items 21 & 22) WPL-8201515
...
22
Module Assembly (Includes Items 21 & 22) WPL-8201515
...
23
Screw 3-24 X .630 WPL-489136
...
100
Icemaker WPL-WPW10190965

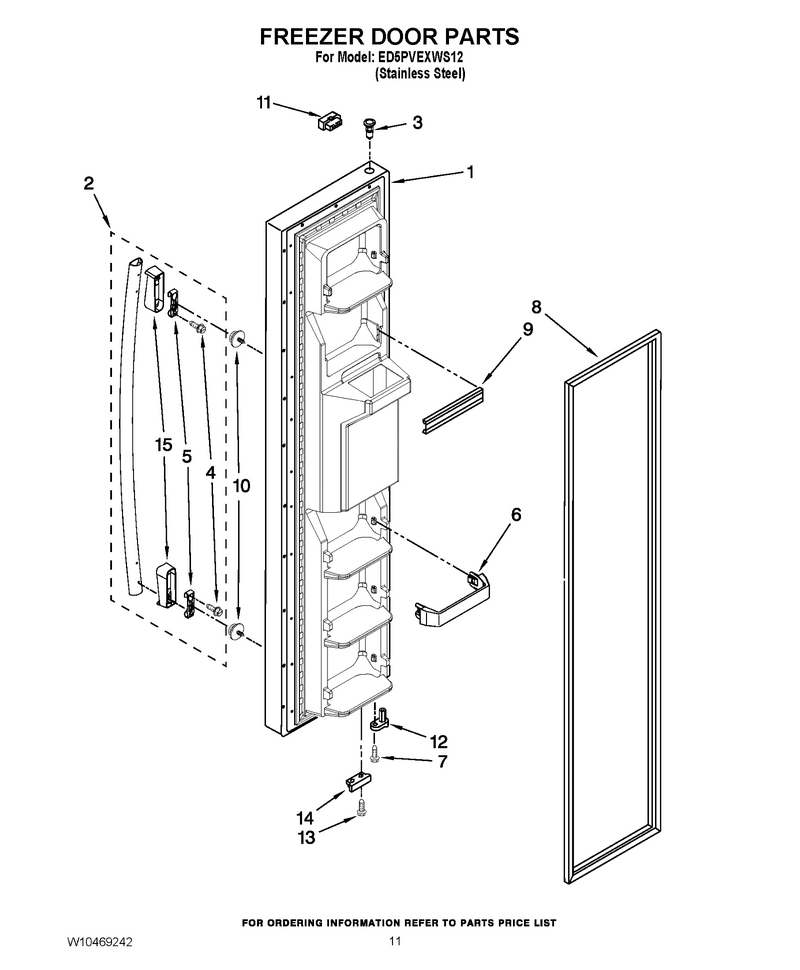

07 - Freezer Door Parts

...
...
1
Dor-Fip Ss WPL-LW10365699
...
2
Handle WPL-WPW10257118K
...
3
Thimble WPL-WP2182181
...
4
Screw WPL-W10267047
...
5
Clip WPL-WP2255411
...
6
Trim-Door WPL-WP2309718
...
7
Screw WPL-WP3400012
...
8
Door Gasket, Magnetic (Service) (Black) WPL-2159082
...
9
Trim-Door WPL-WPW10307490
...
10
Screw WPL-WPW10288153
...
11
Connector WPL-WP2154473
...
12
Cam-Door WPL-WP2182179
...
13
Screw WPL-WPW10142233
...
14
Bracket, Door Stop WPL-W10219814
...
15
End Cap WPL-W10127772

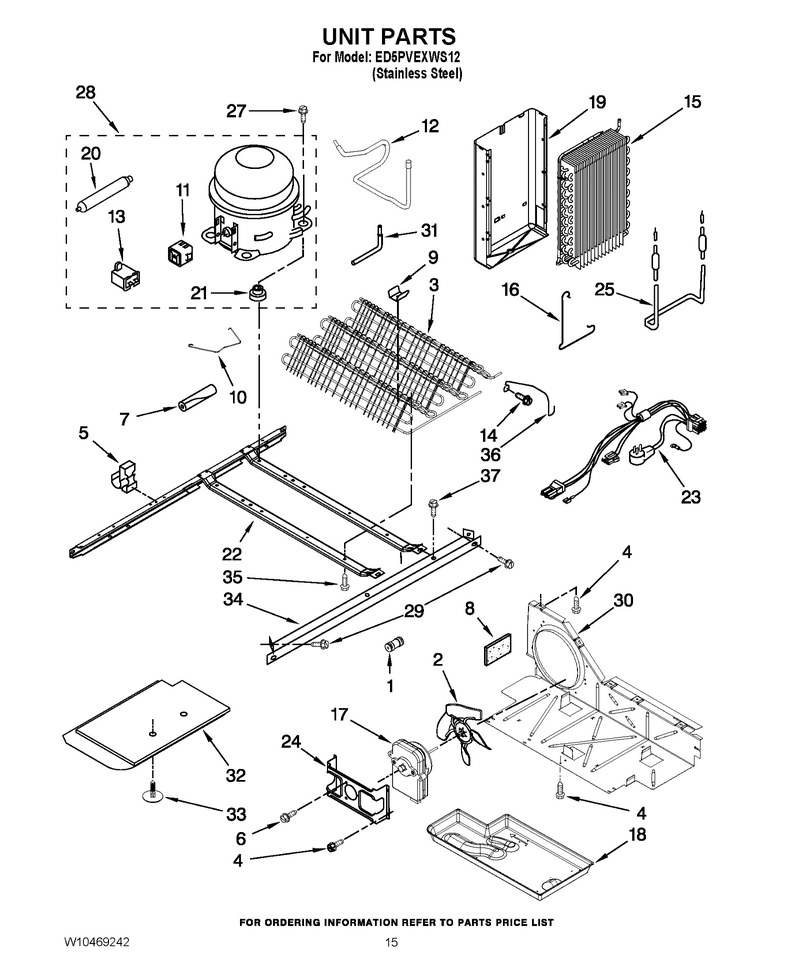

09 - Unit Parts

...
...
NI
Valve, Access (5/8``) WPL-978029
...
1
Connector WPL-WPW10334458
...
2
Blade, Fan WPL-W10156818
...
3
Condenser Assembly WPL-2324712
...
4
Screw WPL-WP489464
...
5
Clip, Wire WPL-2208280
...
6
Screw WPL-WP8533993
...
7
Sleeve WPL-W11751592
...
8
Foam Pad WPL-2217070
...
9
Clip WPL-W10683556
...
10
Clip, Retaining WPL-W10204187
...
11
Start-Dev WPL-WPW10189190
...
12
Tube WPL-WP2205765
...
13
Capacitor WPL-WPW10662129
...
14
Screw WPL-WP489478
...
15
Evaporator WPL-WP2188823
...
16
Clip WPL-WP2161324
...
17
Motor-Cond WPL-WP2188874
...
18
Tray-Evap WPL-WPW10614158
...
19
Heat Shield WPL-2217194
...
20
Drier-Uv WPL-WPW10143759
...
21
Grommet (4) ((Production)) WPL-876811
...
22
Unit Mounting Frame WPL-W10196321
...
23
Harns-Wire WPL-WPW10309395
...
24
Bracket WPL-WP2181929
...
25
Heater WPL-WP2323198
...
27
Grommet (4) ((Production)) WPL-876811
...
28
Compressor (Includes Items 11, 12, 20, & 31) WPL-W10139462
...
29
Screw 5/16 X .630 WPL-489340
...
30
Baffle, Air WPL-W10896764
...
31
Tube WPL-W10858105
...
32
Unit Cover, Bottom WPL-W10466698
...
33
Clip WPL-489396
...
34
Unit Mounting Rail WPL-2305374
...
35
Screw WPL-W11544659
...
36
Guard, Fan WPL-2260517
...
37
Screw WPL-WP489427
