Whirlpool ED5CHQXTQ00

Model: ED5CHQXTQ00

Save Part Not Listed?
product name

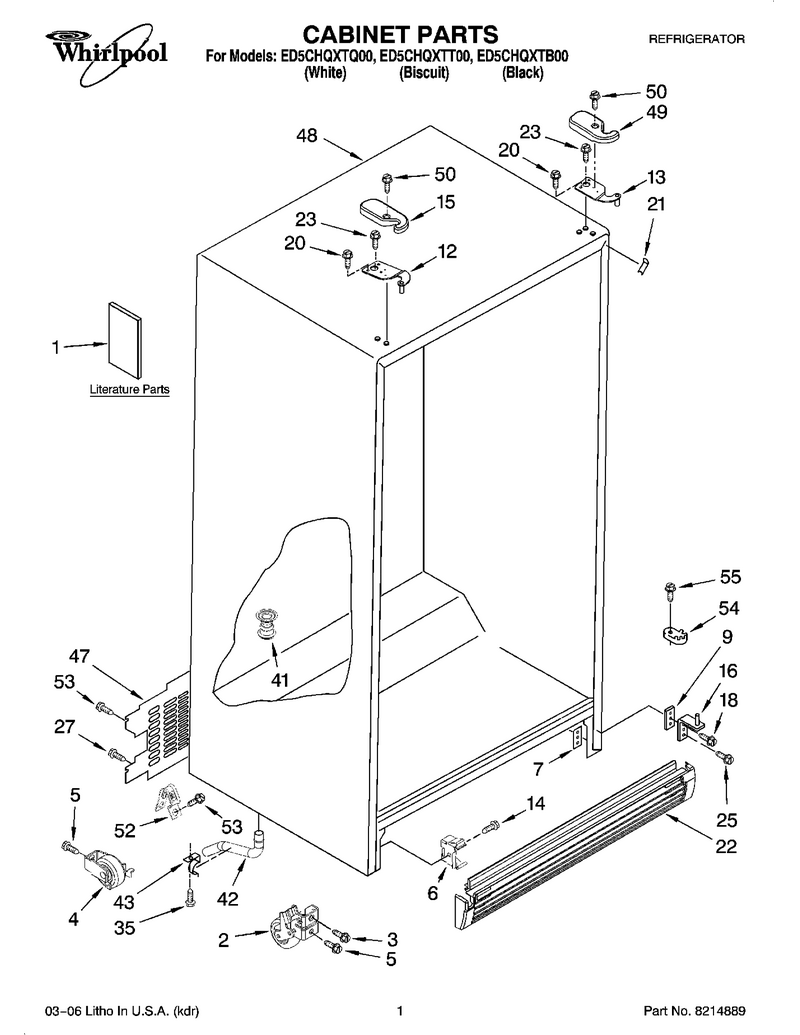

01 - Cabinet Parts

...
...
1
Instruction Sheet, Door Removal WPL-2216001
...
2
Front Roller (2) WPL-4386774
...
3
Screw WPL-W10850698
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Clip WPL-WP2155013
...
7
Plate WPL-WP2304249
...
9
Shim WPL-WP2209697
...
12
Hinge-Door WPL-WP2203770
...
13
Hinge-Door WPL-WP2203771
...
14
Screw WPL-WP489128
...
15
Cover WPL-WP2203407W
...
16
Hinge-Door WPL-8201707
...
18
Screw WPL-WP489497
...
20
Screw WPL-W10853301
...
21
Filler WPL-WPW10283959
...
22
Grille WPL-W10283947
...
23
Screw WPL-WP489497
...
25
Screw WPL-W10856122
...
27
Screw WPL-WP488488
...
35
Screw WPL-WP489464
...
41
Fitting WPL-W11566763
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
47
Cover-Unit WPL-WP2188755
...
48
Cabinet, (Not A Serviceable Part) WPL---
...
49
Hinge Cover (Biscuit) WPL-2203408T
...
50
Screw WPL-WP8281227
...
52
Clamp, Service Cord WPL-549193
...
53
Screw WPL-WPW10141645
...
54
Cam-Door WPL-WPW10329686
...
55
Screw WPL-WP489483

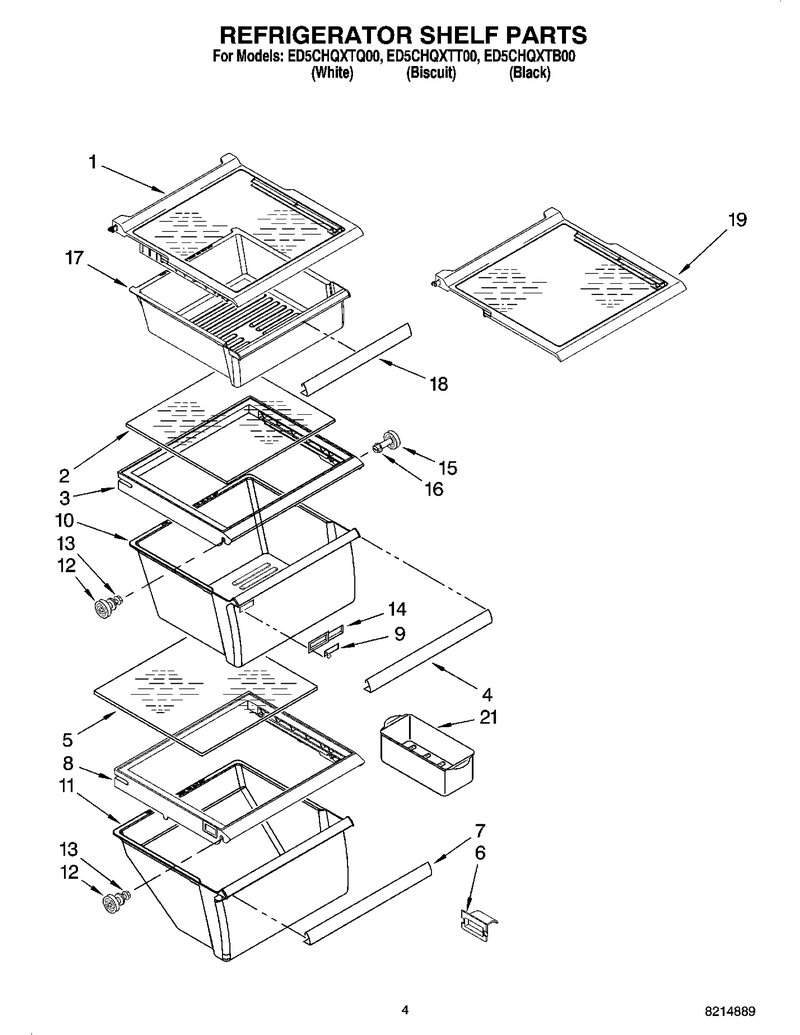

03 - Refrigerator Shelf Parts

...
...
1
Shelf-Glas WPL-WPW10276341
...
2
Shelf-Glas WPL-W10864399
...
3
Cover WPL-W10508993
...
4
Trim-Pan WPL-WP2179234
...
5
Shelf-Glas WPL-W10864399
...
6
Deflector WPL-2179350
...
7
Trim-Pan WPL-WP2179234
...
8
Cover WPL-W10508993
...
9
Slide WPL-WP2179342
...
10
Pan-Crispr WPL-WP2188656
...
11
Pan-Meat WPL-WP2188664
...
12
Stud-Shelf WPL-W11223328
...
13
Screw WPL-WP3-24004-109
...
14
Body-Cntrl WPL-WP2179343
...
15
Stud-Shelf WPL-WP2196483
...
16
Screw WPL-WP3400806
...
17
Pan-Snack WPL-WP2309517
...
18
Trim-Pan WPL-WP2179243
...
19
Shelf-Glas WPL-WPW10276354
...
21
Egg-Contnr WPL-W10136387A

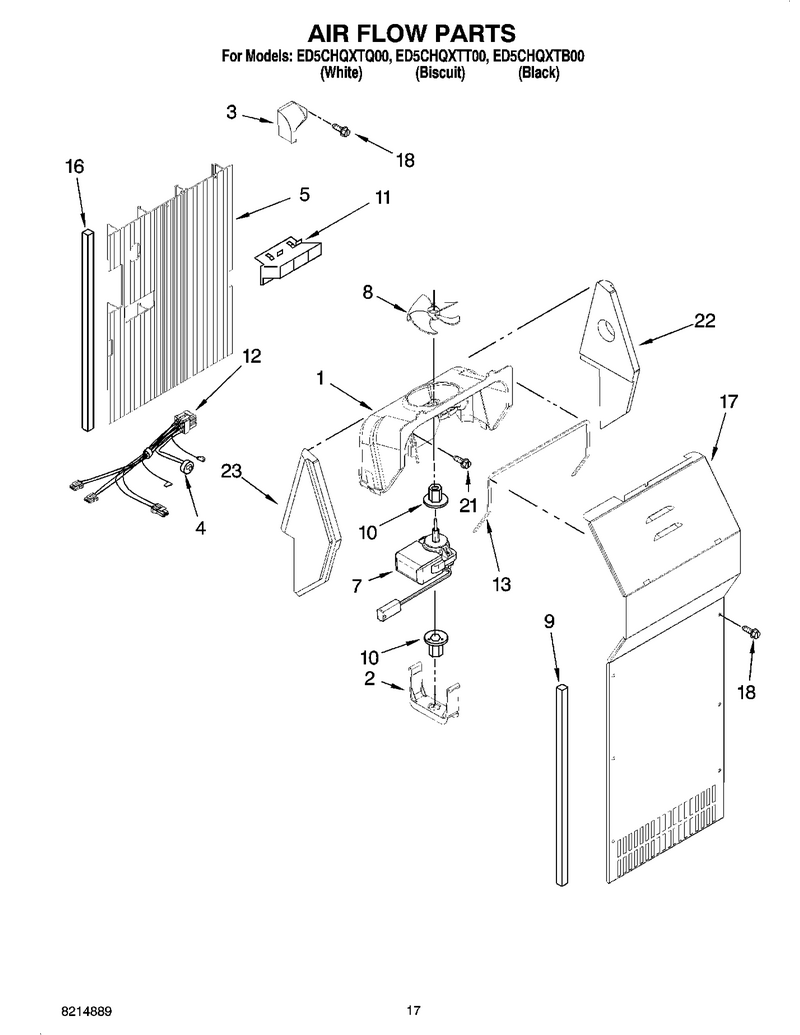

10 - Air Flow Parts

...
...
1
Fan-Scroll WPL-WP2182120
...
2
Retainer WPL-WP2155590
...
3
Scoop-Air WPL-WP2161231
...
4
Bimetl-Def WPL-WPW10225581
...
5
Cover-Evap WPL-4388356
...
7
Fan Motor WPL-4389144
...
8
Blade-Fan WPL-WP2169142
...
9
Gasket WPL-WP2304241
...
10
Grommet WPL-WP2176759
...
11
Duct, Icemaker WPL-2182146
...
12
Harns-Wire WPL-W11234406
...
13
Gasket WPL-WP2155789
...
16
Gasket WPL-4388500
...
17
Cover-Evap WPL-4388356
...
18
Screw No.8 X 3/8 Hex WPL-4389654
...
21
Screw WPL-WP489478
...
22
Support Kit (Contains Right And Left) WPL-4388358
...
23
Support Kit (Contains Right And Left) WPL-4388358

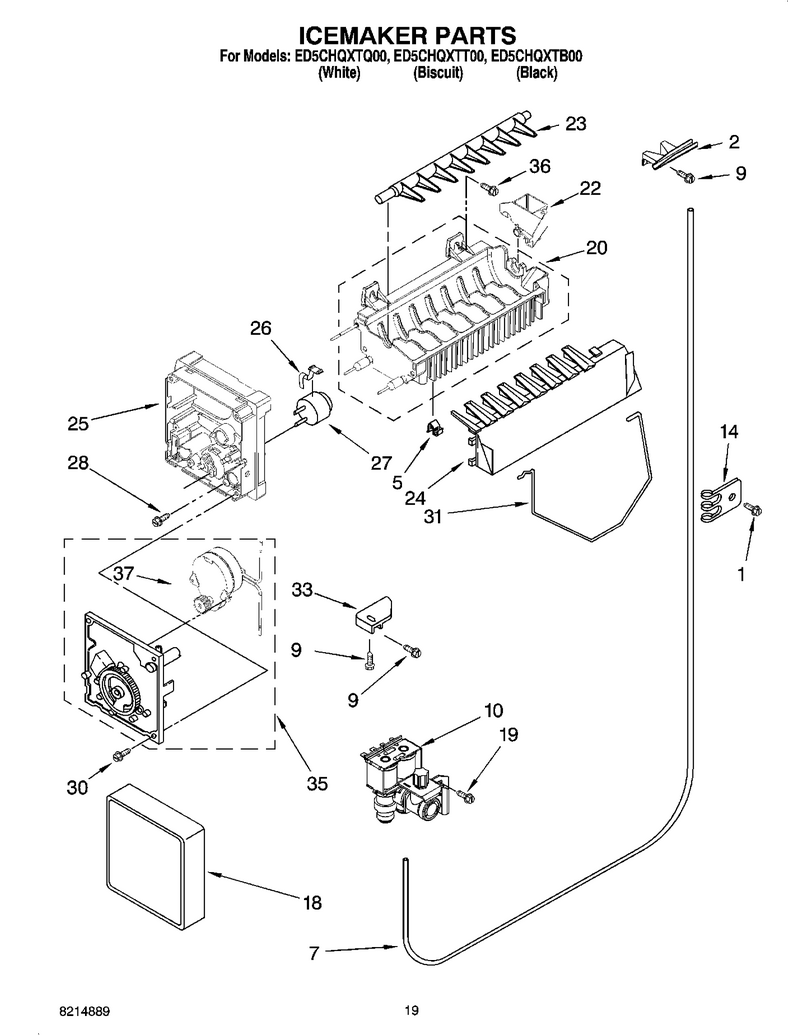

12 - Icemaker Parts, Optional Parts (not Included)

...
...
Sealer WPL-WP505587
...
1
Screw WPL-WPW10141645
...
2
Chute WPL-W11505385
...
5
Clip WPL-WP628379
...
7
Tube-Water WPL-W10823511
...
9
Screw WPL-WP489478
...
10
Valve-Inlt WPL-W10853654
...
14
Clamp WPL-WP488366
...
18
Cover-Frnt WPL-WPW10289690
...
19
Screw WPL-WPW10141625
...
20
Mold-Ice WPL-WPW10190929
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Stripr WPL-WP2182124
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Bimetl-Def WPL-WP627985
...
28
Screw WPL-8533917
...
30
Screw WPL-WP681249
...
31
Arm-Shut WPL-W11342242
...
33
Bracket WPL-W11500948
...
35
Module Assembly (Includes Items 21 & 22) WPL-8201515
...
36
Screw WPL-WP488163
...
37
Motor (Not Serviced, Order 35) WPL---
...
100
Icemaker WPL-WPW10190965

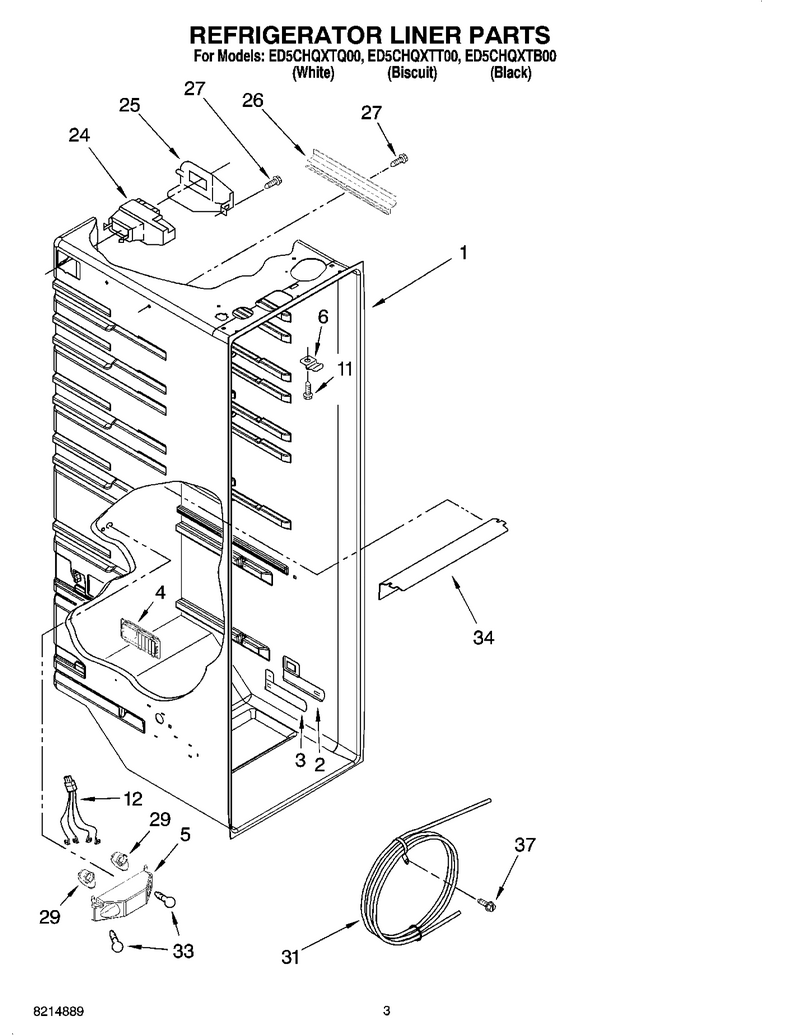

02 - Refrigerator Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-2194744
...
3
Slide Meat Pan Control WPL-2182757
...
4
Louver-Cab WPL-8201651
...
5
Bracket, Dual Crisper Light WPL-2256035
...
6
Clip (2) WPL-2311612
...
11
Screw WPL-WP488488
...
12
Wire Harness, Crisper Light WPL-2311637
...
24
Diffuser WPL-WPW10151374
...
25
Air Diffuser Cover WPL-2152019
...
26
Cover, Conduit WPL-2150331
...
27
Screw WPL-W10759522
...
29
Capacitor (Service) WPL-4387478
...
31
Reservoir WPL-WP2256126
...
33
Light Bulb WPL-8009
...
34
Lens-Light WPL-WP2317782
...
37
Screw WPL-798639

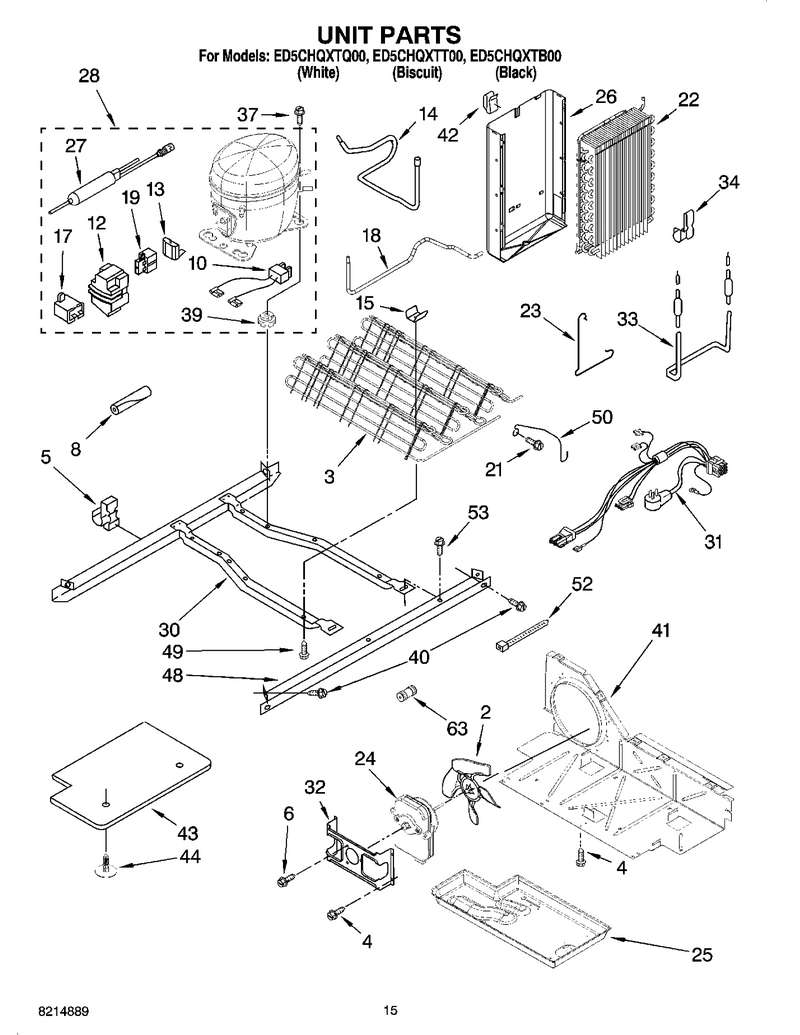

09 - Unit Parts

...
...
2
Blade-Fan WPL-W11458267
...
3
Condenser Assembly WPL-2324712
...
4
Screw WPL-WP489464
...
5
Clip, Wire & Tube WPL-2208280
...
6
Screw WPL-WP8533993
...
8
Sleeve WPL-W11751592
...
10
Wire WPL-WP2172890
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-WP2187145
...
14
Tube WPL-WP2205765
...
15
Clip WPL-W10683556
...
17
Capacitor WPL-WPW10662129
...
18
Tube, Condenser To Heat Loop WPL-2261599
...
19
Relay-Strt WPL-WP2262181
...
21
Screw WPL-WP489478
...
22
Evaporator WPL-WP2188823
...
23
Clip WPL-WP2161324
...
24
Motor-Cond WPL-WP2188874
...
25
Tray-Evap WPL-WPW10614158
...
26
Heat Shield WPL-2217194
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10309994
...
30
Unit Mounting Frame WPL-2304904
...
31
Unit, Harness (Includes Power Cord) WPL-2311733
...
32
Bracket WPL-WP2181929
...
33
Heater WPL-WP2323198
...
34
Clip WPL-WP2161324
...
37
Grommet (4) ((Production)) WPL-876811
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw (5) WPL-489340
...
41
Baffle, Air WPL-W10896764
...
42
Clip, Heat Shield WPL-2155547
...
43
Unit Cover, Bottom WPL-W10466698
...
44
Clip WPL-489396
...
48
Unit Mounting Rail WPL-2305374
...
49
Screw WPL-W11544659
...
50
Guard, Fan WPL-1110663
...
52
Tie-Wire WPL-WPW10339879
...
53
Screw WPL-WP489427
...
63
Valve, Access (3/4``) WPL-978030

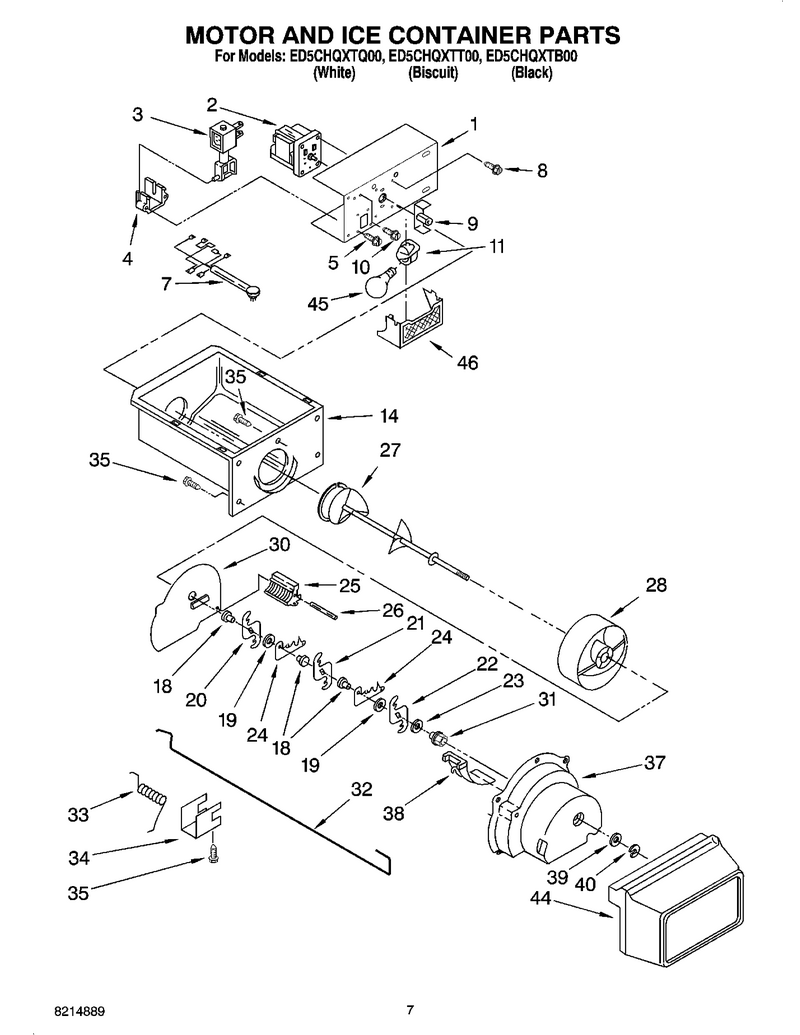

05 - Motor And Ice Container Parts

...
...
1
Bracket, Motor WPL-W10304376
...
2
Motor WPL-WP2188242
...
3
Solenoid WPL-WP2152713
...
4
Guide WPL-W10850503
...
5
Screw WPL-W11233072
...
7
Wiring Assembly, Ice Dispenser WPL-2311639
...
8
Screw WPL-WP489399
...
9
Coupling WPL-WPW10169511
...
10
Screw WPL-WP489478
...
11
Capacitor (Service) WPL-4387478
...
14
Container WPL-WPW10670845
...
18
Spacer WPL-WP1119005
...
19
Spacer WPL-WP1119007
...
20
Blade, Rotary A WPL-W10278731
...
21
Blade, Rotary B WPL-W10278732
...
22
Blade, Rotary C WPL-W10278733
...
23
Washer WPL-WP489235
...
24
Blade, Fixed (2) WPL-1119009
...
25
Block Blade WPL-2157405
...
26
Roll Pin WPL-489229
...
27
Auger-Ice WPL-W10422851
...
28
Drum WPL-4388736
...
30
Baffle WPL-W10852691
...
31
Bearing WPL-WP1119018
...
32
Arm-Contrl WPL-W11596045
...
33
Spring, Return WPL-1119020
...
34
Retainer Clip, Rod WPL-1119021
...
35
Screw WPL-WP488787
...
37
Housing WPL-WPW10185018
...
38
Deflector WPL-WP1119017
...
39
Washer, Plain WPL-489234
...
40
Ring-E WPL-WP489236
...
44
Front Cover, Ice Container WPL-2204321
...
45
Light Bulb WPL-8009
...
46
Lens-Light WPL-WP2171706
...
100
Ice-Contnr WPL-WPW10312300

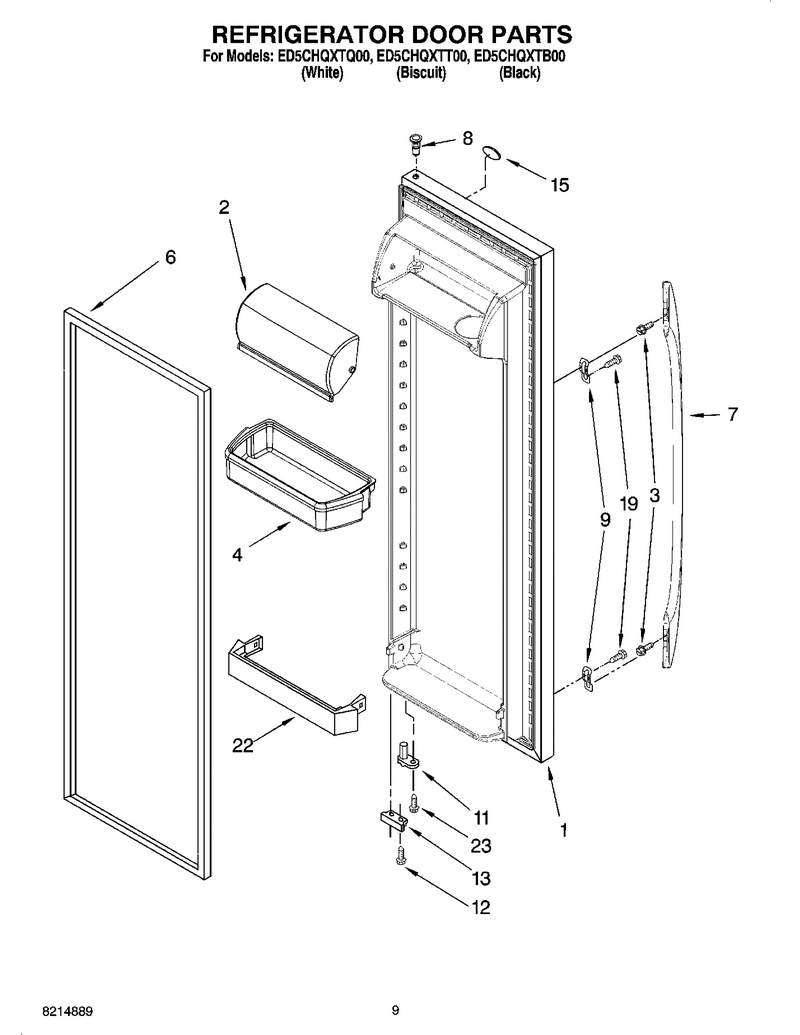

06 - Refrigerator Door Parts

...
...
1
Dor-Fip Bl WPL-L2307095B
...
2
Door-Comp WPL-WP2256101
...
3
Screw WPL-WP8533920
...
4
Bin-Cntlvr WPL-WP2203828
...
6
Door Gasket, Magnetic (Service) (Mist Beige) WPL-2159075
...
7
Handle WPL-W10187086
...
8
Thimble WPL-WP2182181
...
9
Clip WPL-WP2255411
...
11
Cam-Door WPL-WP2182179
...
12
Screw WPL-WP489483
...
13
Bracket WPL-WP2206629B
...
15
Nameplate WPL-WP2213265
...
19
Screw WPL-WP489491
...
22
Trim-Door WPL-WP2156022
...
23
Screw WPL-WP3400012

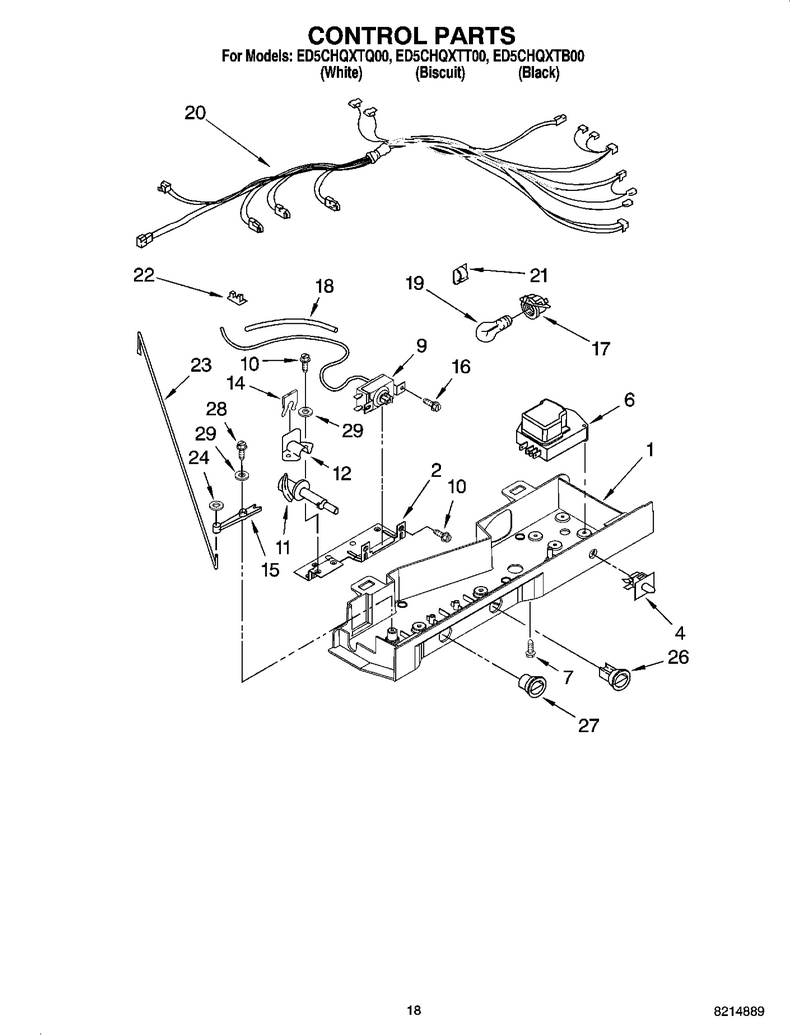

11 - Control Parts

...
...
1
Control Box WPL-2311619
...
2
Mounting Bracket WPL-2311611
...
4
Switch WPL-WP2149705
...
6
Timer-Def WPL-W10822278
...
7
Screw WPL-489392
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP3196557
...
11
Cam WPL-WP2182195
...
12
Bearing Body WPL-1110560
...
14
Clip WPL-WP2196062
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-WP965173
...
17
Capacitor (Service) WPL-4387478
...
18
Barrier WPL-WP2196003
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2311636
...
21
Clip WPL-WP1115374
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-2311631
...
24
Fastener, Push-On WPL-489285
...
26
Knob, Thermostat WPL-W10723843
...
27
Control Knob WPL-2311615
...
28
Screw WPL-627068
...
29
Spring, Washer WPL-489203

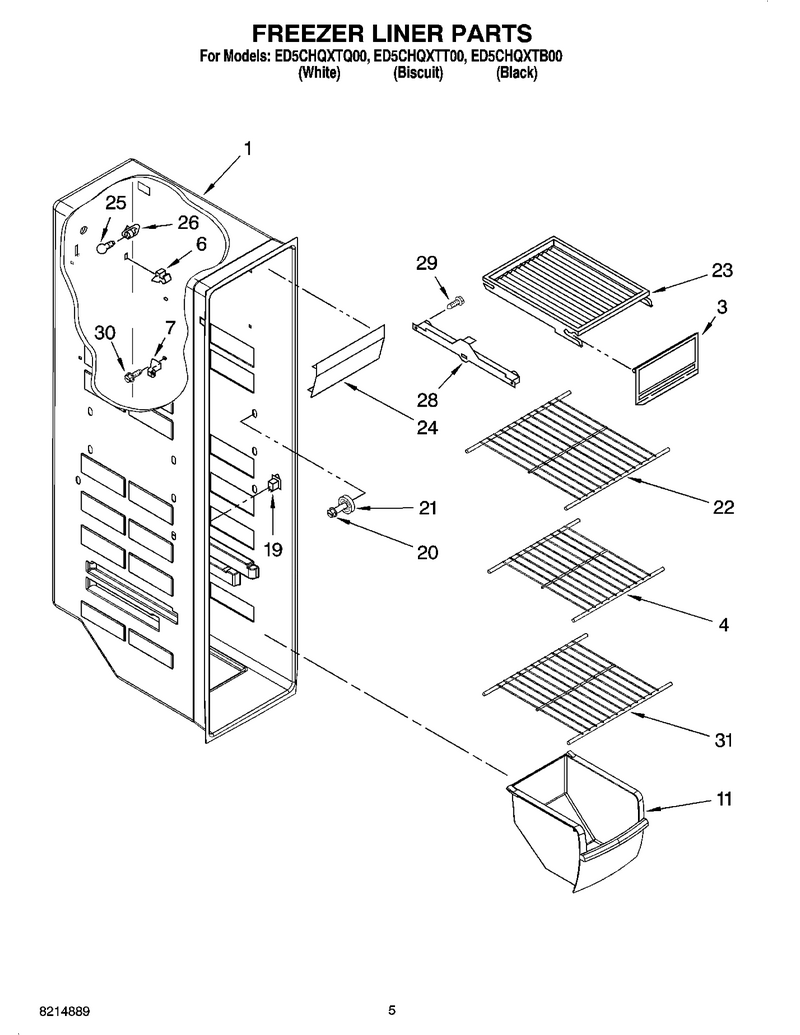

04 - Freezer Liner Parts

...
...
1
Liner (Not A Seviceable Part) WPL---
...
3
Door-Ice WPL-WP2171713
...
4
Shelf-Wire WPL-WPW10318948
...
6
Clip-Air, Duct WPL-2215823
...
7
Stud-Shelf WPL-4388405
...
11
Bin-Freezr WPL-W11577967
...
19
Switch WPL-W11457217
...
20
Screw WPL-WP3400806
...
21
Stud-Shelf WPL-WP2196483
...
22
Shelf-Wire WPL-WPW10318947
...
23
Shelf WPL-WP2194297K
...
24
Light Lens WPL-2171705
...
25
Light Bulb WPL-8009
...
26
Capacitor (Service) WPL-4387478
...
28
Slide, Ice Container (Right) WPL-W10845583
...
29
Screw, 8-18 X 1.38 WPL-718257
...
30
Screw 8-18 X 5/8 WPL-W10142289
...
31
Shelf, Wire WPL-2309522

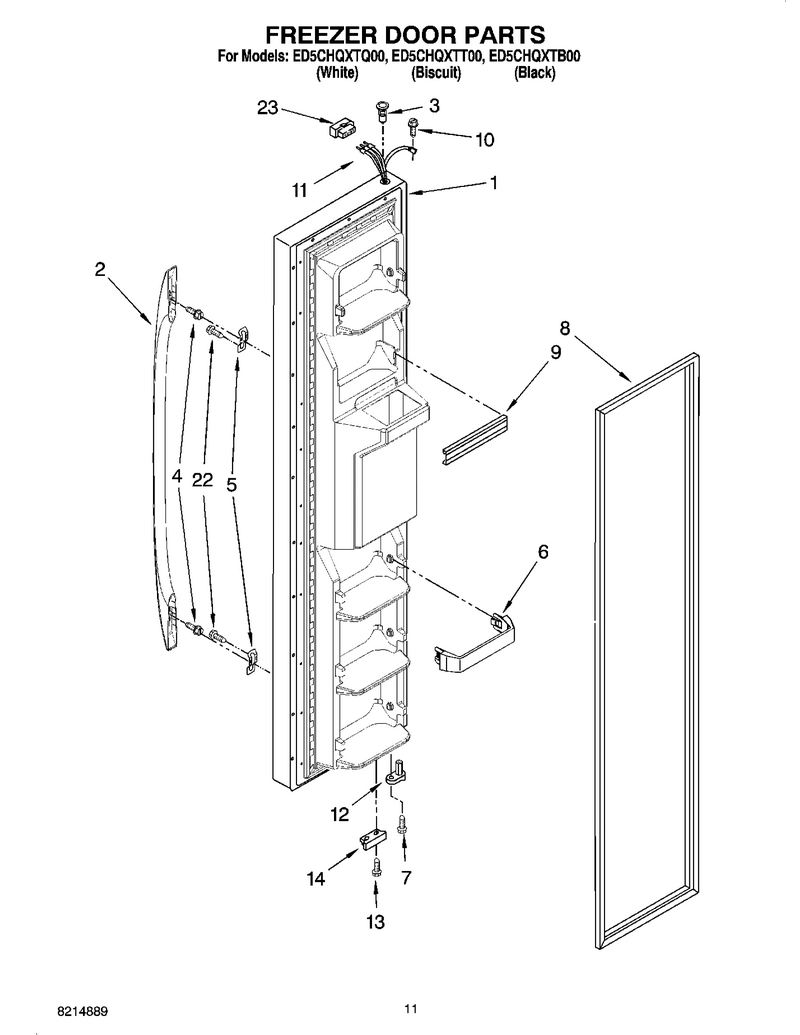

07 - Freezer Door Parts

...
...
1
Dor-Fip Bl WPL-L2309536B
...
2
Handle WPL-W10187087
...
3
Thimble WPL-WP2182181
...
4
Screw WPL-WP8533920
...
5
Clip WPL-WP2255411
...
6
Trim-Door WPL-WP2309718
...
7
Screw WPL-WP3400012
...
8
Door Gasket, Magnetic (Service) (Black) WPL-2159082
...
9
Trim-Door WPL-WPW10307490
...
10
Screw WPL-WP489464
...
11
Wire Harness WPL-2311641
...
12
Cam-Door WPL-WP2182179
...
13
Screw WPL-WP489483
...
14
Bracket WPL-WP2206629B
...
22
Screw WPL-WP489491
...
23
Connector WPL-WP2154473

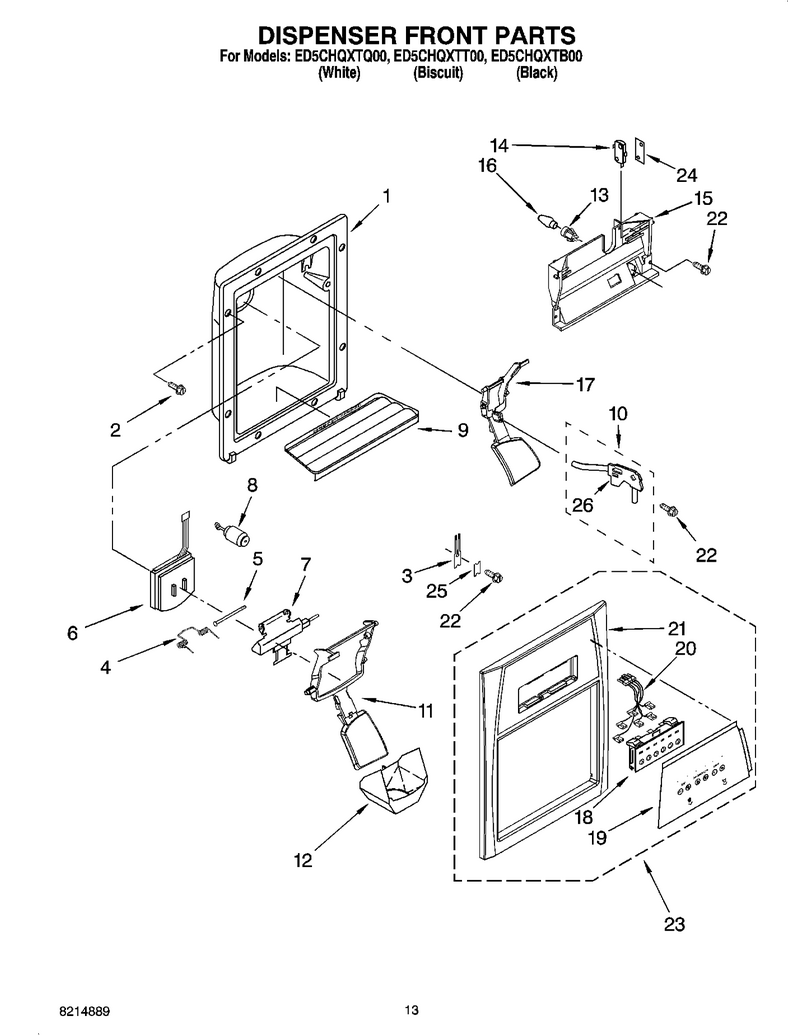

08 - Dispenser Front Parts

...
...
1
Housing Dispenser (Not Serviced) WPL---
...
2
Screw WPL-WP3196557
...
3
Clip WPL-WP2194719
...
4
Spring WPL-WPW10224328
...
5
Pin-Door WPL-WP2196195
...
6
Door-Chute WPL-WP2180353
...
7
Ice Dor Kt WPL-W10823377
...
8
Ice Dor Kt WPL-W10823377
...
9
Grille WPL-WP2206670B
...
10
Fitting WPL-8201537
...
11
Lever, Ice Dispenser (Biscuit) WPL-2255431T
...
12
Guide-Ice WPL-WP2180224
...
13
Lamp Holder WPL-2180200
...
14
Swtch-Micr WPL-WP2162361
...
15
Bracket WPL-WP2180226
...
16
Bulb-Light WPL-WP22002263
...
17
Arm-Dispsr WPL-WP2255432W
...
18
Switch Assembly (Not Available Order 23) WPL---
...
19
Overlay, Front Cover (Not Available, Order 23) WPL---
...
20
Wire Assembly WPL-2311640
...
21
Front Cover, Housing (Not Available Order 23) WPL---
...
22
Screw WPL-WP3400906
...
23
Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black) WPL-2311690B
...
24
Spacer WPL-WP625834
...
25
Clip WPL-WP2195051
...
26
Bracket WPL-WP2304673
