Whirlpool ED25PWXAN01

Model: ED25PWXAN01

Save Part Not Listed?
product name

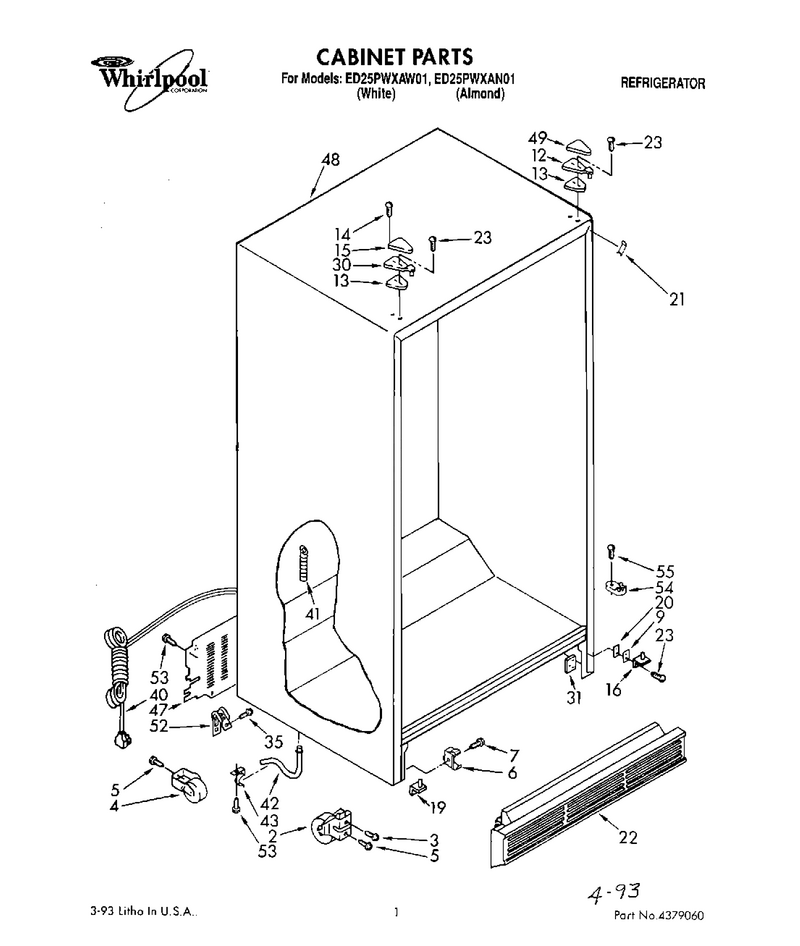

01 - Cabinet

...
...
2
Front Roller (2) WPL-2152011
...
3
Screw WPL-489393
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw, WPL-488454
...
6
Clip WPL-WP2155013
...
7
Screw WPL-WP489478
...
9
Shim WPL-836196
...
12
Hinge Top (R.h.) WPL-1123514
...
13
Shim, Hinge Top WPL-1123515
...
14
Screw WPL-489284
...
15
Cover WPL-WP1129262
...
16
Hinge Bottom (R.h.) WPL-2151619
...
19
Hinge Bottom (L.h.) WPL-2151620
...
20
Spacer, Hinge WPL-1129868
...
21
Filler, Wrapper (Almond) WPL-2196095
...
22
Grille (Black) WPL-2155485
...
23
Screw WPL-WP999367
...
30
Hinge, Top (L.h.) WPL-1123510
...
31
Tap Plate (2) WPL-2147310
...
35
Screw WPL-WP489464
...
40
Cord, Service WPL-937360
...
41
Fitting WPL-W11566763
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
47
Cover-Unit WPL-WP2188755
...
48
Cabinet (Not A Serviceable Part) WPL---
...
49
Hinge Cover (White) WPL-1119787
...
52
Clamp, Service Cord WPL-549193
...
53
Screw WPL-WPW10141645
...
54
Cam-Door WPL-WPW10329686
...
55
Screw WPL-WP489399

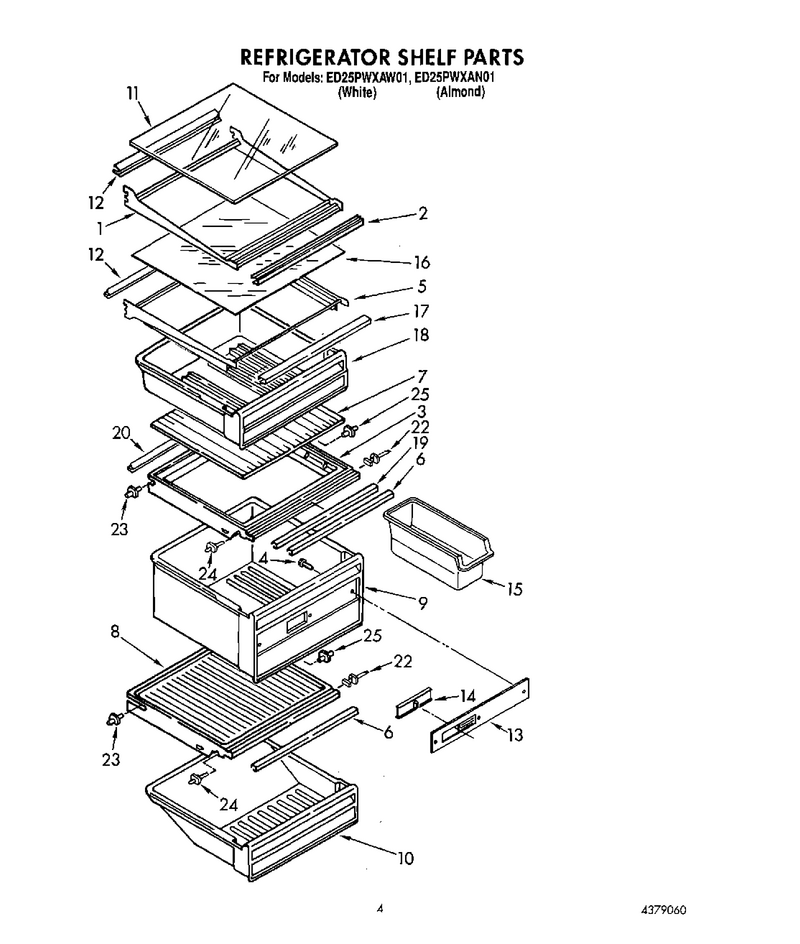

03 - Refrigerator Shelf

...
...
1
Shelf Assembly, Cantilever (2) WPL-1118413
...
2
Trim, Shelf WPL-1114436
...
3
Cover WPL-WP1126289
...
4
Screw, (2) 10-32 X 49/64 WPL-489163
...
5
Shelf, Cantilever (Snack Bin) WPL-2173125
...
6
Trim, Crisper Cover WPL-1110795
...
7
Shelf-Glas WPL-WP1114687
...
8
Cover WPL-WP2148298
...
9
Pan, Crisper WPL-2168851
...
10
Meat Pan WPL-1110791
...
11
Glass, Shelf WPL-2148237
...
12
Reflector, Shelf WPL-1114306
...
13
Front, Crisper Pan WPL-2148378
...
14
Slide, Crisper WPL-2148524
...
15
Container WPL-WP982704
...
16
Glass, Shelf WPL-2148300
...
17
Trim, Shelf WPL-2148301
...
18
Snack Bin WPL-1115262
...
19
Gasket, Crisper (Front) WPL-1115291
...
20
Gasket, Crisper (Rear) WPL-1121385
...
22
Stud-Shelf WPL-4388538
...
23
Stud-Shelf WPL-WP1115290
...
24
Stud-Shelf WPL-WP2149540
...
25
Stud-Shelf WPL-4388538

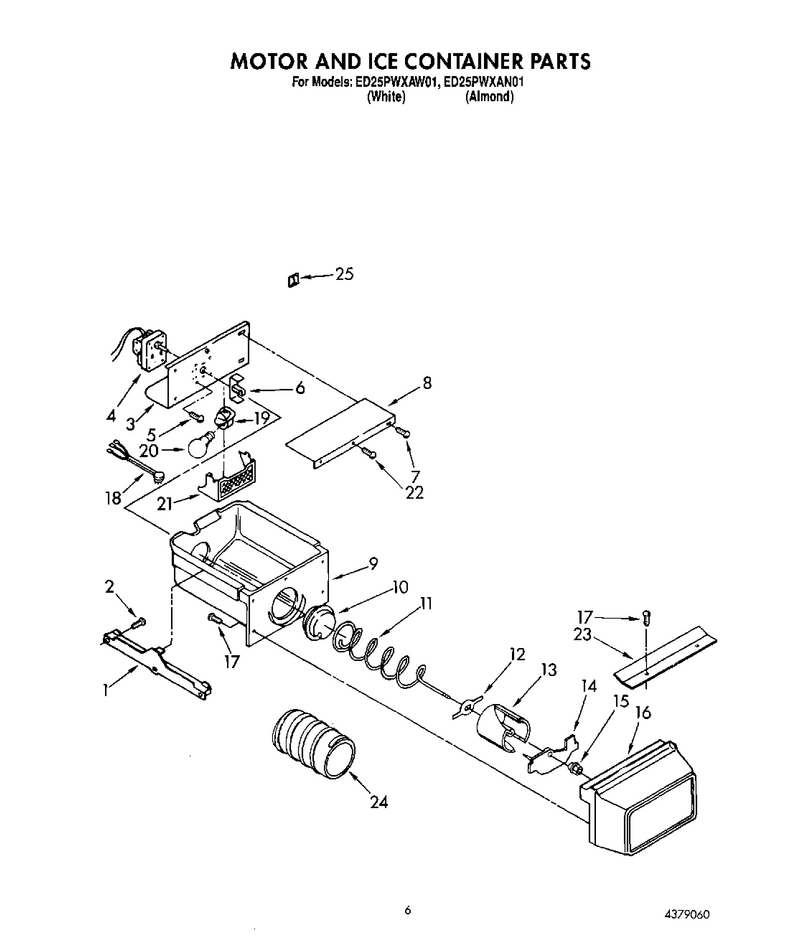

05 - Motor And Ice Container

...
...
1
Slide, Ice Container (Right) WPL-W10845583
...
2
Screw, 8-18 X 1.38 WPL-718257
...
3
Bracket, Motor WPL-W10304376
...
4
Motor WPL-2155262
...
5
Screw WPL-WP489399
...
6
Coupling WPL-WPW10169511
...
7
Screw WPL-WP489478
...
8
Bracket, Motor WPL-W10304376
...
9
Container WPL-WPW10670845
...
10
Coupling WPL-W10749708
...
11
Auger WPL-2196293
...
12
Drum WPL-4388736
...
13
Drum WPL-4388736
...
14
Baffle WPL-1115362
...
15
Nut, Bearing WPL-946195
...
16
Front Cover WPL-2163421
...
17
Screw WPL-WP488787
...
18
Wiring Assembly, Ice Dispenser WPL-2194732
...
19
Capacitor (Service) WPL-4387478
...
20
Light Bulb WPL-8009
...
21
Lens, Dispenser Light WPL-983359
...
22
Screw WPL-WP489128
...
23
Deflector, Ice Container WPL-1119043
...
24
Sleeve WPL-4317870
...
25
Clip WPL-WP1115374

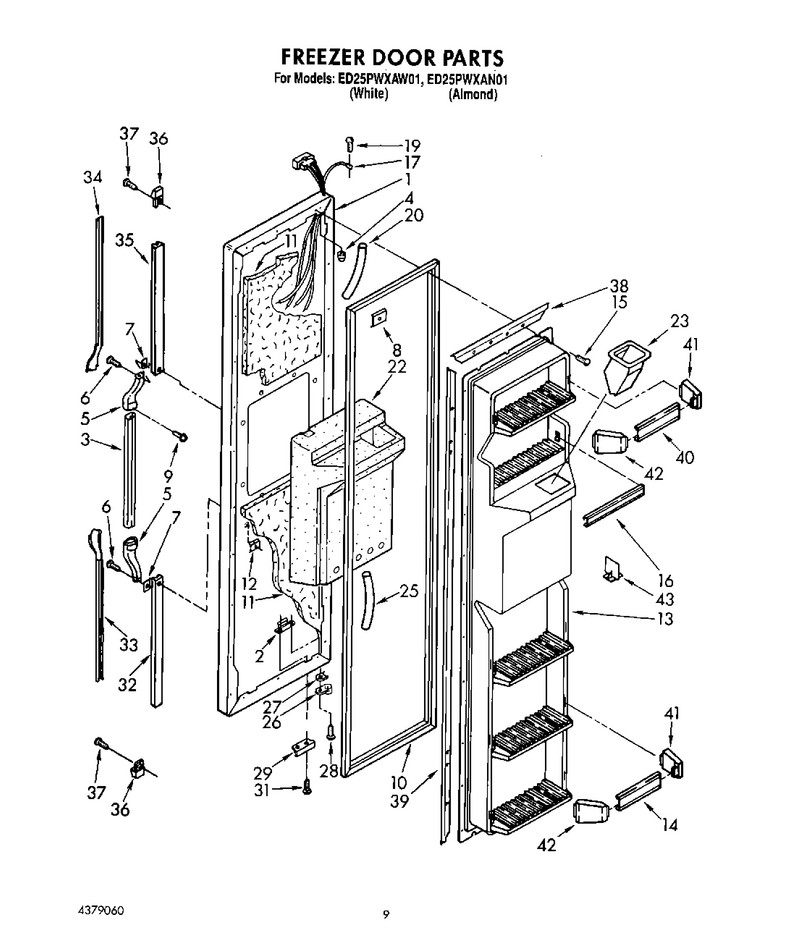

07 - Freezer Door

...
...
1
Freezer, Door Panel (White) WPL-1110652
...
2
Plate WPL-992245
...
3
Handle, Center WPL-1118417
...
4
Seal, Hinge Pin WPL-939886
...
5
End Cap (2) WPL-1119359
...
6
Screw WPL-489090
...
7
Shim, End Cap (2) WPL-935075
...
8
Plate WPL-WP939101
...
9
Screw (4) WPL-489022
...
10
Gasket-Dor WPL-2188434A
...
11
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
12
Screw Anchor (2) WPL-941242
...
13
Panel, Interior Door WPL-1124969
...
14
Trim, Shelf (3) WPL-2148320
...
15
Screw WPL-WP489069
...
16
Trim, Door (2) WPL-2150118
...
17
Harness, Door WPL-1116960
...
19
Screw WPL-WP488234
...
20
Tube, Water Line WPL-2196117
...
22
Insulation, Dispenser WPL-1115345
...
23
Chute, Ice WPL-987188
...
25
Tube, Water Line WPL-2196117
...
26
Cam-Door WPL-4318165
...
27
Shim WPL-WP1104787
...
28
Screw WPL-WP489399
...
29
Bracket WPL-WP2195950
...
31
Screw WPL-WP489069
...
32
Insert Retainer (Bottom) WPL-941262
...
33
Insert, Handle (White) WPL-1119361
...
34
Insert, Handle (Almond) WPL-1119375
...
35
Insert Retainer (Bottom) WPL-2194770
...
36
End Cap (2) WPL-2156220
...
37
Screw WPL-489090
...
38
Gasket Retainer, Top & Bottom WPL-1118306
...
39
Gasket Retainer, Side (2) WPL-1118302
...
40
Trim, Door Shelf WPL-2148319
...
41
End Cap, Trim (4) WPL-1115364
...
42
End Cap, Trim (4) WPL-1115333
...
43
Divider, Shelf WPL-1114380

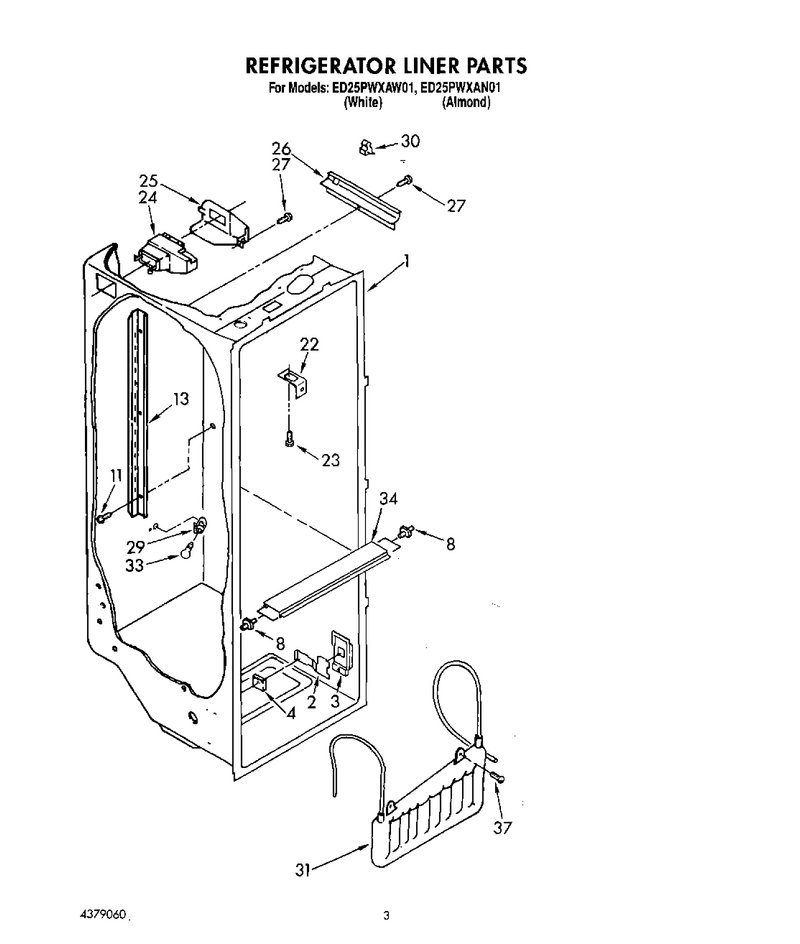

02 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-985468
...
3
Slide, Meat Pan Control WPL-984102
...
4
Pad, Foam WPL-992358
...
8
Stud-Shelf WPL-4388538
...
11
Screw WPL-WP488729
...
13
Ladder, Shelf WPL-2171996
...
22
Retainer WPL-WP2256085
...
23
Screw WPL-WP488488
...
24
Diffuser WPL-WPW10151374
...
25
Cover, Air Diffuser WPL-2152019
...
26
Cover, Conduit WPL-2150331
...
27
Screw WPL-W10759522
...
29
Capacitor (Service) WPL-4387478
...
30
Clip-Air, Duct WPL-2215823
...
31
Reservoir WPL-WP2256126
...
33
Light Bulb WPL-8009
...
34
Lens WPL-1118315
...
37
Screw WPL-798639

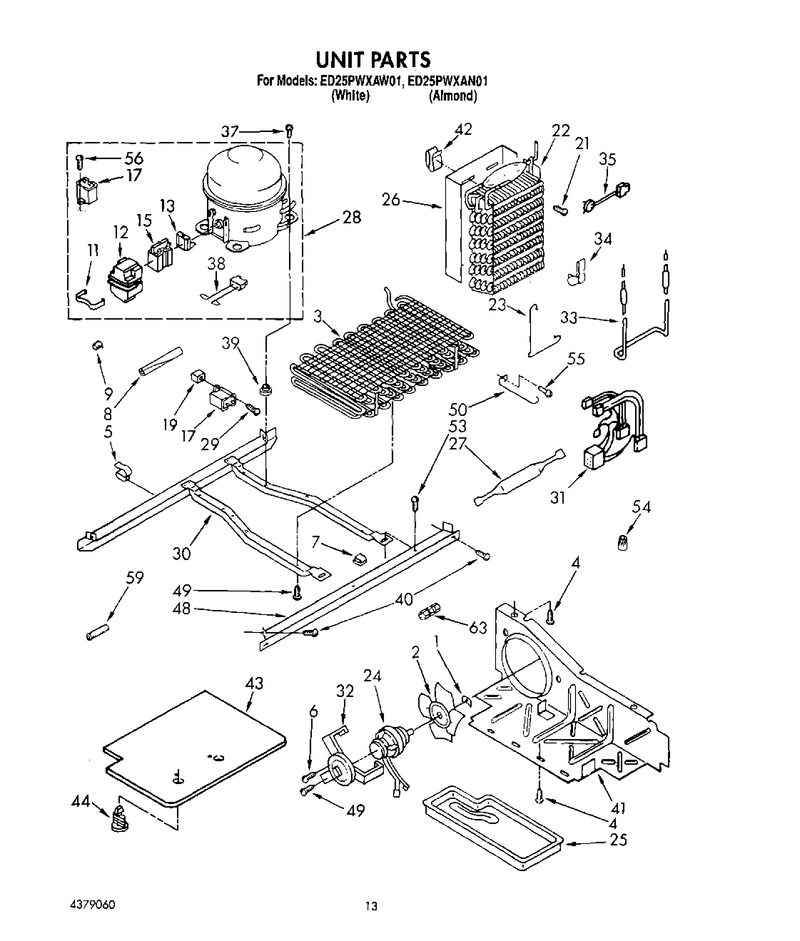

09 - Unit

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP1108179
...
3
Condenser Assembly WPL-2198175
...
4
Screw WPL-WP489464
...
5
Clip, Wire & Tube WPL-2208280
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Clip, Tube WPL-2200079
...
8
Sleeve WPL-W11751592
...
9
Dampener WPL-WP2158826
...
11
Strap (Production) WPL-943322
...
12
Cover (Production) WPL-1105055
...
13
Overload WPL-819198
...
15
Relay (See Overload) WPL---
...
17
Capacitor WPL-WPW10662129
...
19
Grommet (4) WPL-937252
...
21
Screw WPL-WP489478
...
22
Evaporator WPL-2155501
...
23
Clip WPL-WP2161324
...
24
Motor-Cond WPL-833697
...
25
Tray, Evaporator WPL-1110674
...
26
Heat Shield WPL-2149294
...
27
Drier-Tube WPL-W10843121
...
28
Also Order Tube Kit) WPL-876765
...
29
Screw WPL-W11693756
...
30
Unit Mounting Frame WPL-2304904
...
31
Wire Assy WPL-2176859
...
32
Bracket, Fan Motor WPL-548695
...
33
Heater, Defrost WPL-2161323
...
34
Clip WPL-2161330
...
35
Bimetl-Def WPL-WPW10225581
...
37
Screw WPL-489387
...
38
Wire WPL-WP2172890
...
39
Grommet (4) WPL-2162067
...
40
Screw WPL-489340
...
41
Baffle, Air WPL-W10896764
...
42
Clip, Heat Shield WPL-2155547
...
43
Unit Cover, Bottom WPL-W10466698
...
44
Clip WPL-489396
...
48
Unit Mounting Rail WPL-2305374
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1110663
...
53
Screw WPL-WP489427
...
54
Wire Connector WPL-227991
...
55
Screw WPL-WPW10141625
...
56
Screw WPL-W11693756
...
59
Spring-Tube WPL-983659
...
63
Valve, Access (3/4``) WPL-978030

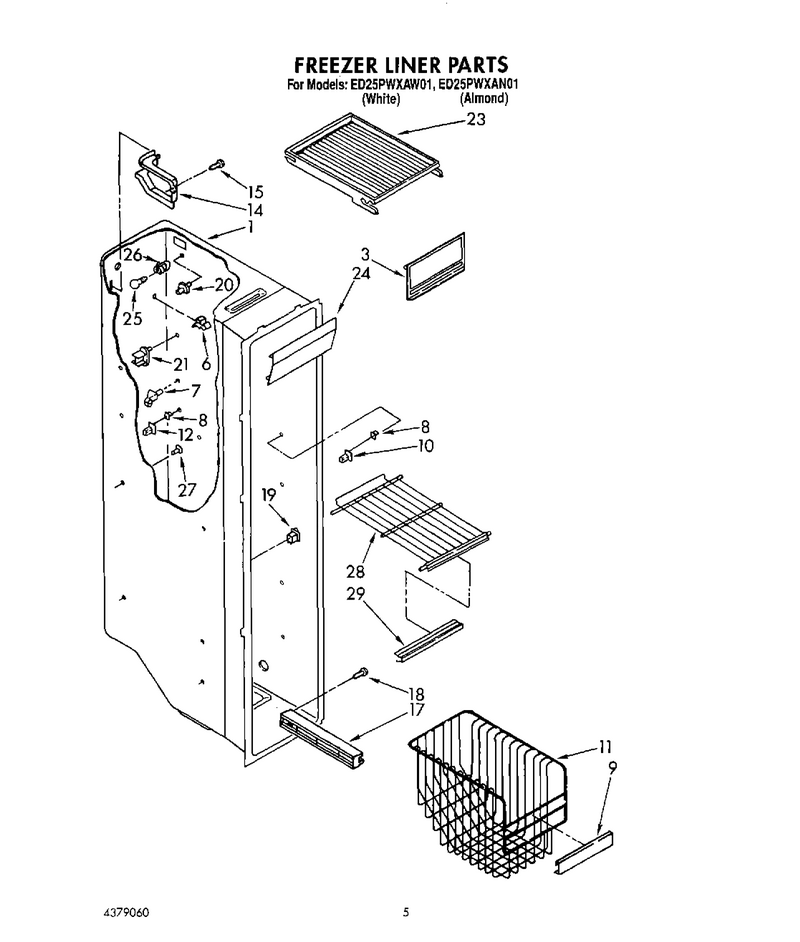

04 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
3
Door, Ice Compartment WPL-1115254
...
6
Clip-Air, Duct WPL-2215823
...
7
Stud-Shelf WPL-4388405
...
8
Stud-Shelf WPL-W11581579
...
9
Trim, Basket (Lower) WPL-2179512
...
10
Stud-Shelf WPL-W11581579
...
11
Basket, Slope WPL-2152090
...
12
Stud-Shelf WPL-W11581579
...
14
Cover, Wiring WPL-2155572
...
15
Screw WPL-WP488729
...
17
Shelf Track (Right Side) WPL-1126354
...
18
Screw WPL-W11693756
...
19
Switch WPL-W11457217
...
20
Stud-Shelf WPL-4388538
...
21
Stud-Shelf WPL-4388537
...
23
Shelf, Top Compartment WPL-1118294
...
24
Light Lens WPL-1115389
...
25
Light Bulb WPL-8009
...
26
Capacitor (Service) WPL-4387478
...
27
Grommet (8) WPL-1110779
...
28
Shelf-Wire WPL-WP2174267
...
29
Trim, Shelf (3) WPL-1120547

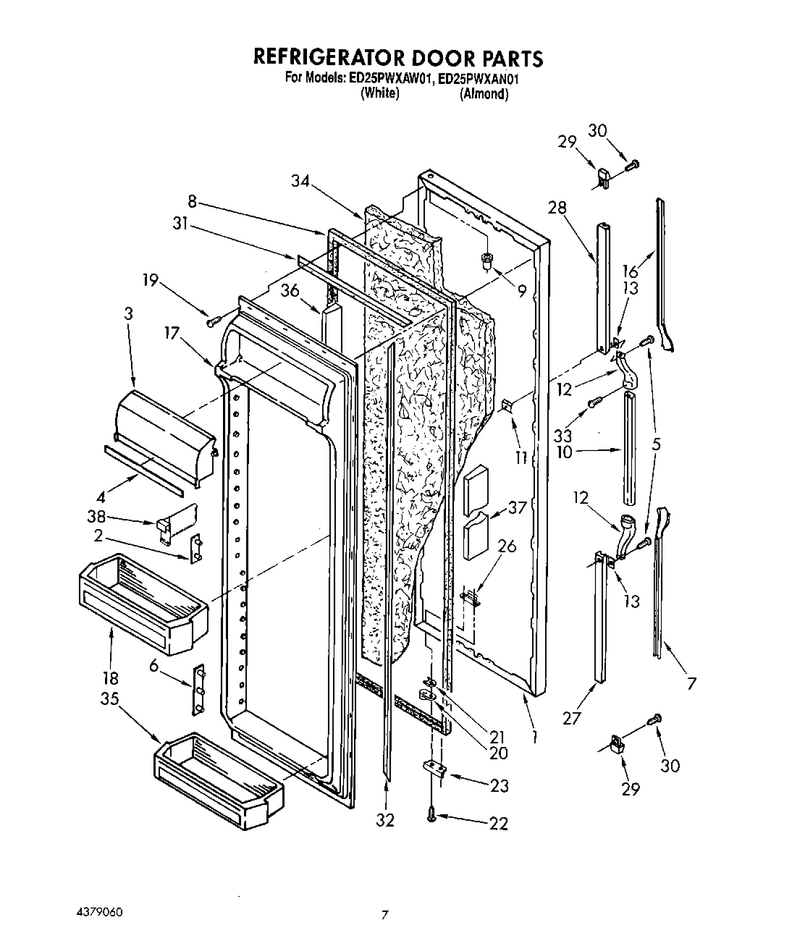

06 - Refrigerator Door

...
...
1
Refrigerator, Door Panel (White) WPL-1110642
...
2
Pin Plate (4) WPL-1118048
...
3
Door, Compartment WPL-2148289
...
4
Trim, Door Compartment WPL-1106959
...
5
Screw WPL-WPW10141645
...
6
Pin-Plate WPL-W10851606
...
7
Insert, Handle (Almond) WPL-1119363
...
8
Gasket-Dor WPL-2188433A
...
9
Cap, Hinge Sleeve WPL-509929
...
10
Handle, Center WPL-1118417
...
11
Screw Anchor (2) WPL-941242
...
12
End Cap, Center Handle WPL-1119359
...
13
Shim WPL-935075
...
16
Insert, Handle (Almond) WPL-1119375
...
17
Panel, Interior Door WPL-1124842
...
18
Bin-Cntlvr WPL-WP1124846
...
19
Screw WPL-WP489069
...
20
Cam-Door WPL-4318165
...
21
Shim WPL-WP1104787
...
22
Screw WPL-WP489069
...
23
Bracket WPL-WP2195950
...
26
Plate WPL-992245
...
27
Insert Retainer (Bottom) WPL-941262
...
28
Insert Retainer (Bottom) WPL-2194770
...
29
End Cap (2) WPL-2156220
...
30
Screw WPL-489090
...
31
Gasket Retainer, Top & Bottom WPL-1118301
...
32
Gasket Retainer, Side (2) WPL-1118302
...
33
Screw (4) WPL-489022
...
34
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
35
Door Bin (2) WPL-2177883
...
36
Reinforcement, Shelf WPL-1115379
...
37
Reinforcement, Shelf WPL-1119055
...
38
Divider, Bin WPL-2195498

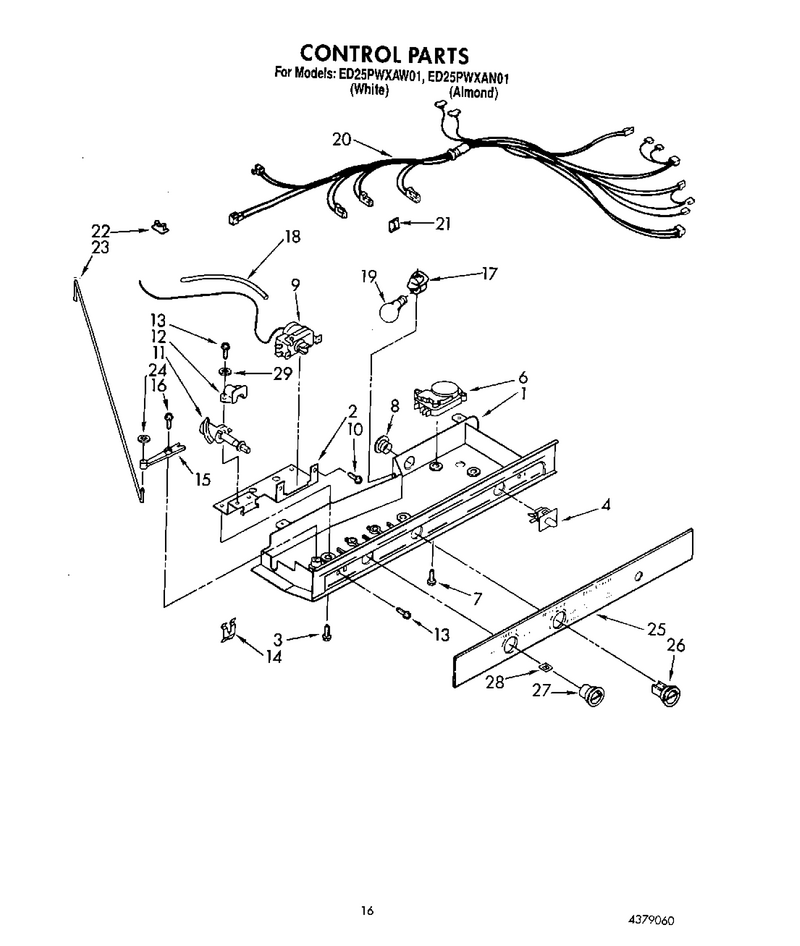

11 - Control

...
...
1
Contrl-Box WPL-4389197
...
2
Mounting Bracket WPL-1110629
...
3
Screw (2) WPL-489397
...
4
Switch WPL-WP2149705
...
6
Electronic Control WPL-4388932
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam Assembly WPL-2161250
...
12
Bearing Body WPL-1110560
...
13
Screw WPL-WP489478
...
14
Retainer, Damper WPL-938439
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
17
Capacitor (Service) WPL-4387478
...
18
Barrier WPL-WP2196003
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2195015
...
21
Clip WPL-WP1115374
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123960
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon Control WPL-2161213
...
26
Thermostat Knob WPL-2182111
...
27
Knob, Air Control WPL-1116853
...
28
Knob, Retainer WPL-837444
...
29
Spring, Washer WPL-489203

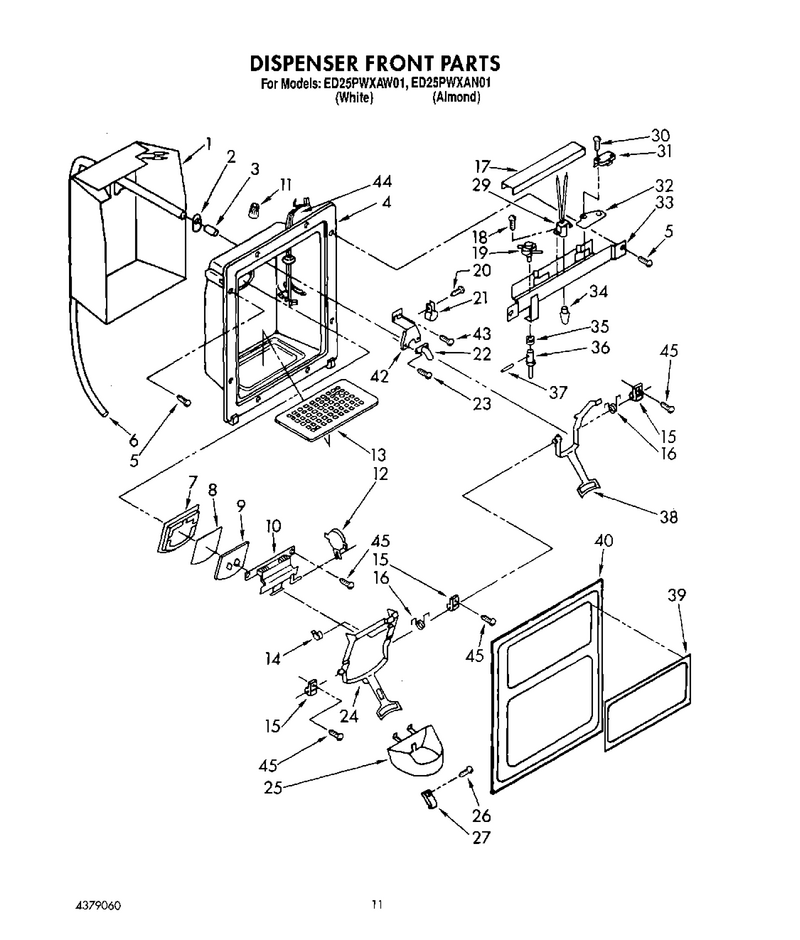

08 - Dispenser Front

...
...
1
Heater WPL-483058
...
2
Grommet WPL-987048
...
3
Insert, Tube WPL-4387491
...
4
Housing, Dispenser WPL-1107943
...
5
Screw WPL-W11693756
...
6
Tube-Water WPL-W10823511
...
7
Gasket, Door WPL-983691
...
8
Shield, Ice Door WPL-987121
...
9
Door, Ice WPL-983690
...
10
Mechanism WPL-482722
...
11
Connector, Wire WPL-227991
...
12
Mechanism WPL-WP1120581
...
13
Grille WPL-WP983900
...
14
Clip, Bearing (2) WPL-987917
...
15
Bearing, Lever (3) WPL-983697
...
16
Spring, Lever (2) WPL-983696
...
17
Shield, Wiring WPL-984494
...
18
Screw WPL-WP489128
...
19
Switch, Light WPL-851386
...
20
Screw WPL-WP488787
...
21
Clamp WPL-WP488878
...
22
Fitting WPL-WP4388152
...
23
Screw WPL-WP965173
...
24
Lever Assembly, Ice Dispenser WPL-1127421
...
25
Guide, Ice WPL-985866
...
26
Screw WPL-489197
...
27
Stop, Glass WPL-1119056
...
29
Socket, Lamp WPL-2189755
...
30
Screw WPL-488362
...
31
Switch WPL-814037
...
32
Insulator, Switch (2) WPL-984683
...
33
Bracket, Control WPL-1107454
...
34
Bulb-Light WPL-WP22002263
...
35
Spring, Plunger WPL-983986
...
36
Plunger WPL-1116563
...
37
Pin, Retainer WPL-983987
...
38
Lever Assembly, Water Dispenser WPL-1115349
...
39
Plaque, Front Cover WPL-2150335
...
40
Front Cover, Housing (Includes Item 39) WPL-2150339
...
42
Bracket, Water WPL-987049
...
43
Glass Shelf WPL-68139-1
...
44
Wiring Assembly, Door WPL-2149783
...
45
Screw WPL-WP3400906

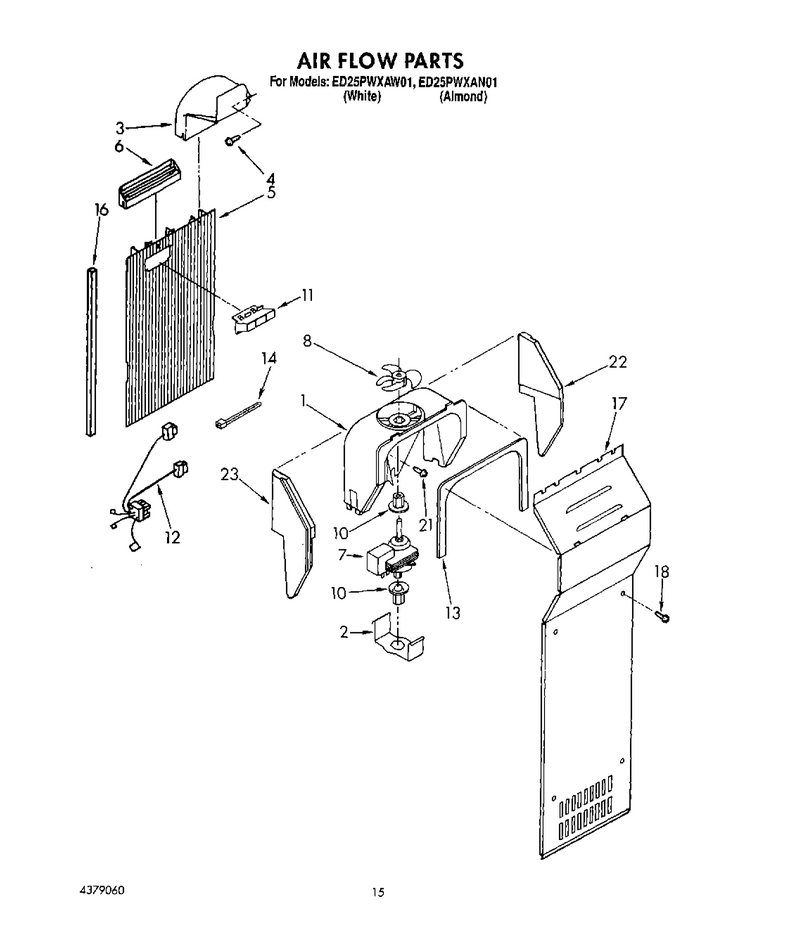

10 - Air Flow

...
...
1
Fan-Scroll WPL-WP2182120
...
2
Retainer WPL-WP2155590
...
3
Scoop-Air WPL-WP2161231
...
4
Screw WPL-WP488729
...
5
Cover-Evap WPL-4388356
...
6
Diffuser Air Duct WPL-1110666
...
7
Fan Motor WPL-4389144
...
8
Blade-Fan WPL-WP2169142
...
10
Grommet, Fan (2) WPL-2155589
...
11
Duct, Icemaker WPL-2182146
...
12
Harns-Wire WPL-2149197
...
13
Gasket WPL-WP2155789
...
14
Tie-Wire WPL-WPW10339879
...
16
Gasket WPL-WP2304241
...
17
Cover-Evap WPL-4388356
...
18
Screw WPL-W11233072
...
21
Screw WPL-WP489478
...
22
Support Kit (Contains Right And Left) WPL-4388358
...
23
Support Kit (Contains Right And Left) WPL-4388358

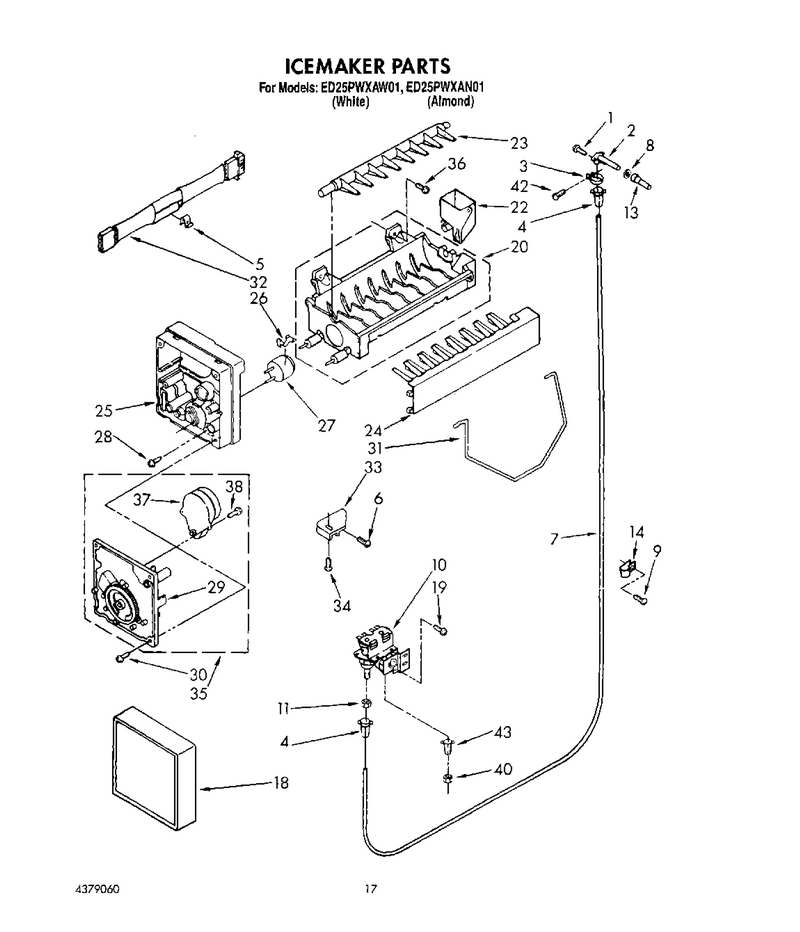

12 - Icemaker, Lit/optional

...
...
Energy Label WPL-LIT2162818
...
1
Screw WPL-WPW10141645
...
2
Fitting WPL-WP2196157
...
3
Clamp WPL-WP488878
...
4
Insert, Tube WPL-4387491
...
5
Clip WPL-WP628379
...
6
Screw WPL-486214
...
7
Tube-Water WPL-W10823511
...
8
Gasket WPL-WP1106508
...
9
Screw WPL-WP489478
...
10
Valve-Inlt WPL-W10853654
...
11
Nut WPL-WP627018
...
13
Tube, Water Inlet WPL-2155247
...
14
Clamp WPL-WP488366
...
18
Cover WPL-628355
...
19
Screw WPL-WPW10141625
...
20
Grease WPL-WP542638
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Stripr WPL-WP2182124
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Bimetl-Def WPL-WP627985
...
28
Screw (2) WPL-8533917
...
29
Motor-Modl WPL-W10190935
...
30
Screw WPL-WP681249
...
31
Arm-Shut WPL-W11342242
...
32
Harns-Wire WPL-WP2187464
...
33
Bracket WPL-W11500948
...
34
Screw, WPL-489365
...
35
Motor-Modl WPL-W10190935
...
36
Screw WPL-WP488163
...
37
Motor-Modl WPL-W10190935
...
38
Screw WPL-489136
...
40
Nut WPL-4318011
...
42
Screw WPL-WP488787
...
43
Insert WPL-WP1129177
...
100
Sealer, Gum (4 Feet) WPL-212643
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
