Whirlpool ED25PQXYW01

Model: ED25PQXYW01

Save Part Not Listed?
product name

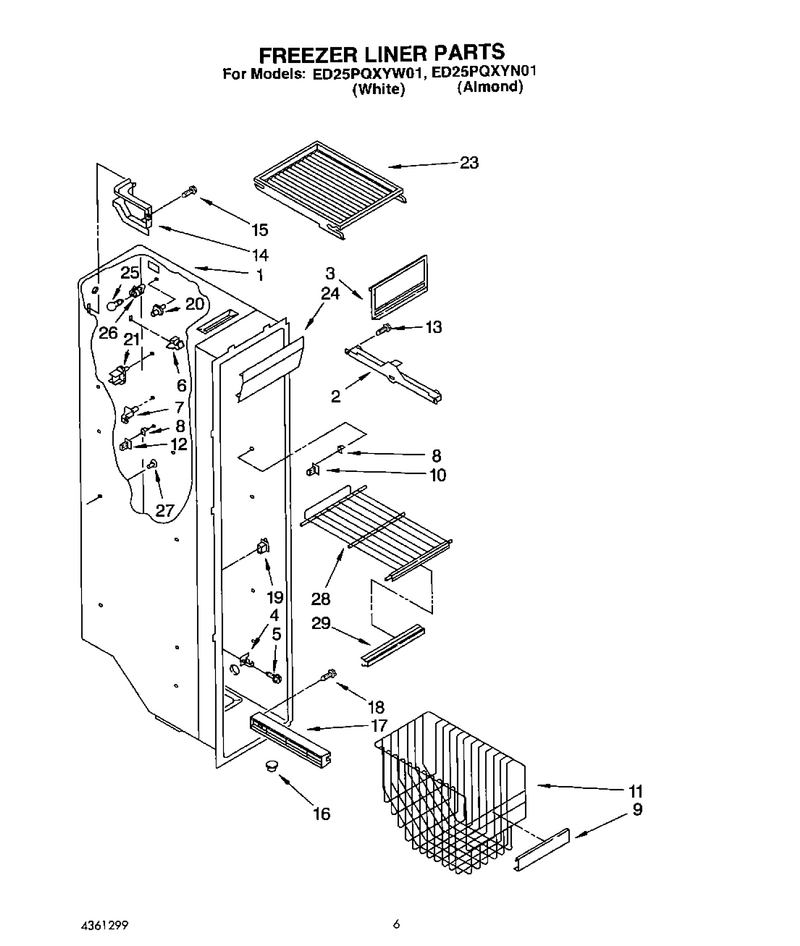

05 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Slide, Ice Container (Right) WPL-W10845583
...
3
Door, Ice Compartment WPL-1115254
...
4
Evaporator, Support WPL-1108436
...
5
Screw WPL-W11693756
...
6
Clip-Air, Duct WPL-2215823
...
7
Stud-Shelf WPL-4388405
...
8
Stud-Shelf WPL-W11581579
...
9
Trim, Basket WPL-2148296
...
10
Stud-Shelf WPL-W11581579
...
11
Basket, Slope WPL-2152090
...
12
Stud-Shelf WPL-W11581579
...
13
Screw, 8-18 X 1.38 WPL-718257
...
14
Wiring Cover WPL-1114607
...
15
Screw WPL-WP488729
...
16
Fitting, Drain WPL-942768
...
17
Shelf Track (Right Side (4)) WPL-1126354
...
18
Screw WPL-W11693756
...
19
Switch WPL-W11457217
...
20
Stud-Shelf WPL-4388538
...
21
Stud-Shelf WPL-4388537
...
23
Shelf, Top Compartment WPL-1118294
...
24
Light Lens WPL-1115389
...
25
Light Bulb WPL-8009
...
26
Capacitor (Service) WPL-4387478
...
27
Grommet (8) WPL-1110779
...
28
Shelf (3) WPL-1116956
...
29
Trim, Shelf (3) WPL-1120547

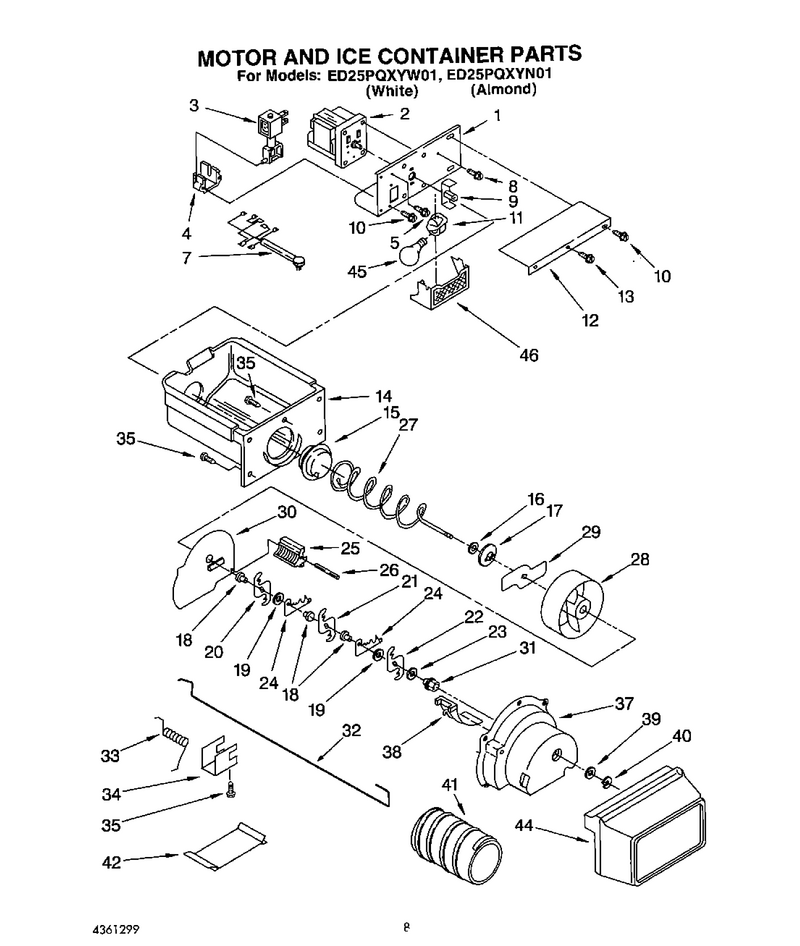

07 - Motor And Ice Container

...
...
1
Bracket, Motor WPL-W10304376
...
2
Motor WPL-WP2188242
...
3
Solenoid WPL-WP2152713
...
4
Guide WPL-W10850503
...
5
Screw (2) WPL-487523
...
6
Clip WPL-WP1115374
...
7
Wiring Assembly, Ice Dispenser WPL-2155171
...
8
No Description Avaliable WPL-303776
...
9
Coupling WPL-WPW10169511
...
10
Screw WPL-WP489478
...
11
Capacitor (Service) WPL-4387478
...
12
Bracket, Motor WPL-W10304376
...
13
Screw WPL-WP489128
...
14
Container WPL-WPW10670845
...
15
Coupling WPL-W10749708
...
16
Stop, Cone WPL-1118480
...
17
Feeder Cone WPL-1119074
...
18
Spacer WPL-WP1119005
...
19
Spacer WPL-WP1119007
...
20
Blade, Rotary A WPL-W10278731
...
21
Blade, Rotary B WPL-W10278732
...
22
Blade, Rotary C WPL-W10278733
...
23
Washer WPL-WP489235
...
24
Blade, Fixed (2) WPL-1119009
...
25
Block Blade WPL-2157405
...
26
Roll Pin WPL-489229
...
27
Auger-Ice WPL-W10422851
...
28
Drum WPL-4388736
...
29
Drum WPL-4388736
...
30
Baffle WPL-W10852691
...
31
Bearing WPL-WP1119018
...
32
Arm-Contrl WPL-W11596045
...
33
Spring, Return WPL-1119020
...
34
Retainer Clip, Rod WPL-1119021
...
35
Screw WPL-WP488787
...
37
Housing WPL-WPW10185018
...
38
Deflector WPL-WP1119017
...
39
Washer, Plain WPL-489234
...
40
Ring-E WPL-WP489236
...
41
Sleeve WPL-4317870
...
42
Deflector WPL-4317811
...
44
Cover WPL-2147510
...
45
Light Bulb WPL-8009
...
46
Light Lens, Dispenser WPL-983359

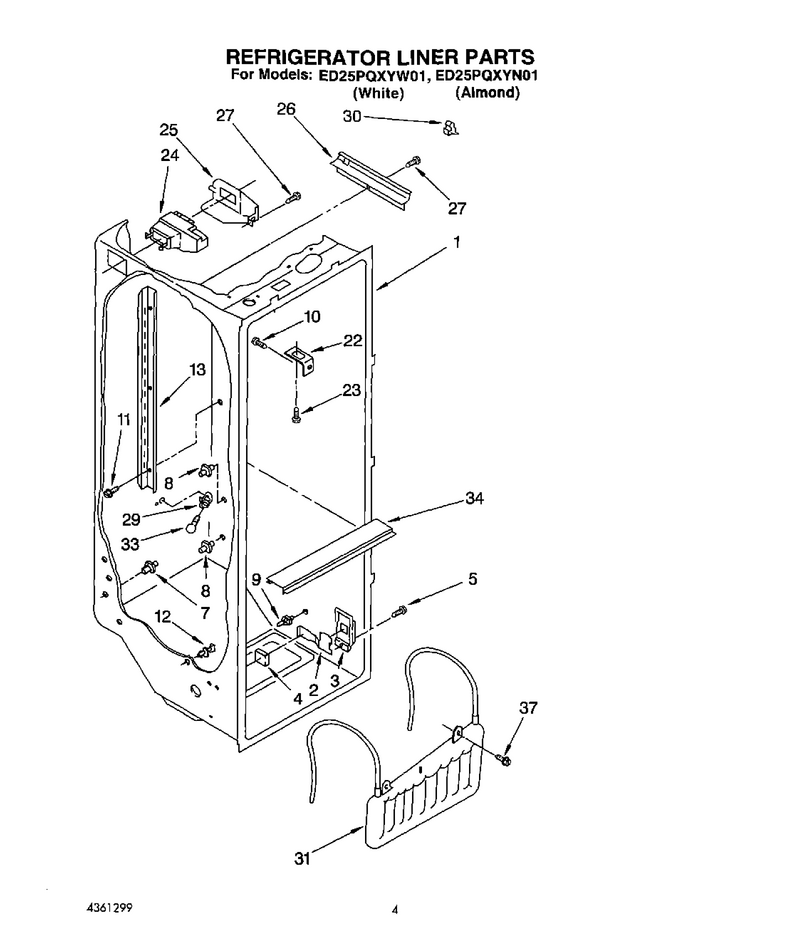

03 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-985468
...
3
Slide, Meat Pan Control WPL-984102
...
4
Pad, Foam WPL-992358
...
5
Screw 8-15 X 1/2 WPL-486214
...
7
Stud-Shelf WPL-WP2149540
...
8
Stud-Shelf WPL-4388538
...
9
Stud-Shelf WPL-WP1115290
...
10
Screw WPL-WP489478
...
11
Screw WPL-WP488729
...
12
Stud-Shelf WPL-4388538
...
13
Ladder, Shelf WPL-2171996
...
22
Retainer WPL-WP2256085
...
23
Screw WPL-WP488488
...
24
Diffuser WPL-WPW10151374
...
25
Cover, Air Diffuser WPL-2152019
...
26
Cover, Conduit WPL-2150331
...
27
Screw WPL-W10759522
...
29
Capacitor (Service) WPL-4387478
...
30
Clip-Air, Duct WPL-2215823
...
31
Reservoir WPL-WP2256126
...
33
Light Bulb WPL-8009
...
34
Lens WPL-1118315
...
37
Screw WPL-798639

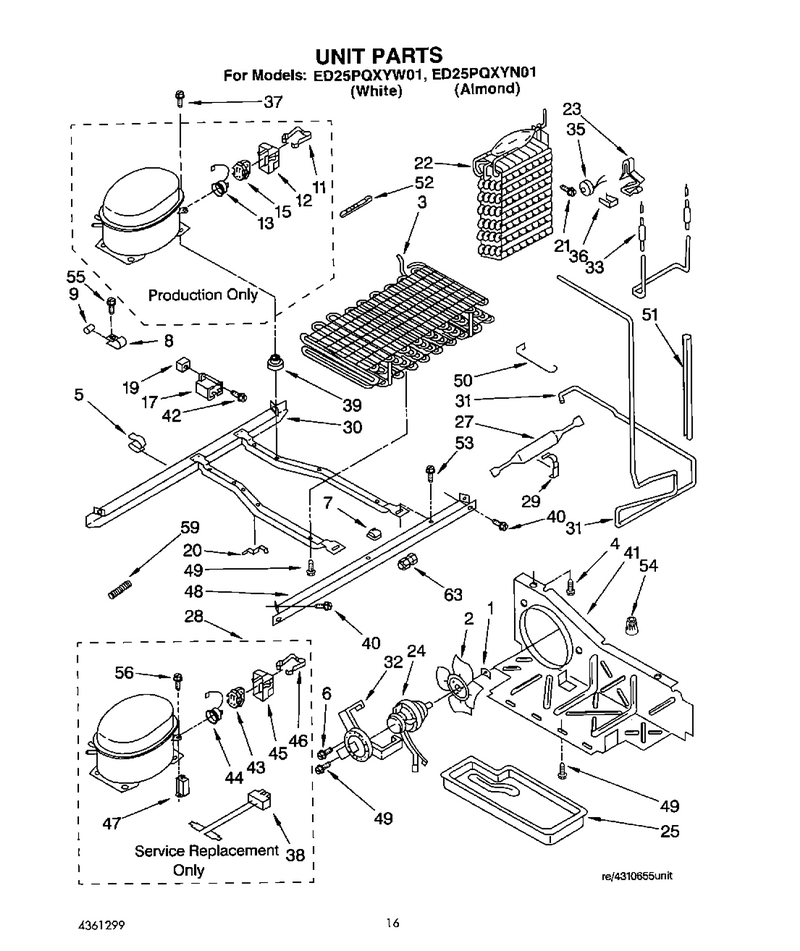

11 - Unit

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP1108179
...
3
Condenser Assembly WPL-1105640
...
4
Screw WPL-WP489464
...
5
Clip, Wire (2) WPL-548745
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Clip, Tube WPL-2200079
...
8
Tube Clamp WPL-510716
...
9
Dampener WPL-1108064
...
11
Spring, Relay Case WPL-943322
...
12
Case, Relay WPL-1105055
...
13
Overload WPL-819098
...
15
Relay (Order Overload To Obtain Relay) WPL---
...
17
Capacitor WPL-WPW10662129
...
19
Grommet (4) WPL-937252
...
20
Clip, Unit Cover (2) WPL-548744
...
21
Screw WPL-WP489478
...
22
Evaporator WPL-1110668
...
23
Clamp (4) WPL-1108431
...
24
Motor-Cond WPL-833697
...
25
Tray, Evaporator Housing WPL-1110674
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10619807
...
29
Clamp, Dryer WPL-1127590
...
30
Unit Mounting Frame WPL-2304904
...
31
Exchanger, Heat WPL-1114662
...
32
Bracket, Fan Motor WPL-548695
...
33
Heater, Defrost WPL-2154543
...
35
Bimetl-Def WPL-WP4387499
...
36
Clamp WPL-513584
...
37
Grommet (4) ((Production)) WPL-876811
...
38
Wire WPL-WP2172890
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw WPL-489340
...
41
Baffle, Air WPL-W10896764
...
42
Screw WPL-W11693756
...
43
Relay (Order Overload To Obtain Relay) WPL---
...
44
Overload WPL-WP2154697
...
45
Cover WPL-1108115
...
46
Strap WPL-938384
...
47
Capacitor WPL-WPW10662129
...
48
Unit Mounting Rail WPL-2305374
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1110663
...
51
Sleeve WPL-WP2002171
...
52
Strap WPL-851095
...
53
Screw WPL-WP489427
...
54
Connector, Wire WPL-227991
...
55
Screw WPL-WPW10141625
...
56
Screw WPL-W11693756
...
59
Spring, Tube Forming WPL-983659
...
63
Valve, Access (3/16``) WPL-876764

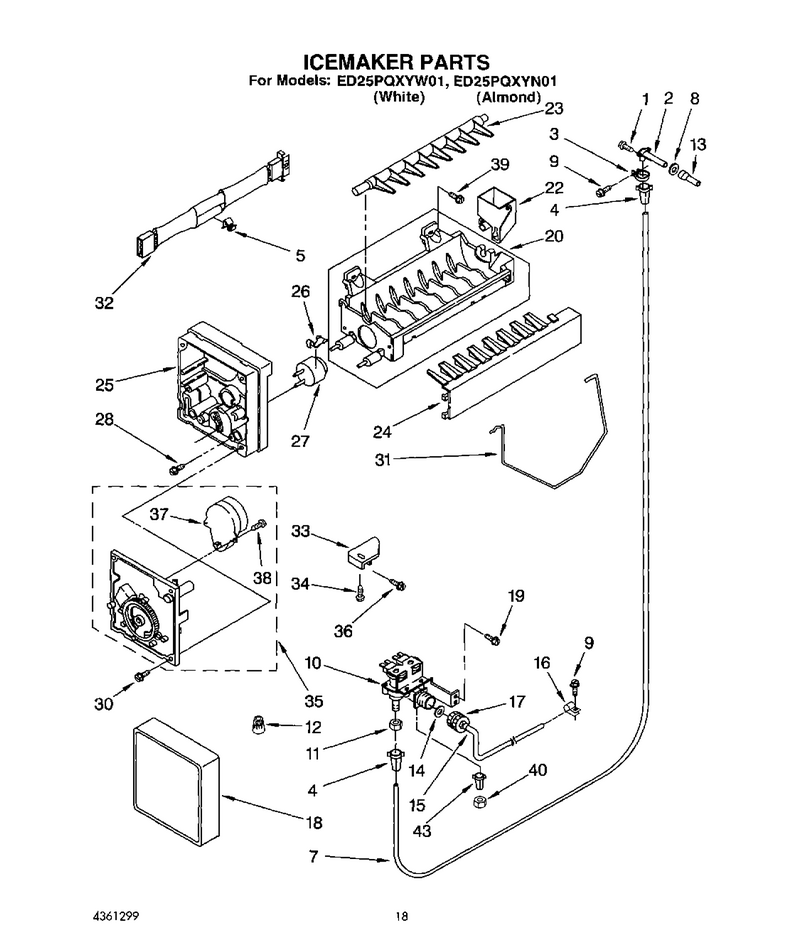

12 - Ice Maker

...
...
1
Screw WPL-WPW10141645
...
2
Fitting WPL-WP2196157
...
3
Clamp WPL-WP488878
...
4
Insert, Tube WPL-4387491
...
5
Clip WPL-WP628379
...
7
Tube-Water WPL-W10823511
...
8
Gasket WPL-WP1106508
...
9
Screw WPL-WP489478
...
10
Valve-Inlt WPL-4318046
...
11
Nut WPL-WP627018
...
12
Connector, Wire WPL-227991
...
13
Tube, Water Inlet WPL-2155064
...
14
Washer WPL-628337
...
15
Tube, Inlet Valve WPL-480389
...
16
Clamp Tube WPL-510716
...
17
Nut, Valve WPL-537588
...
18
Cover WPL-628355
...
19
Screw WPL-WPW10141625
...
20
Mold-Ice WPL-WPW10190929
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Stripr WPL-WP2182124
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Bimetl-Def WPL-WP627985
...
28
Screw (2) WPL-8533917
...
30
Screw WPL-WP681249
...
31
Arm-Shut WPL-W11342242
...
32
Harns-Wire WPL-WP2187464
...
33
Bracket WPL-W11500948
...
34
Screw, 8-32 X 27/64 WPL-489365
...
35
Motor-Modl WPL-W10190935
...
36
Screw 8-15 X 1/2 WPL-486214
...
37
Motor-Modl WPL-W10190935
...
38
Screw 3-24 X 23/64 WPL-489136
...
39
Screw WPL-WP488163
...
40
Nut WPL-4318011
...
43
Insert WPL-WP1129177
...
100
Icemaker Assembly WPL-4317943

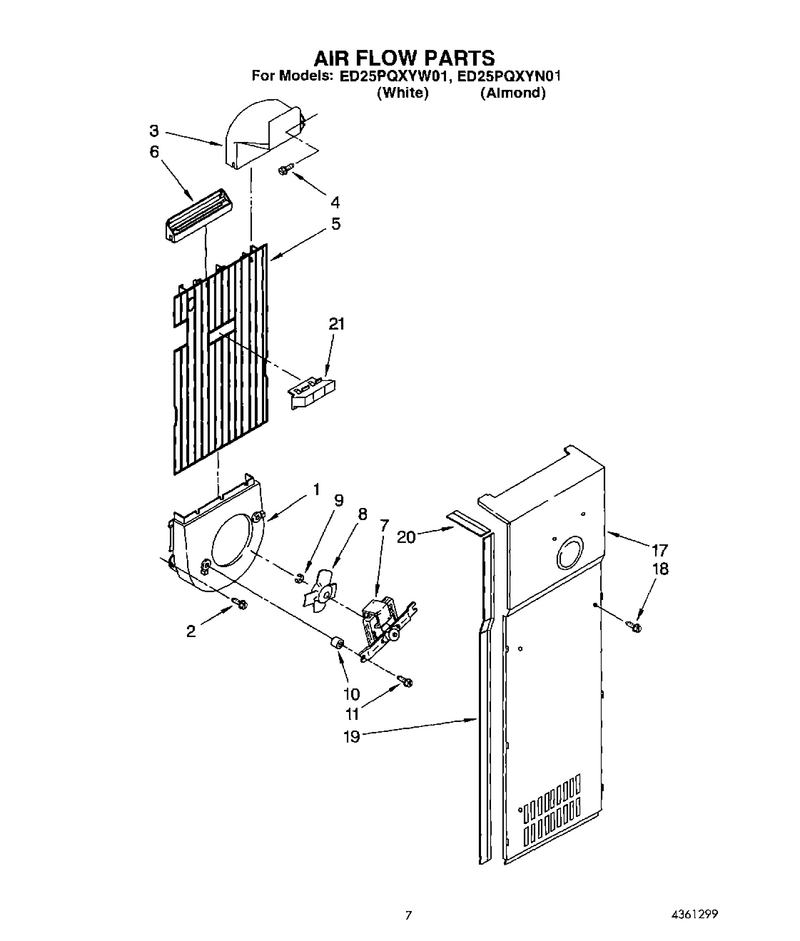

06 - Air Flow

...
...
1
Fan Scroll WPL-1127163
...
2
Screw WPL-WP489478
...
3
Scoop-Air WPL-WP2161231
...
4
Screw WPL-WP488729
...
5
Air Duct Freezer WPL-2157544
...
6
Diffuser Air Duct WPL-1110666
...
7
Motor-Evap WPL-4318017
...
8
Blade-Fan WPL-WP992920
...
9
Ring, Compression WPL-992953
...
10
Grommet WPL-WP531933
...
11
Screw (2) WPL-489168
...
17
Cover, Evaporator WPL-1127167
...
18
Screw WPL-W11233072
...
19
Gasket, Evaporator Cover (2) WPL-2157554
...
20
Gasket, Evaporator Cover Top (2) WPL-1110676
...
21
Duct, Icemaker WPL-2182146

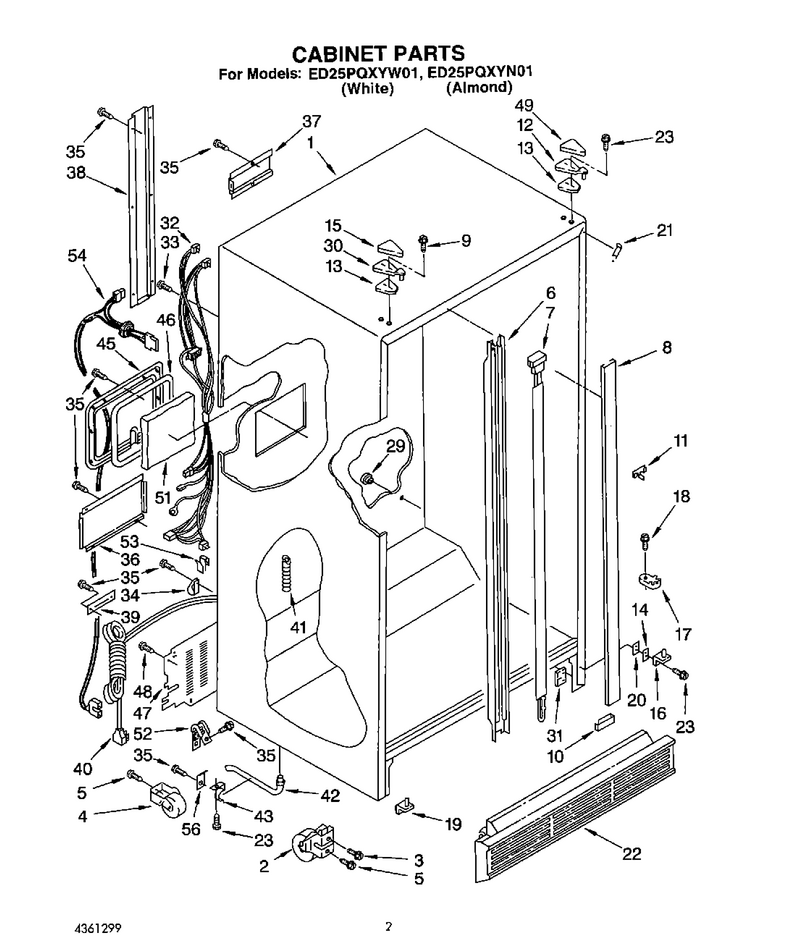

02 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Front Roller (2) WPL-2152011
...
3
Screw WPL-489393
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw, (4) 1/4-28 X 1/2 WPL-488454
...
6
Mullion Rail WPL-2155016
...
7
Heater Mullion WPL-1129434
...
8
Rail-Mulln WPL-1127495
...
9
Screw WPL-489284
...
10
Filler Bottom Mullion (White) WPL-1118361
...
11
Clip, Ground WPL-1110607
...
12
Hinge, Top WPL-1123514
...
13
Shim, Hinge Top WPL-1123515
...
14
Shim WPL-836196
...
15
Cover WPL-WP1129262
...
16
Hinge Bottom (R.h.) WPL-2151619
...
17
Cam-Door WPL-WPW10329686
...
18
Screw WPL-WP489399
...
19
Hinge Bottom (L.h.) WPL-2151620
...
20
Spacer, Hinge WPL-1129868
...
21
Filler, Wrapper (Almond) WPL-2196095
...
22
Grille (Black) WPL-2155485
...
23
Screw WPL-489327
...
29
Grommet WPL-1129178
...
30
Hinge, Top (L.h.) WPL-1123510
...
31
Tap Plate (2) WPL-2147310
...
32
Cabinet Harness WPL-2155153
...
33
Screw WPL-WP250830
...
34
Clamp WPL-937357
...
35
Screw WPL-WP489478
...
36
Cover, Wiring WPL-1129193
...
37
Wiring Shield, Short WPL-1108440
...
38
Wiring Shield, Long WPL-1119063
...
39
Tube Clamp (2) WPL-1105607
...
40
Cord, Service WPL-937360
...
41
Drain, Ferrule Cap WPL-934607
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
45
Cover, Plug WPL-1110626
...
46
Sealing Gasket WPL-1115322
...
47
Cover, Unit WPL-2161317
...
48
Screw WPL-WPW10141645
...
49
Hinge Cover (White) WPL-1119787
...
51
Insulation WPL-1118237
...
52
Clamp, Service Cord WPL-549193
...
53
Clip, Wire WPL-548745
...
54
Harns-Wire WPL-WP2187501
...
56
Clamp, Water Line (2) WPL-836472

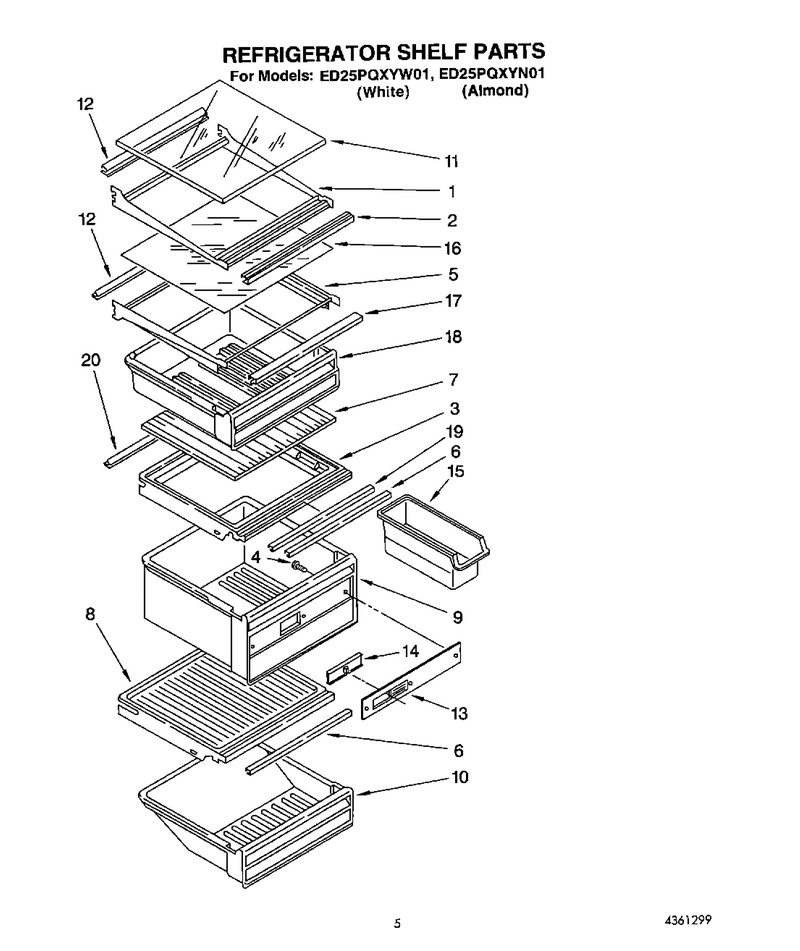

04 - Refrigerator Shelf

...
...
1
Shelf Assembly, Cantilever (2) WPL-1118413
...
2
Trim, Shelf WPL-1114436
...
3
Cover WPL-WP1126289
...
4
Screw, (2) 10-32 X 49/64 WPL-489163
...
5
Shelf, Cantilever (Snack Bin) WPL-2173125
...
6
Trim, Crisper Cover WPL-1110795
...
7
Shelf-Glas WPL-WP1114687
...
8
Cover WPL-WP2148298
...
9
Pan, Crisper WPL-2168851
...
10
Meat Pan WPL-1110791
...
11
Glass, Shelf WPL-2148237
...
12
Reflector, Shelf WPL-1114306
...
13
Front, Crisper Pan WPL-2148378
...
14
Slide, Crisper WPL-2148524
...
15
Container WPL-WP982704
...
16
Glass, Shelf WPL-2148300
...
17
Trim, Shelf WPL-2148301
...
18
Snack Bin WPL-1115262
...
19
Crisper, Gasket Front WPL-1115291
...
20
Crisper, Gasket Rear WPL-1121385

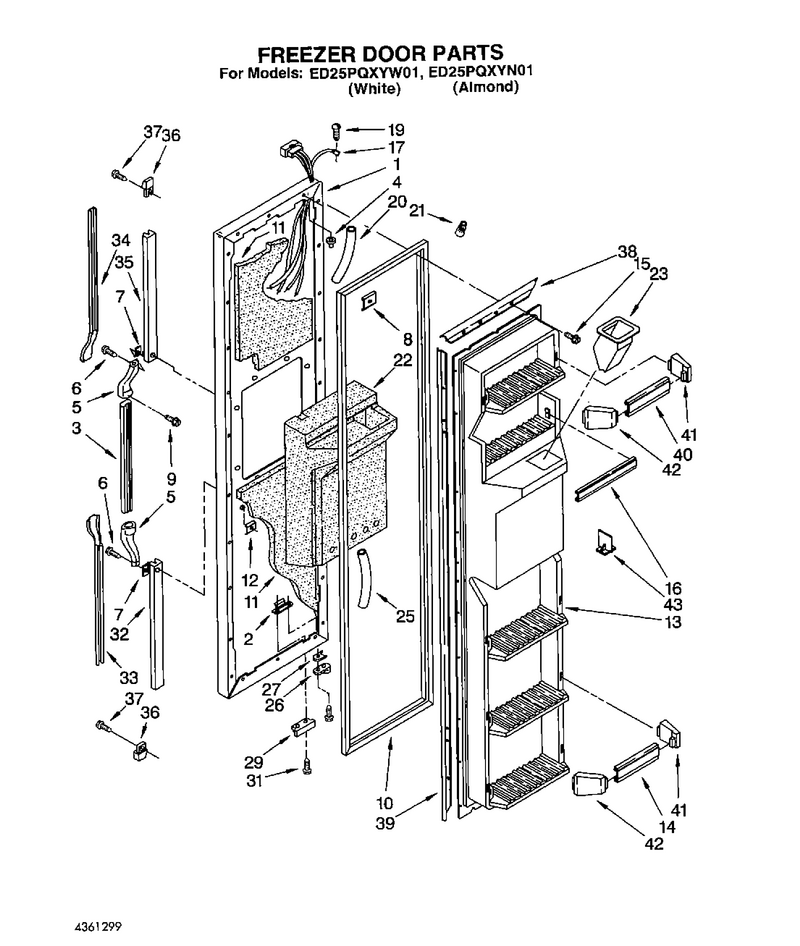

09 - Freezer Door

...
...
1
Freezer, Door Panel (Also Order Item 11) (Almond) WPL-1110655
...
2
Plate WPL-992245
...
3
Handle, Center WPL-1118417
...
4
Seal, Hinge Pin WPL-939886
...
5
End Cap (2) WPL-1119359
...
6
Screw WPL-WPW10141645
...
7
Shim, End Cap (2) WPL-935075
...
8
Plate WPL-WP939101
...
9
Screw (4) WPL-489022
...
10
Gasket-Dor WPL-2188434A
...
11
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
12
Screw Anchor (2) WPL-941242
...
13
Panel, Interior Door WPL-2160060
...
14
Trim, Shelf WPL-2157104
...
15
Screw WPL-WPW10141645
...
16
Trim, Door (2) WPL-2150118
...
17
Harness, Door (Includes Item 18) WPL-1119212
...
19
Screw WPL-WP488234
...
20
Tube, Water Line WPL-2196117
...
21
Connector, Wire WPL-227991
...
22
Insulation, Dispenser WPL-1119038
...
23
Chute, Ice WPL-1119036
...
25
Tube, Water Line WPL-2196117
...
26
Cam-Door WPL-4318165
...
27
Shim WPL-WP1104787
...
28
Screw WPL-WP489069
...
29
Bracket WPL-WP2195950
...
31
Screw WPL-WP489069
...
32
Insert Retainer (Bottom) WPL-941262
...
33
Insert, Handle (White) WPL-1119361
...
34
Insert, Handle (Almond) WPL-1119375
...
35
Insert Retainer (Bottom) WPL-2194770
...
36
End Cap (2) WPL-2156220
...
37
Screw WPL-489090
...
38
Gasket Retainer, Top & Bottom WPL-1118306
...
39
Gasket Retainer, Side (2) WPL-1118302
...
40
Trim, Shelf WPL-2157104
...
41
End Cap, Trim (4) WPL-1115364
...
42
End Cap, Trim (4) WPL-1115333
...
43
Divider, Shelf WPL-1114380

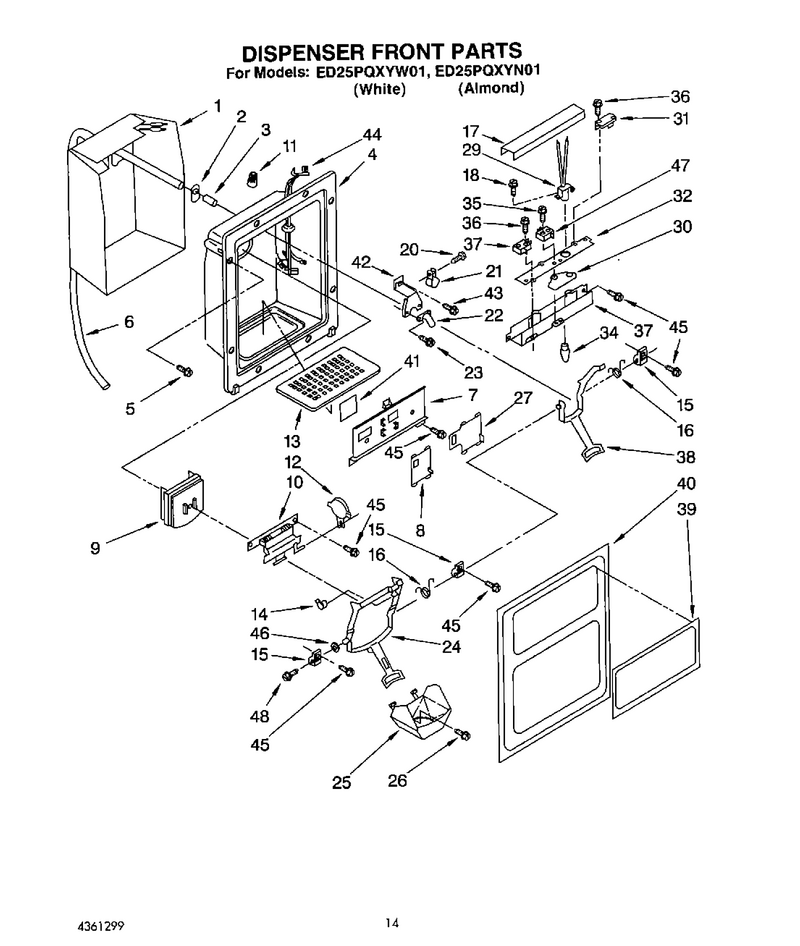

10 - Dispenser Front

...
...
1
Heater WPL-483058
...
2
Grommet WPL-987048
...
3
Insert, Tube WPL-4387491
...
4
Housing, Dispenser WPL-1107943
...
5
Screw WPL-W11693756
...
6
Tube-Water WPL-W10823511
...
7
Frame, Slides WPL-2152716
...
8
Slide, Cube/crush Switch WPL-2152719
...
9
Door-Chute WPL-WP2147168
...
10
Door Mechanism Assembly (Includes Item 9) WPL-2147167
...
11
Connector, Wire WPL-227991
...
12
Mechanism WPL-WP1120581
...
13
Grille WPL-WP983900
...
14
Clip, Bearing (2) WPL-987917
...
15
Bearing, Lever (3) WPL-983697
...
16
Spring, Lever (2) WPL-983696
...
17
Shield, Wiring WPL-1119041
...
18
Screw WPL-WP489128
...
20
Screw WPL-WP488787
...
21
Clamp WPL-WP488878
...
22
Fitting WPL-WP4388152
...
23
Screw WPL-WP965173
...
24
Lever, Ice Dispenser WPL-1127421
...
25
Guide, Ice (White) WPL-1124730
...
26
Screw WPL-489197
...
27
Slide, Light Switch WPL-2152724
...
29
Lamp Holder WPL-2166862
...
30
Spacer WPL-WP625834
...
31
Switch, S.p.d.t. WPL-625851
...
32
Insulator, Control Bracket WPL-2147164
...
33
Bracket, Control WPL-2147163
...
34
Bulb-Light WPL-WP22002263
...
35
Screw (2) WPL-488361
...
36
Screw, WPL-489155
...
37
Switch WPL-814037
...
38
Lever, Water Dispenser WPL-1115349
...
39
Plaque, Front Cover (White) WPL-2162923
...
40
Front Cover, Housing (Includes Item 39) WPL-2160170
...
41
Heat Shield, Frame WPL-1121404
...
42
Bracket, Water WPL-987049
...
43
Glass Shelf WPL-68139-1
...
44
Wiring Harness, Door WPL-2147166
...
45
Screw WPL-WP3400906
...
46
Washer (Repair) WPL-489336
...
47
Switch, S.p.d.t. WPL-625851
...
48
Screw WPL-489362

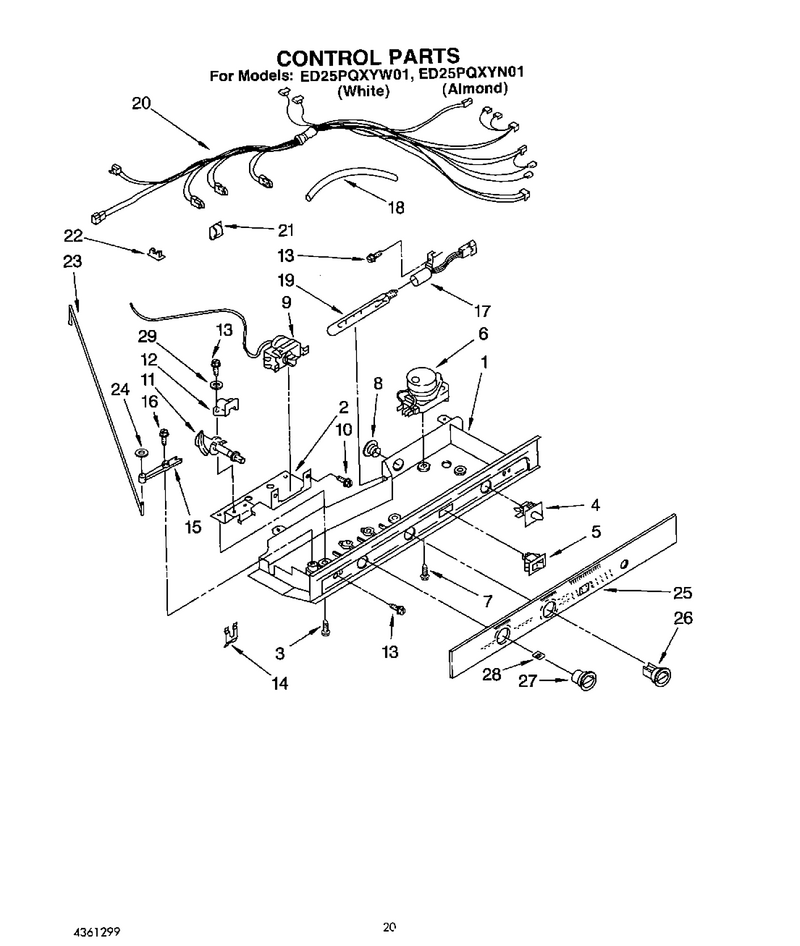

13 - Control, Lit/optional

...
...
Modular Icemaker Service Sheet WPL-LIT628370
...
1
Contrl-Box WPL-4389197
...
2
Mounting Bracket WPL-1110629
...
3
Screw (2) WPL-489397
...
4
Switch WPL-WP2149705
...
5
Switch-Pm WPL-WP938213
...
6
Timer-Def WPL-W10822278
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam Assembly WPL-1110566
...
12
Bearing Body WPL-1110560
...
13
Screw WPL-WP489478
...
14
Retainer, Damper WPL-938439
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
17
Capacitor (Service) WPL-4387478
...
18
Barrier WPL-WP2196003
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2154763
...
21
Clip WPL-WP1115374
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123960
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon, Control Box WPL-2148231
...
26
Thermostat Knob WPL-2182111
...
27
Knob, Air Control WPL-1110562
...
28
Knob, Retainer WPL-837444
...
29
Paint, Bulk (1 Qt.) (Black (Uncut)) WPL-786032

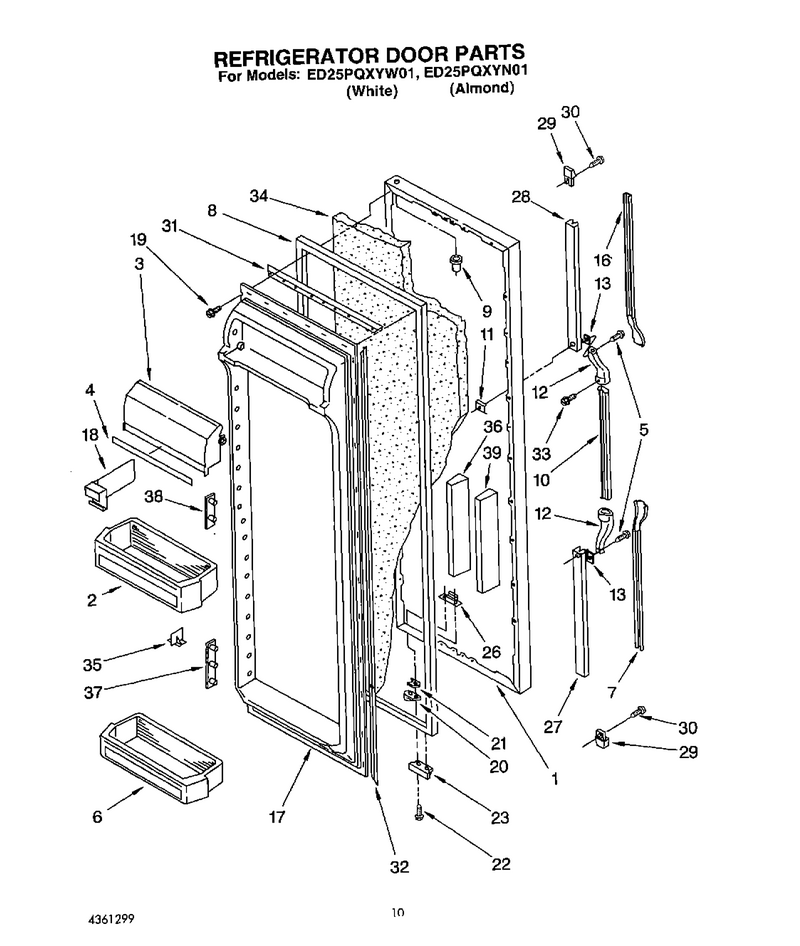

08 - Refrigerator Door

...
...
1
Refrigerator Door (Almond (Also Order Item 34)) WPL-1110645
...
2
Bin-Cntlvr WPL-WP1124846
...
3
Door, Compartment WPL-2148289
...
4
Trim, Door Compartment WPL-1106959
...
5
Screw WPL-WPW10141645
...
6
Door Bin (2) WPL-2177883
...
7
Insert, Handle (Almond) WPL-1119363
...
8
Gasket-Dor WPL-2188433A
...
9
Cap, Hinge Sleeve WPL-509929
...
10
Handle, Center WPL-1118417
...
11
Screw Anchor (2) WPL-941242
...
12
End Cap, Center Handle WPL-1119359
...
13
Shim WPL-935075
...
16
Insert, Handle (Almond) WPL-1119375
...
17
Panel, Interior Door WPL-1124842
...
18
Divider, Bin WPL-2195498
...
19
Screw WPL-WPW10141645
...
20
Cam-Door WPL-4318165
...
21
Shim WPL-WP1104787
...
22
Screw WPL-WP489069
...
23
Bracket WPL-WP2195950
...
26
Plate WPL-992245
...
27
Insert Retainer (Bottom) WPL-941262
...
28
Insert Retainer (Bottom) WPL-2194770
...
29
End Cap (2) WPL-2156220
...
30
Screw WPL-489090
...
31
Gasket Retainer, Top & Bottom WPL-1118301
...
32
Gasket Retainer, Side (2) WPL-1118302
...
33
Screw (4) WPL-489022
...
34
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
35
Divider, Shelf WPL-1114380
...
36
Reinforcement Hinge Side WPL-1115379
...
37
Pin-Plate WPL-W10851606
...
38
Pin Plate WPL-1118048
...
39
Reinforcement Handle Side WPL-1119055
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
