Whirlpool ED25PQXFW01

Model: ED25PQXFW01

Save Part Not Listed?
product name

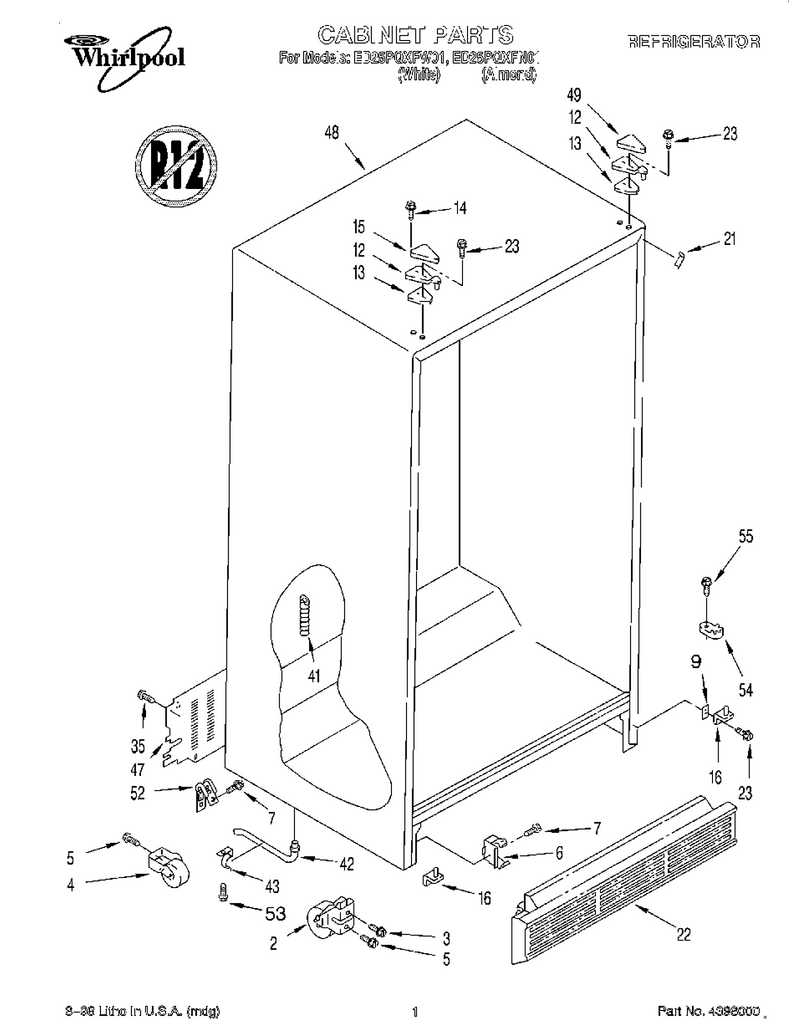

01 - Cabinet

...
...
2
Front Roller (2) WPL-4386774
...
3
Screw WPL-W10850698
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Clip WPL-WP2155013
...
7
Screw WPL-WP489478
...
9
Shim WPL-WP2181911
...
12
Hinge-Door WPL-WP2196046
...
13
Shim, Hinge Top WPL-2196048
...
14
Screw WPL-489284
...
15
Cover WPL-WP1129262
...
16
Hinge-Door WPL-8201707
...
21
Filler, Wrapper (White) WPL-1110708
...
22
Grille (Black) WPL-2155485
...
23
Screw WPL-WP489497
...
35
Screw WPL-WP489464
...
41
Fitting WPL-W11566763
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
47
Cover-Unit WPL-WP2188755
...
48
Cabinet (Not A Serviceable Part) WPL---
...
49
Hinge Cover (White) WPL-1119787
...
52
Clamp, Service Cord WPL-549193
...
53
Screw WPL-WPW10141645
...
54
Cam-Door WPL-WPW10329686
...
55
Screw WPL-WP489483

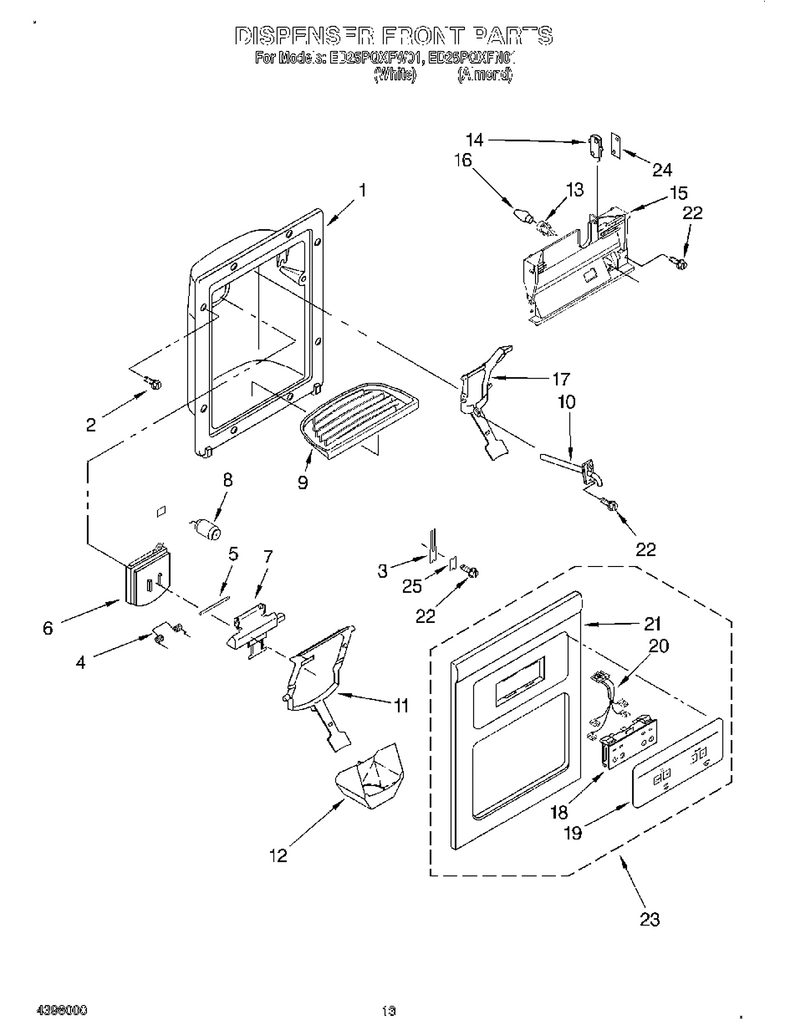

08 - Dispenser Front

...
...
1
Housing, Dispenser (Not A Serviceable Part) WPL---
...
2
Screw WPL-WP489069
...
3
Clip WPL-WP2194719
...
4
Spring WPL-WPW10224328
...
5
Pin-Door WPL-WP2196195
...
6
Ice Dor Kt WPL-W10823377
...
7
Ice Dor Kt WPL-W10823377
...
8
Ice Dor Kt WPL-W10823377
...
9
Grille, Overflow (Almond) WPL-2183787N
...
10
Fitting WPL-WP4388152
...
11
Arm-Dispsr WPL-WP2180259
...
12
Guide-Ice WPL-WP2180224
...
13
Lamp Holder WPL-2180200
...
14
Swtch-Micr WPL-WP2162361
...
15
Bracket WPL-WP2180226
...
16
Bulb-Light WPL-WP22002263
...
17
Arm-Dispsr WPL-WPW10152858
...
18
Switch WPL-WP2180279
...
19
Overlay, Front Cover (Almond) WPL-2180356
...
20
Wire Assembly WPL-2187408
...
21
Front Cover, Housing (Not Available, Order No.23) WPL---
...
22
Screw WPL-WP3400906
...
23
Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White) WPL-2194608W
...
24
Spacer WPL-WP625834
...
25
Clip WPL-WP2195051

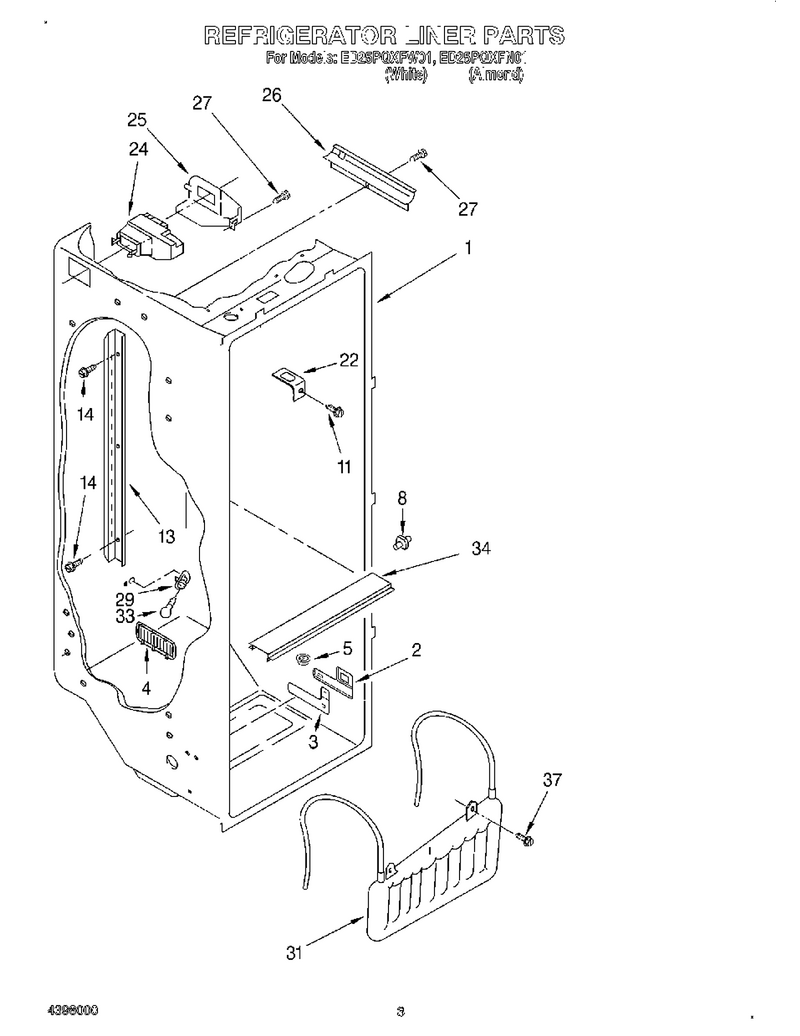

02 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-2194744
...
3
Slide Meat Pan Control WPL-2182757
...
4
Louver-Cab WPL-8201651
...
5
Release Valve WPL-2171846
...
8
Stud-Shelf WPL-4388538
...
11
Screw WPL-WP488488
...
13
Shelf Ladder WPL-2181796
...
14
Screw WPL-WP488729
...
22
Retainer WPL-WP2256085
...
24
Diffuser WPL-WPW10151374
...
25
Cover, Air Diffuser WPL-2152019
...
26
Cover, Conduit WPL-2150331
...
27
Screw WPL-W10759522
...
29
Capacitor (Service) WPL-4387478
...
31
Reservoir WPL-WP2256126
...
33
Light Bulb WPL-8009
...
34
Light Lens WPL-2174436
...
37
Screw WPL-798639

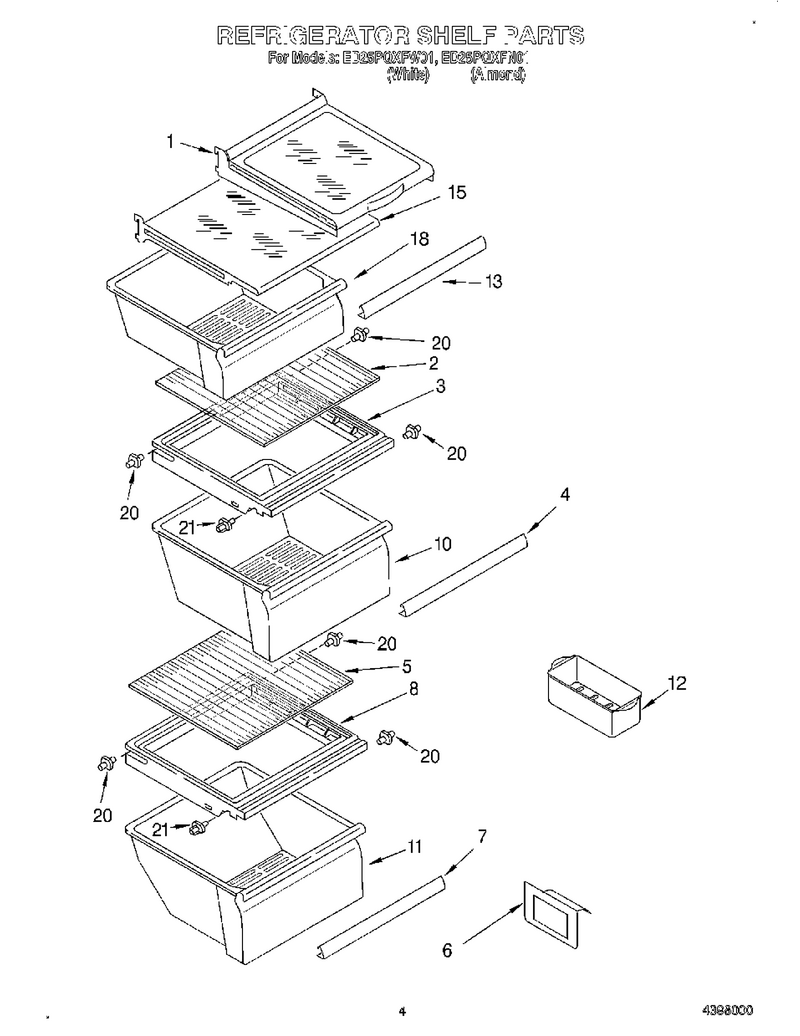

03 - Refrigerator Shelf

...
...
1
Shelf, Cantilever (2) WPL-2194281
...
2
Shelf-Glas WPL-W10864399
...
3
Cover WPL-W10508993
...
4
Trim, Pan WPL-2194905
...
5
Shelf-Glas WPL-W10864399
...
6
Deflector WPL-2179350
...
7
Trim-Pan WPL-WP2179234
...
8
Cover WPL-W10508993
...
10
Pan-Crispr WPL-WP2188656
...
11
Meat Pan WPL-2194907
...
12
Egg-Contnr WPL-W10136387A
...
13
Trim-Pan WPL-WP2179243
...
15
Shelf, Snack Bin WPL-2194734
...
18
Pan-Snack WPL-W11497323
...
20
Stud-Shelf WPL-4388538
...
21
Stud-Shelf WPL-4388539

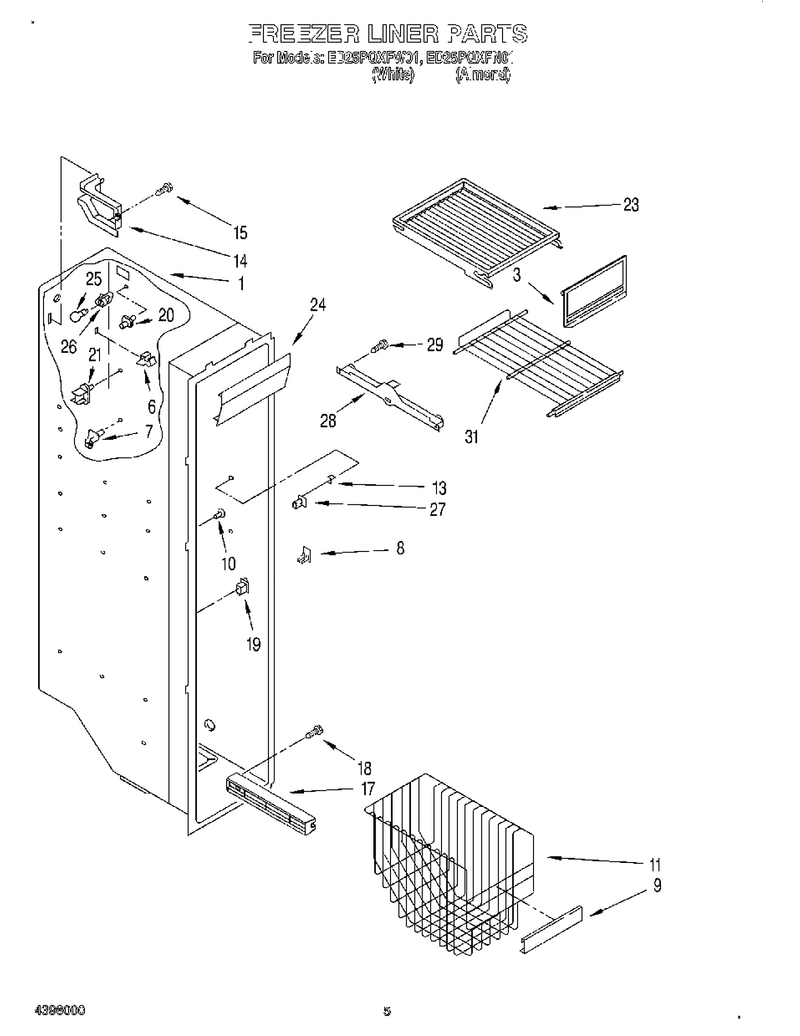

04 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
3
Door-Ice WPL-WP2171713
...
6
Clip-Air, Duct WPL-2215823
...
7
Stud-Shelf WPL-4388405
...
8
Stud-Shelf WPL-W11581579
...
9
Trim-Baskt WPL-WP2195905
...
10
Grommet WPL-2176134
...
11
Basket, Slope WPL-2181764
...
13
Stud-Shelf WPL-W11581579
...
14
Cover, Wiring WPL-2155572
...
15
Screw WPL-W11233072
...
17
Slide, Basket (Left Side) WPL-2181759
...
18
Screw WPL-W11693756
...
19
Switch WPL-W11457217
...
20
Stud-Shelf WPL-4388538
...
21
Stud-Shelf WPL-4388537
...
23
Shelf WPL-WP2194297K
...
24
Lens, Light WPL-2171705
...
25
Light Bulb WPL-8009
...
26
Capacitor (Service) WPL-4387478
...
27
Stud-Shelf WPL-W11581579
...
28
Slide, Ice Container (Right) WPL-W10845583
...
29
Screw, 8-18 X 1.38 WPL-718257
...
31
Shelf-Wire WPL-WP2174268

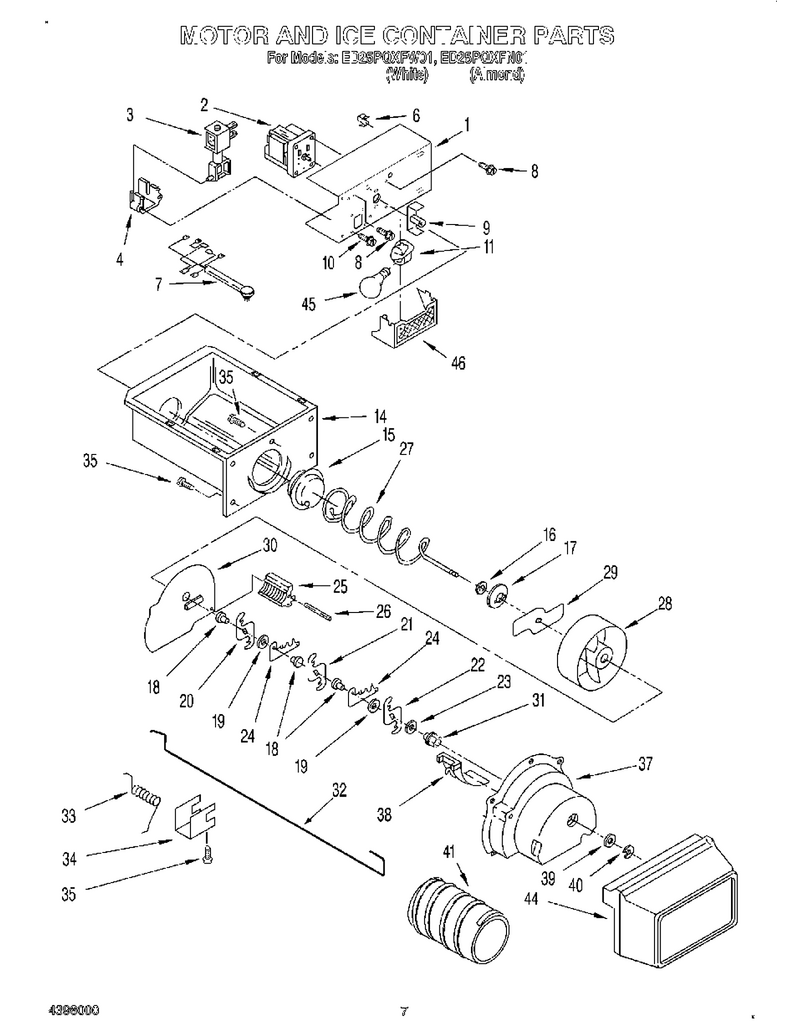

05 - Motor And Ice Container

...
...
1
Bracket, Motor WPL-W10304376
...
2
Motor WPL-WP2188242
...
3
Solenoid WPL-WP2152713
...
4
Guide WPL-W10850503
...
6
Clip WPL-WP1115374
...
7
Wiring Assembly, Ice Dispenser WPL-2169490
...
8
Screw WPL-WP489399
...
9
Coupling WPL-WPW10169511
...
10
Screw WPL-WP489478
...
11
Capacitor (Service) WPL-4387478
...
14
Container WPL-WPW10670845
...
15
Coupling WPL-W10749708
...
16
Stop, Cone WPL-1118480
...
17
Feeder Cone WPL-1119074
...
18
Spacer WPL-WP1119005
...
19
Spacer WPL-WP1119007
...
20
Blade, Rotary A WPL-W10278731
...
21
Blade, Rotary B WPL-W10278732
...
22
Blade, Rotary C WPL-W10278733
...
23
Washer WPL-WP489235
...
24
Blade, Fixed (2) WPL-1119009
...
25
Block Blade WPL-2157405
...
26
Roll Pin WPL-489229
...
27
Auger-Ice WPL-W10422851
...
28
Drum WPL-4388736
...
29
Drum WPL-4388736
...
30
Baffle WPL-W10852691
...
31
Bearing WPL-WP1119018
...
32
Arm-Contrl WPL-W11596045
...
33
Spring, Return WPL-1119020
...
34
Retainer Clip, Rod WPL-1119021
...
35
Screw WPL-WP488787
...
37
Housing WPL-WPW10185018
...
38
Deflector WPL-WP1119017
...
39
Washer, Plain WPL-489234
...
40
Ring-E WPL-WP489236
...
41
Sleeve WPL-4317870
...
44
Front Cover, Ice Container WPL-2171708
...
45
Light Bulb WPL-8009
...
46
Lens-Light WPL-WP2171706

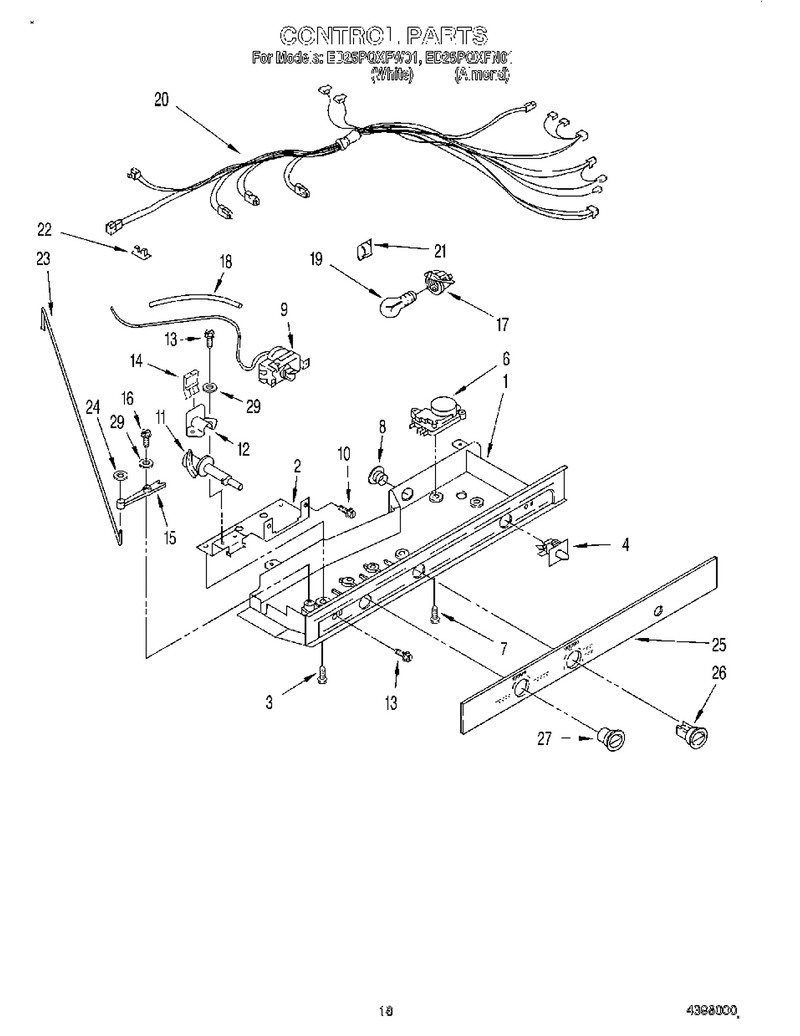

11 - Control

...
...
1
Contrl-Box WPL-4389197
...
2
Mounting Bracket WPL-1110629
...
3
Screw (2) WPL-489397
...
4
Switch WPL-WP2149705
...
6
Timer-Def WPL-W10822278
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam WPL-WP2182195
...
12
Bearing Body WPL-1110560
...
13
Screw WPL-WP489478
...
14
Clip WPL-WP2196062
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
17
Capacitor (Service) WPL-4387478
...
18
Barrier WPL-WP2196003
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2198306
...
21
Clip WPL-WP1115374
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123960
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon, Control Box WPL-2194977
...
26
Thermostat Knob WPL-2182111
...
27
Knob, Air Control WPL-2197871
...
29
Spring, Washer WPL-489203

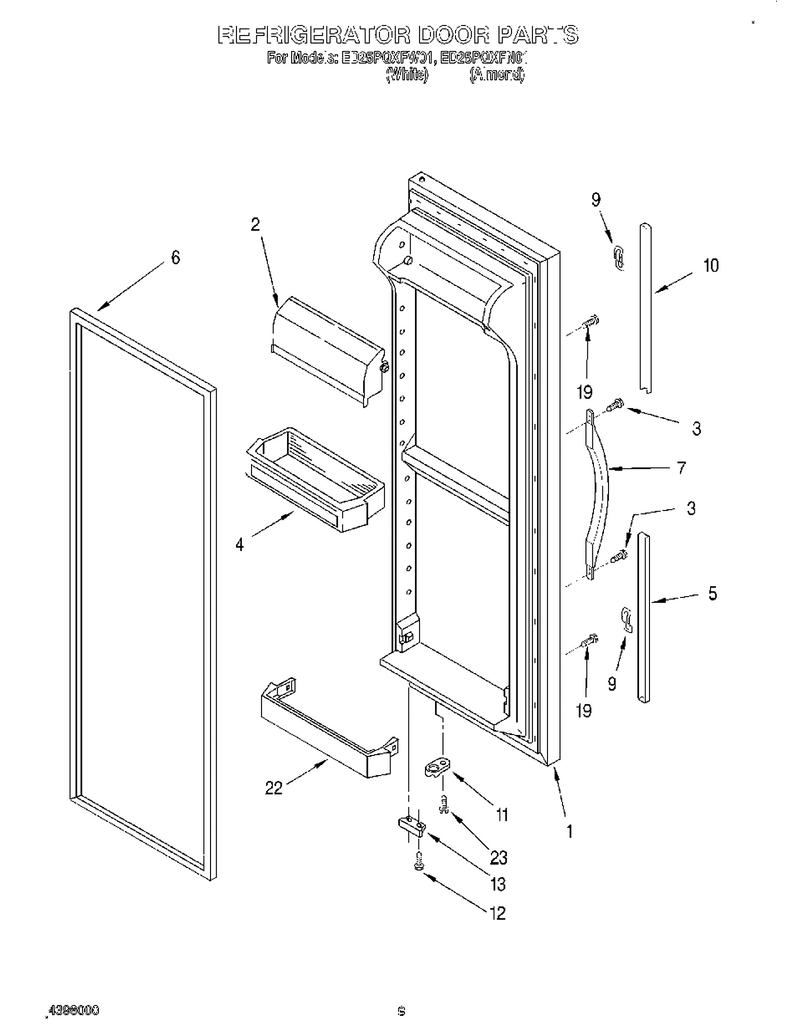

06 - Refrigerator Door

...
...
1
Dor-Fip Wh WPL-4387808
...
2
Door-Comp WPL-WP2256101
...
3
Screw WPL-WP489491
...
4
Bin-Cntlvr WPL-WP1124846
...
5
Extension, Handle (Almond) WPL-2194969N
...
6
Door Gasket, Magnetic (Repair) WPL-2159075
...
7
Handle, Center (White) WPL-2186649W
...
9
Clip WPL-WP2195327
...
10
Trim-Handl WPL-WP2194973W
...
11
Cam-Door WPL-4318165
...
12
Screw WPL-WP489483
...
13
Bracket WPL-WP2195950
...
19
Screw WPL-WP3400852
...
22
Trim-Door WPL-WP2177962K
...
23
Screw WPL-WP3400012

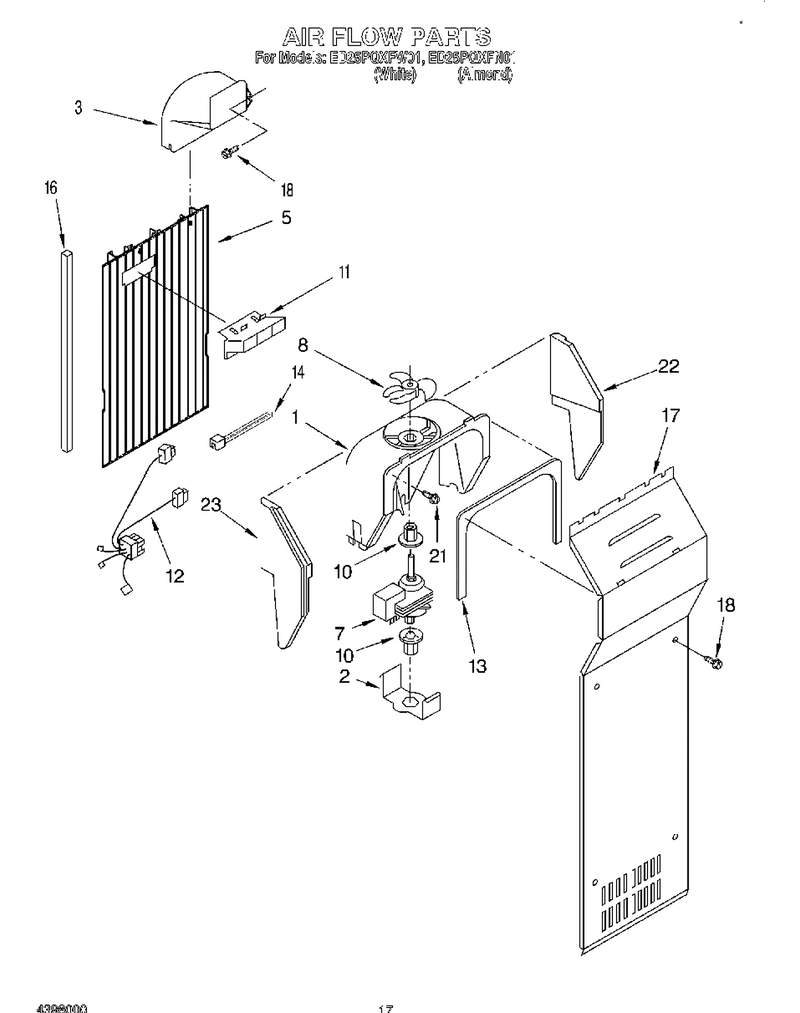

10 - Air Flow

...
...
1
Fan-Scroll WPL-WP2182120
...
2
Retainer WPL-WP2155590
...
3
Scoop-Air WPL-WP2161231
...
5
Cover-Evap WPL-4388356
...
7
Fan Motor WPL-4389144
...
8
Blade-Fan WPL-WP2169142
...
10
Grommet WPL-WP2176759
...
11
Duct, Icemaker WPL-2182146
...
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL-2161478
...
13
Gasket WPL-WP2155789
...
14
Tie-Wire WPL-WPW10339879
...
16
Gasket WPL-WP2304241
...
17
Cover-Evap WPL-4388356
...
18
Screw WPL-W11233072
...
21
Screw WPL-WP489478
...
22
Support Kit (Contains Right And Left) WPL-4388358
...
23
Support Kit (Contains Right And Left) WPL-4388358

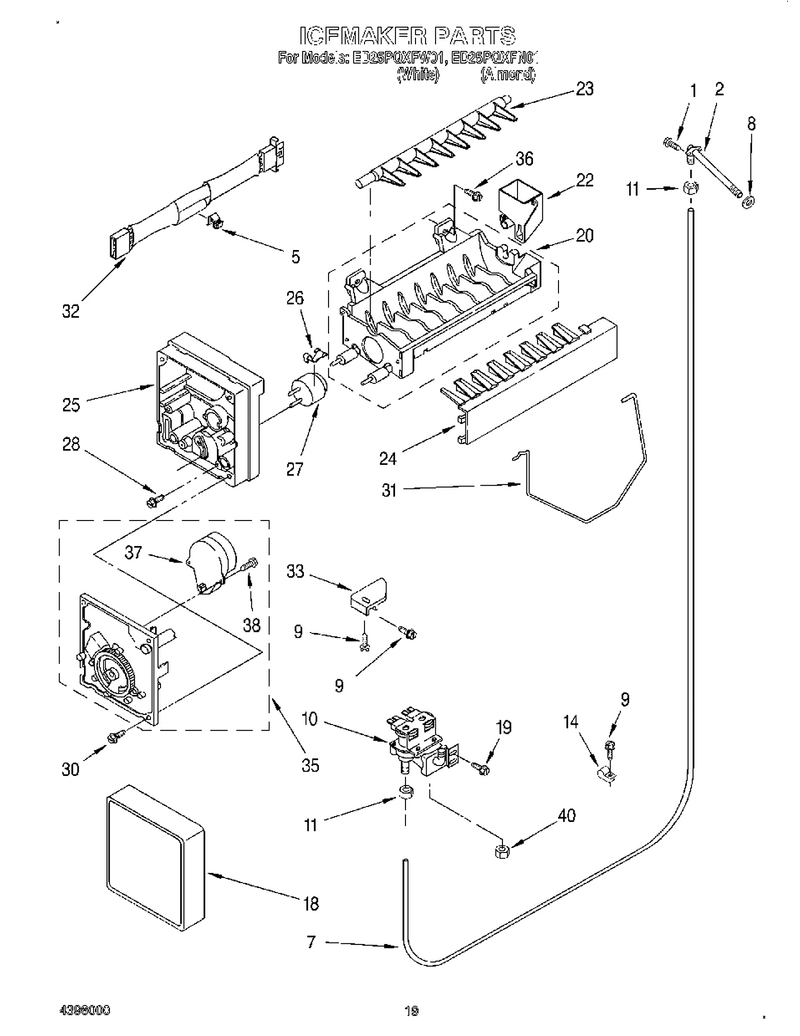

12 - Icemaker, Lit/optional

...
...
Torx Key WPL-1117510
...
1
Screw WPL-WPW10141645
...
2
Fitting WPL-WP2196157
...
5
Clip WPL-WP628379
...
7
Tube-Water WPL-W10823511
...
8
Gasket WPL-WP1106508
...
9
Screw WPL-WP489478
...
10
Valve-Inlt WPL-W10853654
...
11
Nut WPL-WP627018
...
14
Clamp WPL-WP488366
...
18
Cover-Frnt WPL-WPW10289690
...
19
Screw WPL-WPW10141625
...
20
Grease WPL-WP542638
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Stripr WPL-WP2182124
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Bimetl-Def WPL-WP627985
...
28
Screw (2) WPL-8533917
...
30
Screw WPL-WP681249
...
31
Arm-Shut WPL-W11342242
...
32
Harns-Wire WPL-WP2187464
...
33
Bracket WPL-W11500948
...
35
Motor-Modl WPL-W10190935
...
36
Screw WPL-WP488163
...
37
Motor-Modl WPL-W10190935
...
38
Screw WPL-489136
...
40
Nut WPL-4318011
...
100
Bag, Insulation (36-5/8`` X 46``) WPL-606755

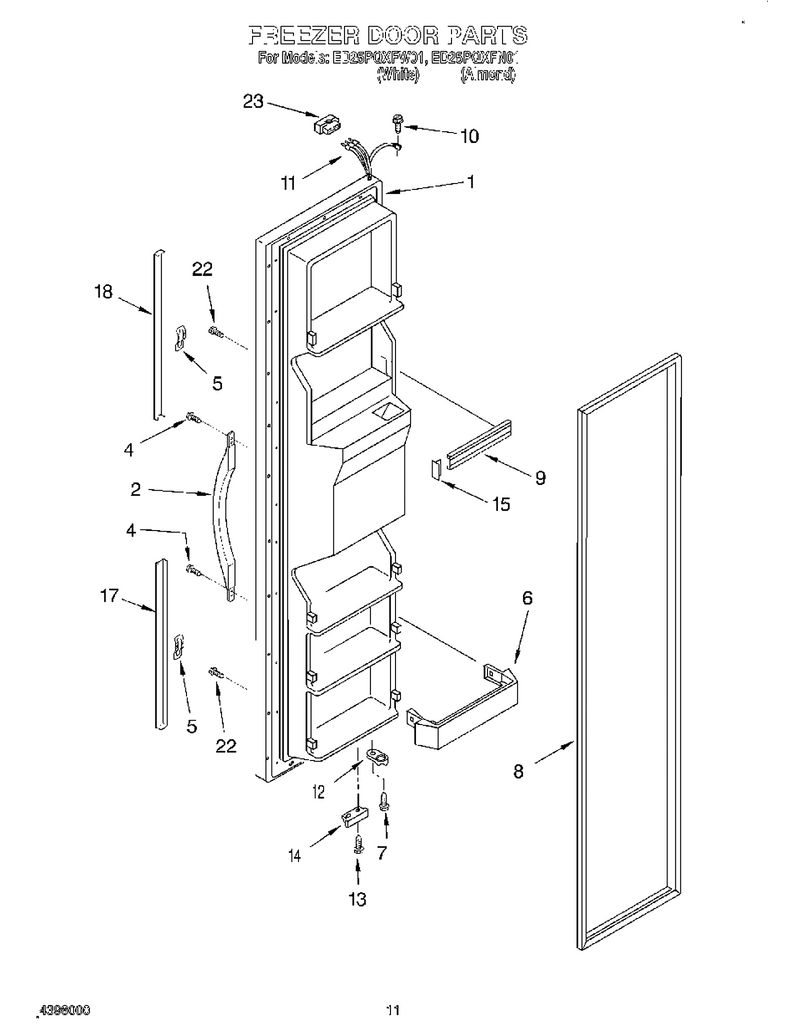

07 - Freezer Door

...
...
1
Dor-Fip Al WPL-4387937
...
2
Handle, Center (Almond) WPL-2186649N
...
4
Screw WPL-WP489491
...
5
Clip WPL-WP2195327
...
6
Trim-Door WPL-WP2177963K
...
7
Screw WPL-WP3400012
...
8
Door Gasket, Magnetic (Repair) WPL-2159074
...
9
Trim-Door WPL-WPW10307490
...
10
Screw WPL-WP489128
...
11
Wire Harness WPL-2183713
...
12
Cam-Door WPL-4318165
...
13
Screw WPL-WP489483
...
14
Bracket WPL-WP2195950
...
15
Endcap-Trm WPL-WP2156006
...
17
Extension, Handle (Almond) WPL-2194969N
...
18
Trim-Handl WPL-WP2194973W
...
22
Screw WPL-WP3400852
...
23
Connector WPL-WP2154473

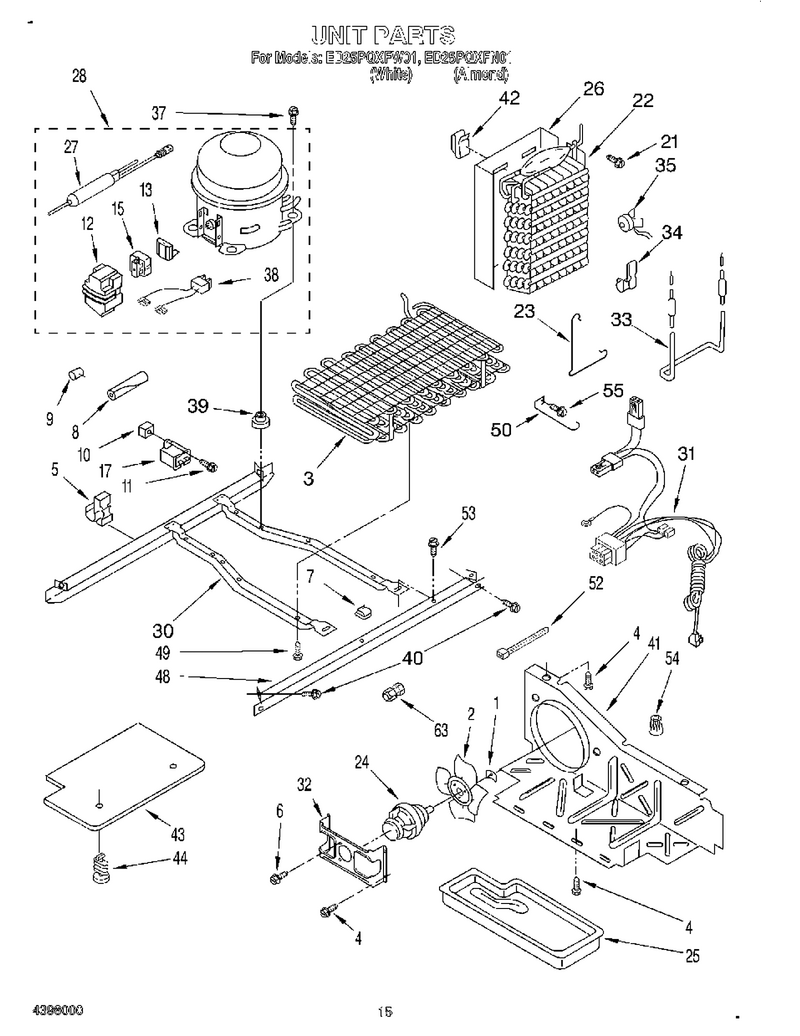

09 - Unit

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP1108179
...
3
Condenser Assembly WPL-2198175
...
4
Screw WPL-WP489464
...
5
Clip, Wire & Tube WPL-2208280
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Clip, Tube WPL-2200079
...
8
Sleeve WPL-W11751592
...
9
Dampener WPL-WP2158826
...
10
Grommet (4) WPL-937252
...
11
Screw WPL-W11693756
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-WP2183456
...
15
Relay-Strt WPL-W10920279
...
17
Capacitor (Service Compressor Only) WPL-2169137
...
21
Screw WPL-WP489478
...
22
Evaporator WPL-2155501
...
23
Clip WPL-WP2161324
...
24
Motor-Cond WPL-W10822259
...
25
Tray, Evaporator WPL-1110674
...
26
Heat Shield WPL-2149294
...
27
Drier-Tube WPL-W10843121
...
28
Tube Kit WPL-876765
...
30
Unit Mounting Frame WPL-2304904
...
31
Unit, Harness WPL-2194749
...
32
Bracket WPL-WP2181929
...
33
Heater WPL-WP2323198
...
34
Clip WPL-2161330
...
35
Bimetl-Def WPL-WPW10225581
...
37
Grommet (4) ((Production)) WPL-876811
...
38
Wire WPL-WP2172890
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw WPL-489340
...
41
Baffle, Air WPL-W10896764
...
42
Clip, Heat Shield WPL-2155547
...
43
Unit Cover, Bottom WPL-W10466698
...
44
Clip WPL-489396
...
48
Unit Mounting Rail WPL-2305374
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1110663
...
52
Tie-Wire WPL-WPW10339879
...
53
Screw WPL-WP489427
...
54
Wire Connector WPL-227991
...
55
Screw WPL-WPW10141625
...
63
Valve, Access (5/16``) WPL-978026
