Whirlpool ED25EMXPWR1

Model: ED25EMXPWR1

Save Part Not Listed?
product name

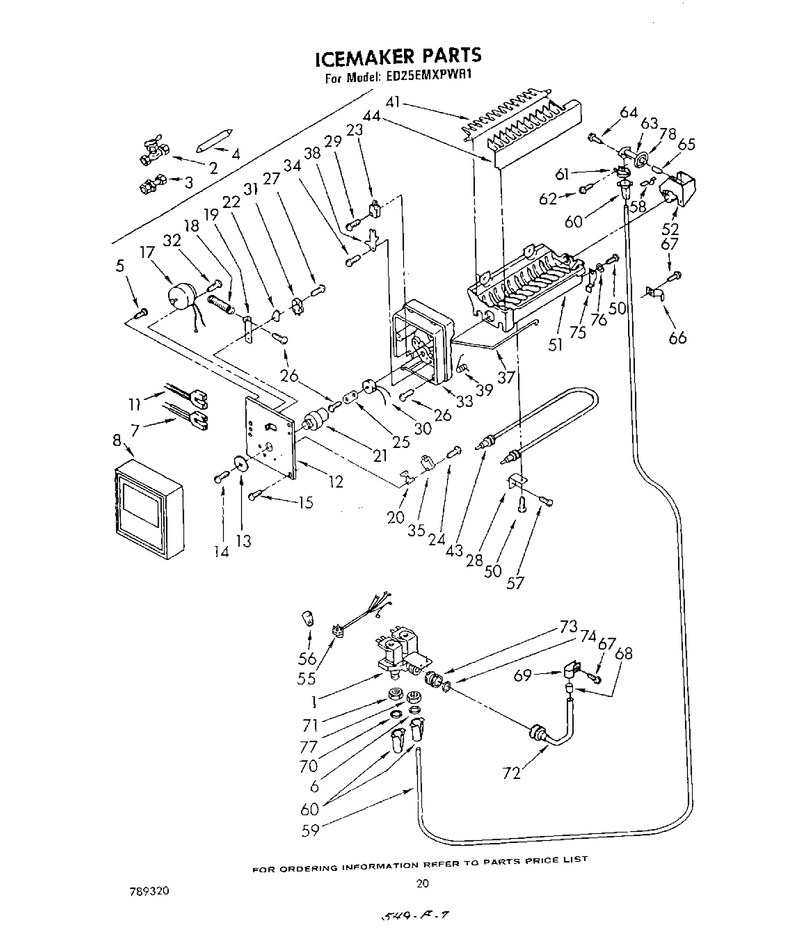

11 - Ice Maker

...
...
1
Valve-Inlt WPL-4318046
...
2
Valve, Shut-Off WPL-541157
...
3
Union, 1/4`` X 3/16`` WPL-512503
...
4
Filter Kit WPL-978488
...
5
Screw WPL-W11084238
...
6
Ring, ``o`` WPL-488819
...
7
Wiring, Water Valve WPL-548734
...
8
No Longer Available WPL-833873
...
11
Wire Assembly (Water Valve) WPL-548734
...
12
Plate, Mounting WPL-627782
...
13
Gear WPL-WP628210
...
14
Screw WPL-488957
...
15
Screw WPL-WP488787
...
17
Motor-Ice WPL-798654
...
18
Spring WPL-627163
...
19
Plate, Valve WPL-625836
...
20
Spacer WPL-WP625834
...
21
Cam WPL-625913
...
22
Insulator, Switch (2) WPL-984683
...
23
Switch, S.p.d.t. (2) WPL-625851
...
24
Screw, 4-40 X 1 WPL-488361
...
25
Clamp, Thermostat WPL-625829
...
26
Screw, 8-32 X 1 WPL-488372
...
27
Screw, 4-40 X 3/4 WPL-488362
...
28
Bracket WPL-WP2256087
...
29
Screw, 4-24 X 3/4 WPL-488360
...
30
Thermostat WPL-627047
...
31
Switch, S.p.s.t. WPL-625947
...
32
Screw, Ground WPL-488542
...
33
Support WPL-625827
...
34
Screw, Shoulder WPL-627199
...
35
Switch, S.p.d.t. WPL-625851
...
37
Arm, Shut-Off WPL-627484
...
38
Lever, Arm WPL-625830
...
39
Spring-Arm WPL-480855
...
41
Arm-Ejectr WPL-WP627843
...
43
Heatr-Mold WPL-625893
...
44
Stripper, Ice WPL-627753
...
50
Screw, 8-16 X 3/8 WPL-488896
...
51
Mold & Heater Assembly (Includes Illus. 43) WPL-627170
...
52
Inlet Kit WPL-833593
...
55
Harns-Wire WPL-627612
...
56
Connector Wire WPL-227991
...
57
Screw WPL-WP681414
...
58
Clip WPL-836676
...
59
Tube-Water WPL-W10823511
...
60
Insert, Tube WPL-4387491
...
61
Clamp WPL-WP488878
...
62
Screw WPL-WP965173
...
63
Fitting WPL-WP2196157
...
64
Screw WPL-WP98165
...
65
Tube, Water Inlet WPL-983656
...
66
Clamp, Tube (3) WPL-836472
...
67
Screw WPL-W11624204
...
68
Dampener WPL-WP2158826
...
69
Clamp Tube WPL-510716
...
70
Ring, ``o`` WPL-488794
...
71
Nut WPL-WP627018
...
72
Tube, Inlet Valve WPL-480389
...
73
Nut, Valve WPL-537588
...
74
Washer WPL-WP16123
...
75
Bracket, Shut-Off Arm WPL-627409
...
76
Fastener, Springrip WPL-627435
...
77
Nut WPL-4318011
...
78
Gasket WPL-WP1106508

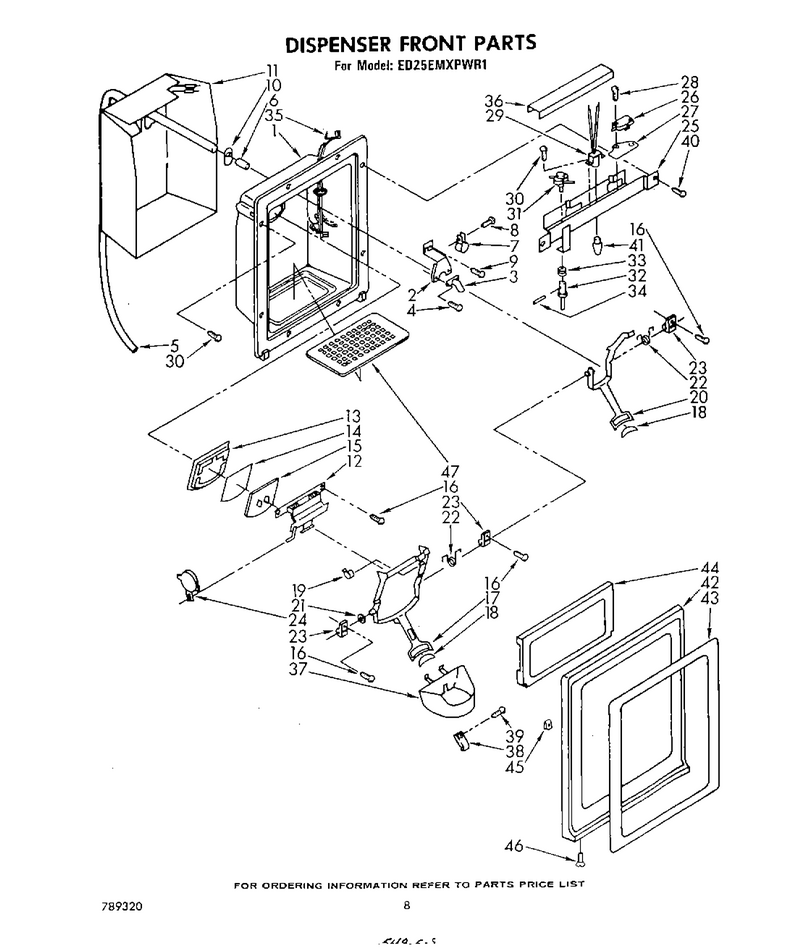

05 - Dispenser Front

...
...
1
Housing, Dispenser WPL-938565
...
2
Bracket, Water Fitting WPL-987049
...
3
Fitting WPL-WP4388152
...
4
Screw WPL-WP965173
...
5
Tube-Water WPL-W10823511
...
6
Insert, Tube WPL-4387491
...
7
Clamp WPL-WP488878
...
8
Screw WPL-WP965173
...
9
Glass Shelf WPL-68139-1
...
10
Grommet WPL-987048
...
11
Heater WPL-483058
...
12
Mechanism WPL-482722
...
13
Gasket, Ice Door WPL-983691
...
14
Impact, Shield WPL-987121
...
15
Door, Ice WPL-983690
...
16
Screw WPL-WP3400906
...
17
Arm-Dispsr WPL-WP987075
...
18
Pad, Lever WPL-983693
...
19
Bearing, Clip WPL-987917
...
20
Arm-Dispsr WPL-WP987074
...
21
Control Panel WPL-312025
...
22
Spring, Lever WPL-983696
...
23
Bearing, Lever WPL-983697
...
24
Mechanism WPL-WP1120581
...
25
Bracket, Control WPL-983983
...
26
Switch, S.p.d.t. WPL-625851
...
27
Insulation, Switch WPL-984683
...
28
Screw, 4-40 X 3/4 WPL-488362
...
29
Socket, Lamp WPL-2189755
...
30
Screw WPL-WP489128
...
31
Light Switch WPL-851386
...
32
Plunger, Extension WPL-983985
...
33
Spring, Plunger WPL-983986
...
34
Retainer, Pin WPL-983987
...
35
Wiring, Assembly Door WPL-851384
...
36
Shield, Wiring WPL-984494
...
37
Guide, Ice WPL-985866
...
38
Glass Top WPL-986088
...
39
Screw, 4-24 X 3/8 WPL-488892
...
40
Screw WPL-W11693756
...
41
Bulb-Light WPL-WP22002263
...
42
Cover-Frnt WPL-1110028
...
43
Insert, Housing WPL-936565
...
44
Cover WPL-991835
...
45
Speed Nut WPL-488885
...
46
Screw WPL-WP488729
...
47
Grille WPL-WP983900

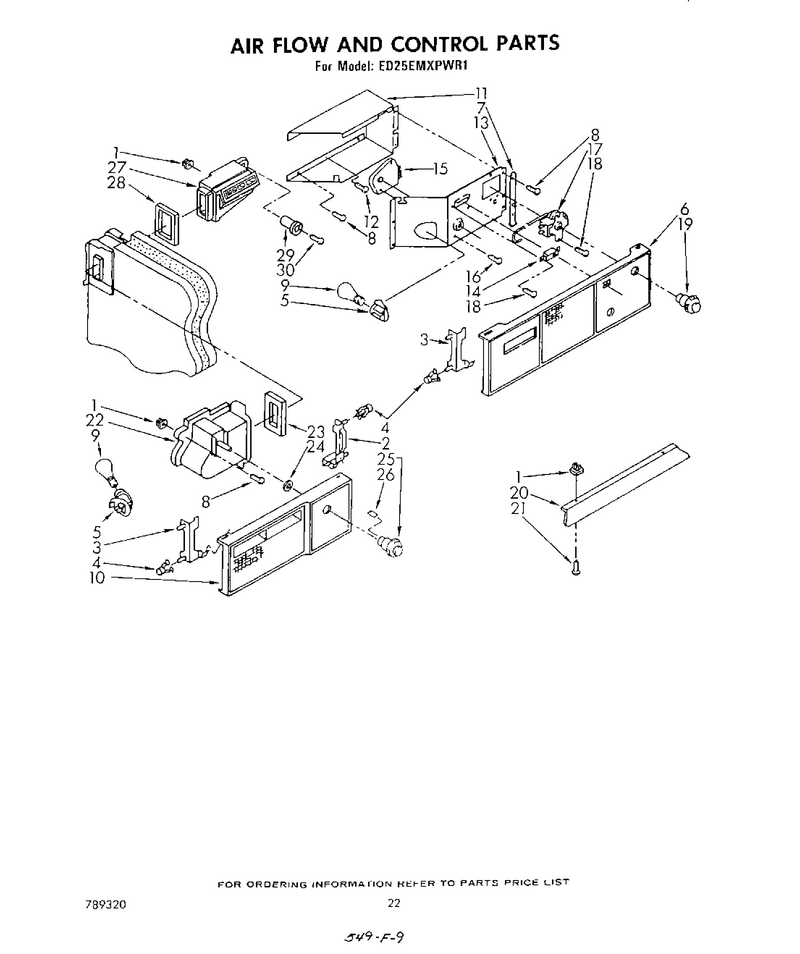

12 - Air Flow And Control

...
...
1
Grommet (4) WPL-937252
...
2
Support, Light Lens (R.s.) WPL-842355
...
3
Support, Light Lens (L.s.) WPL-842356
...
4
Clip, Tubular WPL-843945
...
5
Capacitor (Service) WPL-4387478
...
6
Light Lens WPL-943218
...
7
Support, Light Lens WPL-984552
...
8
Screw WPL-W11624204
...
9
Light Bulb WPL-8009
...
10
Light Lens, Freezer WPL-985539
...
11
Box, Control WPL-984550
...
12
Screw, 8-32 X 3/8 WPL-488474
...
13
Control Box Front WPL-934045
...
14
Switch-Pm WPL-WP938213
...
15
Timer-Def WPL-W10822278
...
16
Screw WPL-WP3388228
...
17
Thermostat WPL-WP4317800
...
18
Screw WPL-WP489128
...
19
Knob, Temperature WPL-836482
...
20
Baffle, Liner Top WPL-983369
...
21
Screw WPL-WP489069
...
22
Air Scoop Assembly WPL-841269
...
23
Gasket, Air Scoop WPL-844871
...
24
Retainer, Damper WPL-938439
...
25
Control Knob WPL-837445
...
26
Knob, Retainer WPL-837444
...
27
Air Diffuser WPL-991158
...
28
Gasket, Air Diffuser WPL-842394
...
29
Spacer WPL-836667
...
30
Screw, 8 X 1-1/4 WPL-488357

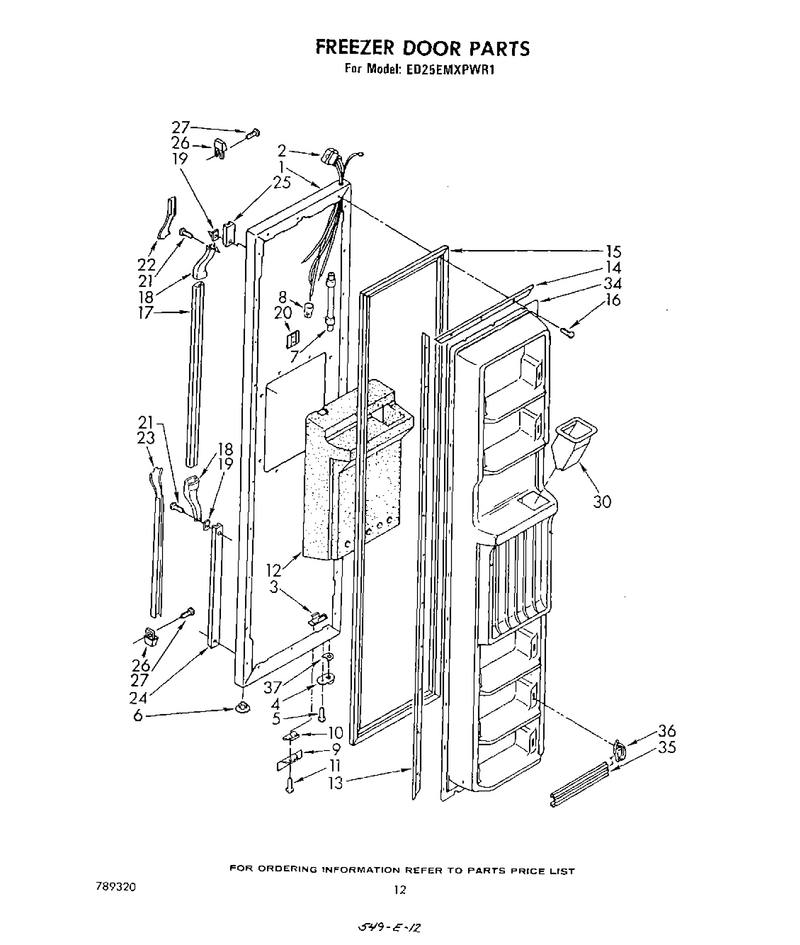

07 - Freezer Door

...
...
1
Exterior Door Panel Freezer (Toast) WPL-1101423
...
2
Plug, Crossover WPL-851373
...
3
Plate WPL-992245
...
4
Cam-Door WPL-4318165
...
5
Screw WPL-WP489069
...
6
Hole Plug WPL-534927
...
7
Tube, Door Wiring WPL-991415
...
8
Wire Connector WPL-227991
...
9
Bracket WPL-WP2195950
...
10
Shim WPL-988421
...
11
Screw WPL-798639
...
12
Insulation, Dispenser WPL-983679
...
13
Retainer, Gasket Side WPL-982887
...
14
Retainer, Gasket Top & Bottom WPL-983643
...
15
Gasket-Dor WPL-2188434A
...
16
Screw WPL-WP681414
...
17
Handle, Center WPL-1105718
...
18
End Cap WPL-1109189
...
19
Shim, Handle Center WPL-935075
...
20
Screw Anchor WPL-941242
...
21
Screw WPL-WPW10141645
...
22
Insert-Hdl WPL-1116179
...
23
Insert-Hdl WPL-1116274
...
24
Retainer Insert (Bottom) WPL-941262
...
25
Insert Retainer (Bottom) WPL-2194770
...
26
End Cap (2) WPL-2156220
...
27
Screw WPL-489090
...
30
Ice Chute WPL-987188
...
34
Interior, Door Panel WPL-1101428
...
35
Trim-Door WPL-984904
...
36
Endcap-Trm WPL-WP839904
...
37
Shim WPL-WP1104787

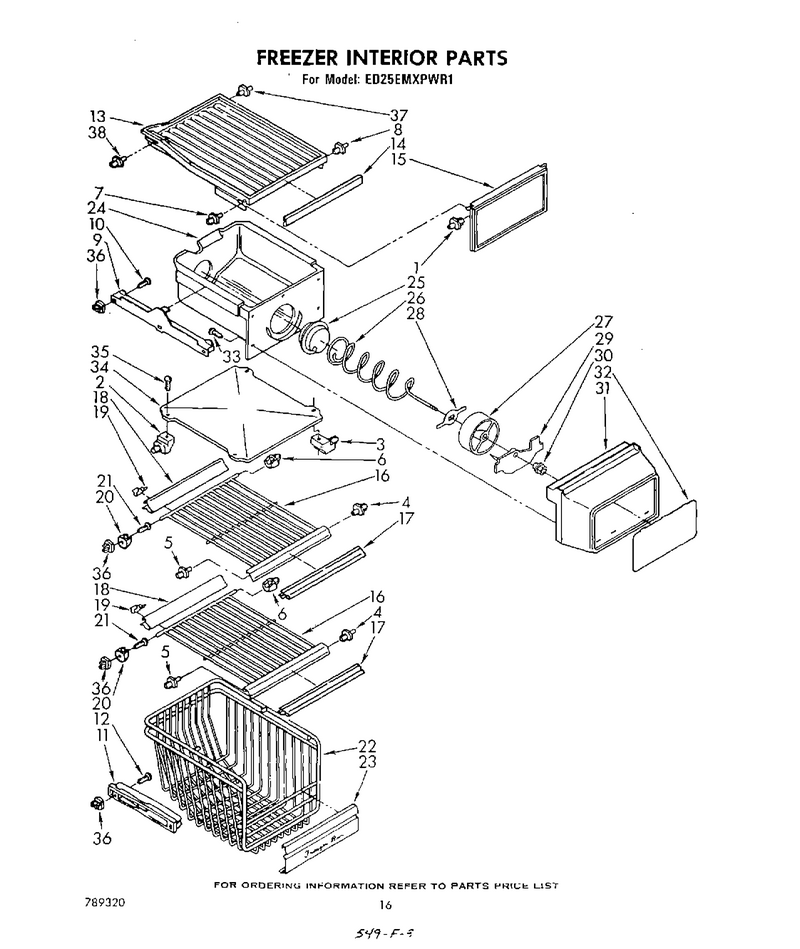

09 - Freezer Interior

...
...
1
Stud Shelf WPL-521878
...
2
Retainer, Stud WPL-836374
...
3
Retainer, Stud WPL-988774
...
4
Shelf, Stud WPL-936957
...
5
Stud-Shelf WPL-650704
...
6
Saddle Stud (Right Side) WPL-1118133
...
7
Stud-Shelf WPL-4388537
...
8
Stud, Shelf WPL-991924
...
9
Slide, Freezer Bin (Left Side) WPL-1115383
...
10
Screw, 8 X 1 WPL-487979
...
11
Track, Shelf (R.s.) WPL-837554
...
12
Screw WPL-W11693756
...
13
Solid, Shelf WPL-983356
...
14
Trim, Shelf WPL-986437
...
15
Front-Comp WPL-985501
...
16
Shelf, Freezer WPL-1107099
...
17
Trim, Shelf Front WPL-981454
...
18
Reflector, Shelf WPL-935496
...
19
Clip, Reflector WPL-939348
...
20
Stud, Saddle (L.s.) WPL-1100113
...
21
Screw WPL-WP488729
...
22
Basket, Freezer WPL-935499
...
23
Trim, Freezer Basket WPL-985546
...
24
Container WPL-WP983667
...
25
Coupling WPL-W10749708
...
26
Conveyor, Ice Container WPL-946191
...
27
Drum WPL-4388736
...
28
Drum WPL-4388736
...
29
Baffle WPL-946194
...
30
Nut, Bearing WPL-946195
...
31
Front Cover, Ice Dispenser WPL-1101923
...
32
Overlay, Front Cover WPL-1107386
...
33
Screw WPL-WP488787
...
34
Baffle, Ice Container WPL-989718
...
35
Screw WPL-WP488729
...
36
Grommet (4) WPL-937252
...
37
Stud Shelf WPL-521878
...
38
Shelf Stud WPL-521878

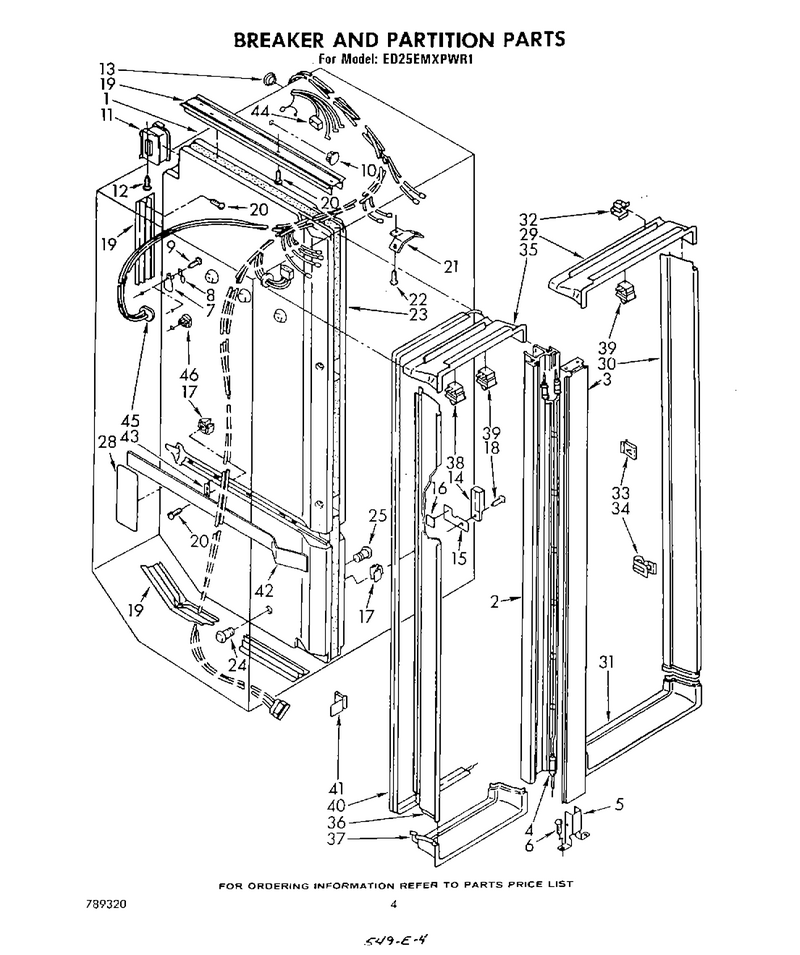

03 - Breaker And Partition

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Break Mullion, Frame WPL-935613
...
3
Mullion, Front (Toast) WPL-1101403
...
4
Heater, Mullion WPL-935620
...
5
Mullion, Bracket WPL-935619
...
6
Screw WPL-WP488729
...
7
Screw Grommet WPL-538532
...
8
Support Clip WPL-538533
...
9
Screw WPL-WP681414
...
10
Button-Plg WPL-511849
...
11
Control Connector & Gasket Assembly WPL-848433
...
12
Screw WPL-WP488163
...
13
Grommet, Wiring WPL-851020
...
14
Escutcheon Meat WPL-984101
...
15
Slide Meat Pan, Cold Control WPL-984102
...
16
Pad, Foam WPL-992358
...
17
Expansion Clip WPL-537095
...
18
Screw 8-15 X 1/2 WPL-486214
...
19
Track, Divider (Top) WPL-988458
...
20
Screw WPL-W11624204
...
21
Retainer Bracket, Divider WPL-935666
...
22
Screw WPL-WP681414
...
23
Divider, Mullion WPL-1103361
...
24
Retainer, Hole Insert WPL-843888
...
25
Insert, Hole WPL-843887
...
28
Shield, Divider WPL-987054
...
29
Breaker, Trim Top Refrigerator WPL-992041
...
30
Breaker Trim, (R.s.) Refrigerator WPL-935637
...
31
Breaker Trim, Bottom Refrigerator WPL-992044
...
32
Breaker Retainer WPL-836090
...
33
Breaker Trim, Clip WPL-838849
...
34
Breaker Trim, Bottom Clip WPL-937668
...
35
Breaker Trim, Top Freezer WPL-992047
...
36
Breaker Trim, Freezer (L.s.) WPL-935643
...
37
Breaker Trim, Freezer (Bottom) WPL-939829
...
38
Switch WPL-WP4387911
...
39
Switch WPL-W11384469
...
40
Heater, Stile WPL-934475
...
41
Stile Clip, Retainer WPL-937205
...
42
Cover, Heat Exchanger WPL-1103312
...
43
Heat Exchanger, Clip WPL-983605
...
44
Harness, Cabinet Wiring (Defrost Timer) WPL-481782
...
45
Liner Wiring (Ice Maker) WPL-937264
...
46
Grommet (4) WPL-937252

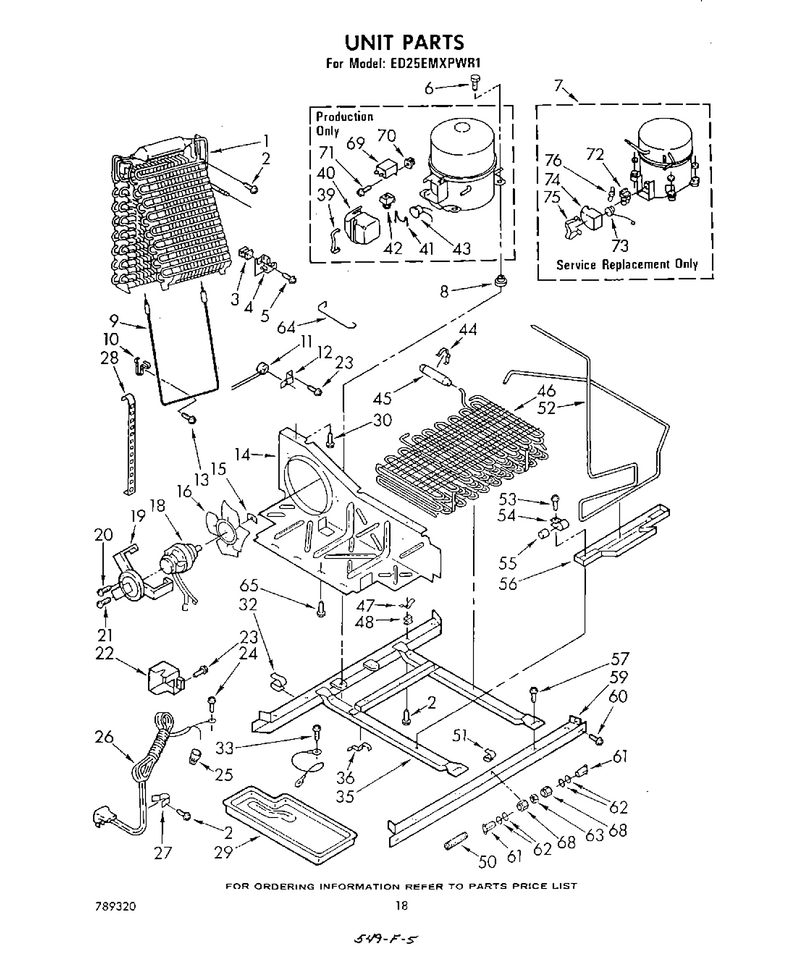

10 - Unit

...
...
1
Evaporator WPL-1108119
...
2
Screw WPL-W11624204
...
3
Grommet (4) WPL-937252
...
4
Support, Evaporator WPL-842436
...
5
Screw WPL-WP681414
...
6
Grommet (4) ((Production)) WPL-876811
...
7
Compressor WPL-W10619807
...
8
Grommet (4) ((Production)) WPL-876811
...
9
Heater WPL-851363
...
10
Clamp, Evaporator WPL-938023
...
11
Bimetl-Def WPL-WP4387489
...
12
Clamp WPL-850664
...
13
Screw WPL-W11693756
...
14
Baffle, Air WPL-851167
...
15
Nut WPL-WP486692
...
16
Blade-Fan WPL-WP1108179
...
18
Motor-Cond WPL-833697
...
19
Bracket, Motor WPL-548695
...
20
Screw, 8-32 X 3/8 WPL-681390
...
21
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
22
Box, Junction WPL-850482
...
23
Screw WPL-WP488729
...
24
Screw, Ground WPL-488474
...
25
Wire Connector WPL-227991
...
26
Cable, Appliance WPL-859444
...
27
Clamp WPL-549193
...
28
Shield, Evaporator (4) WPL-989200
...
29
Tray, Evaporator WPL-982899
...
30
Screw, 8-15 X 3/8 WPL-488978
...
32
Clip, Wire (2) WPL-548745
...
33
No Description Avaliable WPL-303776
...
35
Frame Assembly WPL-945484
...
36
Clip (2) WPL-548744
...
39
Spring, Case WPL-943322
...
40
Case, Relay WPL-1105055
...
41
Overload Spring WPL-943320
...
42
Relay WPL-1101014
...
43
Overload WPL-819100
...
44
Clamp WPL-548508
...
45
Drier-Tube WPL-W10843121
...
46
Condenser & Precooler Assembly WPL-945525
...
47
Clamp (4) WPL-548738
...
48
Grommet (4) WPL-548737
...
50
Spring, Tube Forming WPL-983659
...
51
Clip, Tube WPL-2200079
...
52
Exchanger, Heat WPL-1105173
...
53
Screw WPL-WPW10141625
...
54
Clamp (2) WPL-510716
...
55
Dampener WPL-1108064
...
56
Pan, Drip WPL-945572
...
57
Screw, 1/4-28 X 1/2 (2) WPL-488454
...
59
Rail, Front WPL-851177
...
60
Bolt WPL-489340
...
61
Insert, Tube WPL-4387491
...
62
Ring, ``o`` (4) WPL-488794
...
63
Connector WPL-WP4211117
...
64
Guard, Fan WPL-851165
...
65
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
68
Nut WPL-WP245183
...
69
Capacitor WPL-WPW10662129
...
70
Grommet (4) WPL-937252
...
71
Screw WPL-W11693756
...
72
Relay WPL-989509
...
73
Overload WPL-819100
...
74
Cover WPL-549505
...
75
Strap, Cover WPL-549342
...
76
Valve, Access (1/2``) WPL-978028

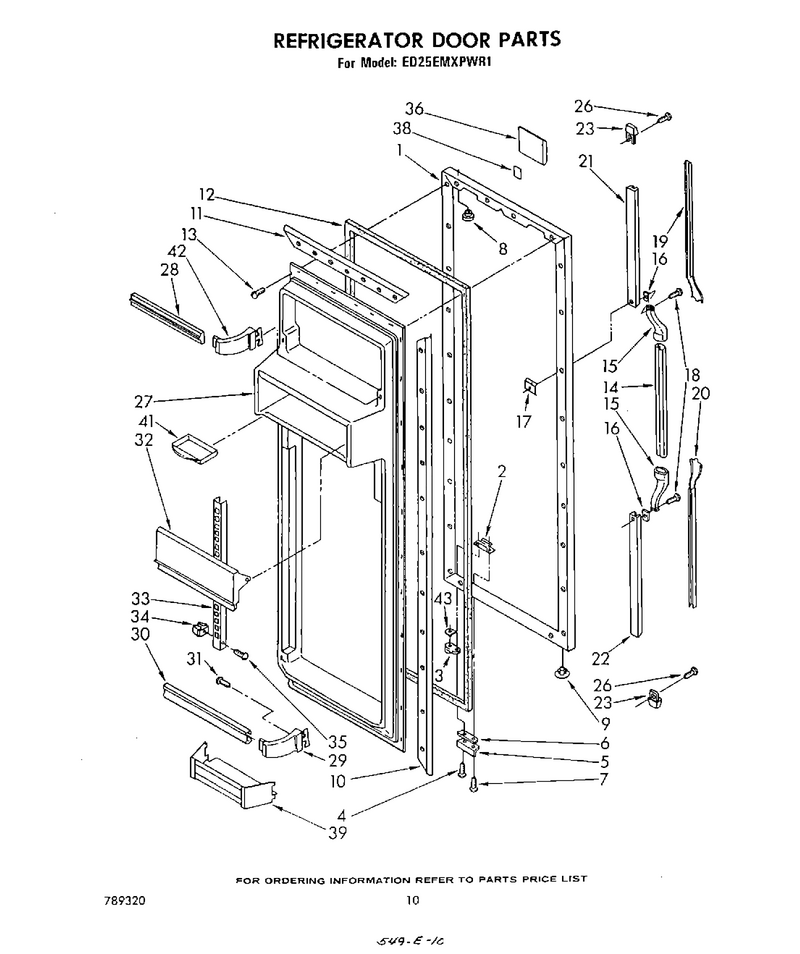

06 - Refrigerator Door

...
...
1
Refrigerator, Door Panel (White) WPL-941292
...
2
Plate WPL-992245
...
3
Cam-Door WPL-4318165
...
4
Screw WPL-WP489069
...
5
Bracket WPL-WP2195950
...
6
Shim WPL-988421
...
7
Screw WPL-798639
...
8
Cap, Hinge WPL-509929
...
9
Hole Plug WPL-534927
...
10
Retainer, Side WPL-982887
...
11
Retainer, Top & Bottom WPL-836121
...
12
Gasket-Dor WPL-2188433A
...
13
Screw WPL-WP681414
...
14
Handle, Center WPL-1105718
...
15
End Cap WPL-1109189
...
16
Shim, Handle Center (2) WPL-935075
...
17
Screw Anchor (2) WPL-941242
...
18
Screw WPL-WPW10141645
...
19
Insert-Hdl WPL-1116179
...
20
Insert-Hdl WPL-1116274
...
21
Insert Retainer (Bottom) WPL-2194770
...
22
Retainer Insert WPL-941262
...
23
End Cap (2) WPL-2156220
...
26
Screw WPL-489090
...
27
Interior Door Panel WPL-988620
...
28
Trim-Door WPL-984904
...
29
Retainer, Door Trim WPL-849223
...
30
Trim, Door Shelf WPL-935918
...
31
Screw WPL-WP488787
...
32
Compartment Door WPL-935322
...
33
Shelf Ladder WPL-983804
...
34
Clip, Expansion WPL-537095
...
35
Screw WPL-WP488729
...
36
Nameplate WPL-813529
...
38
Tape WPL-978601
...
39
Shelf, Door Cantilever (For Platinum Model Only) WPL-985528
...
41
Buttertray WPL-WP2151651
...
42
Endcap-Trm WPL-WP849996
...
43
Shim WPL-WP1104787

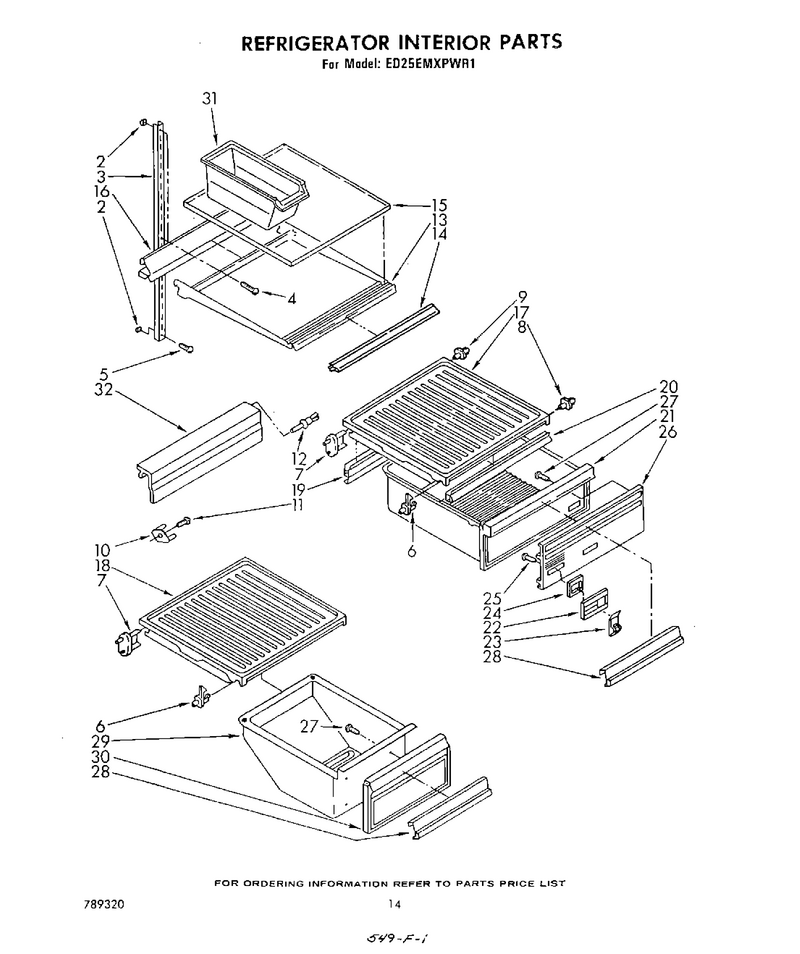

08 - Refrigerator Interior , Lit/optional

...
...
Xleveler, Enamel (13 Oz. Spray Can) WPL-350941
...
2
Screw Support, Ladder WPL-520965
...
3
Shelfladder (2) WPL-934264
...
4
Screw, 8 X 1-1/4 WPL-488357
...
5
Screw (Repair) WPL-488980
...
6
Shelf, Stud WPL-984779
...
7
Stud, Shelf WPL-937521
...
8
Shelf, Stud WPL-208500
...
9
Stud WPL-936591
...
10
Stud Water Reservoir WPL-849907
...
11
Screw WPL-WP488729
...
12
Stud-Shelf WPL-532484
...
13
Shelf, Cantilever WPL-936787
...
14
Trim, Shelf Front WPL-981454
...
15
Glass, Cantilever Shelf WPL-985516
...
16
Reflector, Cantilever WPL-849028
...
17
Pan Slide & Cover WPL-1101202
...
18
Pan Slide & Cover WPL-1101202
...
19
Gasket, Cover (Rear) WPL-1125706
...
20
Gasket-Pan WPL-985418
...
21
Pan Crisper WPL-943112
...
22
Housing, Humidity Control WPL-942234
...
23
Slide, Humidity Control WPL-942235
...
24
Seal, Humidity Control WPL-942236
...
25
Screw, 6-19 X 7/16 WPL-489041
...
26
Front Cover, Crisper WPL-1100399
...
27
Screw WPL-WP488729
...
28
Overlay, Front Cover WPL-984750
...
29
Pan (Meat) WPL-840037
...
30
Front Cover, Meat WPL-1101201
...
31
Container WPL-WP982704
...
32
Kit, Foam Slab (30`` X 32 1/2`` X 1 1/2``) WPL-876029

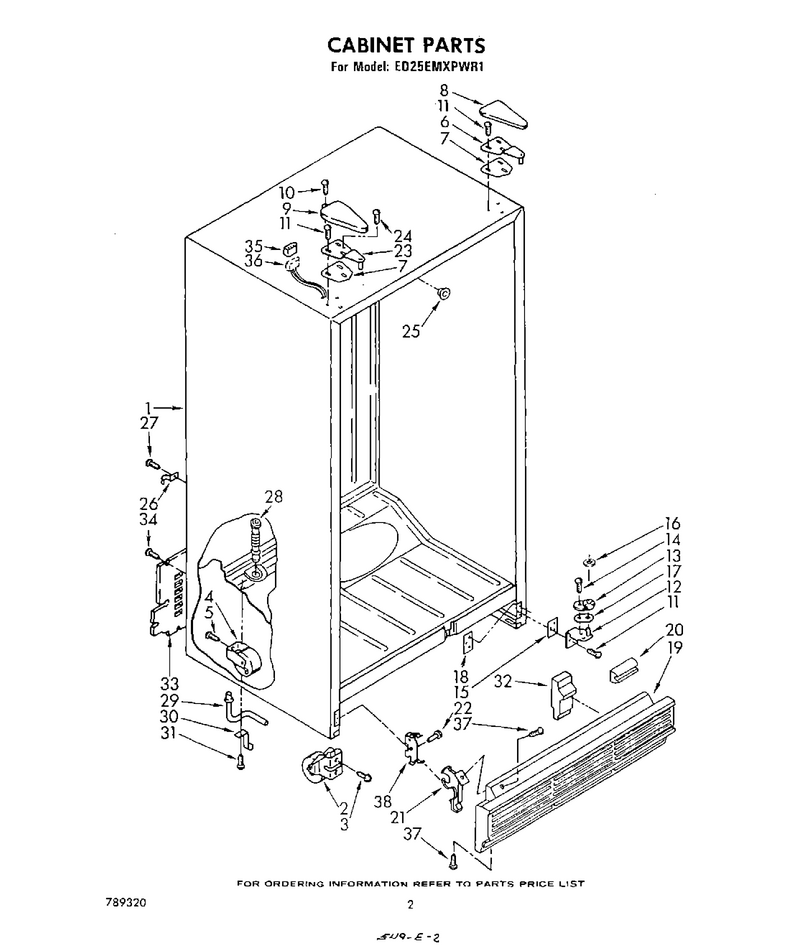

02 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Front Roller (2) WPL-4386774
...
3
Screw, 5/16-24 X 1 WPL-488681
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw, 1/4-28 X 1/2 WPL-488454
...
6
Hinge-Door WPL-833850
...
7
Shim, Hinge (Top) (.030) WPL-836151
...
8
Hinge Cover (Golden Harvest) WPL-989896
...
9
Hinge Cover (Coffee) WPL-989884
...
10
Screw WPL-489284
...
11
Screw WPL-798639
...
12
Hinge Bottom (R.h) WPL-986763
...
13
Cam-Door WPL-WPW10329686
...
14
Screw, 8-32 X 3/8 (8) WPL-487277
...
15
Shim, Hinge Bottom WPL-836196
...
16
Washer WPL-WP487802
...
17
Shim, Door Closer WPL-987179
...
18
Tap Plate (2) WPL-2147310
...
19
Grille WPL-482960
...
20
Bumper, Grille WPL-546131
...
21
Support WPL-WP944224
...
22
Screw WPL-W11624204
...
23
Hinge, Top Freezer WPL-983608
...
24
Screw WPL-WP488234
...
25
Grommet WPL-839989
...
26
Tube, Clamp WPL-836472
...
27
Screw WPL-W11624204
...
28
Drain Fitting, Liner WPL-982904
...
29
Extension, Drain Fitting WPL-841646
...
30
Cup, Drain Extension WPL-841648
...
31
Screw, 8-15 X 3/8 WPL-488978
...
32
Insert, Air Baffle WPL-836372
...
33
Cover, Unit Compartment WPL-1101165
...
34
Screw WPL-WPW10141645
...
35
Receptacle, Head WPL-851648
...
36
Harness, Wiring (6`` Leads) WPL-482553
...
37
Screw, 8-22 X 5/16 WPL-489085
...
38
Clip WPL-WP2147227

04 - Air Flow

...
...
1
Clip-Air, Duct WPL-2215823
...
2
Support, Stud WPL-983660
...
3
Support, Stud WPL-992720
...
4
Spacer, Control Panel (3) WPL-1112591
...
5
Tube-Water WPL-W10823511
...
6
Reservoir WPL-WP2256126
...
7
Tube-Water WPL-W10823511
...
8
Insert, Tube WPL-4387491
...
9
``o`` Ring Seal WPL-488819
...
10
Nut WPL-4318011
...
11
Screw, 8 X 1-1/2 WPL-488775
...
12
Bracket, Ice Dispenser WPL-989716
...
13
Motor, Ice Dispenser WPL-851152
...
14
No Description Avaliable WPL-303776
...
15
Coupling WPL-WPW10169511
...
16
Capacitor (Service) WPL-4387478
...
17
Screw WPL-W11624204
...
18
Cover, Ice Dispenser WPL-989715
...
19
Screw WPL-WP489128
...
20
Light Lens, Dispenser WPL-983359
...
21
Light Bulb WPL-8009
...
22
Duct, Air WPL-983651
...
23
Baffle, Air WPL-946697
...
24
Air Deflector WPL-983652
...
25
Motor-Evap WPL-482469
...
26
Blade-Fan WPL-WP992920
...
28
Fan, Bracket Double WPL-548263
...
29
Fan Bracket, Single WPL-938224
...
30
Fan, Grommet WPL-548268
...
31
Screw Grommet WPL-538449
...
32
Screw WPL-WP489069
...
33
Scroll Fan WPL-983650
...
34
Evaporator, Cover WPL-1101038
...
35
Grommet (2) WPL-2172803
...
36
Screw WPL-WP488729
...
37
Gasket (2) WPL-988494
...
38
Barrier, Glass WPL-776780
...
39
Pan, Drain WPL-934121
...
40
Drain Fitting WPL-2172811
...
41
Gasket, Drain Pan WPL-934130
...
42
Cap, Drain WPL-842259
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
