Whirlpool ED25DQXDW06

Model: ED25DQXDW06

Save Part Not Listed?
product name

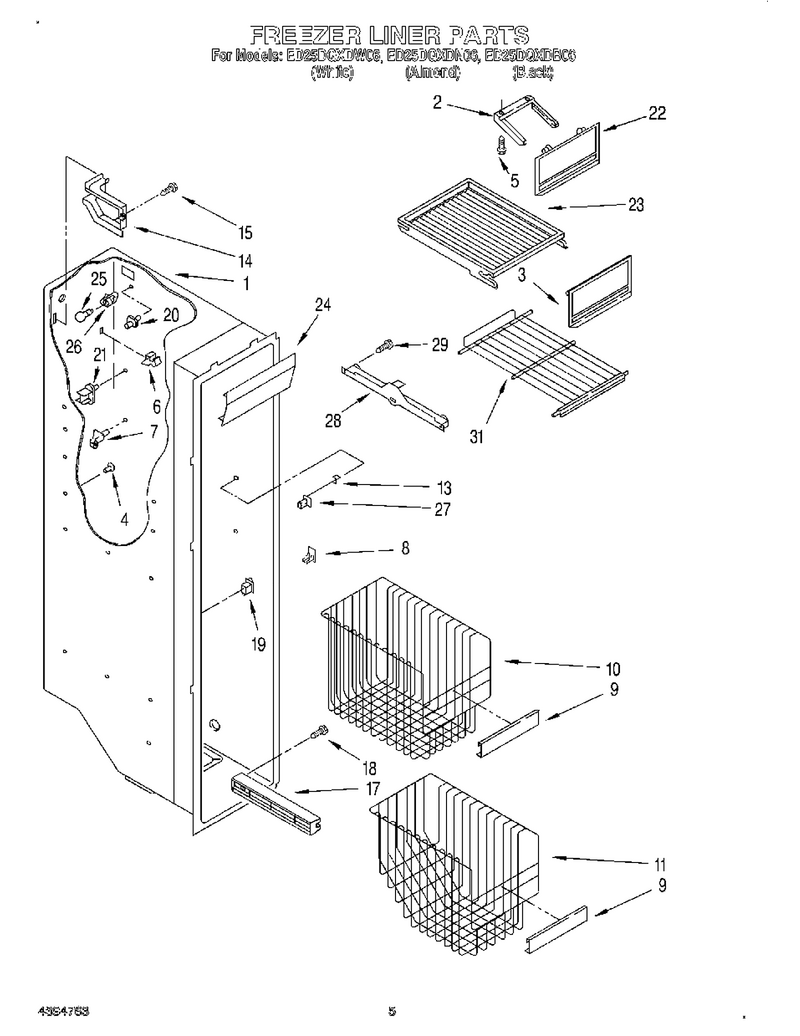

04 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Slide, Ice Door WPL-1115380
...
3
Door-Ice WPL-WP2171713
...
4
Grommet WPL-2176134
...
5
Screw WPL-WP489478
...
6
Clip-Air, Duct WPL-2215823
...
7
Stud-Shelf WPL-4388405
...
8
Stud-Shelf WPL-W11581579
...
9
Trim-Baskt WPL-WP2195905
...
10
Basket, Tall WPL-2181765
...
11
Basket, Slope WPL-2181764
...
13
Stud-Shelf WPL-W11581579
...
14
Cover, Wiring WPL-2155572
...
15
Screw WPL-W11233072
...
17
Slide, Basket (Right Side (2)) WPL-2181760
...
18
Screw WPL-W11693756
...
19
Switch WPL-W11457217
...
20
Stud-Shelf WPL-4388538
...
21
Stud-Shelf WPL-4388537
...
22
Door, Ice Compartment WPL-2174343
...
23
Shelf WPL-WP2194297K
...
24
Lens, Light WPL-2171705
...
25
Light Bulb WPL-8009
...
26
Capacitor (Service) WPL-4387478
...
27
Stud-Shelf WPL-W11581579
...
28
Slide, Ice Container (Right) WPL-W10845583
...
29
Screw, 8-18 X 1.38 WPL-718257
...
31
Shelf-Wire WPL-WP2174267

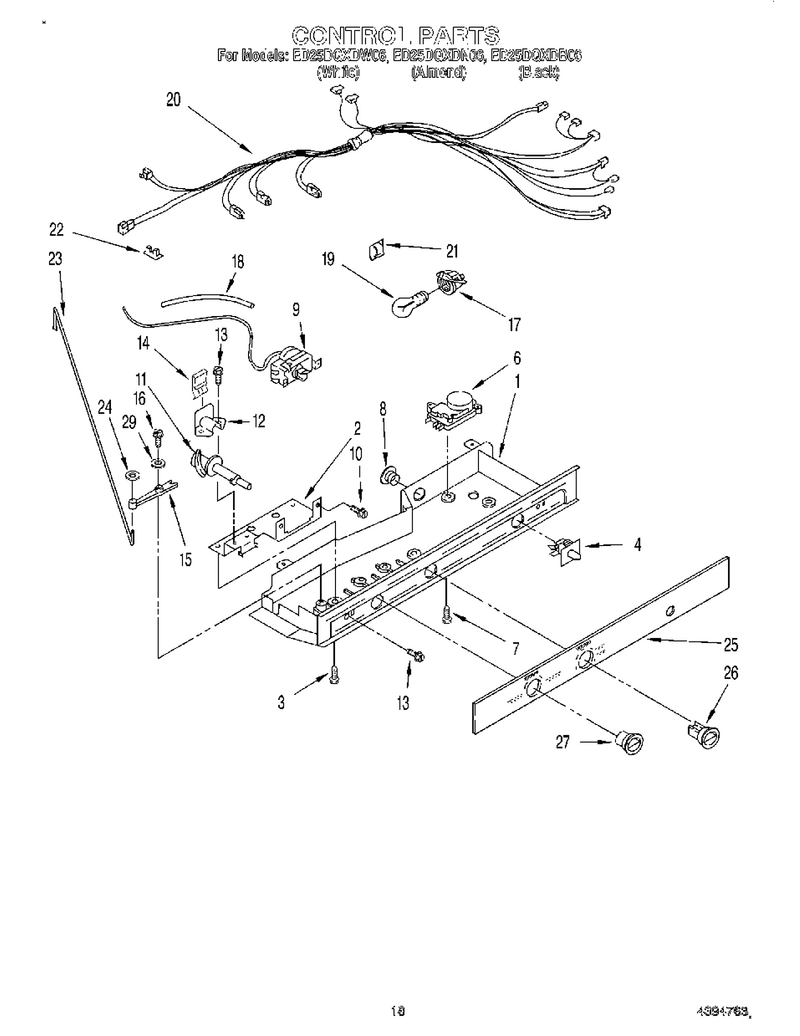

11 - Control

...
...
1
Contrl-Box WPL-4389197
...
2
Mounting Bracket WPL-1110629
...
3
Screw (2) WPL-489397
...
4
Switch WPL-WP2149705
...
6
Timer-Def WPL-W10822278
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam WPL-WP2182195
...
12
Bearing Body WPL-1110560
...
13
Screw WPL-WP489478
...
14
Clip WPL-WP2196062
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
17
Capacitor (Service) WPL-4387478
...
18
Barrier WPL-WP2196003
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2198306
...
21
Clip WPL-WP1115374
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123960
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon, Control Box WPL-2161213
...
26
Thermostat Knob WPL-2182111
...
27
Knob, Air Control WPL-2197871
...
29
Spring, Washer WPL-489203

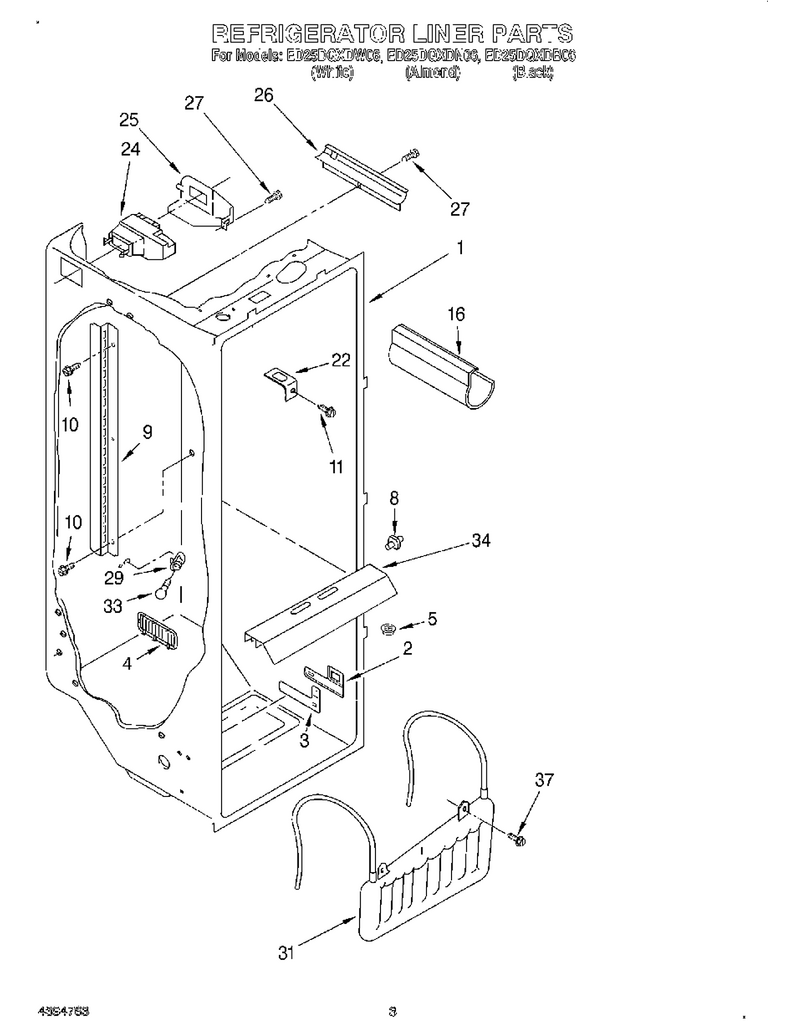

02 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-2194744
...
3
Slide Meat Pan Control WPL-2182757
...
4
Louver-Cab WPL-8201651
...
5
Release Valve WPL-2171846
...
8
Stud-Shelf WPL-4388538
...
9
Ladder, Shelf WPL-2181796
...
10
Screw WPL-WP488729
...
11
Screw WPL-WP488488
...
16
Rack-Wine WPL-W10777924
...
22
Retainer WPL-WP2256085
...
24
Diffuser WPL-WPW10151374
...
25
Cover, Air Diffuser WPL-2152019
...
26
Cover, Conduit WPL-2150331
...
27
Screw WPL-W10759522
...
29
Capacitor (Service) WPL-4387478
...
31
Reservoir WPL-WP2256126
...
33
Light Bulb WPL-8009
...
34
Light Lens WPL-2174436
...
37
Screw WPL-798639

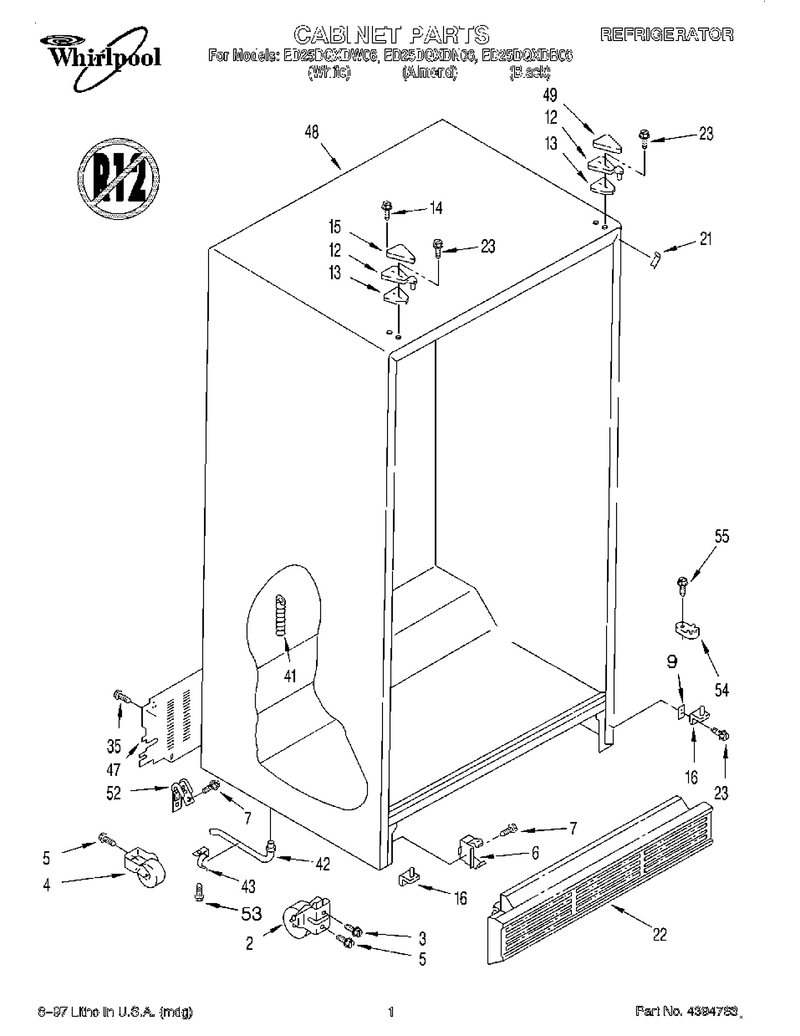

01 - Cabinet

...
...
2
Front Roller (2) WPL-4386774
...
3
Screw WPL-W10850698
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Clip WPL-WP2155013
...
7
Screw WPL-WP489478
...
9
Shim WPL-WP2181911
...
12
Hinge-Door WPL-WP2196046
...
13
Shim, Hinge Top WPL-2196048
...
14
Screw WPL-489284
...
15
Cover WPL-WP1129262
...
16
Hinge-Door WPL-8201707
...
21
Filler, Wrapper (Almond) WPL-2196095
...
22
Grille (Black) WPL-2155485
...
23
Screw WPL-WP999367
...
35
Screw WPL-WP489464
...
41
Fitting WPL-W11566763
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
47
Cover-Unit WPL-WP2188755
...
48
Cabinet (Not A Serviceable Part) WPL---
...
49
Hinge Cover (White) WPL-1119787
...
52
Clamp, Service Cord WPL-549193
...
53
Screw WPL-WPW10141645
...
54
Cam-Door WPL-WPW10329686
...
55
Screw WPL-WP489483

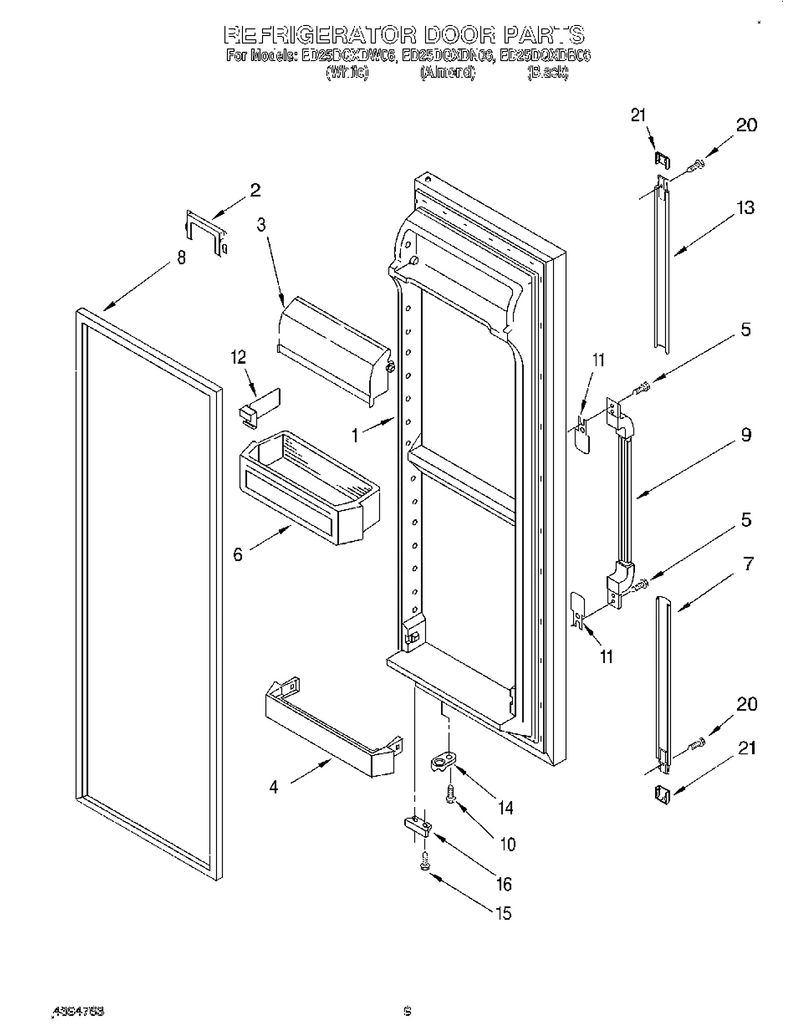

06 - Refrigerator Door

...
...
1
Dor-Fip Al WPL-4387809
...
2
Retainer, Bottle WPL-2173643
...
3
Door-Comp WPL-WP2256101
...
4
Trim-Door WPL-WP2156022
...
5
Screw WPL-WP489463
...
6
Bin-Cntlvr WPL-WPW10321304
...
7
Extension, Bottom (White) WPL-2194766W
...
8
Door Gasket, Magnetic (Service) (Black) WPL-2159083
...
9
Handle, Center (Black) WPL-2194759B
...
10
Screw WPL-WP3400012
...
11
Shim WPL-2179399
...
12
Divider, Bin WPL-2195496
...
13
Extension, Top (Black) WPL-2194765B
...
14
Cam-Door WPL-4318165
...
15
Screw WPL-WP489483
...
16
Bracket WPL-WP2195950
...
20
Screw WPL-WPW10141645
...
21
Cover, Endcap (White) WPL-2174006

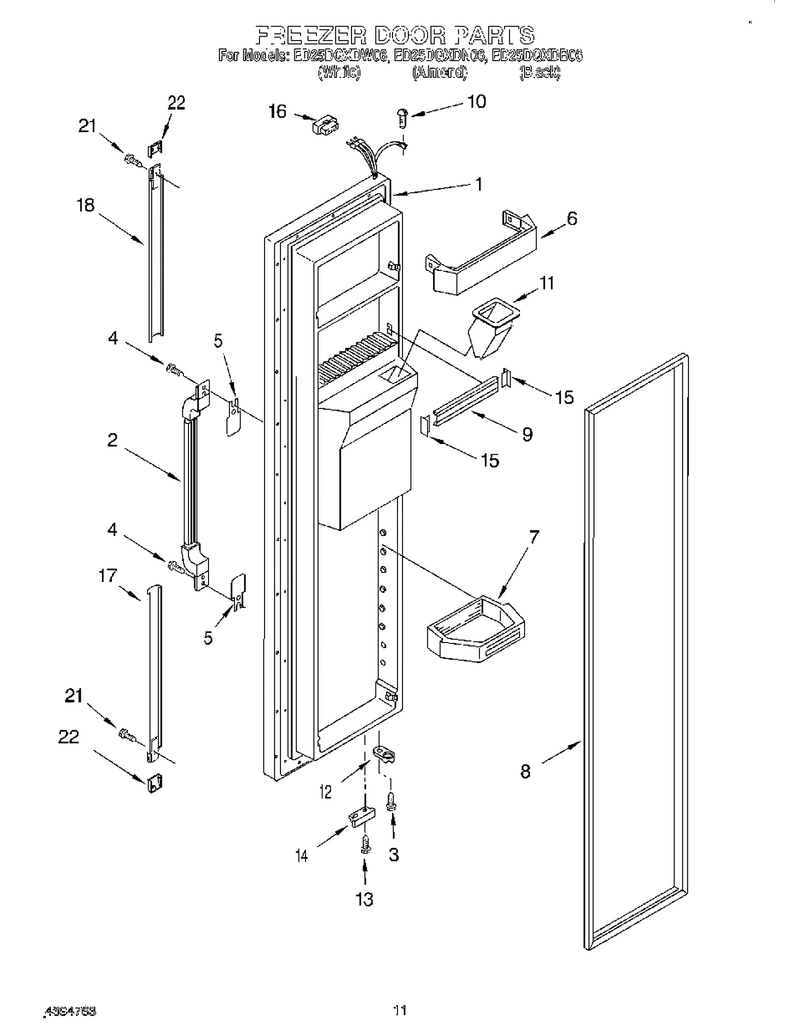

07 - Freezer Door

...
...
1
Dor-Fip Al WPL-4387934
...
2
Handle, Center (Black) WPL-2194759B
...
3
Screw WPL-WP3400012
...
4
Screw WPL-WP489463
...
5
Shim, End Cap (2) WPL-2179399
...
6
Trim-Door WPL-WP2171157
...
7
Shelf-Cant WPL-2179577
...
8
Door Gasket, Magnetic (Service) (Black) WPL-2159082
...
9
Trim-Door WPL-WPW10307490
...
10
Screw WPL-WP488234
...
11
Chute, Ice WPL-2156146
...
12
Cam-Door WPL-4318165
...
13
Screw WPL-WP489483
...
14
Bracket WPL-WP2195950
...
15
Endcap-Trm WPL-WP2156006
...
16
Connector WPL-WP2154473
...
17
Extension, Bottom (White) WPL-2194766W
...
18
Extension, Top (White) WPL-2194765W
...
21
Screw WPL-WPW10141645
...
22
Cover, Endcap (White) WPL-2174006

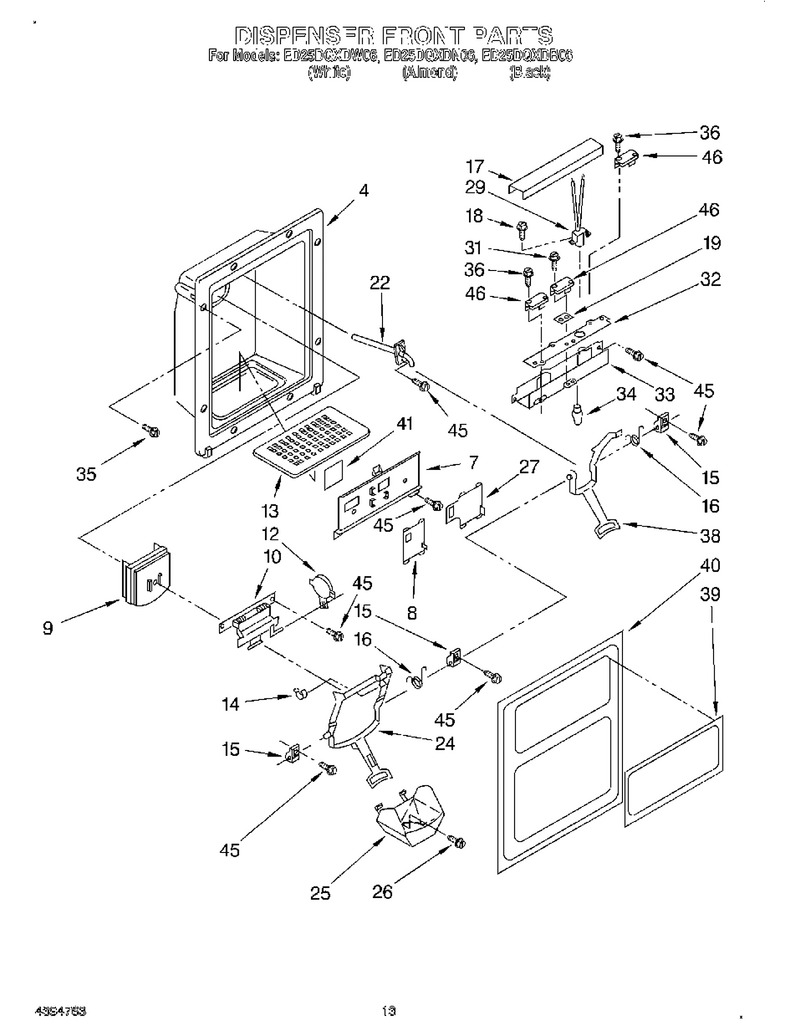

08 - Dispenser Front

...
...
4
Housing, Dispenser (Not A Serviceable Part) WPL---
...
7
Frame, Slides (Black) WPL-2152716
...
8
Slide, Cube/crush Switch (Almond) WPL-2152721
...
9
Door-Chute WPL-WP2180353
...
10
Door Mechanism Assembly WPL-2157650
...
12
Mechanism WPL-WP1120581
...
13
Grille WPL-WP983900
...
14
Clip, Bearing (2) WPL-987917
...
15
Bearing, Lever (3) WPL-983697
...
16
Spring, Lever (2) WPL-983696
...
17
Shield, Wiring WPL-1119041
...
18
Screw WPL-WP489128
...
19
Spacer WPL-WP625834
...
22
Fitting WPL-WP4388152
...
24
Lever Assembly, Ice Dispenser (White) WPL-2177144
...
25
Guide, Ice (White) WPL-1124730
...
26
Screw WPL-488892
...
27
Slide, Light Switch (Almond) WPL-2152727
...
29
Lamp Holder WPL-2166862
...
31
Screw WPL-488361
...
32
Insulator, Control Bracket WPL-2147164
...
33
Bracket, Control WPL-2147163
...
34
Bulb-Light WPL-WP22002263
...
35
Screw WPL-WP489069
...
36
Screw, WPL-489155
...
38
Lever Assembly, Water Dispenser (Almond) WPL-2177150
...
39
Plaque, Front Cover (Almond) WPL-2179206
...
40
Front Cover, Housing (Includes Item 39) (Almond) WPL-2179202
...
41
Heat Shield, Frame WPL-1121404
...
45
Screw WPL-WP3400906
...
46
Swtch-Micr WPL-WP2162361

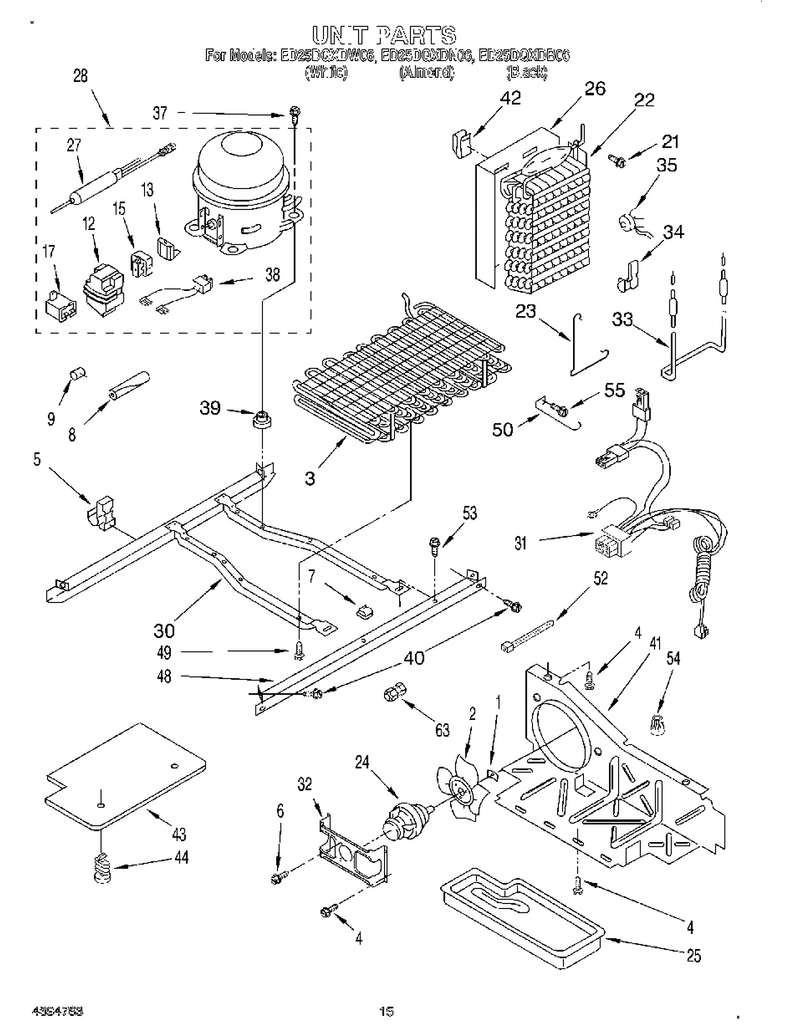

09 - Unit

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP1108179
...
3
Condenser Assembly WPL-2198175
...
4
Screw WPL-WP489464
...
5
Clip, Wire & Tube WPL-2208280
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Clip, Tube WPL-2200079
...
8
Sleeve WPL-W11751592
...
9
Dampener WPL-WP2158826
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-WP2154697
...
15
Relay (See Overload) WPL---
...
17
Capacitor (Service Compressor Only) WPL-2169137
...
21
Screw WPL-WP489478
...
22
Evaporator WPL-2155501
...
23
Clip WPL-WP2161324
...
24
Motor-Cond WPL-W10822259
...
25
Tray, Evaporator WPL-1110674
...
26
Heat Shield WPL-2149294
...
27
Drier-Tube WPL-W10843121
...
28
Tube Kit WPL-876765
...
30
Unit Mounting Frame WPL-2304904
...
31
Unit, Harness WPL-2194749
...
32
Bracket WPL-WP2181929
...
33
Heater WPL-WP2323198
...
34
Clip WPL-2161330
...
35
Bimetl-Def WPL-WPW10225581
...
37
Grommet (4) ((Production)) WPL-876811
...
38
Wire WPL-WP2172890
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw WPL-489340
...
41
Baffle, Air WPL-W10896764
...
42
Clip, Heat Shield WPL-2155547
...
43
Unit Cover, Bottom WPL-W10466698
...
44
Clip WPL-489396
...
48
Unit Mounting Rail WPL-2305374
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1110663
...
52
Tie-Wire WPL-WPW10339879
...
53
Screw WPL-WP489427
...
54
Wire Connector WPL-227991
...
55
Screw WPL-WPW10141625
...
63
Valve, Access (3/8``) WPL-978027

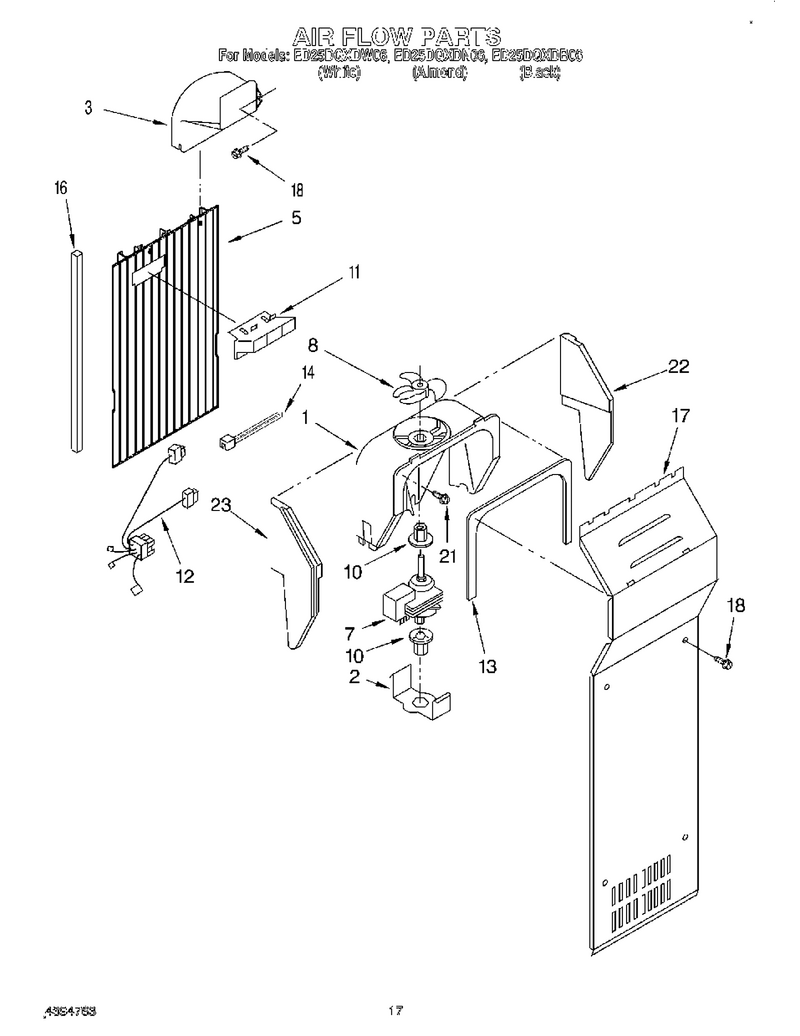

10 - Air Flow

...
...
1
Fan-Scroll WPL-WP2182120
...
2
Retainer WPL-WP2155590
...
3
Scoop-Air WPL-WP2161231
...
5
Cover-Evap WPL-4388356
...
7
Fan Motor WPL-4389144
...
8
Blade-Fan WPL-WP2169142
...
10
Grommet WPL-WP2176759
...
11
Duct, Icemaker WPL-2182146
...
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL-2161478
...
13
Gasket WPL-WP2155789
...
14
Tie-Wire WPL-WPW10339879
...
16
Gasket WPL-WP2304241
...
17
Cover-Evap WPL-4388356
...
18
Screw WPL-W11233072
...
21
Screw WPL-WP489478
...
22
Support Kit (Contains Right And Left) WPL-4388358
...
23
Support Kit (Contains Right And Left) WPL-4388358

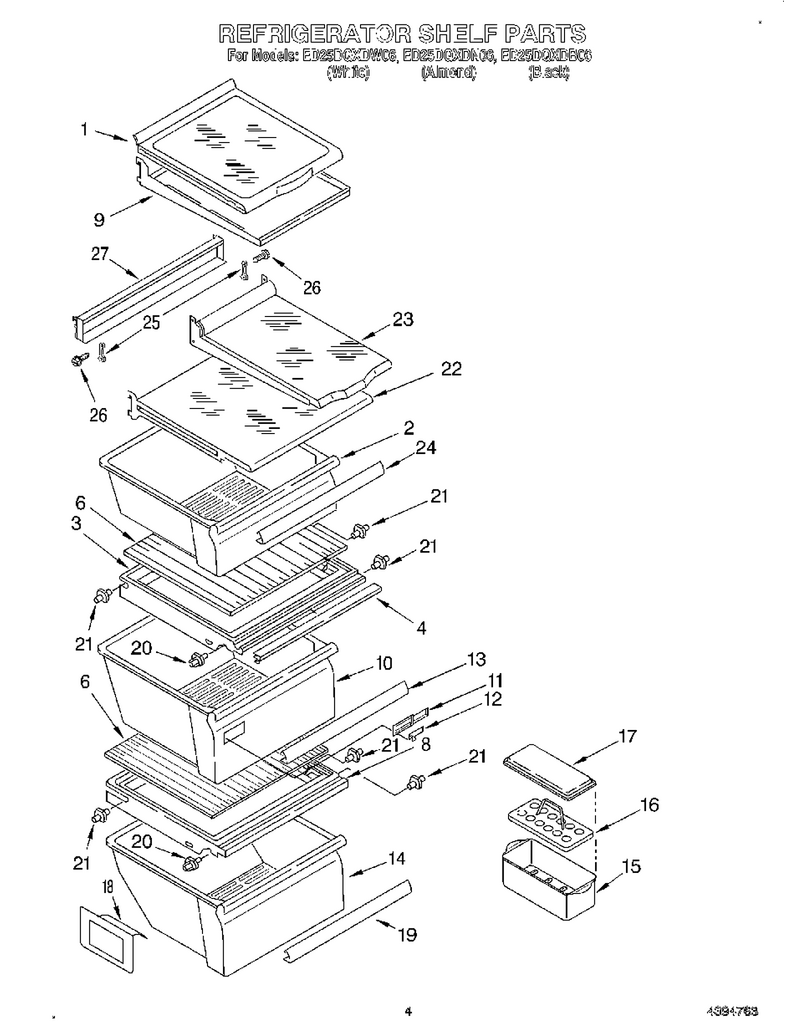

03 - Refrigerator Shelf

...
...
1
Shelf-Glas WPL-WPW10141748
...
2
Pan-Snack WPL-W11497323
...
3
Cover WPL-W10508993
...
4
Gasket, Cover (Front) WPL-2174442
...
6
Shelf-Glas WPL-W10864399
...
8
Cover WPL-W10508993
...
9
Frame-Shlf WPL-WP2195975
...
10
Pan-Crispr WPL-WP2188656
...
11
Body-Cntrl WPL-WP2179343
...
12
Slide WPL-WP2179342
...
13
Trim-Pan WPL-WP2179234
...
14
Pan-Meat WPL-WP2188664
...
15
Egg-Contnr WPL-W10136387A
...
16
Egg-Contnr WPL-WP2177817
...
17
Cover WPL-2169935
...
18
Deflector WPL-2179350
...
19
Trim-Pan WPL-WP2179234
...
20
Stud-Shelf WPL-4388539
...
21
Stud-Shelf WPL-4388538
...
22
Shelf, Snack Bin WPL-2174045
...
23
Shelf, Slide (Side To Side) WPL-2194741
...
24
Trim, Handle WPL-2189620
...
25
Hook, Shelf WPL-2169608
...
26
Screw WPL-489419
...
27
Track, Shelf WPL-2174422

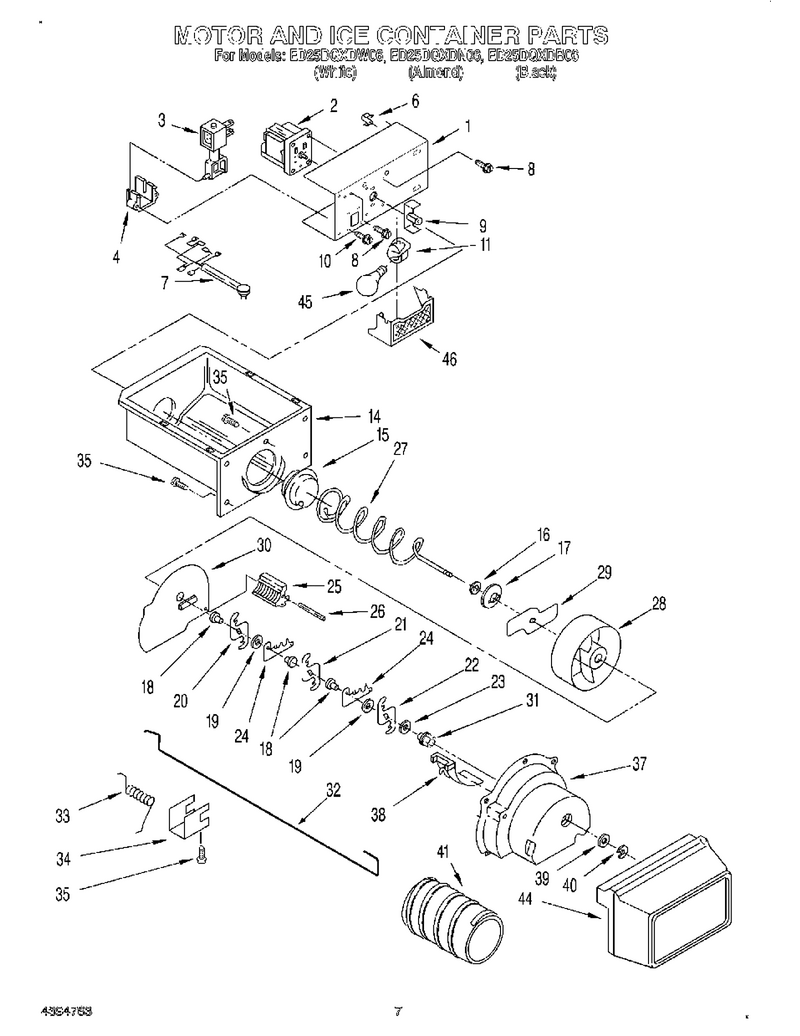

05 - Motor And Ice Container

...
...
1
Bracket, Motor WPL-W10304376
...
2
Motor WPL-WP2188242
...
3
Solenoid WPL-WP2152713
...
4
Guide WPL-W10850503
...
6
Clip WPL-WP1115374
...
7
Wiring Assembly, Ice Dispenser WPL-2169490
...
8
Screw WPL-WP489399
...
9
Coupling WPL-WPW10169511
...
10
Screw WPL-WP489478
...
11
Capacitor (Service) WPL-4387478
...
14
Container WPL-WPW10670845
...
15
Coupling WPL-W10749708
...
16
Stop, Cone WPL-1118480
...
17
Feeder Cone WPL-1119074
...
18
Spacer WPL-WP1119005
...
19
Spacer WPL-WP1119007
...
20
Blade, Rotary A WPL-W10278731
...
21
Blade, Rotary B WPL-W10278732
...
22
Blade, Rotary C WPL-W10278733
...
23
Washer WPL-WP489235
...
24
Blade, Fixed (2) WPL-1119009
...
25
Block Blade WPL-2157405
...
26
Roll Pin WPL-489229
...
27
Auger-Ice WPL-W10422851
...
28
Drum WPL-4388736
...
29
Drum WPL-4388736
...
30
Baffle WPL-W10852691
...
31
Bearing WPL-WP1119018
...
32
Arm-Contrl WPL-W11596045
...
33
Spring, Return WPL-1119020
...
34
Retainer Clip, Rod WPL-1119021
...
35
Screw WPL-WP488787
...
37
Housing WPL-WPW10185018
...
38
Deflector WPL-WP1119017
...
39
Washer, Plain WPL-489234
...
40
Ring-E WPL-WP489236
...
41
Sleeve WPL-4317870
...
44
Front Cover, Ice Container WPL-2171708
...
45
Light Bulb WPL-8009
...
46
Lens-Light WPL-WP2171706

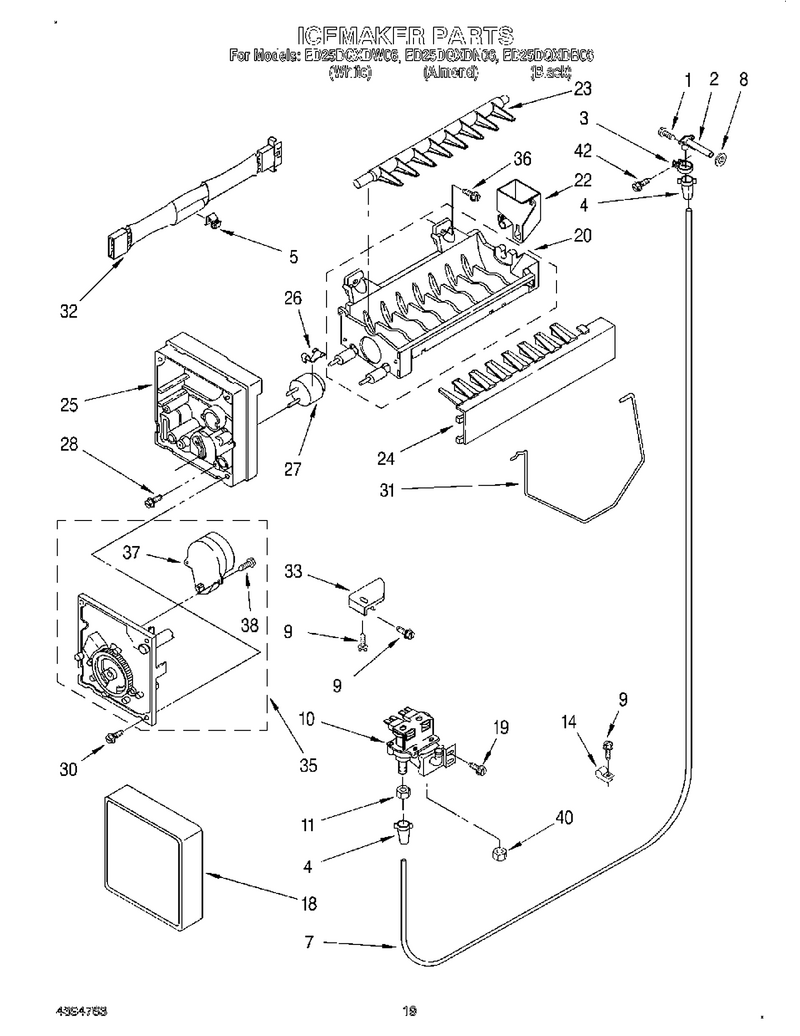

12 - Icemaker, Lit/optional

...
...
Torx Key WPL-1117510
...
1
Screw WPL-WPW10141645
...
2
Fitting WPL-WP2196157
...
3
Clamp WPL-WP488878
...
4
Insert, Tube WPL-4387491
...
5
Clip WPL-WP628379
...
7
Tube-Water WPL-W10823511
...
8
Gasket WPL-WP1106508
...
9
Screw WPL-WP489478
...
10
Valve-Inlt WPL-W10853654
...
11
Nut WPL-WP627018
...
14
Clamp WPL-WP488366
...
18
Cover-Frnt WPL-WPW10289690
...
19
Screw WPL-WPW10141625
...
20
Grease WPL-WP542638
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Stripr WPL-WP2182124
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Bimetl-Def WPL-WP627985
...
28
Screw (2) WPL-8533917
...
30
Screw WPL-WP681249
...
31
Arm-Shut WPL-W11342242
...
32
Harns-Wire WPL-WP2187464
...
33
Bracket WPL-W11500948
...
35
Motor-Modl WPL-W10190935
...
36
Screw WPL-WP488163
...
37
Motor-Modl WPL-W10190935
...
38
Screw WPL-489136
...
40
Nut WPL-4318011
...
42
Screw WPL-WP488787
...
100
Kit, Terminal Connector WPL-833938
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
