Whirlpool CT14SKXRQ00

Model: CT14SKXRQ00

Save Part Not Listed?
product name

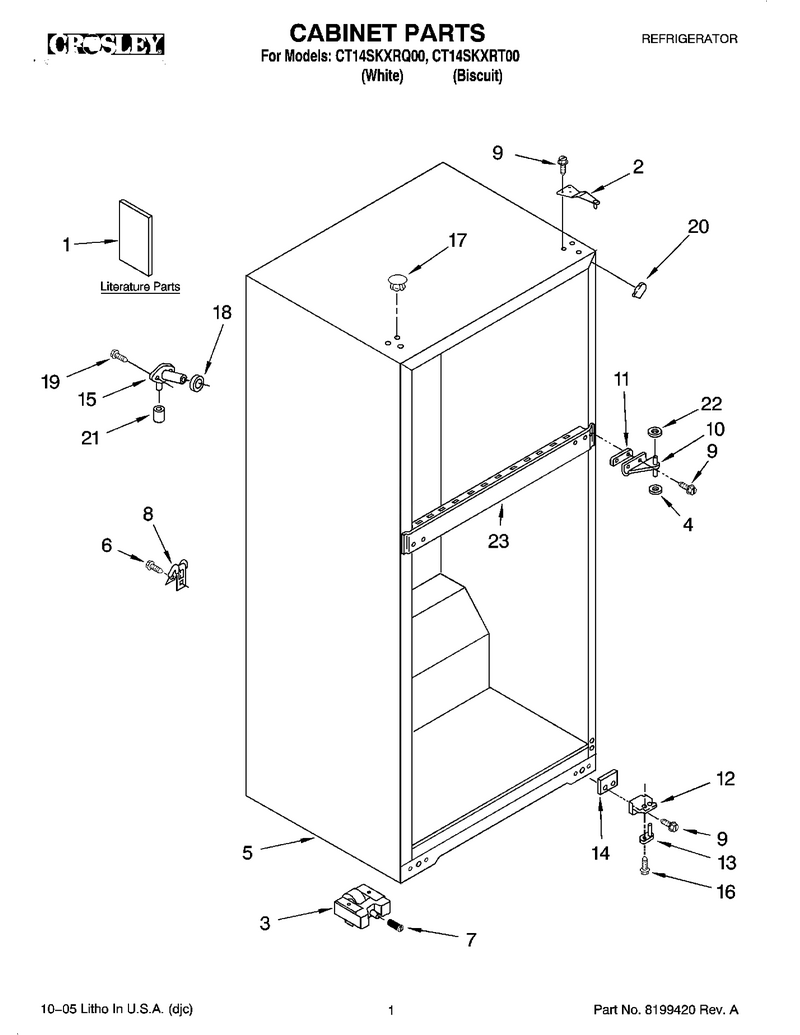

01 - Cabinet Parts

...
...
1
Following May Be Purchased Do-It-Yourself Repair Manuals WPL---
...
2
Hinge-Door WPL-WP2261963
...
3
Roller-Front WPL-2324094
...
4
Washer WPL-WP487576
...
5
Cabinet (Not A Serviceable Part) WPL---
...
6
Screw WPL-WP489442
...
7
Screw WPL-2222100
...
8
Clamp, Cord WPL-549193
...
9
Screw WPL-WP489497
...
10
Hinge-Door WPL-WP2166037
...
11
Shim, Hinge Center WPL-2166043
...
12
Hinge WPL-WP2325482
...
13
Hinge-Pin WPL-WP9791682
...
14
Shim WPL-WP2201567
...
15
Fitting WPL-WP2196157
...
16
Screw WPL-WP3428970
...
17
Button-Plg WPL-WP2200924
...
18
Gasket WPL-WP1106508
...
19
Screw WPL-WP488729
...
20
Corner Filler (Biscuit) WPL-2202282
...
21
Cap-Tube WPL-WP487996
...
22
Washer WPL-WP487802
...
23
Rail Center (Not Serviced) WPL---

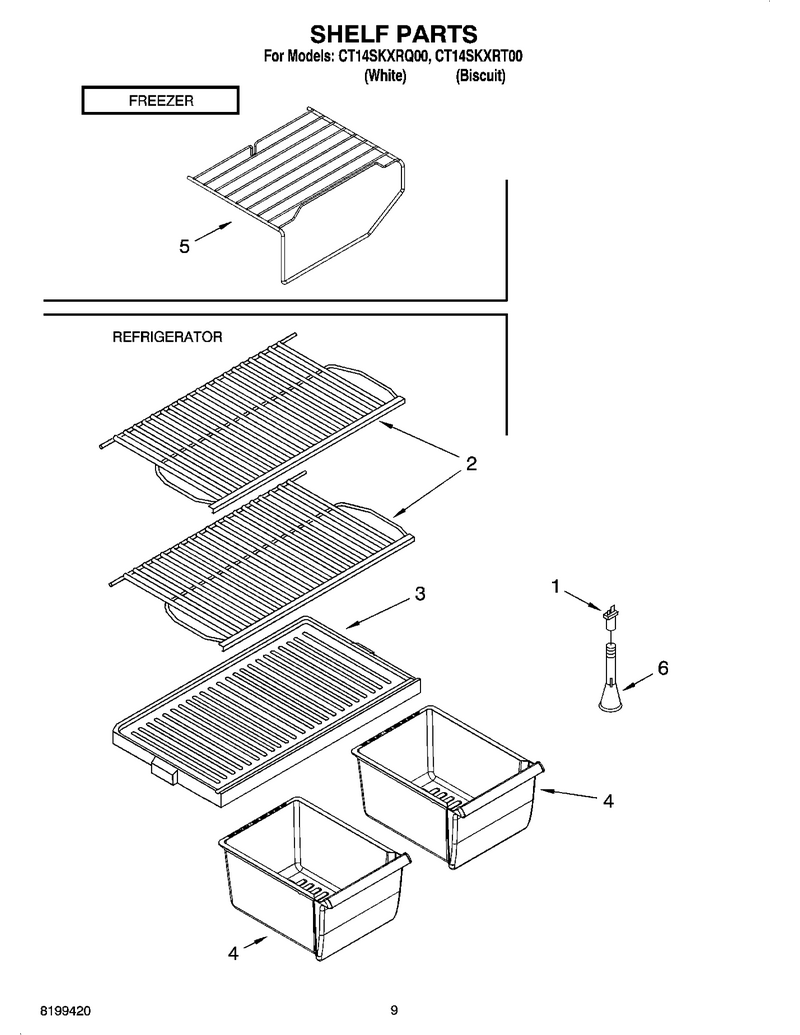

05 - Shelf Parts, Optional Parts

...
...
Primer, White (12 Oz. Spray Can) WPL-350942
...
1
Support, Crisper Cover WPL-9791824
...
2
Shelf-Wire WPL-WP2192515
...
3
Cover WPL-W11547193
...
4
Pan-Crispr WPL-WP2164186
...
5
Shelf-Wire WPL-WPW10401596
...
6
Post WPL-WP836410

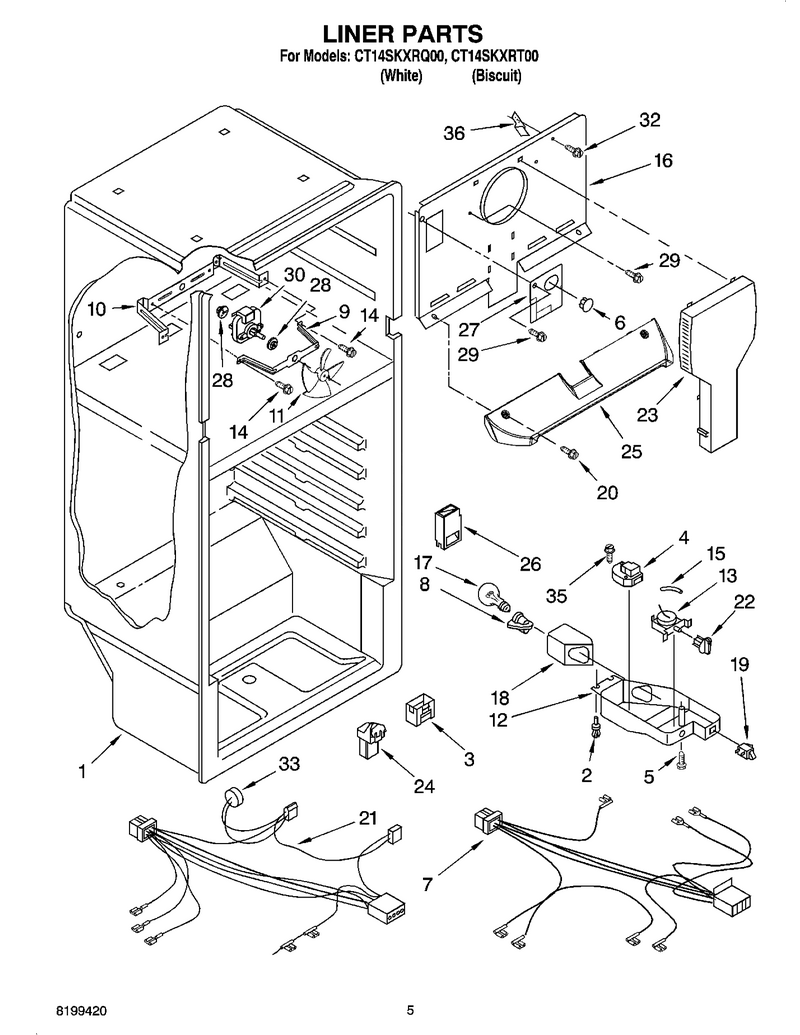

03 - Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Rivet WPL-939962
...
3
Cover WPL-WP2183061
...
4
Timer-Def WPL-W10822278
...
5
Screw WPL-WP489174
...
6
Button-Plg WPL-WP941839
...
7
Wire Assembly (Control Box) WPL-2176927
...
8
Capacitor (Service) WPL-4387478
...
9
Bracket WPL-WPW10180172
...
10
Bracket WPL-WP2197405
...
11
Blade-Fan WPL-WP2169142
...
12
Control Box WPL-2215213
...
13
Thermostat WPL-WPW10567140
...
14
Screw WPL-WP489399
...
15
Barrier WPL-WP2196003
...
16
Cover-Evaporator WPL-2264669
...
17
Bulb-Light WPL-W11679940
...
18
Lens-Light WPL-W11034434
...
19
Switch WPL-W11384469
...
20
Screw WPL-WP489474
...
21
Harns-Wire WPL-WP2192096
...
22
Knob-Therm WPL-WP2202885
...
23
Air Tower WPL-9790408
...
24
Hood&foil WPL-WP2316186
...
25
Cover, Air Return WPL-2261978
...
26
Diffuser WPL-WP2221992
...
27
Cover WPL-WP2217784
...
28
Grommet WPL-WP2264462
...
29
Screw WPL-WP489478
...
30
Motor-Evap WPL-WPW10189703
...
32
Screw WPL-WP965173
...
33
Bimetl-Def WPL-WP4387490
...
35
Screw WPL-WP487353
...
36
Deflector, Air WPL-2262195

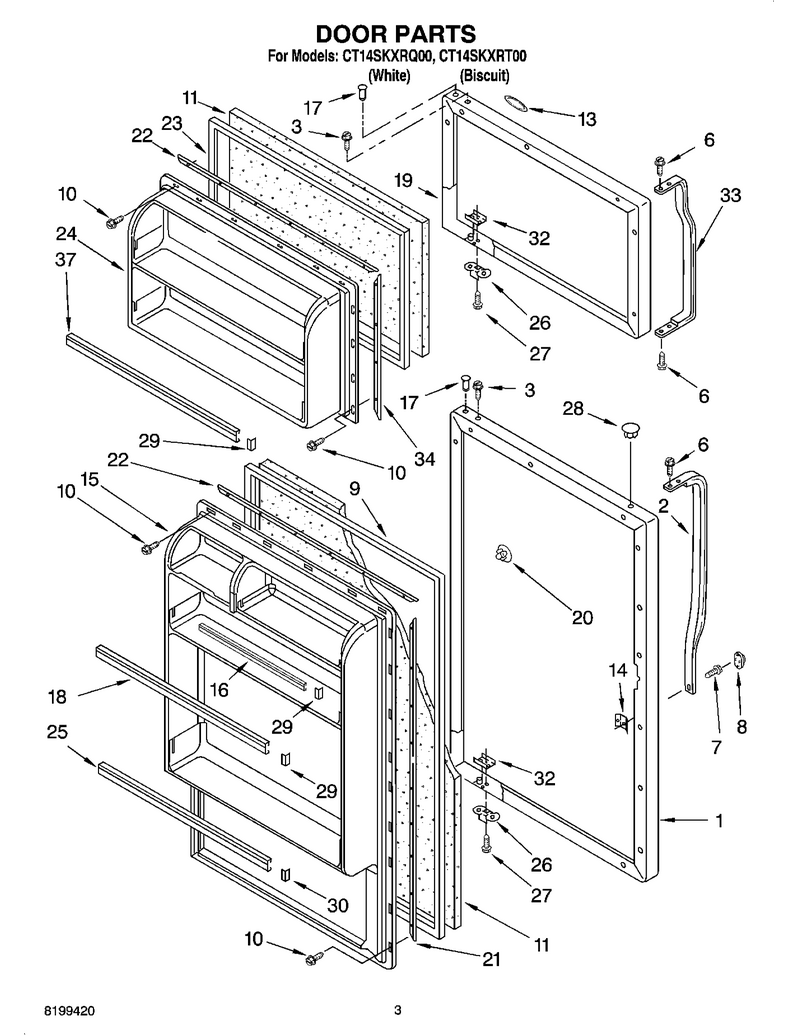

02 - Door Parts

...
...
1
Refrigerator Door Panel (Also Order Item 11) (Biscuit) WPL-2215347
...
2
Handle WPL-WP2221946T
...
3
Screw WPL-WP8281206
...
6
Screw WPL-WP489357
...
7
Screw WPL-WP8281146
...
8
Cover, Screw (Biscuit) WPL-2202819T
...
9
Gasket-Dor WPL-2188448A
...
10
Screw WPL-WP489442
...
11
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
13
Nameplate (Biscuit) WPL-2301599T
...
14
Plate WPL-WP939101
...
15
Interior Door Panel (Refrigerator) WPL-2256662
...
16
Trim-Door WPL-WP2163629
...
17
Thimble WPL-WP2183003
...
18
Trim-Door WPL-WP2163629
...
19
Panel-Ext WPL-WP2201544
...
20
Plug-Hndle WPL-WP2200936
...
21
Retainer, Gasket WPL-1122551
...
22
Retainer, Gasket WPL-1120614
...
23
Gasket-Dor WPL-2188462A
...
24
Interior Door Panel (Freezer) WPL-9790358
...
25
Trim-Door WPL-WP1120826
...
26
Bracket, Door Stop WPL-2217944
...
27
Screw WPL-WP488921
...
28
Button-Plg WPL-WP2212649
...
29
Endcap-Trm WPL-WP2156007
...
30
Endcap-Trm WPL-WP2156006
...
32
Plate WPL-W10833053
...
33
Handle WPL-WP2202098
...
34
Retainer, Gasket WPL-1122553
...
37
Trim-Door WPL-WP2163629

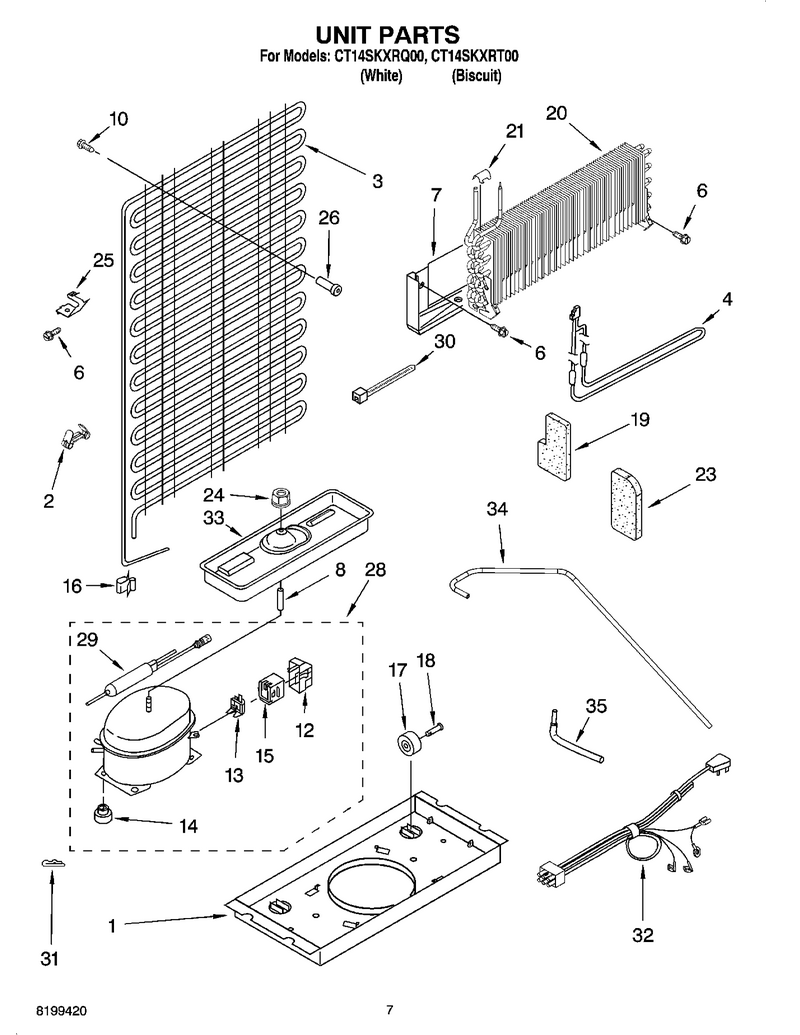

04 - Unit Parts

...
...
1
Support WPL-WPW10222451
...
2
Clip, Condenser WPL-2264531
...
3
Condenser WPL-WP2252730
...
4
Heater WPL-WP2263749
...
6
Screw WPL-WP489442
...
7
Heat Shield WPL-2319224
...
8
Spacer WPL-2176844
...
10
Screw WPL-8533892
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-WP4387938
...
14
Grommet WPL-WP4387558
...
15
Start-Dev WPL-WP2258450
...
16
Clip WPL-W10812038
...
17
Roller-Cab WPL-WPW10475495
...
18
Rivet WPL-WP2264756
...
19
Support-Ev WPL-8201619
...
20
Evaporator WPL-WP2263919
...
21
Clip, Evaporator Tube WPL-9791833
...
23
Support-Ev WPL-8201619
...
24
Nut WPL-285002
...
25
Clip WPL-4386951
...
26
Bracket, Condenser WPL-2258452
...
28
Compressor WPL-W10823815
...
29
Drier-Tube WPL-W10843121
...
30
Tie-Wire WPL-WPW10339879
...
31
Clip, Compressor WPL-24364001
...
32
Assembly, Unit Wire WPL-W10151647
...
33
Tray-Evap WPL-WP2176668
...
34
Tube, Discharge WPL-2264563
...
35
Valve, Access (5/16``) WPL-978026
