Whirlpool BGP430WB0

Model: BGP430WB0

Save Part Not Listed?
product name

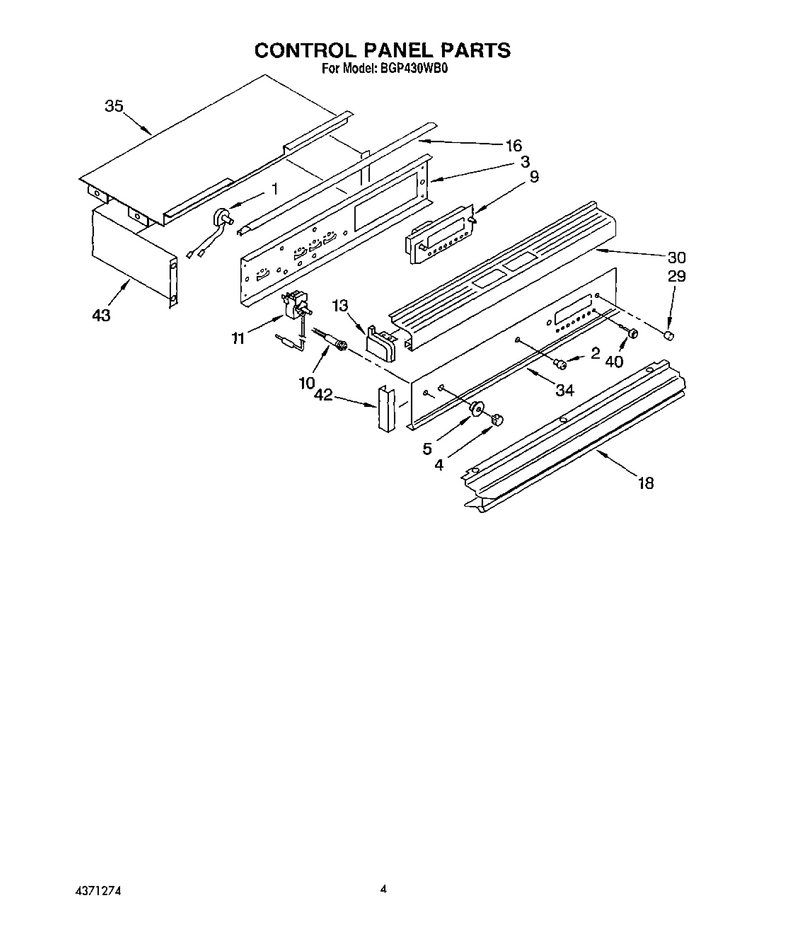

03 - Control Panel

...
...
1
Switch, Oven Light WPL-816963
...
2
Bezel, Switch WPL-4371277
...
3
Screw, No.10x24x1/2 (4) WPL-241428
...
4
Knob, Thermostat WPL-816952
...
5
Spacer, Dial WPL-816962
...
9
Clock WPL-816956
...
10
Light, Indicator WPL-816958
...
11
Thermostat WPL-816964
...
13
End Cap Black (Right Side) WPL-816829
...
16
Screw, No.6x18x1/4 (3) WPL-487010
...
18
Trim, Center Vent WPL-816944
...
29
Knob, Clock (3) WPL-4371866
...
30
Screw, No.6x32x1/2 (6) WPL-816325
...
34
Panel, Control WPL-816978
...
35
Cover, Control WPL-816931
...
40
Knob, Controls (9) WPL-816693
...
42
Trim, Control Panel (2) WPL-816898
...
43
Screw, No.8x22x5/16 (8) WPL-313823

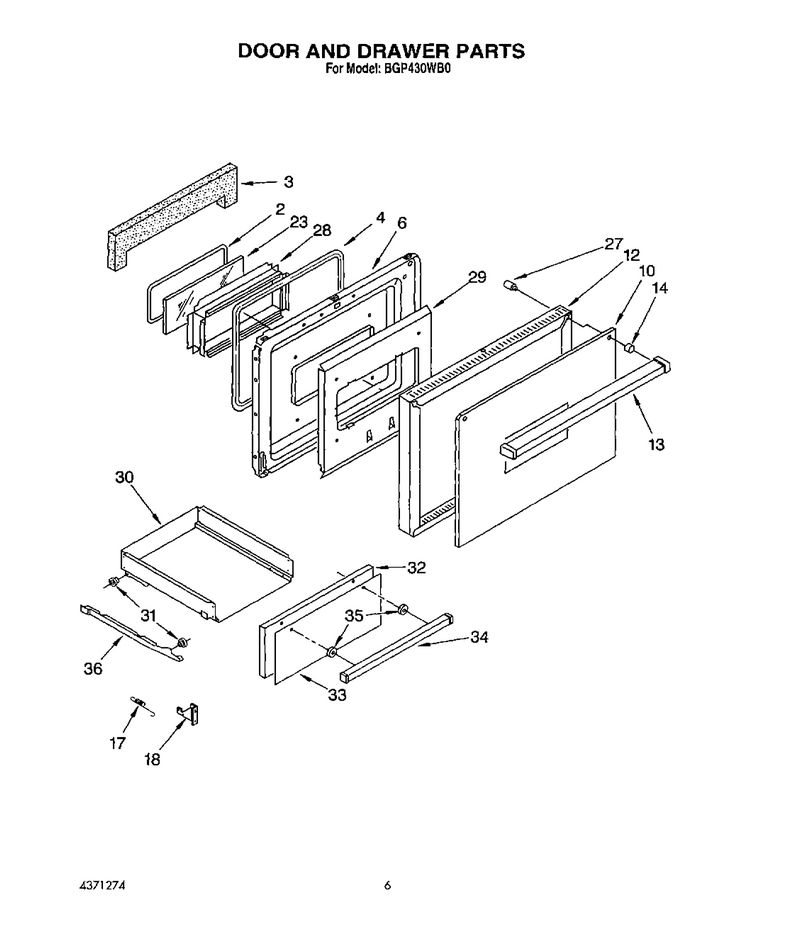

05 - Door And Drawer, Lit/optional

...
...
Guide, Use And Care WPL-LIT816769
...
2
Seal, Window WPL-816376
...
3
Heater Assy, Complete (Canada) WPL-308024
...
4
Seal-Oven Door WPL-816417
...
6
Screw, No.10x24x5/8 (4) WPL-816270
...
10
Glass, Outer Door (White) WPL-816876
...
12
Frame, Door WPL-816840
...
13
Handle, Door WPL-816834
...
14
Spacer, Handle WPL-816970
...
17
Spring, Broiler (2) WPL-816942
...
18
Hinge, Broiler (Right Hand) WPL-816937
...
23
Glass, Inner Door WPL-816377
...
27
Spacer, Handle Mount (2) WPL-816415
...
28
Collar, Glass WPL-816934
...
29
Panel, Airwash WPL-816508
...
30
Panel, Drawer Btm. WPL-4372490
...
31
Roller WPL-816845
...
32
Panel, Inner Door WPL-816939
...
33
Panel, Glass WPL-816842
...
34
Screw, No.10x24x5/8 (2) WPL-816270
...
35
Spacer, Handle Mount (2) WPL-816415
...
36
Track, Drawer (Right Side) WPL-816896

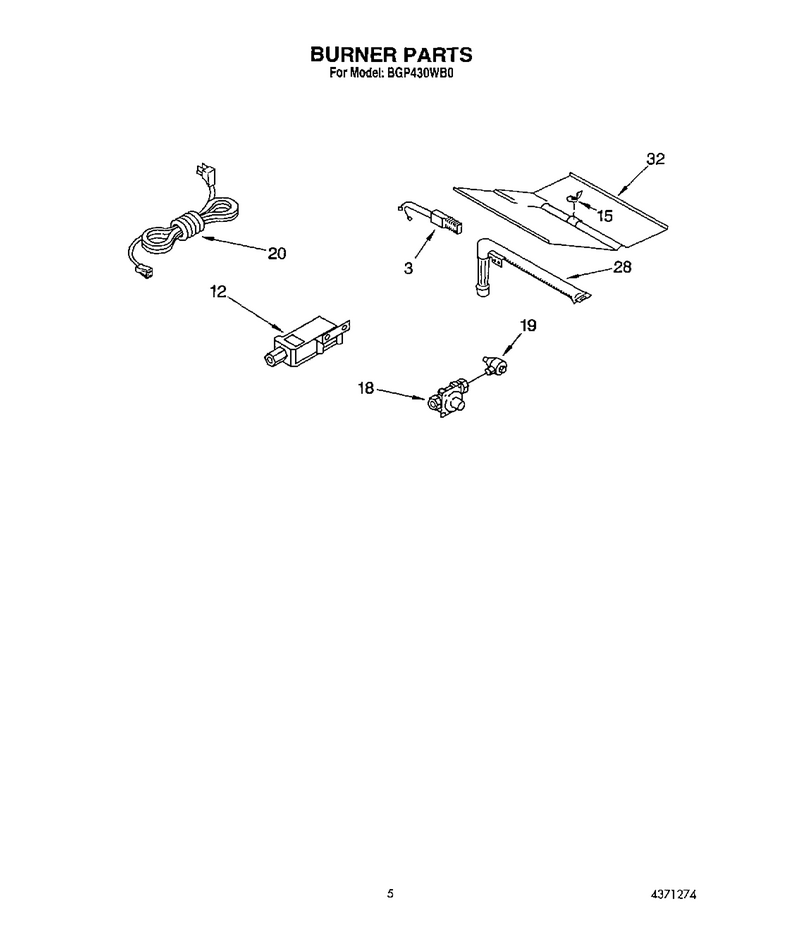

04 - Burner

...
...
3
Igntr-Oven WPL-814269
...
12
Screw, No.10x24x1/2 (2) WPL-241428
...
15
Nut, Wing WPL-816873
...
18
Regulator WPL-WP4454571
...
19
Valve, Shut Off WPL-816821
...
20
Cord, Power WPL-816818
...
28
Burner, Bake WPL-816825
...
32
Baffle, Bake WPL-816922

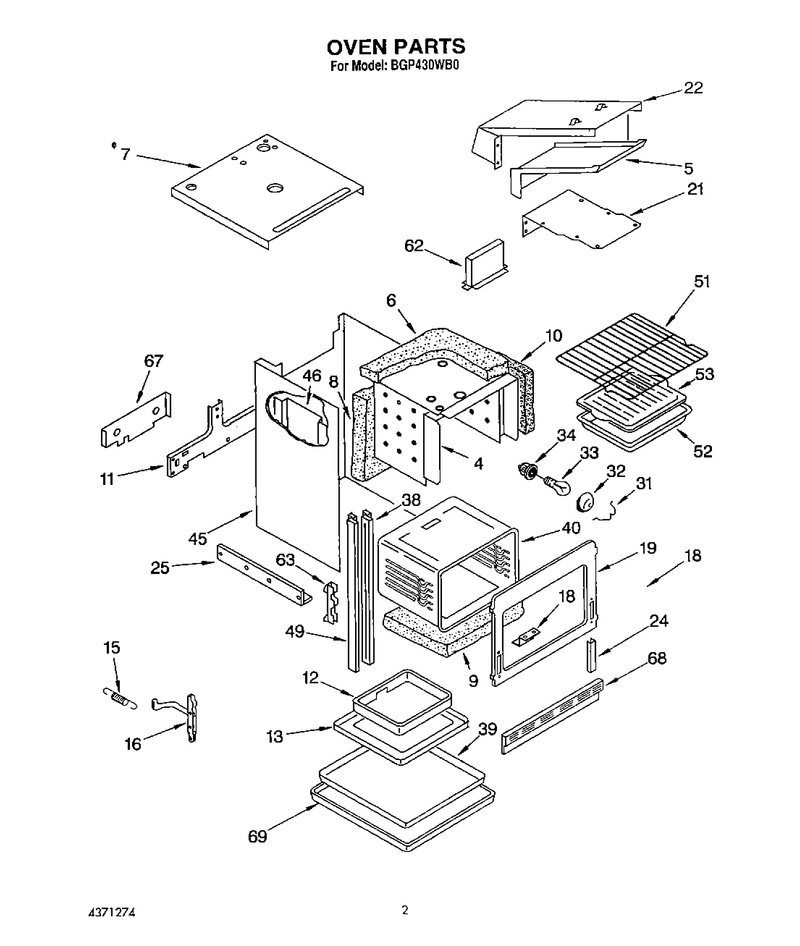

02 - Oven

...
...
4
Shield, Top And Sides WPL-816967
...
5
Box, Flue WPL-816852
...
6
Insulation WPL-816866
...
7
Screw, No.8x22x5/16 (10) WPL-313823
...
8
Insulation, Back WPL-816950
...
9
Insulation, Bottom WPL-816949
...
10
Insulation, Top & Sides WPL-816948
...
11
Bracket, Safety Valve WPL-816924
...
12
Box, Burner WPL-816923
...
13
Bottom, Oven WPL-816814
...
15
Spring, Door (2) WPL-816287
...
16
Hinge, Door (2) WPL-816932
...
18
Shield, Vent WPL-816965
...
19
Frame, Front WPL-816945
...
21
Shield, Flue Bottom WPL-816889
...
22
Shield, Flue Top WPL-816968
...
24
Support, Oven Front (2) WPL-816893
...
25
Support, Height Adjustment (2) WPL-816284
...
31
Retainer, Lens WPL-4372920
...
32
Lens, Light WPL-877804
...
33
Light Bulb WPL-8009
...
34
Sockt-Lite WPL-W10856866
...
38
Trim, Inner (Right Side) WPL-816899
...
39
Shield, Insulation (Base) WPL-816887
...
40
Liner, Oven WPL-816953
...
45
Wrapper, Back And Sides WPL-816905
...
46
Insulation, Top & Sides WPL-4372709
...
49
Trim, Outer Side (Black) WPL-816848
...
51
Rack, Oven WPL-816342
...
52
Pan, Broiler WPL-816954
...
53
Grid, Broiler Pan WPL-816947
...
62
Flue, Adaptor WPL-816851
...
63
Channel, Hinge WPL-816388
...
67
Screw, No.10x24x1/2 (4) WPL-241428
...
68
Trim, Base (Screw (2)) WPL-816410
...
69
Shield, Oven Bottom WPL-816908
