product name

Whirlpool B9757X0

Model: B9757X0

Save Part Not Listed?
product name

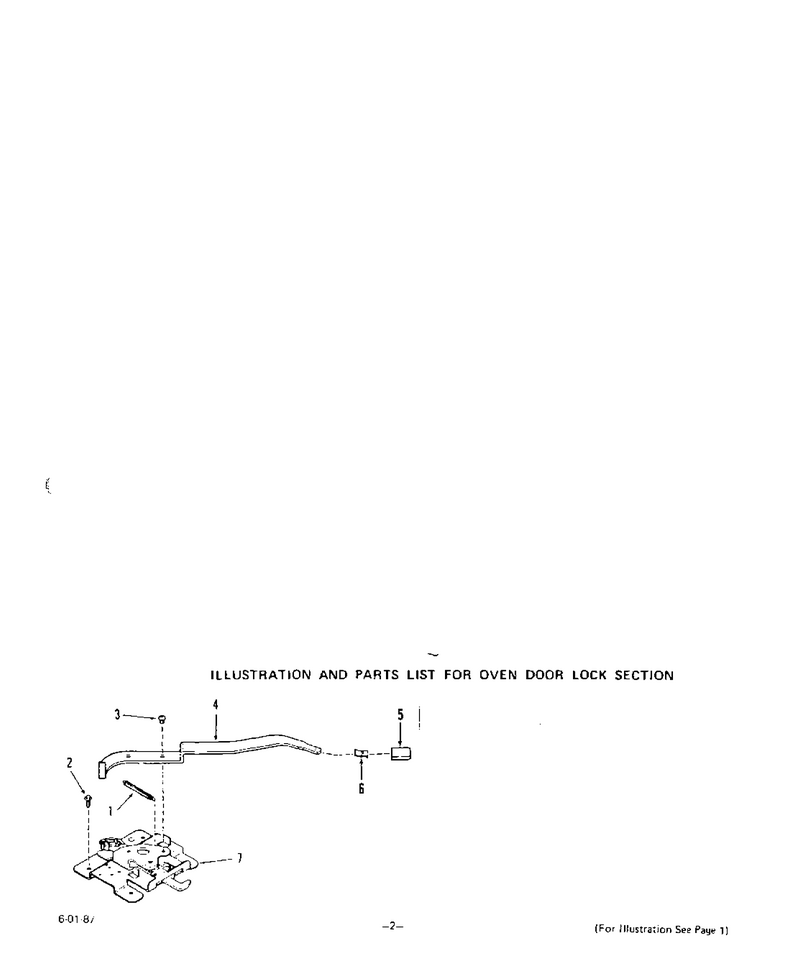

03 - Oven Door Lock

...
...
1
WPL-832952
...
2
Nut WPL-WP112432
...
3
Screw 10-24x1/4`` WPL-288248
...
4
Lock Handle WPL-337409
...
5
Knob-Lock Handle WPL-335738
...
6
Clip-Knob WPL-335692
...
7
Oven Door Lock Assm. WPL-335333

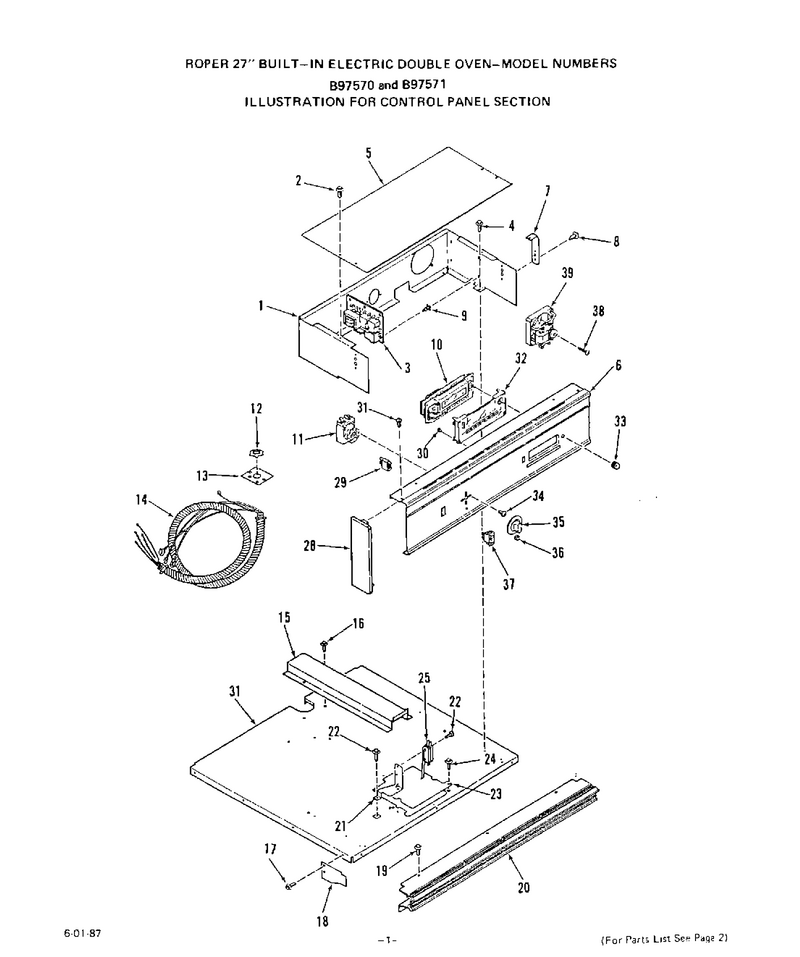

02 - Control Panel

...
...
1
Control Housing WPL-337413
...
2
Screw 10-16x7/16`` WPL-327320
...
3
Relay Circuit Board WPL---
...
4
Screw 10-16x7/16`` WPL-327320
...
5
Top Cover-Control Housing WPL-337414
...
6
Control Panel WPL-336281
...
7
Control Panel Bracket WPL-336563
...
8
Nut WPL-WP112432
...
9
Spacer Pcb WPL-331469
...
10
Clock/oven Control WPL---
...
11
Thermostat WPL-320938
...
12
Nut (For Key 14) WPL-110340
...
13
Plate (For Key 14) WPL-294983
...
14
Harness Conduit Asm. WPL-336305
...
15
Wire Cover WPL-33-6780
...
16
Screw 10 - 32 X 3/8`` WPL-102429
...
17
Screw 10-16x7/16`` WPL-327320
...
18
Heat Shield (Lt. Or Rt.) WPL-336275
...
19
Nut WPL-WP112432
...
20
Trim, Control Panel WPL-337416
...
21
Bracket-Micro Switch WPL-335115
...
22
Screw WPL-327256
...
23
Cover Plate Lock WPL-333124
...
24
Screw WPL-295850
...
25
Micro Switch-Lock WPL-334973
...
28
Left WPL-336512
...
29
Indicator Light WPL-331717
...
30
Screw 6-32x5/16`` WPL-78153
...
31
Screw 10-32x1/2`` WPL-321665
...
32
Clock Lens Asm. WPL---
...
33
Knob-Clock WPL-334961
...
34
Screw 8-32x3/16`` WPL-78565
...
35
Thermostat Knob WPL-336288
...
36
Lens-Indicator Light WPL-331705
...
37
Switch WPL-334649
...
38
Screw 10-32x1`` WPL-313190
...
39
Fan Asm WPL-336560

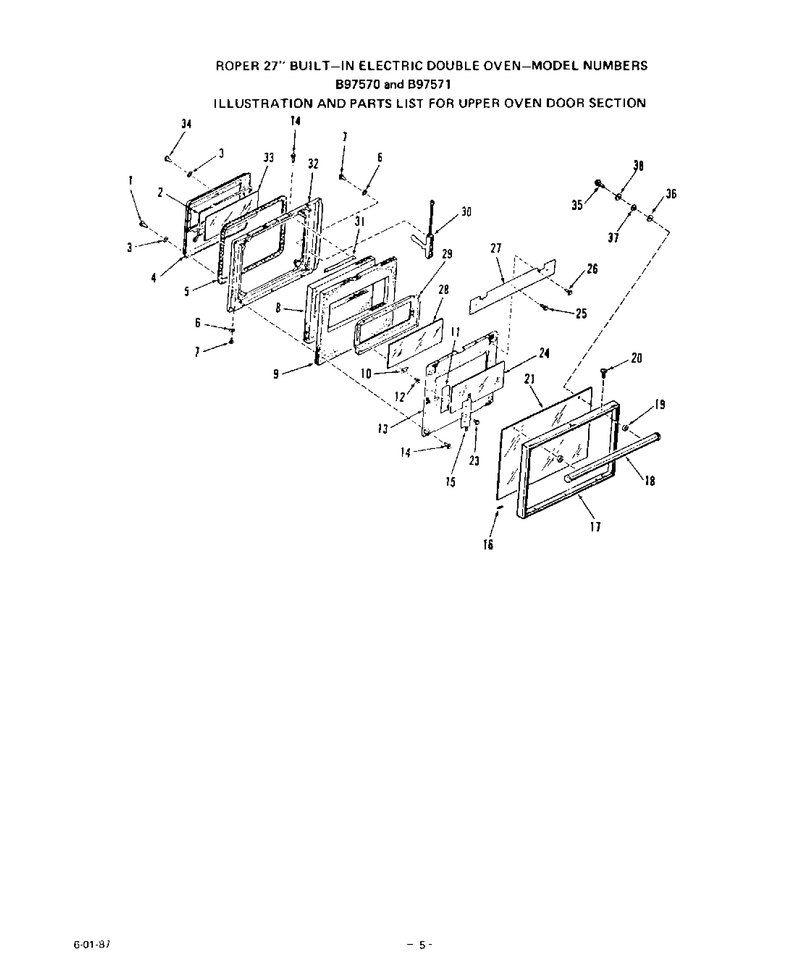

05 - Upper Oven Door

...
...
Xwire Harness WPL---
...
1
Screw 10abx1/2`` WPL-326974
...
2
Door Seal WPL-302935
...
3
Washer WPL-21067
...
4
Plug-Oven Door WPL-338019
...
5
Oven Door Gasket WPL-311873
...
6
Washer WPL-21067
...
7
Screw 10-32x3/8`` WPL-239113
...
8
Insulation-Oven Door Plug WPL-311872
...
9
Insulation-Oven Door Lining WPL-311874
...
10
Door Glass Retainer (4 Req) WPL-312888
...
11
Spacer-Oven Door Glass (Lt. Or Rt.) WPL-310929
...
12
Screw 10-32x17/32`` WPL-295849
...
13
Retainer-Oven Door Insulation WPL-336112
...
14
Nut WPL-WP112432
...
15
Screw WPL-WP487353
...
16
Cushion WPL-112370
...
17
Frame-Oven Door WPL-336211
...
18
Oven Door Handle WPL-336204
...
19
Spacer, Door Handle WPL-107158
...
20
Screw 6-20x3/8`` WPL-329382
...
21
Oven Door Glass-Outer WPL-336209
...
23
Screw 10abx3/4`` WPL-69364
...
24
Oven Door Glass-Intermediate WPL-308239
...
25
Screw 10 - 32 X 7/16`` WPL-295850
...
26
Screw 6-32x1/4`` WPL-293121
...
27
Baffle-Oven Door Lining WPL-336111
...
28
Oven Door Glass-Center WPL-296214
...
29
Retainer-Oven Door Glass WPL-323672
...
30
Oven Door Hinge (Lt. Or Rt.) WPL-331028
...
31
Clamp WPL-WP312967
...
32
Oven Door Lining WPL-331682
...
33
Oven Door Glass-Inner WPL-336442
...
34
Screw 10abx1 WPL-105799
...
35
Screw WPL-300864
...
36
Washer-Fiber WPL-333014
...
37
Spacer WPL-333015
...
38
Sensor WPL-336960

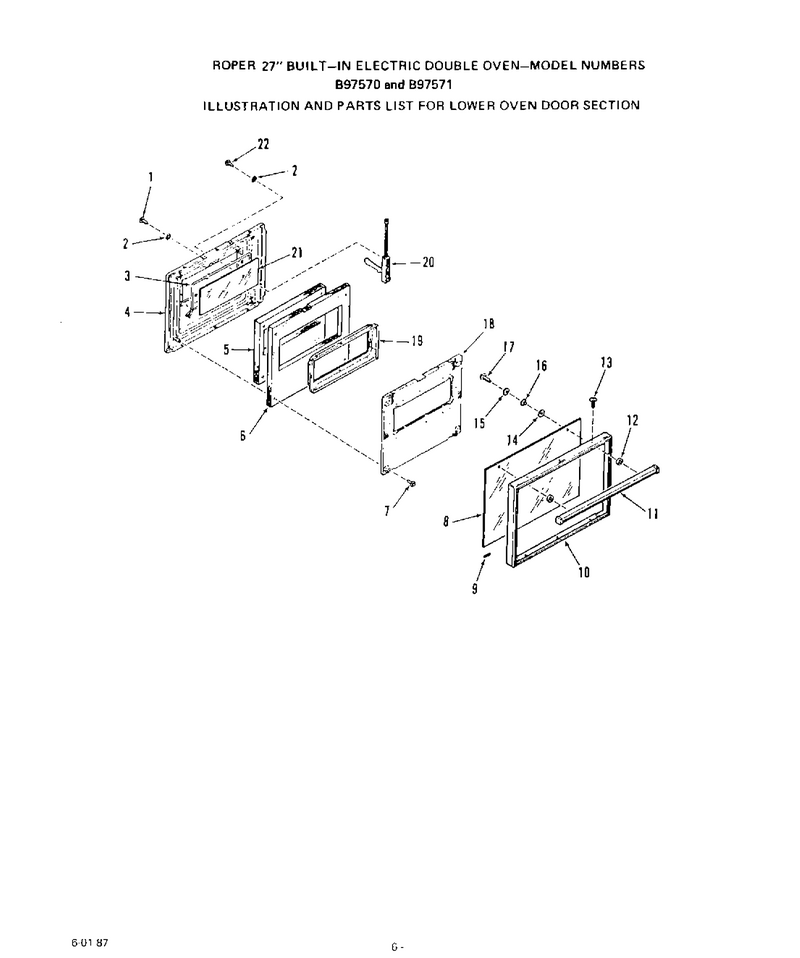

06 - Lower Oven Door

...
...
1
Screw 10abx1 WPL-105799
...
2
Washer WPL-21067
...
3
Seal-Oven Door WPL-302935
...
4
Lining-Oven Door WPL-311684
...
5
Insulation-Oven Door Plug WPL-311872
...
6
Insulation-Oven Door Lining WPL-311874
...
7
Nut WPL-WP112432
...
8
Outer Door Glass WPL-336209
...
9
Cushion WPL-112370
...
10
Frame-Oven Door WPL-336211
...
11
Handle WPL-336204
...
12
Spacer, Door Handle WPL-107158
...
13
Screw 6-20x3/8`` WPL-329382
...
14
Fiber Washer WPL-333014
...
15
Washer WPL-99279
...
16
Glass Spacer WPL-333015
...
17
Screw 10-32x3/4`` WPL-330864
...
18
Retainer-Oven Door Insulation WPL-336112
...
19
Retainer-Oven Door Glass WPL-323672
...
20
Hinge-Oven Door (Rt. Or Lt.) WPL-331029
...
21
Inner Door Glass WPL-296214
...
22
Screw 10-32x3/8`` WPL-239113

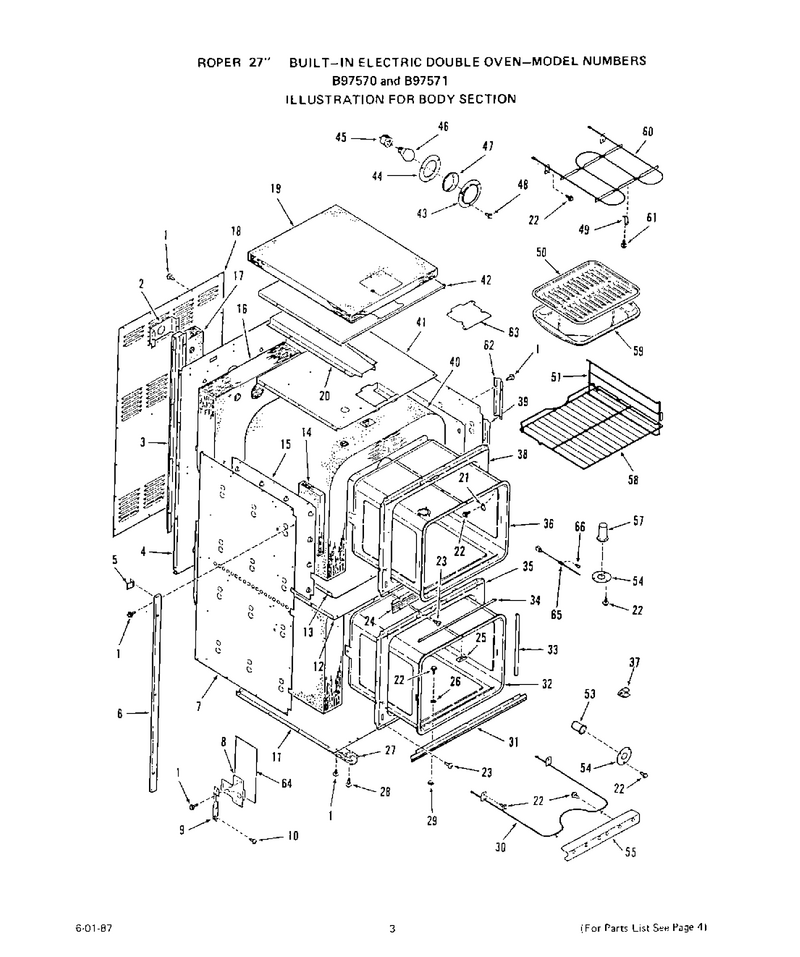

04 - Body

...
...
1
Nut WPL-WP112432
...
2
Insulation Retainer-Oven Light WPL-323630
...
3
Rear Oven Vent Box WPL-323638
...
4
Main Back WPL-336260
...
5
Spacer (6 Req) WPL-311726
...
6
Side Trim (Lt. Or Rt.) WPL-336239
...
7
Left WPL-325527
...
8
Hinge Box Asm. Lt Or Rt WPL-322609
...
9
Hinge Angle-Lt Or Rt (Up & Lo Ov) WPL-322611
...
10
Screw 10 - 32 X 17/32`` WPL-102428
...
11
Cabinet Bottom WPL-323624
...
12
Insulation Retainer-Ov. Top (Lo) WPL-327391
...
13
Insulation Retainer-Ov. Btm (Up) WPL-323632
...
14
Insulation (Lt. Or Rt.) WPL-279470
...
15
Insulation Retainer-Body Side WPL-337729
...
16
Insulation-Oven Back & Bottom WPL-336287
...
17
Elmnt-Brol WPL-WP660579
...
18
Cabinet Back WPL-323661
...
19
Insulation-Cabinet Top WPL-336580
...
20
Vent Box-Oven Top WPL-337944
...
21
Cover Plate-Thermostat Bulb WPL-237762
...
22
Screw 10 - 32 X 17/32`` WPL-102428
...
23
Screw WPL-336296
...
24
Center Front Trim WPL-33-6241
...
25
Cover (Lo. & Up. Ov) WPL-304835
...
26
Washer (Up. & Lo. Oven) WPL-21067
...
27
Bottom Channel-Lt. Or Rt. WPL-328042
...
28
Screw 10 - 32 X 1/4`` WPL-105771
...
29
Speed Nut 10 - 32 WPL-108069
...
30
Upper Oven WPL-33-5914
...
31
Lower Front Trim WPL-336242
...
32
Lower Oven Body WPL-331655
...
33
Lower Oven Seal-Sides WPL-313059
...
34
Lower Oven Seal - Top WPL-313055
...
35
Front Frame WPL-331669
...
36
Upper Oven Body WPL-336186
...
37
Thermostat Bulb Retainer Clip WPL-321539
...
38
Upper Front Frame WPL-337735
...
39
Ad-24 Draw WPL-WFR323724
...
40
Insulation-Oven Top & Sides WPL-311712
...
41
Insulation Retainer-Up. Oven Top WPL-336569
...
42
Insulation Retainer-Cabinet Top WPL-33-7727
...
43
Lens Retainer-Oven Light (Up. Oven) WPL-229372
...
44
Gasket-Oven Light Lens-Up. Oven WPL-229371
...
45
Oven Light Bulb Holder WPL-87883
...
46
Oven Light Bulb WPL-111257
...
47
Oven Light Lens (Up. Oven) WPL-114989
...
48
Screw 10 - 32 X 17/32`` WPL-102428
...
49
Broiler Element Support-Up. Oven WPL-324809
...
50
Broiler Pan Grid WPL-326297
...
51
Oven Rack Guide WPL-305350
...
53
Oven Vent Tube-Lo. Oven WPL-294679
...
54
Oven Vent Clamp WPL-328303
...
55
Shield-Element-Lo. Oven WPL-331670
...
57
Elmnt-Brol WPL-WP660579
...
58
Oven Rack -4 Each Req. WPL-311735
...
59
Broiler Pan WPL-331592
...
60
Broiler Element-Up Oven WPL-319526
...
61
Screw 10abx3/8`` WPL-69605
...
62
Raceway WPL-323665
...
63
Cover Plate WPL-237762
...
64
Insulation Cover WPL-114300
...
65
Sensor WPL-334300
...
66
Screw WPL-336152
