Whirlpool B9608W3

Model: B9608W3

Save Part Not Listed?
product name

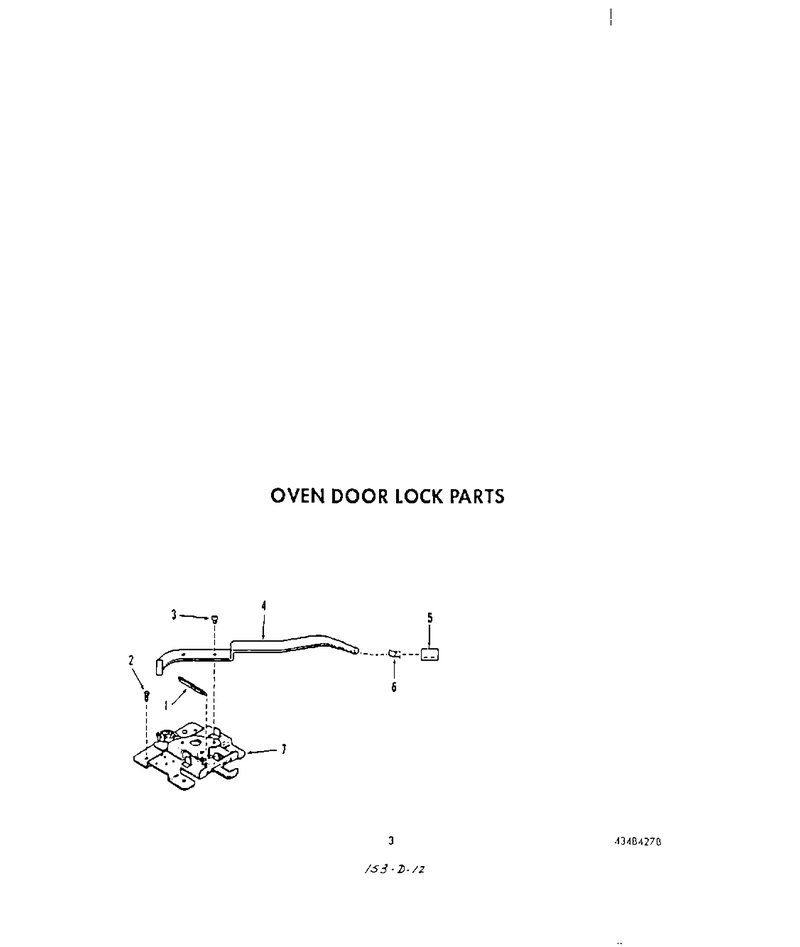

03 - Oven Door Lock

...
...
1
Spring WPL-4331536
...
2
Screw WPL-W10850756
...
3
Screw WPL-487125
...
4
Handle, Lock WPL-4338045
...
5
Knob, Lock Handle (Black Model) WPL-4337568
...
6
Clip, Knob WPL-4335705
...
7
Lock Assembly WPL-4337490

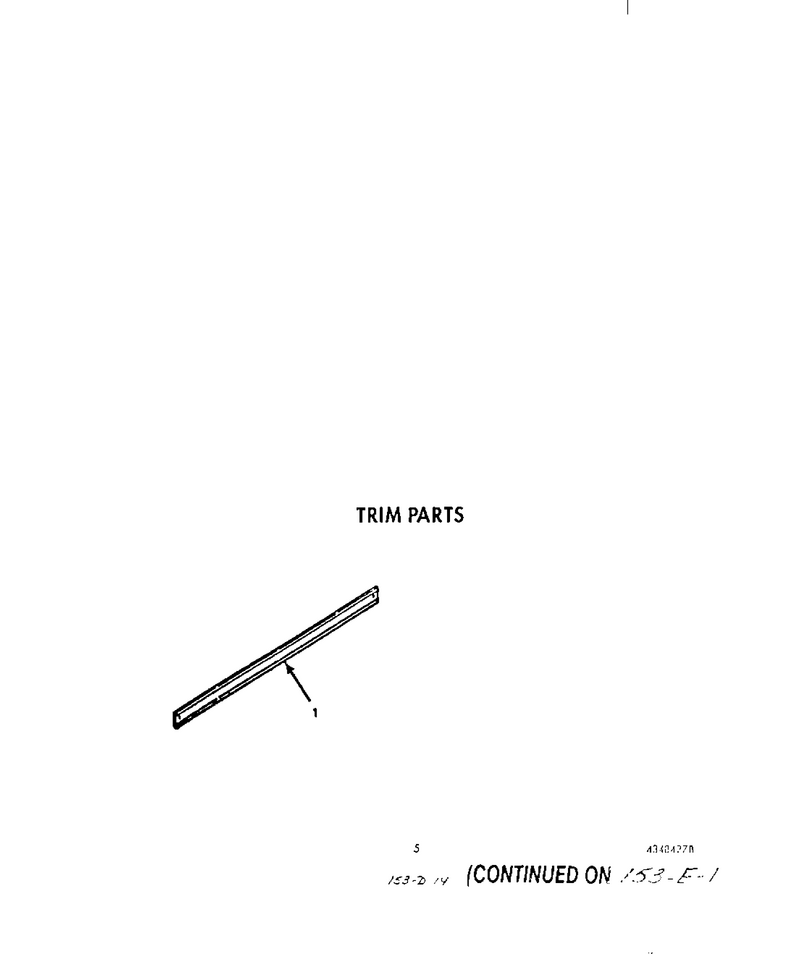

05 - Trim

...
...
1
Cabinet Trim (Black Model) WPL-4338256

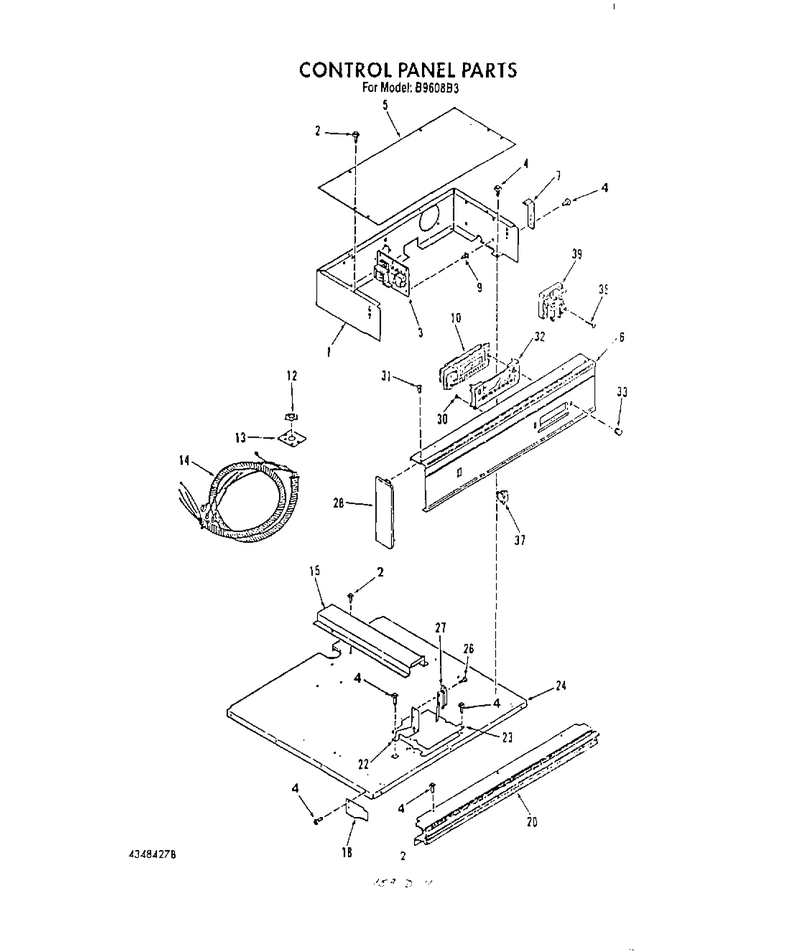

02 - Control Panel

...
...
1
Housing, Control WPL-4338552
...
2
Screw WPL-W10850756
...
3
Relay WPL-4338627
...
4
Screw WPL-WP681414
...
5
Top Cover, Control Housing WPL-4338050
...
6
Control Panel (Black Model) WPL-4337721
...
7
Bracket-Control Panel WPL-4338562
...
9
Spacer WPL-4336562
...
10
Control, Clock/oven WPL-4342971
...
12
Nut (For No.14) WPL-4324132
...
13
Plate (For No.14) WPL-4327503
...
14
Harness-Conduit WPL-4337730
...
15
Cover, Wire WPL-4335478
...
18
Heat Shield, (Lt/rt) WPL-4337717
...
20
Trim-Control Panel (White Model) WPL-4342949
...
22
Bracket, Micro Switch WPL-4337430
...
23
Cover Plate, Lock WPL-4342735
...
24
Top, Cabinet WPL-4338047
...
26
Screw No.6-32x7/8 WPL-4335220
...
27
Micro Switch WPL-4337399
...
28
End Cap (Right-Black) WPL-4337791
...
30
Screw, No.6-32 X 5/16 WPL-4323476
...
31
Screw, 10-32 X 1/2 WPL-9781910
...
32
Lens-Clock WPL-WP4342950
...
33
Knob, Clock (Black Model) WPL-4338513
...
37
Switch, Rocker WPL-9870840
...
38
Screw No.10-32x1`` WPL-4323953
...
39
Fan Assembly WPL-4337808

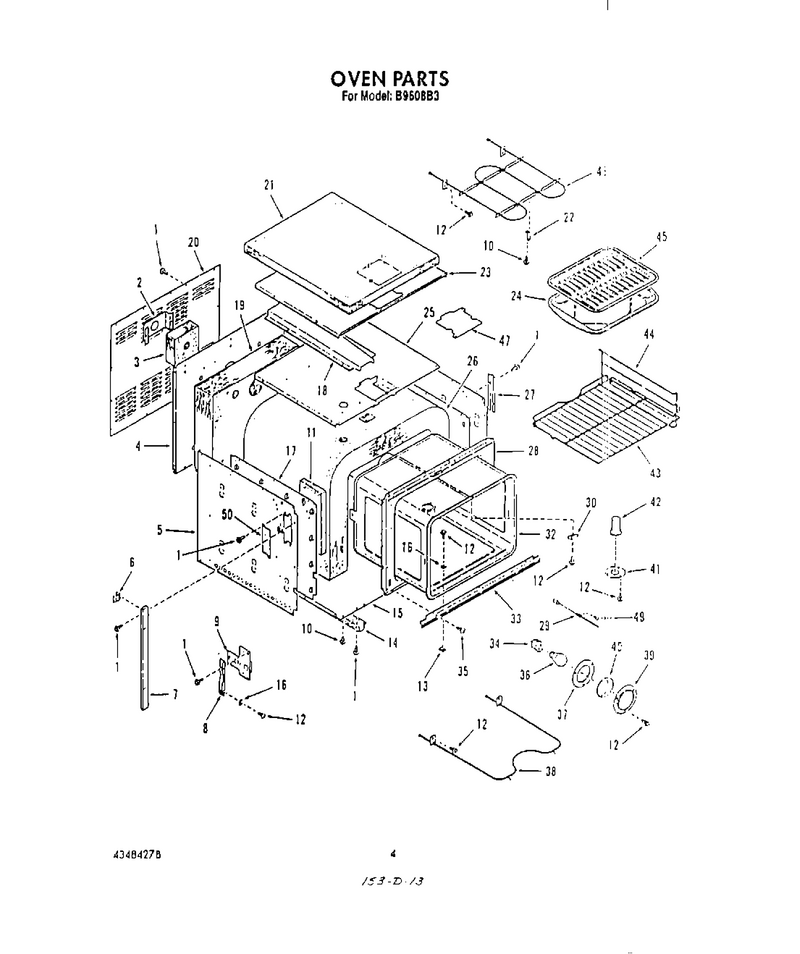

04 - Oven

...
...
1
Screw WPL-WP681414
...
2
Retainer, Insul. WPL-4333934
...
3
Insulation WPL-4335412
...
4
Back, Main WPL-4337715
...
5
Side, Cabinet (Right) WPL-4333956
...
6
Spacer (4) WPL-4331175
...
7
Side Trim, Lt/rt (White Model) WPL-4342736
...
8
Angle WPL-4335684
...
9
Hinge Box Assembly Lt/rt WPL-4333675
...
10
Screw, 10-32x1/4 WPL-4323953
...
11
Insulation WPL-4335406
...
12
Screw, 10-24 X 1/2 WPL-486146
...
13
Speed Nut No.10-32 WPL-4324012
...
14
Channel, Lt/rt WPL-4335505
...
15
Bottom, Cabinet WPL-4333962
...
16
Washer WPL-4323979
...
17
Retainer, Insul.-Side (Lt/rt) WPL-4338136
...
18
Vent, Oven Top WPL-4338216
...
19
Insulation, Back And Bottom WPL-4337725
...
20
Back, Cabinet WPL-4338214
...
21
Insulation Cabinet Top WPL-4354913
...
22
Support, Broiler Element WPL-4334358
...
23
Retainer, Top Insulation WPL-4336891
...
24
Procelain Broiler (Pan And Grid) WPL-4396923
...
25
Retainer, Oven Top Insulation WPL-4333936
...
26
Insulation, Oven Top & Sides (1 Pc) WPL-4353887
...
27
Raceway WPL-4334604
...
28
Frame, Front WPL-4338139
...
29
Sensor WPL-WP8053344
...
30
Cover WPL-4329206
...
32
Oven Body WPL-4337685
...
33
Lower Trim (Black Model) WPL-4337705
...
34
Sockt-Lite WPL-W10856866
...
35
Screw No.10-32x5/8 WPL-4337728
...
36
Light Bulb WPL-8009
...
37
Seal-Oven Light WPL-4324481
...
38
Element, Bake WPL-4336509
...
39
Retainer, Lens WPL-4324482
...
40
Light Lens WPL-4166866
...
41
Clamp, Vent WPL-4335624
...
42
Tube, Oven Vent WPL-4331173
...
43
Oven Rack (2) WPL-4331177
...
44
Guide-Oven Rack (Lt/rt) WPL-4329341
...
45
Procelain Broiler (Pan And Grid) WPL-4396923
...
46
Elmnt-Brol WPL-WP4334925
...
47
Cover Plate-Lock WPL-4336895
...
49
Screw WPL-4324445
...
50
Cover Plate WPL-4338202

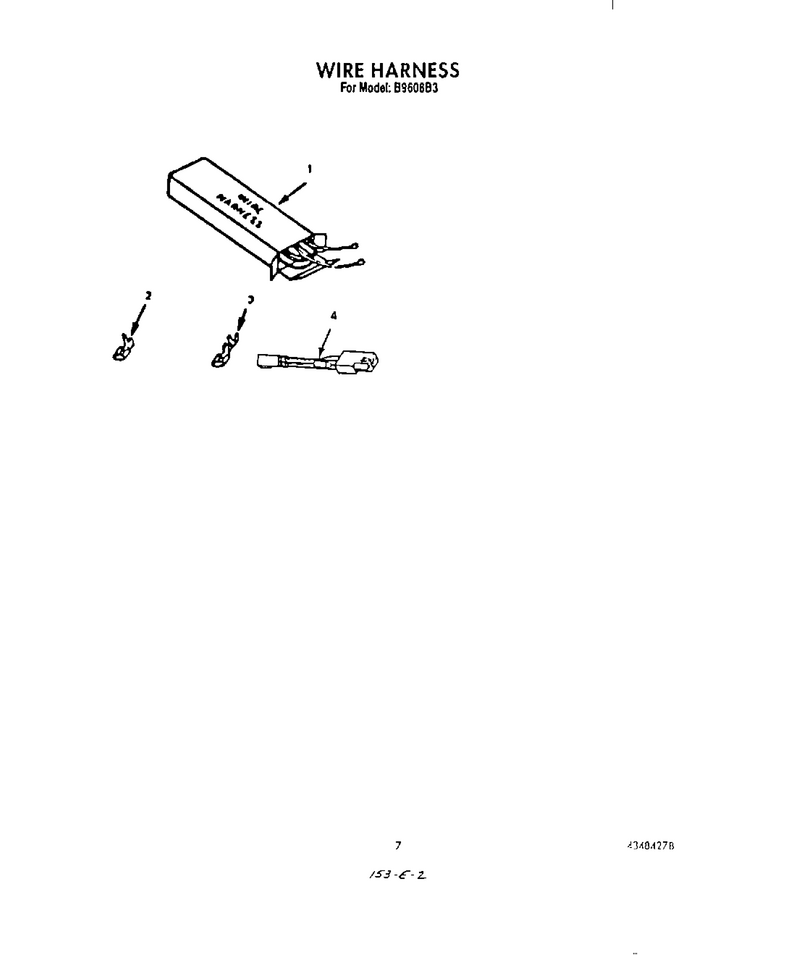

07 - Wire Harness

...
...
1
Wire Harness (Main) WPL-4338650
...
2
Flag Terminal WPL-4325035
...
3
Terminal WPL-WP248562
...
4
Wire Harness (Fuse, Thermal) WPL-4337930

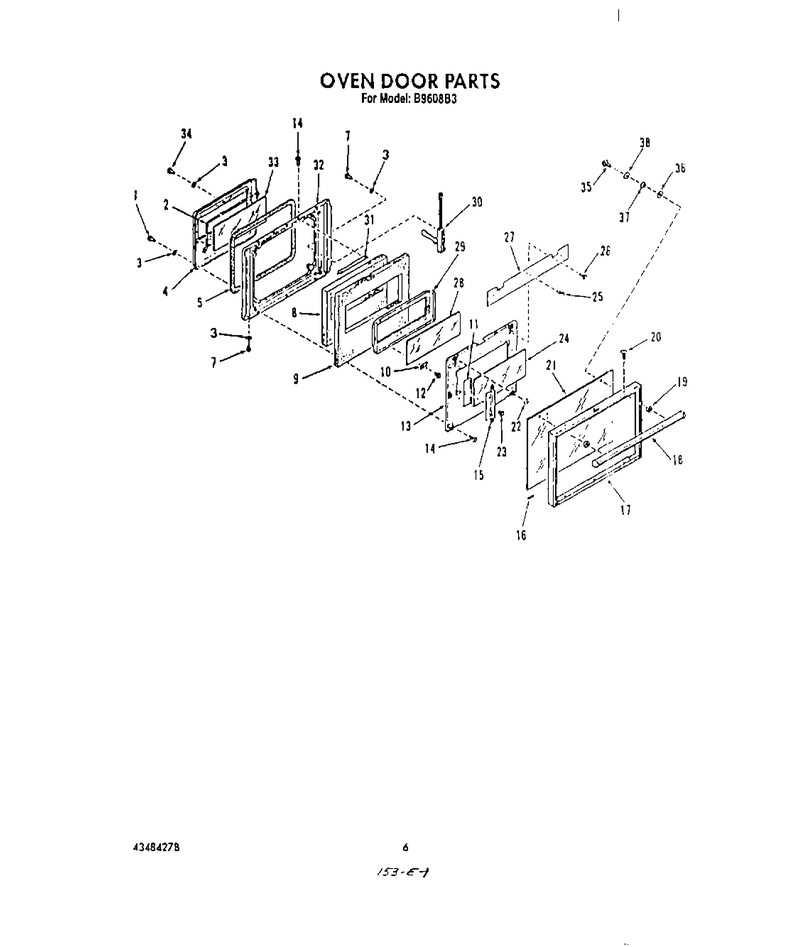

06 - Oven Door , Lit/optional

...
...
1
Screw WPL-WP308685
...
2
Gaskt-Door WPL-4328804
...
3
Washer WPL-4323206
...
4
Plug-Oven Door WPL-4338238
...
5
Gaskt-Door WPL-4331225
...
7
Screw, 10a X 3/8 (2) WPL-254217
...
8
Insulation-Oven Door Plug WPL-4331209
...
9
Insulation WPL-4335406
...
10
Retainer, Glass (4) WPL-4331472
...
11
Spacer, Glass (Lt/rt) WPL-4330933
...
12
Screw 10-32x17/32 WPL-4327611
...
13
Retainer-Insul. Oven Door WPL-4337673
...
14
Screw WPL-W10850756
...
15
Clamp, Glass (Lt/rt) WPL-4329928
...
16
Cushion WPL-4324217
...
17
Frame, White WPL-4338292
...
18
Handle, Black WPL-4337688
...
19
Spacer, White WPL-4323472
...
20
Screw 6-20x3/8 (White Model) WPL-4338485
...
21
Glass, Outer Door (Black Model) WPL-4337693
...
22
Washer WPL-4337618
...
23
Screw WPL-486650
...
24
Glass-Intermediate WPL-4330053
...
25
Screw WPL-W10850756
...
26
Screw 6-32x1/4 WPL-4327216
...
27
Baffle-Door Lining WPL-4337672
...
28
Glass-Door Center WPL-4327671
...
29
Retainer, Glass WPL-4333949
...
30
Hinge-Door (Lt/rt) WPL-4336474
...
31
Stiffener, Lining WPL-4338250
...
32
Lining-Oven Door WPL-4336626
...
33
Glass, Inner Oven Door WPL-4331298
...
34
Screw, 10-16 X 1 WPL-4159426
...
35
Screw WPL-WP999367
...
36
Washer, Fiber WPL-4336868
...
37
Spacer WPL-4336869
...
38
Washer, Metal 12 X 1/2 (2) WPL-681424
