Whirlpool B9607X0

Model: B9607X0

Save Part Not Listed?
product name

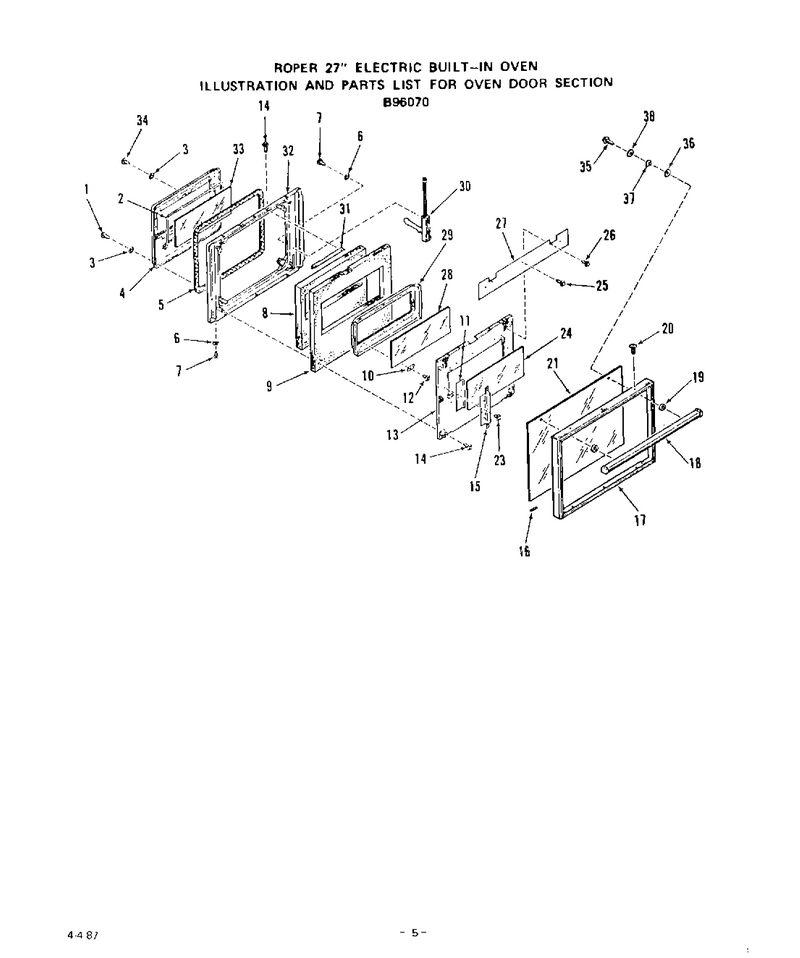

05 - Oven Door , Lit/optional

...
...
Xwire Harness WPL---
...
1
Screw 10abx1/2`` WPL-326974
...
2
Door Seal WPL-302935
...
3
Washer WPL-21067
...
4
Plug-Oven Door WPL-331672
...
5
Oven Door Gasket WPL-311873
...
6
Washer WPL-21067
...
7
Screw 10-32x3/8`` WPL-239113
...
8
Insulation-Oven Door Plug WPL-311872
...
9
Insulation-Oven Door Lining WPL-311874
...
10
Door Glass Retainer (4 Req) WPL-312888
...
11
Spacer-Oven Door Glass (Lt. Or Rt.) WPL-310929
...
12
Screw 10-32x17/32`` WPL-295849
...
13
Retainer-Oven Door Insulation WPL-336112
...
14
Nut WPL-WP112432
...
15
Screw WPL-WP487353
...
16
Cushion WPL-112370
...
17
Frame-Oven Door WPL-336211
...
18
Oven Door Handle WPL-336204
...
19
Spacer, Door Handle WPL-107158
...
20
Screw 6-20x3/8`` WPL-329382
...
21
Oven Door Glass-Outer WPL-336209
...
23
Screw 10abx3/4`` WPL-69364
...
24
Oven Door Glass-Intermediate WPL-308239
...
25
Screw 10 - 32 X 7/16`` WPL-295850
...
26
Screw 6-32x1/4`` WPL-293121
...
27
Baffle-Oven Door Lining WPL-336111
...
28
Oven Door Glass-Center WPL-296214
...
29
Retainer-Oven Door Glass WPL-336442
...
30
Oven Door Hinge (Lt. Or Rt.) WPL-331028
...
31
Clamp WPL-WP312967
...
32
Oven Door Lining WPL-331682
...
33
Oven Door Glass-Inner WPL-312426
...
34
Screw 10abx1 WPL-105799
...
35
Screw WPL-300864
...
36
Washer-Fiber WPL-333014
...
37
Spacer WPL-333015
...
38
Sensor WPL-336312

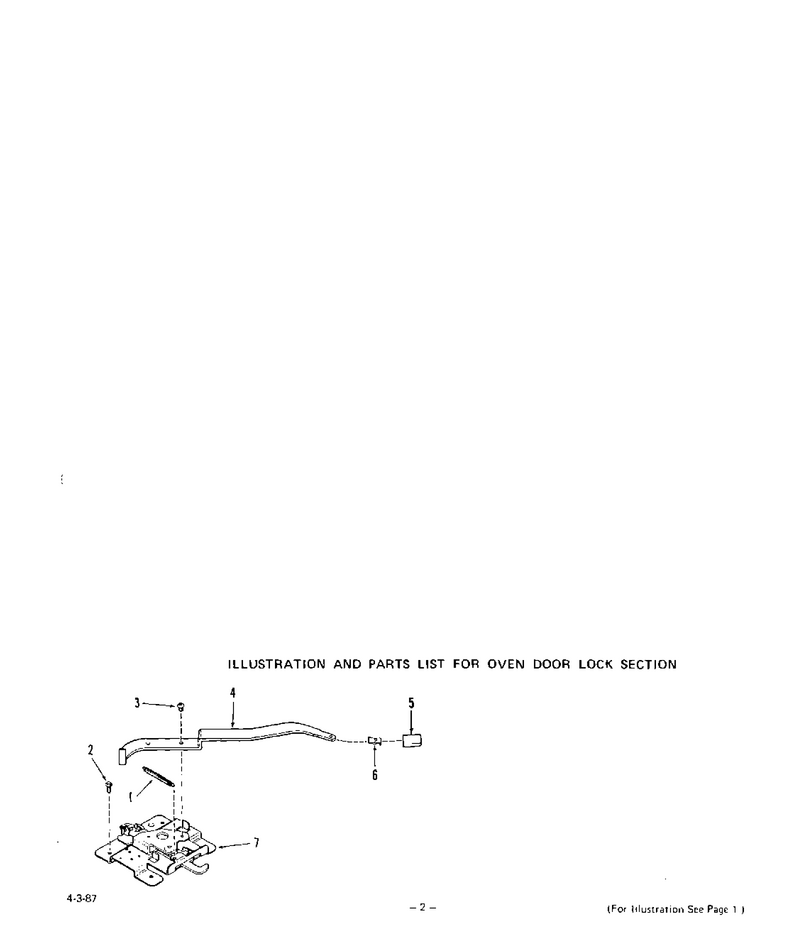

03 - Oven Door Lock

...
...
1
WPL-832952
...
2
Nut WPL-WP112432
...
3
Screw 10-24x1/4`` WPL-288248
...
4
Lock Handle WPL-337409
...
5
Knob-Lock Handle WPL-335738
...
6
Clip-Knob WPL-335692
...
7
Oven Door Lock Assm. WPL-311869

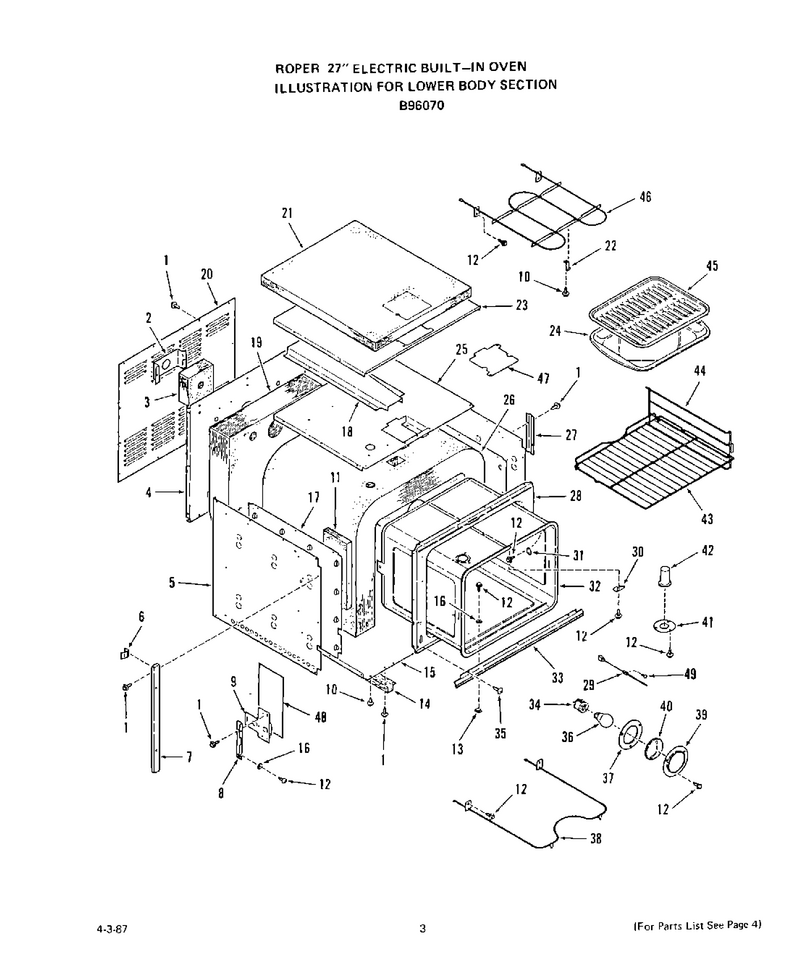

04 - Lower Body

...
...
1
Nut WPL-WP112432
...
2
Insulation Retainer-Oven Light WPL-323630
...
3
Elmnt-Brol WPL-WP660579
...
4
Main Back WPL-336259
...
5
Left WPL-323715
...
6
Spacer (4 Req) WPL-311726
...
7
Side Trim-Lt. Or Rt. WPL-336238
...
8
Hinge Angle-Lt. Or Rt. WPL-322611
...
9
Hinge Box-Lt. Or Rt. WPL-322609
...
10
Screw 10 - 32 X 1/4`` WPL-105771
...
11
Insulation (Lt. Or Rt.) WPL-279470
...
12
Screw 10 - 32 X 17/32`` WPL-102428
...
13
Speed Nut 10-32 WPL-107956
...
14
Bottom Channel-Lt. Or Rt. WPL-328042
...
15
Cabinet Bottom WPL-323740
...
16
Washer WPL-106462
...
17
Insulation Retainer-Oven Side (Lt. Or Rt.) WPL-323636
...
18
Top Oven Vent Box WPL-323640
...
19
Insulation-Oven Back & Bottom WPL-336287
...
20
Cabinet Back WPL-323722
...
21
Insulation-Cabinet Top WPL-333119
...
22
Broiler Element Support WPL-324809
...
23
Insulation Retainer-Cabinet Top WPL-333117
...
24
Broiler Pan WPL-331592
...
25
Insulation Retainer-Oven Top WPL-323634
...
26
Insulation Oven Top & Sides (1 Piece) WPL-311712
...
27
Raceway WPL-325532
...
28
Front Frame WPL-336575
...
29
Sensor WPL-334300
...
30
Cover WPL-304835
...
31
Cover Plate-Thermostat Bulb WPL-237762
...
32
Oven Body WPL-336186
...
33
Lower Trim WPL-336242
...
34
Holder-Oven Light Bulb WPL-87883
...
35
New Instal WPL-WFR112013
...
36
Oven Light Bulb WPL-111257
...
37
Gasket-Oven Light WPL-229371
...
38
Bake Element WPL-320418
...
39
Lens Retainer-Oven Light WPL-229372
...
40
Oven Light Lens WPL-114989
...
41
Oven Vent Clamp WPL-303612
...
42
Elmnt-Brol WPL-WP660579
...
43
Oven Rack (2 Req) WPL-311735
...
44
Oven Rack Guide-Rt. Or Lt. WPL-305350
...
45
Broiler Pan Grid WPL-326297
...
46
Broiler Element WPL-319526
...
47
Cover Plate-Lock WPL-323648
...
48
Insulation Cover WPL-114300
...
49
Screw WPL-336152

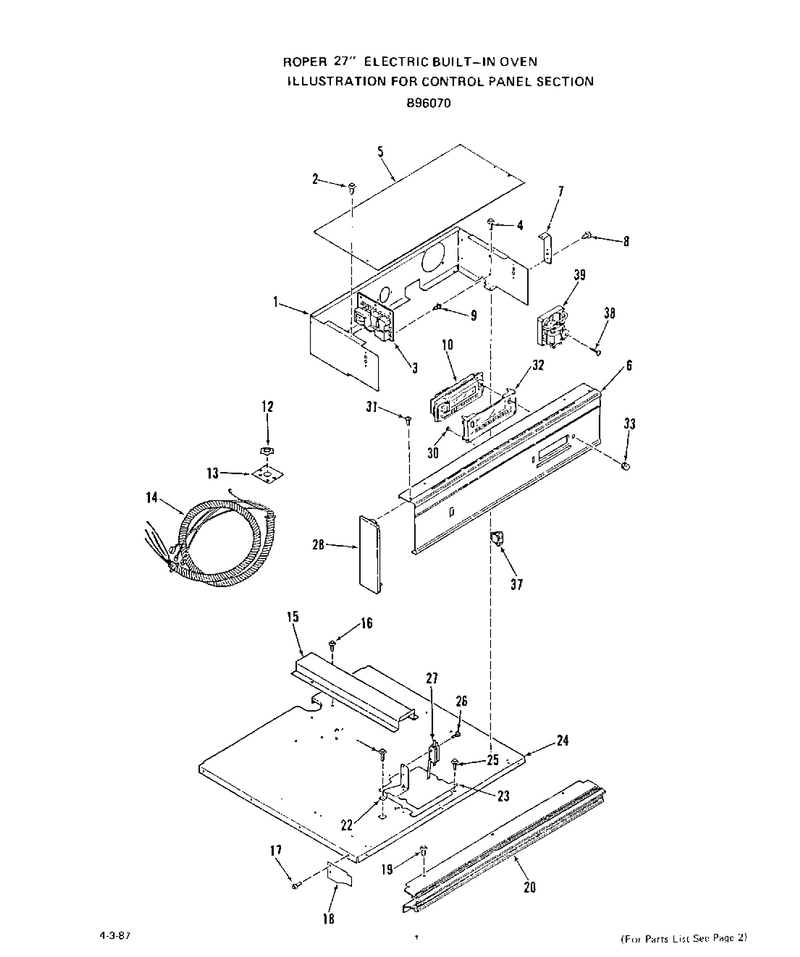

02 - Control Panel

...
...
1
Control Housing WPL-337413
...
2
Screw 10-16x7/16`` WPL-327320
...
3
Relay Board WPL-335245
...
4
Screw 10-16x7/16`` WPL-327320
...
5
Top Cover-Control Housing WPL-337414
...
6
Panel Control WPL-336280
...
7
Bracket Control Panel WPL-336563
...
8
Nut WPL-WP112432
...
9
Spacer Pcb WPL-311469
...
10
Clock WPL-335448
...
12
Nut (For Key 14) WPL-110340
...
13
Plate (For Key 14) WPL-294983
...
14
Harness Conduit Asm. WPL-336304
...
15
Wire Cover WPL-327990
...
16
Screw 10 - 32 X 3/8`` WPL-102429
...
17
Screw 10-16x7/16`` WPL-327320
...
18
Heat Shield (Lt. Or Rt.) WPL-336275
...
19
Nut WPL-WP112432
...
20
Trim, Control Panel WPL-337416
...
21
Screw 10-16x7/16`` WPL-327320
...
22
Bracket-Micro Switch WPL-335115
...
23
Cover Plate Lock WPL-333124
...
24
Cabinet Top WPL-337411
...
25
Screw 10 - 32 X 7/16`` WPL-295850
...
26
Screw 6-32x7/8`` WPL-327256
...
27
Micro Switch-Lock WPL-334973
...
28
End Cap WPL---
...
30
Screw 6-32x5/16`` WPL-78153
...
31
Screw 10-32x1/2`` WPL-321665
...
32
Clock Lens WPL-334915
...
33
Clock Knob WPL-334914
...
37
Switch WPL-334649
...
38
Screw 10-32x1`` WPL-313190
...
39
Fan Asm WPL-336560
