Whirlpool B9458B3

Model: B9458B3

Save Part Not Listed?
product name

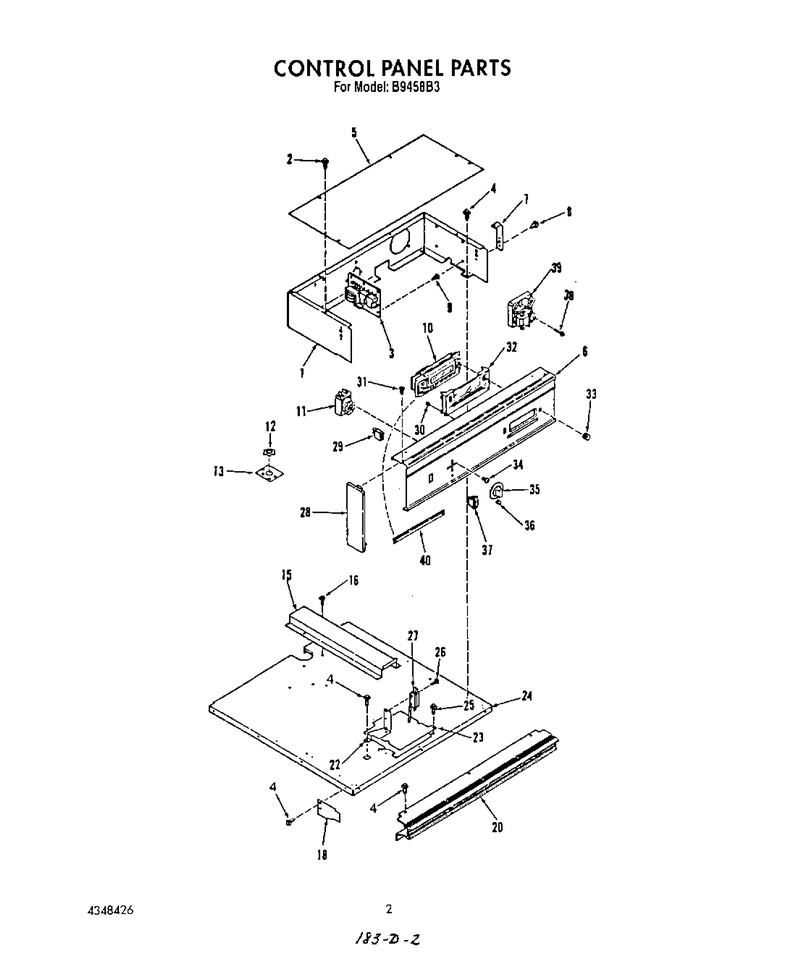

02 - Control Panel

...
...
1
Control Housing WPL-4338549
...
2
Screw WPL-W10850756
...
3
Relay WPL-4338627
...
4
Screw WPL-WP681414
...
5
Cover WPL-4338050
...
6
Control Panel WPL-4337720
...
7
Bracket WPL-4338562
...
8
Screw WPL-W10850756
...
9
Spacer WPL-4336562
...
10
Control, Clock/oven WPL-4342971
...
11
Thermostat WPL-4333242
...
12
Nut, Conduit WPL-4324132
...
13
Plate, Service WPL-4327503
...
15
Cover, Wire WPL-4335478
...
16
Screw WPL-W10850756
...
18
Heat Shield, (Lt/rt) WPL-4337717
...
20
Trim, Control Panel WPL-4338051
...
22
Bracket, Micro Switch WPL-4337430
...
23
Cover Plate-Lock WPL-4336895
...
24
Top, Cabinet WPL-4338046
...
25
Screw WPL-W10850756
...
26
Screw No.6-32x7/8 WPL-4335220
...
27
Micro Switch, Lock WPL-4337399
...
28
End Cap (Right) WPL-4337791
...
29
Indicator Light WPL-4336634
...
30
Screw, No.6-32 X 5/16 WPL-4323476
...
31
Screw, 10-32 X 1/2 WPL-9781910
...
32
Lens-Clock WPL-WP4342950
...
33
Knob, Clock WPL-4338513
...
34
Screw, 8-32 X 7/32 Phlps. Hex Hd. WPL-965194
...
35
Knob, Thermostat WPL-4337726
...
36
Lens-Light WPL-WP9750343
...
37
Swtch-Lite WPL-WP4314961
...
38
Screw No.10-32x1`` WPL-4323953
...
39
Fan Assembly WPL-4337808
...
40
Stiffener, Clock WPL-4338402

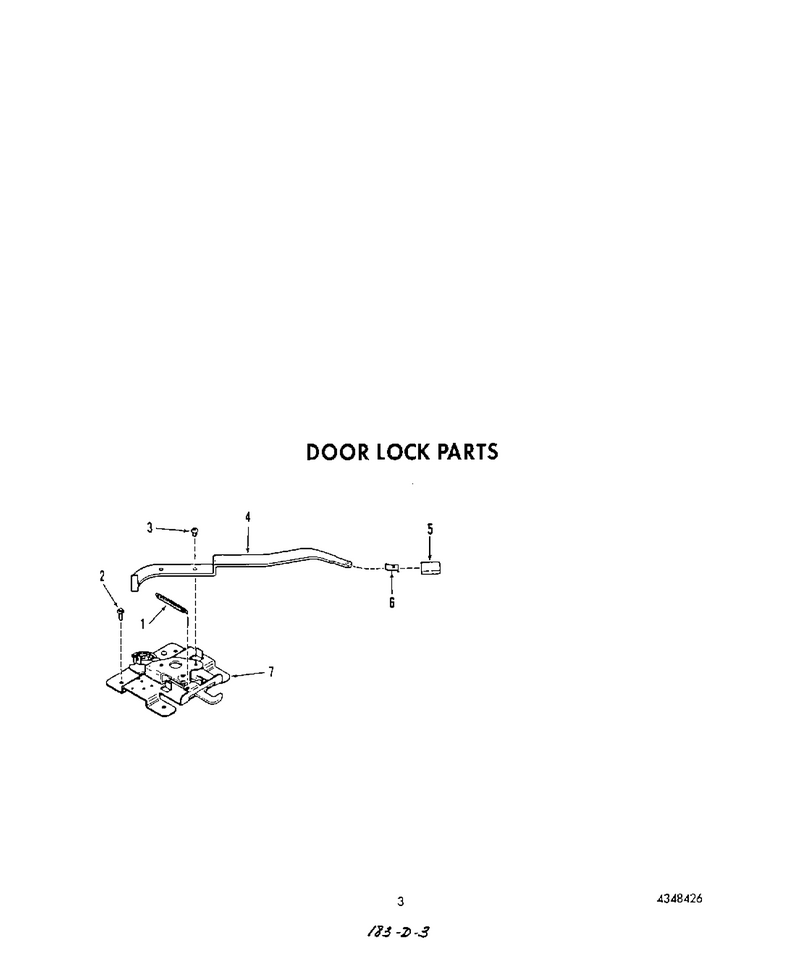

03 - Door Lock

...
...
1
Spring WPL-4331536
...
2
Screw WPL-W10850756
...
3
Screw WPL-487125
...
4
Handle, Lock WPL-4338045
...
5
Knob, Lock Handle WPL-4337568
...
6
Clip, Knob WPL-4335705
...
7
Lock Assembly WPL-4337490

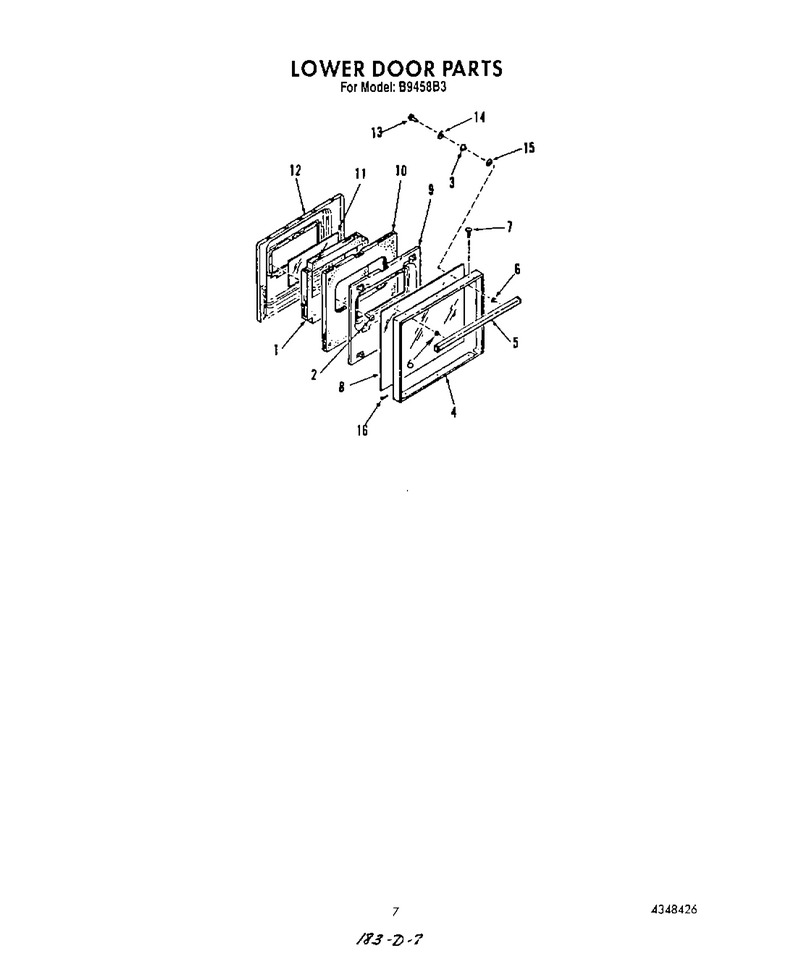

06 - Lower Door

...
...
1
Insulation WPL-4354814
...
2
Screw WPL-W10850756
...
3
Spacer WPL-4336869
...
4
Door Frame WPL-4337694
...
5
Handle WPL-4337687
...
6
Spacer WPL-241279
...
7
Screw, No.6-20 X 3/8 WPL-4336048
...
8
Glass-Door WPL-4343072
...
9
Retainer, Insulation WPL-4337826
...
10
Insulation WPL-4335406
...
11
Glass, Inner WPL-4335508
...
12
Lining WPL-4338434
...
13
Screw WPL-WP999367
...
14
Washer, Metal 12 X 1/2 (2) WPL-681424
...
15
Washer, Fiber WPL-4336868
...
16
Cushion WPL-4324217

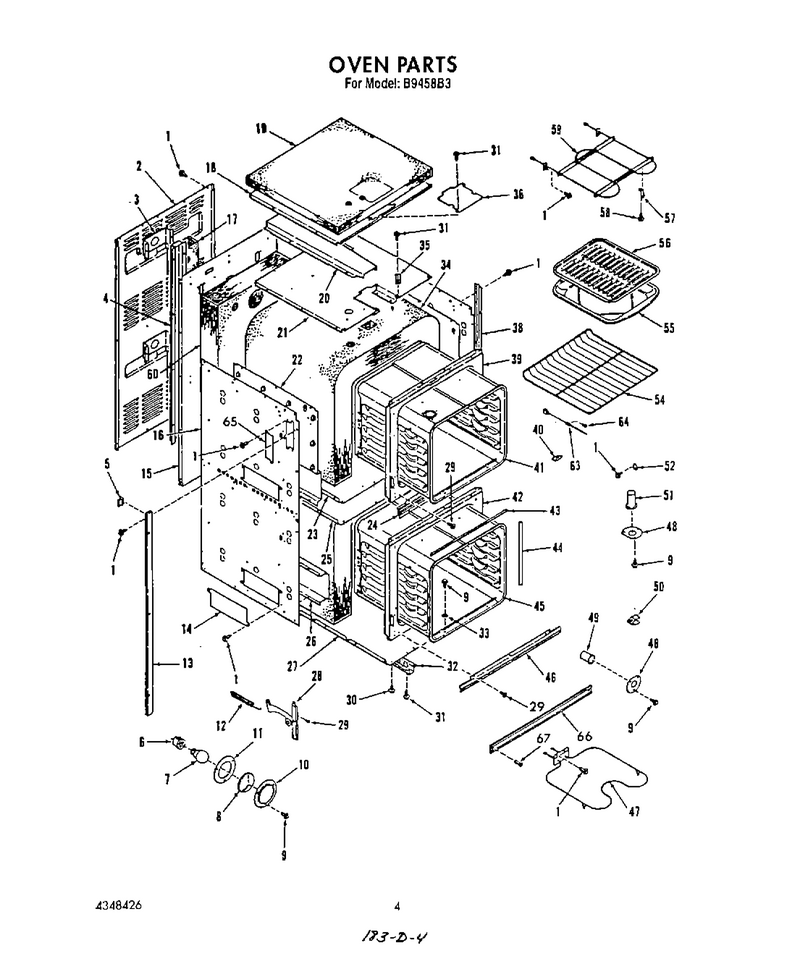

04 - Lit/optional , Oven

...
...
1
Screw WPL-WP681414
...
2
Back, Cabinet WPL-4335531
...
3
Retainer, Light Insulation, Upper/lower Ovens WPL-4333934
...
4
Vent Box, Rear WPL-4335560
...
5
Spacer (6) WPL-4335524
...
6
Sockt-Lite WPL-W10856866
...
7
Light Bulb WPL-8009
...
8
Light Lens WPL-4166866
...
9
Screw, 10-24 X 1/2 WPL-486146
...
10
Lens Retainer, Upper Oven WPL-4324482
...
11
Seal, Oven Light, Upper Oven WPL-4324481
...
12
Spring, Oven Door (Lt/rt) (Upper Oven) WPL-4335886
...
13
Side Trim (Lt/rt) WPL-4337710
...
14
Cover Plate (4) WPL-4335540
...
15
Back WPL-4337714
...
16
Cabinet Side, (Lt/rt) WPL-4338169
...
17
Insulation WPL-4335412
...
18
Retainer, Cabinet Top Insulation WPL-4336890
...
19
Insulation, Cabinet Top WPL-4337815
...
20
Vent Box WPL-4337876
...
21
Retainer, Oven Top Insulation WPL-4335464
...
22
Retainer, Oven Side Insulation WPL-4335530
...
23
Retainer, Bottom Insulation (Upper Oven) WPL-4335463
...
24
Trim, Center Front WPL-4343064
...
25
Retainer, Oven Top Insulation, (Lower Oven) WPL-4335461
...
26
Retainer, Door Spring Insulation (Lt/rt) WPL-4338372
...
27
Cabinet Bottom WPL-4335458
...
28
Hinge (Left (2)) WPL-4338610
...
29
Screw, 10-32 X 5/8 (2) WPL-488933
...
30
Screw No.10-32x1/4 WPL-4323953
...
31
Screw WPL-W10850756
...
32
Channel, Lt/rt WPL-4335505
...
33
Washer WPL-4323979
...
34
Insulation, Top & Sides (1 Pc) (Upper/lower) WPL-4354810
...
35
Bracket (2) WPL-4331687
...
36
Lock Cover Plate WPL-4333941
...
38
Raceway WPL-4334604
...
39
Front Frame (Upper) WPL-4338300
...
40
Cover WPL-4329206
...
41
Oven Body (Upper) WPL-4337686
...
42
Front Frame (Lower) WPL-4338301
...
43
Seal, Door Top (Lower) WPL-4335832
...
44
Seal, Door Sides (Lower) Rt/lt WPL-4335978
...
45
Oven Body, Lower WPL-4336613
...
46
Trim, Lower WPL-4337706
...
47
Bake Element (2) WPL-4335541
...
48
Clamp, Oven Vent WPL-4335624
...
49
Vent Tube (Lower) WPL-4327463
...
50
Clip, Thermostat Bulb WPL-4333390
...
51
Vent Tube, Upper WPL-4331173
...
52
Cover Plate, (2) Thermostat Bulb WPL-4324951
...
54
Oven Rack, (3) 2-Upper, 1-Lower WPL-4335557
...
55
Procelain Broiler (Pan And Grid) WPL-4396923
...
56
Procelain Broiler (Pan And Grid) WPL-4396923
...
57
Support, Broil Element (2) WPL-4334358
...
58
Screw, No.10 X 3/8 WPL-4323394
...
59
Broil Element (Upper) WPL-4335542
...
60
Insulation, Back & Bottom (1 Pc) WPL-4354811
...
63
Sensor WPL-WP8053344
...
64
Screw WPL-4338182
...
65
Cover Plate WPL-4338202
...
66
Cabinet Trim (Opt) WPL-4338255
...
67
Terminal WPL-WP285432

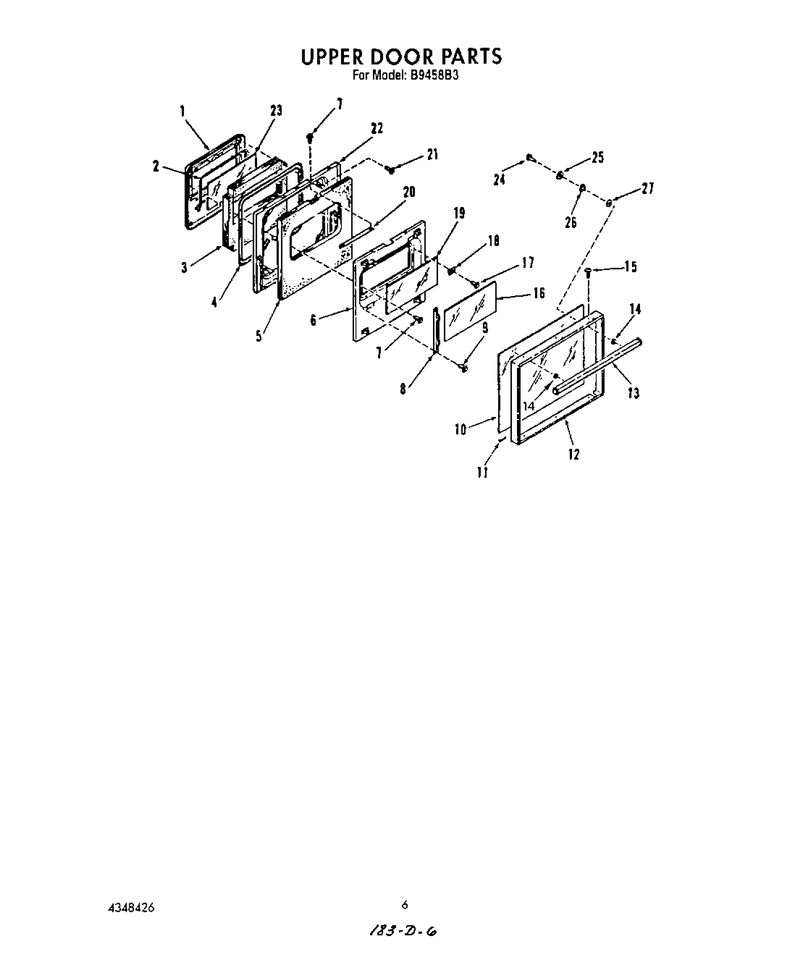

05 - Upper Door

...
...
1
Plug, Door Lining WPL-4338242
...
2
Gaskt-Door WPL-4328804
...
3
Insulation-Plug WPL-4354814
...
4
Gaskt-Door WPL-4335888
...
5
Insulation WPL-4335406
...
6
Retainer, Insulation WPL-4337826
...
7
Screw WPL-W10850756
...
8
Retainer, Door Glass (Lt/rt) WPL-4335518
...
9
Screw WPL-WP681414
...
10
Glass-Door WPL-4343072
...
11
Cushion WPL-4324217
...
12
Door Frame WPL-4337694
...
13
Handle WPL-4337687
...
14
Spacer WPL-241279
...
15
Screw, No.6-20 X 3/8 WPL-4336048
...
16
Glass, Intermediate WPL-4335509
...
17
Screw, No.10-32 X 17/32 WPL-4327611
...
18
Retainer, Door Glass (4) WPL-4334791
...
19
Glass, Center WPL-4335508
...
20
Support, Lining WPL-4338250
...
21
Screw WPL-W10850756
...
22
Lining WPL-4338084
...
23
Glass, Inner WPL-4335506
...
24
Screw WPL-WP999367
...
25
Washer, Metal 12 X 1/2 (2) WPL-681424
...
26
Spacer, Glass WPL-4336869
...
27
Washer, Fiber WPL-4336868
