product name

Whirlpool B8758X0

Model: B8758X0

Save Part Not Listed?
product name

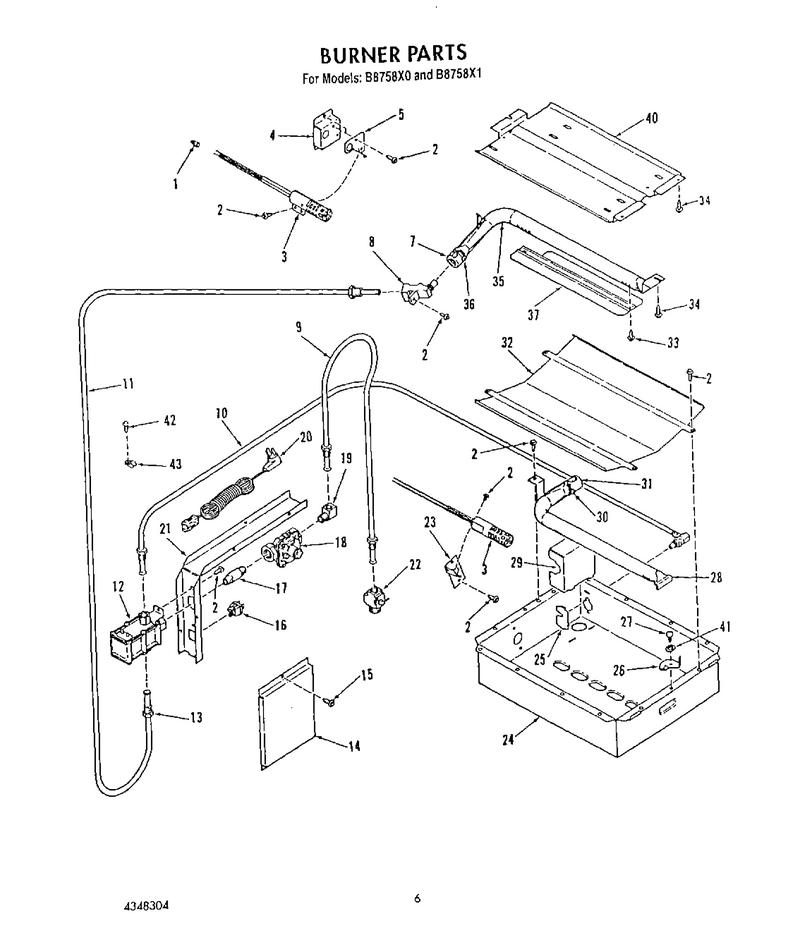

04 - Burner

...
...
1
Connector WPL-WP4323866
...
2
Screw WPL-WP681414
...
3
Igntr-Oven WPL-4342528
...
4
Cover, Igniter WPL-4337895
...
5
Bracket-Igniter WPL-4335389
...
7
Shutter, Air WPL-4331501
...
8
Orifice, Broiler WPL-4342867
...
9
Tubing WPL-4338164
...
10
Tubing-Oven Burner WPL-4338010
...
11
Tubing-Gas WPL-4342530
...
12
Valve, Control WPL-4338024
...
13
Nut, Tubing (2) WPL-4389559
...
14
Cover, Valve WPL-4338227
...
15
Screw WPL-W10850756
...
16
Disconnect WPL-4324642
...
17
Connector WPL-4328274
...
18
Regulator WPL-4338220
...
19
Elbow WPL-4327545
...
20
Power Cord WPL-4336084
...
21
Cover, Wire WPL-4337977
...
22
Valve, Shut-Off WPL-4333122
...
23
Bracket, Igniter WPL-4331163
...
24
Box, Burner WPL-4337896
...
25
Plate, Orifice Mounting WPL-4335704
...
26
Cam-Latch WPL-8189698
...
27
Screw, Shoulder WPL-4335745
...
28
Burner, Oven WPL-4337897
...
29
Shield WPL-4336678
...
30
Screw, Adjustment WPL-4331502
...
31
Insulation WPL-4335406
...
32
Bottom, Baffle WPL-4338511
...
33
Screw WPL-WP489128
...
34
Screw WPL-WP308685
...
35
Burner, Broiler WPL-4337898
...
36
Screw, Adjustment WPL-4331502
...
37
Baffle, Burner WPL-4337913
...
40
Baffle, Broiler WPL-4337899
...
41
Washer, Spring WPL-4337031
...
42
Screw WPL-WP999367
...
43
Clip WPL-4323987

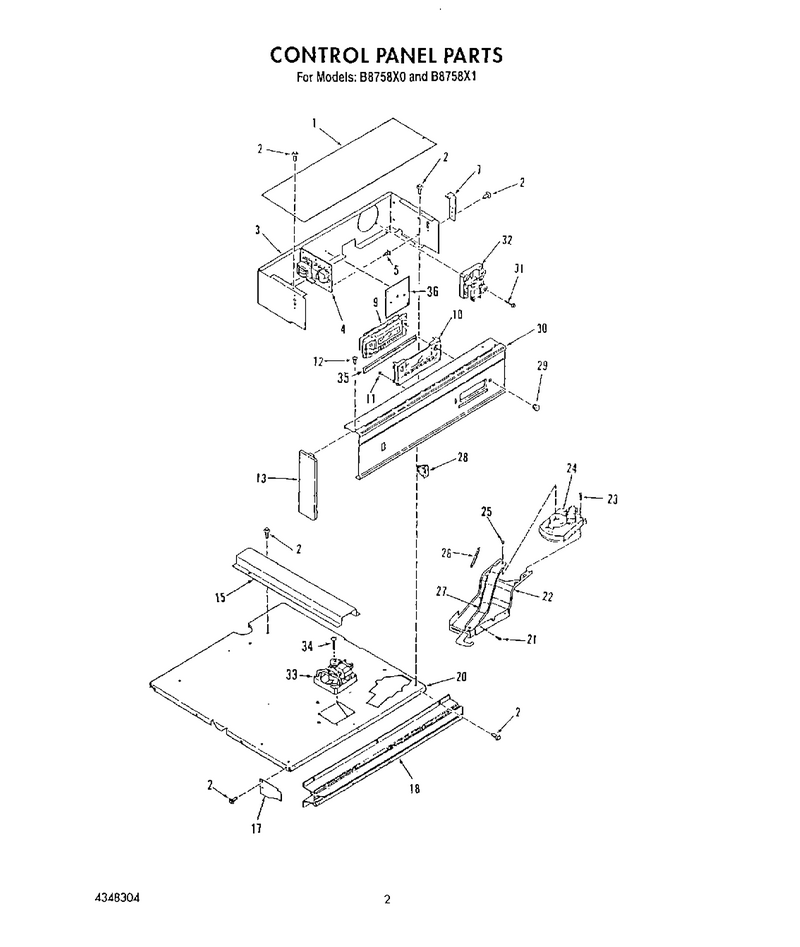

02 - Control Panel

...
...
1
Cover, Top WPL-4338050
...
2
Screw WPL-W10850756
...
3
Housing, Control WPL-4338552
...
4
Relay WPL-4338627
...
5
Spacer WPL-4336562
...
7
Bracket WPL-4338562
...
9
Clock (B8758x0 Model) WPL-338468
...
10
Lens, Clock WPL---
...
11
Screw, No.6-32 X 5/16 WPL-4323476
...
12
Screw, 10-32 X 1/2 WPL-9781910
...
13
End Cap (Right) WPL-4337791
...
15
Cover, Wire WPL-4338143
...
17
Shield, Heat (Lt/rt) WPL-4337717
...
18
Trim-Control Panel WPL-4338003
...
20
Top, Cabinet WPL-4337891
...
21
Screw, 10-32 X 1/2 WPL-9781910
...
22
Plate, Door Lock WPL-4337806
...
23
Screw WPL-4350821
...
24
Motor-Ltch WPL-4389870
...
25
Screw (4) WPL-4162214
...
26
Spring, Lock WPL-4338207
...
27
Lever, Lock WPL-4338225
...
28
Swtch-Lite WPL-WP4314961
...
29
Clock Knob (Model B8758x0) WPL-4337391
...
30
Panel, Control WPL-4337719
...
31
Screw No.10-32x1/4 WPL-4323953
...
32
Fan Assembly WPL-4337808
...
33
Blower WPL-814185
...
34
Screw WPL-4335220
...
35
Support, Clock WPL-4338402
...
36
Cover, Plate WPL-4338553

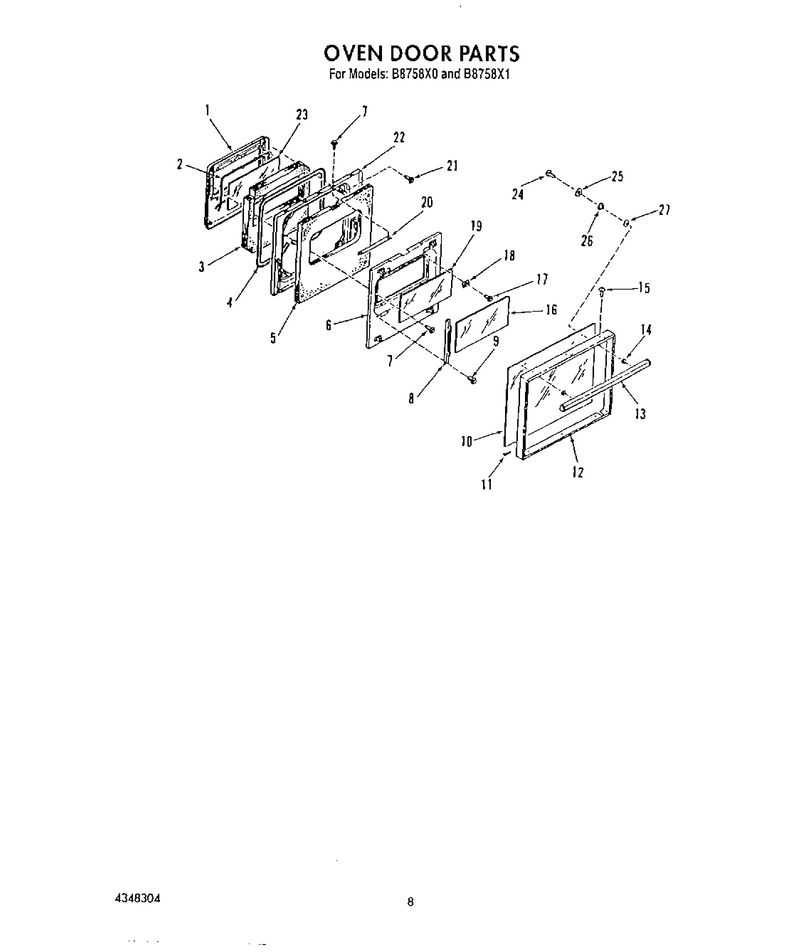

05 - Oven Door, Lit/optional

...
...
Use & Care Manual WPL-LIT4348301
...
1
Plug-Inner Lining WPL-4338241
...
2
Gaskt-Door WPL-4328804
...
3
Insulation-Plug WPL-4354814
...
4
Gaskt-Door WPL-4335888
...
5
Insulation WPL-4335406
...
6
Retainer-Door Insulation WPL-4337826
...
7
Screw WPL-W10850756
...
8
Retainer-Glass (Lt/rt) WPL-4335518
...
9
Screw WPL-WP681414
...
10
Glass-Door WPL-4343072
...
11
Cushion WPL-4324217
...
12
Frame-Door WPL-4337694
...
13
Handle-Door WPL-4337687
...
14
Spacer WPL-241279
...
15
Screw WPL-WP487353
...
16
Glass, Intermediate WPL-4335509
...
17
Screw, No.10-32 X 17/32 WPL-4327611
...
18
Retainer-Glass (4) WPL-4334791
...
19
Glass-Center Door WPL-4335508
...
20
Support-Lining WPL-4338350
...
21
Screw WPL-W10850756
...
22
Lining-Door WPL-4338084
...
23
Glass-Inner Door WPL-4335506
...
24
Screw WPL-WP999367
...
25
Washer WPL-4336868
...
26
Spacer, Glass WPL-4336869
...
27
Wire Harness (Safety (B8758x1 Model)) WPL-4338211

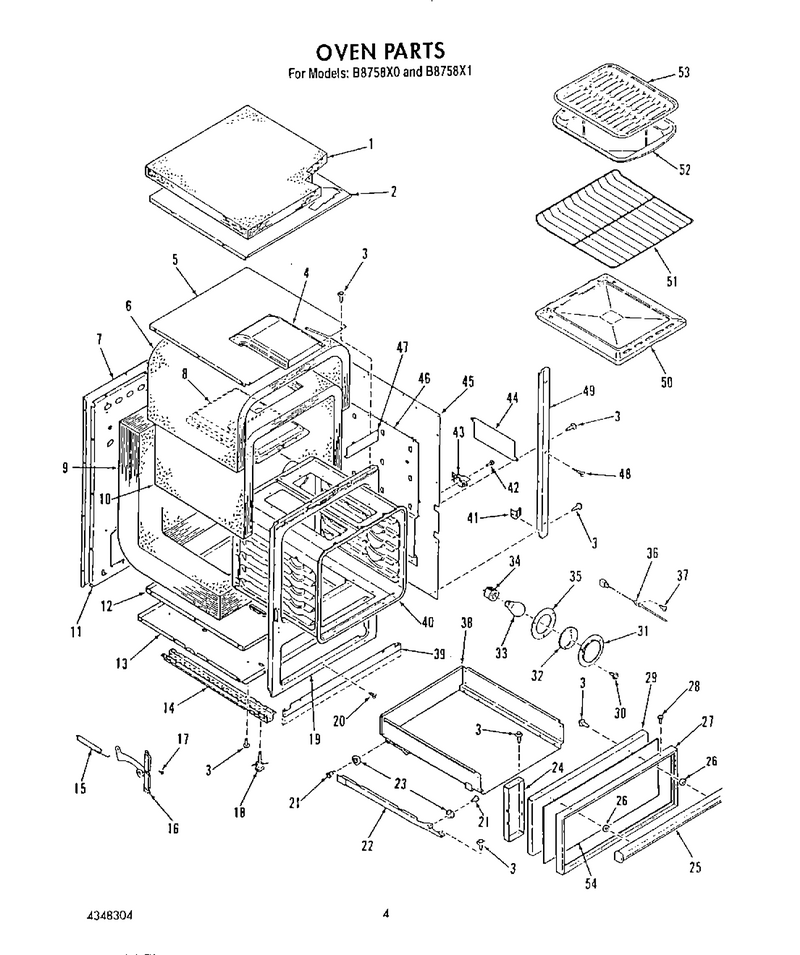

03 - Oven

...
...
1
Insulation WPL-4342868
...
2
Retainer-Oven Top WPL-4337953
...
3
Screw WPL-W10850756
...
4
Deflector, Flue WPL-4337903
...
5
Retainer-Top Insulation WPL-4337905
...
6
Insulation-Top & Outer Sides WPL-4354958
...
7
Rear-Oven WPL-4337980
...
8
Flue WPL-4337904
...
9
Insulation-Back & Bottom WPL-4354957
...
10
Insulation-Top & Sides WPL-4338184
...
11
Retainer-Rear Insulation WPL-4338191
...
12
Retainer-Bottom Insulation WPL-4337901
...
13
Bottom WPL-4337902
...
14
Channel, Bottom WPL-4338286
...
15
Spring, Door (2) WPL-4335885
...
16
Hinge Assembly (Left) WPL-4338033
...
17
Screw, 10-32 X 5/8 (2) WPL-488933
...
18
Leveler Leg WPL-4338309
...
19
Frame, Front WPL-4337900
...
20
Screw, Trim WPL-4337728
...
21
Roller WPL-4337288
...
22
Guide, Drawer (Right) WPL-4338013
...
23
Roller WPL-4337288
...
24
Liner-Lower Panel WPL-4338305
...
25
Handle WPL-4337687
...
26
Spacer WPL-241279
...
27
Frame-Lower Panel WPL-4338012
...
28
Screw, Trim WPL-4338183
...
29
Panel-Lower Front WPL-4338009
...
30
Screw WPL-WP308685
...
31
Retainer, Lens WPL-4324482
...
32
Light Lens WPL-4166866
...
33
Light Bulb WPL-8009
...
34
Sockt-Lite WPL-W10856866
...
35
Seal, Lamp Lens WPL-4324481
...
36
Sensor WPL-WP8053344
...
37
Screw WPL-4337678
...
38
Drawer, Storage WPL-4338184
...
39
Front Lower Trim (7/8`` Height) WPL-4338307
...
40
Oven WPL-4337893
...
41
Spacer-Front Trim WPL-4338075
...
42
Screw No.6-32x7/8 WPL-4335220
...
43
Switch WPL-4338223
...
44
Plate, Cover WPL-4335540
...
45
Side, Body WPL-4337954
...
46
Retainer-Side Insulation WPL-4337964
...
47
Barrier, Lock WPL-4342870
...
48
Screw WPL-4323971
...
49
Trim, Side WPL-4338011
...
50
Bottom, Oven WPL-4338114
...
51
Rack, Oven WPL-4335557
...
52
Procelain Broiler (Pan And Grid) WPL-4396923
...
53
Procelain Broiler (Pan And Grid) WPL-4396923
...
54
Overlay, Lower Panel WPL-4338310
