Whirlpool 7MWTW8127LW0

Model: 7MWTW8127LW0

Save Part Not Listed?
product name

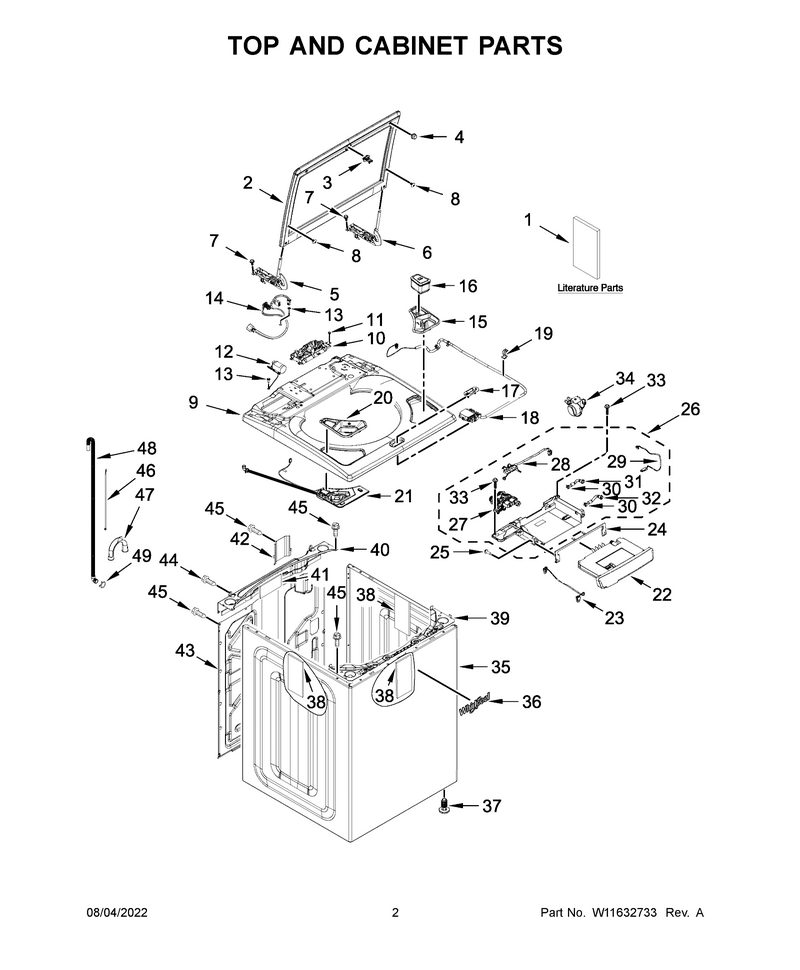

02 - Top And Cabinet Parts

...
...
1
Owners Manual WPL-W11578017
...
1A
Installation Instructions WPL-W11496272
...
1B
Energy Guide WPL-W11579121
...
2
Lid WPL-W11470212
...
3
Strike WPL-W11457841
...
4
Bumper WPL-W11398707
...
5
Hinge WPL-W11551369
...
6
Hinge WPL-W11551376
...
7
Screw WPL-WP489128
...
8
Bolt WPL-W11679612
...
9
Top WPL-W11423774
...
10
Cntrl-Elec WPL-W11510463
...
11
Screw WPL-WP693995
...
12
Filter WPL-W11614635
...
13
Screw WPL-W10846509
...
14
Cord-Power WPL-W11551294
...
15
Bezel WPL-W11662175
...
16
Brush WPL-W11416456
...
17
Bezel WPL-W11545554
...
18
Latch WPL-W11700916
...
19
Clip WPL-WP90016
...
20
Bezel WPL-W11550898
...
21
Dispenser WPL-W11569112
...
22
Drawer WPL-W11413340
...
23
Harness, Dispenser WPL-W11130938
...
24
Bezel, Dispenser WPL-W11174982
...
25
Screw WPL-WP9740848
...
26
Drawer WPL-W11413407
...
27
Valve WPL-W11220230
...
28
Harness, Water Inlet Valve WPL-W11524851
...
29
Switch-Sen WPL-W11685945
...
30
Clamp, Hose WPL-W10715699
...
31
Hose (Short) WPL-W11094606
...
32
Hose (Long) WPL-W11174978
...
33
Screw WPL-WPW10109200
...
34
Flowmeter WPL-W11596130
...
35
Cabinet (White) WPL-W10677265
...
36
Nameplate WPL-W11178521
...
37
Feet-Lvlng WPL-WPW10687506
...
38
Absorber WPL-W11197416
...
39
Channel, Top Front WPL-W11381327
...
40
Brace WPL-W11712680
...
41
Absorber WPL-WP8564458
...
42
Cover, Harness WPL-W10676061
...
43
Panel, Rear WPL-W11417171
...
44
Screw WPL-W11568617
...
45
Screw WPL-W11685943
...
46
Tie-Wire WPL-WPW10339879
...
47
Retainer WPL-WPW10280024
...
48
Hose WPL-W11244231
...
49
Clamp WPL-WP356138

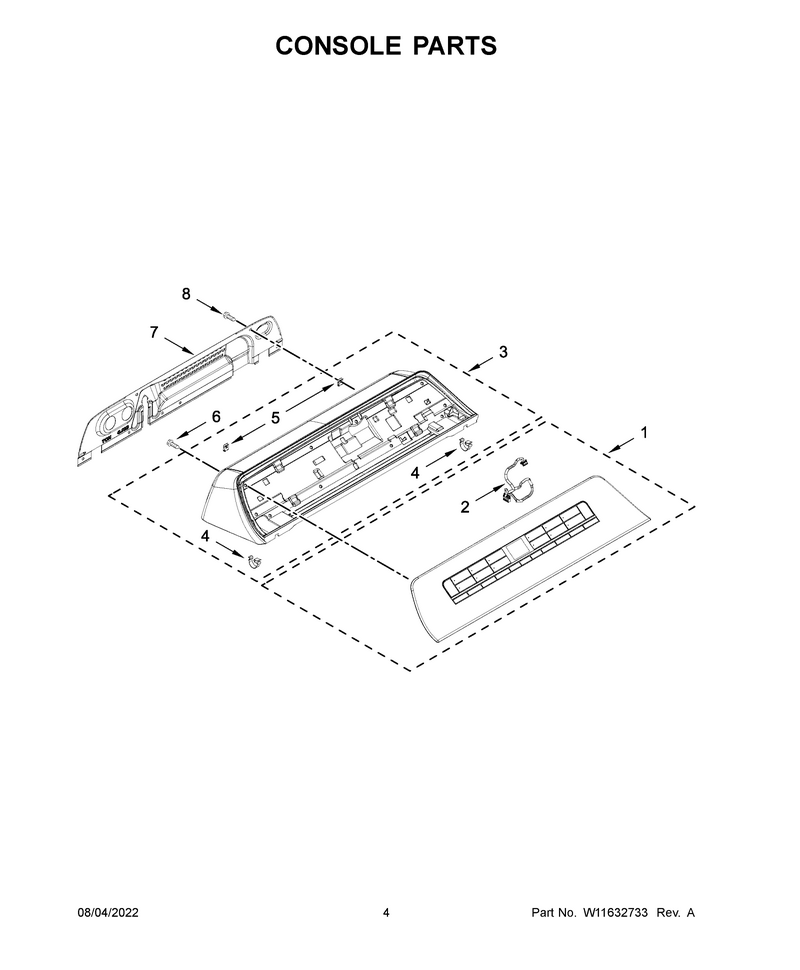

03 - Console Parts

...
...
1
Panel-Ui WPL-W11553989
...
2
Harns-Wire WPL-W11662157
...
3
Console WPL-W11413339
...
4
Clip WPL-WP8312709
...
5
Nut WPL-W11213336
...
6
Screw WPL-WP9740848
...
7
Panel, Console Rear WPL-W11129559
...
8
Screw WPL-W11685943

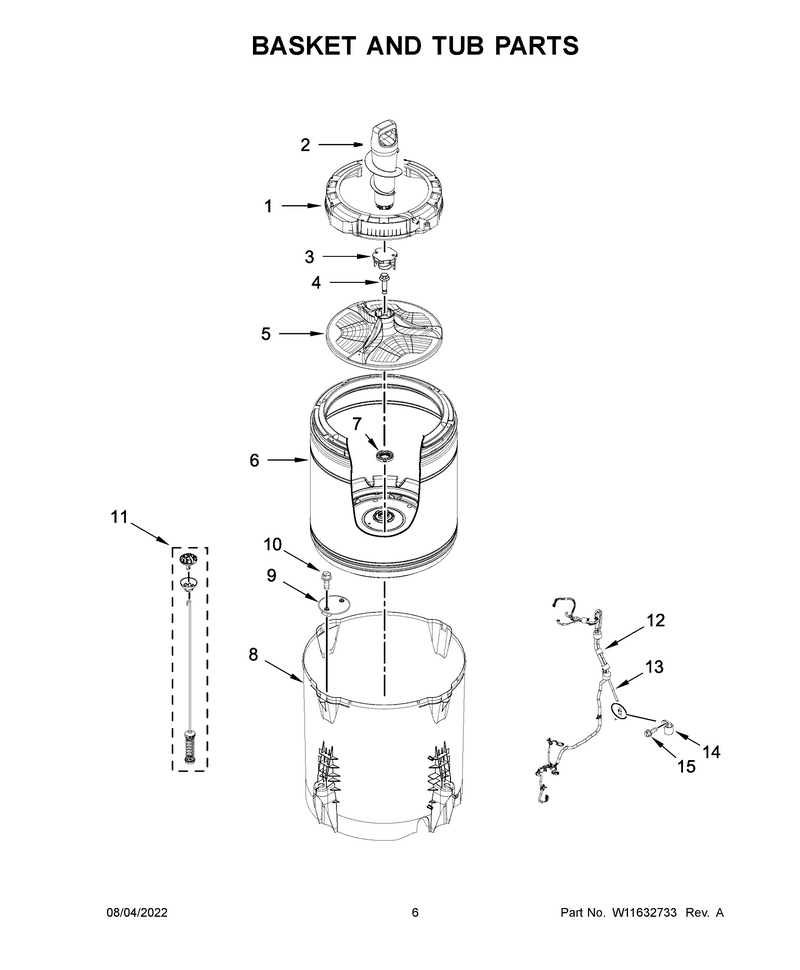

04 - Basket And Tub Parts

...
...
1
Ring-Tub WPL-W11590590
...
2
Agitator WPL-W11614636
...
3
Cap WPL-W11510462
...
4
Screw WPL-W10752187
...
5
Washplate WPL-W11510461
...
6
Basket Assembly WPL-W11178227
...
7
Nut-Spaner WPL-W11551646
...
8
Tub WPL-W11219115
...
9
Filter WPL-W11568797
...
10
Screw WPL-WP8533928
...
11
Suspension WPL-W11400156
...
12
Harns-Wire WPL-W11568984
...
13
Hose WPL-WP353244
...
14
Clamp, Cable WPL-W10005430
...
15
Screw WPL-WPW10238319

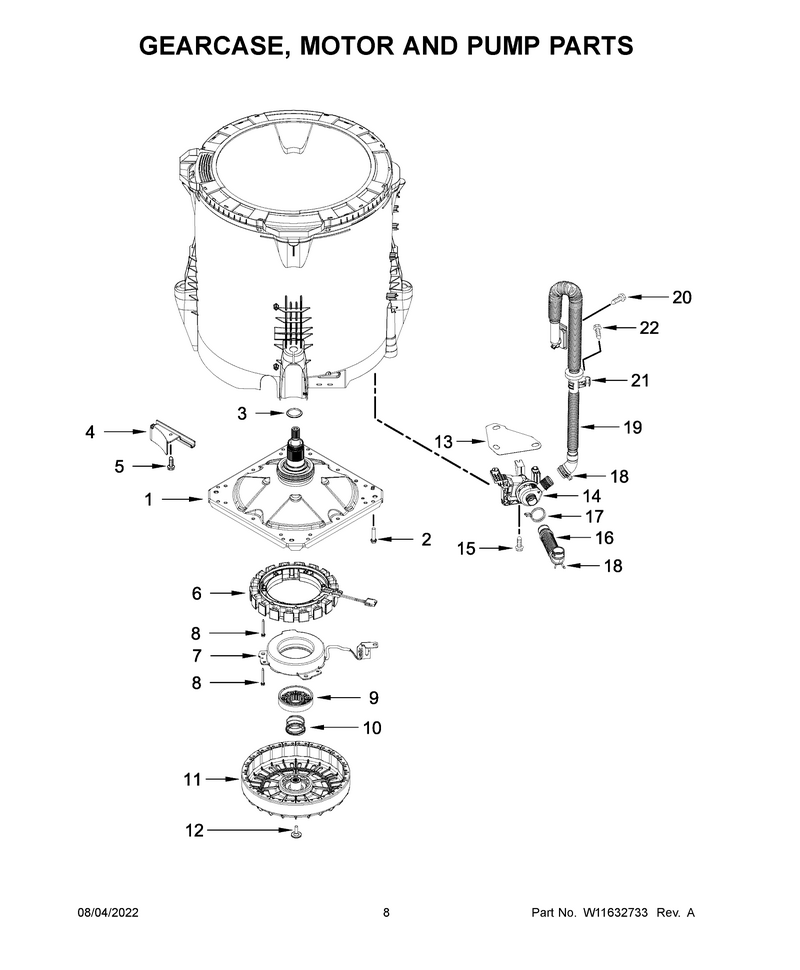

05 - Gearcase, Motor And Pump Parts

...
...
1
Gearcase WPL-W11449841
...
2
Screw WPL-WPW10249633
...
3
Washer WPL-W11553312
...
4
Harness Shield - Motor WPL-W10673062
...
5
Screw WPL-W10846509
...
6
Stator WPL-W11195971
...
7
Clutch WPL-W10754448
...
8
Screw WPL-W11027980
...
9
Slider WPL-W10734521
...
10
Slider WPL-W10734521
...
11
Rotor WPL-W11260238
...
12
Screw WPL-W10752189
...
13
Shield, Heat WPL-W10894129
...
14
Pump-Water WPL-W11396717
...
15
Screw WPL-WPW10004910
...
16
Hose WPL-W10802689
...
17
Clamp WPL-WP285655
...
18
Clamp WPL-WP285655
...
19
Hose WPL-W11553446
...
20
Screw WPL-WP9740848
...
21
Clip, Hose WPL-W10652932
...
22
Screw WPL-WPW10109200

...
...
NI
Accessory Parts, 8' Drain Hose W/clamp WPL-285666
