Whirlpool 7MWTW1705BQ0

Model: 7MWTW1705BQ0

Save Part Not Listed?
product name

...
...
NI
Accessory Parts, Inlet Hoses, 6 Ft (Two Braided Hoses W/ One Straight End & One 90 Degree End & 4 Rubber Washers) WPL-8212638RP

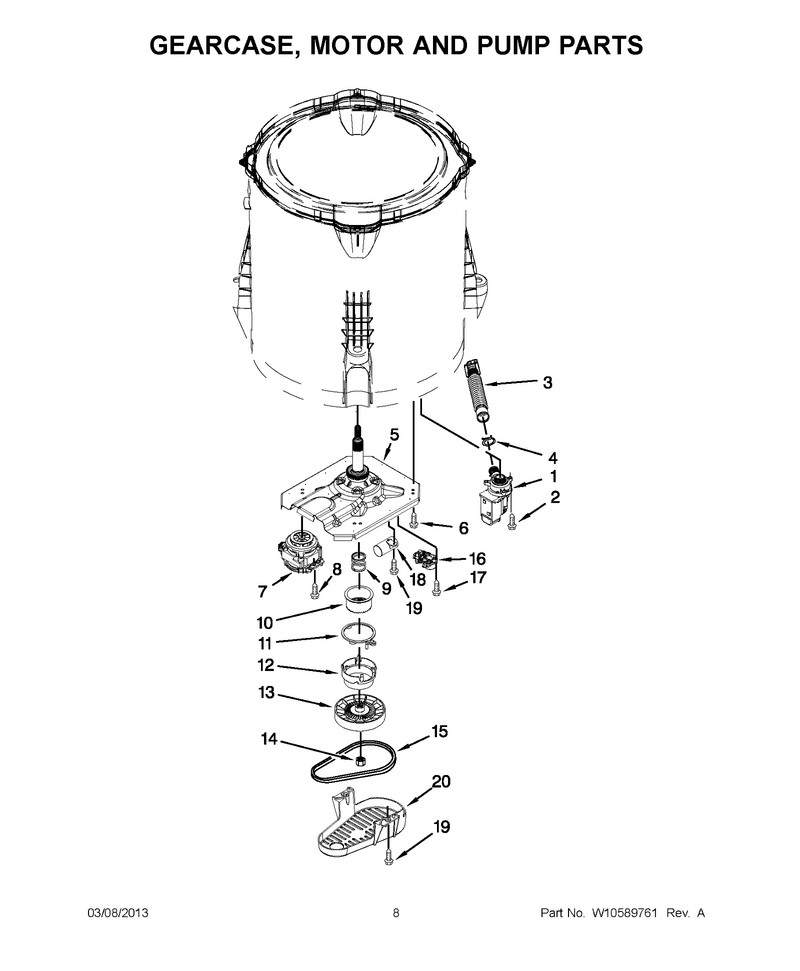

04 - Gearcase, Motor And Pump Parts

...
...
1
Pump-Water WPL-WPW10465543
...
2
Screw WPL-WPW10004910
...
3
Hose WPL-W10899966
...
4
Clamp WPL-WP285655
...
5
Gearcase WPL-W11454741
...
6
Screw WPL-WPW10249633
...
7
Motor-Drve WPL-WPW10677715
...
8
Screw WPL-W11685857
...
9
Spring, Splutch WPL-W10006382
...
10
Splutch Kit (60hz) WPL-W10721967
...
11
Cam Ring, Splutch WPL-W10006353
...
12
Cam, Splutch WPL-W10006354
...
13
Splutch Kit (60hz) WPL-W10721967
...
14
Nut WPL-W10759923
...
15
Belt WPL-WPW10006384
...
16
Actuator WPL-WPW10006355
...
17
Screw WPL-W11596033
...
18
Capacitor WPL-W11158830
...
19
Screw WPL-W11573574
...
20
Shield WPL-WPW10427633

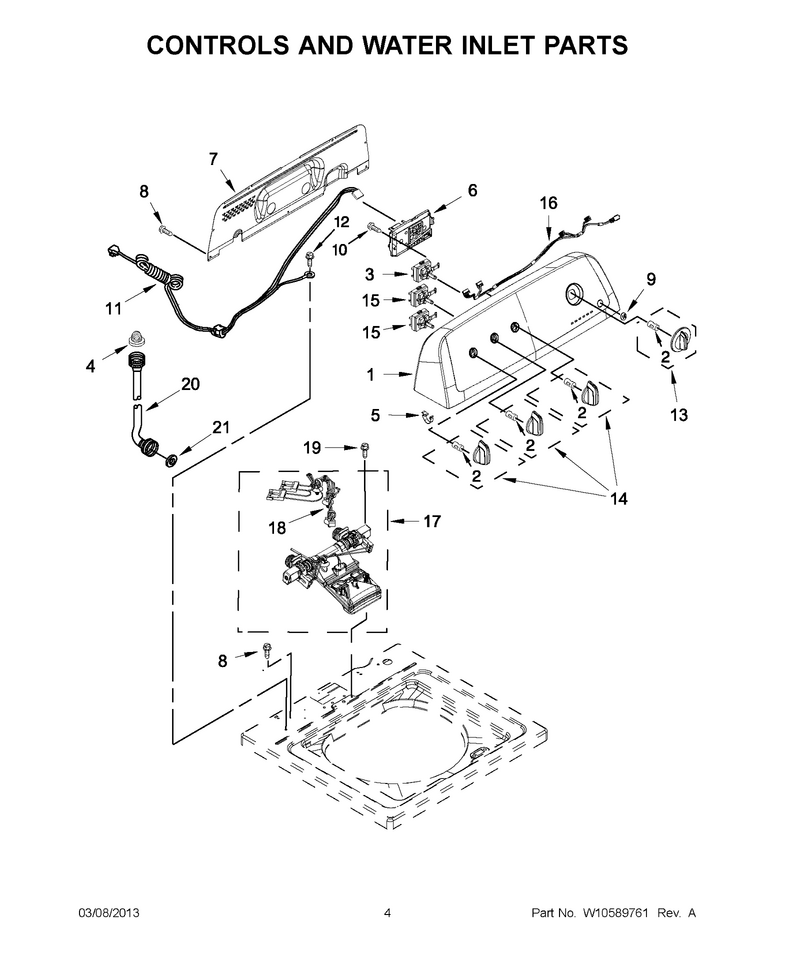

02 - Controls And Water Inlet Parts

...
...
1
Panel, Console WPL-W10552346
...
2
Clip WPL-WP8536939
...
3
Switch-Cyc WPL-W11168256
...
4
Hose Screen (Package Of 2) WPL-285452A
...
5
Clip WPL-WP8312709
...
6
Control Unit Assembly WPL-W10570356
...
7
Panel, Console Rear Cover WPL-W10409320
...
8
Screw WPL-WP489069
...
9
Pushbutton WPL-WPW10251309
...
10
Screw WPL-WP90767
...
11
Cord-Power WPL-WPW10525192
...
12
Screw WPL-W10846509
...
13
Knob WPL-WPW10711289
...
14
Knob WPL-WPW10453947
...
15
Switch-Cyc WPL-WPW10414397
...
16
Harness, Upper WPL-W10291183
...
17
Valve WPL-WPW10683653
...
18
Harns-Wire WPL-W10876654
...
19
Screw WPL-WP8281163
...
20
Hose-Fill WPL-WP89503
...
21
Washer WPL-WP16123

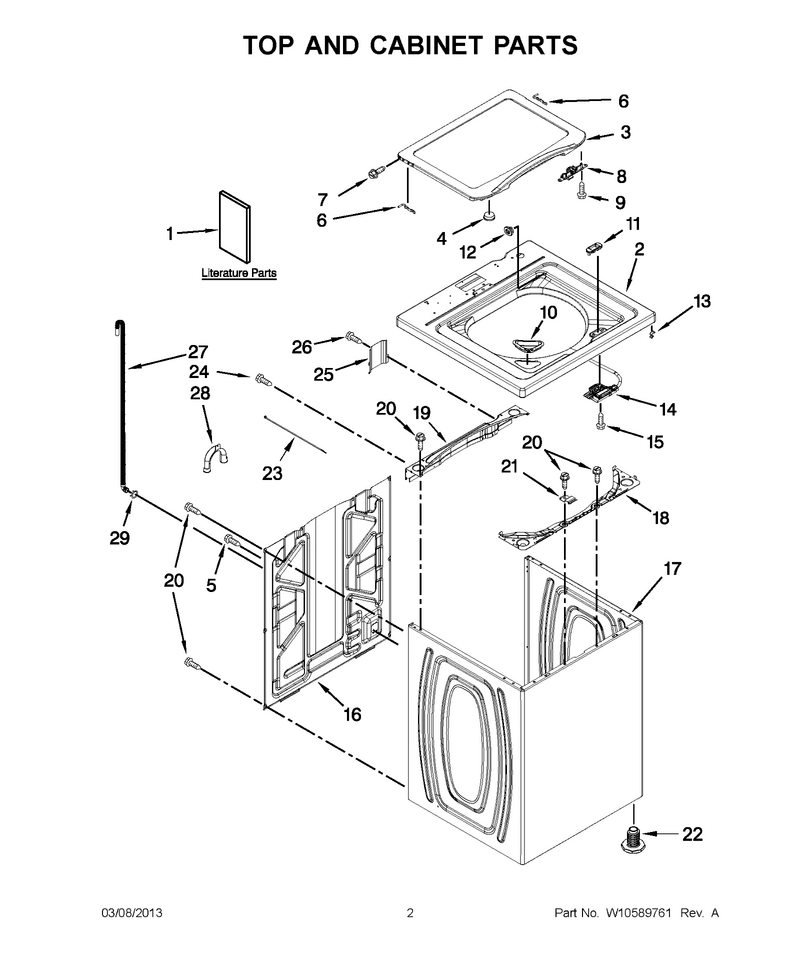

01 - Top And Cabinet Parts

...
...
1
Installation Instructions WPL-W10478095
...
2
Top WPL-WPW10251325
...
3
Lid & Bumper Assembly (White) WPL-W10551267
...
4
Bumper, Lid WPL-W10181289
...
5
Screw WPL-WP9740848
...
6
Hinge WPL-WP91770
...
7
Screw WPL-WPW10119828
...
8
Strike Assembly WPL-W10581478
...
9
Screw WPL-WPW10273971
...
10
Dispenser WPL-WPW10192089
...
11
Bezel WPL-WPW10392041
...
12
Bearing WPL-WP21258
...
13
Clip WPL-WP90016
...
14
Latch WPL-W10404050
...
15
Screw WPL-WP8281163
...
16
Panel-Rear WPL-W11486091
...
17
Cabinet WPL-W10596395
...
18
Brace WPL-W11661767
...
19
Brace WPL-W11712680
...
20
Screw WPL-WP489069
...
21
Lock WPL-WPW10248088
...
22
Feet-Lvlng WPL-WPW10687506
...
23
Tie-Wire WPL-WPW10339879
...
24
Screw WPL-WP489128
...
25
Cover, Harness WPL-W10676061
...
26
Screw WPL-W10846509
...
27
Hose WPL-W11244231
...
28
Retainer WPL-WPW10280024
...
29
Clamp WPL-WP356138

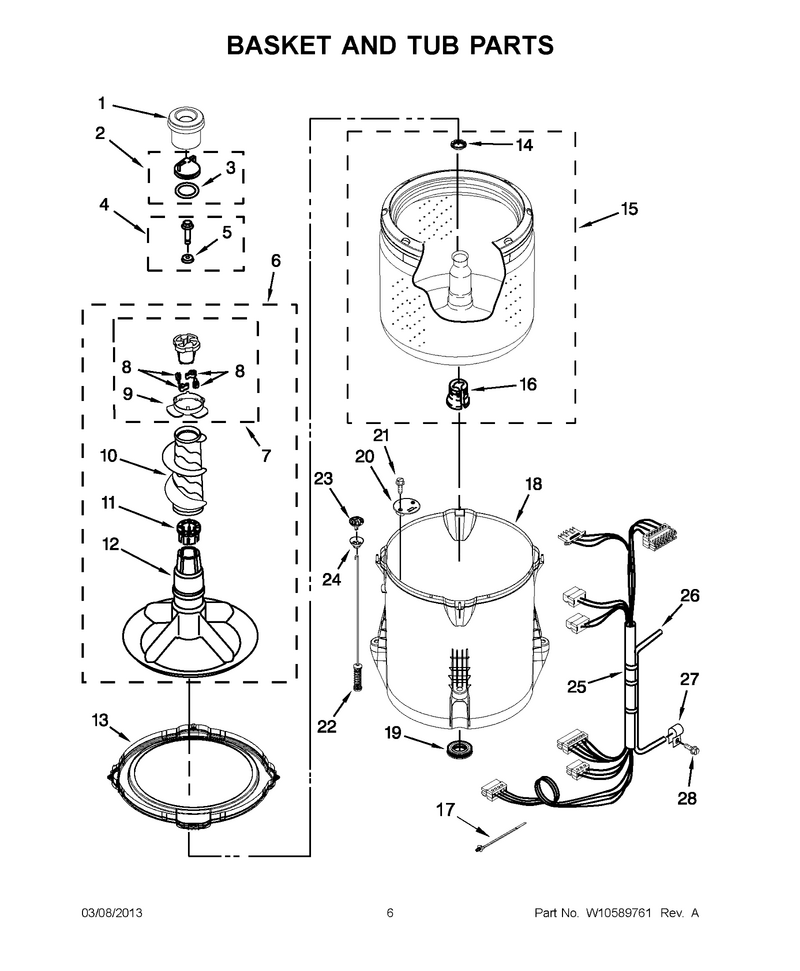

03 - Basket And Tub Parts

...
...
1
Dispenser WPL-8575076A
...
2
Cap WPL-WPW10074580
...
3
Ring-O WPL-WPW10072840
...
4
Screw WPL-W10772621
...
5
Washer WPL-WP3949550
...
6
Agitator WPL-285565
...
7
Cam-Agit WPL-285811
...
8
Dog-Agit WPL-80040
...
9
Bearing WPL-WP3363661
...
10
Mover-Agit WPL-WP3348752
...
11
Washer WPL-285587
...
12
Agitator WPL-WP3347288
...
13
Ring-Tub WPL-WPW10215107
...
14
Nut-Spaner WPL-WP21366
...
15
Basket WPL-W10349185
...
16
Block WPL-WP389140
...
17
Tie-Wire WPL-WPW10339879
...
18
Tub-Outer WPL-W10371566
...
19
Seal-Tub WPL-W10324647
...
20
Filter WPL-WPW10215093
...
21
Screw WPL-WP8533928
...
22
Suspension WPL-W10780048
...
23
Suspension WPL-W10440729
...
24
Suspension WPL-W10440729
...
25
Harness, Lowerincludes Pressurehose & Cable Tie) WPL-W10504125
...
26
Hose WPL-WP353244
...
27
Clamp, Cable WPL-W10005430
...
28
Screw WPL-WPW10109200
