Whirlpool 7MWFW560CHW0

Model: 7MWFW560CHW0

Save Part Not Listed?
product name

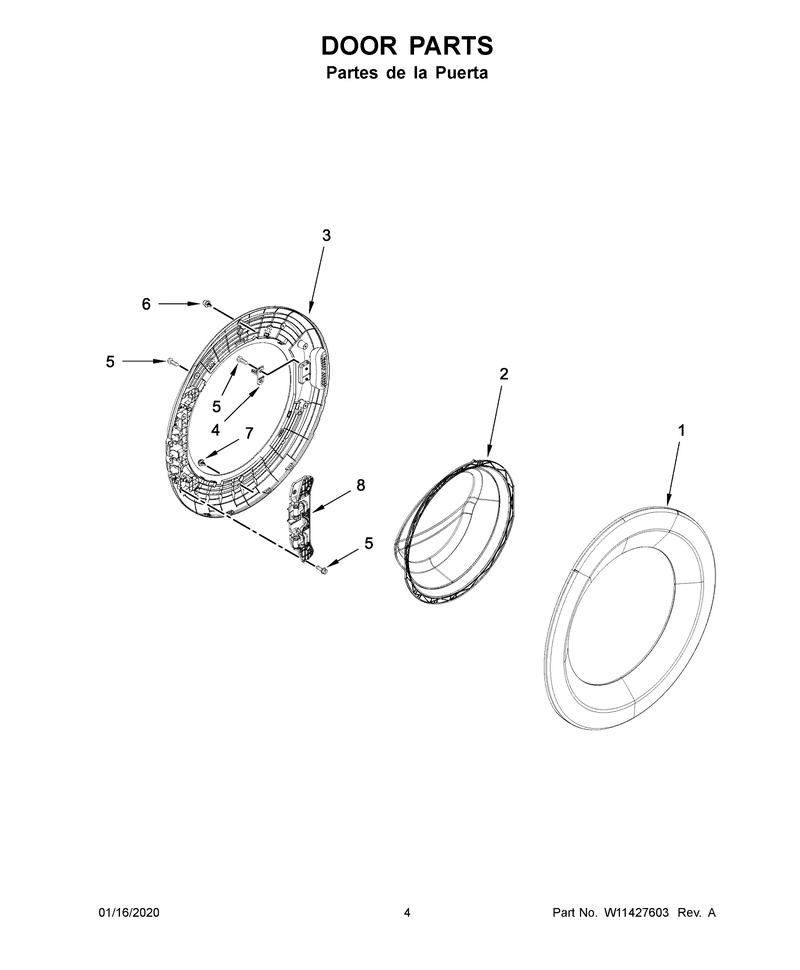

03 - Door Parts

...
...
1
Door-Outer WPL-W11449081
...
2
Door-Glass WPL-W11325577
...
3
Door-Inner WPL-W11703964
...
4
Strike WPL-W11316914
...
5
Screw WPL-WP8534022
...
6
Bumper, Door (Upper) WPL-W11230200
...
7
Bumper WPL-W11310051
...
8
Hinge WPL-W11318815

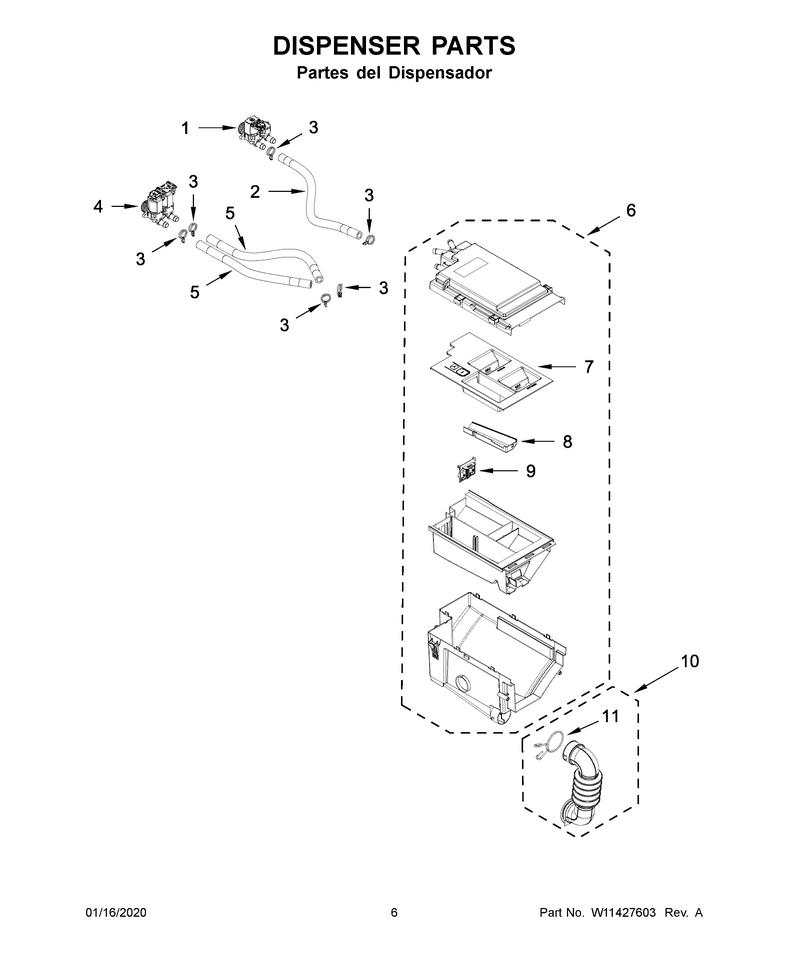

04 - Dispenser Parts

...
...
1
Valve WPL-W11331281
...
2
Hose, Inlet (Hot) WPL-W11041164
...
3
Clamp WPL-WP596669
...
4
Valve WPL-W11331279
...
5
Hose, Inlet (Cold) WPL-W10920134
...
6
Drawer WPL-W11524105
...
7
Cover WPL-W11318757
...
8
Cover WPL-W11316375
...
9
Divider WPL-W11316603
...
10
Hose WPL-W11316604
...
11
Clamp, Hose WPL-W10239910

...
...
NI
Paint, Spray (White) WPL-350930

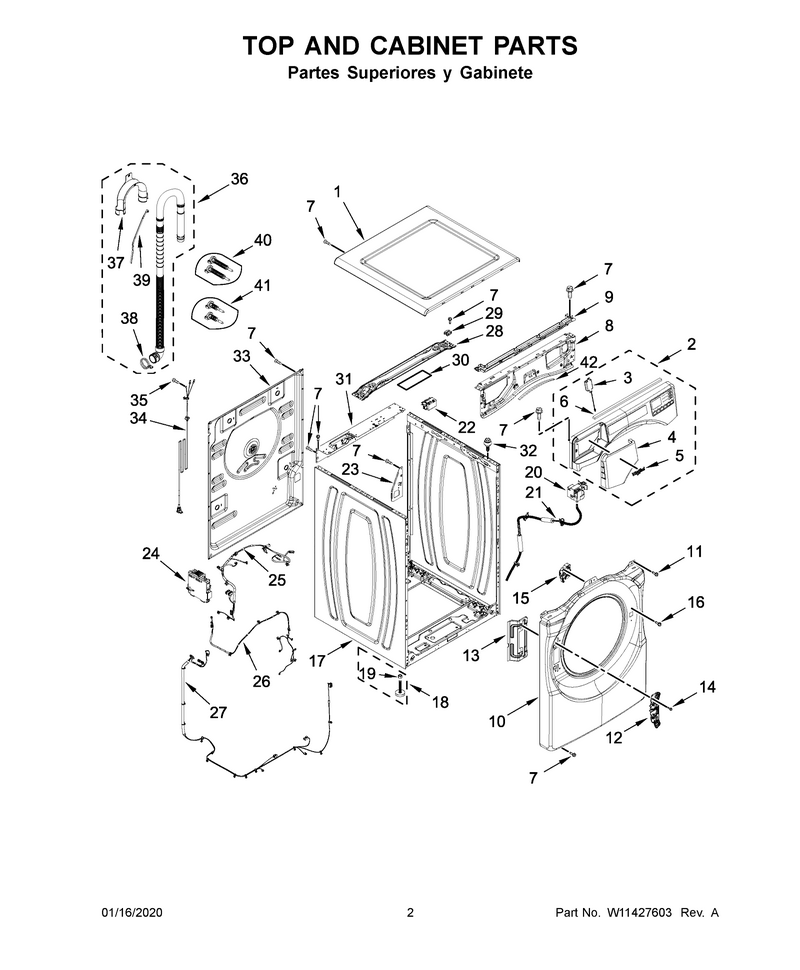

02 - Top And Cabinet Parts

...
...
1
Top WPL-WPW10208373
...
2
Cntrl-Elec WPL-W11325580
...
3
Speaker WPL-W11123146
...
4
Handle WPL-W11318818
...
5
Nameplate WPL-W11223753
...
6
Seal WPL-W11231800
...
7
Screw WPL-W11568617
...
8
Bracket WPL-W11314678
...
9
Channel WPL-W11172160
...
10
Panel WPL-W11325579
...
11
Screw WPL-W11573574
...
12
Hinge WPL-W11318815
...
13
Bracket WPL-W11310030
...
14
Screw WPL-W11661566
...
15
Latch WPL-W11565030
...
16
Screw WPL-WP8540282
...
17
Cabinet (White) WPL-W11352995
...
18
Feet-Lvlng WPL-W10888529
...
19
Nut WPL-WP3359452
...
20
Switch-Wl WPL-W11316246
...
21
Hose WPL-W11456953
...
22
Filter WPL-W11316771
...
23
Bracket WPL-W11316769
...
24
Appliance Control Unit (Acu) WPL-W11291146
...
25
Harns-Wire WPL-W11316252
...
26
Harns-Wire WPL-W11449075
...
27
Harness, Main Lower WPL-W11509205
...
28
Brace, Top WPL-W10467484
...
29
Retainer, Spring WPL-W10245452
...
30
Bracket WPL-W11314674
...
31
Bracket, Rear WPL-W11353016
...
32
Screw And Bushing Assembly WPL-W10208380
...
33
Panel WPL-W11491750
...
34
Cord-Power WPL-W11316254
...
35
Screw WPL-W10850756
...
36
Hose WPL-W11281268
...
37
Retainer WPL-WPW10280024
...
38
Clamp WPL-WP356138
...
39
Tie-Wire WPL-WPW10339879
...
40
Bolt WPL-W11316631
...
41
Bolt WPL-W11316629
...
42
Protector WPL-W11316770

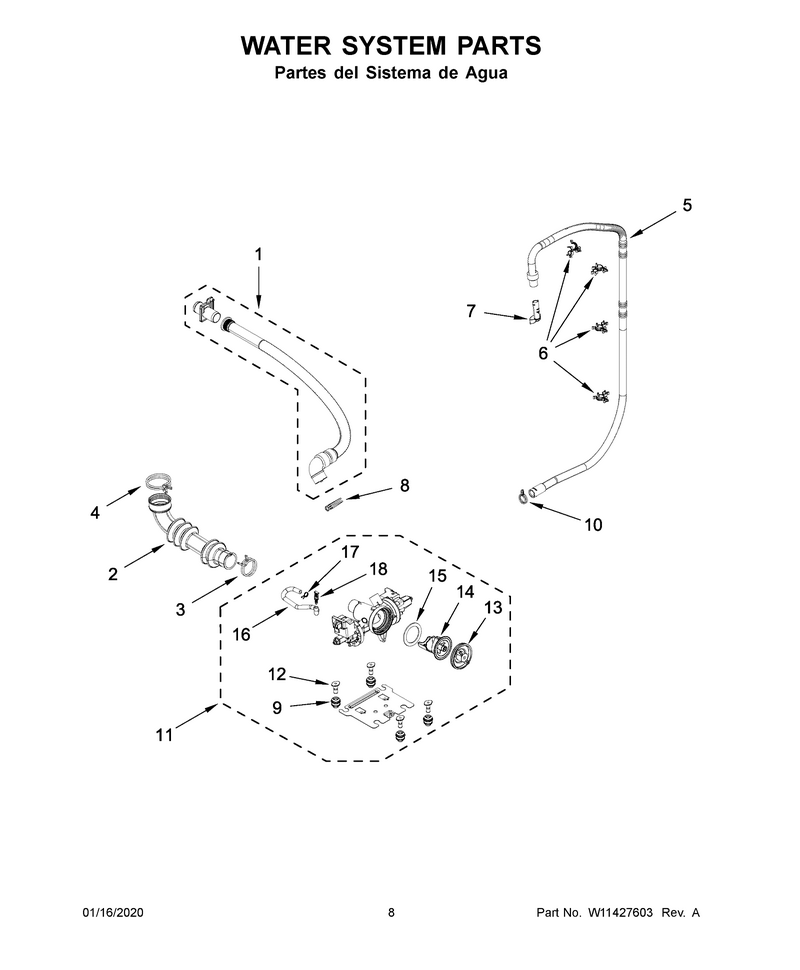

05 - Water System Parts

...
...
1
Hose WPL-W11549455
...
2
Hose WPL-W11314666
...
3
Clamp WPL-WP616099
...
4
Clamp, Vent Hose WPL-W10273034
...
5
Hose WPL-W11316605
...
6
Clip WPL-W11316608
...
7
Nozzle WPL-W11316251
...
8
Clamp WPL-WP356138
...
9
Grommet WPL-W11316663
...
10
Clamp WPL-W11316607
...
11
Pump-Water WPL-W11458345
...
12
Pin WPL-W11316664
...
13
Cap WPL-W11316610
...
14
Filter WPL-W11316612
...
15
Seal WPL-W11316613
...
16
Hose WPL-W11316662
...
17
Clamp WPL-W11316666
...
18
Plug WPL-W11316669

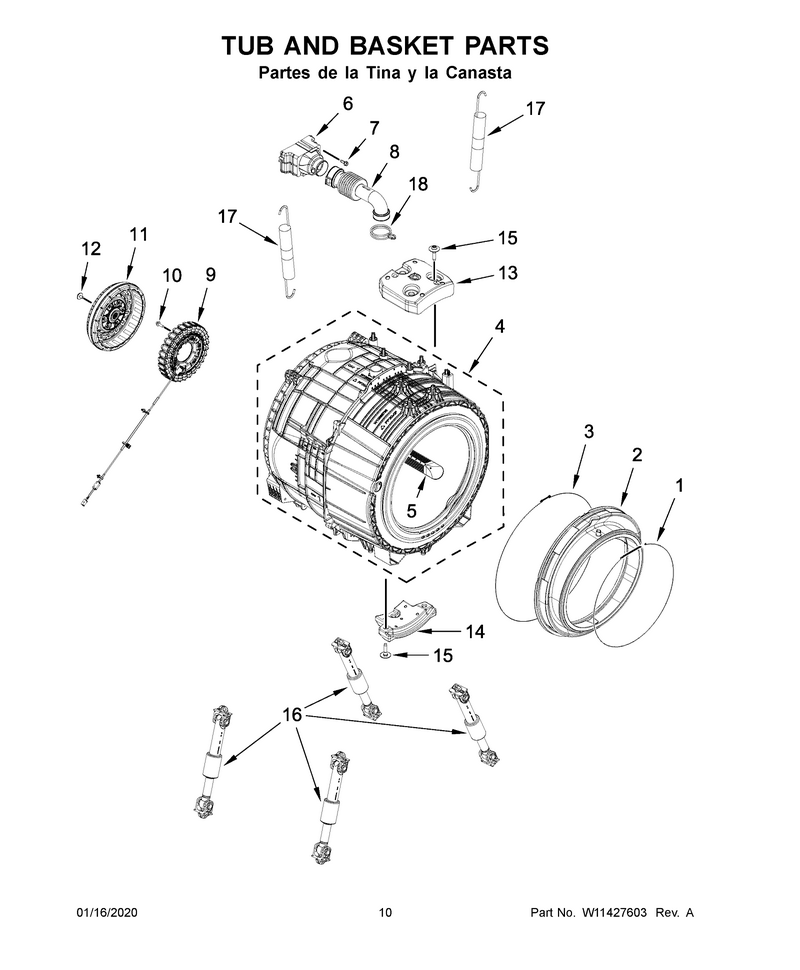

06 - Tub And Basket Parts

...
...
1
Clamp WPL-W11266654
...
2
Bellow WPL-W11314648
...
3
Clamp WPL-W11314649
...
4
Tub-Outer WPL-W11460604
...
5
Baffle WPL-W11460395
...
6
Housing WPL-W11316248
...
7
Screw WPL-W11230114
...
8
Hose WPL-W11316247
...
9
Stator WPL-W11354541
...
10
Screw WPL-W11314661
...
11
Rotor WPL-W11314361
...
12
Screw WPL-W11314657
...
13
Counterwgt WPL-W11314650
...
14
Counterwgt WPL-W11607191
...
15
Screw WPL-W11314651
...
16
Shock-Absr WPL-W11316766
...
17
Spring WPL-W11314394
...
18
Clamp WPL-WP371502
