product name

Whirlpool 3KES0GTQNL00

Model: 3KES0GTQNL00

Save Part Not Listed?
product name

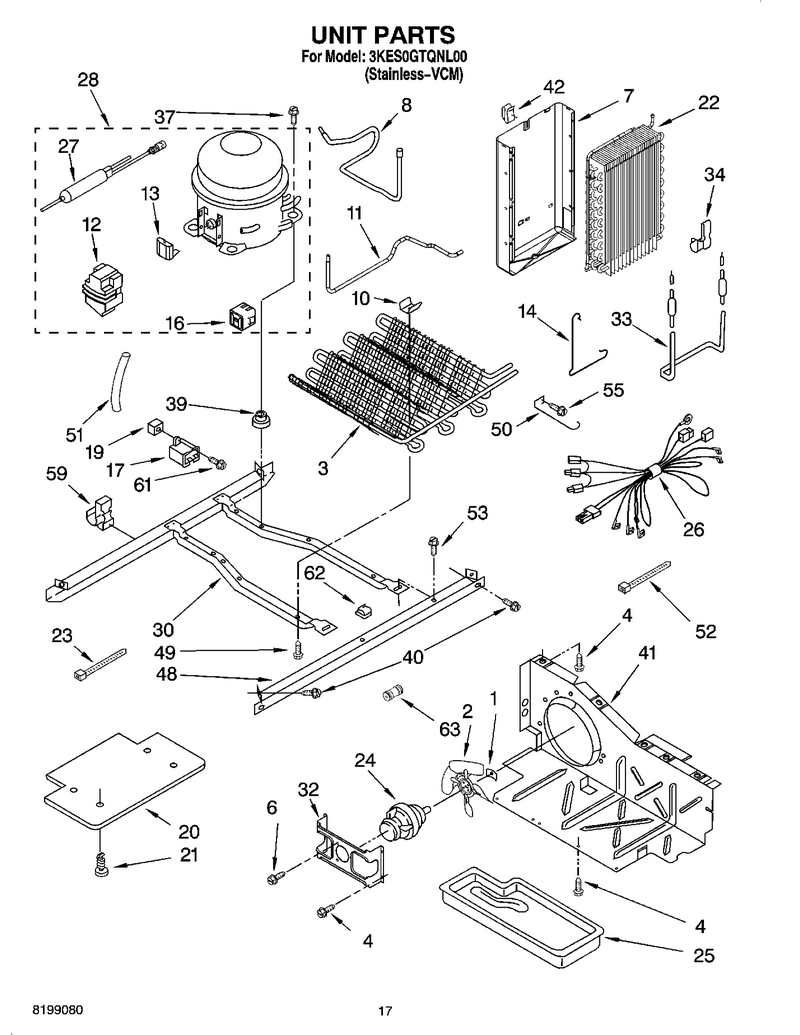

10 - Unit Parts

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP2190685
...
3
Condenser Assembly WPL-2324712
...
4
Screw WPL-WP489464
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Heat Shield And Drain Pan WPL-2256149
...
8
Tube, Suction WPL-2205764
...
10
Clip WPL-W10683556
...
11
Tube, Condenser To Heat Loop WPL-2261599
...
12
Cover-Term WPL-WP61002138
...
13
Overload WPL-4388786
...
14
Clip WPL-WP2161324
...
16
Start-Dev WPL-WP2188834
...
17
Capacitor WPL-WP2201147
...
19
Grommet (4) WPL-937252
...
20
Unit Cover, Bottom WPL-2200451
...
21
Clip WPL-489396
...
22
Evaporator WPL-WP2188822
...
23
Tie-Wire WPL-WPW10339879
...
24
Motor-Cond WPL-8201703
...
25
Tray-Evap WPL-WPW10614158
...
26
Unit, Harness WPL-2187405
...
27
Drier-Tube WPL-W10843121
...
28
Compressor (Includes Items 9, 10, 19, & 25) (Also Order 876765 Tube Kit) WPL-W10183407
...
30
Unit Mounting Frame WPL-2160499
...
32
Bracket WPL-WP2181929
...
33
Heater WPL-WP2313330
...
34
Clip WPL-W11623163
...
37
Grommet (4) ((Production)) WPL-876811
...
39
Grommet WPL-WP4387558
...
40
Screw WPL-489340
...
41
Air Baffle WPL-2196201
...
42
Clip, Heat WPL-2155547
...
48
Unit Mounting Rail WPL-2149718
...
49
Screw WPL-W11544659
...
50
Guard, Fan WPL-1105612
...
51
Sleeve WPL-W11751592
...
52
Tie-Wire WPL-WPW10339879
...
53
Screw WPL-WP489427
...
55
Screw WPL-WP489478
...
59
Clip, Wire & Tube WPL-2208280
...
61
Screw WPL-W11693756
...
62
Clip, Tube WPL-2200079
...
63
Valve WPL-WP978025

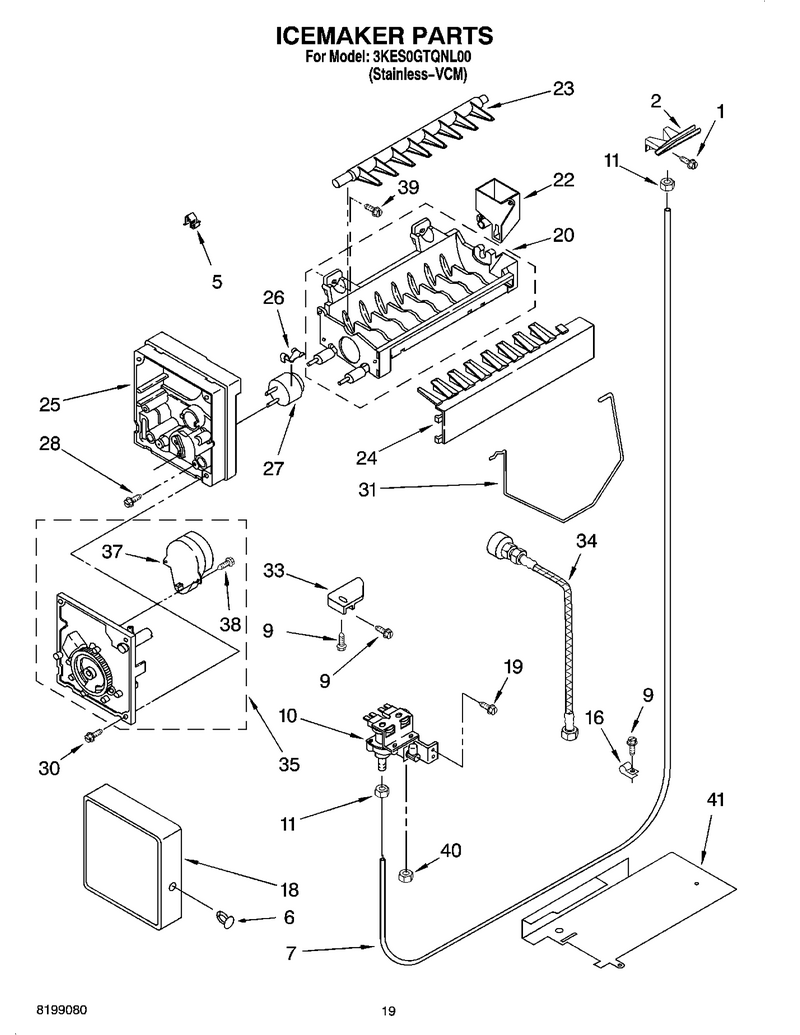

11 - Icemaker Parts, Parts Not Illustrated

...
...
Enamel, Almond (12 Oz. Spray Can) WPL-350956
...
1
Screw WPL-WPW10141645
...
2
Chute WPL-W11505385
...
5
Clip WPL-WP628379
...
6
Rivet WPL-WP489115
...
7
Tube-Water WPL-W10823511
...
9
Screw WPL-WP489478
...
10
Valve, Solenoid WPL-2187233
...
11
Nut WPL-WP627018
...
16
Clamp WPL-WP488366
...
18
Cover-Frnt WPL-WPW10289690
...
19
Screw WPL-WPW10141625
...
20
Mold-Ice WPL-WPW10122523
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Stripr WPL-WP2182124
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Bimetl-Def WPL-WP627985
...
28
Screw WPL-8533917
...
30
Screw WPL-WP681249
...
31
Arm-Shut WPL-W11342242
...
33
Bracket WPL-W11500948
...
34
European Water Connection Tube WPL-2221332
...
35
Motor-Modl WPL-W10190933
...
37
Motor-Modl WPL-W10190933
...
38
Screw WPL-489136
...
39
Screw WPL-WP488163
...
40
Nut WPL-4318011
...
41
Heat Shield WPL-2256178

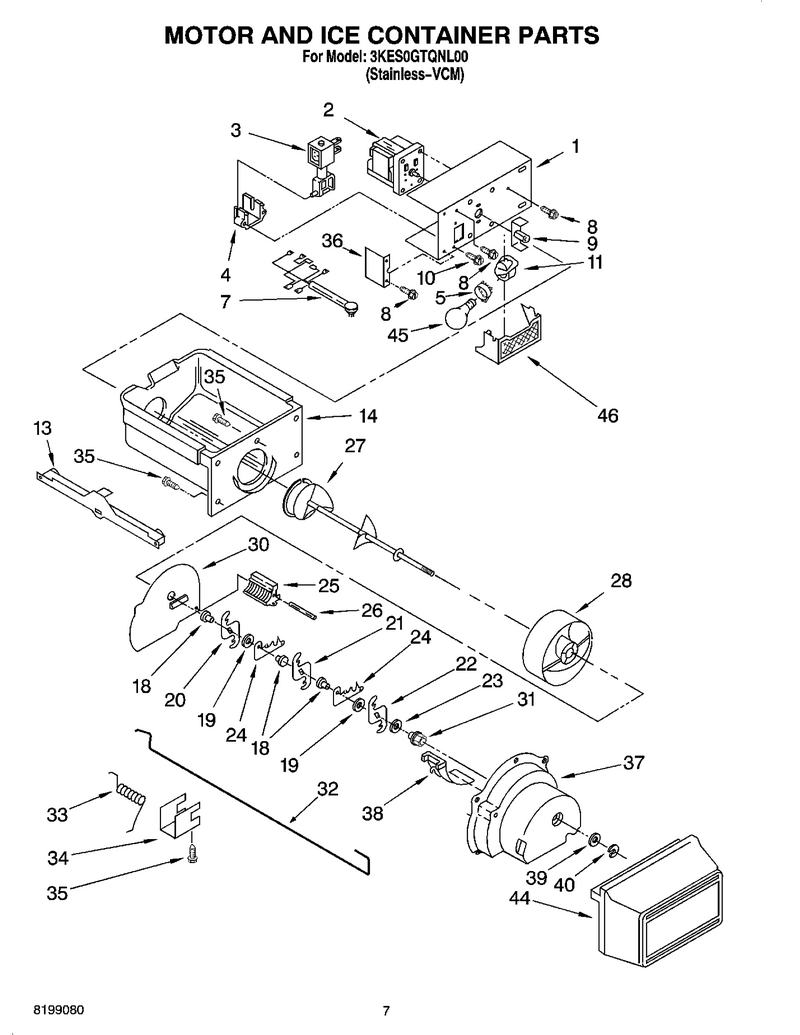

04 - Motor And Ice Container Parts

...
...
1
Bracket WPL-WPW10284487
...
2
Motor WPL-WP2188386
...
3
Solenoid WPL-WPW10129867
...
4
Guide WPL-W10850503
...
5
Shroud WPL-WP2175210
...
7
Wiring Assembly, Ice Dispenser WPL-2311639
...
8
Screw WPL-WP489399
...
9
Coupling WPL-WPW10169511
...
10
Screw WPL-WP489478
...
11
Capacitor (Service) WPL-4387478
...
13
Slide, Ice Container (Right) WPL-W10845583
...
14
Container WPL-WP2196090
...
18
Spacer WPL-WP1119005
...
19
Spacer WPL-WP1119007
...
20
Blade, Rotary A WPL-W10278731
...
21
Blade, Rotary B WPL-W10278732
...
22
Blade, Rotary C WPL-W10278733
...
23
Washer WPL-WP489235
...
24
Blade, Fixed (2) WPL-1119009
...
25
Block Blade WPL-2157405
...
26
Roll Pin WPL-489229
...
27
Auger WPL-2196296
...
28
Drum WPL-4388736
...
30
Baffle WPL-W10852691
...
31
Bearing WPL-WP1119018
...
32
Control Arm WPL-2169938
...
33
Spring, Return WPL-1119020
...
34
Retainer Clip, Rod WPL-1119021
...
35
Screw WPL-WP488787
...
36
Shield, Wiring WPL-1129563
...
37
Housing WPL-WPW10185018
...
38
Deflector WPL-WP1119017
...
39
Washer, Plain WPL-489234
...
40
Ring-E WPL-WP489236
...
44
Cover WPL-WP2171709
...
45
Bulb-Light WPL-WP67002552
...
46
Lens-Light WPL-WP2171706

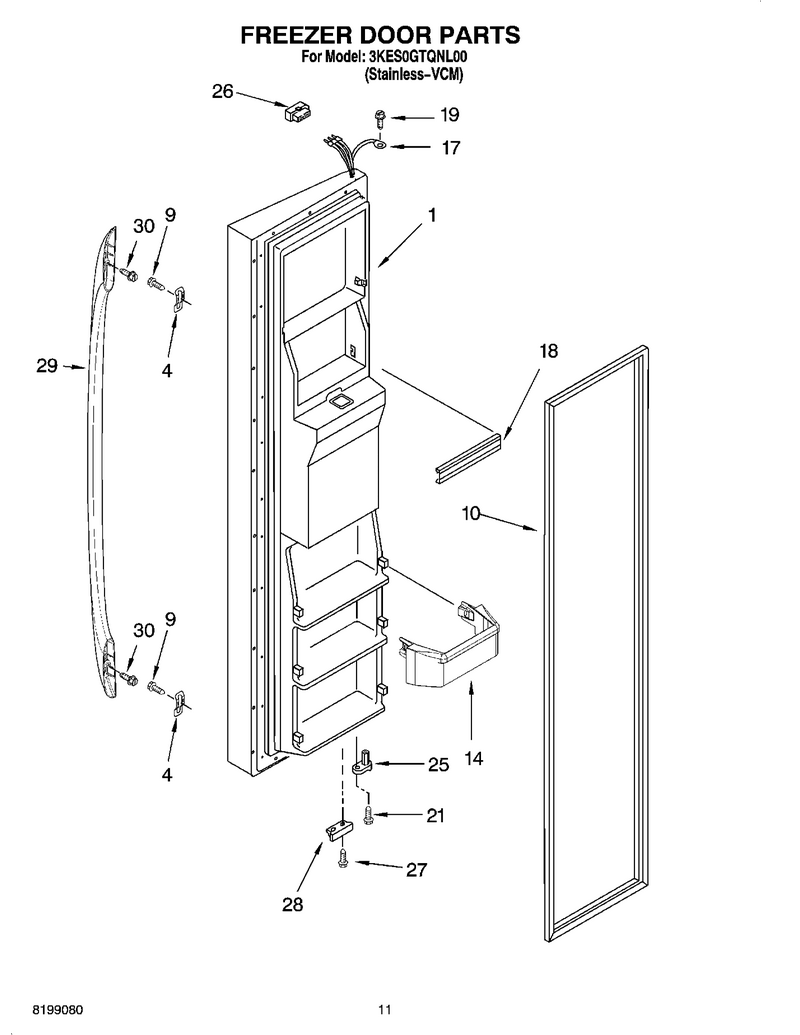

06 - Freezer Door Parts

...
...
1
Dor-Fip Ss WPL-L2308009LB
...
4
Clip WPL-WP2255411
...
9
Screw WPL-WP489491
...
10
Door, Gasket Magnetic WPL-2159080
...
14
Trivet (4) WPL-2308002
...
17
Wire Harness (White) WPL-2311642
...
18
Trim-Door WPL-WPW10307490
...
19
Screw WPL-WP489128
...
21
Screw WPL-WP3400012
...
25
Cam-Door WPL-WP2182179
...
26
Housing Connector WPL-2154472
...
27
Screw WPL-WP489483
...
28
Bracket, Door Stop (Black) WPL-2200082B
...
29
Handle (Black) WPL-2305993B
...
30
Screw WPL-WP8533920

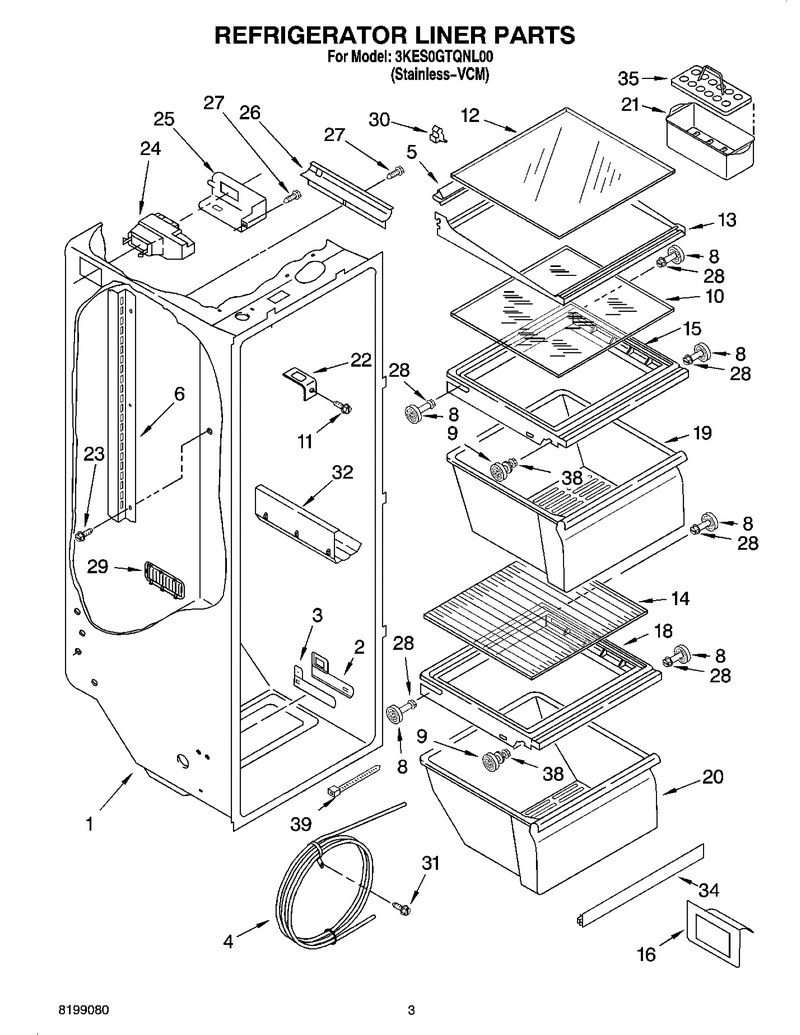

02 - Refrigerator Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-2194744
...
3
Slide Meat Pan Control WPL-2182757
...
4
Reservoir WPL-WP2256126
...
5
Retainer, Shelf WPL-1125525
...
6
Shelf Ladder (2) WPL-2206270
...
8
Stud-Shelf WPL-WP2196483
...
9
Stud-Shelf WPL-W11223328
...
10
Shelf-Glas WPL-W10864399
...
11
Screw WPL-WP488488
...
12
Glass, Shelf (3) WPL-2177978
...
13
Shelf, Cantilever (3) WPL-2173178
...
14
Shelf-Glas WPL-W10864399
...
15
Cover WPL-W10508993
...
16
Deflector WPL-2179350
...
18
Meat Pan Cover WPL-2217039
...
19
Pan-Crispr WPL-WP2188661
...
20
Pan-Meat WPL-WP2188664
...
21
Egg-Contnr WPL-W10136387A
...
22
Retainer WPL-WP2256085
...
23
Screw WPL-WP489478
...
24
Diffuser WPL-WPW10129864
...
25
Cover WPL-WP2212240
...
26
Cover, Conduit WPL-2150330
...
27
Screw WPL-W10759522
...
28
Screw WPL-WP3400806
...
29
Louver-Cab WPL-8201651
...
30
Clip-Air, Duct WPL-2215823
...
31
Screw WPL-798639
...
32
Rack-Wine WPL-W10777924
...
34
Extension WPL-2209704
...
35
Egg-Contnr WPL-WP2177817
...
38
Screw WPL-WP3-24004-109
...
39
Tie-Wire WPL-WP2205813

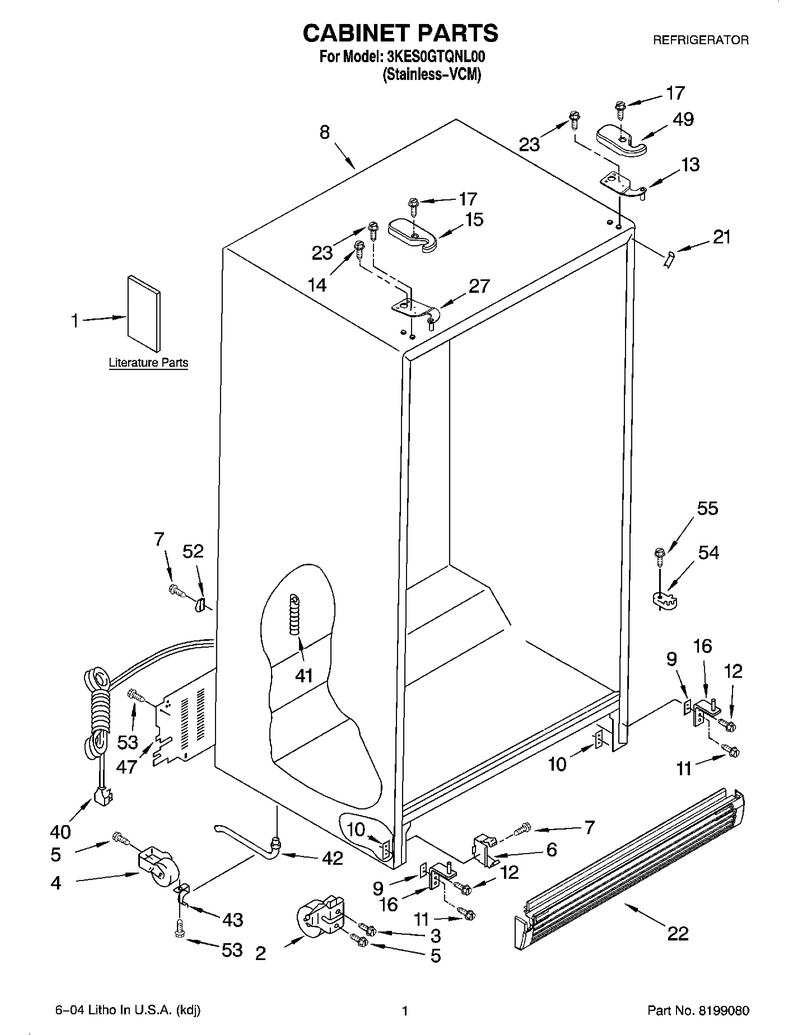

01 - Cabinet Parts

...
...
1
Energy Label WPL-2308011
...
2
Front Roller (2) WPL-4386774
...
3
Screw WPL-W10850698
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Clip WPL-WP2155013
...
7
Screw WPL-WP489478
...
8
Cabinet (Not A Serviceable Part) WPL---
...
9
Shim WPL-WP2209697
...
10
Plate WPL-WP2304249
...
11
Screw WPL-W10856122
...
12
Screw WPL-WP489497
...
13
Hinge-Door WPL-WP2203771
...
14
Screw WPL-WP489128
...
15
Cover WPL-WP2203407B
...
16
Hinge-Door WPL-8201707
...
17
Screw WPL-WP8281227
...
21
Filler, Wrapper (Black) WPL-2196097
...
22
Grille WPL-W10804014
...
23
Screw WPL-WP489497
...
27
Hinge-Door WPL-WP2203770
...
40
Cord, Service WPL-2205332
...
41
Fitting WPL-W11566763
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
47
Cover-Unit WPL-2188753
...
49
Cover WPL-WP2203408B
...
52
Clamp WPL-489348
...
53
Screw WPL-WPW10141645
...
54
Cam-Door WPL-WPW10329686
...
55
Screw WPL-WP489483

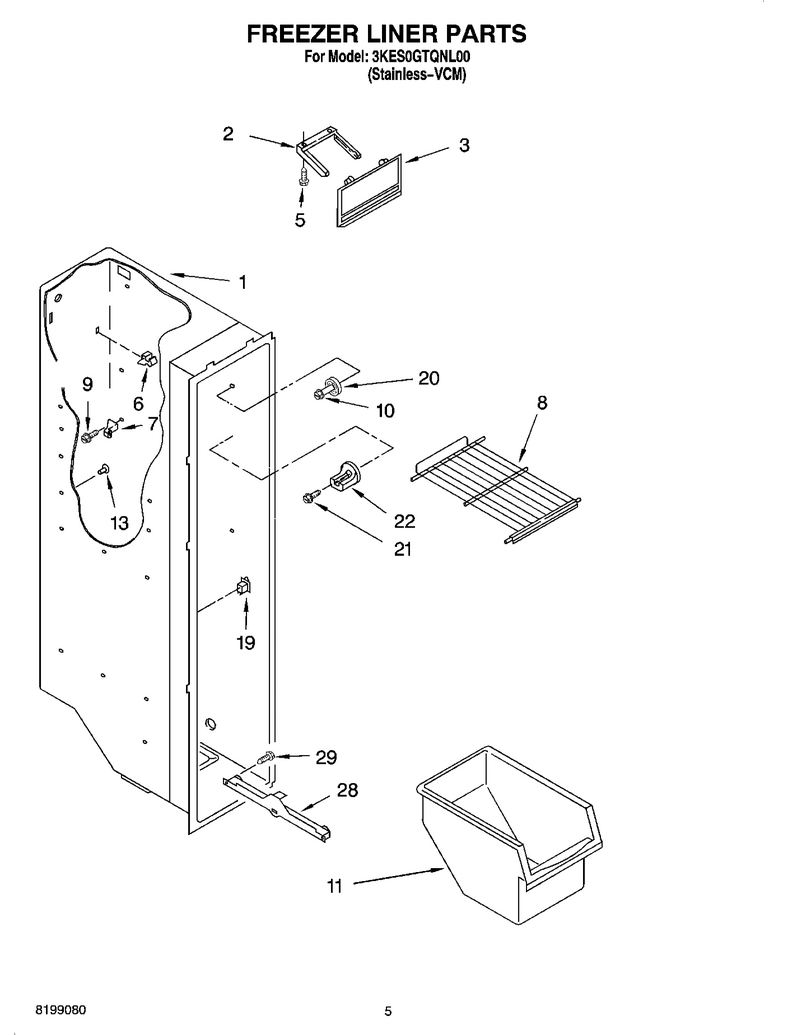

03 - Freezer Liner Parts

...
...
1
Liner (Not A Seviceable Part) WPL---
...
2
Slide, Ice Door WPL-1115380
...
3
Door, Ice Compartment WPL-2171712
...
5
Screw WPL-WP489478
...
6
Clip-Air, Duct WPL-2215823
...
7
Stud-Shelf WPL-4388405
...
8
Shelf (1) WPL-2174269
...
9
Screw 8-18 X 5/8 WPL-W10142289
...
10
Screw WPL-WP3400806
...
11
Freezer Bin WPL-2171707
...
13
Grommet (4) WPL-2176134
...
19
Switch WPL-W11457217
...
20
Stud-Shelf WPL-WP2196483
...
21
Screw 8-18 X 5/8 WPL-W10142289
...
22
Stud-Shelf WPL-WP2196207
...
28
Slide, Ice Container (Right) WPL-W10845583
...
29
Screw, 8-18 X 1.38 WPL-718257

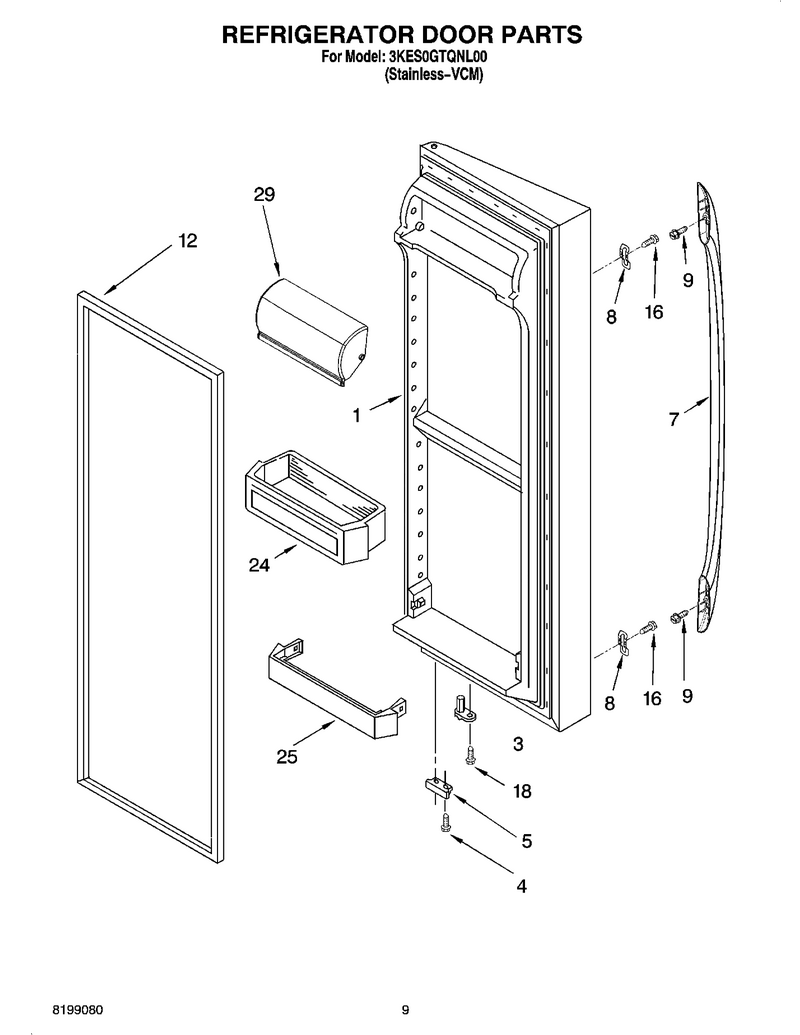

05 - Refrigerator Door Parts

...
...
1
Dor-Fip Ss WPL-L2305969LB
...
3
Cam-Door WPL-WP2182179
...
4
Screw WPL-WP489483
...
5
Bracket, Door Stop (Black) WPL-2200082B
...
7
Handle (Black) WPL-2305993B
...
8
Clip WPL-WP2255411
...
9
Screw WPL-WP8533920
...
12
Door Gasket, Magnetic WPL-2159081
...
16
Screw WPL-WP489491
...
18
Screw WPL-WP3400012
...
24
Bin-Cntlvr WPL-WP2187172
...
25
Trim-Door WPL-WP2177962K
...
29
Door-Comp WPL-WP2256101

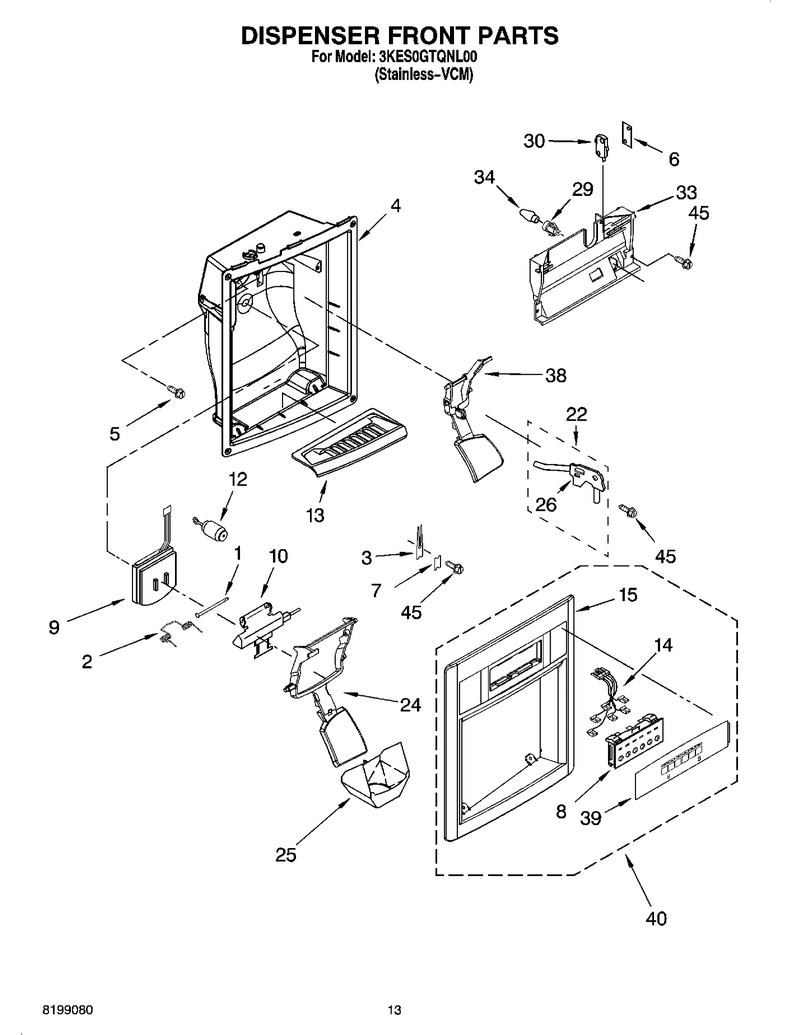

07 - Dispenser Front Parts

...
...
1
Pin-Door WPL-WP2196195
...
2
Spring WPL-WPW10224328
...
3
Clip WPL-WP2194719
...
4
Housing, Dispenser (Not Serviced) WPL---
...
5
Screw WPL-WP3196557
...
6
Spacer WPL-WP625834
...
7
Clip WPL-WP2195051
...
8
Switch Assembly (Not Available, Order 40) WPL---
...
9
Door-Chute WPL-WP2180353
...
10
Ice Dor Kt WPL-W10823377
...
12
Ice Dor Kt WPL-W10823377
...
13
Grille, Overflow (Black) WPL-2207048B
...
14
Wire Assembly WPL-2311650
...
15
Front Cover, Housing (Not Availabe, Order 40) WPL---
...
22
Fitting WPL-8201537
...
24
Arm-Dispsr WPL-WP2255431B
...
25
Guide-Ice WPL-WP2180224
...
26
Bracket WPL-WP2304673
...
29
Lamp Holder WPL-2180200
...
30
Swtch-Micr WPL-WP2162361
...
33
Bracket WPL-WP2180226
...
34
Bulb, Light WPL-989331
...
38
Arm-Dispsr WPL-WP2255432B
...
39
Overlay, Front Cover (Not Available, Order 40) WPL---
...
40
Front Cover Assembly (Includes Items 8, 14 & 39) (Black) WPL-2214545B
...
45
Screw WPL-WP3400906

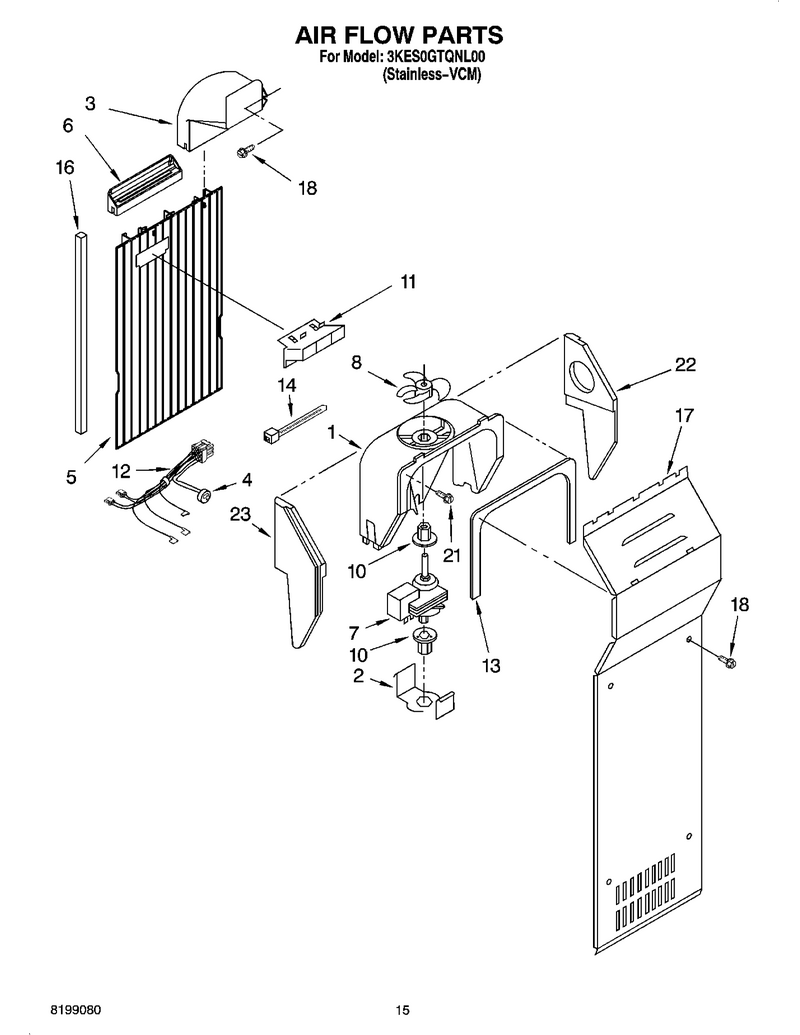

08 - Air Flow Parts

...
...
1
Fan-Scroll WPL-W11254898
...
2
Retainer WPL-WP2155590
...
3
Scoop-Air WPL-WP2161231
...
4
Bimetl-Def WPL-WPW10225581
...
5
Cover-Evap WPL-4388357
...
6
Diffuser, Air Duct WPL-2149544
...
7
Motor-Evap WPL-WP4389157
...
8
Blade-Fan WPL-WP2169142
...
10
Grommet WPL-WP2176759
...
11
Duct, Icemaker WPL-2182146
...
12
Harness, Fan, Evaporator (Includes 4) WPL-2187903
...
13
Gasket WPL-WP2155789
...
14
Tie-Wire WPL-WPW10339879
...
16
Gasket WPL-4388500
...
17
Cover-Evap WPL-4388357
...
18
Screw WPL-W11233072
...
21
Screw WPL-WP489478
...
22
Support Kit (Contains Right And Left) WPL-4388358
...
23
Support Kit (Contains Right And Left) WPL-4388358

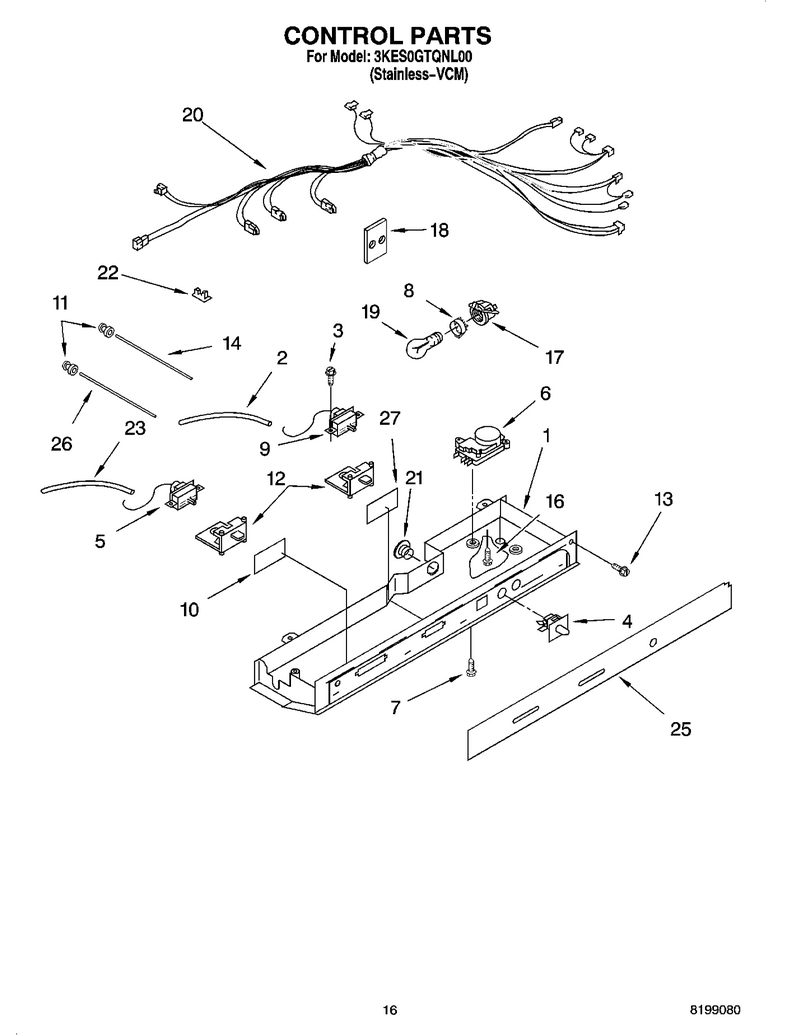

09 - Control Parts

...
...
1
Control Box WPL-2200135
...
2
Barrier WPL-WP2196003
...
3
Screw, 6-19 X .250 WPL-2006254
...
4
Switch WPL-WP2149705
...
5
Thermostat (Fc) WPL-2187158
...
6
Timer-Def WPL-WP2188379
...
7
Screw WPL-489392
...
8
Shroud WPL-WP2175210
...
9
Thermostat WPL-WP2161460
...
10
Window WPL-2172940
...
11
Grommet, Light Bar WPL-2172906
...
12
Slide, Thermostat WPL-2161466
...
13
Screw WPL-WPW10141645
...
14
Light Bar (Rc) WPL-2179920
...
16
Screw WPL-WP488488
...
17
Capacitor (Service) WPL-4387478
...
18
Heat Shield WPL-2172931
...
19
Bulb-Light WPL-WP67002552
...
20
Control Box Harness WPL-2206510
...
21
Hole Plug WPL-940014
...
22
Clip, Wiring WPL-1115375
...
23
Barrier WPL-WP2196003
...
25
Escutcheon, Control Box WPL-2261750
...
26
Light Bar (Fc) WPL-2179921
...
27
Window WPL-2172941
