Whirlpool 1CWTW4845EW3

Model: 1CWTW4845EW3

Save Part Not Listed?
product name

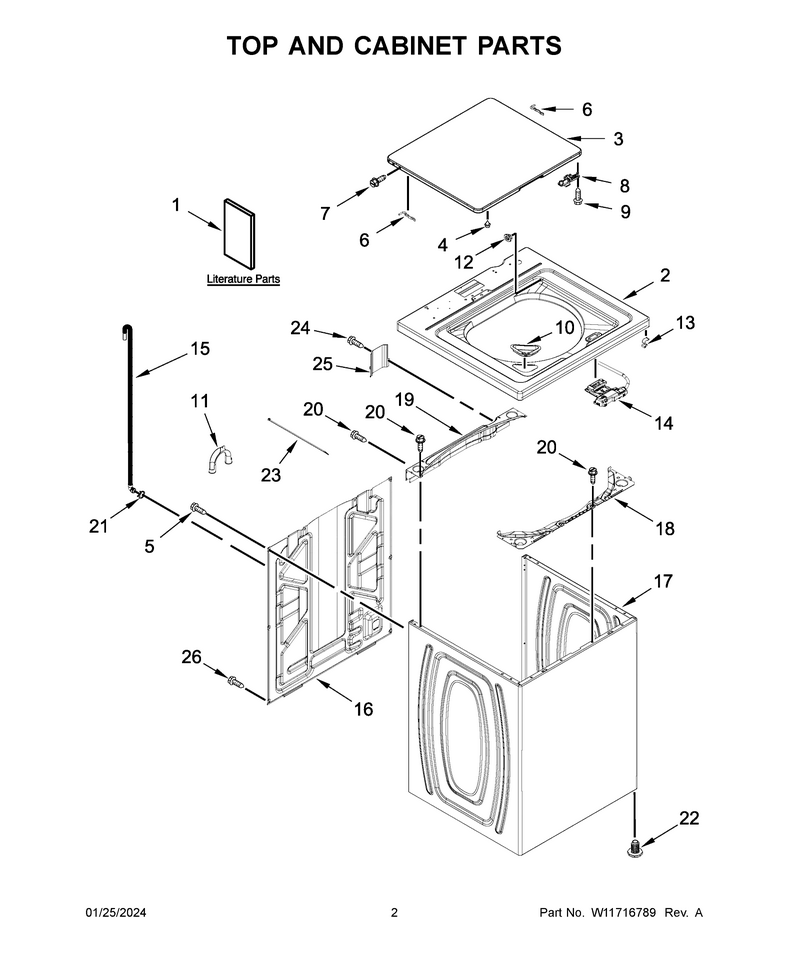

02 - Top And Cabinet Parts

...
...
1
Installation Instructions WPL-W10807862
...
1D
Energy Guide WPL-W11665478
...
1C
Tech Sheet WPL-W10740624
...
1A
Use And Care Guide WPL-W11677885
...
1B
Quick Start Guide WPL-W11584461
...
2
Top WPL-W11210992
...
3
Lid WPL-W10860912
...
4
Bumper WPL-WP9724509
...
5
Screw WPL-WP9740848
...
6
Hinge WPL-WP91770
...
6A
Hinge WPL-WP54583
...
7
Screw WPL-WPW10119828
...
8
Strike WPL-W10837741
...
9
Screw WPL-WPW10273971
...
10
Dispenser WPL-WPW10192089
...
11
Retainer WPL-WPW10280024
...
12
Bearing WPL-WP21258
...
13
Clip WPL-WP90016
...
14
Latch WPL-W11307244
...
15
Hose WPL-W11244231
...
16
Panel-Rear WPL-W11486091
...
17
Cabinet WPL-W10596395
...
18
Brace WPL-W11661767
...
19
Brace WPL-W11712680
...
20
Screw WPL-W11685943
...
21
Clamp WPL-WP356138
...
22
Feet-Lvlng WPL-WPW10687506
...
23
Tie-Wire WPL-WPW10339879
...
24
Screw WPL-W10846509
...
25
Cover, Harness WPL-W10676061
...
26
Screw WPL-W11568617

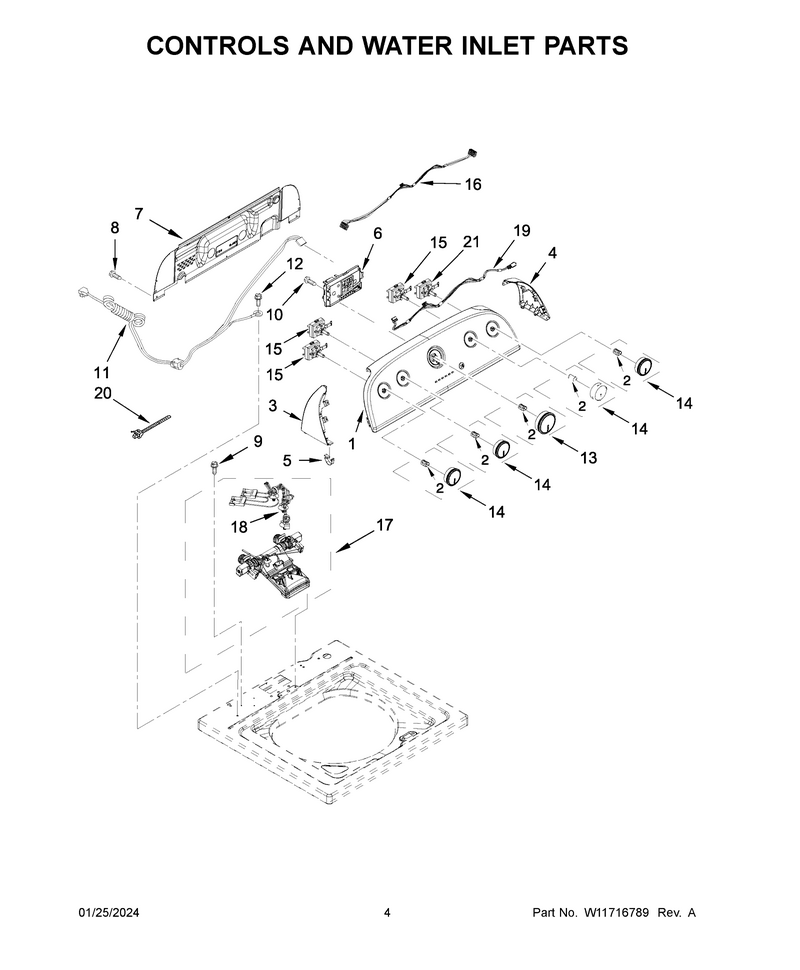

03 - Controls And Water Inlet Parts

...
...
1
Panel, Console WPL-W10774523
...
2
Clip WPL-WP688805
...
3
Panl WPL-WPW10520782
...
4
Panl WPL-WPW10520780
...
5
Clip WPL-WP8312709
...
6
Cntrl-Elec WPL-W11607633
...
7
Panel, Console Rear Cover WPL-W10552335
...
8
Screw WPL-W11685943
...
9
Screw WPL-WPW10213953
...
10
Screw WPL-WP90767
...
11
Cord-Power WPL-W10877409
...
12
Screw WPL-W10846509
...
13
Knob WPL-W10756270
...
14
Knob WPL-W10756270
...
15
Switch-Cyc WPL-WPW10285512
...
16
Harns-Wire WPL-W11211519
...
17
Valve WPL-W11641117
...
18
Harness, Valve WPL-W10701401
...
19
Harness, Jumper WPL-W10786100
...
20
Cable Tie WPL-W10339680
...
21
Switch-Cyc WPL-WPW10285511

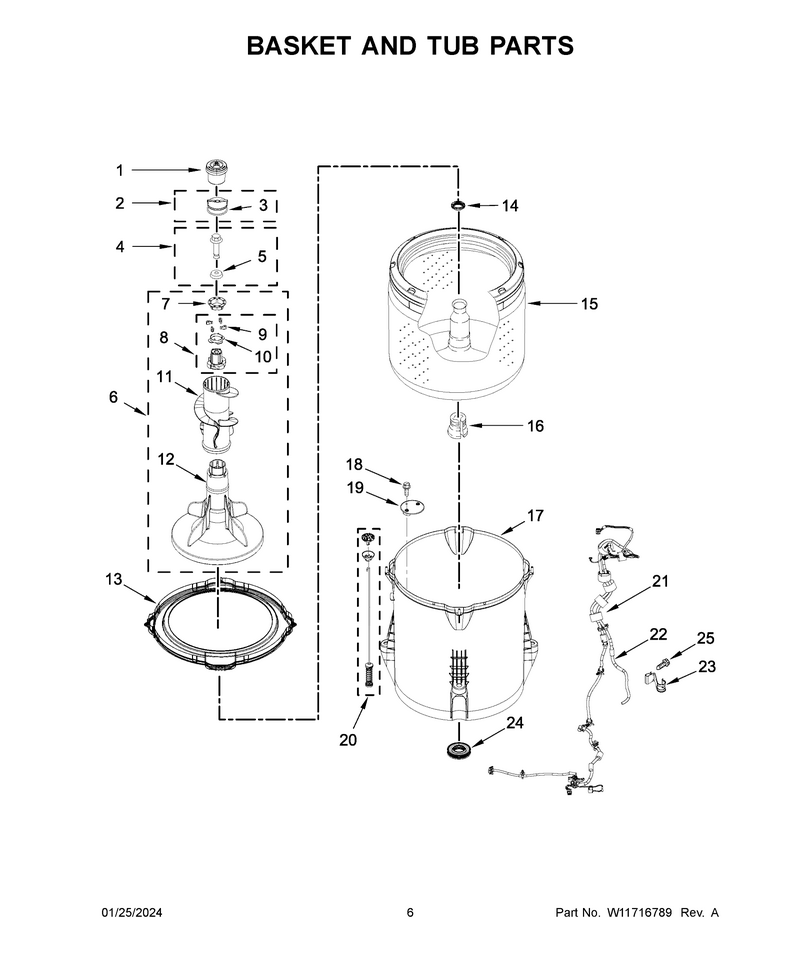

04 - Basket And Tub Parts

...
...
1
Dispenser WPL-8575076A
...
2
Cap WPL-WPW10074580
...
3
Ring-O WPL-WPW10072840
...
4
Screw WPL-W10772621
...
5
Washer WPL-WP3949550
...
6
Agitator WPL-285565
...
7
Washer WPL-285587
...
8
Cam-Agit WPL-285811
...
9
Dog-Agit WPL-80040
...
10
Bearing WPL-WP3363661
...
11
Mover-Agit WPL-WP3348752
...
12
Agitator WPL-WP3347288
...
13
Ring-Tub WPL-WPW10531289
...
14
Nut-Spaner WPL-WP21366
...
15
Basket Assembly WPL-W10554251
...
16
Block WPL-WP389140
...
17
Tub-Outer WPL-W10371566
...
18
Screw WPL-WP8533928
...
19
Filter WPL-WPW10215093
...
20
Suspension WPL-W10780045
...
21
Harness, Lower (Includes Pressure Hose) WPL-W11388376
...
22
Hose WPL-WP353244
...
23
Clip WPL-W11755726
...
24
Seal-Tub WPL-W10324647
...
25
Screw WPL-WPW10109200

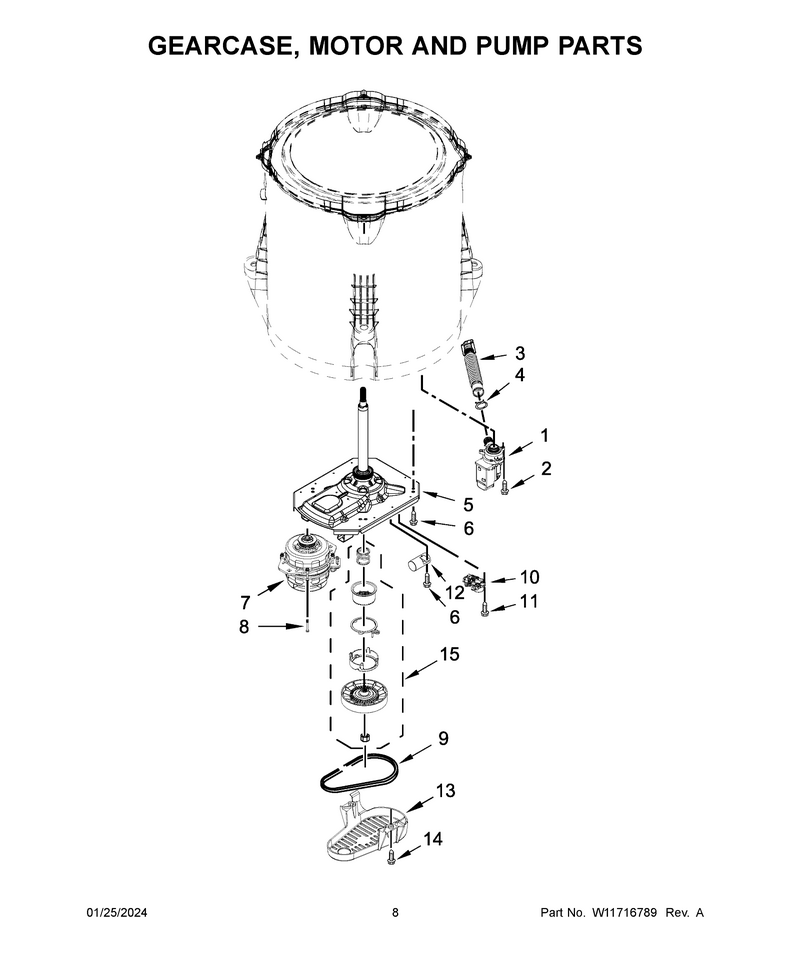

05 - Gearcase, Motor And Pump Parts

...
...
1
Pump-Water WPL-WPW10465543
...
2
Screw WPL-WPW10004910
...
3
Hose WPL-W10899966
...
4
Clamp WPL-WP285655
...
5
Gearcase WPL-W11454741
...
6
Screw WPL-WPW10249633
...
7
Motor-Drve WPL-WPW10677715
...
8
Screw WPL-W11685857
...
9
Belt WPL-W11239857
...
10
Actuator WPL-W11481722
...
11
Screw WPL-W11596033
...
12
Capacitor WPL-W11710886
...
13
Shield WPL-WPW10427633
...
14
Screw WPL-W11573574
...
15
Splutch Kit (60hz) WPL-W10721967

...
...
NI
Accessory Parts, Inlet Hoses, 4.5 Ft (Cold Water - One Braided Hoses W/ One Straight End And One 90 Degree End) WPL-W11379000
