Whirlpool 1CWTW4705GW2

Model: 1CWTW4705GW2

Save Part Not Listed?
product name

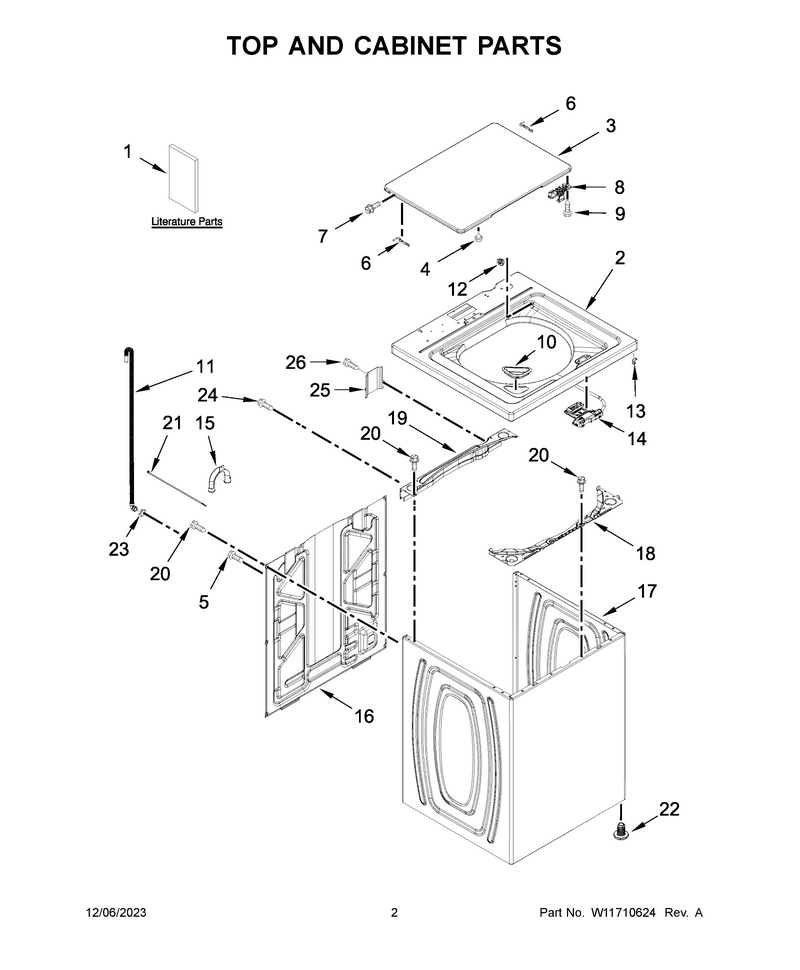

02 - Top And Cabinet Parts

...
...
1
Installation Instructions WPL-W10807862
...
1D
Energy Guide WPL-W11665476
...
1C
Quick Start Guide WPL-W11584461
...
1A
Use And Care Guide WPL-W11677885
...
1B
Tech Sheet WPL-W10740624
...
2
Top WPL-W11026446
...
3
Lid WPL-WPW10338625
...
4
Bumper WPL-WP9724509
...
5
Screw WPL-WP9740848
...
6
Hinge WPL-WP91770
...
7
Screw WPL-WPW10119828
...
8
Strike WPL-W10837741
...
9
Screw WPL-WPW10273971
...
10
Dispenser WPL-WPW10192089
...
11
Hose WPL-W11244231
...
12
Bearing WPL-WP21258
...
13
Clip WPL-WP90016
...
14
Latch WPL-W11307244
...
15
Retainer WPL-WPW10280024
...
16
Panel-Rear WPL-W11486091
...
17
Cabinet WPL-W10596395
...
18
Brace WPL-W11661767
...
19
Brace WPL-W11712680
...
20
Screw WPL-W11685943
...
21
Tie-Wire WPL-WPW10339879
...
22
Feet-Lvlng WPL-WPW10687506
...
23
Clamp WPL-WP356138
...
24
Screw WPL-W11568617
...
25
Cover, Harness WPL-W10676061
...
26
Screw WPL-W10846509

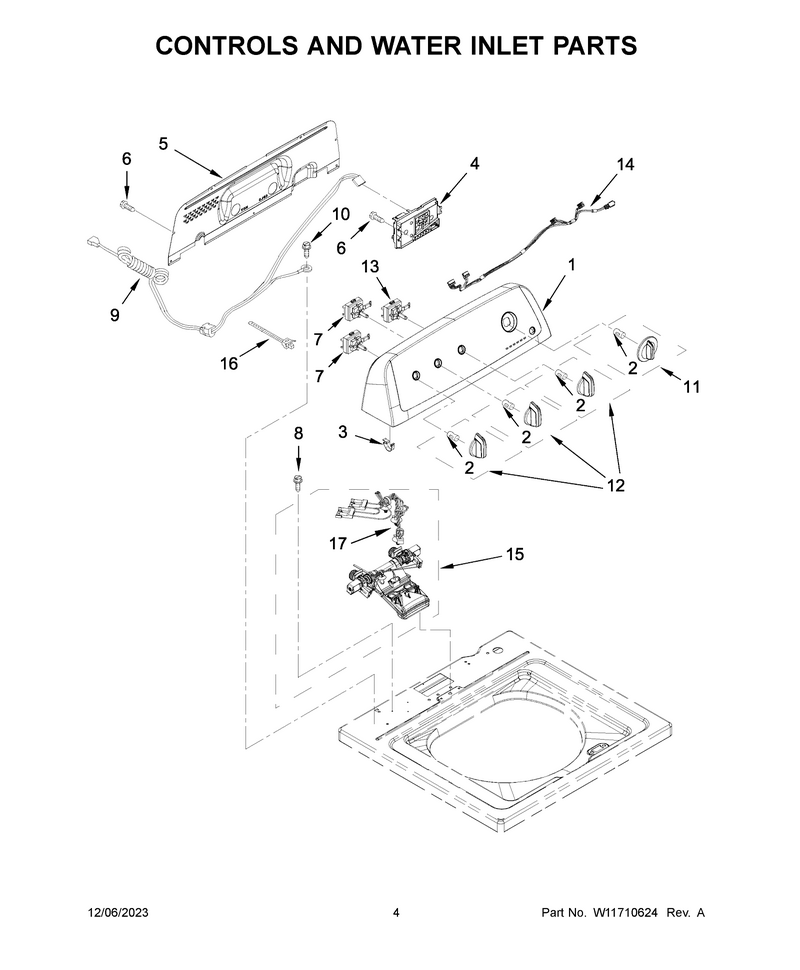

03 - Controls And Water Inlet Parts

...
...
NI
10a Cord Lock WPL-W10446855
...
1
Panel, Console WPL-W10774510
...
2
Clip WPL-WP8536939
...
3
Clip WPL-WP8312709
...
4
Cntrl-Elec WPL-W11607632
...
5
Panel, Console Rear Cover WPL-W10409320
...
6
Screw WPL-W11685943
...
7
Switch-Cyc WPL-WPW10414398
...
8
Screw WPL-WPW10213953
...
9
Cord-Power WPL-W10850133
...
10
Screw WPL-W10846509
...
11
Knob WPL-WPW10711289
...
12
Knob WPL-WPW10453947
...
13
Switch-Cyc WPL-W11168256
...
14
Harness, Upper WPL-W10694671
...
15
Valve WPL-W11641117
...
16
Tie-Wire WPL-WPW10339879
...
17
Harness, Valve WPL-W10701401

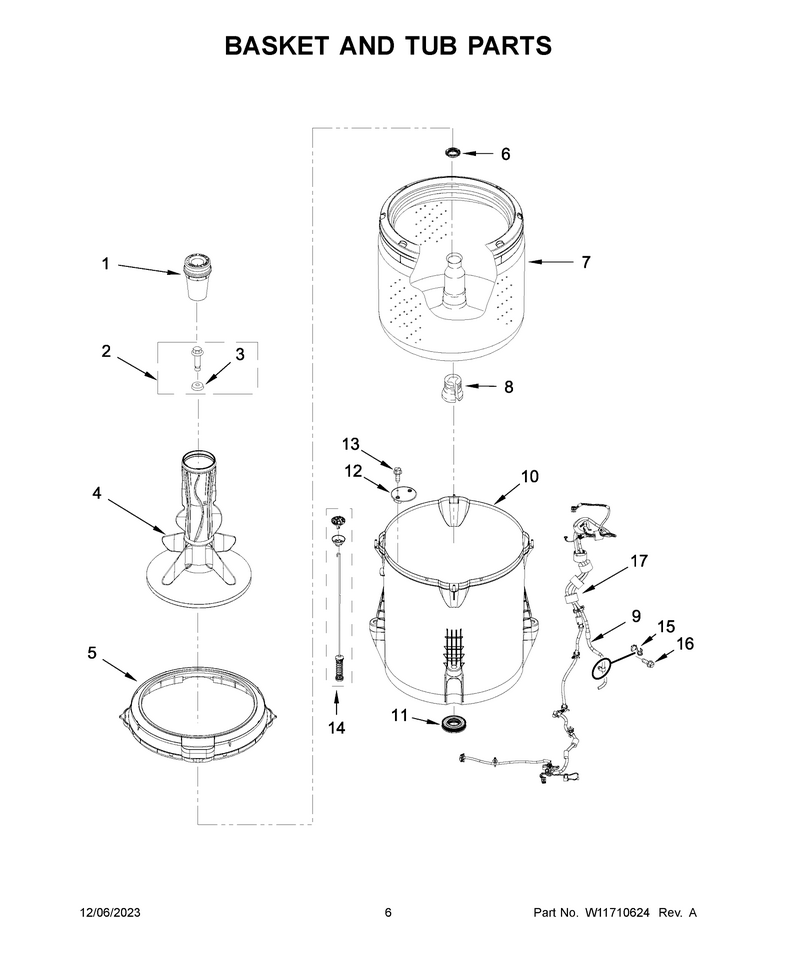

04 - Basket And Tub Parts

...
...
1
Fabric Dispenser WPL-63580
...
2
Screw WPL-W10772621
...
3
Washer WPL-WP3949550
...
4
Agitator WPL-WP63235
...
5
Ring-Tub WPL-WPW10531289
...
6
Nut-Spaner WPL-WP21366
...
7
Basket Assembly WPL-W10554251
...
8
Block WPL-WP389140
...
9
Hose WPL-W10846364
...
10
Tub-Outer WPL-W10371566
...
11
Seal-Tub WPL-W10324647
...
12
Filter WPL-WPW10215093
...
13
Screw WPL-WP8533928
...
14
Suspension WPL-W10780045
...
15
Clip WPL-W11755726
...
16
Screw WPL-WPW10109200
...
17
Harness, Lower WPL-W10903234

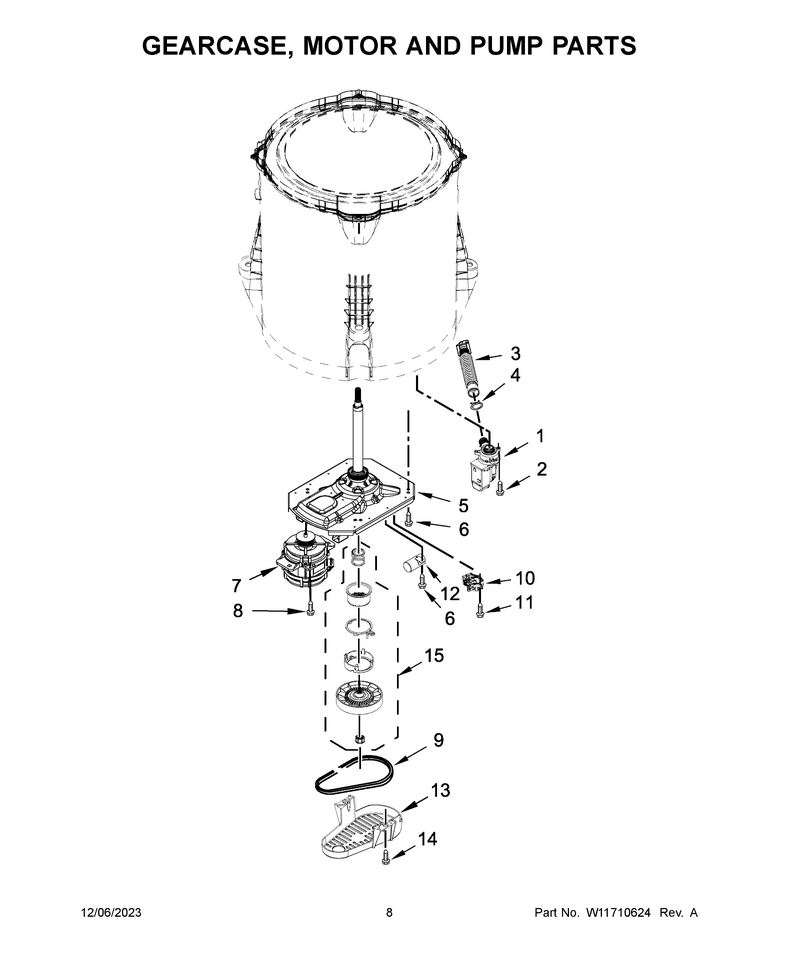

05 - Gearcase, Motor And Pump Parts

...
...
1
Pump-Water WPL-W10919003
...
2
Screw WPL-WPW10004910
...
3
Hose WPL-W10899966
...
4
Clamp WPL-WP285655
...
5
Gearcase WPL-W11454741
...
6
Screw WPL-WPW10249633
...
7
Motor-Drve WPL-W10889172
...
8
Screw WPL-W11685857
...
9
Belt WPL-W11239857
...
10
Actuator WPL-W11481722
...
11
Screw WPL-W11596033
...
12
Capacitor WPL-W11710886
...
13
Shield WPL-WPW10427633
...
14
Screw WPL-W11573574
...
15
Splutch Kit (60hz) WPL-W10721967

...
...
NI
Connector WPL-WPW10269488
