Whirlpool 10667803410

Model: 10667803410

Save Part Not Listed?
product name

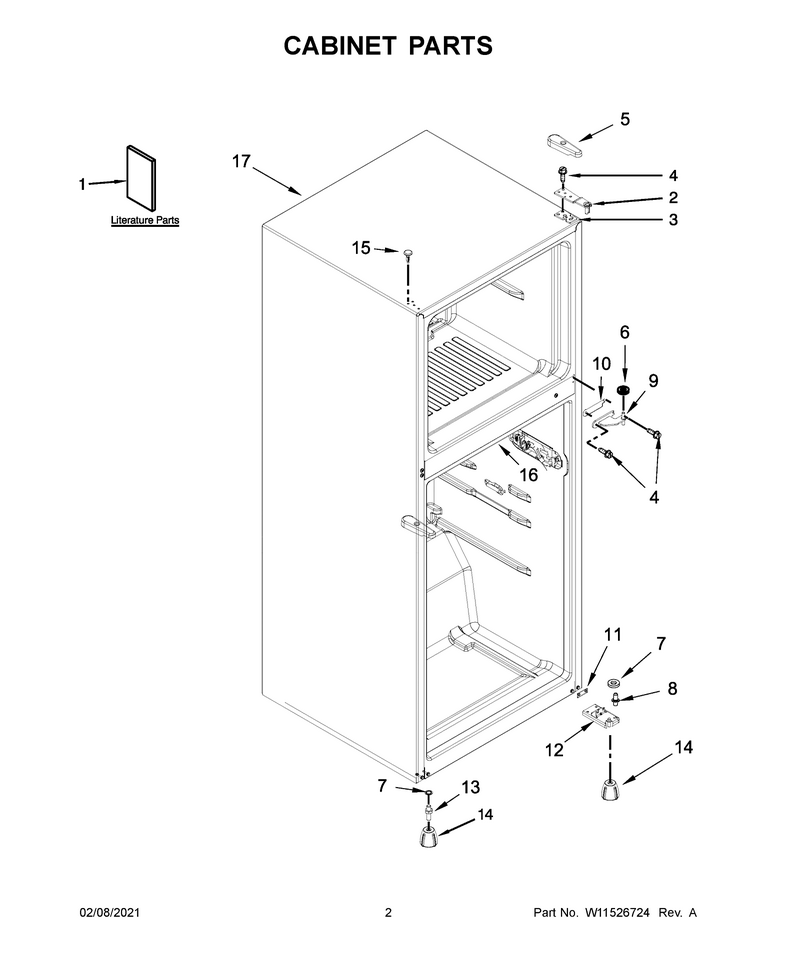

02 - Cabinet Parts

...
...
1
Use And Care Guide WPL-W11462195
...
1A
Energy Guide WPL-W11438984
...
2
Assembly, Top Hinge WPL-W11191773
...
3
Shim, Top Hinge WPL-W10399311
...
4
Screw WPL-WP489497
...
5
Hinge Cover (White) WPL-W11467695
...
5A
Hinge Cover (Black) WPL-W11467697
...
5B
Hinge Cover (Grey) WPL-W11467696
...
6
Washer WPL-WP487576
...
7
Washer WPL-WP489467
...
8
Pin-Hinge WPL-W11678964
...
9
Hinge, Center WPL-W11173998
...
10
Shim-Hinge WPL-W11269182
...
11
Shim-Hinge WPL-W11269192
...
12
Hinge-Door WPL-W11580021
...
13
Leveler WPL-WPR-30039
...
14
Leveler WPL-W11545335
...
15
Button-Plg WPL-WPW10520304
...
15A
Button-Plg WPL-WPW10520307
...
15B
Button-Plg WPL-WPW10520305
...
16
Following Parts Not Illustrated WPL-N/P
...
17
Following Parts Not Illustrated WPL-N/P

03 - Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Cover-Back WPL-W11744511
...
3
Following Parts Not Illustrated WPL-N/P
...
4
Motor-Evap WPL-W11369036
...
5
Washer WPL-489468
...
6
Damper WPL-W11673316
...
7
Wedge, Front WPL-W11236030
...
8
Cover, Evaporator Front WPL-W11434067
...
9
Knob-Trigr WPL-W11715970
...
10
Cover-Evap WPL-W11741457
...
11
Panel-Ui WPL-W11446726
...
12
Wire-Jumpr WPL-W11624942
...
13
Wire Assembly, Ice Maker WPL-W11235113
...
14
Cover WPL-WPW10425252
...
15
Button WPL-W11254962
...
16
Spring WPL-W10520965

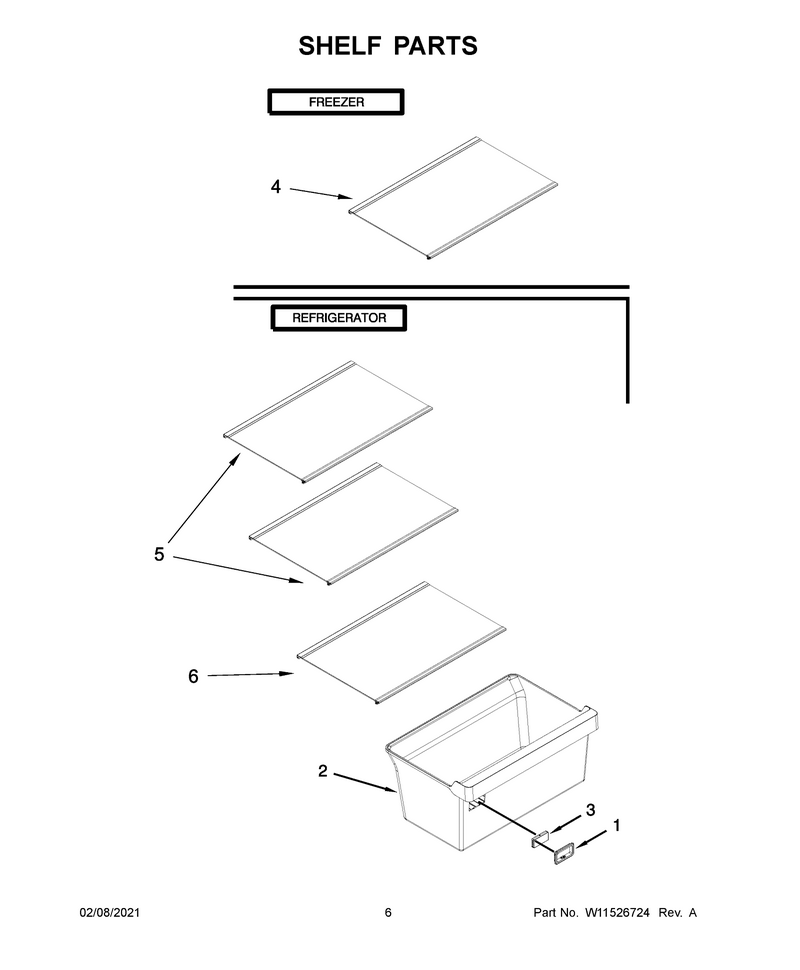

04 - Shelf Parts

...
...
1
Frame, Humidity Control WPL-W10435530
...
2
Shelf-Glas WPL-W11542655
...
3
Control, Humidity WPL-W10431229
...
4
Shelf-Glas WPL-W11424099
...
5
Shelf-Glas WPL-W11409862
...
6
Shelf-Glas WPL-W11409863

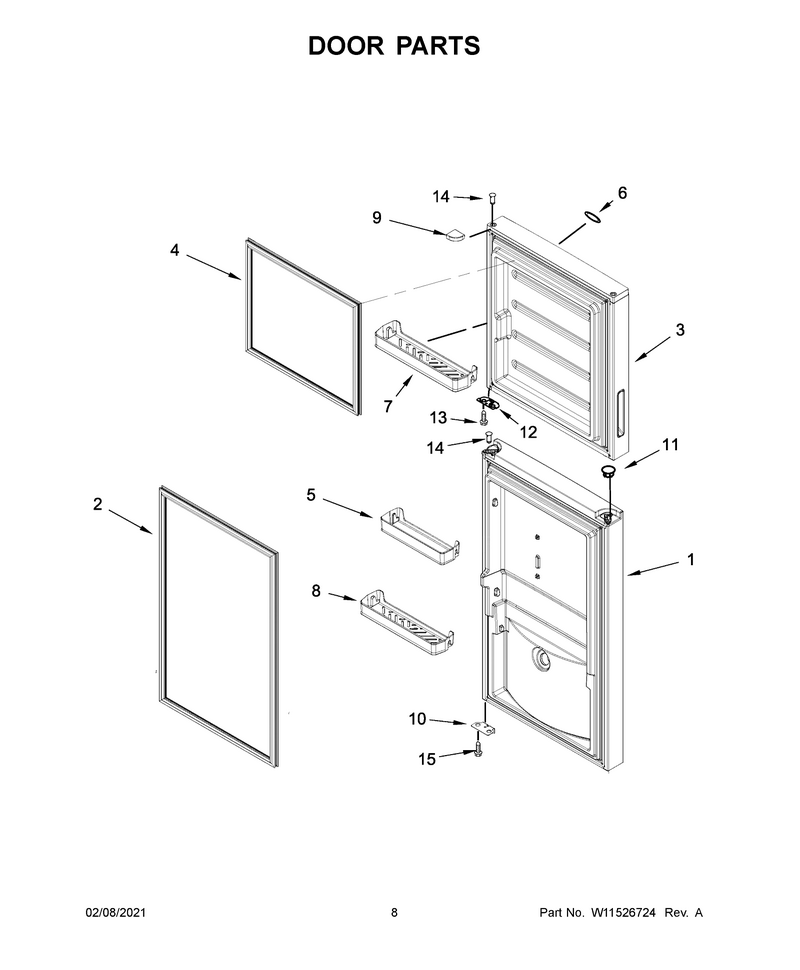

05 - Door Parts

...
...
1
Dor-Fip WPL-W11554606
...
1A
Door, Refrigerator (Black) WPL-W11317618
...
1B
Dor-Fip WPL-W11554604
...
2
Gasket, Refrigerator Door (White) WPL-W11235133
...
2A
Gasket, Refrigerator Door (Black) WPL-W11235134
...
2B
Gasket, Refrigerator Door (Grey) WPL-W11250318
...
3
Dor-Fip WPL-W11374236
...
3A
Dor-Fip WPL-W11374242
...
3B
Dor-Fip WPL-W11554603
...
4
Gasket-Fip WPL-W11736728
...
4A
Gasket, Freezer Door (Black) WPL-W11235130
...
4B
Gasket, Freezer Door (Grey) WPL-W11250314
...
5
Bin, Bottle WPL-W11247887
...
6
Nameplate WPL-W10830980
...
7
Door Bin, Freezer WPL-W11247924
...
8
Door Bin, Refrigerator WPL-W11247889
...
9
Endcap Left Hand (White) WPL-W11246845
...
9A
Endcap Left Hand (Black) WPL-W11246847
...
9B
Endcap Left Hand (Grey) WPL-W11246818
...
9C
Endcap Right Hand (White) WPL-W11246852
...
9D
Endcap Right Hand (Black) WPL-W11246854
...
9E
Endcap Right Hand (Grey) WPL-W11246849
...
10
Bracket WPL-W11745278
...
11
Button-Plg WPL-WP2212648
...
11A
Button-Plg WPL-WP2212651
...
11B
Plug, Hole (Grey) WPL-W11255553
...
12
Bracket WPL-WPW10397055
...
13
Screw WPL-WP489442
...
14
Thimble WPL-W11759045
...
14A
Thimble WPL-W11189115
...
14B
Thimble, Top (Gray) WPL-W11289190
...
15
Screw WPL-WP681249

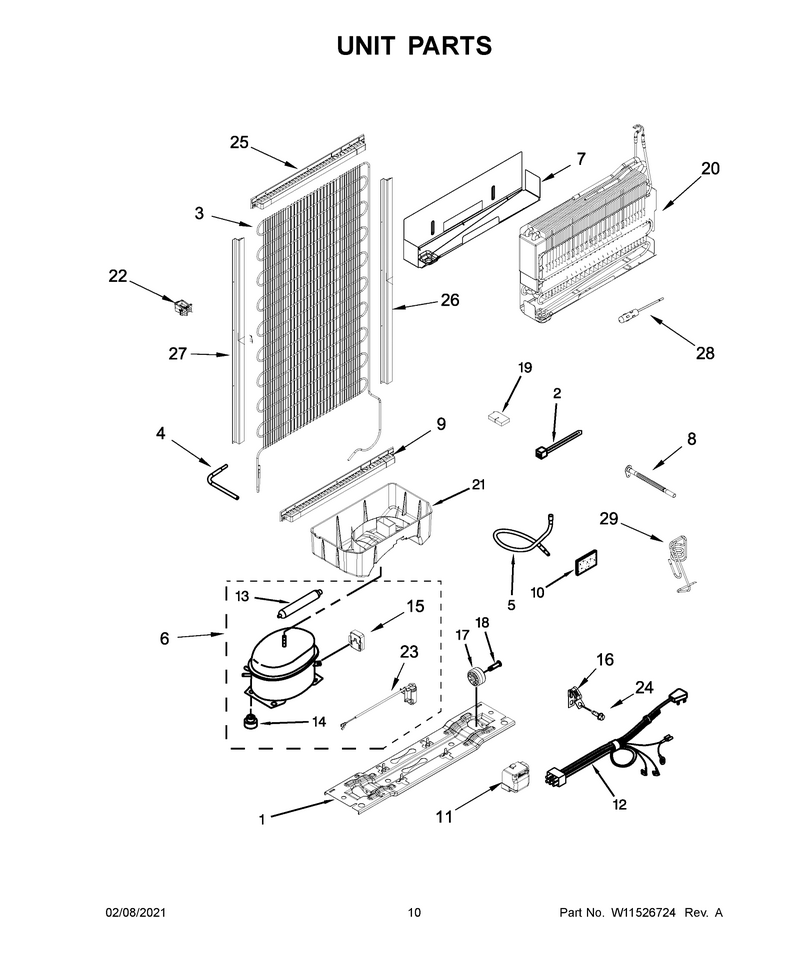

06 - Unit Parts

...
...
NI
(8-Mm-200-Mm) (Capillary Tube To Evaporator) WPL-W11225184
...
1
Plate, Compressor Support WPL-W10378704
...
2
Tie-Wire WPL-WPW10339879
...
3
Condenser WPL-W11368894
...
4
Tube WPL-W11661102
...
5
Tube WPL-W11403094
...
6
Compressor WPL-W11370574
...
7
Heat Sheild WPL-W11179127
...
8
Extension WPL-W11547140
...
9
Condenser, Bottom Protection WPL-W11264207
...
10
Insulation WPL-W11553819
...
11
Cover, Terminal Board WPL-W11342284
...
12
Assembly, Power Cord WPL-W11248029
...
13
Drier-Tube WPL-W11490399
...
14
Grommet WPL-WPW10169124
...
15
Start-Dev WPL-W11643623
...
16
Clamp, Plastic WPL-W11234470
...
17
Roller-Cab WPL-WPW10475495
...
18
Axle WPL-W11594405
...
19
Wedge, Evaporator WPL-W10261299
...
20
Evaporator WPL-W11368877
...
21
Tray WPL-W11559685
...
22
Support WPL-WP326020544
...
23
Capacitor WPL-W11652060
...
24
Screw WPL-WP489442
...
25
Condenser, Top Protection WPL-W11264206
...
26
Condenser, Side Protection (Right) WPL-W11377937
...
27
Condenser Side Protection (Left) WPL-W11377938
...
28
Following Parts Not Illustrated WPL-N/P
...
29
Tube WPL-W11528684

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
