Weed Eater YP160 Gas Trimmer

Model: YP160 Gas Trimmer

Save Part Not Listed?
product name

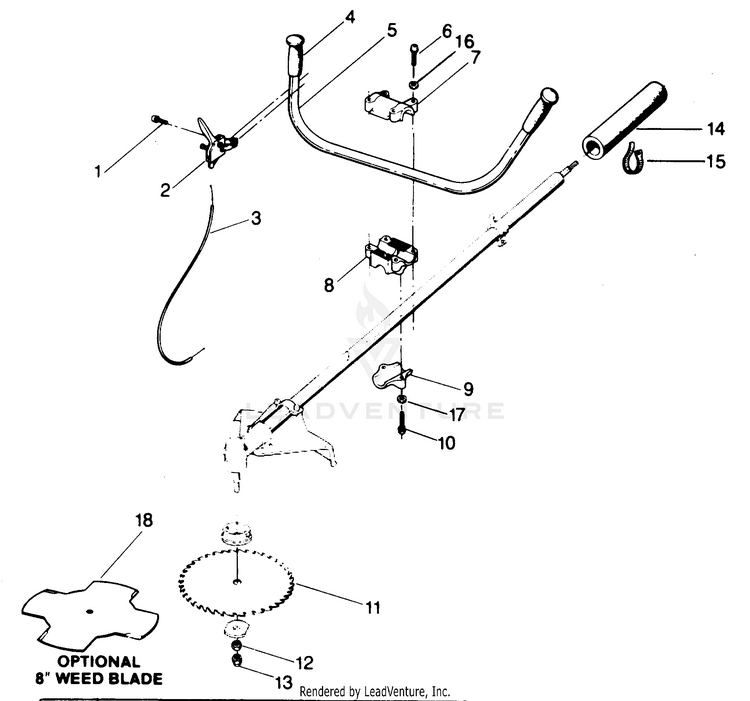

BRUSH BLADE ADAPTOR KIT

...
...
0
Brush Blade Adaptor Kit PLN-952701576
...
1
Screw - Phil. Hd. - 5 x 25mm.- Throttle Control PLN-530094210
...
2
Ass'y. - Throttle Control PLN-530093957
...
3
Cable - Throttle PLN-530093955
...
4
Grip - Handlebar PLN-530093947
...
5
Handlebar PLN-530093946
...
6
Bolt - Clamp - Top PLN-530015337
...
7
Cover - Top - Clamp PLN-530093962
...
8
Clamp - Handlebar PLN-530094393
...
9
Cover - Bottom - Clamp PLN-530093963
...
10
Bolt - Clamp - Bottom PLN-530001648
...
11
Brush Blade PLN-952701547
...
12
Lock Nut - Blade PLN-530091595
...
13
Cap - Nut - Blade PLN-530091596
...
14
Drive Shaft Pad PLN-530093982
...
15
Tie Strap PLN-530091426
...
16
Lockwasher - 10 PLN-530015328
...
17
Lockwasher - 10 PLN-530001642
...
18
8 inch - Weed Blade - Optional PLN-952701546

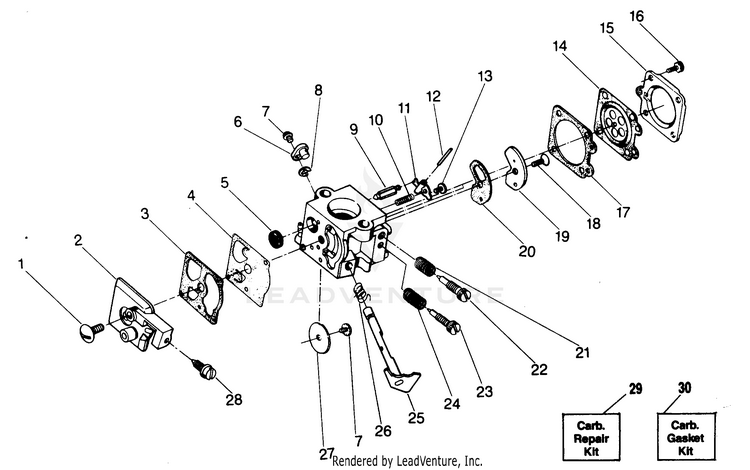

CARBURETOR BREAKDOWN

...
...
1
Screw - Pump Cover PLN-530035017
...
2
Pump Cover Ass'y (incl. #28) PLN-530035191
...
3
GASKET PLN-504130906
...
4
PUMP DIAPHRAGM PLN-504130807
...
5
Screen - Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178
...
6
Swivel Lever Ass'y. PLN-530035192
...
7
Screw - Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
8
Clip - Throttle Shaft PLN-530035007
...
9
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
10
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
11
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
12
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
13
Screw - Metering Lever Pin PLN-530035016
...
14
DIAPHRAGM PLN-503896701
...
15
Cover - Metering Diaphragm PLN-530035149
...
16
Screw Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
17
Gasket - Metering Diaphragm PLN-530035151
...
18
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
19
Plate - Circuit PLN-530035042
...
20
GASKET PLN-501781301
...
21
Spring - Hi Speed Needle PLN-530035036
...
22
H-NEEDLE PLN-501782201
...
23
Needle - Idle PLN-530035141
...
24
Spring - Idle Needle PLN-530035023
...
25
Shaft Assembly - Throttle PLN-530035192
...
26
Spring - Throttle Return PLN-530035138
...
27
Valve - Throttle PLN-530035133
...
28
Screw - Idle Adjustment PLN-530035156
...
29
Kit - Carb. Kwik Repair PLN-530035185
...
30
Gasket Diaphragm Kit PLN-530069844

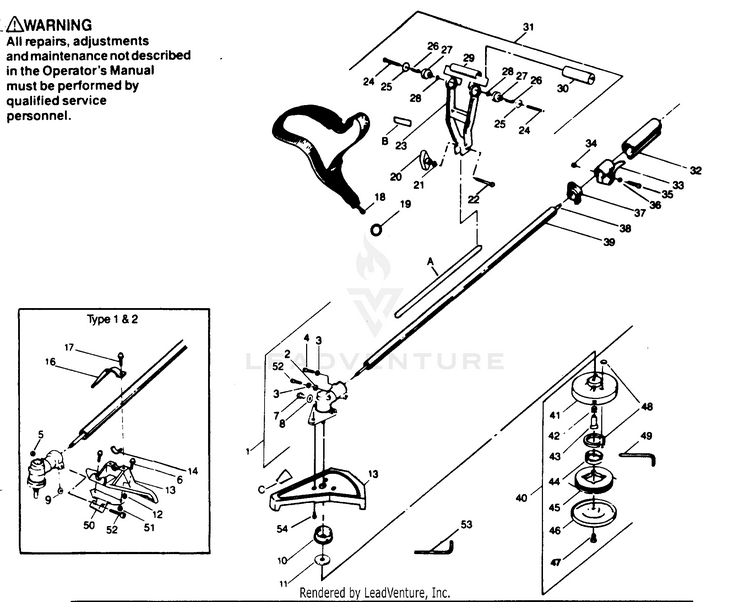

CUTTING HEAD

...
...
1
Type 1 & 2 PLN-530094455
...
1
Type 3 PLN-530094495
...
2
Lockwasher - Type 2 PLN-530094449
...
2
Washer Type 3 PLN-530094206
...
3
Lockwasher PLN-530094200
...
4
Screw-5 x 12.5 MM-Soc. Hd Gear Box-Index PLN-530094208
...
5
Nut-5mm Gear Box-Pinch Clamp-Type 2 only PLN-530094448
...
6
Screw-Sems-6 x 16mm-Type 2 only PLN-530094450
...
7
Type 1 & 2 PLN-530094209
...
7
Type 3 PLN-530094485
...
8
Type 1 & 2 PLN-530094203
...
8
Type 3 PLN-530094486
...
9
Washer-Spacer-Gear Box - Type 1 & 2 PLN-530094207
...
10
Adaptor-Upper PLN-530093984
...
11
Adaptor-Lower PLN-530093985
...
12
Nut-6mm-Shield Type 1 & 2 PLN-530093981
...
13
Type 1 PLN-530093980
...
13
Type 2 PLN-530094445
...
13
Type 3 PLN-530094496
...
14
Spacer-Shield-Type 1 & 2 PLN-530093979
...
16
Bracket-Shield PLN-530093978
...
17
Screw-6x20mm-Shield PLN-530093977
...
18
Shoulder Strap PLN-530094417
...
19
Key Ring-Shoulder Strap PLN-530092231
...
20
Knob-Handle PLN-530092059
...
21
Washer-1/4"-Handle PLN-530092062
...
22
Screw-#1/4-20x1-3/4" Handle PLN-530015737
...
23
Handle Antivibe PLN-530093960
...
24
Screw-#12-11x2"-Isolator Handle PLN-530015561
...
25
Cup-Isolator-Handle PLN-530024376
...
26
Spacer-Isolator Handle PLN-530025985
...
27
Isolator-Handle PLN-530024373
...
28
Washer-Flat-Handle PLN-530015209
...
29
Center-Section-Handle PLN-530025986
...
30
Cushion-Handle PLN-530026009
...
31
Ass'y-Antivibe Handle (incl. #23-30) PLN-530010764
...
32
Grip-Drive Shaft Hsg. PLN-530093956
...
33
Throttle Control Ass'y. PLN-530093958
...
34
Lock Nut-Hex-5mm-Throttle Control PLN-530094210
...
35
Screw-5x25mm Phil. PLN-530094204
...
36
Washer-Throttle Control Throttle Control PLN-530094214
...
37
Clamp-Shoulder Strap PLN-530093948
...
38
Type 1 PLN-530093945
...
38
Type 2 & 3 PLN-530094443
...
39
Type 1 PLN-530093983
...
39
Type 2 & 3 PLN-530094454
...
40
Cutting Head Assembly (incl. #41-49) PLN-530093954
...
41
Hub-Cutting Head PLN-530091656
...
42
Line Saver-Cutting Head PLN-530091425
...
43
Drive Adaptor Cutting Head PLN-530091423
...
44
Spring-Cutting Head PLN-530091657
...
45
Spool w/Line-Cutting Head PLN-952701526
...
46
Cover-Cutting Head PLN-530091424
...
47
Screw-#3/8-16x7/8"-Cover PLN-530091662
...
48
Release Button (incl. Lock Ring) PLN-530093602
...
49
Allen Wrench-Cutting Head PLN-530091663
...
50
Bracket-Lower-Splash Deflector-Type 2 only PLN-530094447
...
51
Nut-Hex-6mm-Type 2 only PLN-530094446
...
52
Type 1 & 3 (5x25mm) PLN-530094205
...
52
Type 2 (5x35 mm) PLN-530015742
...
53
Wrench-Hex-4mm PLN-530092258
...
54
Screw-Type 3 PLN-530094487
...
A
Upper PLN-530027432
...
A
Lower PLN-530027433
...
B
Decal-Antivibe PLN-530026248
...
C
Decal-Warning Shield PLN-530027348
...
xx
Operator's Manual Not Shown. PLN-530066945
...
xx
Carton (Not a serviceable part) Not Shown. PLN-530060863

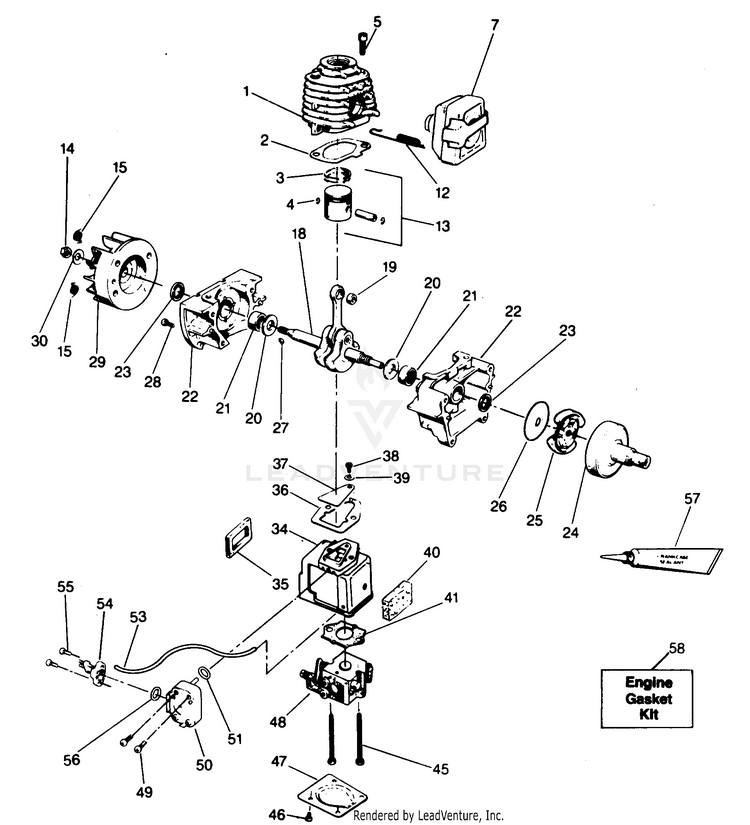

POWER UNIT

...
...
1
Cylinder PLN-530012112
...
2
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219
...
3
Ring - Piston PLN-530026681
...
4
Retainer - Wrist Pin PLN-530015162
...
5
Screw - 1/4 - 20 x 3/4 - Hex Soc. Hd. Cylinder PLN-530015239
...
12
Spring - Muffler Attachment PLN-530026621
...
13
Piston Kit (incl. #3, 4, Pin) PLN-502069203
...
14
Nut - Flywheel PLN-530626605
...
15
Spring-Starter Dog PLN-530023817
...
18
Ass'y. - Crankshaft & Rod PLN-530010844
...
19
Bearing - Wrist Pin PLN-530032092
...
20
Washer - Thrust - Crankcase PLN-530015351
...
21
Bearing - Crankcase PLN-530032029
...
22
Crankcase Ass'y. (Incl. #21, 23 & Qty. 4 of #28) PLN-530010757
...
23
Seal - Crankcase Included in Engine Gasket Kit. PLN-530019059
...
24
Drum & Coupling Assembly PLN-530010765
...
25
Clutch Assembly Kit (incl. Clutch Washer) PLN-530069195
...
26
Kit - Clutch Washer PLN-530069196
...
27
Key-Flywheel PLN-530015126
...
28
Screw - 10 - 24 x 5/8 Fil. Hd. Crankcase PLN-530015369
...
29
Flywheel Assembly (incl. #15) PLN-530039114
...
30
Washer - Flywheel PLN-530015127
...
34
Ass'y. Carburetor Housing & Eyelet PLN-530010762
...
35
Seal - Carburetor Case Included in Engine Gasket Kit. PLN-530019105
...
36
Gasket - Carburetor Case to Crankcase Included in Engine Gasket Kit. PLN-530019108
...
37
Reed Valve PLN-530024438
...
38
Screw - 6 - 19 x 5/16 - Pan Hd. - Reed Valve PLN-530015241
...
39
Washer - Reed Valve Screw PLN-530023367
...
40
See - Carb. Case (Sponge) Included in Engine Gasket Kit. PLN-530019135
...
41
Gasket - Carburetor Included in Engine Gasket Kit. PLN-530019115
...
45
Screw - 10 - 24 x 2-1/4" - Fil. Hd. - Carburetor PLN-530015566
...
46
Screw - 8 - 18 x 9/16 - Pan. Hd - Carburetor Case Cover PLN-530015235
...
47
Cover - Carburetor Case PLN-530026047
...
48
Carburetor - WA - 149 - Cable PLN-530035190
...
49
Screw - 8 x 18 x 1" - Accumulator PLN-530015565
...
50
Accumulator Assembly (incl. #51 & 54) PLN-530010651
...
51
O - ring (Orifice) PLN-530019131
...
53
Fuel Line - Carburetor PLN-530021055
...
54
Cap Assembly - Accumulator (incl. #56) PLN-530010677
...
55
Screw - 8 - 16 x 9/16 PLN-530015235
...
56
O - Ring (Accumulator Chamber) PLN-530019128
...
57
Sealant - Crankcase (not supplied with unit) PLN-530030054
...
58
Engine Gasket Kit PLN-530069219

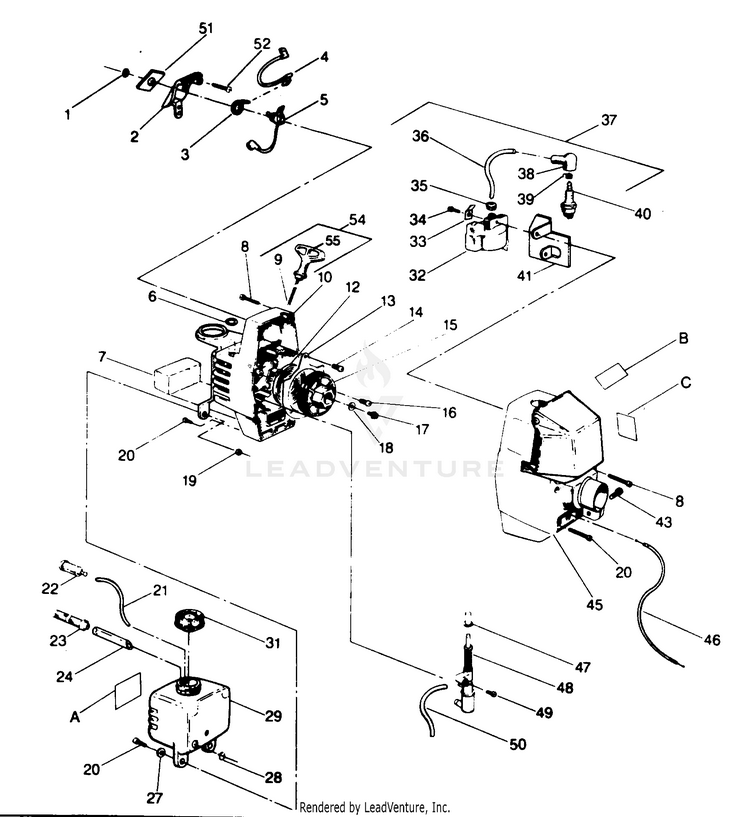

STARTER & SHROUDS

...
...
1
Switch- Plate and Nut PLN-530002582
...
2
Housing - Switch PLN-530026997
...
3
Washer - Grounding Switch PLN-530024569
...
4
Wire - Lead - Grounding Switch PLN-530039122
...
5
Kit - Grounding Switch (incl. #34) PLN-530069182
...
6
Bearing - Nyliner (Fan Housing) PLN-530026118
...
7
Air Filter PLN-530024371
...
8
Screw - #10 - 24 x 1-1/2" Fil. Hd. - Fan Housing Top PLN-530015376
...
9
Rope Kit PLN-530069231
...
10
Fan Housing Ass'y PLN-530069236
...
12
KIT STARTER SPRING PLN-545008009
...
13
Air Baffle PLN-530026035
...
14
Screw - 10 - 24 x 1/4 Pan. Hd. - Air Baffle PLN-530015373
...
15
Starter Pulley PLN-530026048
...
16
Screw - #10 - 24 x 7/16" - Air Baffle PLN-530015596
...
17
Screw PLN-530016141
...
18
Washer - #10 - Starter Pulley Screw PLN-530015123
...
19
Nut - #10 - 24 - Fuel Tank Bracket PLN-530001543
...
20
Screw - #10 - 24 x 5/8" Fil. Hd. Housing Bottom PLN-530015168
...
21
Line Kit PLN-530069247
...
22
Previous Style PLN-530026931
...
22
Assy-Fuel Pickup PLN-530095646
...
23
Filter - Fuel (Inlet Line) PLN-530026109
...
24
Line - Fuel Inlet PLN-530021052
...
27
Washer PLN-530015123
...
28
Clip - Retainer - Inlet Line - Fuel Tank PLN-530026178
...
29
Fuel Tank Ass'y (Incl. #21-24 & 31) PLN-530010761
...
31
Assy-Fuel Cap PLN-530014347
...
32
Kit Ignition Module PLN-530069181
...
33
Electrical Tab PLN-530025995
...
34
Screw PLN-530015816
...
35
Grommet - Plug Wire PLN-530024435
...
36
High Tension Lead Wire PLN-530039082
...
37
High Tension - Lead Assembly (Incl. #17, 18 & 19) PLN-502039103
...
xx
HIGH TENSION LEAD NLA PLN-530039103
...
38
Boot - Spark Plug PLN-530003934
...
39
Spark Plug Boot PLN-507475326
...
40
Spark Plug (CJ-14) PLN-530030077
...
41
Deflector - Air PLN-530026658
...
43
BOLT PLN-530093802
...
xx
HAND GUARD PLN-506093802
...
45
Ass'y - Shroud/Heat Shield PLN-530010763
...
46
Throttle Cable PLN-530093959
...
47
Injector Button PLN-530026032
...
48
Pump Assembly (incl. #50) PLN-530010738
...
49
Screw - #10 - 14 x 1-3/16" - Air Baffle-Pump Mounting PLN-530015305
...
50
Line-Pump to Accumulator PLN-530021053
...
51
Plate - Indicating Switch PLN-530026741
...
52
Screw - #10 - 17 x 3/8" - Switch Plate PLN-530015598
...
54
Ass'y - Rope & Handle PLN-530026792
...
55
Handle-Starter PLN-530027569
...
A
Type 1 & 2 PLN-530027049
...
A
Type 3 PLN-530027150
...
B
Type 1 PLN-530027072
...
B
Type 2 PLN-530027263
...
B
Type 3 PLN-530027382
...
C
Decal - Shroud (Left) PLN-530027048
