Weed Eater YP140 Gas Trimmer

Model: YP140 Gas Trimmer

Back To Assemblies

Save Part Not Listed?
product name

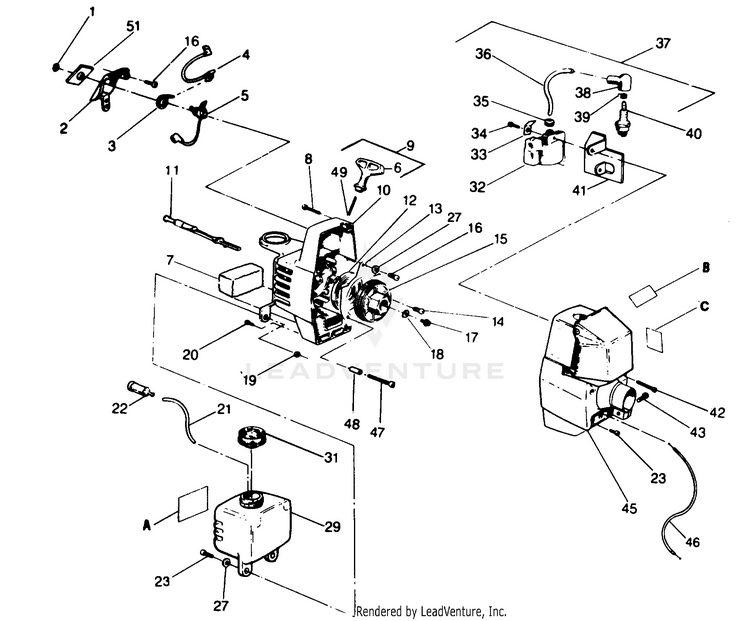

STARTER & SHROUD

...
...
1
Switch- Plate and Nut PLN-530002582
...
2
Housing - Switch PLN-530026997
...
3
Washer - Grounding Switch PLN-530024569
...
4
Wire - Lead - Grounding Switch PLN-530039122
...
5
Kit - Grounding Switch (Inc. #1,3,4 & 33) PLN-530069182
...
6
Handle-Starter PLN-530027569
...
7
Air Filter PLN-530024371
...
8
Screw - 10 - 24 x 1-1/2" - Sems - Fan Housing Top PLN-530015583
...
9
Ass'y. Rope and Handle - Starter (Incl. #6 & 49) PLN-530026792
...
10
Fan Housing Kit PLN-530069236
...
11
Choke Knob PLN-530024303
...
12
KIT STARTER SPRING PLN-545008009
...
13
Air Baffle PLN-530026035
...
15
Starter Pulley PLN-530026048
...
16
Screw - 10 - 14 x 5/8" PLN-530015596
...
18
Washer - 10 - Starter Pulley Screw PLN-530015123
...
19
Nut - 10 - 24 - Fuel Tank Bracket PLN-530001543
...
20
Screw - 10 - 24 x 5/8" - Sems PLN-530015582
...
21
Fuel Line - Type 1, 2 & 3 PLN-530021065
...
21
Line Kit - Type 4 PLN-530069247
...
22
Type 1, 2 & 3 PLN-530091878
...
22
Assy-Fuel Pickup PLN-530095646
...
23
Screw - 10 - 20 x 5/8" - Fil. Hd. PLN-530015168
...
27
Washer PLN-530015123
...
29
Fuel Tank Assembly (Incl. #31, 21 & 22) PLN-530010838
...
31
Assy-Fuel Cap PLN-530014347
...
32
Kit - Ignition Module PLN-530069181
...
33
Electrical Tab PLN-530025995
...
34
Screw PLN-530015816
...
35
Grommet - Plug Wire PLN-530024435
...
36
High Tension Lead Wire PLN-530039082
...
37
High Tension - Lead Assembly - (Incl. #36, 38 & 39) PLN-530039103
...
38
Boot - Spark Plug PLN-530003934
...
39
Spark Plug Boot PLN-507475326
...
40
Spark Plug (CJ-14) PLN-530030077
...
41
Deflector - Air PLN-530026658
...
42
Screw - 10 - 24 x 1-1/2" - Shroud Top PLN-530015376
...
43
Bolt - 1/4 - 20 x 1" Hex - Pinch Clamp - Shroud PLN-530093802
...
45
Ass'y. - Shroud/Heat Shield PLN-530010763
...
46
Throttle Cable PLN-530093959
...
48
Spacer - Air Baffle PLN-530026122
...
49
Rope Kit PLN-530069231
...
51
Plate - Indicating Switch PLN-530026741
...
A
Decal - Fuel Tank PLN-530027150
...
B
Type 1 PLN-530026630
...
B
Type 2 PLN-530027261
...
B
Type 3 & 4 PLN-530026999
...
C
Decal - Shroud (Left) PLN-530026989
