product name

Weed Eater YP130A Gas Trimmer

Model: YP130A Gas Trimmer

Save Part Not Listed?
product name

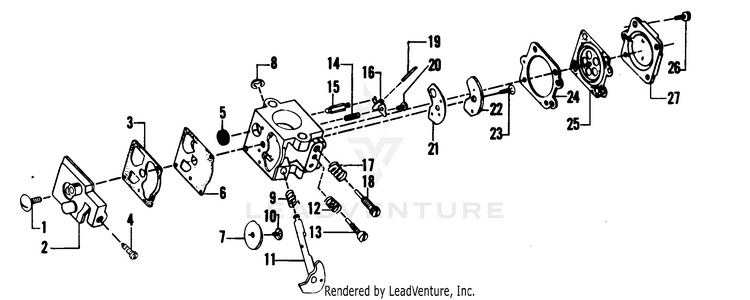

CARBURETOR WA-149

...
...
1
Screw - Pump Cover PLN-530035017
...
2
Pump Cover Ass'y (Incl. #4) PLN-530035191
...
3
GASKET PLN-504130906
...
4
Screw - Idle Adjustment PLN-530035156
...
5
Screen - Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
Valve - Throttle PLN-530035133
...
8
Clip - Throttle Shaft PLN-530035007
...
9
Spring - Throttle Return PLN-530035138
...
10
Screw - Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
11
Shaft Assembly - Throttle PLN-530035132
...
12
Spring - Idle Needle PLN-530035023
...
13
Needle - Idle PLN-530035141
...
14
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
15
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
16
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
17
Spring - Hi Speed Needle PLN-530035036
...
18
H-NEEDLE PLN-501782201
...
19
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
20
Screw - Metering Lever Pin PLN-530035016
...
21
GASKET PLN-501781301
...
22
Plate - Circuit PLN-530035042
...
23
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
24
Gasket - Metering Diaphragm PLN-530035151
...
25
DIAPHRAGM PLN-503896701
...
26
Screw Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
27
Cover - Metering Diaphragm PLN-530035149
...
28
Kit - Carb. Kwik Repair PLN-530035185
...
29
Gasket Diaphragm Kit Included in Carburetor Kwik Repair Kit. PLN-530069844

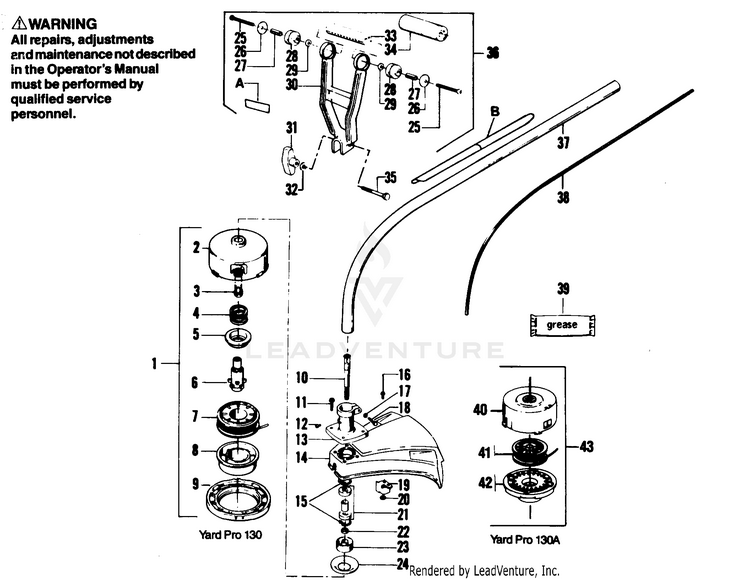

CUTTING HEAD & DRIVE SHAFT

...
...
1
Cutting Head Ass'y (Incl. #2-9) PLN-530093894
...
2
Hub PLN-530071295
...
3
Line Saver PLN-530093898
...
4
Spring PLN-530340007
...
5
Cap Spring PLN-530328929
...
6
Drive Gear PLN-530093897
...
7
Spool w/Line PLN-952701523
...
8
Tap Button PLN-530401183
...
9
Cover PLN-530092133
...
10
Shaft - Arbor PLN-530093846
...
11
Screw PLN-530016107
...
12
Screw - 10-16 x 1/4 - Self - Tapping PLN-530015518
...
13
YP130 PLN-530093214
...
13
YP130A PLN-530094581
...
14
YP130 PLN-530093886
...
14
YP130A PLN-530094594
...
15
Retainer - Bearing PLN-530091783
...
16
Screw - 10 - 24 x 5/8 - Hex Hd. - Line Limiter PLN-530015037
...
17
Washer - 1/4 Int. Tooth Lock PLN-530092227
...
18
Screw - Pinch Clamp - 1/4-20 x 1 PLN-530625509
...
19
YP130 PLN-530093853
...
19
YP130A PLN-530094570
...
20
Nut PLN-530403094
...
21
Bearings & Spacer Kit PLN-530069086
...
22
Washer - 3/8 - Dust Cup PLN-530092216
...
23
Dust Cup PLN-530092359
...
24
WASHER PLN-530092218
...
xx
SCREW PLN-920092218
...
25
Screw - Pan Hd. - #12-11 x 2" PLN-530015561
...
26
Cup - Isolator PLN-530024376
...
27
Spacer Isolator PLN-530025985
...
28
Isolator - Handle PLN-530024373
...
29
Washer - 1/4 Flat PLN-530015209
...
30
Handle - Anti-vibe PLN-530093859
...
31
Knob - 1/4 - 20 PLN-530092059
...
32
Washer - 1/4 Flat PLN-530092062
...
33
Center Section - Handle PLN-530025986
...
34
Cushion - Handle Center Section PLN-530026009
...
35
Screw PLN-530015737
...
36
Handle - Anti-vibe Assembly (Inc. #25-30, 33, & 34) PLN-530010642
...
37
Drive Shaft Housing PLN-530093726
...
38
Flexible Drive Shaft PLN-530092261
...
39
LUBE, FLEX SHAFT NLA PLN-952708514
...
40
Hub Ass'y. PLN-530094592
...
41
Spool w/Line PLN-952701607
...
42
Cover PLN-530094494
...
43
Cutting Head Ass'y. (Incl. #40-42) PLN-952701605
...
A
Decal - Anti-Vibe PLN-530026248
...
B
Upper Not Shown. PLN-530027429
...
B
Lower Not Shown. PLN-530027404
...
xx
YP130 Carton (Not a serviceable part) Not Shown. PLN-530060856
...
xx
YP130 Not Shown. PLN-530066893
...
xx
YP130A Not Shown. PLN-530067069

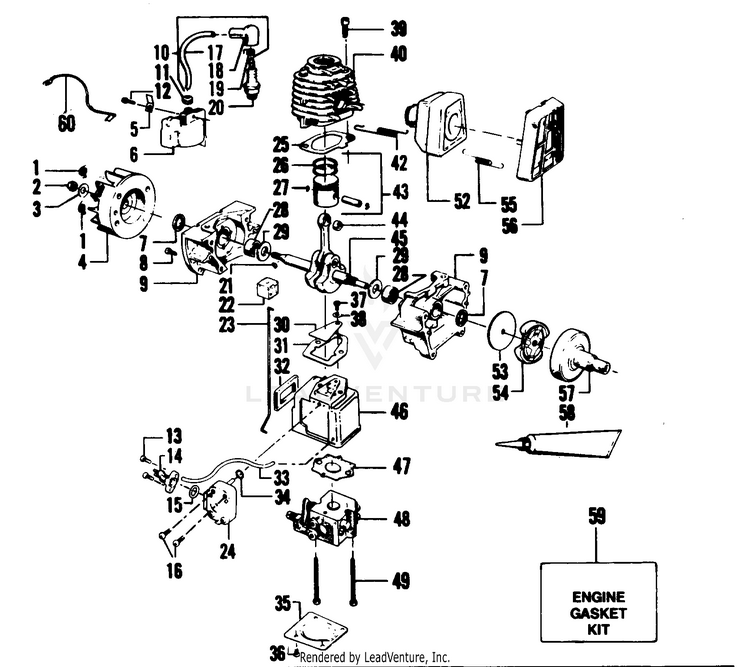

POWER UNIT

...
...
1
Spring-Starter Dog PLN-530023817
...
2
Nut - Flywheel PLN-530626605
...
3
Washer - Flywheel PLN-530015127
...
4
Flywheel Assembly (Incl. #1) PLN-530039114
...
5
Tab 45ø Electrical PLN-530025995
...
6
Kit - Ignition Module PLN-530069181
...
7
Seal - Crankcase Included in Engine Gasket Kit. PLN-530019059
...
8
Screw - Crankcase - 10 - 24 x 5/8 PLN-530015369
...
9
Crankcase Assembly (Incl. #7 & 28) PLN-530010757
...
10
High Tension - Lead Assembly (Incl. #17, 18 & 19) PLN-502039103
...
11
Grommet - Plug Wire PLN-530024435
...
12
Screw PLN-530015816
...
13
Screw - 8 - 16 x 9/16 PLN-530015235
...
14
Cap Assembly - Accumulator (Incl. Cap, Screen & "O" Ring)) PLN-530010677
...
15
O - Ring - Accumulator Chamber PLN-530019128
...
16
Screw - 8 - 8 x 1" - Accumulator PLN-530015565
...
17
High Tension Lead Wire PLN-530039082
...
18
Boot - Spark Plug PLN-530003934
...
19
Spark Plug Boot PLN-507475326
...
20
Spark Plug (CJ-14) PLN-530030077
...
21
Key - Flywheel PLN-530015126
...
22
Boot - Throttle PLN-530023373
...
23
Throttle Wire (Red) PLN-530026177
...
24
Accumulator Assembly (Incl. # 14, 15 & 34) PLN-530010651
...
25
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219
...
26
Ring - Piston PLN-530026681
...
27
Retainer - Wrist Pin PLN-530015162
...
28
Bearing - Crankcase PLN-530032029
...
29
Washer - Thrust - Crankcase PLN-530015351
...
30
Reed Valve PLN-530024438
...
31
Gasket - Carburetor Case to Crankcase Included in Engine Gasket Kit. PLN-530019108
...
32
Seal - Carburetor Case Included in Engine Gasket Kit. PLN-530019105
...
33
Line Kit PLN-530069238
...
34
O - Ring (Orifice) PLN-530019131
...
35
Cover - Carburetor Case PLN-530026047
...
36
Screw - 8 - 18 x 9/16 - Pan Hd. Carburetor Case Cover PLN-530015235
...
37
Screw - 6 - 19 x 5/15 - Pan Hd. - Reed Valve PLN-530015241
...
38
Washer - Reed Valve Screw PLN-530023367
...
39
Screw - 1/4 - 20 x 3/4 - Hex Socket Hd. Cylinder PLN-530015239
...
40
Cylinder PLN-530012112
...
42
Muffler Spring PLN-530036409
...
43
Piston Kit (Incl. #26, 27 & Pin) PLN-502069203
...
44
YP130 Type 1 PLN-530032057
...
44
YP130A Type 2 :YP130A - Type 1 PLN-530032092
...
45
YP130 Type 1 PLN-530026675
...
45
YP130A Type 2 ;YP130A - Type 1 PLN-530010844
...
46
Carburetor Housing PLN-530026046
...
47
Gasket - Carburetor Included in Engine Gasket Kit. PLN-530019115
...
48
Carburetor (See Carb.Breakdown for Ass'y) PLN-530035183
...
49
Screw - 10 - 24 x 2-1/4" - Fil. Hd. - Carburetor PLN-530015566
...
52
YP130A PLN-530069244
...
53
Kit - Clutch Washer - 3/8 - Flat - Inner PLN-530069196
...
54
Clutch Assembly Kit PLN-530069194
...
55
Spring - Muffler Guard PLN-530024932
...
56
Guard - Muffler PLN-530024855
...
57
Coupling & Bearing Assembly PLN-530010840
...
58
Sealant - Crankcase (Not Supplied with Unit) PLN-530030054
...
59
Engine Gasket Kit PLN-530069219
...
60
Lead Wire - Kill Switch PLN-530024158

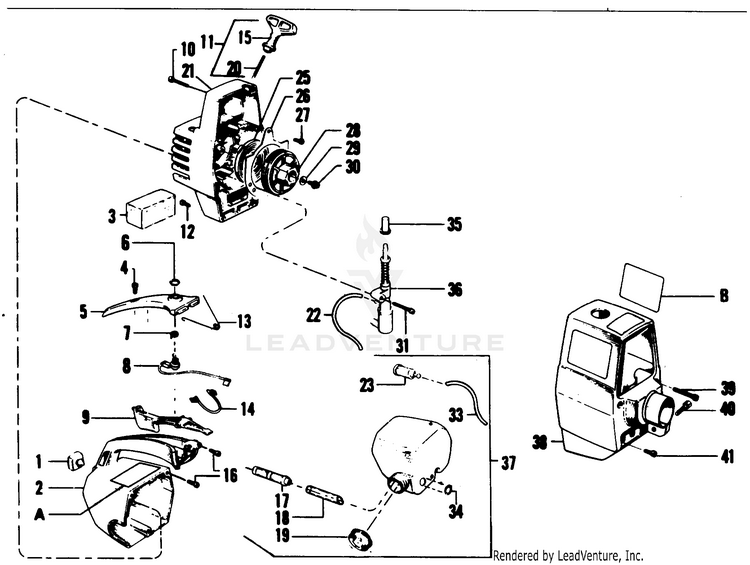

STARTER & SHROUD

...
...
1
Bumper - Fuel Tank Housing PLN-530024436
...
2
Handle & Fuel Tank Housing PLN-530026199
...
3
Air Filter PLN-530024371
...
4
Screw - 8 - 16 x 3/4 - Pan Hd.- Handle Cover PLN-530015247
...
5
Handle Cover PLN-530026203
...
6
Switch- Plate and Nut PLN-530002582
...
7
Washer - Grounding PLN-530024569
...
8
Grounding Kit Switch PLN-530069182
...
9
Trigger - Throttle PLN-530024365
...
10
Screw - 10 - 24 x 1-1/2 - Sems - Fan Housing - Top PLN-530015583
...
11
Rope & Handle Starter PLN-530026792
...
12
Screw - 10 - 24 x 5/8 - Sems - Fan Housing - Bottom PLN-530015582
...
13
Trigger - Spring PLN-530024461
...
14
Lead Wire - Ground PLN-530039122
...
15
Handle-Starter PLN-530027569
...
16
Screw-Line Limiter PLN-530015814
...
17
Filter - Fuel (Inlet Line) PLN-530026109
...
18
Line - Fuel Inlet PLN-530021052
...
19
Assy-Fuel Cap PLN-530014347
...
20
Rope Kit PLN-530069231
...
21
Fan Housing Kit PLN-530069178
...
22
Line - Pump to Accumulator PLN-530021053
...
23
YP130 - Type 1 PLN-530026931
...
23
Assy-Fuel Pickup PLN-530095646
...
25
KIT STARTER SPRING PLN-545008009
...
26
Air Baffle PLN-530026035
...
27
Screw - #10 - 14 x 3/8 - Pan Hd.- Air Baffle PLN-530015544
...
28
Starter Pulley PLN-530026048
...
29
Washer - Starter Pulley PLN-530015123
...
30
Screw - #10 x 3/4 - Hex Washer Hd.- Starter Pulley PLN-530015479
...
31
Screw - #10 - 14 x 1-3/16 - Air Baffle/Pump Mounting PLN-530015563
...
33
Fuel Line - Tank to Accumulator PLN-530021054
...
34
Clip - Retainer - Inlet Line - Fuel Tank PLN-530026178
...
35
Injector Button PLN-530026032
...
36
Pump Assembly (Inc. #22) PLN-530010738
...
37
Fuel Tank Assembly (Incl. #17, 18, 19, 23, 32, 33 & 34) PLN-530010773
...
38
Shroud PLN-530011985
...
39
Screw - 10 - 24 x 1-1/3 - Fil Hd. Shroud (Top) PLN-530015376
...
40
BOLT PLN-530093802
...
xx
HAND GUARD PLN-506093802
...
41
Screw - 10 - 24 x 5/8 - Fil. Hd.-Shroud (Bottom) PLN-530015168
...
A
YP130 - Type 1 Not Shown. PLN-530027013
...
A
YP130 - Type 2 Not Shown. PLN-530027436
...
A
YP130A-Type 1 Not Shown. PLN-530027652
...
B
YP130 Not Shown. PLN-530027015
...
B
YP130A Left Not Shown. PLN-530027650
...
B
YP130 Not Shown. PLN-530027016
...
B
YP130A Not Shown. PLN-530027651
...
B
Top - YP130,YP130A Not Shown. PLN-530027149

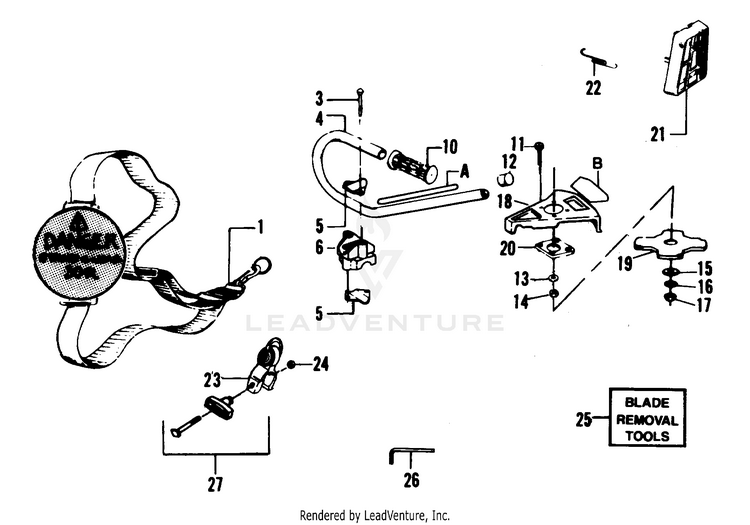

WEED BLADE ADAPTOR KIT

...
...
0
Weed Blade Adaptor Kit PLN-952701566
...
1
Shoulder Strap (Inc. Key Ring) PLN-530094417
...
3
Bolt-1/4-20x2" Hex PLN-530015791
...
4
Barrier Handlebar PLN-530093169
...
5
Handlebar Bracket PLN-530094572
...
6
Handlebar Clamp PLN-530012207
...
10
Grip-Handlebar PLN-530092086
...
11
Screw-#1/4-20x1" Hex PLN-530625509
...
12
End Cap Handlebar PLN-530092192
...
13
Washer-1/4" Flat PLN-530001503
...
14
Nut-Deflector to Brg. Hsh. (#1/4-20) PLN-530001615
...
15
Washer-Flat PLN-530093751
...
16
Washer--Belleville PLN-530016240
...
17
Flange Nut PLN-530093748
...
18
Shield-Aluminum PLN-530094576
...
19
Blade-4 Tooth Weed PLN-952701546
...
20
Shield Retention Plate PLN-530027615
...
21
Muffler Guard PLN-530024855
...
22
Muffler Guard Spring PLN-530024932
...
23
Clamp Harness Ass'y. PLN-530094686
...
24
Nut PLN-530015197
...
25
Blade Removal Tools PLN-530031130
...
26
Hex Wrench (5/32) PLN-530031159
...
27
HANDLE KIT PLN-530069347
...
A
Decal-Handlebar Warning PLN-530026229
...
B
Decal-Blade Rotation Warning PLN-530027621
