Weed Eater YP120 Gas Trimmer

Model: YP120 Gas Trimmer

Save Part Not Listed?
product name

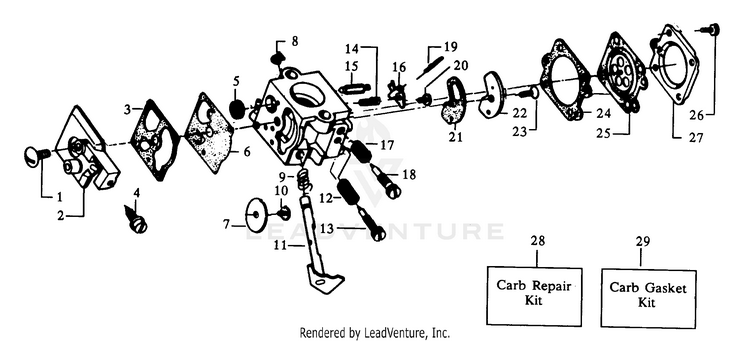

CARBURETOR

...
...
1
Pump Cover Screw PLN-530035017
...
2
Pump Cover Ass'y. (Inc. #4) PLN-530035191
...
3
GASKET PLN-504130906
...
4
Idle Adjustment Screw PLN-530035156
...
5
Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
Throttle Valve PLN-530035133
...
8
Throttle Shaft Clip PLN-530035007
...
9
Throttle Return Spring PLN-530035138
...
10
Throttle Valve Screw PLN-530035015
...
11
Shaft Ass'y. - Throttle PLN-530035132
...
12
Idle Needle Spring PLN-530035023
...
13
Idle Needle PLN-530035141
...
14
WT-141 - T1 PLN-530035188
...
15
Needle PLN-503117001
...
16
Metering Lever PLN-505520127
...
17
Hi Speed Needle Spring PLN-530035036
...
18
H-NEEDLE PLN-501782201
...
19
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
20
Metering Lever Pin Screw PLN-530035016
...
21
GASKET PLN-501781301
...
22
Circuit Plate PLN-530035042
...
23
Circuit Plate Screw Included in Carburetor Kwik Repair Kit. PLN-530035137
...
24
Metering Diaphragm Gasket PLN-530035151
...
25
DIAPHRAGM PLN-503896701
...
26
Metering Cover & Throttle Shaft Clip Ass'y. Screw PLN-530035153
...
27
Metering Diaphragm Cover PLN-530035149
...
28
Carb Kwik Repair Kit PLN-530035185
...
29
Gasket Diaphragm Kit PLN-530069844

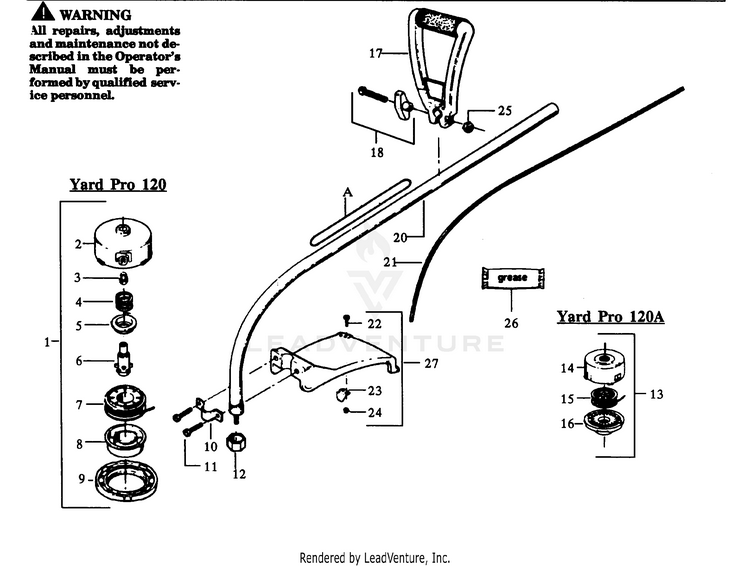

CUTTING HEAD & DRIVE SHAFT

...
...
1
Cutting Head Ass'y. (Inc. #2-9) PLN-952701604
...
2
Hub PLN-530071295
...
3
Line Saver PLN-530093898
...
4
Spring PLN-530340007
...
5
Cap Spring PLN-530328929
...
6
Drive Gear PLN-530093897
...
7
Spool w/Line PLN-952701523
...
8
Tap Button PLN-530401183
...
9
Cover PLN-530092133
...
10
Shield Bracket PLN-530093653
...
11
Screw PLN-530016107
...
12
Model YP120 PLN-530093716
...
12
Model YP120A PLN-530094543
...
13
Cutting Head Ass'y. (Inc. #14,15 & 16) PLN-952701605
...
14
Hub w/Line Saver PLN-530094592
...
15
Spool w/Line PLN-952701607
...
16
Cover PLN-530094494
...
17
Cushioned Assist Handle Kit, GTI 16 SUPER, GTI 17LE, GTI 16D & GTI 16 Type 3 PLN-530069496
...
18
HANDLE KIT PLN-530069347
...
20
Model YP120 PLN-530093934
...
20
Model YP120A PLN-530094634
...
21
Model YP120 PLN-530093936
...
21
Model YP120A PLN-530094607
...
22
Screw PLN-530015337
...
23
Model YP120 PLN-530093853
...
23
Model YP120A PLN-530094570
...
24
Nut PLN-530403094
...
25
Nut PLN-530015197
...
26
LUBE, FLEX SHAFT NLA PLN-952708514
...
27
Shield Kit Ass'y. PLN-530069249
...
A
Safety Label Decal PLN-530029159

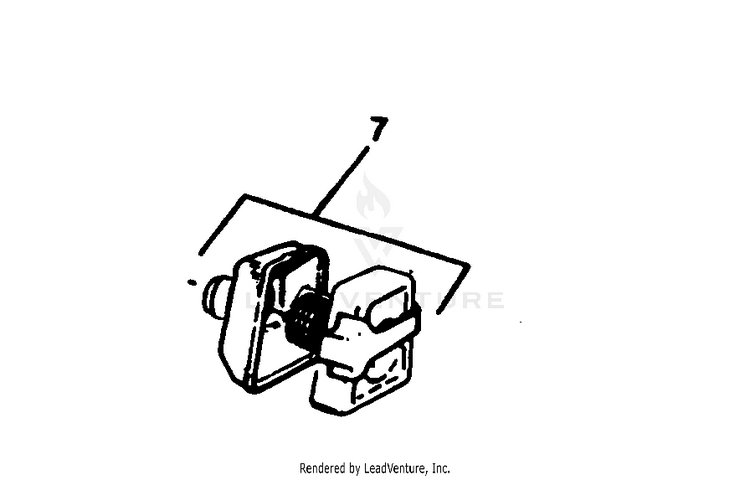

MUFFLER, BUILT IN DIFFUSER

...
...
7
Muffler Kit PLN-530069243

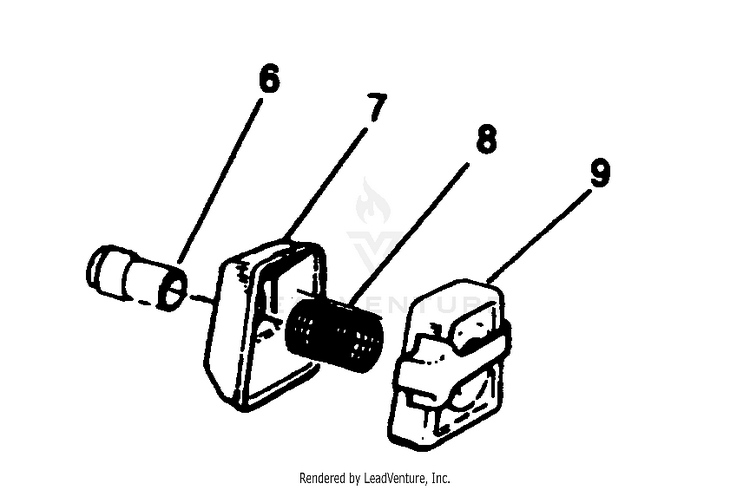

MUFFLER, SEPARATE DIFFUSER

...
...
6
Muffler Diffuser PLN-530026949
...
7
Muffler Body PLN-530024362
...
8
Spark Arresting Screen PLN-530024364
...
9
Muffler Cover Ass'y. PLN-530024361

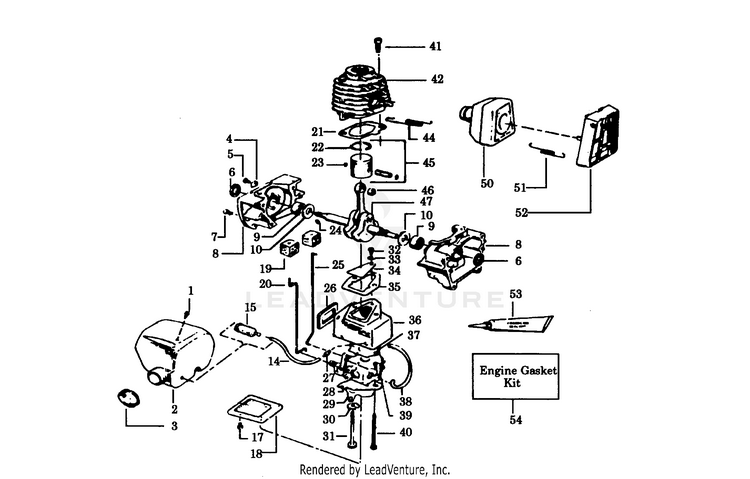

POWER UNIT

...
...
1
Check Valve Duck Bill PLN-530026119
...
2
Fuel Tank Ass'y. (Inc. #1,3,14 & 15) PLN-530010776
...
3
Assy-Fuel Cap PLN-530014347
...
4
Choke Wire Clamp PLN-530024651
...
5
Screw PLN-530015004
...
6
Crankcase Seal Included in Engine Gasket Kit. PLN-530019059
...
7
Crankcase Screw PLN-530015369
...
8
Crankcase Ass'y. (Inc. #6,9 & Qty. 1 of #7) PLN-530010757
...
9
Crankcase Bearing PLN-530032029
...
10
Washer PLN-530015351
...
14
Fuel Line Model YP120-Type 1 & 2 PLN-530069216
...
14
Line Kit-Model YP120-Type 3 & Model YP120A -Type 1 PLN-530069247
...
15
Model YP120-Type 1 PLN-530091878
...
15
Assy-Fuel Pickup PLN-530095646
...
17
Screw PLN-530015235
...
18
Carburetor Case Cover PLN-530026029
...
19
Choke Wire Throttle Boot Included in Engine Gasket Kit. PLN-530023373
...
20
Choke Wire PLN-530026236
...
21
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219
...
22
Model YP120-Type 1 PLN-530024302
...
22
Model YP120-Type 2 & 3; Model YP120A-Type 1 PLN-530026681
...
23
Wrist Pin Retainer PLN-530015162
...
24
Flywheel Key PLN-530015126
...
25
Throttle Wire PLN-530024902
...
26
Carburetor Case Seal Included in Engine Gasket Kit. PLN-530019105
...
27
Model YP120-Type 1 & 2 PLN-530025472
...
27
Model YP120-Type 3; Model YP120A-Type 1 PLN-530026981
...
28
Choke Wire Guide Plate PLN-530026237
...
29
Choke Shutter PLN-530024558
...
30
Wave Washer PLN-530015254
...
31
Screw PLN-530015404
...
32
Screw PLN-530015241
...
33
Washer PLN-530023367
...
34
Reed Valve PLN-530024438
...
35
Carburetor Case/Crankcase Gasket Included in Engine Gasket Kit. PLN-530019108
...
36
Carburetor Housing PLN-530024409
...
37
Carburetor Gasket Included in Engine Gasket Kit. PLN-530019157
...
38
Line Kit PLN-530069238
...
39
Carburetor (See Page 4 for Ass'y.) PLN-530035183
...
40
Screw PLN-530015379
...
41
Screw PLN-530015239
...
42
Model YP120-Type 1 PLN-530012247
...
42
Model YP120-Type 2 & 3; Model YP120A-Type 1 Included in Engine Gasket Kit. PLN-530012252
...
44
Muffler Spring PLN-530036409
...
45
Model YP120-Type 1 PLN-530069240
...
45
Model YP120-Type 2 & 3; Model YP120A-Type 1 PLN-530069203
...
46
Model YP120-Type 1 & 2 PLN-530032057
...
46
Model YP120-Type 3; Model YP120A-Type 1 PLN-530032092
...
47
Model YP120-Type 1 & 2 PLN-530026675
...
47
Model YP120-Type 3; Model YP120A-Type 1 PLN-530010844
...
50
Model YP120A PLN-530069243
...
51
Muffler Guard Spring PLN-530024932
...
52
Muffler Guard PLN-530024855
...
53
Crankcase Sealant (Not Supplied with Unit) PLN-530030054
...
54
Engine Gasket Kit PLN-530069219

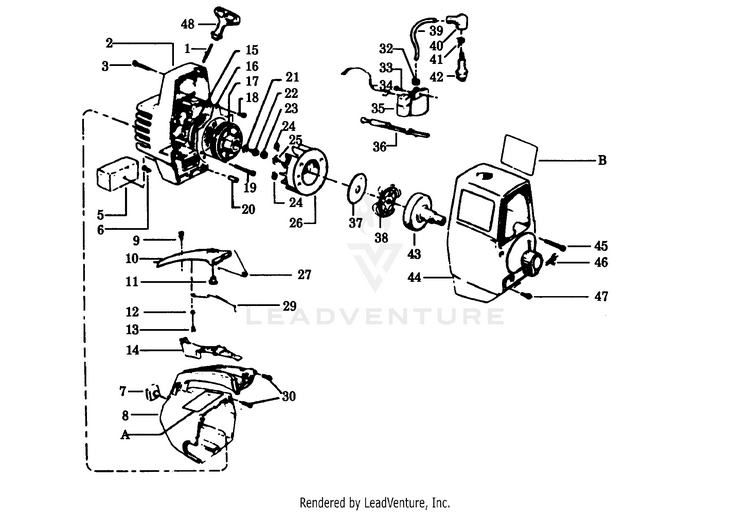

STARTER & SHROUD

...
...
1
Rope Kit PLN-530069232
...
2
Fan Housing Kit PLN-530069178
...
3
Screw PLN-530015583
...
5
Air Filter PLN-530024371
...
6
Screw PLN-530015582
...
7
Fuel Tank Housing Bumper PLN-530024436
...
8
Handle & Fuel Tank Housing PLN-530026199
...
9
Screw PLN-530015247
...
10
Handle Cover PLN-530026202
...
11
Switch Button PLN-530026679
...
12
Switch Washer PLN-530015123
...
13
Screw PLN-530015407
...
14
Throttle Trigger PLN-530024365
...
15
KIT STARTER SPRING PLN-545008009
...
16
Air Baffle PLN-530026035
...
17
Starter Pulley PLN-530026048
...
18
Screw PLN-530015544
...
19
Screw PLN-530015563
...
20
Air Baffle Spacer PLN-530026122
...
21
Washer PLN-530015123
...
22
Screw PLN-530015479
...
23
Flywheel Nut PLN-530626605
...
24
Spring-Starter Dog PLN-530023817
...
25
Washer PLN-530015127
...
26
Flywheel Ass'y. PLN-530039114
...
27
Trigger Spring PLN-530024461
...
29
Switch Spring PLN-530024407
...
30
Screw-Line Limiter PLN-530015814
...
32
Plug Wire Grommet PLN-530024435
...
33
Screw PLN-530015816
...
34
Lead Wire Switch PLN-530024158
...
35
Ignition Module Kit PLN-530069181
...
36
Choke Knob PLN-530024303
...
37
Clutch Washer Kit PLN-530069196
...
38
Clutch Kit Ass'y. (Inc. Clutch Washer) PLN-530069194
...
39
High Tension Lead Wire PLN-530039082
...
40
Spark Plug Boot PLN-530003934
...
41
Spark Plug Boot PLN-507475326
...
42
Spark Plug-CJ-14 PLN-530030077
...
43
Drum & Coupling Ass'y. PLN-530010902
...
44
Shroud PLN-530012096
...
45
Screw PLN-530015376
...
46
Pinch Clamp Bolt PLN-530093802
...
47
Screw PLN-530015168
...
48
Handle-Starter PLN-530027569
...
A
Starting Instruction Decal (Not a serviceable part) PLN-530027012
...
B
Right- Model YP120 PLN-530027010
...
B
Right- Model YP120A PLN-530027653
...
B
Left Model YP120 PLN-530027011
...
B
Left Model YP120A PLN-530027654
...
B
Top PLN-530027149
