Weed Eater YP115 Gas Trimmer

Model: YP115 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

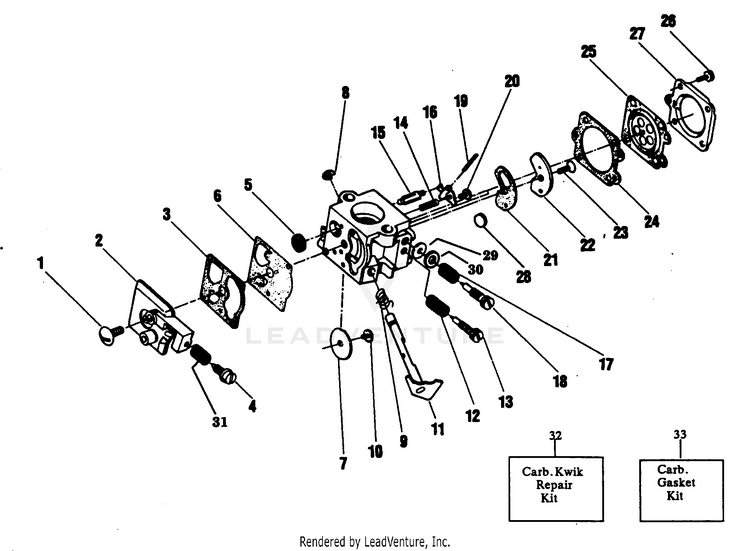

CARBURETOR WA-198 BREAKDOWN

...
...
1
Screw-Pump Cover Included in Carburetor Kwik Repair Kit. PLN-530035017
...
2
Pump Cover Ass'y. (Inc.4) PLN-530035191
...
3
GASKET PLN-504130906
...
4
Screw-Idle Adjustment- PLN-530035203
...
5
Screen-Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
Valve-Throttle PLN-530035254
...
8
Clip-Throttle Shaft PLN-530035007
...
9
Spring-Throttle Return PLN-530035138
...
10
Screw-Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
11
Shaft Ass'y.-Throttle PLN-530035132
...
14
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
15
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
16
Metering Lever PLN-505520127
...
17
Needle Spring-Low Speed PLN-530035293
...
18
Needle-High Speed PLN-530035212
...
19
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
20
Screw-Metering Lever Pin PLN-530035016
...
21
Gasket-Circuit Plate PLN-530035211
...
22
Plate-Circuit PLN-530035161
...
23
Screw-Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
24
Gasket-Metering Diaphragm PLN-530035151
...
25
DIAPHRAGM PLN-503896701
...
26
Screw Ass'y.-Metering Cover & Throttle Shaft Clip PLN-530035021
...
27
Cover-Metering Diaphragm PLN-530035003
...
29
"O" Ring Mixture PLN-530035218
...
30
Mixture Washer PLN-530035217
...
31
Spring PLN-501667801
...
32
Kit-Carb. Kwik Repair PLN-530035220
...
33
Gasket Diaphragm Kit PLN-530069844

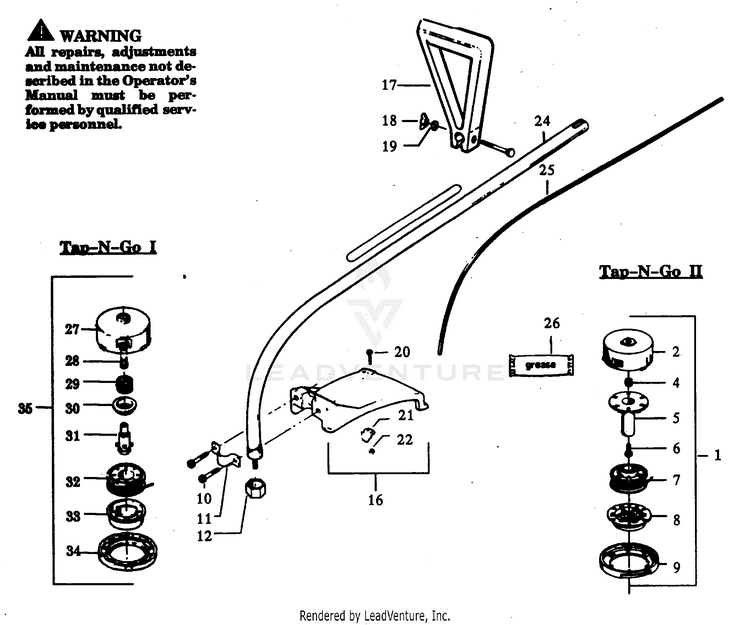

CUTTING HEAD & DRIVE SHAFT

...
...
1
Cutting Head Ass'y.(Inc.2,4 & 5-9) See Service Ref. 1 PLN-952701604
...
2
Hub w/Line Saver PLN-530094562
...
4
Spring PLN-530094956
...
5
Kit-Locking Plate PLN-530069312
...
6
Screw PLN-530015542
...
7
Spool w/Line PLN-952701606
...
8
Release Button PLN-530094522
...
9
Cover PLN-530094521
...
10
Screw PLN-530016107
...
11
Bracket PLN-530093653
...
12
Dust Cup PLN-530094543
...
16
Shield Kit Ass'y. (Inc.10,20,21,22) PLN-530069249
...
17
Cushioned Assist Handle Kit, GTI 16 SUPER, GTI 17LE, GTI 16D & GTI 16 Type 3 PLN-530069496
...
18
Wing Nut PLN-530091373
...
19
Washer PLN-530015149
...
20
Screw PLN-530015337
...
21
Line Limiter PLN-530094570
...
22
Nut PLN-530403094
...
23
Screw PLN-530015737
...
24
Drive Shaft Hsg. PLN-530094593
...
25
Drive Shaft PLN-530094590
...
26
LUBE, FLEX SHAFT NLA PLN-952708514
...
27
Hub PLN-530071295
...
28
Line Saver PLN-530093898
...
29
Spring PLN-530340007
...
30
Cap Spring PLN-530328929
...
31
Drive Gear PLN-530093897
...
32
Spool w/Line PLN-952701523
...
33
Tap Button PLN-530401183
...
34
Cover PLN-530092133
...
35
Cutting Head Assy.(Inc.27-34)See Service Ref. 1 PLN-530093894
...
A
Shaft Warning Decal PLN-530029159
...
xx
Operator's Manual Not Shown. PLN-530067090
...
xx
Carton (Not a serviceable part) Not Shown. PLN-530061019

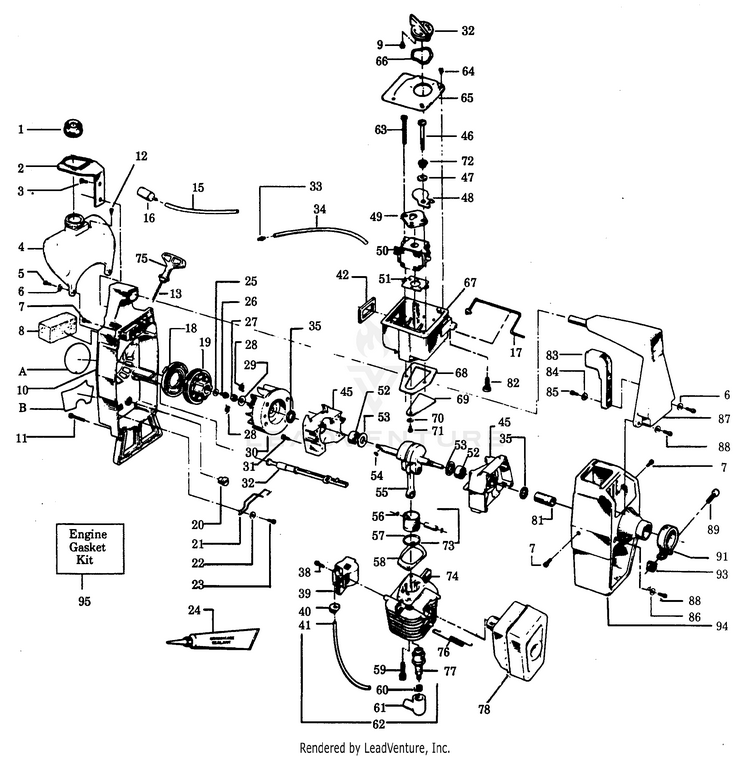

POWER UNIT

...
...
1
Assy-Fuel Cap (Incl. "O" Ring) PLN-530014347
...
2
Fuel Tank Bracket PLN-530025377
...
3
Screw PLN-530016107
...
4
Fuel Tank Ass'y. (Inc.1,12,15 & 16) PLN-530010887
...
5
Screw PLN-530015509
...
6
Washer PLN-530015123
...
7
Screw PLN-530015590
...
8
Air Filter PLN-530024371
...
9
Screw PLN-530015740
...
10
Fan Housing Ass'y. PLN-530010891
...
11
Fan Housing Screw - Bottom PLN-530015594
...
12
Check Valve PLN-530026119
...
13
Rope Kit PLN-530069232
...
15
Line Kit(Bulk 8148) PLN-530069247
...
16
Assy-Fuel Pickup PLN-530095646
...
17
Throttle Wire PLN-530027190
...
18
KIT STARTER SPRING PLN-545008009
...
19
Starter Pulley PLN-530026048
...
20
Kill Switch Button PLN-530026679
...
21
Kill Switch Spring PLN-530026559
...
22
Kill Switch Washer PLN-530015382
...
23
Kill Switch Screw PLN-530015407
...
24
Crankcase Sealant PLN-530030054
...
25
Washer PLN-530015123
...
26
Screw PLN-530015479
...
27
Nut PLN-530626605
...
28
Spring-Starter Dog PLN-530023817
...
29
Washer PLN-530015127
...
30
Flywheel Ass'y. (Inc.28) PLN-530039114
...
31
Screw PLN-530015369
...
32
Choke Knob PLN-530027101
...
33
Fuel Line Fitting PLN-530026981
...
34
Carburetor Fuel Line PLN-530021073
...
35
Crankshaft Seal Included in Engine Gasket Kit. PLN-530019059
...
38
Screw PLN-530015816
...
39
Ignition Module Kit (Inc.21,40,62) PLN-530069181
...
40
Plug Wire Grommet PLN-530024435
...
41
High Tension Lead Wire PLN-530039082
...
42
Carburetor Case Seal Included in Engine Gasket Kit. PLN-530019105
...
45
Crankcase Ass'y. (Inc.31,35,52) PLN-530010757
...
46
Carburetor Screw PLN-530015630
...
47
Wave Washer PLN-530015254
...
48
Choke Shutter PLN-530026772
...
49
Choke Wire Guide Plate PLN-530026797
...
50
Carburetor PLN-530035257
...
51
Carburetor Gasket Included in Engine Gasket Kit. PLN-530019157
...
52
Crankshaft Bearing PLN-530032029
...
53
Crankshaft Thrust Washer PLN-530015351
...
54
Flywheel Key PLN-530015126
...
55
Crankshaft & Rod Ass'y. PLN-530026418
...
56
Wrist Pin Retainer PLN-530015162
...
57
Piston Ring PLN-530026413
...
58
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219
...
59
Screw PLN-530015239
...
60
Spark Plug Boot PLN-507475326
...
61
Spark Plug Boot PLN-530003934
...
62
High Tension Lead Ass'y. (Inc.41,60 & 61) PLN-530039103
...
63
Carburetor Screw PLN-530015674
...
64
Screw PLN-530015235
...
65
Carburetor Case Cover PLN-530027100
...
66
Wave Washer PLN-530015741
...
67
Carburetor Case Ass'y. PLN-530027189
...
68
Carburetor Case/Crankcase Gasket Included in Engine Gasket Kit. PLN-530019108
...
69
Reed Valve PLN-530024438
...
70
Reed Valve Washer PLN-530023367
...
71
Reed Valve Screw PLN-530015241
...
72
Spacer PLN-530015673
...
73
Piston Kit (Inc.56,57,Pin) PLN-530010753
...
74
CYLINDER PLN-530012349
...
75
Handle-Starter PLN-530027569
...
76
Muffler Spring PLN-530036409
...
77
Spark Plug (CJ-14) PLN-530030077
...
78
Muffler Ass'y. PLN-530069243
...
81
Drive Adaptor PLN-530093925
...
82
Screw PLN-530015723
...
83
Throttle Trigger PLN-530025342
...
84
Throttle Washer PLN-530015382
...
85
Screw PLN-530015407
...
87
Handle PLN-530025704
...
88
Screw PLN-530015163
...
89
Screw PLN-530015609
...
91
Shroud Clamp PLN-530026560
...
93
Nut PLN-530015610
...
94
Shroud PLN-530027007
...
95
Engine Gasket Kit PLN-530069219
...
A
Starting Instructions Decal PLN-530027312
...
B
Choke/Off Decal PLN-530027638
...
xx
Shroud Decal (Right) Not Shown. PLN-530027672
...
xx
Shroud Decal (Left) Not Shown. PLN-530027673
...
...
...
