Weed Eater XT85 Gas Trimmer

Model: XT85 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

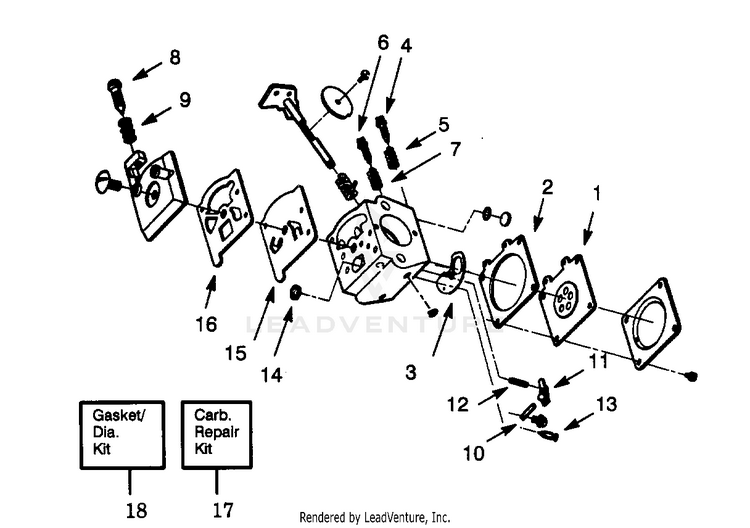

CARBURETOR WA-199 BREAKDOWN

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
GASKET PLN-501781301
...
4
H-NEEDLE PLN-501782201
...
5
Hi Speed Needle Spring PLN-530035036
...
6
Idle Needle PLN-530035141
...
7
Idle Needle Spring PLN-530035023
...
8
Idle Speed Screw PLN-530035203
...
9
Spring PLN-501667801
...
10
Pin PLN-505520125
...
11
Metering Lever PLN-505520127
...
12
Metering Lever Spring Included in Gasket/Diaphragm Kit. PLN-530035188
...
13
Needle Included in Gasket/Diaphragm Kit. PLN-503117001
...
14
Inlet Screen Included in Gasket/Diaphragm Kit. PLN-530035178
...
15
PUMP DIAPHRAGM Included in Gasket/Diaphragm Kit. PLN-504130807
...
16
GASKET Included in Gasket/Diaphragm Kit. PLN-504130906
...
17
Carb. Kwik Repair Kit PLN-530035260
...
18
Carb. Gasket/Diaphragm Kit Included in Gasket/Diaphragm Kit. PLN-530035185

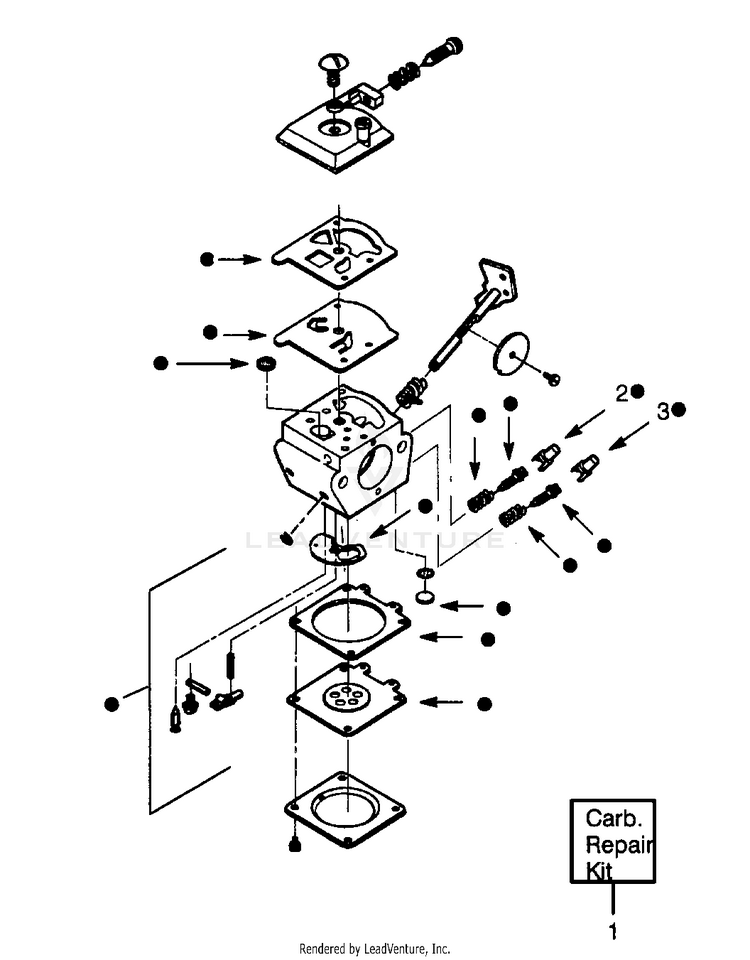

CARBURETOR WT-298A BREAKDOWN

...
...
1
Carburetor Repair Kit Parts indicated by an . in illustration are for clarity only, order complete assembly. PLN-530069623
...
2
Limiter Cap-Low PLN-530038317
...
3
Limiter Cap-High PLN-530038318

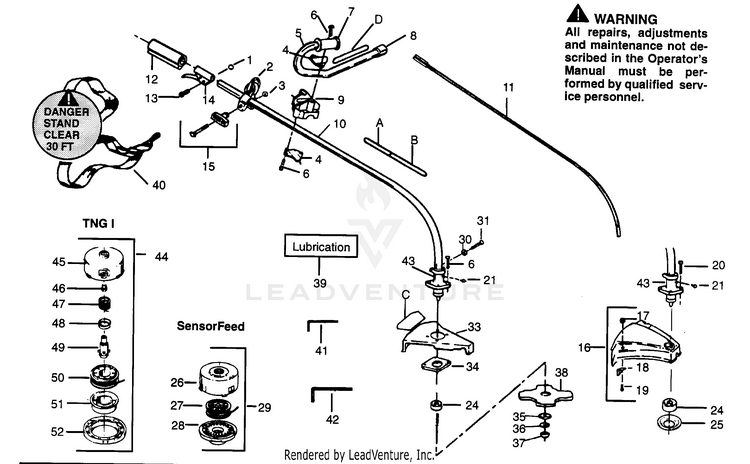

CUTTING HEAD & DRIVE SHAFT

...
...
1
Nut PLN-530015768
...
2
Clamp Harness Ass'y. PLN-530094686
...
3
Nut PLN-530015197
...
4
Handlebar Bracket PLN-530094572
...
5
Handlebar PLN-530010723
...
6
Screw PLN-530015791
...
7
Handlebar Grip PLN-530092086
...
8
Handlebar Cap PLN-530092192
...
9
Handlebar Clamp PLN-530012207
...
10
Type 1 & 2 PLN-530014965
...
10
Type 3 PLN-530095338
...
11
Drive Shaft PLN-530094555
...
12
Drive Shaft Grip PLN-530029445
...
13
Screw PLN-530015774
...
14
Throttle Lever Ass'y. (Inc. 1 & 13) PLN-530010959
...
15
HANDLE KIT PLN-530069347
...
16
Shield Kit Ass'y. (Inc. 17-19) PLN-530069256
...
17
Nut PLN-530403094
...
18
Line Limiter PLN-530094570
...
19
Screw PLN-530015037
...
20
Screw PLN-530016107
...
21
Screw PLN-530015518
...
24
Dust Cup PLN-530092359
...
25
Grass Washer PLN-530094571
...
26
Hub Ass'y. PLN-530094592
...
27
Spool w/Line PLN-952701607
...
28
Cover PLN-530094494
...
29
Cutting Head Ass'y (Inc. 26-28) PLN-952701605
...
30
Washer PLN-530092227
...
31
Screw PLN-534828400
...
33
SHIELD PLN-530094633
...
34
Shield Retention Plate PLN-530027615
...
35
Washer PLN-530015792
...
36
Washer--Belleville PLN-530016240
...
37
Nut PLN-530093748
...
38
Weed Blade PLN-952701546
...
39
Shaft Lubrication PLN-952030139
...
40
Shoulder Strap PLN-530094417
...
41
Hex Wrench (5/32) PLN-530031159
...
42
Hex Wrench (3/16) PLN-530031098
...
43
Bearing Hsg. Ass'y. (Inc. 21 & 24) PLN-530094581
...
44
Cutting Head Ass'y. PLN-952711547
...
45
Hub PLN-530071295
...
46
Line Saver PLN-530093898
...
47
Spring PLN-530340007
...
48
Cap Spring PLN-530328929
...
49
Drive Gear PLN-530093897
...
50
Spool w/Line PLN-952701523
...
51
Release Button PLN-530401183
...
52
Cover PLN-530092133
...
A
Decal-Shaft Warning-Upper PLN-530029160
...
B
Type 1 & 2 PLN-530029161
...
B
Type 3 PLN-530038906
...
C
Decal-Blade Direction (Not a serviceable part) PLN-530027749
...
D
Decal-Handlebar PLN-530027774

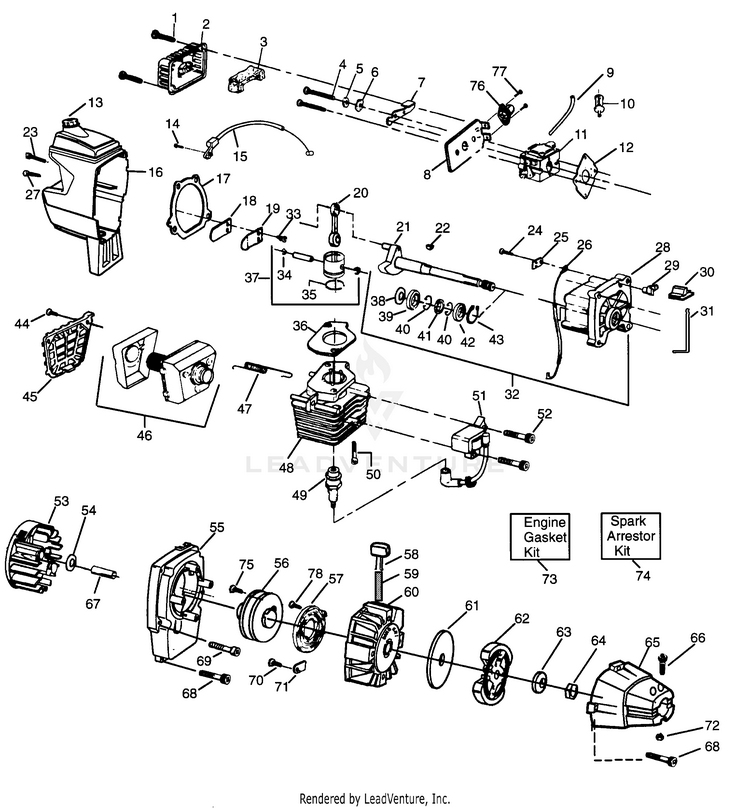

POWER UNIT

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
XT85 & XT85T Type 1 PLN-530027527
...
8
XT85T Type 2 & 3 PLN-530037930
...
9
Fuel Line PLN-530069247
...
9
Return Line Type 2 & 3 PLN-530069571
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
11
XT85T Type 2 & 3 (WT-298A) PLN-530069651
...
12
Carburetor Gasket PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Screw PLN-530015775
...
15
Throttle Cable Ass'y., Model 114 PLN-530037497
...
15
XT85T Type 2 & 3 PLN-530037497
...
16
XT85 & XT85T Type 1 PLN-530027982
...
16
XT85T Type 2 & 3 PLN-530047086
...
17
Gasket PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. (Inc. Bearings) PLN-530010960
...
21
Crankshaft Ass'y. See Service Ref. 1 PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015772
...
24
Screw PLN-530015780
...
25
Switch Insulator PLN-530027546
...
26
Lead Wire PLN-530027547
...
27
Screw PLN-530015771
...
28
Crankcase Ass'y. (Inc.#39-42) PLN-530014016
...
29
Switch Ramp PLN-530027545
...
30
Switch Button PLN-530038309
...
31
Switch Spring PLN-530027959
...
32
Assy-C'case/C'shaft PLN-530071705
...
33
SCREW 6-19X.437 PLN-545227101
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring PLN-530025875
...
36
GASKET CYL W/ ADHESIVE PLN-530019267
...
37
Piston Kit PLN-530069899
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Screw PLN-530015717
...
45
Muffler Guard PLN-530027781
...
46
Muffler Kit PLN-530069310
...
47
Muffler Spring PLN-530036409
...
48
Cylinder PLN-530069626
...
49
Type 1 & 2 (CJ-14) PLN-530030077
...
49
Type 3 (RCJ-8Y) PLN-530030075
...
50
Screw PLN-530015239
...
51
Ignition Module Kit PLN-530039134
...
52
Screw PLN-530015816
...
53
Flywheel Ass'y. PLN-530039189
...
54
Washer PLN-530016030
...
55
Fan Housing PLN-530027948
...
56
Kit-Starter Pulley PLN-530071387
...
57
STARTER SPRING PLN-545008010
...
58
Starter Handle PLN-530027569
...
59
Rope Kit PLN-530069232
...
60
Pulley Housing Ass'y. PLN-530014009
...
61
Clutch Washer PLN-530094189
...
62
Clutch Ass'y. Kit PLN-530069254
...
63
Washer PLN-530015796
...
64
Nut PLN-530001733
...
65
Clutch Housing PLN-530014017
...
66
Screw PLN-530015767
...
67
Spacer PLN-530027511
...
68
Screw PLN-530015770
...
69
Screw PLN-530015769
...
70
Screw PLN-530015496
...
71
Pulley Retainer PLN-530027523
...
72
Locknut PLN-530015768
...
73
Engine Gasket Kit PLN-530069276
...
74
Spark Arrestor Kit PLN-952701612
...
75
Screw-Rope Retaining PLN-530016080
...
76
Primer Bulb Ass'y. XT85T Type 2 & 3 PLN-530038874
...
77
Screw-Primer XT85T Type 2 & 3 PLN-530016091
...
78
Screw-Starter Spring Type 3 PLN-530015882
...
xx
XT85 Not Shown. PLN-530067340
...
xx
XT85T Type 1 Not Shown. PLN-530081799
...
xx
XT85T Type 2 Not Shown. PLN-530083168
...
xx
XT85T Type 3 Not Shown. PLN-530083669
...
xx
XT85 & XT85T Type 1 Not Shown. PLN-530027986
...
xx
XT85T Type 2 & 3 Not Shown. PLN-530038844
...
xx
XT85 Not Shown. PLN-530014019
...
xx
XT85T Not Shown. PLN-530014847
...
...
...
