Weed Eater XT65 Gas Trimmer

Model: XT65 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?

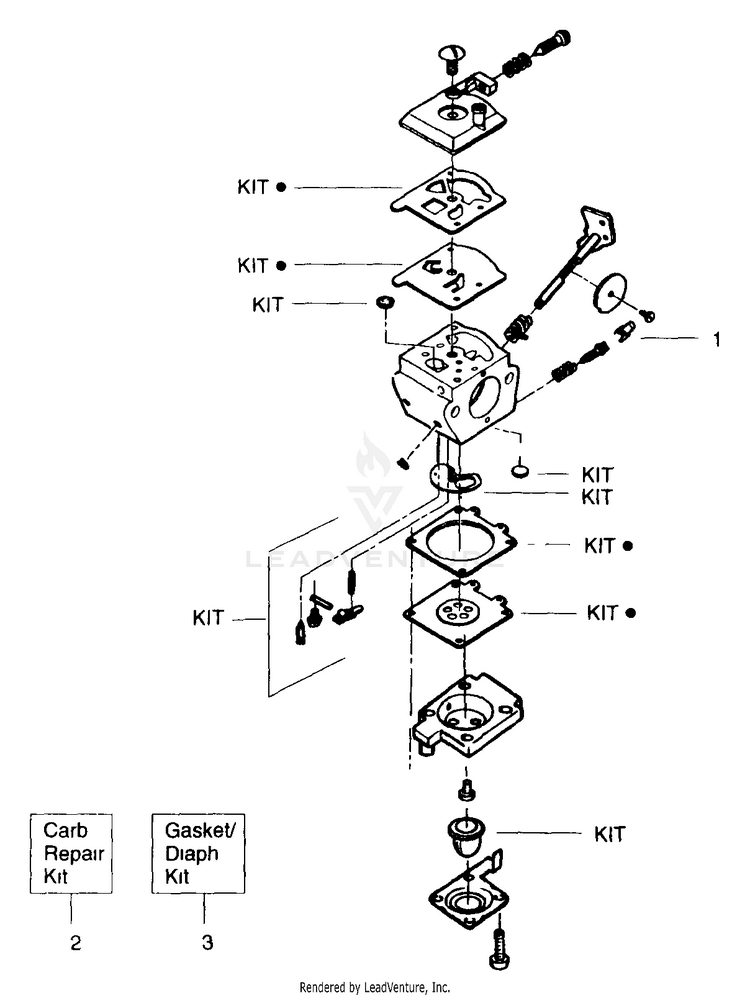

product name

Carburetor Assembly Kit

...
...
xx
Carburetor Assembly Kit PLN-530069770
...
1
Limiter Cap PLN-530038404
...
2
Carburetor Repair Kit KIT = Indicates Contents PLN-530069838
...
3
Gasket/Diaphragm Kit A Black DOT = Indicates Contents PLN-530069844

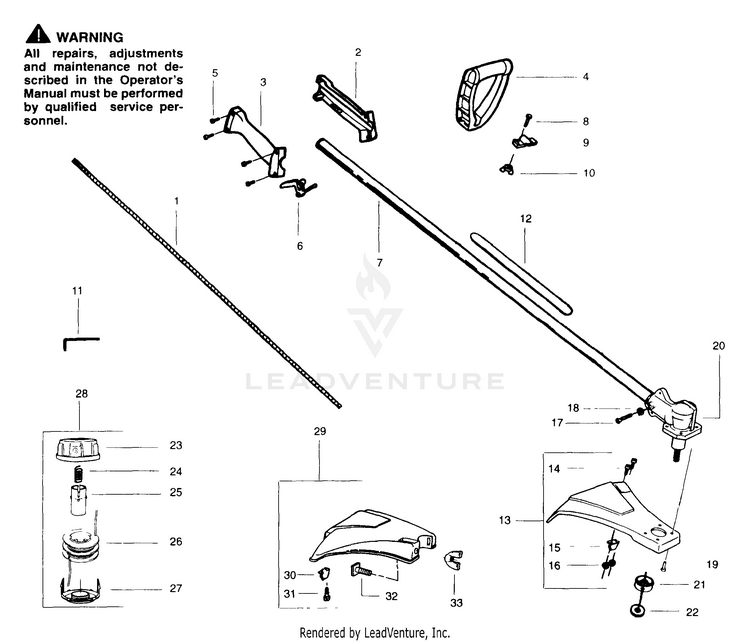

Gas Trimmer/Cutting Head & Drive Shaft

...
...
1
Drive Shaft - 52" PLN-530095151
...
2
Throttle Hsg (Left) PLN-530036514
...
3
Throttle Hsg (Right) PLN-530036515
...
4
Handle Ass'y PLN-530014222
...
5
Screw PLN-530015957
...
6
Throttle Lever PLN-530036556
...
7
Drive Shaft Hsg Ass'y Use with metal shield PLN-530095345
...
7
KIT Use with plastic shield PLN-530069782
...
8
Bolt PLN-530015820
...
9
Clamp PLN-530094742
...
10
Nut PLN-530091373
...
11
Hex Wrench 5/32 PLN-530031159
...
12
Shaft Warning Decal PLN-530038908
...
13
Shield Kit Ass'y - Metal Shield Incl items 14, 15, 16 & 19 New part number for this IPL PLN-530069681
...
14
Screw - Line Limiter PLN-530015636
...
15
Line Limiter PLN-530094570
...
16
Locknut - Line Limiter PLN-530015768
...
17
Screw - Gear Box PLN-530016140
...
18
Lockwasher - Gear Box PLN-530015328
...
19
Screw - Gear Box/Shield PLN-530016141
...
20
Gear Box Ass'y PLN-530047291
...
21
Dust Cup PLN-530095351
...
22
Grass Washer PLN-530094571
...
23
Hub Ass'y PLN-530047378
...
24
Spring PLN-530094830
...
25
Release Button PLN-530094827
...
26
Spool w/Line PLN-952701665
...
27
Cover PLN-530094828
...
28
Cutting Head Ass'y Incl items 23-27 PLN-952701667
...
29
Shield Kit Ass'y - Plastic Shield Incl items 30, 31, 32 & 33 PLN-530069779
...
30
Line Limiter - 17" PLN-530052285
...
30
Line Limiter - 18" PLN-530095387
...
31
Screw PLN-530015805
...
32
Bolt PLN-530015820
...
33
Nut PLN-530091373
...
xx
Operator Manual Not Shown PLN-530083781

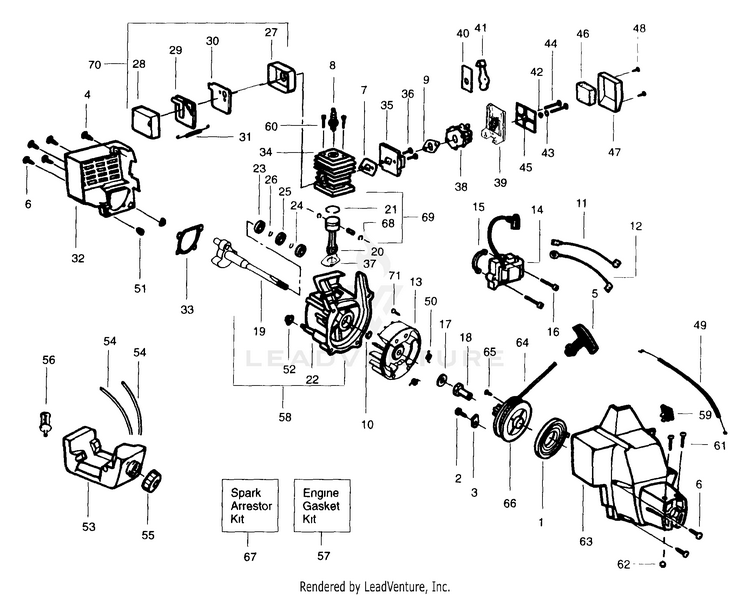

Gas Trimmer/Power Unit

...
...
1
STARTER SPRING PLN-545008010
...
2
Screw - Pulley PLN-530015775
...
3
Retainer PLN-530027523
...
4
Screw - Fan Hsg/Shroud PLN-530015934
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Cylinder/Carb. Gasket PLN-530019233
...
8
Spark Plug PLN-503235112
...
9
Gasket - Carburetor PLN-530019194
...
10
Retainer Ring - C'case PLN-530015945
...
11
Lead Wire Ass'y. PLN-530014663
...
12
SWITCH, GROUND WIRE PLN-581425901
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Ignition Module PLN-530039163
...
15
Spacer - Ignit Module PLN-530036145
...
16
Screw - Ignit Module PLN-530015954
...
17
Washer - Flat PLN-530015828
...
18
Drive Coupling PLN-530027953
...
19
Crankshaft Ass'y. PLN-530014532
...
20
Connecting Rod Ass'y PLN-530069615
...
21
RING PISTON PLN-545154001
...
22
Crankcase Ass'y Incl items 23-26 PLN-530014861
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retainer - Crankshaft PLN-530015941
...
27
Muffler Body PLN-530036578
...
28
Muffler Cover PLN-530036577
...
29
Muffler Baffle - Exit PLN-530049489
...
30
Muffler Baffle - First PLN-530036579
...
31
Muffler Spring PLN-530016197
...
32
Rear Shroud PLN-530049233
...
33
Gasket - C'case PLN-530019181
...
34
Cylinder PLN-530012416
...
35
Carb Adaptor Kit PLN-530069680
...
36
Screw - Carb Adaptor PLN-530016014
...
37
Gasket - Cylinder PLN-530019223
...
38
Carburetor Kit w/Limiter Cap PLN-530069770
...
39
Air Box PLN-530038582
...
40
Choke Plate PLN-530038747
...
41
Choke Shutter PLN-530038686
...
42
Washer PLN-530015254
...
43
Choke Spacer PLN-530015852
...
44
Screw - Carburetor PLN-530015887
...
45
Filter Plate PLN-530036569
...
46
Air Filter Foam PLN-530036575
...
47
Air Filter Cover PLN-530036568
...
48
Screw PLN-530015957
...
49
Assy Throttle Cable PLN-530071548
...
50
Spring - Starter Dog PLN-530023817
...
51
Isolator - Shroud PLN-530036793
...
52
Isolator - Crankcase PLN-530036792
...
53
Fuel Tank Ass'y PLN-530049412
...
54
Fuel Line Kit Incl both fuel lines PLN-530069599
...
55
Fuel Cap Ass'y PLN-530014347
...
56
Assy-Fuel Pickup PLN-530095646
...
57
Engine Gasket Kit Incl items 7, 9, 33, 37 PLN-530069616
...
58
C'case & C'shaft Assy Incl items 10, 19, 22 - 26 PLN-530014729
...
59
Switch-Momentary PLN-530071356
...
60
Screw - Cylinder PLN-530015953
...
61
Screw - Pinch Clamp PLN-530016072
...
62
Locknut - Clamp PLN-530015768
...
63
Fan Housing PLN-530014919
...
64
Rope Kit PLN-530069232
...
65
Screw PLN-530016080
...
66
STARTER PULLEY KIT PLN-530071786
...
67
Spark Arrestor Kit PLN-530069380
...
68
Piston Pin Retainer PLN-530015162
...
69
PISTON KIT Incl items 21, 68 & Pin PLN-530071785
...
70
Muffler Kit PLN-530069870
...
71
Screw PLN-530015882
...
...
...
