Weed Eater XT600 Gas Trimmer Type 6

Model: XT600 Gas Trimmer Type 6

Save Part Not Listed?
product name

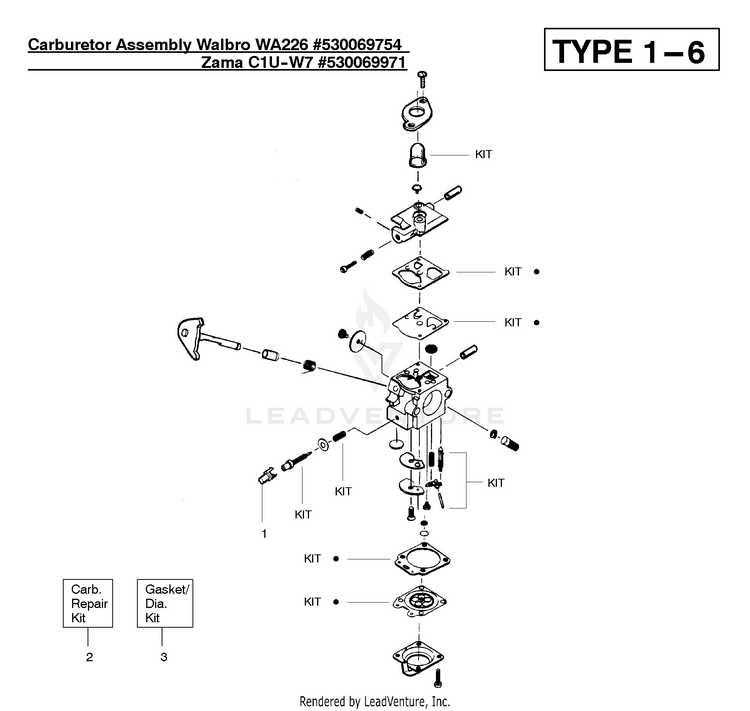

Carburetor Assembly (WT226) 530069754, (Zama C1U-W7) 530069971

...
...
1
Limiter Cap PLN-530038403
...
2
Carburetor Repair Kit Walbro (KIT = Indicates Contents) PLN-530069842
...
2
Carburetor Repair Kit Zama (KIT = Indicates Contents) PLN-530069969
...
3
Gasket Diaphragm Kit Walbro (DOT = Indicates Contents) PLN-530069844
...
3
Kit-Carburetor Minor Repair (DOT = Indicates Contents) PLN-530071442
...
530069754
Carburetor Assembly Walbro WA226 PLN-530069754
...
530069971
Carburetor Assembly Zama C1U-W7 PLN-530069971

Carburetor Assembly (WT631) 530071635

...
...
530071635
Kit-Carburetor Assembly (WT-631) PLN-530071635

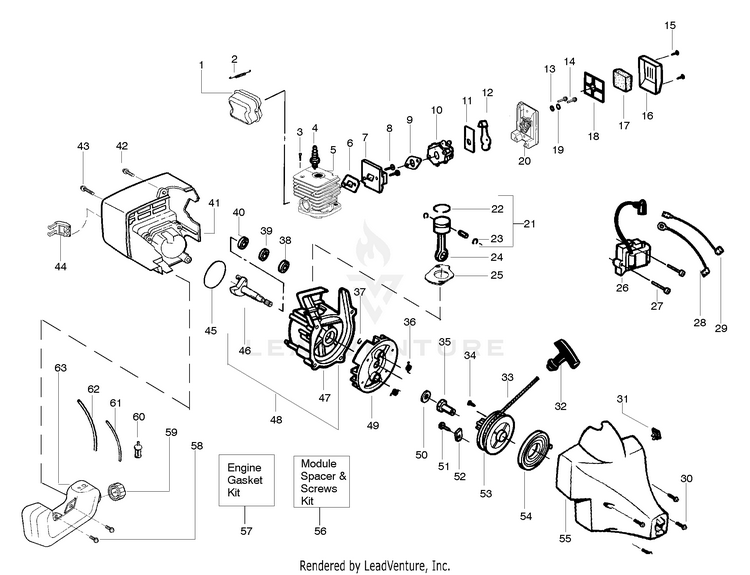

Engine Assembly Type 6

...
...
1
Kit - Muffler (incl. 2 & spark arrestor screen) PLN-530071396
...
2
Muffler Spring PLN-530042088
...
3
Screw-Cylinder PLN-530015953
...
4
Spark Plug (RCJ 6Y) PLN-952030249
...
5
Cylinder PLN-530012416
...
6
Gasket-Cyl/Carb.(kit) PLN-530071363
...
7
Adaptor-carb. PLN-530057635
...
8
Screw PLN-530016014
...
9
Gasket-Carb.(kit) PLN-530071363
...
10
Kit - Carburetor Ass'y (WT-631) PLN-530071635
...
11
Plate-Choke Mounting PLN-530038747
...
12
Lever-Choke PLN-530035499
...
13
Washer PLN-530015254
...
14
Screw PLN-530016393
...
15
Screw PLN-530015892
...
16
Cover-Air Box PLN-530054414
...
17
Foam-Air Filter PLN-530036575
...
18
Plate-Air Filter Support PLN-530036569
...
19
Spacer-Choke PLN-530015852
...
20
Box-Air PLN-530052431
...
21
Kit-Piston (Incl. 22, 23) PLN-530071833
...
22
RING PISTON PLN-545154001
...
23
Retainer-Piston Pin PLN-530015162
...
24
CONNECTING ROD ASSY PLN-530049817
...
25
Gasket-Cylinder(kit) PLN-530071363
...
26
Kit - Ignition Module PLN-545081826
...
27
Screw PLN-530015954
...
28
Assy-Ground Wire PLN-530054448
...
29
Assy-Leadwire PLN-530054449
...
30
SCREW PLN-530016386
...
31
Kit-Switch PLN-530069572
...
32
Handle-Starter PLN-530027569
...
33
Kit - Rope PLN-530071325
...
34
Screw PLN-530016326
...
35
Coupling-Drive PLN-530027953
...
36
Spring-Starter Dog PLN-530023817
...
37
Retain. Ring-C'shaft PLN-530015941
...
38
Bearing-Outer PLN-530055728
...
39
Seal-C'case PLN-530071615
...
40
Bearing-Inner PLN-530032125
...
41
Shroud PLN-530056547
...
42
Screw PLN-530015880
...
43
SCREW PLN-530016386
...
44
Guard-Muffler PLN-530054536
...
45
O-Ring-C'case(kit) PLN-530071363
...
46
Assy-Crankshaft PLN-530012413
...
47
Assy-Crankcase (Incl. 39-41) PLN-530071627
...
48
Assy-C'case & C'shaft (Incl. 38,48,50) PLN-530071675
...
49
FLYWHEEL ASSY PLN-545221701
...
50
Washer-Flat PLN-530015828
...
51
Screw PLN-530015775
...
52
Retainer-Can PLN-530053985
...
53
Kit-Starter Pulley (Incl. 35) PLN-530071324
...
54
KIT STARTER SPRING PLN-545008011
...
55
Assy-Fan Housing PLN-530071415
...
56
Kit-Module Spacer & Screws PLN-530071731
...
57
Kit-Engine Gasket (Incl. 6,9,25,47) PLN-530071363
...
58
Retainer-Tank PLN-530016379
...
59
Assy-Fuel Cap PLN-530014347
...
60
Assy-Fuel Pickup PLN-530095646
...
61
Kit-Fuel Line PLN-530069216
...
62
Kit-Fuel Line PLN-530069247
...
63
Assy-Fuel Tank (Incl. cap,filter,lines) PLN-530056732

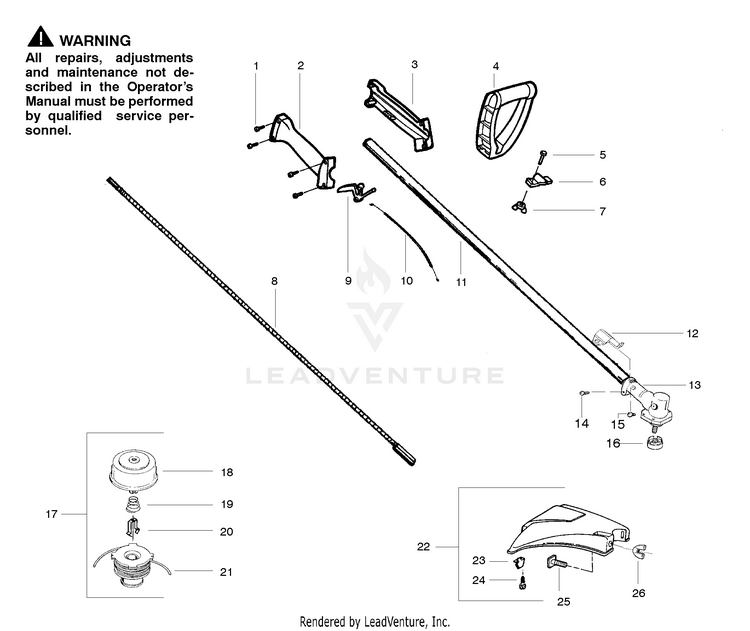

Handle, Chassis & Bar Assembly Type 6

...
...
1
Screw-Throttle Hsg. PLN-530016179
...
2
Throttle Hsg. (Right) PLN-530054990
...
3
Throttle Hsg. (Left) PLN-530054989
...
4
Assy-Assist Handle PLN-530055699
...
5
Bolt PLN-530015820
...
6
Clamp-Handle PLN-530094742
...
7
Nut PLN-530091373
...
8
Shaft- Flex-52" PLN-530095982
...
9
Trigger PLN-530038682
...
10
Throttle Cable Ass'y. PLN-530055546
...
11
Assy-Drive Shaft PLN-530071575
...
12
Bracket PLN-530095812
...
13
Kit-Gear Box Assy. PLN-530071584
...
14
Screw PLN-530016014
...
15
Screw PLN-530016301
...
16
Dust Cup PLN-530095814
...
17
Cutting Head Ass'y. (incl. # 18-21) PLN-952711550
...
18
Hub Ass'y. PLN-530095772
...
19
Spring-Return PLN-530053241
...
20
Retainer-Spool PLN-530401957
...
21
Spool w/Line PLN-952711551
...
22
Kit-Shield Assy. (incl.# 23-26) PLN-530069779
...
23
Line Limiter PLN-530052285
...
24
Screw-Line Limiter PLN-530015805
...
25
Bolt PLN-530015820
...
26
Nut PLN-530091373
...
xx
Operator Manual Not Shown PLN-530163441
...
xx
Shaft Warning Decal Not Shown PLN-530055350

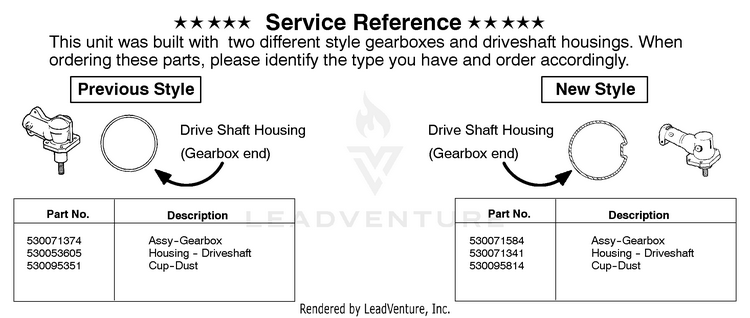

Service Reference

...
