Weed Eater XT400 Gas Trimmer Type 4

Model: XT400 Gas Trimmer Type 4

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

Carburetor Assembly (Walbro WA226) P/N 530069754, (Zama C1U-W7) P/N 530069971

...
...
1
Limiter Cap PLN-530038403
...
2
Carburetor Repair Kit Walbro (KIT = Indicates Contents) PLN-530069842
...
2
Carburetor Repair Kit Zama (KIT = Indicates Contents) PLN-530069969
...
3
Gasket Diaphragm Kit Walbro (DOT = Indicates Contents) PLN-530069844
...
3
Kit-Carburetor Minor Repair (DOT = Indicates Contents) PLN-530071442
...
530069754
Carburetor Assembly (Walbro WA226) PLN-530069754
...
530069971
Carburetor Assembly (Zama C1U-W7) PLN-530069971

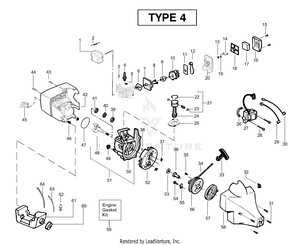

Engine Assembly Type 4

...
...
1
Kit - Muffler (Incl. 2 & spark arrestor screen) PLN-530071396
...
2
Muffler Spring PLN-530042088
...
3
Screw-Cylinder PLN-530015953
...
4
Spark Plug (RCJ 6Y) PLN-952030249
...
5
Cylinder PLN-530012416
...
6
Gasket-Cyl/Carb.(kit) PLN-530071363
...
7
Adaptor-carb. PLN-530056404
...
8
Screw PLN-530016014
...
9
Gasket-Carb.(kit) PLN-530071363
...
10
Kit - Carburetor Ass'y (Incl. Limiter Cap) PLN-530069754
...
11
Plate-Choke Mounting PLN-530038747
...
12
Lever-Choke PLN-530035499
...
13
Washer PLN-530015254
...
14
Screw PLN-530016353
...
15
Screw PLN-530015892
...
16
Cover-Air Box PLN-530054414
...
17
Foam-Air Filter PLN-530036575
...
18
Plate-Air Filter Support PLN-530036569
...
19
Spacer-Choke PLN-530015852
...
20
Box-Air PLN-530052431
...
21
Kit-Piston (Incl. 22, 23) PLN-530071833
...
22
RING PISTON PLN-545154001
...
23
Retainer-Piston Pin PLN-530015162
...
24
CONNECTING ROD ASSY PLN-530049817
...
25
Gasket-Cylinder(kit) PLN-530071363
...
26
Spacer-Module PLN-530036145
...
27
Kit - Ignition Module PLN-545081826
...
28
Screw PLN-530015954
...
29
Assy-Ground Wire PLN-530054448
...
30
Assy-Leadwire PLN-530054449
...
31
SCREW PLN-530016386
...
32
Kit-Switch PLN-530069572
...
33
Handle-Starter PLN-530027569
...
34
Kit - Rope PLN-530071325
...
35
Screw PLN-530016326
...
36
Coupling-Drive PLN-530027953
...
37
Spring-Starter Dog PLN-530023817
...
38
Retain. Ring-C'shaft PLN-530015941
...
39
Bearing-Outer PLN-530055128
...
40
Kit-Seal-C'case PLN-530071615
...
41
Bearing-Inner PLN-530032125
...
42
Shroud PLN-530056943
...
43
Screw PLN-530015880
...
44
SCREW PLN-530016386
...
45
Guard-Muffler PLN-530054536
...
46
Isolator-Shroud PLN-530036793
...
47
O-Ring-C'case(kit) PLN-530071363
...
48
Assy-Crankshaft PLN-530012413
...
49
Isolator-Crankcase PLN-530036792
...
50
Assy-Crankcase (Incl. 39-41) PLN-530071627
...
51
Assy-C'case & C'shaft (Incl. 38,48,50) PLN-530071337
...
52
FLYWHEEL ASSY PLN-545221701
...
53
Washer-Flat PLN-530015828
...
54
Screw PLN-530015775
...
55
Retainer-Can PLN-530053985
...
56
Kit-Starter Pulley (Incl. 35) PLN-530071324
...
57
KIT STARTER SPRING PLN-545008011
...
58
Assy-Fan Housing PLN-530071415
...
59
Kit-Engine Gasket (Incl. 6,9,25,47) PLN-530071363
...
60
Assy-Fuel Cap PLN-530014347
...
61
Assy-Fuel Tank (Incl. cap,filter,lines) PLN-530049299
...
62
Assy-Fuel Pickup PLN-530095646
...
63
Kit-Fuel Line PLN-530069247
...
64
Kit-Fuel Line PLN-530069216

Handle & Shaft Assembly

...
...
1
Accy-Cutting Head Ass'y. (type 1,2) (Incl. 2-5) PLN-952711547
...
1
Accy-TNG VI Cutting Head (Incl. 2-5) PLN-952711621
...
2
Assy-Hub (type 1,2) PLN-530095773
...
2
Kit-Hub Ass'y PLN-530071306
...
3
Spring PLN-530053241
...
4
Clip-Retainer-Head PLN-530401957
...
5
Spool w/Line PLN-952711548
...
6
Drive Shaft-Flex (type 1,2) PLN-530053614
...
6
Drive Shaft-Flex (type 3,4) PLN-530095853
...
7
Assy-Throttle Cable (type 1,2) PLN-530071550
...
7
Assy-Throttle Cable (type 3,4) PLN-530055546
...
8
Trigger PLN-530038682
...
9
Throttle Hsg. (Right) PLN-530047923
...
10
Throttle Hsg. (Left) PLN-530047924
...
11
Screw-Throttle Hsg. PLN-530016179
...
12
Washer PLN-530016193
...
13
Spring PLN-530042084
...
14
Actuator PLN-530047925
...
15
Locator-Right PLN-530054160
...
16
Locator-Left PLN-530054159
...
17
SCREW PLN-530016386
...
18
Assy-Drive Shaft Hsg. (type 1,2) PLN-530071420
...
18
Assy-Drive Shaft Hsg. (type 3,4) PLN-530071416
...
19
Assist Handle PLN-530047919
...
20
Bolt-Handle PLN-530016173
...
21
Nut PLN-530091373
...
22
Line Limiter PLN-530052286
...
23
Screw-Line Limiter PLN-530015814
...
24
Kit-Shield Ass'y. (Incl. 22 & 23) PLN-530069666
...
25
Bolt-Shield PLN-530015820
...
26
Nut PLN-530091373
...
27
Dust Cup (type 1,2) PLN-530094543
...
27
Dust Cup (type 3,4) PLN-530095574
...
xx
Operator's Manual (type 1,2) Not Shown PLN-530088831
...
xx
Operator's Manual (type 3) Not Shown PLN-530086927
...
xx
Operator's Manual (type 4) Not Shown PLN-530163506
...
xx
Shaft Warning Decal Not Shown PLN-530055350
