Weed Eater XT400 Gas Trimmer Type 1

Model: XT400 Gas Trimmer Type 1

Save
 Part Not Listed?Part Not Listed?
product name

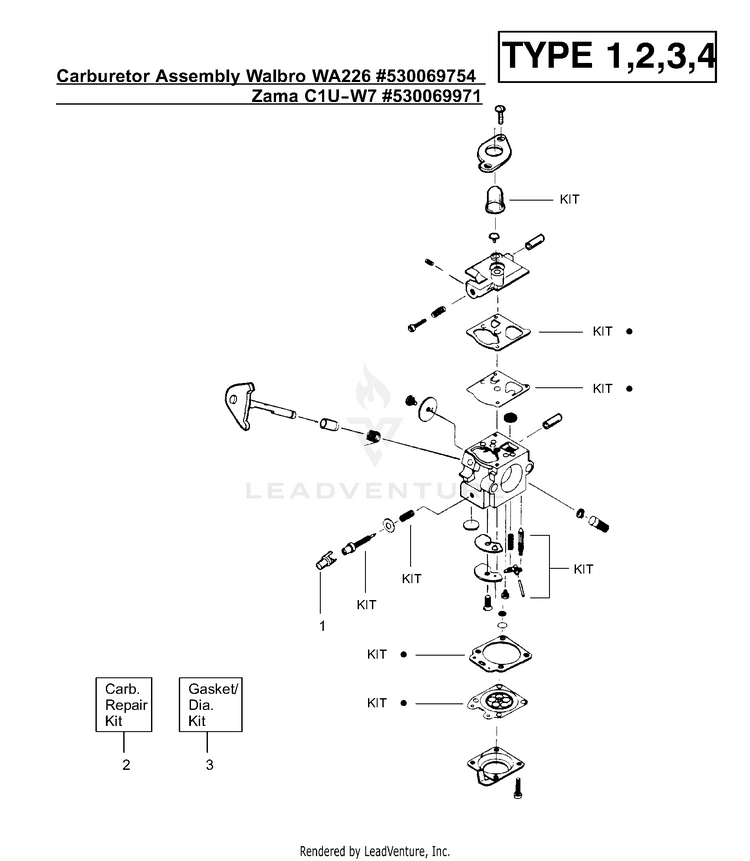

Carburetor Assembly (Walbro WA226) P/N 530069754, (Zama C1U-W7) P/N 530069971

...
...
1
Limiter Cap PLN-530038403
...
2
Carburetor Repair Kit Walbro (KIT = Indicates Contents) PLN-530069842
...
2
Carburetor Repair Kit Zama (KIT = Indicates Contents) PLN-530069969
...
3
Gasket Diaphragm Kit Walbro (DOT = Indicates Contents) PLN-530069844
...
3
Kit-Carburetor Minor Repair (DOT = Indicates Contents) PLN-530071442
...
530069754
Carburetor Assembly (Walbro WA226) PLN-530069754
...
530069971
Carburetor Assembly (Zama C1U-W7) PLN-530069971

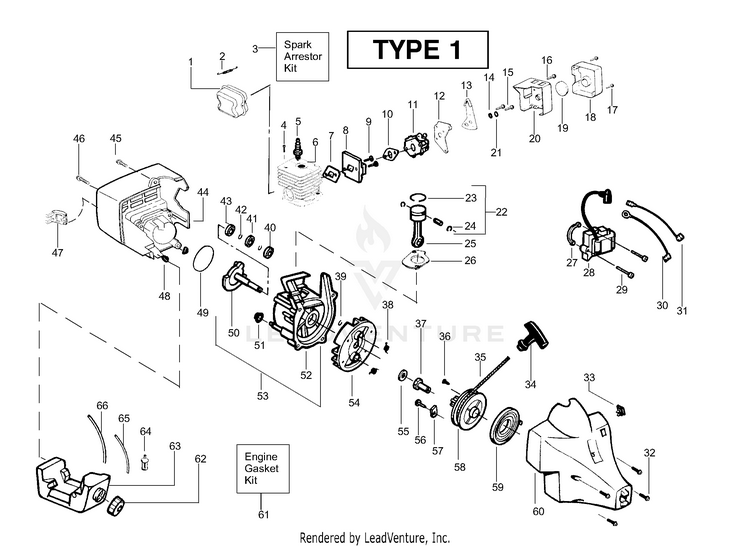

Engine Assembly Type 1

...
...
1
Kit - Muffler (Incl. 2,3) PLN-530071390
...
2
Muffler Spring PLN-530042088
...
3
Kit-Spark Arrestor PLN-530071391
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug PLN-503235112
...
6
Cylinder PLN-530012416
...
7
Gasket-Cylind./Carb. PLN-530071253
...
8
Kit - Carb. Adaptor PLN-530069991
...
9
Screw PLN-530016014
...
10
Gasket-Carb. PLN-530071253
...
11
Kit - Carburetor Ass'y Walbro-(WA-226) (Incl. Limiter Cap) PLN-530069754
...
11
Kit - Carburetor Ass'y Zama-(C1U-W7) (Incl. Limiter Cap) PLN-530069971
...
12
Choke Plate Mounting PLN-530047914
...
13
Choke Lever PLN-530047916
...
14
Washer PLN-530015254
...
15
Screw PLN-530015849
...
16
Screw PLN-530016141
...
17
Screw PLN-530015957
...
18
Cover-Air Box PLN-530049079
...
19
Foam-Air Filter PLN-530047932
...
20
Box-Air PLN-530047908
...
21
Spacer-Choke PLN-530015852
...
22
Kit - Piston (Incl. 23, 24 & Pin) PLN-530069987
...
23
PISTON RING PLN-545154009
...
24
Retainer-Piston Pin PLN-530015162
...
25
Assy-Connecting Rod PLN-530069615
...
26
Gasket-Cylinder PLN-530071253
...
27
Spacer-Module PLN-530036145
...
28
Ignition Module PLN-530055160
...
29
Screw PLN-530015954
...
30
Assy-Ground Wire PLN-530049389
...
31
Assy-Leadwire PLN-530049390
...
32
SCREW PLN-530016386
...
33
Kit-Momentary Switch PLN-530071356
...
34
Handle-Starter PLN-530027569
...
35
Kit - Rope PLN-530069232
...
36
Screw PLN-530016080
...
37
Coupling-Drive PLN-530027953
...
38
Spring-Starter Dog PLN-530023817
...
39
Retain. Ring-C'shaft PLN-530015941
...
40
Bearing-Outer PLN-530032124
...
41
Seal-C'case PLN-530019179
...
42
Retainer Ring-C'case PLN-530015945
...
43
Bearing-Inner PLN-530032125
...
44
Shroud PLN-530049233
...
45
Screw PLN-530015880
...
46
SCREW PLN-530016386
...
47
Guard-Muffler PLN-530054536
...
48
Isolator-Shroud PLN-530036793
...
50
Assy-Crankshaft PLN-530054083
...
51
Isolator-Crankcase PLN-530036792
...
52
Assy-Crankcase (Incl. 40-43) PLN-530071627
...
53
Assy-C'case & C'shaft (Incl. 39,50,52) PLN-530014729
...
54
FLYWHEEL ASSY PLN-545221701
...
55
Washer-Flat PLN-530015828
...
56
Screw PLN-530015957
...
57
Retainer-Can PLN-530016226
...
58
STARTER PULLEY KIT (Incl. 36) PLN-530071786
...
59
KIT STARTER SPRING PLN-545008011
...
60
Assy-Fan Housing PLN-530049468
...
61
Kit-Engine Gasket (Incl. 7,10,26,49) PLN-530071253
...
62
Assy-Fuel Cap PLN-530014347
...
63
Assy-Fuel Tank (Incl. cap,filter,lines) PLN-530049299
...
64
Assy-Fuel Pickup PLN-530095646
...
65
Kit-Fuel Line PLN-530069247
...
66
Kit-Fuel Line PLN-530069599

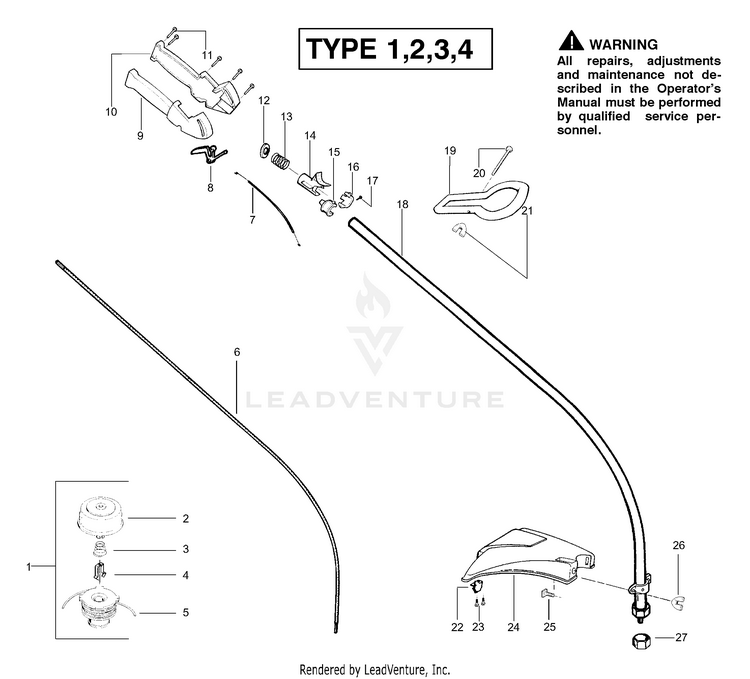

Handle & Shaft Assembly

...
...
1
Accy-Cutting Head Ass'y. (type 1,2) (Incl. 2-5) PLN-952711547
...
1
Accy-TNG VI Cutting Head (Incl. 2-5) PLN-952711621
...
2
Assy-Hub (type 1,2) PLN-530095773
...
2
Kit-Hub Ass'y PLN-530071306
...
3
Spring PLN-530053241
...
4
Clip-Retainer-Head PLN-530401957
...
5
Spool w/Line PLN-952711548
...
6
Drive Shaft-Flex (type 1,2) PLN-530053614
...
6
Drive Shaft-Flex (type 3,4) PLN-530095853
...
7
Assy-Throttle Cable (type 1,2) PLN-530071550
...
7
Assy-Throttle Cable (type 3,4) PLN-530055546
...
8
Trigger PLN-530038682
...
9
Throttle Hsg. (Right) PLN-530047923
...
10
Throttle Hsg. (Left) PLN-530047924
...
11
Screw-Throttle Hsg. PLN-530016179
...
12
Washer PLN-530016193
...
13
Spring PLN-530042084
...
14
Actuator PLN-530047925
...
15
Locator-Right PLN-530054160
...
16
Locator-Left PLN-530054159
...
17
SCREW PLN-530016386
...
18
Assy-Drive Shaft Hsg. (type 1,2) PLN-530071420
...
18
Assy-Drive Shaft Hsg. (type 3,4) PLN-530071416
...
19
Assist Handle PLN-530047919
...
20
Bolt-Handle PLN-530016173
...
21
Nut PLN-530091373
...
22
Line Limiter PLN-530052286
...
23
Screw-Line Limiter PLN-530015814
...
24
Kit-Shield Ass'y. (Incl. 22 & 23) PLN-530069666
...
25
Bolt-Shield PLN-530015820
...
26
Nut PLN-530091373
...
27
Dust Cup (type 1,2) PLN-530094543
...
27
Dust Cup (type 3,4) PLN-530095574
...
xx
Operator's Manual (type 1,2) Not Shown PLN-530088831
...
xx
Operator's Manual (type 3) Not Shown PLN-530086927
...
xx
Operator's Manual (type 4) Not Shown PLN-530163506
...
xx
Shaft Warning Decal Not Shown PLN-530055350

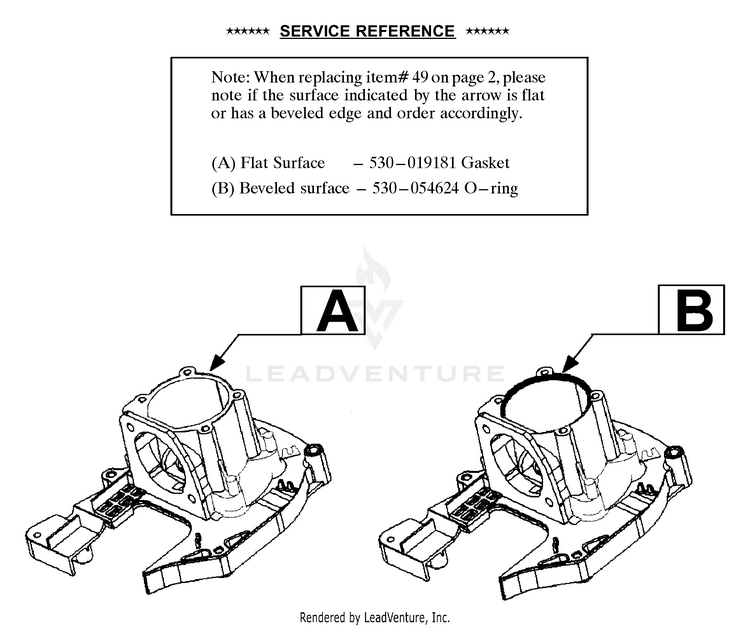

Service Reference

...

No Parts Available for this Schematic

...
...
...
