Weed Eater XT25 Gas Trimmer

Model: XT25 Gas Trimmer

Save Part Not Listed?
product name

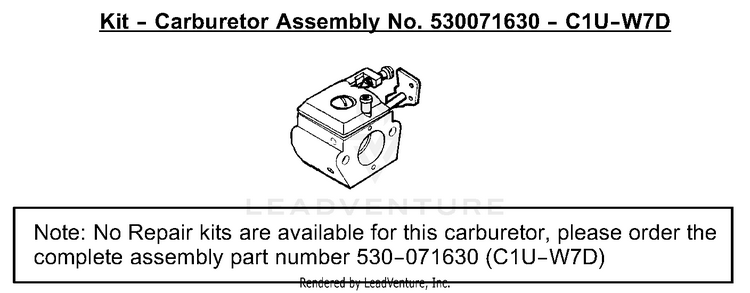

Carburetor Assembly (C1U-W7D) P/N 530071630

...
...
530071630
Kit - Carburetor Assembly - C1U-W7D PLN-530071630

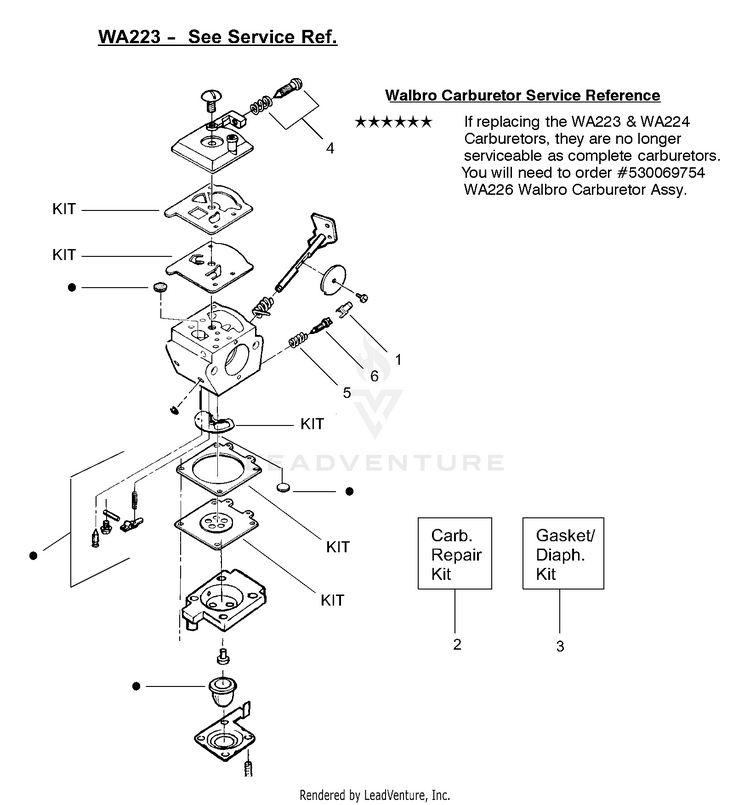

Carburetor Assembly (WA223)

...
...
1
Limiter Cap PLN-530038403
...
2
Carburetor WA223 (DOT Indicates Contents) PLN-530069839
...
2
Carburetor WA224 (DOT Indicates Contents) PLN-530069841
...
2
Carburetor WA226 (DOT Indicates Contents) PLN-530069842
...
2
Carburetor C1U-W7 (DOT Indicates Contents) PLN-530069969
...
3
Gasket/Diaphragm WA223, WA224 & WA226 (KIT = Indicates Contents) PLN-530069844
...
3
Kit-Carburetor Minor Repair (KIT = Indicates Contents) PLN-530071442
...
4
Idle Screw & Spring Kit PLN-530035296
...
5
Low Speed Spring PLN-530035342
...
6
Low Speed Needle PLN-530035341
...
530069754
Carburetor Assembly (WA226) PLN-530069754

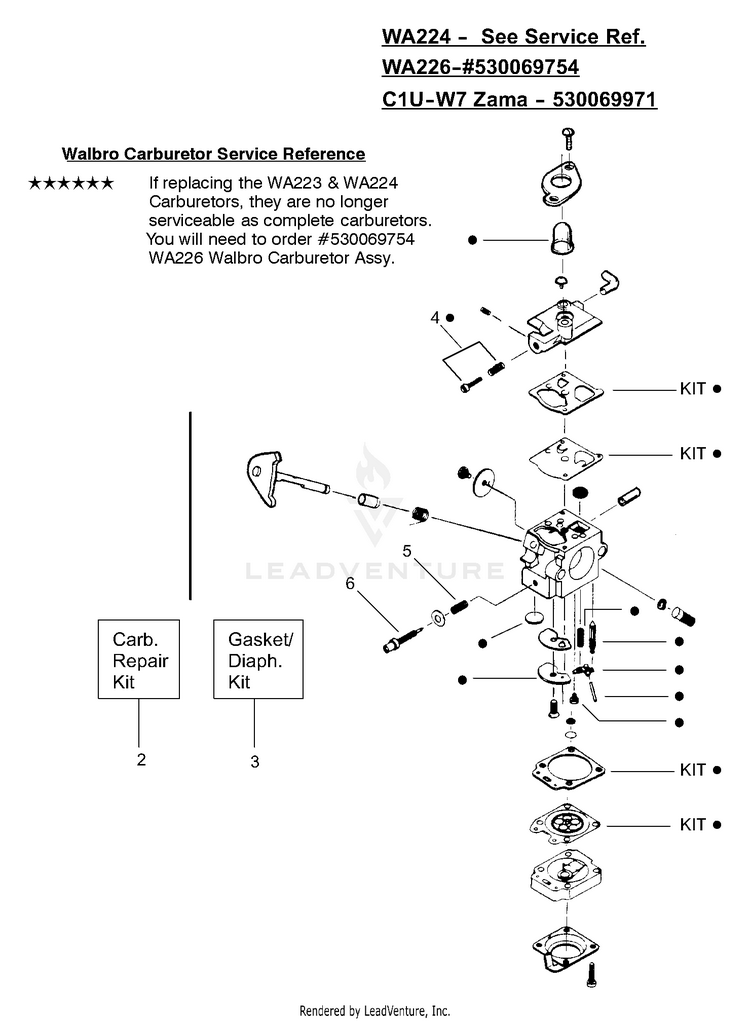

Carburetor Assembly (WA224), (WA226) P/N 530069754, (Zama C1U-W7) P/N 530069971

...
...
2
Carburetor WA223 (DOT Indicates Contents) PLN-530069839
...
2
Carburetor WA224 (DOT Indicates Contents) PLN-530069841
...
2
Carburetor WA226 (DOT Indicates Contents) PLN-530069842
...
2
Carburetor C1U-W7 (DOT Indicates Contents) PLN-530069969
...
3
Gasket/Diaphragm WA223, WA224 & WA226 (KIT = Indicates Contents) PLN-530069844
...
3
Kit-Carburetor Minor Repair (KIT = Indicates Contents) PLN-530071442
...
4
Idle Screw & Spring Kit PLN-530035296
...
5
Low Speed Spring PLN-530035342
...
6
Low Speed Needle PLN-530035341
...
530069754
Carburetor Assembly (WA226) PLN-530069754
...
530069971
Carburetor Assembly (Zama C1U-W7) PLN-530069971

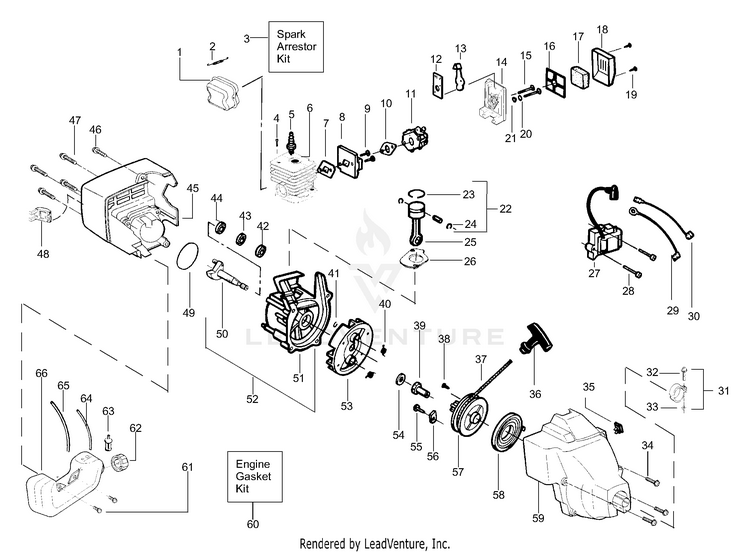

Engine Assembly

...
...
1
Kit-Muffler S.A. (Incl. 2,3) PLN-530071396
...
2
Muffler Spring PLN-530042088
...
3
Kit-Spark Arrestor PLN-530071391
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug (RCJ 6Y) PLN-952030249
...
6
Kit-Cylinder PLN-530071689
...
7
Gasket-Cyl./Carb.(kit) PLN-530069616
...
8
Carb. Adaptor PLN-530047659
...
9
Screw PLN-530016014
...
10
Gasket-Carb.(kit) PLN-530069616
...
11
Kit-Carburetor Ass'y (Incl. Limiter Cap) PLN-530069971
...
12
Choke Plate Mounting PLN-530038747
...
13
Choke Shutter PLN-530038686
...
14
Air Box PLN-530052431
...
15
Screw PLN-530015887
...
16
Plate-Filter Support PLN-530036569
...
17
Air Filter Foam PLN-530036575
...
18
Air Filter Cover PLN-530036568
...
19
Screw PLN-530015880
...
20
Spacer-Choke PLN-530015852
...
21
Washer PLN-530015254
...
22
Kit-Piston (Incl. 23, 24 & Pin) PLN-530069613
...
23
Piston Ring PLN-530029924
...
24
Piston Pin Retainer PLN-530015162
...
25
Connecting Rod Ass'y. PLN-530069615
...
26
Gasket-Cylinder(kit) PLN-530069616
...
27
Ignition Module PLN-530055160
...
28
Screw PLN-530016357
...
29
SWITCH, GROUND WIRE PLN-581425901
...
30
Assy-Leadwire PLN-530014663
...
31
Nose Cone Clamp Ass'y. (Incls. 32 & 33) PLN-530056365
...
32
Screw-Nose Cone PLN-530016381
...
33
Nut-Nose Cone PLN-530016382
...
34
SCREW PLN-530016386
...
35
Kit-On/Off Switch PLN-530071356
...
36
Starter Handle PLN-530027569
...
37
Kit-Rope PLN-530069232
...
38
Screw PLN-530016080
...
39
Drive Coupling PLN-530038604
...
40
Starter Dog Spring PLN-530023817
...
41
Retain. Ring-C'shaft PLN-530015941
...
42
Outer Bearing PLN-530055728
...
43
Kit-C'case Seal PLN-530071615
...
44
Inner Bearing PLN-530032125
...
45
Assy.-Fan Hsg/Shroud PLN-530069685
...
46
Screw PLN-530015886
...
47
SCREW PLN-530016386
...
48
Guard-Muffler PLN-530054536
...
50
Assy-Crankshaft PLN-530054753
...
51
Kit-Crankcase Ass'y. (Incl. 42-44) PLN-530071627
...
52
C'case & C'shaft Assy. (Incl. 41,50,51) PLN-530071360
...
53
FLYWHEEL ASSY PLN-545221701
...
54
Washer-Flat PLN-530015828
...
55
Screw PLN-530015775
...
56
Retainer-Can PLN-530027523
...
57
STARTER PULLEY KIT (Incl. 38) PLN-530071786
...
58
STARTER SPRING PLN-545008010
...
59
Kit-Fan Hsg/Shroud PLN-530069685
...
60
Kit-Engine Gasket (Incl. 7,10,26,49) PLN-530069616
...
61
Retainer PLN-530016379
...
62
Assy-Fuel Cap PLN-530014347
...
63
Assy-Fuel Pickup PLN-530095646
...
64
Kit-Fuel Line (Small) PLN-530069247
...
65
Kit-Fuel Line (Large PLN-530069216
...
66
FUEL TANK ASSY (Incl. cap, fuel lines, filter) PLN-545103802

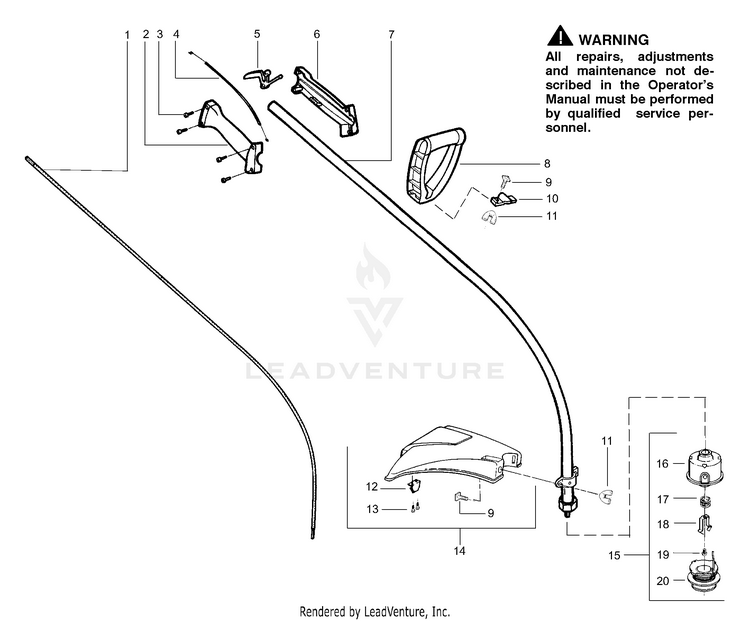

Handle, Chassis & Bar Assembly

...
...
1
Shaft-Flex PLN-530095613
...
2
Throttle Hsg. (Right) PLN-530038581
...
3
Screw-Throttle Hsg. PLN-530016349
...
4
Kit-Throttle Cable Ass'y. PLN-530071548
...
5
Trigger PLN-530038682
...
6
Throttle Hsg. (Left) PLN-530038580
...
7
Drive Shaft Hsg. Ass'y PLN-530071311
...
8
Assist Handle PLN-530038708
...
9
Bolt-Handle/Shield PLN-530015820
...
10
Clamp-Handle Assist PLN-530094742
...
11
Nut PLN-530091373
...
12
Line Limiter PLN-530052287
...
13
Screw PLN-530015957
...
14
Kit-Shield Ass'y. (Incl. 9,11,12,13) PLN-530069686
...
15
Cutting Head Ass'y. (Incl. 16-20) PLN-952701666
...
16
Kit-Hub Ass'y PLN-530069690
...
17
Spring-Compression PLN-530401464
...
18
Clip-Retainer-Head PLN-530401466
...
19
Screw w/ Washer-Head PLN-530401467
...
20
Spool w/Line PLN-952711527
...
xx
Manual (XT-25 Only) Not Shown PLN-530083930
...
xx
Shaft Warning Decal Not Shown PLN-530055350
...
xx
Stop Decal Not Shown PLN-530055162
