Weed Eater XT20T Gas Trimmer

Model: XT20T Gas Trimmer

Save Part Not Listed?

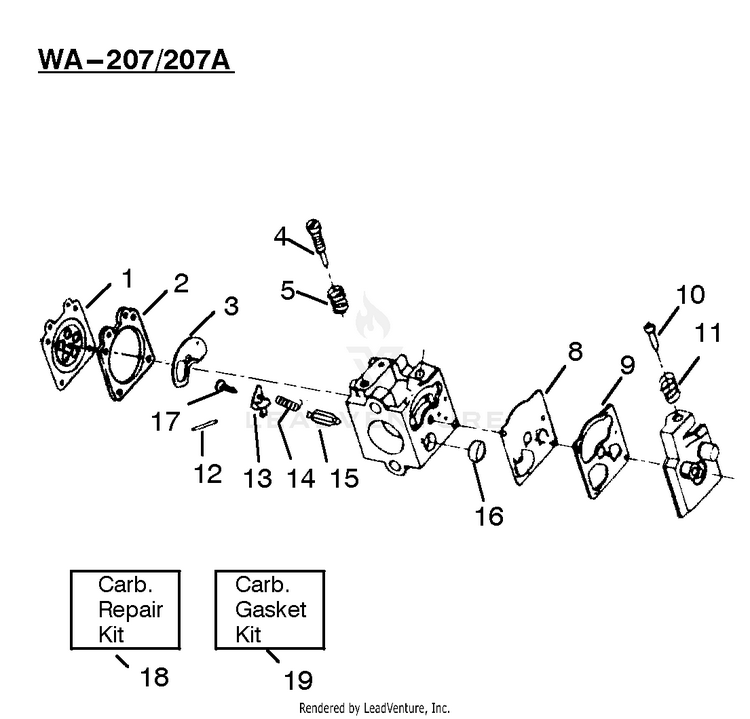

product name

Carburetor Assembly WA-207/207A

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
Circuit Plate Gasket PLN-530035211
...
4
Mixture Needle PLN-530035212
...
5
Needle Spring-Low Speed PLN-530035293
...
8
PUMP DIAPHRAGM PLN-504130807
...
9
GASKET PLN-504130906
...
10
Idle Speed Screw PLN-530035203
...
11
Spring PLN-501667801
...
12
Pin PLN-505520125
...
13
Metering Lever PLN-505520127
...
14
Metering Lever Spring PLN-530035188
...
15
Needle PLN-503117001
...
16
Fuel Inlet Screen PLN-530035178
...
17
Metering Lever Pin Screw PLN-530035016
...
18
Carb. Kwik Repair Kit (1,2,3,8,9,12,13,14,15,16,17 Indicates Contents) PLN-530035264
...
19
Gasket Diaphragm Kit Kit (1,2,3,8,9 Indicates Contents) PLN-530069844

Carburetor Assembly WA-217, 219B

...
...
xx
KIT CARBURETOR ASSY PLN-545081825
...
xx
WA-219B PLN-530069648
...
1
Carburetor Repair Kit (WA 217) These parts are illustrated for clarity. Order complete assembly. PLN-530069726
...
1
Carburetor Repair Kit (WA 219B) These parts are illustrated for clarity. Order complete assembly. PLN-530069667
...
2
Limiter Cap PLN-530038404

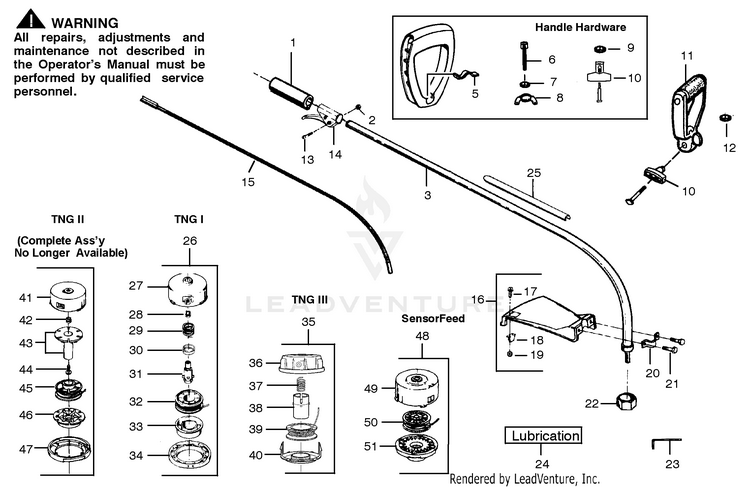

Cutting Eqipment

...
...
1
Grip PLN-530029445
...
2
Nut PLN-530015768
...
3
Drive Shaft Hsg (20T, 40) PLN-530094874
...
5
Clamp PLN-530094742
...
6
Bolt PLN-530015820
...
7
Washer PLN-530092062
...
8
Nut PLN-530091373
...
9
Nut PLN-530015610
...
10
HANDLE KIT PLN-530069347
...
11
Handle PLN-530010957
...
12
Nut PLN-530015197
...
13
Screw PLN-530015774
...
14
Throttle Hsg Ass'y (Incl 2 & 13) PLN-530010959
...
15
Drive Shaft (20, 20T, 40T) PLN-530094671
...
16
Shield Kit Ass'y (40, 20T) PLN-530069299
...
17
Screw PLN-530015337
...
18
Line Limiter (20, 20T, 40, 50) PLN-530094570
...
19
Nut PLN-530403094
...
20
Shield Bracket (20T, 40) PLN-530029373
...
21
Screw PLN-530016107
...
22
Dust Cup PLN-530094543
...
23
Hex Wrench (5/32) PLN-530031159
...
24
Shaft Lubrication PLN-952030139
...
25
Shaft Warning Decal PLN-530029159
...
26
Cutting Head Ass'y. (Incl 27-34) PLN-952711547
...
27
Hub PLN-530071295
...
28
Line Saver PLN-530093898
...
29
Spring PLN-530340007
...
30
Cap Spring PLN-530328929
...
31
Drive Gear PLN-530093897
...
32
Spool w/Line PLN-952701523
...
33
Release Button PLN-530401183
...
34
Cover PLN-530092133
...
35
TRIMMY HIT JR-5/16 PLN-695000394
...
36
Hub Ass'y (w/5/16" arbor20T) PLN-530094875
...
37
Spring PLN-530094830
...
38
Release Button PLN-530094827
...
39
Spool w/Line PLN-952701619
...
40
Cover PLN-530094828
...
41
Hub Ass'y PLN-530094562
...
42
Spring PLN-530094956
...
43
Locking Plate Kit PLN-530069312
...
44
Screw PLN-530015542
...
45
Spool w/Line PLN-952701606
...
46
Release Button PLN-530094522
...
47
Cover PLN-530094521
...
48
Cutting Head Ass'y PLN-952701605
...
49
Hub Ass'y PLN-530094592
...
50
Spool w/Line PLN-952701607
...
51
Cover PLN-530094494
...
51
Operator Manual (20T) Not Shown PLN-530081867
...
51
Operator Manual (Type 1 & 2) Not Shown PLN-530082131
...
51
Operator Manual (Type 3) Not Shown PLN-530083194

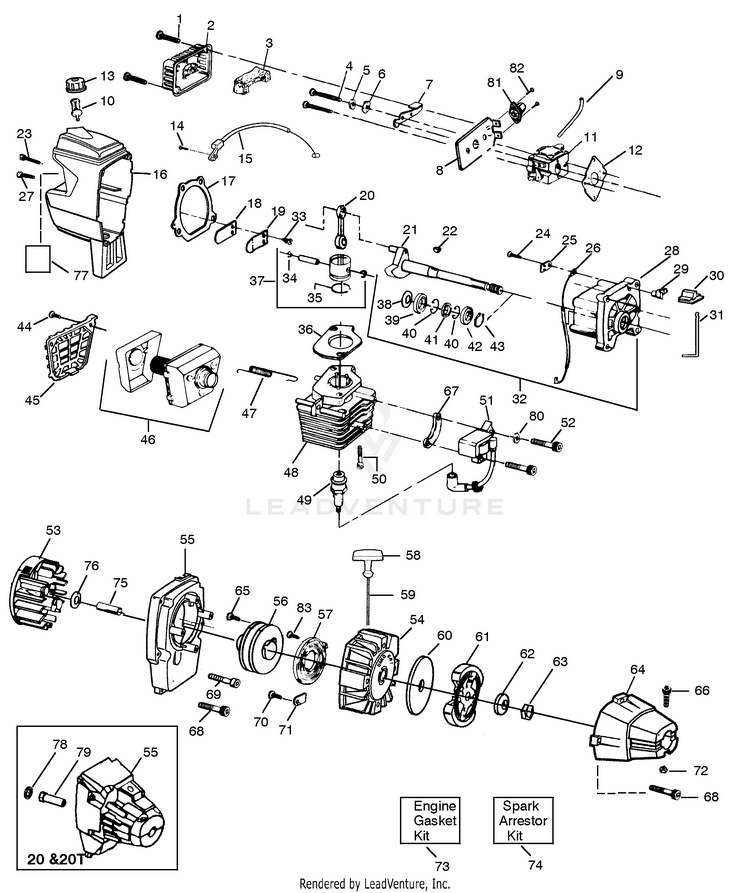

Engine

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
Air Filter Plate (Type 1) PLN-530027527
...
8
Air Filter Plate (Type 2 & 3) PLN-530037930
...
9
Fuel Line Kit (Fuel LineType 1) PLN-530069247
...
9
Fuel Line Kit (Return LineType 2 & 3) PLN-530069571
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
11
Carburetor (20T (WA219B) Type 2) PLN-530069648
...
12
Carburetor Gasket PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Screw PLN-530015775
...
15
Throttle Cable Ass'y. (20 & 20T-Type 1 & 2) PLN-530037498
...
16
Shroud & Tank Ass'y. (Type 1) PLN-530027982
...
16
Shroud & Tank Ass'y. (Type 2 & 3) PLN-530047086
...
17
Crankcase/Shroud Gasket PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. (20, 20T, 40) (Incl. Bearings) PLN-530014005
...
21
Crankshaft Ass'y.- See Service Ref. 2 (20 20T) (Refer to Service Reference) PLN-530010945
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015772
...
24
Screw PLN-530015780
...
25
Switch Insulator PLN-530027546
...
26
Lead Wire PLN-530027547
...
27
Screw PLN-530015771
...
28
Crankcase Ass'y. (Incl. #39-42) PLN-530014016
...
29
Switch Ramp PLN-530027545
...
30
Switch Button PLN-530038309
...
31
Switch Spring PLN-530027959
...
32
Crankcase & Crankshaft Ass'y (20, 20T) (Incl. #21, 28 & 39-43) PLN-530014004
...
33
SCREW 6-19X.437 PLN-545227101
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring (20, 20T, 40) PLN-530026413
...
36
GASKET CYL W/ ADHESIVE PLN-530019267
...
37
Piston Kit (20, 20T, 40) PLN-530069274
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Screw PLN-530015717
...
45
Muffler Guard PLN-530027781
...
46
Muffler Kit PLN-530069310
...
47
Muffler Attachment Spring PLN-530036409
...
48
CYLINDER PLN-530012349
...
49
Spark Plug PLN-530030077
...
50
Screw (20, 20T, 50) PLN-530015239
...
51
Ignition Module Kit PLN-530039134
...
52
Screw (20, 20T) PLN-530015776
...
53
Flywheel Ass'y. (20T) PLN-530047198
...
55
Fan Housing (20, 20T) PLN-530014045
...
56
Kit-Starter Pulley (Incl. 65) PLN-530071387
...
57
STARTER SPRING PLN-545008010
...
58
Starter Handle PLN-530027569
...
59
Rope Kit PLN-530069232
...
65
Screw-Rope Retaining PLN-530016080
...
66
Screw PLN-530015767
...
67
Spacer-20, 20T, 40 PLN-530027525
...
68
Screw PLN-530015770
...
69
Screw PLN-530015769
...
70
Screw PLN-530015496
...
71
Retainer PLN-530027523
...
72
Locknut PLN-530015768
...
73
Engine Gasket Kit ({Indicates Contents) PLN-530069276
...
74
Spark Arrestor Kit PLN-952701612
...
76
Washer PLN-530016030
...
77
Instruction Decal (Type 1) PLN-530027986
...
77
Instruction Decal (Type 2) PLN-530037742
...
77
Instruction Decal (Type 3) PLN-530038844
...
78
Washer-20, 20T PLN-530015828
...
79
Drive Coupling-20, 20T PLN-530027953
...
81
Primer Bulb Ass'y. Type 2 & 3 PLN-530038874
...
82
ScrewPrimer Type 2 & 3 PLN-530016091
...
83
ScrewStarter Spring Type 3 PLN-530015882
...
83
Ass'y. Parts Bag (20T, 40) Not Shown PLN-530014215

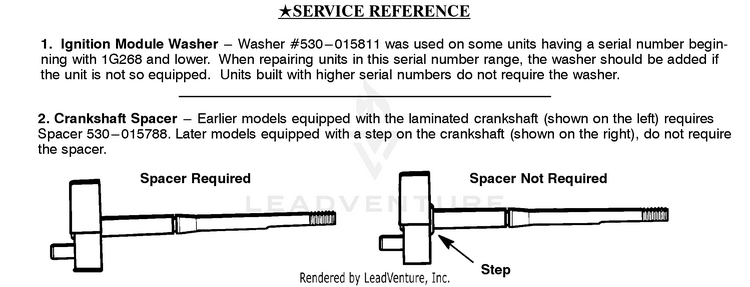

Service Reference

...

No Parts Available for this Schematic
